Product Type	Freestanding Gas Cooker
Brand	Master Kitchen
Model	MKHG 641L E XS
Energy Source	Gas (Natural or LPG convertible)
Number of Gas Burners	4
Oven Type	Gas oven with thermostat
Oven Capacity	Approx. 70 Liters
Width	60 cm
Height	85 cm
Depth	60 cm
Weight	Approx. 50 kg
Control Type	Knobs
Ignition	Automatic electric ignition
Safety Features	Flame failure device on burners and oven
Cleaning	Enamel surface, removable oven door
Oven Functions	Gas mark thermostat, grill (optional)
Material	Stainless steel and enamel
Spare Parts Availability	Yes, through authorized service centers
Repairability Index	7.5/10 (estimated)
Power Supply for Ignition	220-240 V ~ 50 Hz or battery (check manual)
Gas Connection	1/2" BSP thread

Frequently Asked Questions - MKHG 641L E XS Master Kitchen

What type of gas can be used with the MKHG 641L E XS cooker?

The cooker is designed for natural gas (methane) but can be converted to LPG (propane/butane) using an appropriate conversion kit. Refer to the manual for instructions.

How do I clean the oven?

Wait for the oven to cool down. Remove the oven door if necessary. Clean with a damp cloth and mild detergent. Avoid abrasive cleaners to protect the enamel surface.

What are the dimensions of the cooker?

The approximate dimensions are: width 60 cm, height 85 cm, depth 60 cm. Ensure your kitchen space fits these measurements with proper ventilation.

Does the cooker have a flame failure device?

Yes, all gas burners and the oven are equipped with a flame failure device that automatically cuts off gas supply if the flame goes out.

How do I convert the cooker from natural gas to LPG?

Conversion requires replacement of injectors and adjustment of air shutters. This must be done by a qualified technician. The conversion kit is usually included or available from Master Kitchen.

Can I use the grill and oven simultaneously?

Yes, the grill and oven can operate independently. However, using both at high temperatures may affect performance due to gas supply limitations.

What should I do if the burner does not ignite?

Check that the gas supply is on and the knob is fully pressed. If using battery ignition, replace the battery. Also clean the burner cap and electrode with a dry cloth.

Is the oven door removable for cleaning?

Yes, the oven door can be removed for easier cleaning. Instructions are in the manual: open the door fully, lift the hinges, and slide out.

Where can I find spare parts?

Spare parts are available through Master Kitchen authorized service centers or online retailers. Provide the model number MKHG 641L E XS for accurate parts.

What is the repairability index of this cooker?

Based on user ratings, the repairability index is approximately 7.5 out of 10, indicating that spare parts and technical support are reasonably accessible.

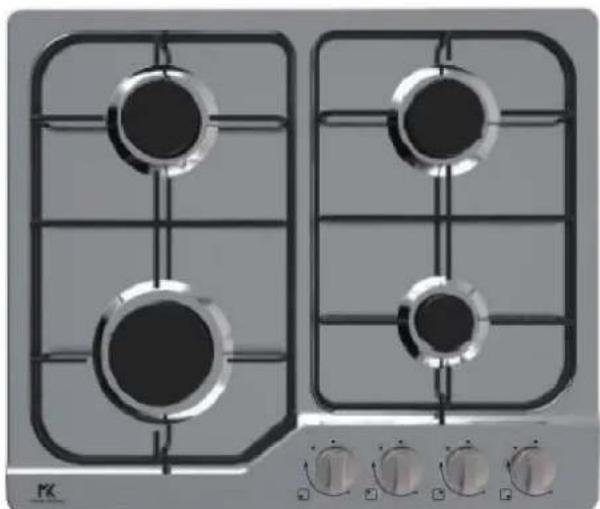

USER MANUAL MKHG 641L E XS Master Kitchen

Illustration of a dual electric stove with four circular burners and a control panel (no text or symbols)

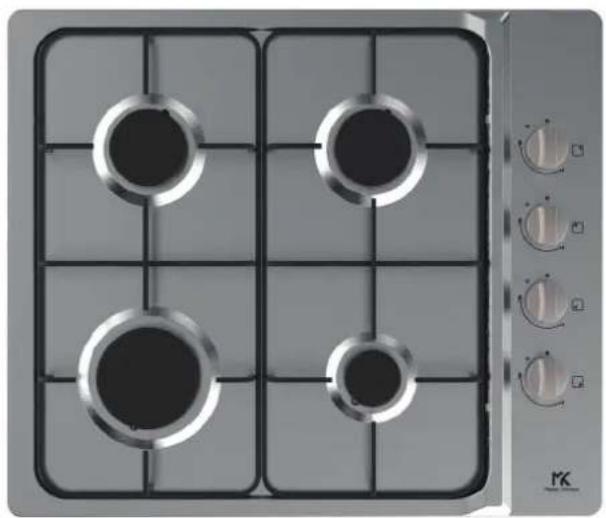

MODELLO: MKHG 641L E XS

Front view of a four-position gas stove with four circular vented lights (no text or symbols visible)

MODELLO: MKHG 75 E XS

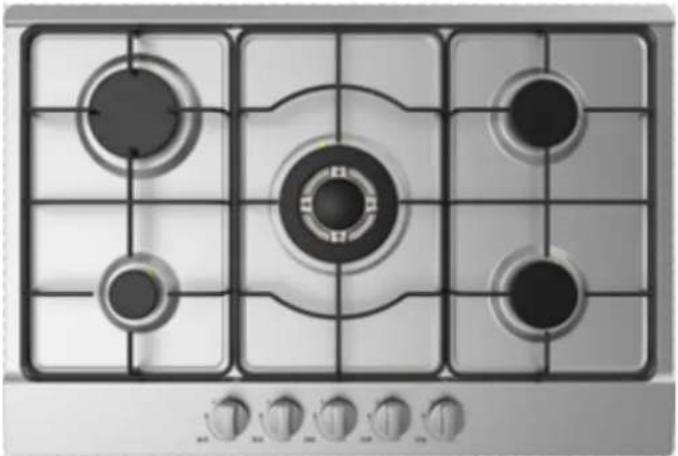

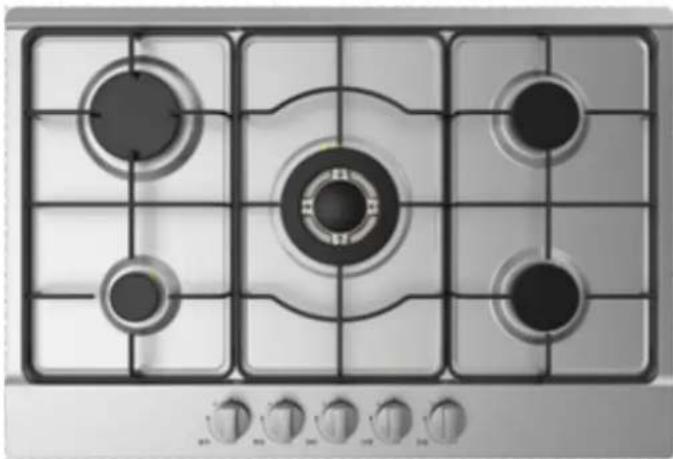

Top-down view of a gas stove with six circular vented lights on the grilles (no text or symbols visible)

Cartoon illustration of a smiling car with a hand in front of a covered truck (no text or symbols)

Cartoon illustration of a child reacting to a large cartoon character holding a tablet (no text or symbols present)

Attenzione

Cartoon illustration of a hand holding a tray with a sad face and a star-shaped gesture, no text or symbols present.

Cartoon illustration of a smiling computer monitor with a hand gesture (no text or symbols)

Cartoon illustration of a distressed hand holding a smartphone with smoke and a pipe, no text or symbols present

Cartoon illustration of a smiling computer with hands and a phone emitting smoke (no text or symbols)

Cartoon illustration of a sad face on a phone with a downward arrow, no text or symbols present

Cartoon illustration of a woman using a griddle to smoke while a stove uses a pan on its side (no text or symbols)

Cartoon illustration of a frowning face with a magnifying glass above a document, surrounded by hands and expressive gestures (no text or symbols)

Durante l'Utilizzo

Cartoon illustration of a smiling face on a keyboard with three control buttons (no text or symbols)

Attenzione

Cartoon illustration of a smiling face on a tablet with a hand pointing to it (no text or symbols)

Illustration of a dual electric stove with four circular vented lights and a control panel (no text or symbols)

Front view of a four-position gas stove with four circular vented lights (no text or symbols visible)

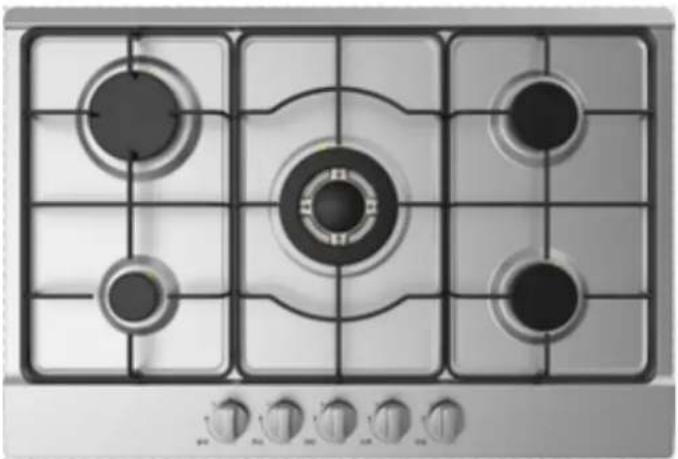

Top-down view of a gas stove with six circular vented lights and a central rotary knob (no text or symbols visible)

TABELLA PER MODELLO MKHG 75 E XS

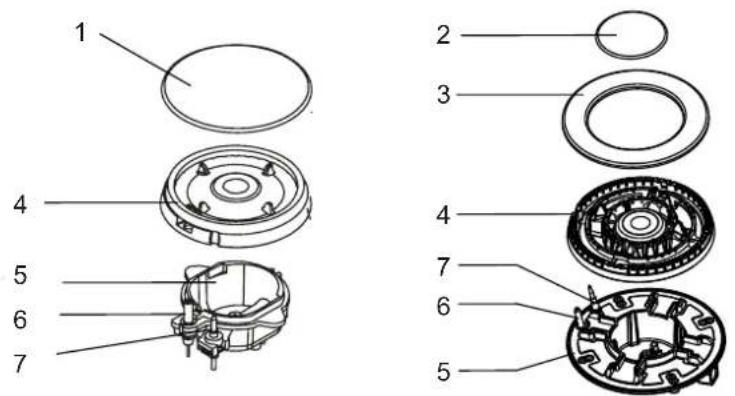

Simple diagram with a circle, star, and curved arrows (no text or symbols)

Close-up of a black circular object with metallic rings, no visible text or symbols

RAPIDO

Close-up of a black circular object mounted on a metallic base (no visible text or symbols)

SEMI-RAPIDO

AUSILIARIO

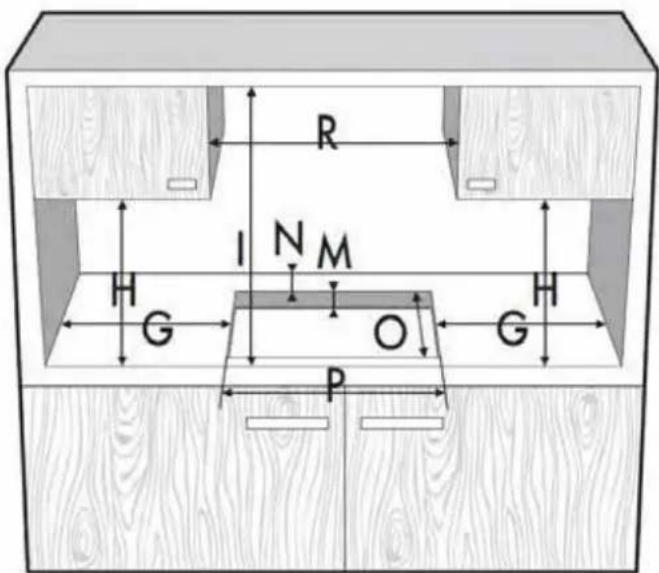

DIMENSIONE	MODELLO PIANO	Dimensione P D	Dimensione O Dim	Dimensione N Dim	Dimensione G Dim	Dimensione M Dim	Dimensione H Dim	Dimensione I Dim	Dimensione R
75 cm	MKHG 75 E XS	560 mm (+3/0)	490 mm (+3/0)	min. 55 mm min. 200 mm min. 30 mm min. 400 mm min. 700 mm min. 750 mm
60 cm	MKHG 641 F E XS	560 mm (+3/0)	480 mm (+3/0)	min. 55 mm min. 150 mm min. 30 mm min. 400 mm min. 700 mm min. 600 mm
60 cm	MKHG 641 L E XS	560 mm (+3/0)	480 mm (+3/0)	min. 55 mm min. 150 mm min. 30 mm min. 400 mm min. 700 mm min. 600 mm

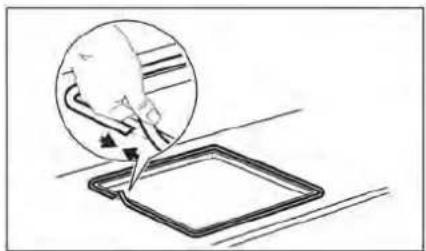

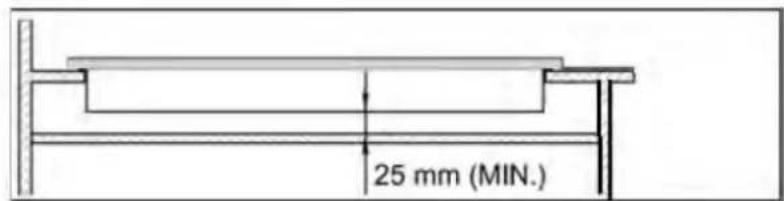

Technical line drawing of a mechanical component with an inset showing a detail (no text or symbols)

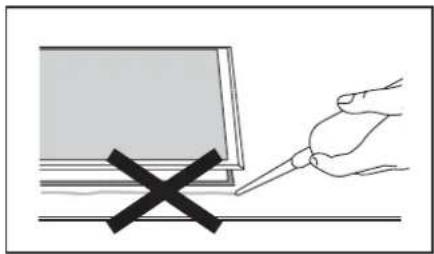

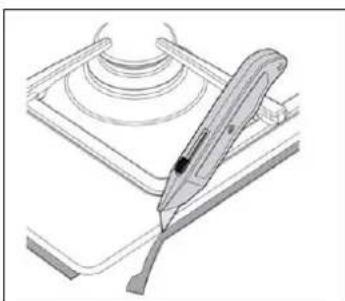

Illustration of a hand using a tool to cut a tray with arrows indicating motion (no text or symbols)

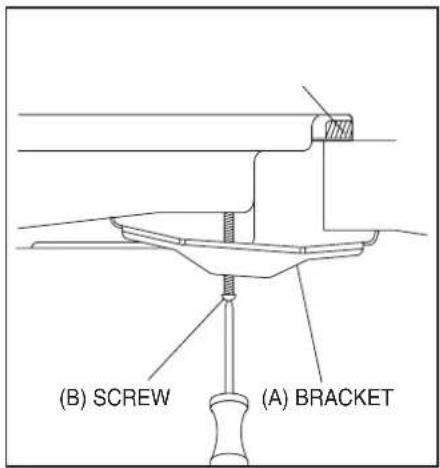

Technical line drawing of a mechanical tool interacting with a base plate (no text or symbols)

Simple line drawing of a hand holding a pen over a laptop with a cross mark (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Illustration of a dual-gas stove with four circular burners and a control panel (no text or symbols)

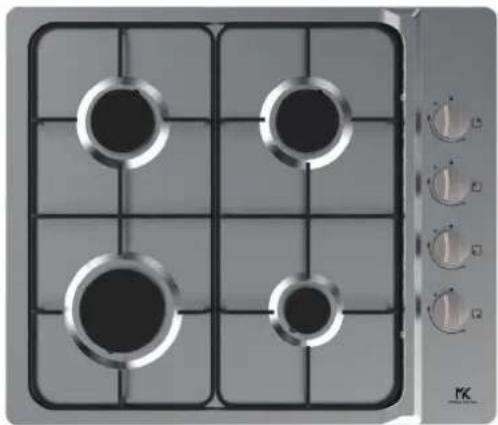

MODELLO: MKHG 641L E XS

Four identical electric cooktop with four circular flanges and a control panel on the right (no text or symbols visible)

MODELLO: MKHG 75 E XS

Top-down view of a gas stove with six burners and a central vent (no text or symbols visible)

The graphic representation is made for the sole purpose of illustrating the product and is purely indicative.

Read this manual carefully before using your built-in hob as it contains the suggestions and information to maintain the aesthetic and functional qualities of the appliance purchased.

Thank you for choosing a Master Kitchen gas hob.

To use this product correctly and prevent any potential risk, please read these instructions carefully before using the appliance.

Keep these instructions in a place where they can be easily found.

If you are uncertain about the information contained in these instructions, please contact the Customer Support Center.

The manufacturer isn't responsible for any damage to persons or property of their own age deriving from incorrect installation of the product or from wrong use.

The appliance has been certified for use in other countries as well as those reported.

The manufacturer also reserves the right to apply changes to the products, if they are considered necessary or useful, even in the interest of the consumer, without compromising the main operation and safety features of the products themselves.

The product is intended for domestic use and not for commercial use.

Preface

Safety Warning

3 Safety Instructions
4 Installation
5 Child and People Safety
6 During Use
8 Cleaning and Service
8 Environmental Information

Instructions for use and maintenance

9 Description of the appliance
14 How to Use the appliance
15 Safety and Energy saving advice
17 Cleaning and Maintenance

Technical instructions

20 Using instructions
21 Installing the appliance
24 Gas Connection
25 Electrical Connection
27 Gas Conversion
28 Trouble shooting

CE This appliance complies with the following CEE Directives :

• 2014/35 (LVD)
• 2014/30 (EMC)
• 2016/426 (GAR)

These instructions are valid for countries only of destination whose identification symbols appear on the cover of the instruction manual and on the appliance.

■ Please take the time to read this Instruction Manual before infstalling or using the appliance.
■ This instruction booklet must be kept with the appliance for any future reference. If the appliance is sold or transferred to another person, ensure the booklet is passed on to the new user.
■ The manufacturer declines any liability should these safety measures not be observed.
■ The following marks are made to be easily understood so that you can prevent any accident caused by misuse in advance, and use the appliance more conveniently.
- Read the following contents thoroughly and ensure you understand them.

■ The following symbols are used in the user manual as follows :

Danger/Warning	Neglect of this mark may result in severe personal injury or death.
Caution	Neglect of this mark may result in minor personal injury or property damage.

Must Do

Danger

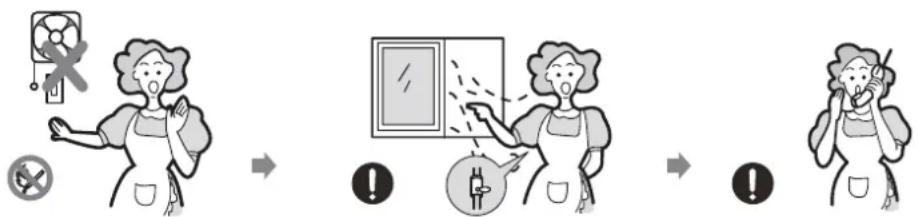

■ If gas seems to leak, take the actions as follow :

• Do not turn on the light.
• Do not switch on/off any electrical appliance and do not touch any electric plug.
• Do not use a telephone.
  1 Stop using the product and close the middle valve.
  2 Open the window to ventilate.
  3 Contact our service centre by using a phone outside.

*Tefuelgas contains nercaptan, so that you can set the gas leak (selerofoten galc or egg) even where only 1/1000 of the gas is in the air.

Warning

■ This appliance shall be installed in accordance with regulations in force and only used in a well ventilated space.

Cartoon illustration of a smiling refrigerator with a hand pointing at it (no text or symbols)

■ Prior to installation, ensure that the gas and electrical supply complies with the type stated on the rating

plate.

■ This Tarpjans qipreus and heterois at alableon yachts or caravans.

Cartoon illustration of a car with a sad face and open trunk, no text or symbols present

must be installed in such a way that they do not touch any parts or the appliance.

Cartoon illustration of a sad face with a thumbs-down gesture, holding a smartphone (no text or symbols)

Caution

■ This appliance should be installed by a qualified technician or installer.
■ The adjustment conditions for this appliance are stated on the label or data plate.
■ Remove all packaging before using the appliance.
■ After unpacking the appliance, make sure the product is not damaged and that the connection cord is in perfect condition. Otherwise, contact the dealer before installing the appliance.
■ The adjacent furniture and all materials used in the installation must be able to withstand a minimum temperature of 85^ C above the ambient temperature of the room it is located in, whilst in use.
In the event of burner flames being accidentally extinguished, turn off the burner control and do not attempt to re-ignite the burner for at least one minute.
■ The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).
■ Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.
■ During the first hour of operation of the product, a slight unpleasant odor may appear as any oily residues from processing are burned. Be sure to give sufficient ventilation to the room.

Warning

■ Do not allow children to play near or with the appliance.

The appliance gets hot when it is in use.

Children should be kept away until it has cooled.

Cartoon illustration of a child reacting to a large phone screen with a surprised face (no text or symbols)

Caution

■ This appliance is designed to be operated by adults.
■ Children can also injure themselves by pulling pans or pots off the appliance.
■ This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safety without supervision or instruction by a responsible person to ensure that they can use the appliance safety.

Warning

■ Only use the appliance for preparing food.

■ Do not modify this appliance.Burner panel is not designed to operate from an external timer or separate remote control system.

Cartoon illustration of a hand holding scissors to cut a document with a sad face (no text or symbols)

■ The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device

(mechanical extractor hood).

Cartoon illustration of a smiling computer monitor with a pointing hand (no text or symbols)

■ Do not use this appliance if it comes in contact with water. Do not operate this appliance with wet hands.

Cartoon illustration of a distressed hand holding a smartphone with smoke and vapor plume (no text or symbols)

■ The heating and cooking surfaces of the appliance become hot when they are in use, take all due precautions.

Cartoon illustration of a hand holding a pen with a smiling face, pointing at a device screen (no text or symbols present)

■ Do not use large cloths, tea towels or similar as the ends could touch the flames and catch fire.

Cartoon illustration of a sad face on a phone with a speech bubble above, no text or symbols present

■ Never leave the appliance unattended when cooking.

Cartoon illustration of a woman using a smokestack to smoke from a stove, with another person reacting in fear (no text or symbols)

■ Unstable or misshapen pans should not be used on the appliance as they can cause an accident by tipping or spillage.

Cartoon illustration of a frustrated character holding a frying pan while pointing upward (no text or symbols)

■ Do not use or store flammable materials in the storage drawer near this appliance.

■ Perishable food, plastic items and aerosols may be affected by heat and should not stored above or below the appliance.

■ Do not spray aerosols in the vicinity of this appliance while it is in operaiton.

Illustration of a person spraying water from a fire on a stove (no text or symbols)

■ Ensure the control knobs are in the ‘●’ position when not in use.

Cartoon illustration of a smiling computer with five control knobs and thumbs down (no text or symbols)

Caution

■ This product is intended for domestic use only. It was not made for commercial or industrial use.
■ Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or increasing the level of mechanical ventilation where present.
■ Use heat-resistant pot holders or gloves when handling hot pots and pans.
■ Do not let pot holders come near open flames when lifting cookware.
■ Take care not to let pot holders or gloves get damp or wet, as this causes heat to transfer through the material quicker with the risk of burning yourself.
■ Only ever use the burners after placing pots and pans on them. Do not heat up any empty pots or pans.
■ Never use plastic or aluminium foil dishes on the appliance.
■ When using other electrical appliances, ensure the cable does not come into contact with the appliance surfaces of the cooking appliance.
■ If you have any mechanical parts eg. an artificial heart in your body, consult a doctor before using the appliance.
■ Do not use a tea towel or similar materials in place of a pot holder. Such cloths can catch fire on a hot burner.
■ To minimise the possibility of burns, ignition of flammable materials and spillage, turn cookware handles toward the side or center of the top plate without extending over adjacent burners.
■ Always turn burner controls off before removing cookware.
■ Carefully watch foods being fried at a high flame setting.
■ Always heat fat slowly and watch as it heats.
■ Foods for frying should be as dry as possible. Frost on frozen foods or moisture on fresh foods can cuase hot fat to bubble up and over the sides of the pan.
■ Never try to move a pan of hot fat especially a deep fat fryer. Wait until the fat is completely cool.

Warning

■ Never use abrasive or caustic cleaning agents.

■ This appliance should only be repaired or serviced by an authorised Service Engineer and only genuine approved spare parts should be used.

Caution

■ Before attempting to clean the appliance, it should be disconnected from the mains and cooled.
- You should not use a steam jet or any other high pressure cleaning equipment to clean the appliance.
- Keep the appliance clean, food residues can cause fire risk

environmental information

■ After installation, please dispose of the packaging with due regard to safety and the environment.
■ When disposing of an old appliance, make it unusable, by cutting off the cable.

Cartoon illustration of a smiling face on a rectangular plate with a hand gesture (no text or symbols)

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

■ This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
■ Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.
■ Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Exterior view of a dual-gas stove with four circular vented lights (no text or symbols visible)

Model	MKHG 641F E XS
Top plate	Stainless steel
Pan support	Enamelled iron
Dimensions (L*P*H)	600 mm * 510 mm * 95 mm
Ignition device	Ignition under-knob (one hand)
Gas connection	G 1/2 cylindrical
Electric supply	220-240V ac, 50Hz-60Hz, 2W
Burner feature	Rapid burner (1)Semi-rapid burner (2)Auxiliary burner (1)
ΣQn	7.5 kW

The graphic representation is made for the sole purpose of illustrating the product and is purely indicative.

Front view of a four-position electric stove with four circular vented lights (no text or symbols visible)

Model	MKHG 641L E XS
Top plate	Stainless steel
Pan support	Enamelled iron
Dimensions (L*P*H)	590 mm * 500 mm * 95 mm
Ignition device	Ignition under-knob (one hand)
Gas connection	G 1/2 cylindrical
Electric supply	220-240V ac, 50Hz-60Hz, 2W
Burner feature	Rapid burner (1)Semi-rapid burner (2)Auxiliary burner (1)
ΣQn	7.5 kW

The graphic representation is made for the sole purpose of illustrating the product and is purely indicative.

Top-down view of a gas stove with six circular vented lights and a central rotary knob (no text or symbols visible)

Model	MKHG 75 E XS
Top plate	Stainless steel
Pan support	Enamelled iron
Dimensions (L*P*H)	750 mm * 510 mm * 90 mm
Ignition device	Ignition under-knob (one hand)
Gas connection	G 1/2 cylindrical
Electric supply	220-240V ac, 50Hz-60Hz, 2W
Burner feature	Wok burner (1)Rapid burner (1)Semi-rapid burner (2)Auxiliary burner (1)
ΣQn	11.5 kW

The graphic representation is made for the sole purpose of illustrating the product and is purely indicative.

TABLE FEATURES BURNERS AND NOZZLES FOR MODELS MKHG 641F E XS AND MKHG 641L E XS

Category	Gas type	Burner	Rapid	Semi-rapid	Auxiliary
		Rated power (kW)	3.0	1.75	1.0
I3+	G30/G3129/37 mbar	Max rated flow (g/h)	219	127	73
		Injector diameter (mm)	0.87	0.66	0.50
I2H/I2E/I2E+	Gas naturale20 mbar	Max rated flow (l/h)	286	167	95
		Injector diameter (mm)	1.30	1.00	0.78
II2H3+	G30/G3129/37 mbar	Max rated flow (g/h)	219	127	73
		Injector diameter (mm)	0.87	0.66	0.50
	Gas naturale20 mbar	Max rated flow (l/h)	286	167	95
		Injector diameter (mm)	1.30	1.00	0.78
II2E3B/P, II2H3B/P	L.P.G(G30,G31)(28-30)mbar	Max rated flow (g/h)	219	127	73
		Injector diameter (mm)	0.87	0.66	0.50
	Gas naturale20 mbar	Max rated flow (l/h)	286	167	95
		Injector diameter (mm)	1.30	1.00	0.7

■ If you want to process gas conversion, all work must be carried out by a qualified technician.
■ All injectors replacement should be operated according to the table above; after gas conversion it is strongly suggested to update the label on the product for clarification.

TABLE FEATURES BURNERS AND NOZZLES FOR MODEL MKHG 75 E XS

Category	Gas type	Burner	Triple Crown	Rapid	Semi-rapid	Auxiliary
		Rated power (kW)	4.0 3.0		1.75	1.0
I3+	G30/G3129/37 mbar	Max rated flow (g/h)	291	219	127	73
		Injector diameter (mm)	1.00	0.87	0.66	0.50
I2H/I2E/I2E+	Gas naturale20 mbar	Max rated flow (l/h)	381	286	167	95
		Injector diameter (mm)	1.50 1.30		1.00	0.78
II2H3+	G30/G3129/37 mbar	Max rated flow (g/h)	291 219		127	73
		Injector diameter (mm)	1.00	0.87	0.66	0.50
	Gas naturale20 mbar	Max rated flow (l/h)	381	286	167	95
		Injector diameter (mm)	1.50	1.30	1.00	0.78
II2E3B/P, II2H3B/P	L.P.G(G30,G31)(28-30)mbar	Max rated flow (g/h)	291 219		127	73
		Injector diameter (mm)	1.00	0.87	0.66	0.50
	Gas naturale20 mbar	Max rated flow (l/h)	381	286	167	95
		Injector diameter (mm)		1.50	1.30	1.00

■ If you want to process gas conversion, all work must be carried out by a qualified technician.
■ All injectors replacement should be operated according to the table above; after gas conversion it is strongly suggested to update the label on the product for clarification.

Accessory

Line drawing of a mechanical component with three parallel grooves (no text or symbols)

Bracket (4)

Sponge (4)

Seal (1)

Injector (5 for hob 75 cm) Injector (4 for hob 60 cm)

Instruction Manual (1)

how to use the appliance

The following symbols will appear on the control panel, next to each control handle :

- Black circle: gas off

▲ Large flame: maximum setting

Small flame: minimum setting

Simple diagram with a circle, star, and curved arrows (no text or symbols)

■ The minimum setting is at the end of the anti-clockwise rotation of the control handle.
■ All operation positions must be selected between the maximum and minimum position.
■ The symbol on the control panel, next to the control handle will indicate which burner it operates.
■ The appliances is equipped with an electronic ignition device. Simply press and turn the knob anti-clockwise to the maximum flame symbol until it is switched on .if the burner does not light up in the first 15 seconds, turn the knob to ● and do not attempt to restart for 60 seconds.
Once the ignition is switched on, keep the knob pressed for a few seconds to allow the thermocouple to heat up.
It may happen that the burner goes out when the knob is released, it means that the thermocouple has not heated up enough. Wait a few moments and repeat the operation; keep the knob pressed for longer.
■ In the event of an accidental switch-off, a safety device blocks the gas outlet even when the tap is open.
Return the knob to ● and do not attempt to restart for 60 seconds.

- The diameter of the bottom of the pan should correspond to that indicated in the table below

Values for hob 75 cm

BURNERS	PANS
	min.	max.
Triple-Crown	220mm	260mm
Rapid	200mm	260mm
Semi-rapid	180mm	240mm
Auxiliary	120mm	180mm

Values for hobs 60 cm

BURNERS	PANS
	min.	max.
Triple-Crown	200mm	240mm
Rapid	200mm	240mm
Semi-rapid	160mm	180mm
Auxiliary	120mm	160mm

Do not use cookware that overlaps the edge of the appliance

TRIPLE-CROWN

Close-up of a metallic circular object with a black top and silver rim (no visible text or symbols)

RAPID

Close-up of a metallic cylindrical object with a black circular top, possibly a knob or dial (no visible text or symbols)

SEMI-RAPID

AUXILIARY

NO YES
	Do not use small diameter cookware on large burners.The flame should never come up the sides of the cookware.	Always use cookware that is suitable for each burner, to avoid wasting gas and discolouring the cookware.
	Avoid cooking without a lid or with the lid half off- as this wastes energy	P lacea lid on thecookware.
	Do not use a pan with a convex or concave bottom.	Only use pots, saucepans and frying pans with a thick, flat bottom.
	Do not place cookware on one side of a burner, as it could tip over.	Always place the cookware right over the burners, not to one side.
	Do not use cookware with a large diameter on the burners near the controls, which when placed on the middle of the burner may touch the controls or be so close to them that they increase the temperature in this area and may cause damage.
	Never place cookware directly on top of the burner.	Place the cookware on top of the trivet.
	Do not place anything, eg. flame tamer, asbestos mat, between pan and pan support as serious damage to the appliance may result.
	Do not use excessive weight and do not hit the cookwith heavy objects	Handle cookware carefully when they are on the burner.

Use of the grill pan

■ It is possible to preheat the grill to the maximum burner output for no more than 10 minutes.
■ It is advisable to set the cooking of the food to a reduced power.
■ Make sure that the burner flames do not come out of the edge of the grill.
- Keep a minimum distance of 150 mm from the edge of the grill from the side wall.
■ Do not place the grill on several burners at the same time.

safety and energy saving advice

■It is recommended not to useroasting pans, frying pans and grillson different burners at the same time as the heat developed could damage the appliance.
■ Do not touch the top plate and trivet whilst in use for a certain period after use.
■ Do not use cast iron pans, clay or earthenware pots, grill or toaster plates. The stainless steel can become tarnished if it is too much heated.

■ As soon as a liquid starts boiling, turn down the flame so that it will barely keep the liquid simmering.
■ Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them. Since the vapours that very hot oil releases can causes spontaneous combustions, please watch your food during cooking.

■ Cleaning operations must only be carried out when the appliance is completely cool.
■ The appliance should be disconnected from your mains supply before commencing any cleaning process.
■ Clean the appliance regularly, preferably after each use.
■ Abrasive cleaners or sharp objects will damage the appliance surface; you should clean it using water and a little washing up liquid.

Usable Unusable
	Soft clothNeutral Detergent	Nylon Brush Metal Brush Edible Oil Acidic/Alkali Detergent[50Z3] Abrasive Thinn [V47X]

Pan support, Control knobs

When using the hob, all its accessory components are subject to wear, such as the pan supports. These can become stained due to the fatty residues deposited over time during cooking, or due to the dragging of the pots.

■ Take off the Pan support.
■ Immerse them for a few minutes in a solution of warm water and neutral detergent.
■ Rub with a not-abrasive sponge and dry with a soft cloth.

N.B. To avoid the aesthetic deterioration of the pan supports, it is advisable to clean them thoroughly immediately after each use.

Attention, don't wash the pan supports in the dishwasher.

White residues on the pan supports are due to normal rubbing with the pots and don't affect the quality and performance of the product.

Also to clean the knobs, use a soft cloth and a mixture of warm water and neutral detergent.

Top plate

Attention, it isn't recommended to pour water on the worktop to prevent it from penetrating inside the product and causing damage.

■ To keep the surfaces in good condition, they must be cleaned regularly after each use, after having allowed them to cool.
■ Regularly clean the surface of the hob using a cloth soaked in hot water to which neutral not-abrasive detergent has been added (for stainless steel hobs, rub following the direction of the steel brushing).
■ Dry the hob carefully after cleaning it.
■ The stainless steel parts of the appliance may become discolored over time. This is normal due to high temperatures. Each time the appliance is used these parts should be cleaned with a specific product for stainless steel.

BURNERS

Flame spreaders and enamelled burner lids are inevitably subject to wear and tear and can get stained when using your appliance.

■ Remove the burner lids and Flame Spreaders by pulling them upwards and away.
■ Immerse them in boiling water with a little neutral detergent.
■ After cleaning and washing them, dry them by rubbing them carefully. Make sure that the holes / grooves from which the flame comes out are clean and completely dry.
■ Clean the fixed parts of the burner cup with a damp cloth and then dry.
■ Gently wipe the ignition and flame control device (thermocouple) with a well-wrung pan and dry it with a clean cloth.
■ Before replacing the enamelled lids and flame spreaders on the respective burner cups, make sure that the injector is not obstructed to avoid burner operating problems.

■ Re-assemble the Auxiliary, Semi-Rapid, Rapid and Triple Crown burners as follows :

1. Place the flame spreader (4) on to the burner cup (5) so that the ignition device and the flame supervision device extend through their respective holes in the flame spreader. The flame spreader must click into place correctly.

2. Place the burner lid (1, 2, 3) onto the flame spreader (4) so that the retaining pins fit into their respective recesses.

Replace parts in the correct order after cleaning.

- Do not interchange the burner lids. - The locating pins must fit exactly into the notche. - PERIODIC MAINTENANCE : speak with your local Authorised Service Centre periodically to check the conditions of the gas supply pipe and the pressure adjuster, if fitted.

⚠Warnings

■ Do not modify this appliance.
■ This appliance must be installed by an authorised technician or installer. All installation, connection, regulation and adaptation operations to other types of gas must be carried out by an authorized technician, in compliance with the applicable regulations and legislation and in accordance with the prescriptions of the local gas and electricity supply companies. Pay particular attention to the applicable ventilation regulations.
■ The adjustment conditions for this appliance are stated on the label (or data plate).
■ This appliance is not connected to a combustion products evacuation device. It should be installed and connected in accordance with current installation regulations. Particular attention should be given to the relevant requirements regarding ventilaton.
■ Before installing, turn off the gas and electricity supply to the appliance.
■ All appliances containing any electrical components must be earthed.
■ Ensure that the gas pipe and electrical cable are installed in such a way that they do not touch any parts of the appliacne which may become hot.
- Gas pipe or connector shouldn't be bent or blocked by any other appliances.
- Check the dimensions of the appliance as well as the dimensions of the gap to be cut in the kitchen unit.
■ The panels located above the work surface, directly next to the appliance, must be made of non-flammable material. Both the stratified surfacing and the glue used to secure it should be heat resistant, to prevent deterioration.
■ Turn on appliance tap and light each burners. Check for a clear blue flame without yellow tipping. If burners show any abnormalities check the following :

- Burner lid on correctly

- Flame spreader positioned correctly

- Burner vertically aligned with injector nipple

■ A full operational test and a test for possible leakages must be carried out by the fitter after installation.

■ The flexible hose shall be fitted in such a way that it cannot come into contact with a moveable part of the housing unit and does not pass through any space susceptible of becoming congested.

installing the appliance

Veneers, adhesives or plastic coatings on adjacent furniture should be temperature resistant ( >90^ ), otherwise they might warp over time.

Only install the appliance on top with flat surface

In the image/table below you can see the necessary dimensions for a correct positioning of the appliance.

DIMENSION	MODEL	Dimension P	Dimension O	Dimension N	Dimension G	Dimension M	Dimension H	Dimension I	Dimension R
75 cm	MKHG 75 E XS	560 mm (+3/0) 4	90 mm (+3/0)	min. 55 mm min. 200 mm min. 30 mm min. 400 mm min. 700 mm min. 750 mm
60 cm	MKHG 641 F E XS	560 mm (+3/0) 4	80 mm (+3/0)	min. 55 mm min. 150 mm min. 30 mm min. 400 mm min. 700 mm min. 600 mm
60 cm	MKHG 641 L E XS	560 mm (+3/0) 4	80 mm (+3/0)	min. 55 mm min. 150 mm min. 30 mm min. 400 mm min. 700 mm min. 600 mm

INSTALLATION OF THE APPLIANCE UNDER THE HOOD

The minimum clearance between a ventilation hood and the cooking surface must be at least the distance indicated in the ventilation hood installation instructions.

Installation on a neutral compartment or drawer

- If there are other furniture under the Gas cooktop, a double bottom must be installed at a minimum distance of 25 mm from the bottom side of the Gas cooktop to prevent accidental contact.

- The panel installed under the Gas cooktop must be easily removable to allow easy access to the Gas cooktop at the technical assistance if necessary.

With built in oven

- If the hob is installed above an oven, the oven must be equipped with cooling ventilation.

- Before proceeding with the installation, check the oven dimensions on its installation manual.

- The distance between the hob and built-in appliances must be guaranteed sufficient ventilation and sufficient air discharge.

- If installed above an oven, it is necessary to leave a space between the bottom of the hob and the upper part of the oven installed underneath.

To prevent leakage of liquid between the frame of the hob and the work surface (kitchen top), put the insulating seal provided in position before assembly as described below :

1. Install the product into countertop and use a pencil to draw a line along the product outer edges.
2. Take out the product and place the adhesive seal provided along the line you draw by step 1. Use light pressure to make the seal stick to the worktop.
3. Install the product again, Use light pressure to make the seal stick to product edge.
4. Carefully trim the surplus edge away from the seal.
5. Cleaning the kitchen top from any remaining gasket residues.

Simple line drawing of a rectangular object with a magnified inset showing a diagonal line (no text or symbols)

Illustration of a hand using a tool to cut a rectangular object with arrows indicating motion (no text or symbols)

Illustration of a pen writing on paper with concentric circles (no text or symbols)

Do not use a silicon sealant to seal the appliance against the aperture.

This will make it difficult to remove the appliance from the aperture in future, particularly if it needs to be serviced.

Illustration of a hand holding a pen over a laptop with a black X mark, no text or symbols present

Screw the fixing brackets (A) using the appropriate screws (B) into the appropriate holes on the sides of the bottom-case to correctly fix the gas built-in hob to the structure

■ This appliance must be installed and connected in accordance with installation regulations in force in the country in which the appliance is to be used.
■ This appliance is supplied to run on LPGd natural gas. Conversion for use on LPG and natural gases must only be undertaken by a qualified person.

■ For maximum performance and lowest consumption, make sure the gas supply pressure complies with the values indicated in the table of "Characteristics of the burners". If the pressure of the gas used is different (or variable) than the expected one, it is necessary to install, on the inlet pipeline, an appropriate pressure regulator for canalized gases (NOT LPG) in compliance with the UNI EN88 standard.

The use of pressure regulators for liquid gases (LPG) is allowed as long as they comply with the UNI EN 12864 standard

■ It is mandatory by law that all gas appliances are installed by competent persons in accordance with the current edition of the Regulations on the installation and safe use of gas
■ It is necessary to guarantee the respect of the law for one's own interest and for reasons of security

General information

The connection to the gas mains can be carried out with a rigid copper pipe or with a continuous wall steel flexible pipe in compliance with the prescriptions established by the current regulation.

Connection with flexible steel tube

Connect to the gas mains using a continuous wall flexible steel hose that conforms to the characteristics indicated by the current standard.

Screw the fitting 3 to the gas fitting 1 of the appliance, always interposing the gasket 2 supplied.

When installation is complete, check for leaks with a soapy solution, never with a flame.

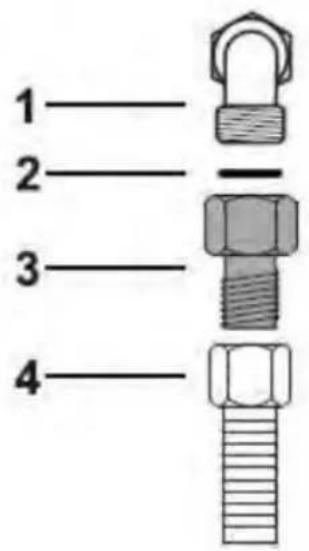

Connection with flexible steel tube with conical connection

Connect to the gas mains using a continuous wall flexible steel hose that conforms to the characteristics indicated by the current standard.

Carefully tighten the fitting 3 to the gas connection 1 (thread ^1/2 "ISO 228 -1) of the appliance, always interposing the supplied seal 2. Apply the insulating material to the thread of the fitting 3, then screw the steel flexible tube 4 into the fitting 3. When installation is complete, check for leaks with a soapy solution, never with a flame.

Ventilation in location

The appliance must be installed in permanently ventilated location, as required by current regulations (must be carried out by qualified personnel in compliance with the regulation in force.

Make sure that the kitchen is well ventilated; keep natural ventilation holes open (at least 100 cm2) or install a mechanical extractor hood.

The location must be kept properly ventilated to eliminate the heat and humidity produced by cooking; in particular, after prolonged use, it is advisable to open a window or increase the speed of any fans.

electrical connection

THE APPLIANCE MUST BE CONNECTED TO THE POWER SUPPLY ONLY BY QUALIFIED AND COMPETENT PERSONNEL. CHECK WITH AN ELECTRICIAN THAT THE HOME ELECTRICAL SYSTEM IS SUITABLE WITHOUT MODIFICATIONS, ANY MODIFICATION MUST ONLY BE CARRIED OUT BY A QUALIFIED TECHNICIAN.

■ Make sure that the rated voltage and type of power on the rating plate agree with the voltage and the power of the local power supply.

■ Always use a correctly installed shockproof socket

■ Do not pull the mains cable to disconnect the appliance. Always pull the mains plug. The cable must not be crushed.

■ There is a risk of fire when the appliance is in connection with an extension cable, an adapter or a multiple connection. Make sure that the ground connection agrees with the standards and regulations.

■ Do not let the power cable to heat up to a temperature higher than 90^ C.
■ If the appliance is connected directly to the power supply, an omni-polar circuit breaker with a minimum opening of 3 mm between the contacts must be installed.
■ This appliance is designed to be connected to a 220-240V single phase electricity supply. The connection must be carried out in compliance with the laws and regulations in force. Before making the connection, make sure that the socket or the omnipolar switch used can be easily reached with the appliance installed.
■ If the cable is damaged or must be replaced, the operation must be carried out by the service center or by a qualified technician to avoid any inconvenience. The connection method is shown below.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

■ Take precautions on the operations and adjustments to be carried out when converting from one gas to another.
■ All work must be carried out by a qualified technician.
■ Before you begin, turn off the gas and electricity supply to the appliance.

1

Change the injector of the burners.

Remove the pan support, Burner lid and Flame spreader.

Unscrew the injector using a 7 mm box spanner and replace it with the stipulated injector for new gas supply.

Carefully reassemble the all components.

After injectors are replaced, it is advisable to strongly tighten the injector in place.

2

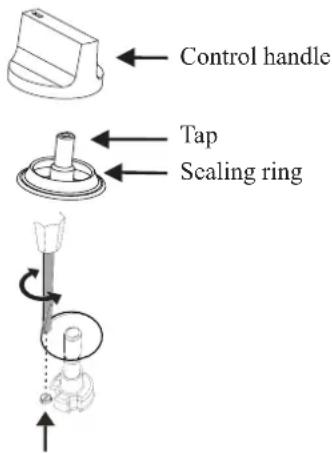

Adjustment of minimum level of the flame

The adjustment screw is positioned on the side of the tap

① Turn the taps down to minimum
② Remove the knob from the tap and with a small bladed screwdriver adjust the screw positioned on the tap.
③ The correct adjustment is obtained when the flame has a length of about 3 - 4 mm.

• For butane/propane gas, the adjusting screw must be tightly screwed in.
• Refit the control knob.
• Make sure that the flame does not go out by quickly turning from maximum flow to minimum flow. If it does then remove the control knob and make further adjustments to the gas flow, testing it again once the adjustment has been made.

④ Repeat this process for each one of the gas taps.

■ Do not dismantle the tap shaft: in the event of a malfunction, change the whole tap.
■ Before placing the burners back on the top place, make sure that the injector is not blocked.
■ A full operational test and a test for possible leakages must be carried out after gas conversion. (such as soap water or gas detector)

■ After completing conversion, a qualified technician or installer has to mark "V" on the right gas category to match with the setting in rating plate. Remove the previous setting "V" mark.

■ Repairs should be performed by a licensed technician only. Improper repair may result in considerable danger to you and others.
■ However, some minor problems can be resolved as follows :

Problem Probable cause Solution
Not ignited	No Spark. Check the electricity supply	.
	The burner lid is badly assembled.	Assemble the lid correctly.
	The gas supply is closed. Open the gas supply completely.
Badly ignited	The gas supply is not completely open.	Open the gas supply completely.
	The burner lid is badly assembled.	Assemble the lid correctly.
	The ignition plug is contaminated with alien substance.	Wipe alien substance with a dry cloth .
	The burners are wet. Dry the burners lids carefully.
	The holes in the flame spreader are clogged.	Clean the flame spreader.
Noise made when combusted and ignited	The burner lid is badly assembled.	Assemble the burner lid correctly.
Flame goes out when in use.	The flame supervision device is contaminated with alien substance.	Clean the flame supervision device.
	Product being cooked has boiled over and extinguished the flame.	Turn off burner knob. Wait one minute and reignite zone.
	A strong draught may have blown the flame out .	Please turn off zone and check cooking area for draught such as open windows. Wait one minute and reignite zone
Yellow Flame	The holes in the flame spreader are clogged.	Clean the flame spreader.
	Different gas is used. Check the gas used.
Unstable Flame	The burner lid is badly assembled.	Assemble the burner lid correctly.
Gas Smell	Gas leakage	Stop using the product and close the middle valve.Open the window to ventilate.Contact our service centre by using a phone outside.

■ If problem is not solved, please contact customer care centre
