USER MANUAL 12.301190-11 PIONEER
Installation manual for:
Mercedes Benz C-Class (W203-007) 04-2004-> C- & T- Models Mercedes Benz CLK (W209-4) 04-2004->


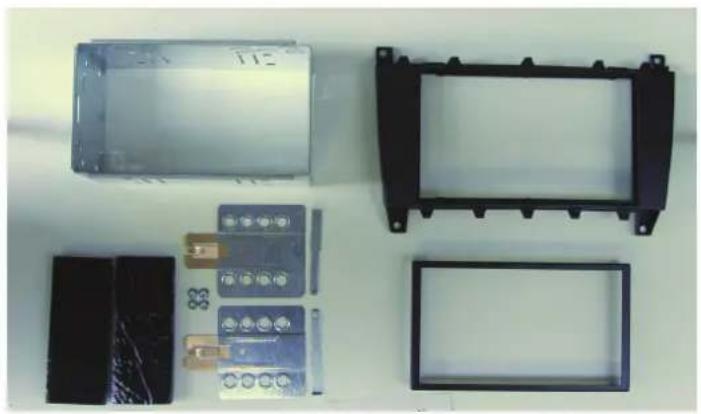

Exterior view of a mechanical assembly with plastic housing, metal components, and black frame (no visible text or symbols)Installation kit includes the following items:
* 1X 2-ISO 100 mm. metal bracket
* 1X Replacement panel
* 1X Radio trim
* 2X Mounting plates
* 2X Mounting spacers
* 2X Radio removal keys
* 4X Screws
* 2X Cushion

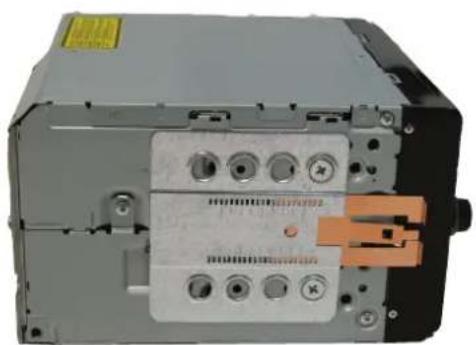

Pioneer HD1BT

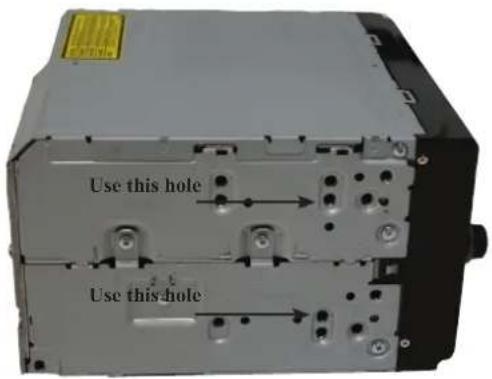

We advice to use the following positions. Other positions are also possible.
Use position 1 marked with a cross. Use position 14 & 16 marked with an arrow. Measured from left to right.
We advice to use the following positions. Other positions are also possible.
Use position 1 marked with a cross. Use position 10 & 12 marked with an arrow Measured from left to right.
2-DIN 12.301190-11
Pioneer
sound. vision. soul
1


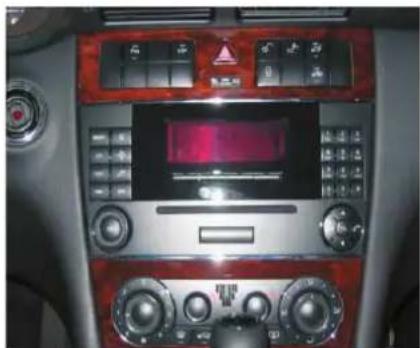

Interior view of a car dashboard with digital display and control knobs (no visible text or symbols)Car is equipped with original head unit
2

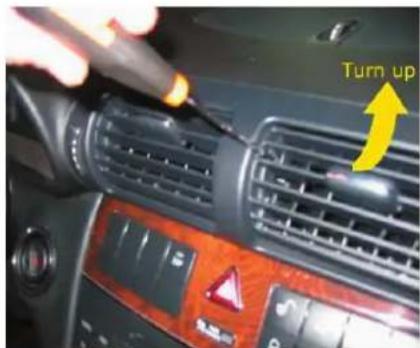

To turn ventilation shaft up, use a screwdriver to unlock the locking clip
3

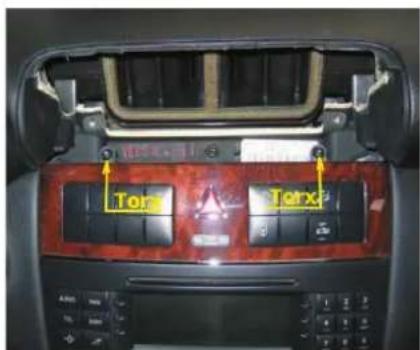

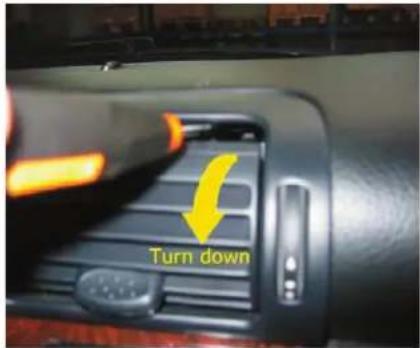

Remove 2x Torx 20 and turn ventilation shaft down, use a screwdriver to unlock the locking clip
4
To turn ventilation shaft up, use a screwdriver to unlock the locking clip
5

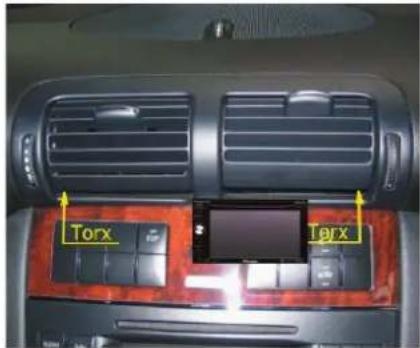

Remove ventilation shaft en remove 2x Torx 20. Then remove panel.
6


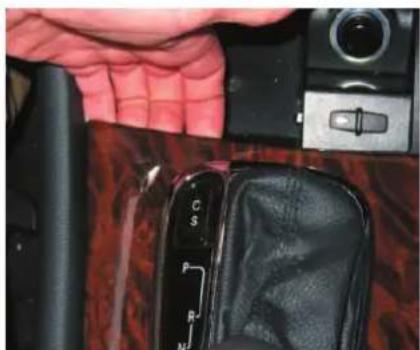

Close-up of a hand holding a black leather gear switch with labeled parts (no readable text or symbols)remove panel around gear lever and then remove ashtray.
Pioneer sound. vision. soul
2-DIN 12.301190-11
7

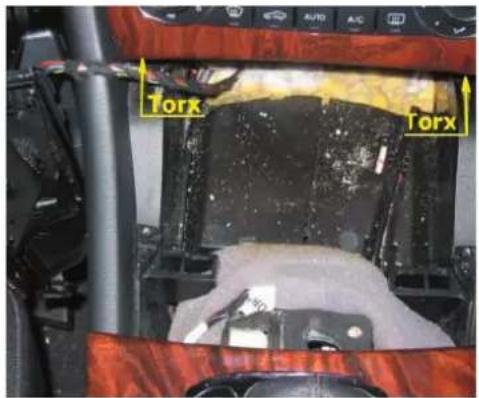

Remove 2x Torx 20 and use plastic wedge to remove panel.
8

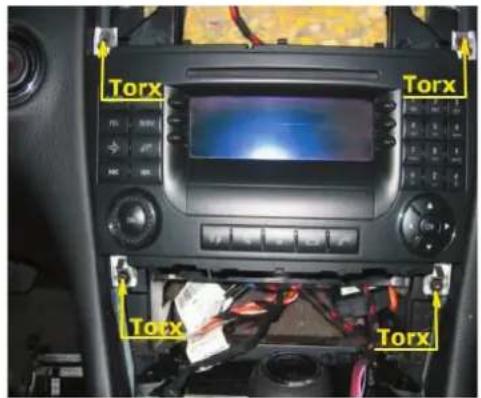

Remove 4x Torx 20 and remove original head unit
9


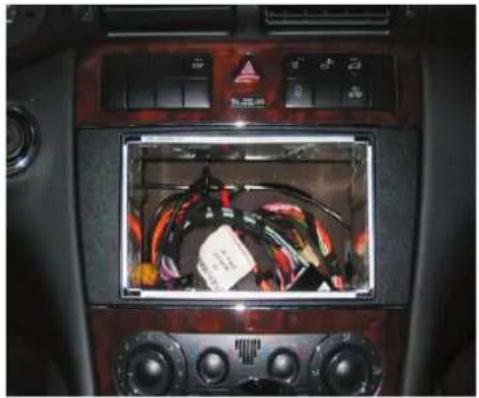

Interior view of a car dashboard with exposed wiring and control panels (no visible text or symbols)Place MB C (W203) 04-2004-> plastic frame incl. 2-DIN metal bracket.
10


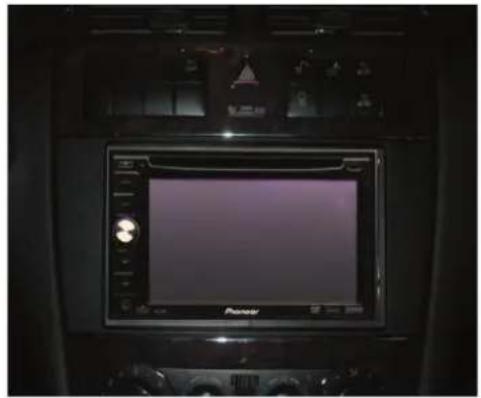

Interior view of a car dashboard with a digital display showing the Piromar device (no readable text or symbols beyond branding)Place panels back in reverse order.
Connect all of the needed wiring harnesses and check all connections carefully
