Product Type	LED Backlit Recessed Panel Light
Model	VT-61003 (equivalent to VT-610C3)
Wattage	5W
Lumen Output	330 lm
Beam Angle	360° (spherical)
IP Rating	IP20
Color Rendering Index (CRI)	>80
Body Material	Plastic
Input Voltage	AC 220-240V
Frequency	50/60 Hz
Rated Current	26 mA
Life Span	20,000 hours
On/Off Cycles	>15,000
Cut-out Size (Round)	Approx. 670 mm diameter (for 5W model)
Shape	Round
Installation	Recessed, spring clip mounting
Warranty	5 years (valid from purchase date)
Usage	Indoor only, suitable for 10-12 hours daily operation
Safety Markings	CE, RoHS, WEEE (80133970)
Cleaning	Use soft dry cloth; no chemical detergents

Frequently Asked Questions - VT-61003 V-TAC

How do I install the VT-61003 recessed panel light?

First, cut a hole in the ceiling according to the specified cut-out size. Ensure the power is off. Connect the AC 220-240V wires to the terminal block. Then hold the spring clips back and push the light into the hole. Release the clips to secure it against the ceiling. Finally, turn on the power and test.

Can I use this light outdoors?

No, this product is rated IP20 and intended for indoor use only. It should not be exposed to moisture or dust.

What is the warranty period for VT-61003?

The warranty is valid for 5 years from the date of purchase. It covers manufacturing defects but not damage from incorrect installation or abnormal wear.

Is the light dimmable?

The manual does not specify dimming capability. For dimming compatibility, please consult the dealer or manufacturer.

Can I replace the LED source myself?

No, the light source is integral and should only be replaced by the manufacturer, service agent, or similarly qualified person to avoid hazards.

What is the recommended daily usage time?

The product is designed for 10-12 hours of operation per day. Using it 24 hours a day will void the warranty.

What does the IP20 rating mean?

IP20 means the light is protected against solid objects larger than 12.5 mm (e.g., fingers) but not against water. It is suitable for dry indoor areas.

How should I clean the panel light?

Clean only with a soft, dry cloth. Do not use chemical detergents or water, as they may damage the light.

What should I do if the light flickers?

First, check the electrical connections and ensure the supply voltage matches the rated input (220-240V AC). If flickering persists, contact a qualified electrician or the manufacturer for support.

Where can I find the user manual in other languages?

Scan the QR code on the product or manual packaging to access multilingual versions. Alternatively, contact support at [e-mail].

USER MANUAL VT-61003 V-TAC

Meaningful Innovation.

WEEE Number: 80133970

INSTRUCTION MANUAL

LED BACKLIT RECESSED PANEL

Product display of a white dome-shaped fan and a rectangular tray with a 05-year warranty label (no text-heavy elements)

TECHNICAL DATA

MODEL#

UWATTS

SHAPE

LUMENS

BEAM ANGLE

IF RATING

CIII

BODY TYPE

TOTAL CURRENT

INPUT VOLTAGE

LIFE SPAN

ON/OFF CYCLE

DIMENSION (LxWH)

VT-610C3

240Ω, 5Ω, 10Ω, 15Ω, 20Ω, 25Ω, 30Ω

ROUND

5W

330LM

Sphere 360°

IP20

>80

PLASTIC

26mA

AC:220~240 50/60Hz

10

670.528mm

SQUARE

90.240.248.2mm

VT-610C0

240Ω, 5Ω, 10Ω, 15Ω, 20Ω, 25Ω, 30Ω

ROUND

6W

600LM

Sphere 360°

IP20

>80

PLASTIC

36mA

AC:220~240 50/60Hz

20000H

>15000

420.568mm

SQUARE

120.570.578.4mm

VT-6102

240Ω, 5Ω, 10Ω, 15Ω, 20Ω, 25Ω, 30Ω

ROUND

12W

1000LM

Sphere 360°

IP20

>80

PLASTIC

7mA

AC:220~240 50/60Hz

20000H

>15000

670.828mm

SQUARE

120.670.678.4mm

VT-610B

240Ω, 5Ω, 10Ω, 15Ω, 20Ω, 25Ω, 30Ω

ROUND

18W

1800LM

Sphere 360°

IP20

>80

PLASTIC

103mA

AC:220~240 50/60Hz

20000H

>15000

670.828mm

SQUARE

1800LM

120.420.428.8mm

VT-61024

240Ω, 5Ω, 10Ω, 15Ω, 20Ω, 25Ω, 30Ω, 35Ω, 40Ω, 45Ω, 50Ω

ROUND

24W

2500LM

Sphere 360°

IP20

>80

PLASTIC

100mA

AC:220~240 50/60Hz

20000H

>15000

670.90mm

SQUARE

2500LM

250.928mm

This product contains a light source of energy efficiency class , where shall be replaced by the energy efficiency class of the contained light source.

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC product, V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

WARNING

• Please make sure to turn off the power before starting the installation.
  • Installation must be performed by a certified person.
• For Indoor use only
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
• Method of attachment of the cable or cord such that any replacement can only be made by the manufacturer, his service agent or similar qualified person.

MULTI-LANGUAGE
MANUAL QR CODE
Please scan the OR code
to access the manual in
multiple languages.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

ATTENTION!

Do not look directly at LED light beam. Product can only be supplied by rated voltage or voltage within the range provided, it's forbidden to use the product with damaged protective cover. Product must not be used in unfavorable conditions, e.g. dust, water, moisture, vibrations, explosive air atmosphere, fumes, or chemical fumes, etc. In the area of strong electromagnetic interference, the functioning of the product may be disrupted.

Any maintenance work must be performed when the power supply is cut off and the product has cooled down. Clean only with soft and dry cloths. Do not use chemical detergents. Do not cover the product. Ensure free air access. Product may heat up to a higher temperature.

MOUNTING

Read the manual before mounting. Mounting should be performed by a qualified electrician. Exercise caution. Product has a protective contact terminal. Failure to connect the protective lead may lead to electric shock. Mounting diagram: see pictures. Check for proper mechanical fastening and connection to electrical power prior to first use. WORKING DIAGRAM

RECESSED PANEL INSTALLATION DIAGRAM

Pure technical line drawing of a mechanical component with zigzag lines, no text or symbols present

ROUND PANEL	3KW	6W 12W	18W 24W
INSTALLATION HOPE 507F	(40)(77.90mm)	(10)(37.70mm)	(45)(100.15mm)	(225)(200.20mm)	(280)(275.20mm)

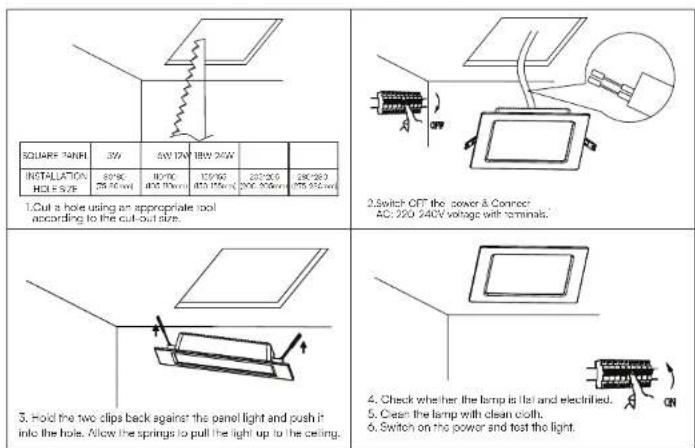

1.Cut a hole using an appropriate tool according to the cut-out size

2.5V/ON OFF the power & Connect AC: 220-240V voltage with terminals.

Simple line drawing of a curved object with an oval top and two arrows indicating direction (no text or symbols)

1. Hold the two clips back against the panel light and push it into the hole. Allow the springs to pull the light up to the ceiling.

Simple line drawing of a circular ring above a vertical axis and a small rectangular component below (no text or symbols)

1. Check whether the lamp is flat and electrified.
2. Clean the lamp with clean cloth.
3. Switch on the power and test the light.

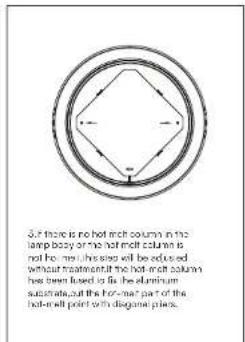

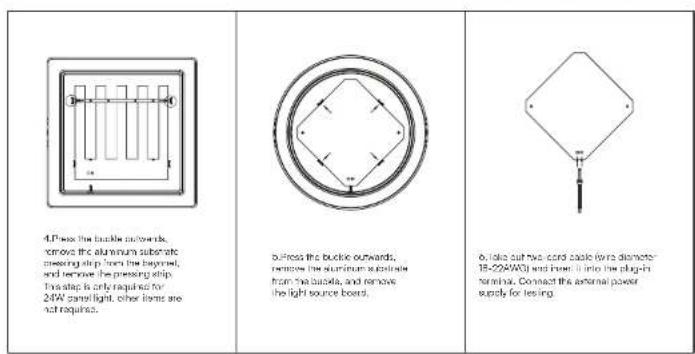

DISASSEMBLY DIAGRAM

(For Market surveillance team only)

RoHS

IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [e-mail] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BULL.KARAVELOW 9B
