VT-44100CCT - LED Spotlight V-TAC - Free user manual and instructions

Product Type	LED Panel Light
Model	VT-44100CCT
Brand	V-TAC
Dimensions (mm)	595 x 595 x 30
Weight (kg)	1.2
Power Consumption (W)	40
Input Voltage	AC 220-240V, 50/60Hz
Color Temperature (K)	3000-6500 (adjustable)
Luminous Flux (lm)	4000
Lifespan (hours)	50000
Beam Angle (°)	120
Mounting Type	Recessed / Surface / Suspended
Housing Material	Aluminum + PC
IP Rating	IP20
Warranty	2 years
Color Rendering Index (CRI)	Ra>80
Dimmable	No (unless specified)
Operating Temperature (°C)	-20 to +45
Certifications	CE, RoHS

Frequently Asked Questions - VT-44100CCT V-TAC

How do I adjust the color temperature on the VT-44100CCT?

Use the included remote control or the wall switch (if compatible) to cycle through 3000K (warm), 4000K (neutral), and 6500K (cool).

Is this panel suitable for a bathroom?

The VT-44100CCT has an IP20 rating, making it suitable for dry indoor areas only. For bathrooms, choose an IP44 or higher model.

What are the dimensions of the cut-out for recessed installation?

For recessed mounting, cut a hole of 575 x 575 mm to ensure a snug fit of the panel.

Can I connect multiple panels together?

Yes, you can daisy-chain up to 10 panels using the provided connectors, ensuring total wattage does not exceed the circuit capacity.

Does the light have a memory function?

Yes, the VT-44100CCT remembers the last color temperature setting when turned off and on again.

What is the warranty period?

V-TAC offers a 2-year warranty against manufacturing defects. Register your product online to extend to 3 years.

How do I clean the panel?

Turn off the power and wipe with a dry or slightly damp cloth. Do not use abrasive cleaners or solvents.

The light flickers. What should I do?

Check the connections and ensure the voltage is stable. If using a dimmer, make sure it is compatible with LED lights. Replace if flickering persists.

What is the recommended installation height?

For best illumination, install the panel at a height of 2.5 to 3 meters in standard rooms.

Can I use this panel with a motion sensor?

Yes, the panel works with standard motion sensor switches that are compatible with LED drivers.

USER MANUAL VT-44100CCT V-TAC

WEEE Number: 80133970

INSTRUCTION MANUAL

LED FLOOD LIGHT

TECHNICAL DATA

MODEL	VT-44030CCT	VT-44050CCT	VT-44100CCT
SKU 23613 23614 23615
POWER 30W 50W 100W
LUMENS(@WIDECONE)	2350 Lm 4000 Lm 8150 L		m
INPUT VOLTAGE AC: 220-240V, 50/60Hz
DF ≥0.9
CRI	≥80
LIFE SPAN	25,000 Hours
ON/OFF CYCLE	10,000 Times
BEAM ANGLE	90°
OPERATION TEMPERATURE	-20°C to +40°C
BODY TYPE	Aluminium
MAX.MOUNTING HEIGHT	<5 M
WIRE LENGTH	0.15 M
NET WEIGHT	315g	418g	775g
PROJECTED AREA (m2)	12-34	18.5-50.5	38-103
DIMENSION	176x26x171mm	209x26x194mm	274x26x262 mm

Exterior view of a V-TAC LED array with 3x10x thermal lighting (no text or symbols on the main body)

3 IN 1 CCT

RLED

REPLACEABLE LIGHT ENGINE

02 YEAR

WARRANTY*

IP65

RATING

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the manual in multiple languages.

WARNING

1. Please make sure to turn off the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
4. Replace any cracked protective shield.
5. Terminal block not included.
6. Proper grounding should be ensured throughout the installation.
7. Minimum distance from lighted objects 1m.
8. For outdoor use

NOTE: To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm's reach.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

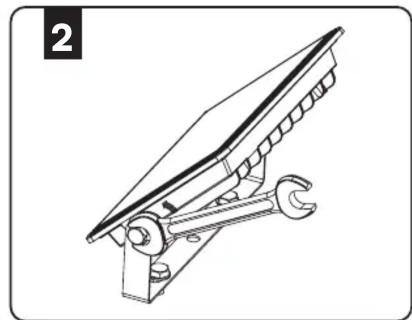

INSTALLATION DIAGRAM

Technical line drawing of a mechanical support structure (no text or symbols)

Technical line drawing of a mechanical clamp or support structure (no text or symbols)

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Technical line drawing of a mechanical support structure (no text or symbols)

Technical line drawing of a structural support frame with no visible text or symbols

INSTALLATION INSTRUCTION

Strictly follow these instructions for installing, avoid the intensity of power cable during installing. (Supply connection and other external wiring conductor shall be at least 3*1.0 mm2 and confirm to 60245IEC57)

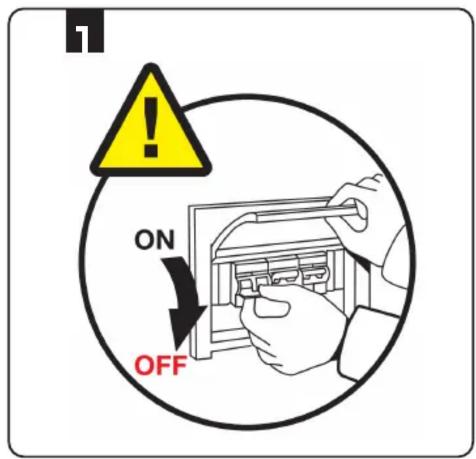

1. Turn off the power.
2. Installing the brackets.
3. Loosening the bolts on both sides of the bracket.
4. Adjusting the flooding Angle of the flood light.
5. Tightening the bolts on both sides of the bracket.
6. Connecting the wiring of the flood light as per the diagram.
7. Turning on the power to make sure the light is working.

RoHS

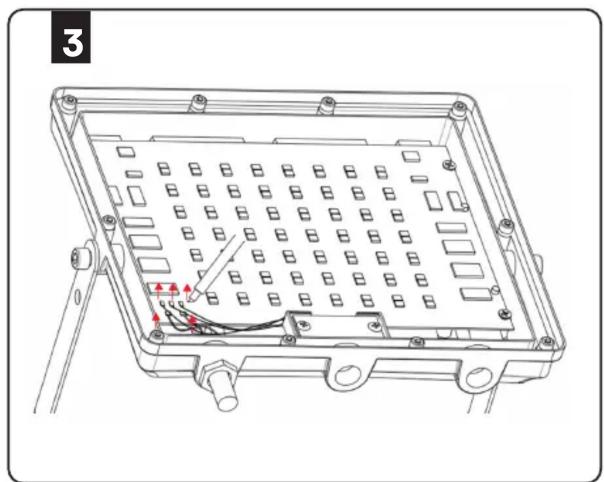

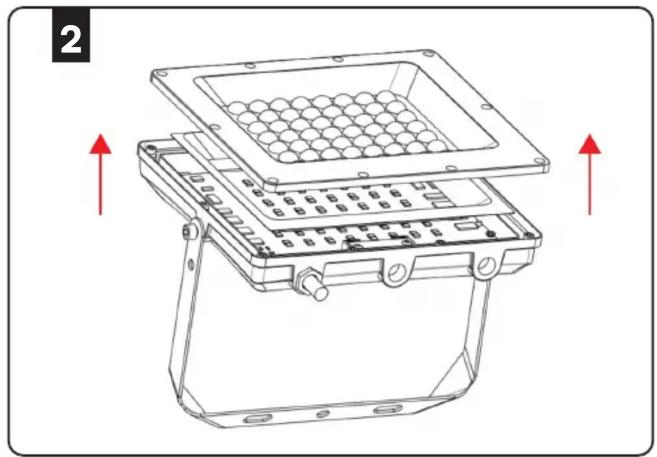

LED REPLACEMENT INSTRUCTIONS

(Replacement must be performed by a qualified electrician)

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical device with hexagonal grid array and mounting bracket (no text or symbols)

Technical line drawing of an electronic device casing with grid layout and mounting points (no text or symbols)

NOTE: LED replacement applicable only if within the warranty period.
