VT-15545 - Uncategorized V-TAC - Free user manual and instructions

Product Type	LED Ceiling Light
Model	VT-15545
Dimensions (L x W x H)	300mm x 300mm x 50mm
Weight	0.8 kg
Power Consumption	18W
Input Voltage	AC 220-240V, 50/60Hz
Luminous Flux	1440 lm
Color Temperature	3000K - 6500K (adjustable)
Beam Angle	120°
IP Rating	IP20
Material	Aluminum + PC Diffuser
Mounting Type	Ceiling recessed / surface mounted
Dimmable	Yes (with compatible dimmer)
Lifespan	25,000 hours
Operating Temperature	-20°C to +40°C
Safety Certifications	CE, RoHS
Maintenance	Clean with soft dry cloth; do not use water or solvents
Replaceable Parts	LED module and driver (replaceable by qualified person)
Warranty	2 years

Frequently Asked Questions - VT-15545 V-TAC

How do I install the VT-15545 ceiling light?

Turn off power at the circuit breaker. Connect the live, neutral, and ground wires to the corresponding terminals, then secure the fixture to the ceiling using the provided mounting screws. Ensure proper insulation.

Can I use this light with a dimmer switch?

Yes, the VT-15545 is dimmable when used with a compatible trailing-edge dimmer. Check the dimmer's specifications for LED compatibility.

What is the color temperature range?

The light offers adjustable color temperature from 3000K (warm white) to 6500K (daylight) via a switch on the driver.

How do I clean the light fixture?

Use a soft, dry cloth to wipe the surface. Avoid water, chemical cleaners, or abrasive materials to prevent damage to the diffuser.

Is the VT-15545 suitable for outdoor use?

No, this fixture has an IP20 rating, making it suitable only for indoor dry locations.

What should I do if the light flickers?

Flickering may be due to an incompatible dimmer, loose wiring, or a faulty driver. First, test with a non-dimmable switch. If it persists, consult a qualified electrician.

Does the light require a driver?

Yes, an integrated LED driver is built into the fixture. It converts AC mains voltage to the low DC voltage required by the LEDs.

Can I replace the LED module?

The LED module is replaceable by a qualified person. Contact V-TAC support for replacement parts and instructions.

What is the warranty period?

The VT-15545 comes with a 2-year warranty against manufacturing defects. Proof of purchase is required.

How do I dispose of the light at end of life?

Dispose of the product in accordance with local WEEE (Waste Electrical and Electronic Equipment) regulations. Do not mix with household waste.

USER MANUAL VT-15545 V-TAC

Meaningful Innovation.

V-TAC Carport Installation Manual

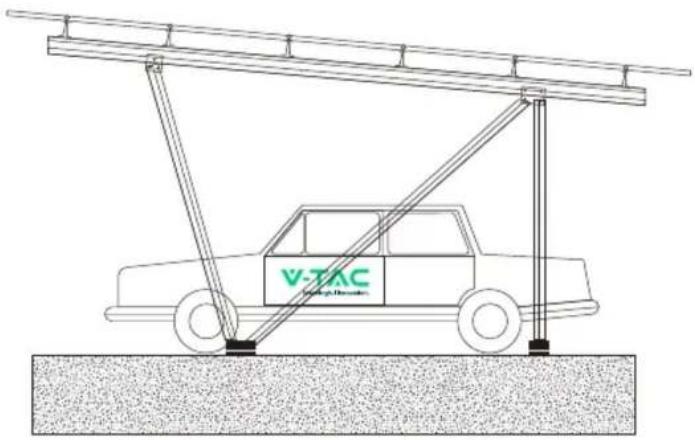

1. Diagrammatic Drawing

2. Product List

SKU Picture Description Qty Barcode
118211 Crossbar Rail 5900mm 6 3800170208384
118212 Clamping Kit 48 3800170208391
118213 Mid Clamp n 24 3800170208407
118214 End Clamp n 12 3800170208414
118215		Carport Stringer 6000mm	2	3800170208421
118216 H Jackets n 2 3800170208438
118217		H Jackets 220mm	2	3800170208445
118218	###	Carport Tube 2500mm 2	3800170208452
118219	###	Carport Tube 3760mm	2	3800170208469
118220	###	Carport Tube 2950mm	2	3800170208476
118221	###	Base 200mm	2 3800170208483
118222	###	Base 300mm	2	3800170208490
118223	###	Waterproof Accessories	28m	3800170208506

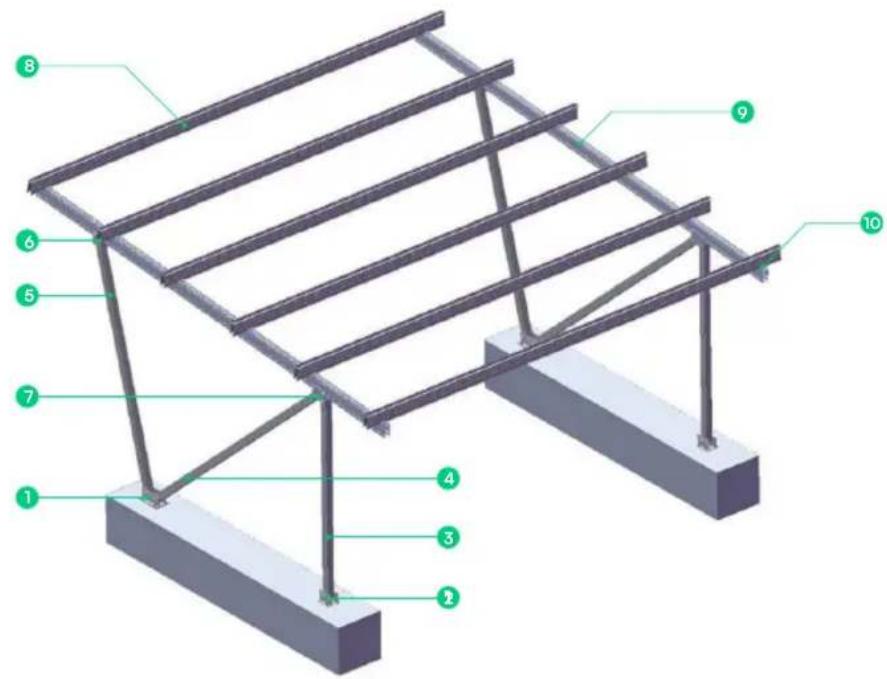

1. Carport Structure


1. Accessories

1
Base (300mm)

2
Base (200mm)

3
Carport Tube (2500mm)

4
Carport Tube (3760mm)

5
Carport Tube (2950mm)

6
H Jacket (150mm)

7
H Jacket (220mm)

8
Crossbar Rail (5900mm)

9
Carport Stringer (6000mm)

10
Clamping kit (35mm)

Mid Clamp (35mm)

End Clamp (35mm)

5. Installation Steps

Step 1

Disassemble the screws of the base to fix it on the ground.

3D diagram of a mechanical assembly with mounting base and support components (no text or symbols)

3D rendering of a mechanical mounting bracket with mounting holes and mounting feet (no text or symbols)

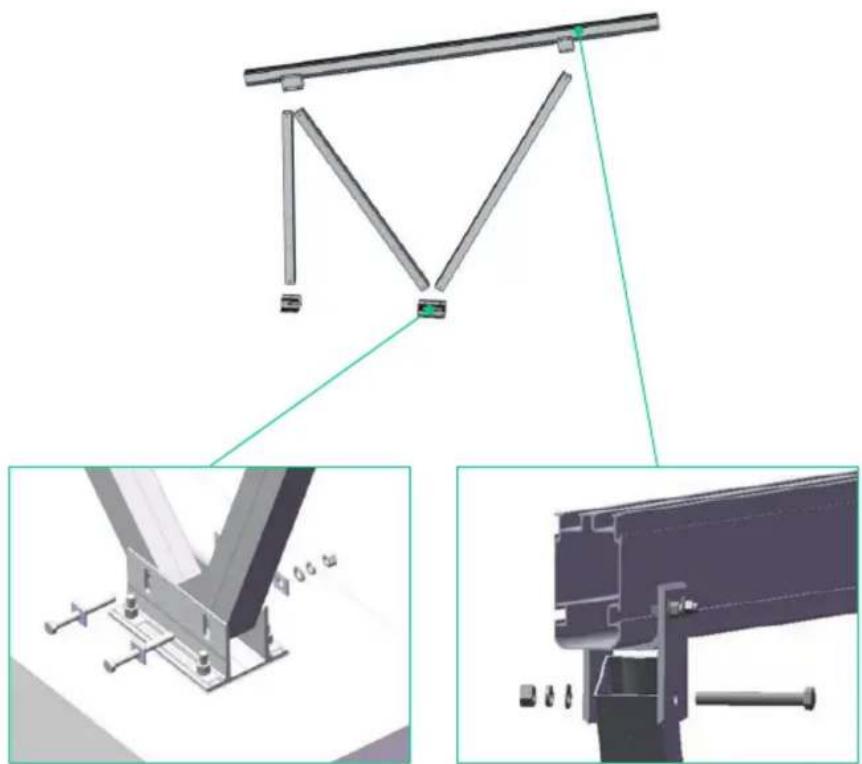

Step 2

Using the screws of base to fix the end carport tubes, meanwhile, fix the H-Jackets on the carport stringer, then connect the H-Jackets with the other end of carport tubes.

Technical diagram showing structural components and assembly, including a metal frame with supports and a close-up of a steel bracket (no text or symbols present)

Step 3

The other side should install as the same method.

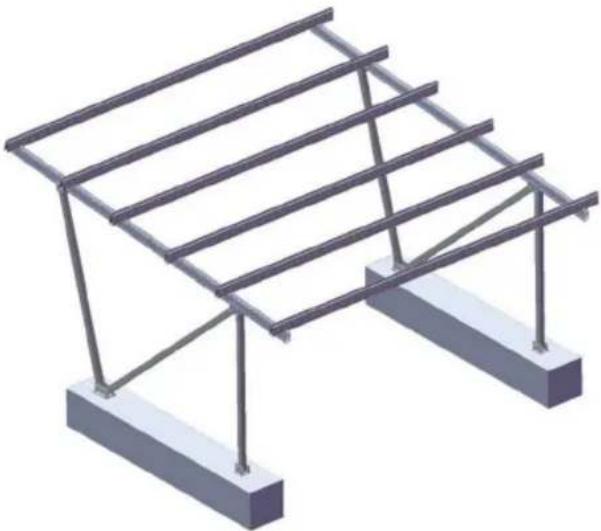

Step 4

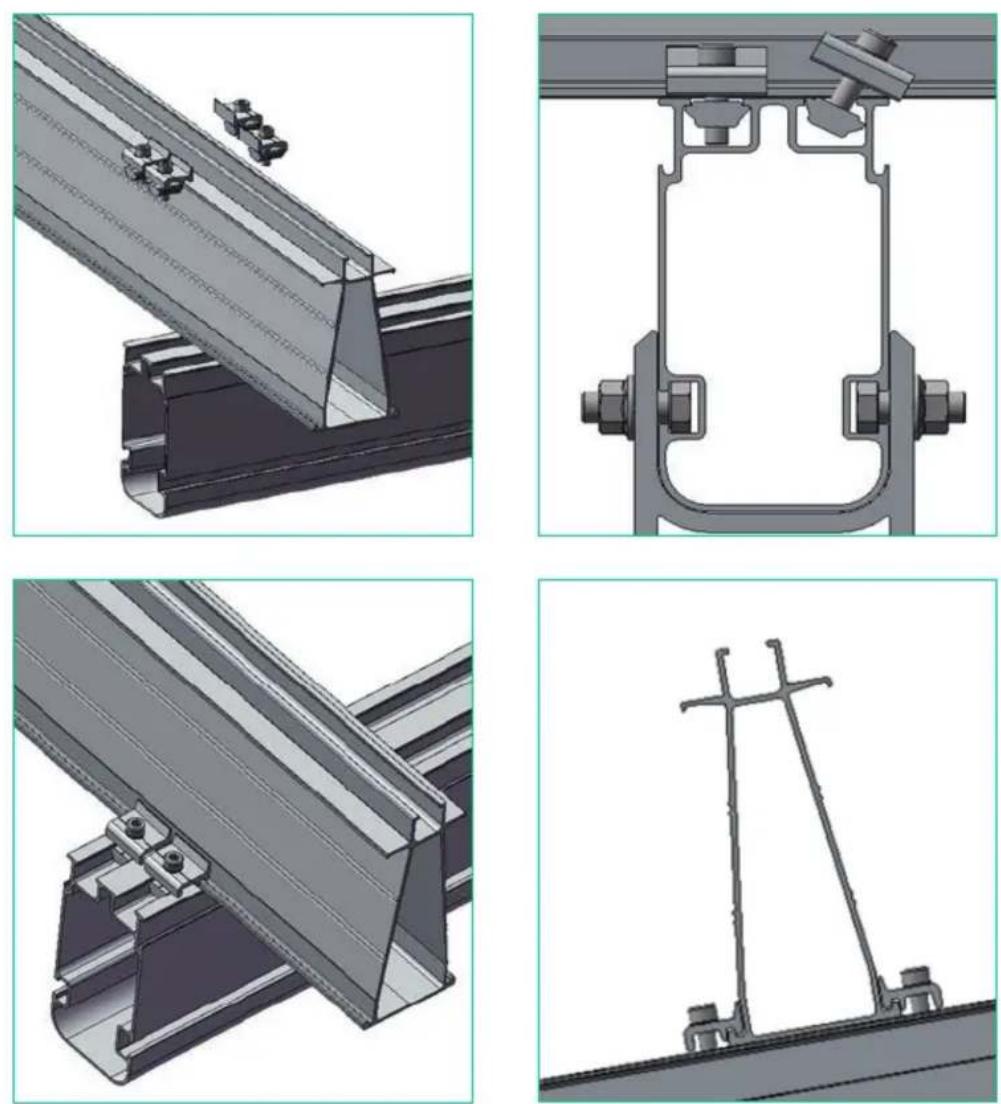

Using the clamping kit to install the Crossbar rail and Stringer.

Isometric view of a metal truss structure with support beams and base platforms (no text or symbols)

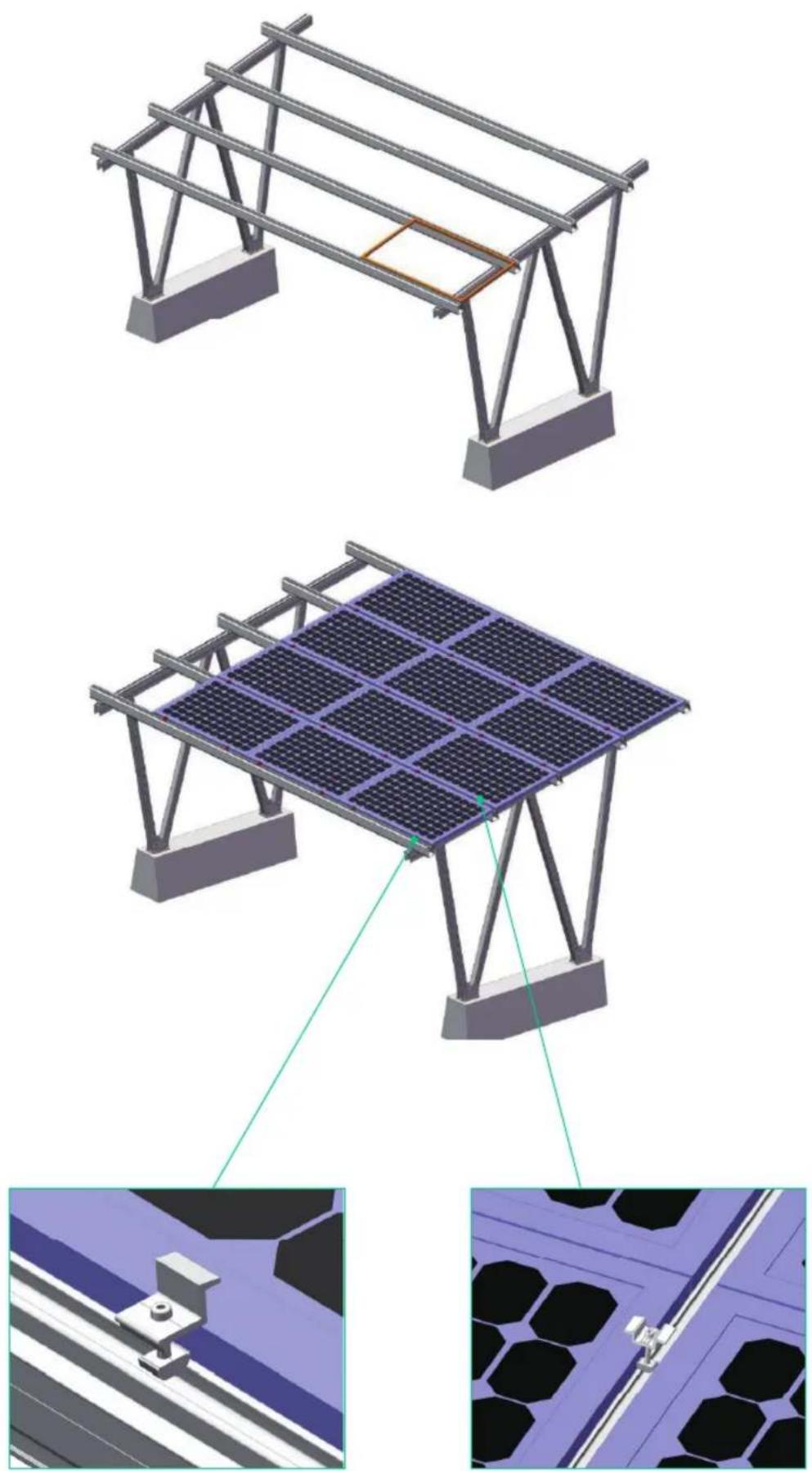

Step 5

Using mid clamps and end clamps to fix solar panels on the crossbar rail.
