Product Type	Digital Multimeter
Brand	Sanwa
Model	TL-BP
Display	LCD, 4-digit, 4000 counts
DC Voltage Range	400 mV to 600 V
AC Voltage Range	4 V to 600 V
Resistance Range	400 Ω to 40 MΩ
Continuity Test	Audible beep below 50 Ω
Diode Test	Yes
Auto-Ranging	Yes
Safety Rating	CAT II 600 V
Power Supply	2 × AAA batteries
Battery Life	Approximately 200 hours
Dimensions	150 × 70 × 30 mm
Weight	200 g (including batteries)
Operating Temperature	0 °C to 40 °C
Storage Temperature	-10 °C to 50 °C
Accessories Included	Test leads, carrying case, manual
Cleaning	Wipe with dry cloth; do not use solvents
Replaceable Parts	Batteries, test leads, fuse (if applicable)
Warranty	1 year limited warranty

Frequently Asked Questions - TL-BP Sanwa

How do I measure DC voltage with the TL-BP?

Set the rotary switch to the DC voltage position (V⎓). Connect the black test lead to the COM and red lead to the VΩ input. Touch the probes to the circuit and read the display. Ensure the voltage does not exceed 600 V.

What does the continuity beep indicate?

The continuity beep sounds when the resistance between the probes is below approximately 50 Ω, indicating a closed circuit or low resistance path.

How do I replace the batteries?

Turn off the meter and remove the test leads. Open the battery compartment on the back using a screwdriver. Replace the two AAA batteries, observing polarity, and close the compartment securely.

Can I measure AC current with this multimeter?

The TL-BP model does not have a current measurement function. It can measure DC/AC voltage, resistance, continuity, and diodes. For current measurement, use a dedicated ammeter or clamp meter.

What is the maximum voltage I can safely measure?

The meter is rated CAT II 600 V, meaning it can measure up to 600 V AC or DC in circuits powered from a standard wall outlet. Do not exceed this rating to avoid damage or injury.

Why does the display show 'OL'?

'OL' stands for Over Load or Open Loop. It indicates the reading exceeds the selected range (or the input is open). Switch to a higher range or check the circuit connection.

How do I test a diode?

Set the rotary switch to the diode symbol (→+). Connect the red lead to the anode and black to the cathode. The display will show the forward voltage drop (typically 0.5-0.8 V for silicon diodes). Reverse connection should display 'OL'.

Is the meter autoranging?

Yes, the TL-BP features auto-ranging for voltage and resistance measurements. It automatically selects the correct range for the measured value. You can also manually override if needed.

How do I clean the multimeter?

Turn off the meter and remove the batteries. Wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners, solvents, or water. Keep the input jacks clean and dry.

Where can I download the full user manual?

The manual is available for free on notice-facile.com. Visit the product page for TL-BP by Sanwa, and click the download button to get the PDF. You can also request a translated version by email.

USER MANUAL TL-BP Sanwa

Technical line drawing of a soldering iron with no visible text or symbols

Technical line drawing of a mechanical clamp or tool (no text or symbols)

■ Optional Accessories

Useful test lead set with breaker terminal covers during measurement of Insulation Resistance

Model: TL-BP

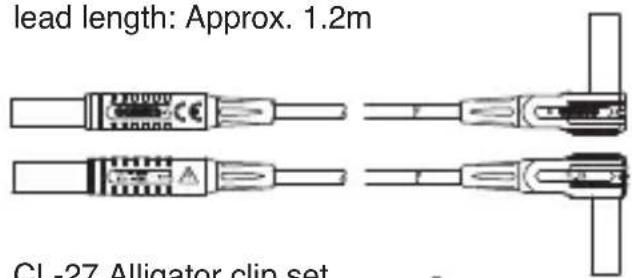

TL-28 Test Lead set lead length: Approx. 1.2m

TL-A51 Test Probe set pin length: Approx. 51mm

Technical line drawing of a screwdriver with a central connector and base (no text or symbols)

CL-27 Alligator clip set

Line drawing of a pliers with a labeled clip set (no text or symbols on the diagram itself)
