USER MANUAL Slice 676 Teradek

A:Power button

B:USB ports

C:Reset button

D:Stream/menu control dial

E:A/C input

F:SD/HD/3G-SDI input/output

G:HDMI input/output

H:10/100/1000 Ethernet

1: Reset button

J: Headphone audio output

K:Mic/Line stereo input

L: RP-SMA connectors

Stream/Menu Control dial:

▲: Go live, start/stop push, start/stop recordings, select characters
○. ▶,▼: Selects options from streaming/recording prompts
◀: Back, move to higher menu level
● (Control dial button press): Confirm selection, enter main menu, open selected menu
▲: Go live, start/stop push, start/stop recordings, select characters
○. ▶,▼: Selects options from streaming/recording prompts
◀: Back, move to higher menu level
● (Control dial button press): Confirm selection, enter main menu, open selected menu
▲: Go live, start/stop push, start/stop recordings, select characters ○, ▶, ▼: Selects options from streaming/recording prompts ◀: Back, move to higher menu level ● (Control dial button press): Confirm selection, enter main menu, open selected menu
▲: Go live, start/stop push, start/stop recordings, select characters ○, ▶, ▼: Selects options from streaming/recording prompts ◀: Back, move to higher menu level ● (Control dial button press): Confirm selection, enter main menu, open selected menu
▲: Go live, start/stop push, start/stop recordings, select characters ○, ▶, ▼: Selects options from streaming/recording prompts ◀: Back, move to higher menu level ● (Control dial button press): Confirm selection, enter main menu, open selected menu
▲: Go live, start/stop push, start/stop recordings, select characters ○, ▶, ▼: Selects options from streaming/recording prompts ◀: Back, move to higher menu level ● (Control dial button press): Confirm selection, enter main menu, open selected menu
▲: Go live, start/stop push, start/stop recordings, select characters ○. ▶.▼: Selects options from streaming/recording prompts ◀: Back, move to higher menu level ● (Control dial button press): Confirm selection, enter main menu, open selected menu
▲: Go live, start/stop push, start/stop recordings, select characters ○. ▶.▼: Selects options from streaming/recording prompts ◀: Back, move to higher menu level ● (Control dial button press): Confirm selection, enter main menu, open selected menu
▲: Go live, start/stop push, start/stop recordings, select characters ○. ▶.▼: Selects options from streaming/recording prompts ◀: Back, move to higher menu level ● (Control dial button press): Confirm selection, enter main menu, open selected menu
▲: Go live, start/stop push, start/stop recordings, select characters ○. ▶.▼: Selects options from streaming/recording prompts ◀: Back, move to higher menu level ● (Control dial button press): Confirm selection, enter main menu, open selected menu
▲: Go live, start/stop push, start/stop recordings, select characters ○. ▶.▼: Selects options from streaming/recording prompts ◀: Back, move to higher menu level ● (Control dial button press): Confirm selection, enter main menu, open selected menu

4

STREAM TO THE INTERNET

1 Open Slice's web UI, then select the Video Stream Output menu if it is not already displayed.
2 Select Internet Streaming as the Stream Mode and choose a platform - Facebook, Ustream, Livestream, YouTube, Twitch - or select manual RTMP.
3 Enter your credentials and choose a channel/event, or enter the RTMP destination info and click Apply.
4 Open the Encoder settings menu and select your desired bitrate and resolution.
5 Go Live by clicking the Broadcast button 📋 or press the front panel Stream Joystick.

DECODER SETUP

Ensure that Slice's encoder and decoder are on the same network. To configure:

1 Connect to Slice encoder (see previous sections) and open the web UI.

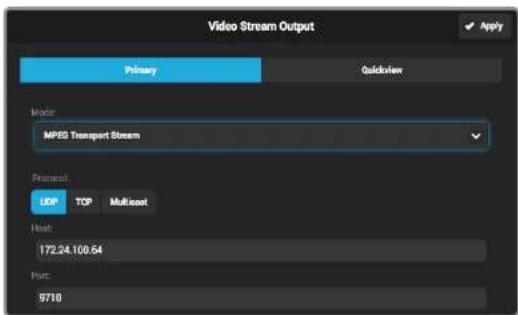

2 Open the Video Stream Output menu, then select MPEG Transport Stream as the streaming mode (the protocol value will be set to UDP by default when you select MPEG Transport Stream).
3 Enter the decoder's IP address in the Host field, then set the port, if desired. The default port is 9710.

4 Click Apply.

5

MONITOR WITH AN IOS DEVICE

1 Download VUER from the iTunes App Store.
2 Connect your iOS device to the same network as Slice, then launch VUER.
3 From the VUER app, tap CAMERA on the upper, left hand corner, choose your device(s), then tap Done. VUER can monitor up to four devices simultaneously (iPad Air and newer).

6

RECORDING

Slice supports broadcast recording to an external USB drive. To enable recording:

1 Insert a compatible USB drive into one of the USB ports (B).
2 When prompted, select Yes to enable recording.
3 Select the recording trigger you would like to use. Recordings can be triggered from a compatible camera (ARRI/Canon, RED, or SONY), automatically when you begin a broadcast, or manually via the control dial's Select button. Once enabled, recordings are saved to the selected storage media when triggered.

You can also enable or disable recording from the web UI.

RECORDING CONSIDERATIONS

• Recordings can be manually triggered via the front panel, or by the broadcast state in Internet
  Streaming mode. Each time a broadcast starts, a new recording is created.
• If a broadcast is interrupted for connectivity reasons, recording continues.
• If a recorded file exceeds your storage media's file size limits, a new file will be created and recording continues.
• Recording resolution and quality matches your configured Broadcast settings.

5 Connect to Slice decoder (see previous sections) and open the web UI.
6 Open the Video Stream Source menu, then select MPEG Transport Stream as the streaming mode. Adjust the protocol and port values so that they match the values entered in the Slice encoder's web UI, then click Apply.

NEED MORE HELP?

1 Support: http://support.teradek.com > Contains tips, information and all the latest firmware & software updates. TERADEK SUPPORT STAFF: [e-mail] or call 888-941-2111 ext2 (Mon-Fri 9am to 6pm PST)
