USER MANUAL UGT-CR961 Vantec

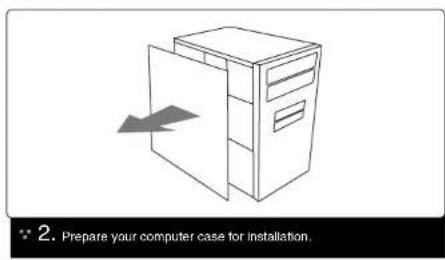

2. Prepare your computer case for installation.

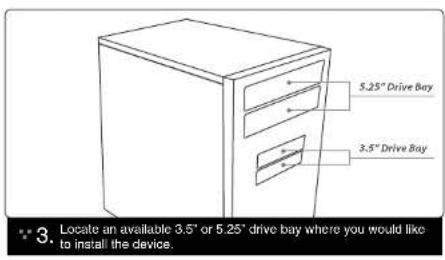

5.25° Drive Bay 3.5° Drive Bay 3. Locate an available 3.5° or 5.25° drive bay where you would like to install the device.

3.5" Front Panel Installation

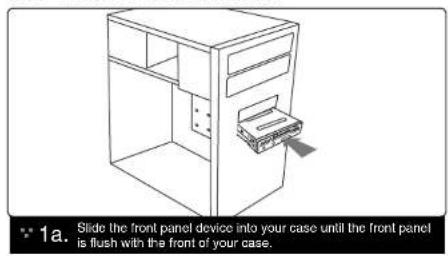

1a. Slide the front panel device into your case until the front panel is flush with the front of your case.

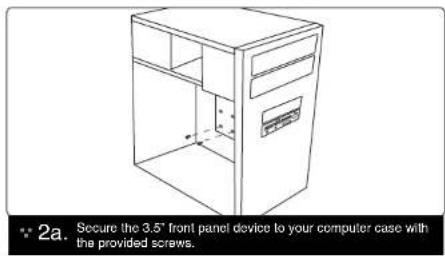

2a. Secure the 3.5" front panel device to your computer case with the provided screws.

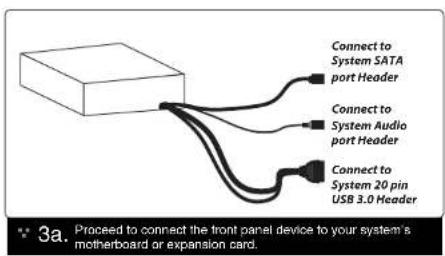

Connect to System SATA port Header Connect to System Audio port Header Connect to System 20 pin USB 3.0 Header 3a. Proceed to connect the front panel device to your system's motherboard or expansion card.

*Using Optional 3.5" to 5.25" Front Bay Converter Kit (HDA-525P) to install into a 5.25" Front Bay

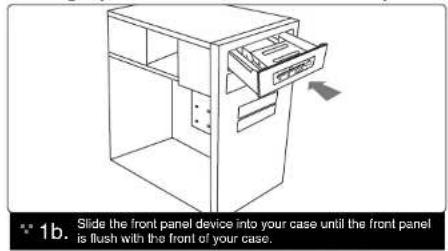

1b. Slide the front panel device into your case until the front panel is flush with the front of your case.

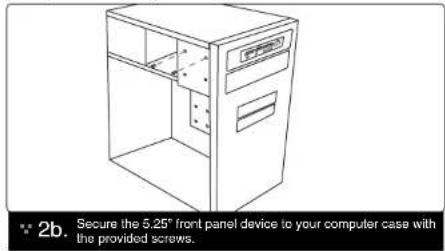

2b. Secure the 5.25° front panel device to your computer case with the provided screws.

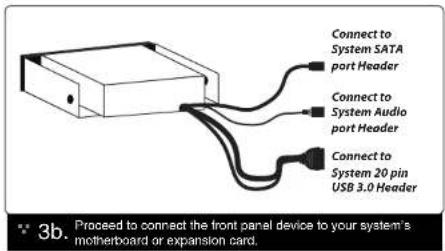

Connect to System SATA port Header Connect to System Audio port Header Connect to System 20 pin USB 3.0 Header 3b. Proceed to connect the front panel device to your system's motherboard or expansion card.

Connecting Your Front Panel Device

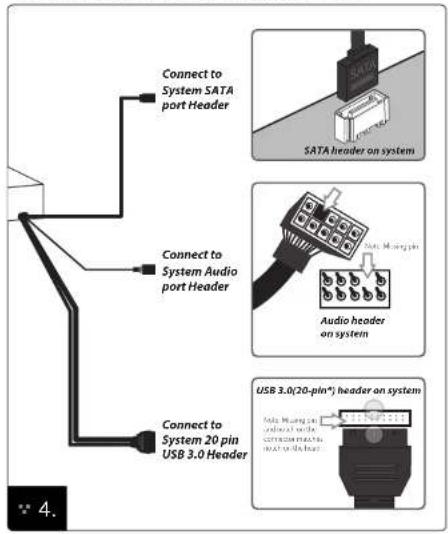

Connect to System SATA port Header Connect to System Audio port Header Connect to System 20 pin USB 3.0 Header SATA header on system Audio header on system USB 3.0(20-pin*) header on system Audio Mening pin system port pin commsor pin commsor pin commsor pin

Vantec UGT-CR961 - 10

natural_image Simple line drawing of a computer tower with an arrow pointing to its side panel (no text or symbols)
  1. Make sure all connection are connected well and place the cover back on to your case.
    * Diagram shown is the USB 3.0 20-Pin found on supported motherboards or expansion cards. Please refer to your motherboard manufacturer's documentation for the location of these ports.

Vantec UGT-CR961 - 11

natural_image Computer monitor icon with a checkmark on the screen (no text or symbols)
  1. Drivers will be automatically detected and installed. Your device will be ready for use.

Vantec UGT-CR961 - 12


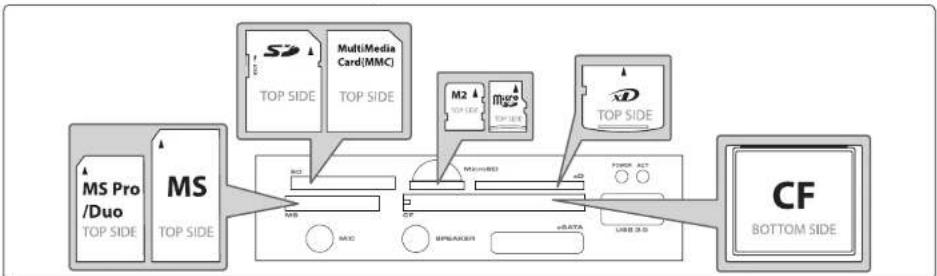

: Supports all standard memory cards.

Converting Your 3.5" Front Panel Device to 5.25" Form Factor

If you would like to mount your 3.5" device into your 5.25" drive bay, you may do so by using Vanlec's HDA-525P 3.5" to 5.25" bay converters. Follow the steps below to convert your device form factor to 5.25".

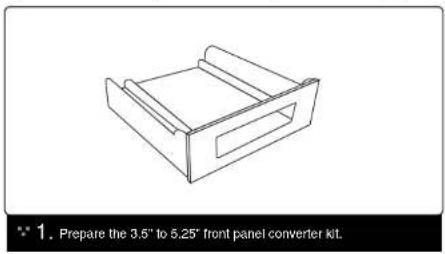

1. Prepare the 3.5" to 5.25" front panel converter kit.

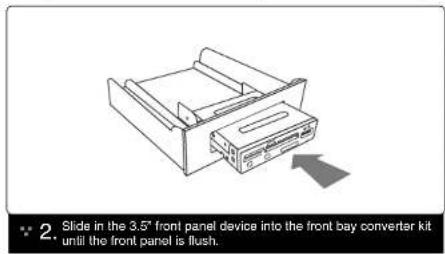

2. Slide in the 3.5" front panel device into the front bay converter kit until the front panel is flush.

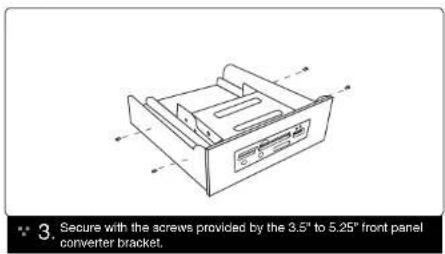

3. Secure with the screws provided by the 3.5" to 5.25" front panel converter bracket.

Vantec UGT-CR961 - 16

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without written permission is strictly forbidden.

Printed in China

Printed on Recycled Paper.

v1.01

Copyright © 2012 Ventac Thermal Technologies. All Right Reserved.

MODEL: UGT-CR961

www.vantecusa.com

All Registered Trademarks Belong To Their Respective Companies.
