Product Type	Gas water heater and kettle
Brand	Infiniton
Model	GWN-12NG
Energy Source	Natural gas (NG)
Flow Rate	12 L/min at 25°C temperature rise
Dimensions (H x W x D)	580 x 360 x 260 mm
Weight	8.5 kg
Power Input	24 kW
Gas Connection	1/2" BSP
Water Connection	1/2" BSP
Ignition	Electronic (battery or mains powered)
Safety Features	Flame failure device, overheat protection, anti-freeze protection
Temperature Range	35°C - 65°C
Functions	Instantaneous hot water, kettle boiling mode
Maintenance	Clean water filter and burner annually; descale as needed
Spare Parts Available	Thermocouple, burner assembly, water valve, gas valve
Convertible to LPG	Yes (with conversion kit)

Frequently Asked Questions - GWN-12NG Infiniton

How do I adjust the water temperature?

Use the temperature control knob on the front panel. Turn clockwise for higher temperature and counter-clockwise for lower. The range is 35°C to 65°C.

Can I use liquefied petroleum gas (LPG) with this heater?

Yes, the GWN-12NG is convertible to LPG. You need an LPG conversion kit (available as a spare part). Refer to the manual for installation instructions.

How often should I clean the water filter?

It is recommended to clean the inlet water filter every 6 months or more frequently if water quality is poor. A clogged filter reduces flow and can cause overheating.

What does the error code E1 mean?

Error code E1 indicates a flame failure. Check that the gas supply is on, the gas valve is open, and the ignition electrode is clean. If the problem persists, contact a qualified technician.

How do I install the water heater?

Installation must be carried out by a qualified professional. Ensure the unit is mounted on a non-flammable wall, with adequate ventilation. Connect gas and water lines according to local codes. Refer to the installation section of the manual.

What is the warranty period?

The standard warranty for Infiniton water heaters is 2 years for domestic use. For commercial use, the warranty is limited to 1 year. Register your product online to activate extended warranty if available.

Why is there no hot water coming out?

Check that the gas supply is on and the unit is receiving power. Verify that the water inlet valve is open and the filter is not blocked. If the ignition fails, there may be an issue with the thermocouple or gas valve.

How do I switch to kettle boiling mode?

Press the 'Kettle' button on the control panel. The unit will heat water to approximately 100°C and maintain it for boiling. This mode is designed for small quantities of water (max 5 liters). Ensure the kettle attachment is properly fitted.

How do I descale the heat exchanger?

Descaling should be done every 12 months or when performance drops. Use a descaling solution suitable for gas water heaters. Follow the procedure in the maintenance section: disconnect the unit, flush with descaling agent, then rinse thoroughly with fresh water.

What spare parts are commonly needed?

Common spare parts include the thermocouple, burner assembly, water valve, gas valve, and igniter. These are available from authorized Infiniton service centers. Always use genuine parts for safety and performance.

USER MANUAL GWN-12NG Infiniton

INFESTON 88.0°C = 888.0°C @ ^ ∨ U

GWN-12NG

GWB-12NP

Illustration of a hand washing a bottle with a pipe, showing a cartoon face and a small container (no text or symbols)

Technical line drawing of a mechanical device with two heating elements and a base, no text or symbols present.

Technical line drawing of an electrical enclosure with cooling fans and wiring (no text or symbols)

Technical line drawing of a cabinet or enclosure with internal components and mounting base (no text or symbols)

Fig. 9 (Unit:mm)

air inlet hole (B23 ,B53type) (C13 type) (C33 type)

Fig. 11

w rong installation	problem caused	correct installation
	exhaust gas leak into room
	abnom al com bustion
	w ork abnorm ally

Fig. 12

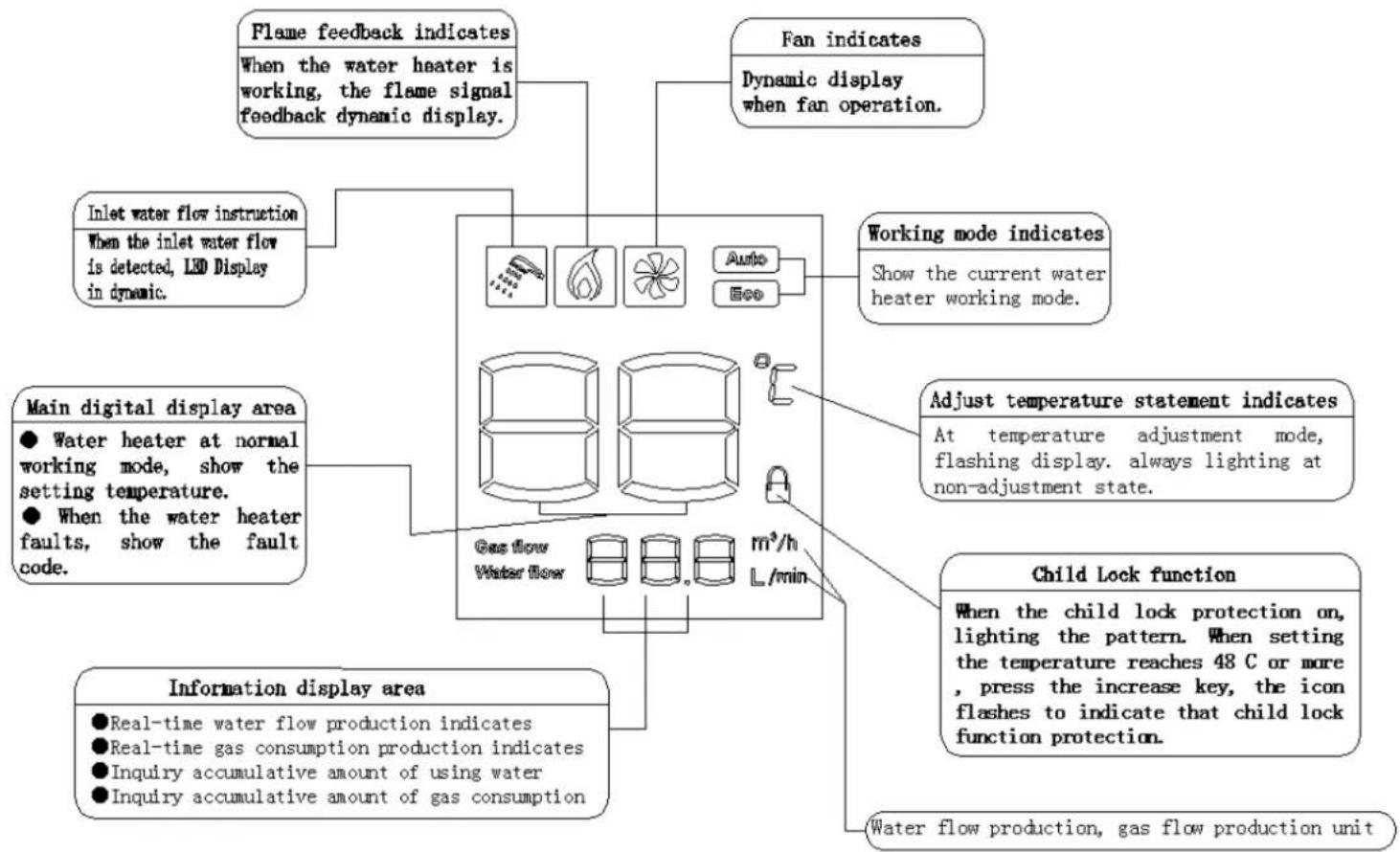

Métodos de uso

off Turn off gas after use.

Fig. 15 Fig.16

Switch Don't touch

Open the window in case smelling

Do not hang thing on or overhead

Cartoon character with a smiling face and raised hands, no text or symbols present

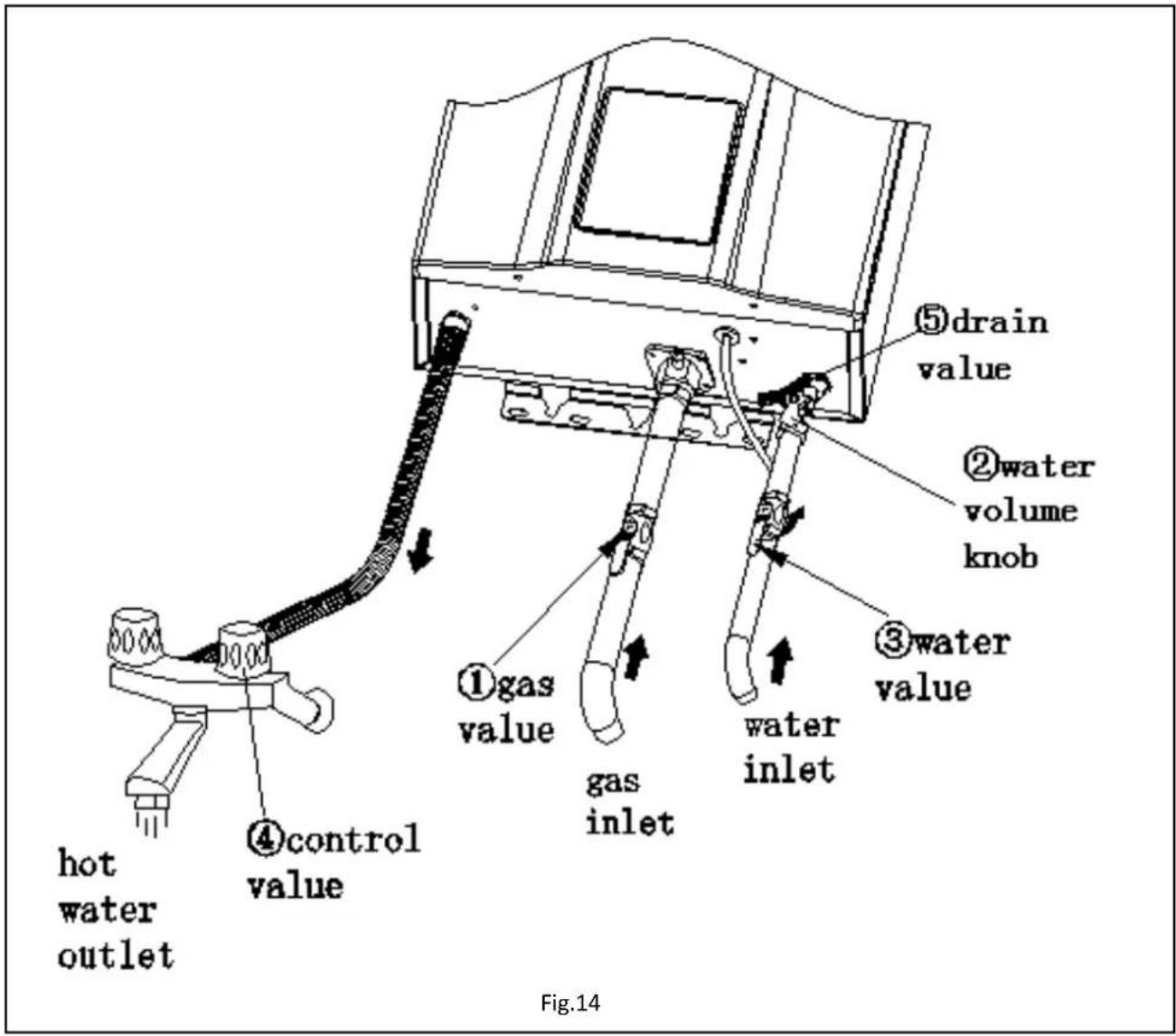

Fig.14

Acid Alkali flammable liquid

Fig.13 Fig.18

Technical line drawing of an internal electronic device with labeled components (no text or symbols present)

Technical diagram of an electrical enclosure with labeled components and light rays indicating illumination or measurement.

pic 2

Technical line drawing of an internal mechanical or electrical device with no visible text or symbols

Technical line drawing of an electronic device interior with a cable and labeled component P2 (no text or symbols beyond labels)

10-12L

pic 1

Technical schematic diagram of a mechanical device with labeled components and directional arrows indicating assembly or flow.

Technical line drawing of an internal combustion chamber with labeled components (no text or symbols present)

pic 2

Technical line drawing of an internal combustion chamber with labeled parts (no text or symbols present)

Technical line drawing of an internal device with labeled components and a separate view showing a cable or connector (no text or symbols present)

14-17L

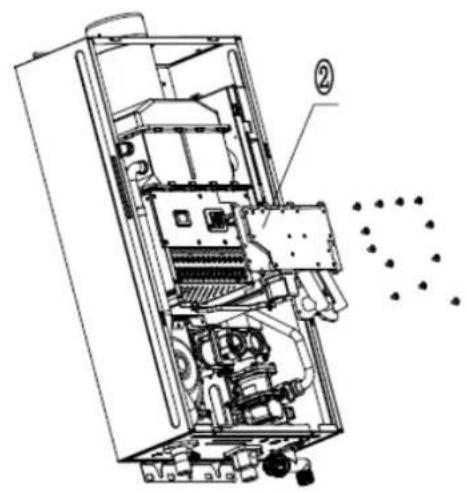

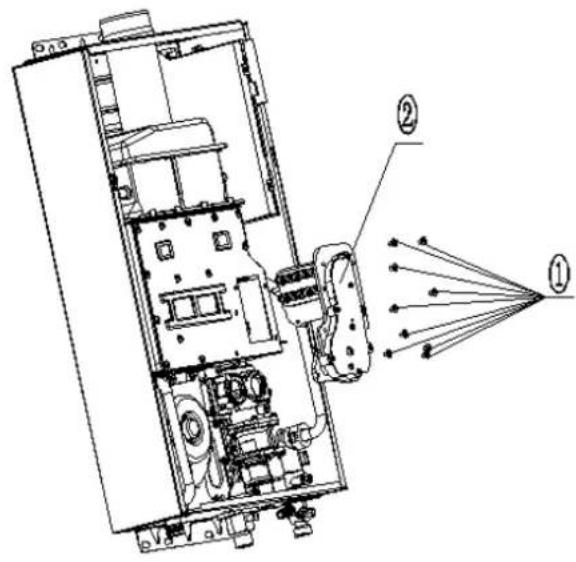

Replaced Part name	diagram	Gas type	Figure No.	Specification
Gas tube assembly		G20	JSQ13ST25_06B1	hole of Φ 0.86hole of Φ 1.52
		G30G31	JSQ13ST25_06B2	hole of Φ 0.74hole of Φ 1.04

10-12L

Replaced Part list

Replaced Part name	diagram	Volume	Gas type	Figure No.	Specification	NOTE
nozzle		16L/17L	G20	JSQ16L7_06_01B2	hole of Φ 0.74hole of Φ 1.28	The nozzle size is the same in the same row.The row line is the small size nozzle; the wipes row is the larger side nozzle.
			G30G31	JSQ16L7_06_01B3	hole of Φ 0.62hole of Φ 0.88
		14L	G20	JSQ16L7_06_01B1	hole of Φ 0.67hole of Φ 1.19
			G30G31	JSQ16L7_06_01B4	hole of Φ 0.56hole of Φ 0.80

14-17L

Table 2.1 Volume parameter settings

No.	Displayed Symbol	Parameter	Parameter Description
1	L	10	10L
2		11	11L
3		12	12L
1		14	14L
2		16	16L
3		17	17L

Table 2.2 Gas type parameter settings

No.	Displayed Symbol	Parameter	Parameter Description
1	q	12	G20
2		22	G30
3		19	G31

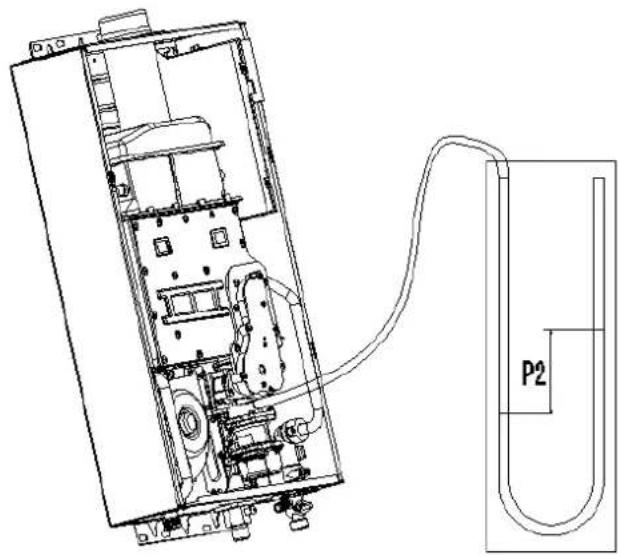

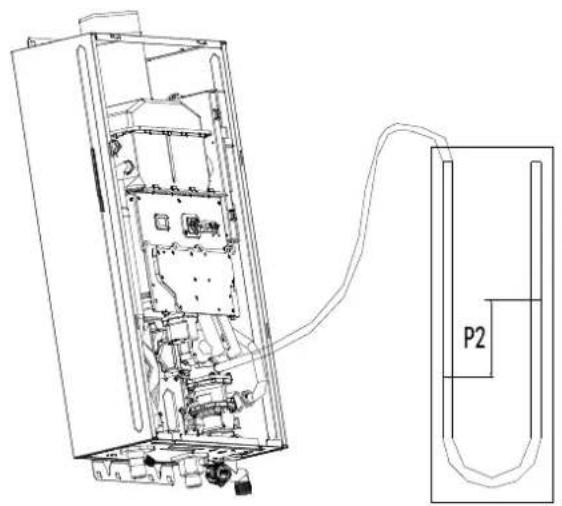

Table 3 the secondary pressure

Gas type	Capacity	P_2
		Max	Min
G20	10L	1050±20Pa	300±10Pa
	11L	1210±20Pa	300±10Pa
	12L	1430±20Pa	300±10Pa
G30	10L	1050±20Pa	300±10Pa
	11L	1260±20Pa	300±10Pa
	12L	1450±20Pa	300±10Pa
G31	10L	1310±20Pa	300±10Pa
	11L	1590±20Pa	300±10Pa
	12L	1890±20Pa	300±10Pa
G20	14L	1070±20Pa	250±10Pa
	16L	950±20Pa	250±10Pa
	17L	1040±20Pa	250±10Pa
G30	14L	1150±20Pa	250±10Pa
	16L	1080±20Pa	250±10Pa
	17L	1050±20Pa	250±10Pa
G31	14L	1340±20Pa	250±10Pa
	16L	1250±20Pa	250±10Pa
	17L	1320±20Pa	250±10Pa

QR code image containing encoded data, no visible human-readable text

• Gama Blanca: rmablanca.infiniton.es
• Gama Marrón: rma.infiniton.es

INFESTON 88.0°C = 888.0°C @ ^ ∨ U

GWN-12NG

GWB-12NP

Read the technical instructions before installing the appliance. Read the user instructions before turning on the appliance.

ISO9001 Certificate

Thank you for purchasing our gas water heater.

Please read this manual before installing and operating and keep it for

future reference.

Special Advice

Read the technical instrucons before installing the appliance.

Read the user's instrucons before lighng the appliance.

The manufacturer or any danger resulted from installaon and operaons not bear responsibility for any danger resulted from installaon and operaons not in accordance to this manual.

When the outdoors temperature is less than 0^ C, the residual water inside the heater must be drained aer use.

EN26: 2015

Features & Benets

■ Micro-Computer Intelligent Control System

The core component of the gas water heater is micro-computer intelligent control system, which is one of today's most advanced mechatronic technology. The CPU chipset can analyze automacally and set the opmal working parameter rapidly according to dierent data such as the owing water quantity, the pressure situation and the actual inlet water temperature.

■ Digital Control for Automac Constant Temperature of Outlet Water

This funcon is to monitor the outlet water temperature by a temperature sensor and to transfer the informaon to the micro-computer, so that the micro-computer could adjust the gas and air supply quantity to guarantee the constant outlet water temperature according to the temperature set by the user and the actual inlet water temperature automacally.

■ Low Start-Up Water Pressure

The lowest start-up water pressure of this product could reach 0.02MPa(the minimum water rate is 2.5L/min), so it could also be used in the residence area with low water pressure.

■ AI Arcial Intelligent Memory Funcon

The gas water heater could work with the temperature you set last me when you restart it, so that you do not need to set the temperature again, which is great experience of the idea of ergonomics.

■ Eecve and Energy-Saving

This product has advanced technologies called Strengthened Combuson and Forced Combuson. These patents aim to make the best use of heat energy with high working eciency.

■ Set Temperature by Touch

You could set the required temperature easily by touching the digital display. The seng temperature is from 35^ C to 65^ C, which can meet different water temperature requirements with easy operaon.

■ Mulple Safety Protecon

This product has safety protecons includes self-check protecon, ame-out protecon, over-heat protecon, accidental power-cut protecon, fan breakdown protecon, over electric load protecon, electric leakage protecon, over wind pressure protecon, over temperature protecon etc.

Tips

The above conclusion comes from the safety protecon test under lab experimental conditions. It may be aected by the surroundings in actual using environment. Thus, please use the product in proper conditions rather than using it devastatingly.

Specifications

Model#	GWB-12NP GWN-12NG
NOx (mg/kWh)	47
Structure	C13
Technical specification
Rated heating power [kW] 24
Max power output [kW] 21.4
Pilot flame	no
Ignition Automatic pulse ignition
Gas NG/LPG
Max gas consumption [m3/h]-G20 2.54
Max gas consumption [m3/h]-G30 0.74
Temperature setting from x°C to y°C	With display
Voulume of hot water Δ T=25K [l/min]	12
Min ater pressure [bar] 0.2
Max water pressure [bar] 10
Heat efficiency [%] >86
Type of appliance	C13
Electric data
Voltage / frequency [VAC/Hz]	230V/50Hz
Max electric power consumption [W]	33
IP protection	IPX4
Weight and dimensionse
GW/NW [kg]	15.4/12.3
Dimensions W x H x D [mm]	570x345x150
Packaging dimensions W x H x D [mm]	760x430x250
Flue pipe included	yes
Water inlet pipe dimensions [mm]	G1/2
Water outlet pipe dimensions [mm]	G1/2
Gas pipe dimensions [mm]	G1/2
Diamater of exhaust pipe [mm]	60
Loading Qty(40'HC)	550

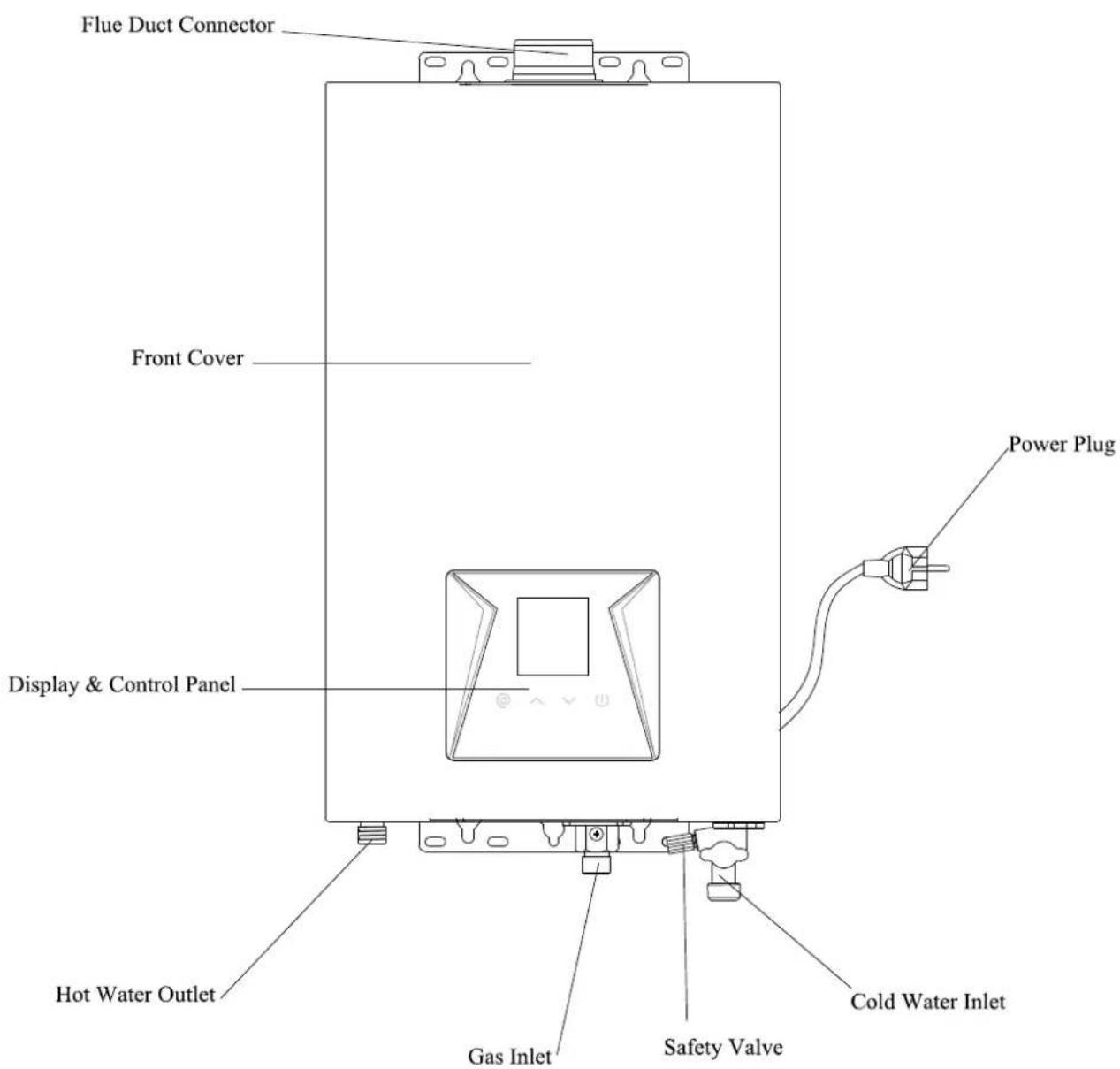

Parts Name

GWB-12NP

GWN-12NG

Flue Duct Connector Front Cover Display & Control Panel Hot Water Outlet Gas Inlet Safety Valve Cold Water Inlet Power Plug

Fig. 1a
(The dimension informaon is for reference only. Please refer to the actual product.)

A B 345 570 601 616 650

Fig. 2(Unit: mm)
(The dimension informaon is for reference only. Please refer to the actual product.)

Installaon

Contact your local gas dealers or gas management department for a qualified engineer to install the gas water heater (users are recommended not to install by themselves). The installer should be called on to install and adjust the appliance, where appropriate.

This product is prohibited to use this gas water heater when ue pipe has not been installed correctly according to instrucons.

■ Installaon Requirements
- The use of the gas water heater should be installed through an external wall, the heater cannot be installed in outdoors. (Fig.3)

INDOORS OUTDOORS Fig.3 Fig.4

COMMON FLUE

Illustration of a hand washing a bottle with a pipe, showing chemical symbols (no text or labels)

Technical line drawing of a mechanical device with two heating elements and a base, no text or symbols present.

• The gas water heater installed in a suitably venled room, in accordance with the regulaons in force.. It is not allowed to install in the bedroom, underground, bathroom or any other places with poor ventilaon.(For B23, B53 type)
• The ue of the heater cannot be connected to a common ue (Fig. 4).
• Please don't install the heater in places where special chemicals are used, such as the laundries or factories etc., otherwise it may cause rusng, shorten the lifeme of the heater, or prevent normal working.(Fig. 5)

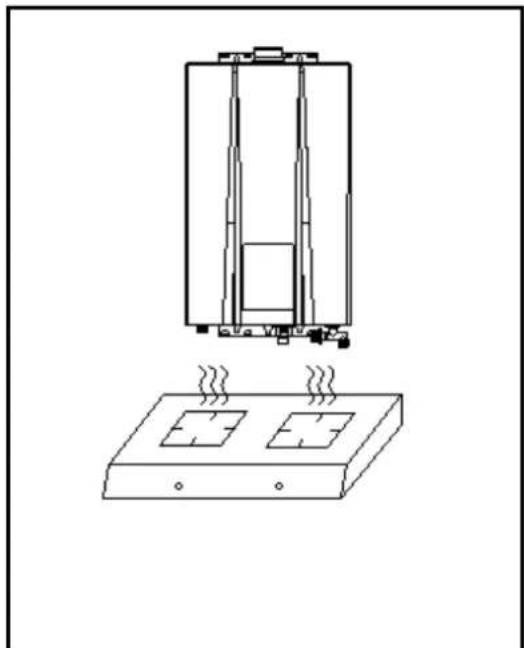

• Don't install the heater above the gas stoves or other heat sources. (Fig. 6)
• The gas water heater should be kept away from the combustible materials with the distance shown in Fig. 7 at least.
• When the installaon parts' materials are combustible or ammable should be used frame-proof board to isolate, heat-resistant plate and wall gap should be greater than 10mm, and the size of heat plate should be larger than water heater shell for 10mm. (Fig. 8)

Combustible Materials

150 150 150

Fig. 7 Fig. 8

Combustible Wall Frame-Proof Board

- The electric wires and electric equipment are not allowed to be placed on the top of the gas water heater. The horizontal distance between the gas water heater and other electric equipment should be more than 400mm.

- The power socket must have a reliable ground wire to improve safety. In order to reduce the number of mes of plugging, it is better to use a socket with a switch. Whenever the water heater nishes working, please switch it o to avoid being electried in a long term. The power supply socket should not be installed in the moist environment.

- The socket should be installed at the side of the product, and never be installed below the machine or the place with splashes, near the heat source, in exposure to sun and rain, or the place where it is not easy to control.

- The installaon place of socket must be far away from the spraying space, so as to avoid

spraying the socket during shower.

■ Installaon Method

1. Installaon of Gas Water Heater

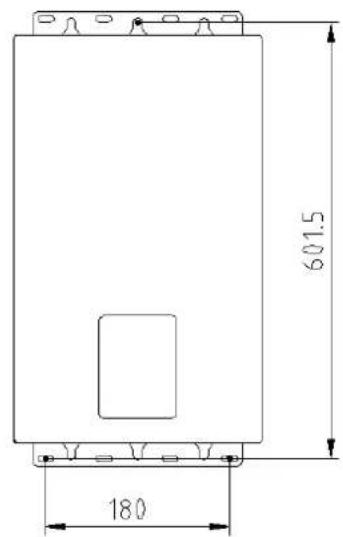

Drill holes in the wall according to Fig.9, put an expansion bolt into the upper hole and plasc gasket into the lower hole, mount the water heater vertically on the upper bolt without inclinaon and ghten the lower holes with expansion bolts.

601.5 180

Technical line drawing of an electrical enclosure with no visible text or symbols

Technical line drawing of a cabinet or enclosure with internal components and mounting feet (no text or symbols)

Fig. 9 (Unit:mm)

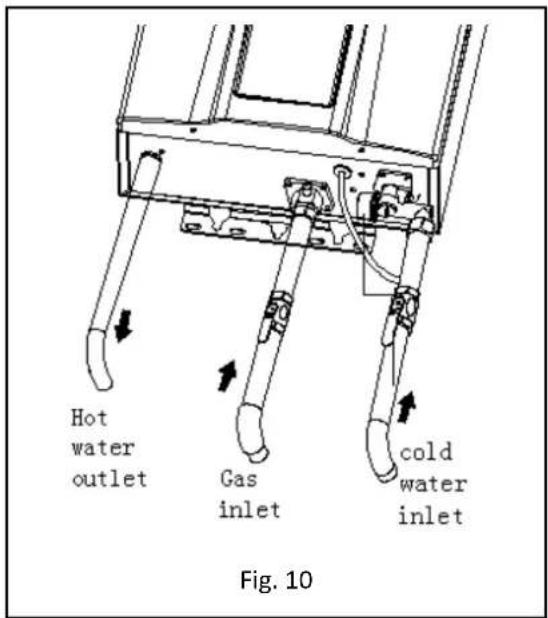

1. Installaon of water and gas pipes (Fig. 10)

- It can be used when the ue system can ensure that the provided gas pressure can reach the lowest requirement. If gas water heater reaches the rated heat input, the gas pressure must reach the rated heat input in the technologic parameter form.

Hot water outlet Gas inlet cold water inlet Fig. 10

- Gas inlet

(1) Before connecng the gas supply, check the rang plate on the right side of the right front cover to be sure that the heater is rated for the same gas to which it will be connected.
(2) All such pipe shall be either new or previously used for no other purpose than conveying gas; and must be in good condition and free from internal obstrucons. Burred ends shall be reamed to the full bore of the pipe. All ngs used shall be of malleable iron, yellow brass, or approved plasc ngs. And exible tube is not allowed.
(3) When your conncons are made, check for gas leaks at all joints (this includes all existing piping). Apply soapy water to all gas tngs and gas valve. Soap bubbles are a sign of a leak.

NOTE: No substance other than air, carbon dioxide or nitrogen can be introduced into the gas piping.

NOTE: If you have a leak, shut off the gas. Aer verifying the leak, ghten appropriate ngs to stop leak. Turn the gas on and check again with a soapy soluon. Never test for gas leaks using a match or ame.

- Cold water inlet

(1) When facing the heater, the cold water inlet is on your right and the hot water outlet is on your le. Although water piping throughout your structure may be other than copper, we recommend that copper piping be used for at least 0.92 m before and aer the heater (follow local codes). Keep water inlet pipe to no less than 1/2" diameter to allow the full ow capacity.
(2) Remember that water pressure must be sucient to acvate the heater when drawing hot water from the top oor. If the hot and cold connexons to the heater are reversed, the heater will not funcon. 1/2" Copper or brass ngs work best when connected to the connectors. The exible type connectors will make insllaon easier and seals to the water valve by means of a union connexon with a washer type gasket at the joint. No pipe dope or thread tape is to be used at this joint. Be certain there are no loose parcles or dirt in the piping. (Fig. 10)
(3) Water pressure must be sucient to acvate the water heater, the maximum pressure for the appliance is 10bar, even with the eects of water dilaon, the water pressure in the appliance shall not exceed this value.

- Hot water outlet

Use a exible or rigid pipe to connect with the sprayer without valve. If a valve or switch is connected to the sprayer, the outlet pipe shall not use heat and pressure unendurable material such as plascs, aluminum pipes, so as to avoid the pipe from breaking and scalding the user.

3. Installaon of the ue:

- Flue Duct Installaon of Forced-Exhausted Gas Water Heater(B23, B53type)

This product is forced exhaust type gas water heater; it can be used only aer the ue duct is installed according to the requirements strictly and can exhaust the waste gas to the outdoor area. It's not allowed to use the gas water heater without installing the ue duct correctly.

Please follow the below requirements during the installaon of ue duct:

(1) Please use the ue supplied by our company, referring to Fig. 11 about the installaon method. If the ue duct is too short, you can extend it aptly. Check the ue duct and see if there is any damage or leakage every half a year.
(2) The length of the ue duct should be less than 8m,
(3) The horizontal distance of the ue duct is the shorter the beer. The ue duct end should have a 2^0 downward inclinaon (Fig. 11), so as to let the condensing water ows out.
(4) The distance between the ue duct and the combustible materials should be more than 150mm. If the ue duct needs to get through the combustible materials or wall, it should use the heat shield material to pack the ue duct with the thickness over 20mm. (Refer to Fig.7)
(5) No cement between the ue duct and wall for the convenience of maintenance.
(6) The ue duct should be xed ghtly. The conncon part could use self-adhesive foil to avoid the waste gas going back into the room.

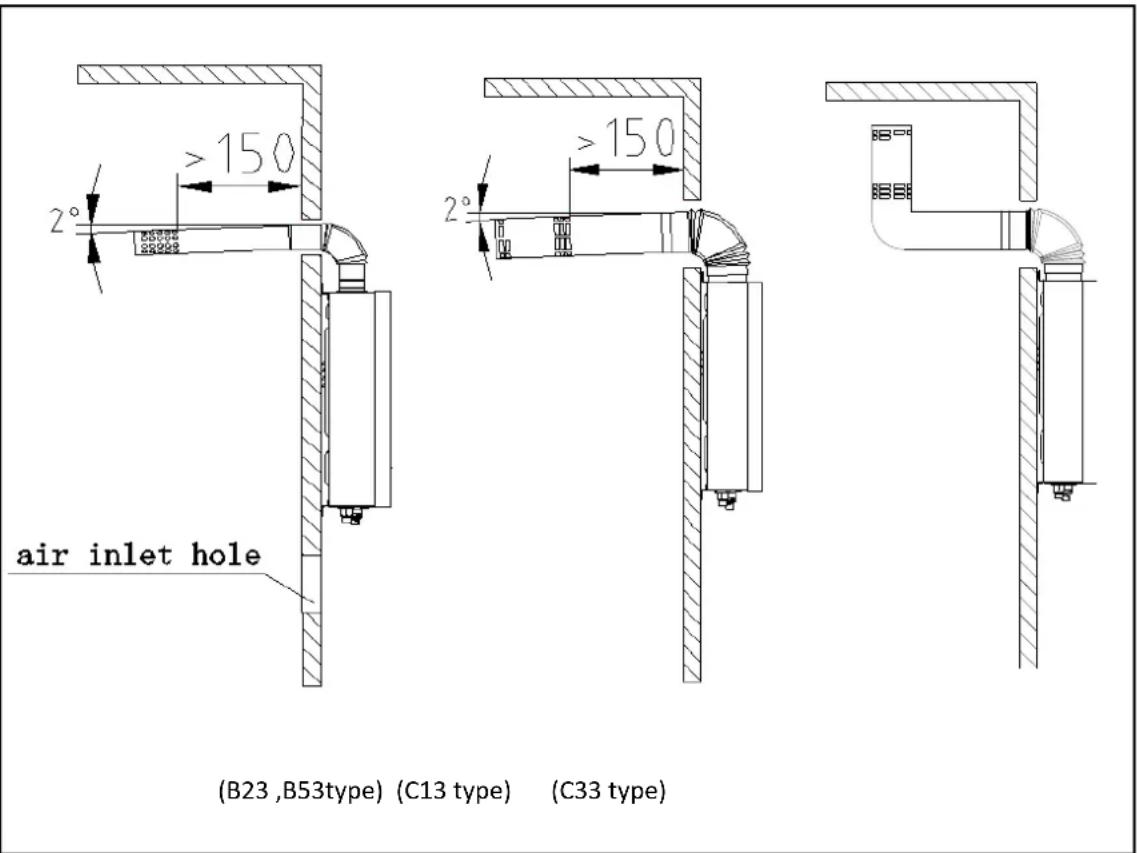

air inlet hole (B23 ,B53type) (C13 type) (C33 type)

Fig. 11

- Flue Duct Installaon of Forced Exhaust & Air-Supply Type Gas Water Heater(C13,C33 type)

This product is a Forced Exhaust & Air-Supply Type gas water heater, it can be used before exhausng the waste gas to the outdoor according to the strictest requirements. It's not allowed to use the gas water heater without operang the ue correctly.

Please follow the below requirements during the installaon of ue duct:

(1) Please use the ue supplied by our company, referring to Fig. 11 about the installaon method. If the ue duct is too short, you can extend it aptly. Check the ue duct and see if there is any damage or leakage every half a year. Install the ue aer the heater body is xed. First, put the xed ue through the hole in the wall, then insert the elbow into the exhaust outlet of the heater smoothly, the ue end should have a 2^ downward inclinaon (Fig. 11), otherwise the rain may ow into the heater and damage it.
(2) The length of the ue duct should be less than 4m, and the number of elbows should not be more than 4 (one elbow equivalent 1m straight pipe).
(3) The distance between the ue duct and the combustible materials should be more than 150mm. If the ue duct needs to get through the combustible materials or wall, it should use the heat shield material to pack the ue duct with the thickness over 20mm. (Refer to Fig.7)
(4) No cement between the ue duct and wall for the convenience of maintenance.
(5) The ue duct should be xed ghtly. The conncon part could use self-adhesive foil to avoid the waste gas going back into the room.

Cauons for ue installaon

• Please use the ue supplied by our company, Other ues with dierent specicaons are strictly prohibited. Do not change the specicaon of the ue.
• The installaon of the ue must be correct, otherwise the waste gases will ow back and be

dangerous.(Fig. 12)

w rong installation	problem caused	correct installation
	exhaust gas leak into room
	abnormal combustion
	work abnormal ally

Fig. 12

Using Methods

- Display content instrucon

- Touch buon instructions (the posion of the touch button may change according to dierent model, but the buon funcon is the same)

2. Preparaon before ignition

• Make sure that the gas used is in accordance with the gas spulated in the label.
• Insert the plug, and then switch on the power. (The buzzer sounds "bi")
• Turn on the gas valve.

3. Temperature Seng

- Press the “ ⏻ ” (on/off) key on the control panel, the screen display and the designed hot water temperature. Press Up “ ⏻ ” or Down ” ⏻ ” to set the hot water temperature as desired. The lowest hot water temperature of this product is 35°C, highest is 65°C. 35 \~ 48 °C each me you press the button to change 1 °C, 48\~65°C each me you press the button to change 5 °C ( that is 48°C、50°C、55°C、60°C、65°C), Each me you press the buzzer sounds.

4. Ignion & Water Outlet

• Open the water valve, there will be spraying signal shown on the screen. When the fan whirls, the igniter turns on and ame shows, hot water will come out accordingly. The display shows the seng temperature of outlet water.
• When using, water outlet ow and temperature can be adjusted in the same method as menoned. Aer opening water and starng, Setng the range of 35-48 °C, Above 48 °C, only press down key (Child lock funcon to prevent burns). If want to set the temperature higher than 48 °C, turn o the hot water faucet and then press the buon to warming.
• When the water valve is open, but the switch stays at OFF posion, the water heater will stop working, and only cold water runs out. If hot water is needed, you should press ON buon.
• Turn o the water valve and water heater stops working, but the fan sll blows the combuston chamber for several seconds. The machine will show the temperature set last me when opening the water valve next me.
• Every me aer using the gas water heater, the gas valve must be closed, and AC power must be cut.

Aenon:

▲ If the water valve is open before the water heater is switched on, the gas water heater will into the protective mode, and the buzzer sounds. Please close the water valve then.
▲ It might take several trial ignions aer installaon or the rst use aer recharging the gas tank to push out all the air remained in the gas pipe.
▲ The temperature shown on the screen is the seng temperature, while the outlet water temperature diers according to the length of pipes and dierent seasons. Therefore, please refer to the actual outlet water temperature.
If hot water ow exceeds the water heater's capacity, the water may not be hot enough. Please turn down the water ow accordingly
▲ Every me the water heater starts working, please pay aenon to the seng temperature on the display and be careful not to being scaled.
▲In order to avoid being scaled, whenever using the water heater, you must test the water temperature with your hand before showing.
▲ When the gas water stops working and the display shows error codes, please close the water valve and reopen. Or press the on/o buon unl the machine is o, and then restart it. If the water heater sll cannot operate regularly, please turn o the gas valve and cut the power, recharge the machine and ignite again aer a few minutes.

5. Use funcon mode

In standby mode (ie, no water status), press the funcon (@) key, you can select "Auto", "Eco", "normal" three modes in turns, they can cycle, the system default normal mode.

Three types of funcon mode instrucon

• Normal mode(default): According to the user to set automat temperature thermostat, then "Auto", "Eco" display lights are not bright.
• Auto mode: ("Auto" display lights is bright.) According to the inlet water temperature, the system automatically adjusts the seng temperature (as shown in Table 1), allowing users to get the most comfortable hot water supply in anyme.

Table 1 Temperature mapping table

No.	Local Water Temperature	Corresponding Temperature
1	≤ 15^	45^
2	16^ 21^	43^
3	22^ 27^	40^
4	≥ 28^	38^

Note: Under the Auto mode, aer the heater switch on, the temperature displayed is the one set before the heater starts to work. The temperature will not change according to the local water temperature change aer the heater starts to work.

- Eco mode: ("Eco" display lights is bright.) In the state of saving mode, aer calculation by microcomputer, automacally adjust the amount of gas supply, compared other modes more economical by water heater gas consumption, not only save gas, but also can guarantee a constant water temperature to meet the requirements of users.

In the state of saving mode, the user can freely select the desired of seng water temperature, the user presses the up or down keys to adjust the seng temperature does not exit the power saving mode, in this case the user needs in the standby mode press the funcon key again to exit the power saving mode.

1. Instant hot water producon and real me air consumpon display

When the water heater in working condion, the display will take turns showing the current real me hot water producon and real me gas consumpon, the gures will be changed accord the actual working condions, so that users can understand the water heater current working condions.

For example: When the real time informaon display "12.0L / min", indicates that current real me hot water producon by water heater per minute 12L. When the real me informaon display "2.0m³/h", indicates that current real me gas consumpon by water heater per hour 2.0m³

Fig.13

1. Inquiry the cumulative amount of gas and water

In working statement, @ buons can inquire about the cumulative water consumption and gas consumpon. Click the @ key to query cumulave amount of using water informaon, press @ key again can be inquired accumulated gas consumpon informaon. Press the third me for the @ buon or no operaon for 20s, can exit the inquiry funcon.

Note:

●Real-me air consumpon show the basic unit of m^3/h
●Real-me hot water producon show the basic unit of L/min
- Cumulave amount of using water and gas consumption show the basic unit of m^3 , When the display numbers reach 999m^3 , water record is automatically cleared. For example, when the query informaon display "Water producon 180m^3 ", represents a total cumulative amount of water heater 180m^3 . When real-me informaon shows "volume 8.3m^3 ", it indicates the water heater cumulative total air consumption 8.3m^3 .
- Cumulave gas consumption and cumulative amount of water is automatically cleared aer power failure
- The contents of the query funcon display only for reference, can not be used for measurement.

Safety Cauons

■ Prevenon of freezing water

Drain the residual water inside the heater to prevent freezing water aer every use when the environment temperature is near or under 0^ C, do as instructed (Fig. 14)

• Close down the gas valve ①
• Turn the water temperature knob ② to "low" posion, or turn the water volume buon knob to "large" posion (level).
• Close down the cold water valve sans③, if a valve is installed on the hot water circuit, open it.
• If there is a control valve④ at the hot water outlet, please open it.
• Turn the drain valve⑤ and take off, replace it aer the residual water is completely discharged.

①gas value gas inlet ②water volume knob ③water value ④control value hot water outlet ⑤drain value Fig.14

■Gas accident prevenon
- Check if the ame of burner is out aer use and do not forget to turn o the gas valve (Fig. 15) and power.
● Always check the gas connectors for gas leakage with soapsuds. If any gas leakage is detected, open the room windows and doors. At that moment, do not ignite or operate the switch of electric appliances or plugs because the ame or electric spark can result in explosive accidents. (Fig. 16)
- Heaters must use the gas type which the heater is designed to use, dierent type of gas or the same gas in dierent place must not be used.
● Always check the gas pipe and change the pipe every year to avoid gas leakage due to cracking.
- If the ame goes unsteadily, stop using the water heater and contact the qualified service facility for repair or adjustment.

off Turn off gas after use.

Fig. 15 Fig.16

Switch Don't touch

Open the window in case smelling

■Fire prevenon

• Do not leave the water heater unaended whilst sll in operaon.
• In case of power failure or water failure, turn o the gas valve and water inlet valve.
• Do not place towels or clothes on top of the water heater.(Fig. 17)
• Do not store inammables, explosives or volales near the water heater. (Fig. 18)
• Never incline the gas tank or turn it upside down, the uid gas is easy to ow into the heater and cause res.

Do not hang thing on or overhead

Cartoon character with a smiling face and raised arms, no text or symbols present

Fig.17 Fig.18

Acid Alkali flammable liquid

■ Carbon Monoxide toxicosis prevenon

• This product must exhaust the waste gas to the outdoor area during working, so the ue duct must be connected to the joint on the top of the water heater to exhaust the waste gas out to the outdoor area, keep the air fresh indoor and avoid incomplete combustor. Otherwise, it will cause danger or even death.
• Too low or too high gas pressure leads to abnormal combustor. At that moment, stop using the water heater and get in contact with a service engineer.
• Dust and accelerated carbon would block the heat exchanger due to long me use, and aect the combuston performance, causing the Carbon monoxide to increase. Therefore, contact a qualified person to clean and clear the dust and accelerated carbon every half year to ensure the combuston product discharges smoothly.
• The heater must be installed vertically, if inclined it will make the ame touch the heat exchanger and cause the monoxide to increase.
  ■Don't drink the heater water

The water in the heater is not suitable for drinking.

1. Handle with abnormal conditions

If there is abnormal burning (ame light-back, ame li, yellow p or black smoke, etc), smell or noise, or other emergent situaons, keep calm and shut o the gas supply valve and power switch, and contact the service facility or gas dealers for repair or adjustment.

■Scald prevenon

• When using the heater disconnuously, be careful not to be scalded by the over high temperature hot water at the start and stop mes.
• During use and immediately aer, do not touch any places especially the surround of the ame Check window or the front cover except for the knob and control panel in order to avoid scalding.

WARNING: Forbid any interference with a sealed component, a fire or explosion may result causing property damage, personal injury or loss of life.

Maintenance

▲ The appliances should be checked and maintained periodically by a competent person
▲Check the gas tube/pipe regularly for any defect. Contact service center for any doubt. Always check the gas pipe for cracks.

▲ Always check for leaking water.
▲ Ask qualified technicians to examine the burner, ue and fan once a year.
▲ Always check the ame inside the water heater for any abnormal conditions.
▲ Keep the cover of the water heater clean.
This product uses water pressure to open the channels. When the water pressure is lower than 0.2bar, the heater cannot be ignited.
▲ The drain valve is dripping. When the water pressure is too high, the drain valve will release the water so as to reduce the pressure to protect the heater.
When the heater is supplying hot water to several points at the same me, the hot water ow would be reduced, or no hot water will issue at all.
When the temperature outside is too low and the exhausted gas meets the cold air, it will be condense as white fog. This is normal.
When the water temperature is too high, set to a lower temperature and reduce the water tap. If the water temperature outlet is too high, please open the tap to reduce the temperature.
When the water temperature is too low, and the hot water volume is so high so that it exceeds the heater's heang power, the outlet water will be not hot enough, please reduce the water volume.
▲ In order to ignite immediately, the fan in the appliance will delay running for a long me and then stop automacally. This is normal.
When you use the mul-funcon shower, the resistance may be too large, and the water inlet pressure will be too low or the water inlet volume will be too little (below the starng-up water volume), theremay be amout or can not be ignited, please choose the suitable shower funcon.
▲ The residual water in the heater may be frozen in the winter, this is bad for the heater, so you must drain the water aer use. (Please refer to the drain methods.).
▲ In order not to create scaling, please close the gas valve aer using the heater, let the hot water out of the appliance. When the outlet of the hot water is cold, close the cold water valve.

Cleaning: The water heater should be cleaned annually, keep the dust away from ue gas passageway. See the Cleaning Instrucons below.(Only for service engineer)

1). Turn o power, shuto gas supply;
2). Wait one hour to cool down water heater;
3). Remove the front cover, by taking out Cover Screw;
4). Using compressed air or equivalent to clean the area between the ns and the heat exchanger;
5). Do not unscrew or move any other parts of water heater;
6). Aer Cleaning, put the front cover back.

Trouble-Shoong Guidance

Causes\Errors

Flame out while using

Non-ignion aer opening the cold water valve

Deagraon aer ignition

Yellow ame with smoke

Abnormal ame with strange smell

Ignion with strange sounds

Water sll not hot,when turning to the high temperature posion

Water too hot, when turning to the low temperature posion

Flame out when turning to the low temperature posion

Flame not out when the cold water valve is closed

Soluons

Main gas valve o ●

Turn on the main gas valve widely or change new gas.

Main gas valve half on

● ●

Turn on the main gas valve widely

There is air in the gas pipe

●

Constantly connue to turn on the water supply control valve

Supply gas pressure inappropriate

High ●

●

Contact the technician to check the gas source pressure adjustment valve

Low ●

●

Main cold water valve off

●

Turn on the water supply main valve

Frozen

●

Reuse it unl melng

Pressure of cold water too low

● ●

●

Contact the technicians to check water pressure

Adjust water temperature wrongly

●

●

Rotate the water ow adjustment rod appropriately

Air supply not enough

●

●

Improve air exchange, and let more fresh air in

External wind pressure too high

●

●

●

Stop using it

Burner assembly blocked

●

●

●

Contact aer-sales services

Heat exchanger assembly blocked

●

●

●

The same as menoned above

Errors in the water control device

●

●

●

●

●

The same as menoned above

Enclose: Explanaon of the Error Codes

In the process of using, the display of the re, wind and other paerns disappeared, because the security device has been caused by acon. Display ashing fault code shows that the failure of its occurrence, the reason for the excepon.

Fault code has been ashing when failure. On such occasions, please turn o the hot water value and then open, or close / open the monitor, and then operate 1-2 mes. If the display sll show the fault code, please be sure to close the water valve and valve, unplug the power plug, and contact the aer-sales service.

Error Code Explanaon
01 Inlet water temperature sensor breaks down
10 Detect a ame signal through pre-check
11 Ignion fails
12 Normal combuston ames out accidentally
13 Thermostat fault protecon
32 Fan blocking protecon
40 Fan or its drive circuit breaks down
50	Over high temperature protecon (outlet)
51	Over high temperature protecon (inlet)
60 Outlet water temperature sensor fault protecon

Packaging and Accessories

Descripon Quanty
Gas water heater 1 pc
Connector of gas inlet (with rubber seal ring) 1 pc
Expansion screws	1 set
Mounng screws 2 pcs
User manual	1 pc
Self-tapping screws	2 pcs
Flue duct (B23 type)	1 set

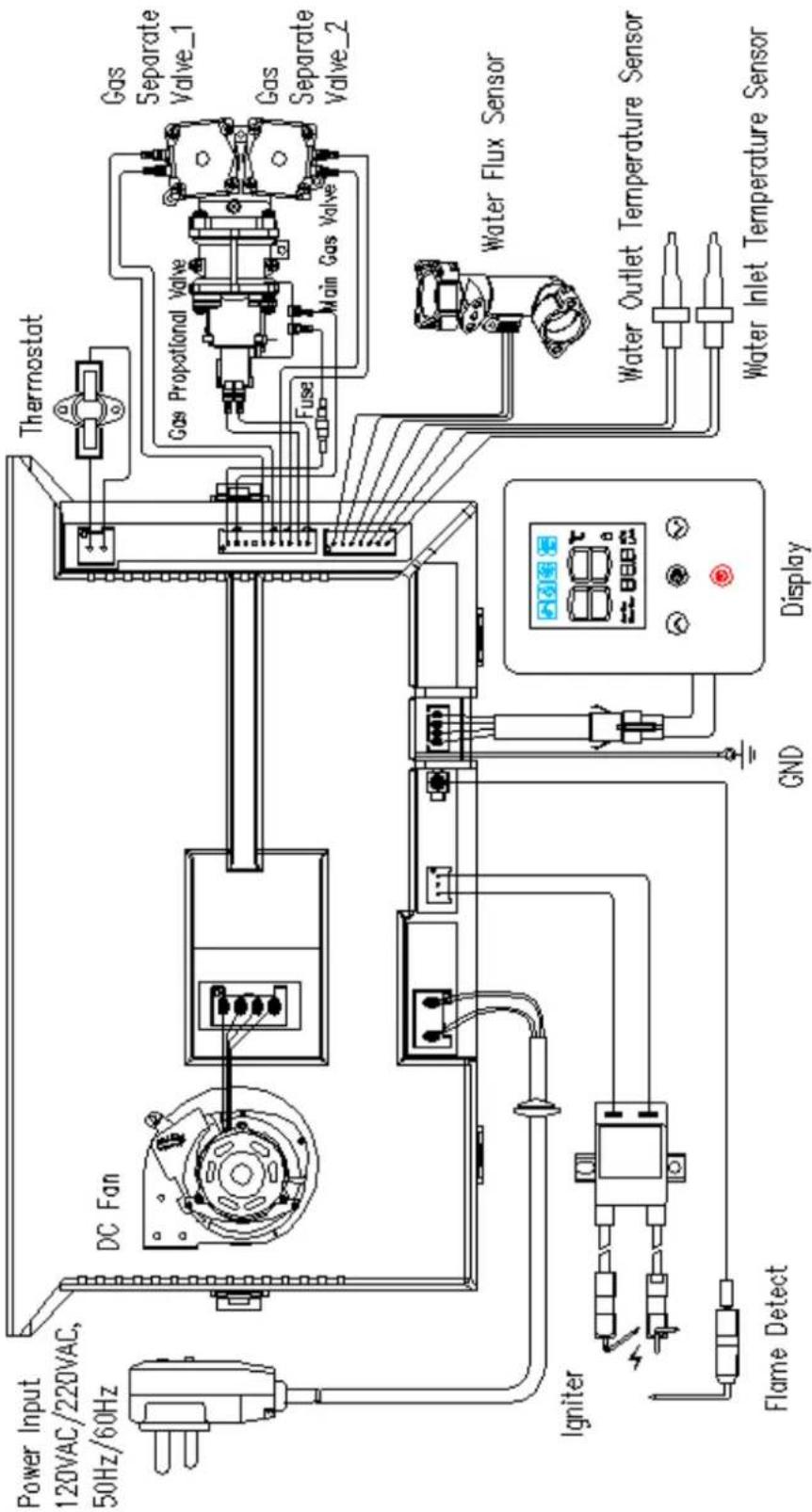

Electrical diagram

Power Input 120VAC/220VAC, 50Hz/60Hz DC Fan Thermostat Gas Propofional Valve Gas Separate Valve_1 Gas Separate Valve_2 Fuse Main Gas Valve Water Flux Sensor Water Outlet Temperature Sensor Water Inlet Temperature Sensor Igniter Flame Detect GND Display

※If change, No special advice!

Conversion instrucons

pic 1

Technical line drawing of an internal electronic device with labeled components (no text or symbols present)

Technical diagram of an electrical enclosure with labeled components and light rays indicating illumination or measurement.

pic 2

Technical line drawing of an internal mechanical or electrical device with no visible text or symbols

Technical line drawing of an electronic device with internal components and a labeled connection point P2 (no text or symbols beyond label)

10-12L

pic 1

Technical schematic diagram of a mechanical device with labeled components and directional arrows indicating assembly or flow.

Technical line drawing of an internal combustion chamber with labeled components (no text or symbols present)

pic 2

Technical line drawing of an internal combustion chamber with labeled components (no text or symbols present)

Technical line drawing of an internal electronic device with a cable and labeled component P2 (no text or symbols beyond labels)

14-17L

Technical instrucon

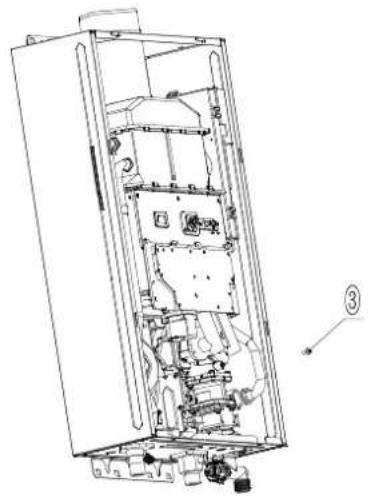

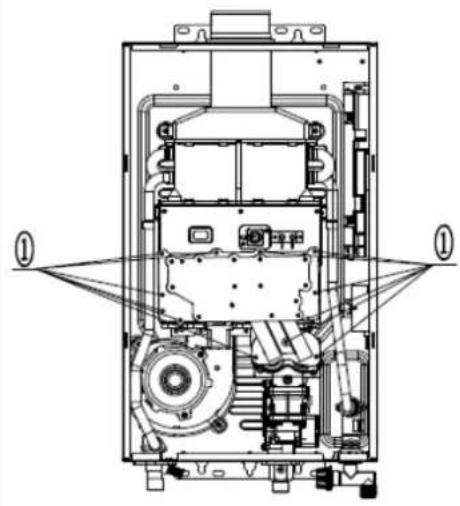

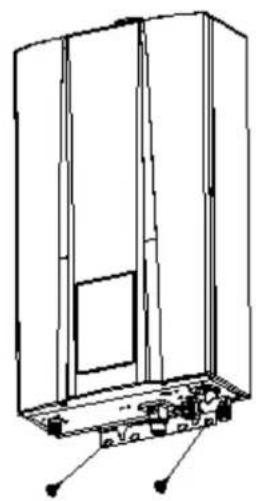

Step 1Open front cover	1.Screw o the front panel and disconnect the display and control unit terminal.
Step 2Replace gastube assembly(pic 1)Step 3Seng the gas type, volume, and model	1.Screw o the gas tube assembly ^1 and take it out ^2 .2.Change to the matched gas ejector tube assembly.Note: It's necessary to examine the air ghtness aer change, to check the seal ring on the gas control system installed well to prevent gas leakage.1. Connect display and control unit2. Volume selecon: Within 10s, aer the system is powered on but switched o, press Up and Down keys together for 2s. Aer the buzzer rings once, "L" blinks on the display, which means that you have entered the volume selecon mode. Press On/O key to enable the adjustment funcon, and then Up or Down key to adjust the volume. Table 1 shows the volume parameter sengs.3. Gas type selecon: Aer the gas volume is adjusted, press On/O key to both conrm the modicaon and enter the next selecon interface. The "q" that blinks on the display means that you have entered the gas type selecon mode. Press On/O key to enable the selecon funcon, and then Up or Down key to select a gas type. The originally selected type is displayed the rst me you press Up or Down key, which is 12T by default. Table 2 shows the gas type parameter sengs.4. Model selecon: Aer gas type is selected, press On/O key to both conrm the selecon and enter the next selecon interface. The "F" that blinks on the display means that you have entered the model selecon mode. (It's the factory default and no need to select, just press on-o key to skip this step.)
Step 4Secondary pressure adjustment	1. Aer adjusng the volume and gas type, screw o the secondary pressure screw on the gas control system3. And connect the secondary port and U type barometer with rubber pipe.2. Aer the system is switched on and it combusts normally, press Up and Down keys together for 5s. The "88" digital tube displays "26", which means that you have entered the secondary pressure adjustment mode.3. Then press On/O key. The high-order posion of the "88" digital tube blinks, which means that you can now regulate the secondary pressure of the big endian by the Up or Down key.4. Press On/O key, the low-order posion of the "88" digital tube blinks, which means that you can now adjust the secondary pressure of the lile endian by the Up or Down key.5. Aer the adjustment, press On/O key to conrm and exit from the adjustment mode.6. Aer the secondary pressure test compliant, mount the secondary pressure screw and conduct leakage test with re.Note: Aer you modify the secondary pressure, wait for 2s or 3s to ensure that the system has recorded the updated the current value. You must verify th upper limit and then the lower limit before you exit. Table 3 shows the secondary pressure of dierent gas type and volume.
Step 4Assemble front cover	1. Check the airproof of nished product ensure no gas leakage.2. Assemble front cover ,ghten screws of front cover.
Note	1. When replace with new gas tube assembly, noce whether the seal ring on gas control system assembly is xed well.2. Check the airproof of nished product ensure no gas leakage.3. Aer nish replacing the conversion kits, replace the corresponding labels on the appliance,for example,data plate.4. This instrucon is for reference only,take the material object as the standard.

Replaced Part list

Replaced Part name	diagram	Gas type	Figure No.	Specification
Gas tube assembly		G20	JSQ13ST25_06B1	hole of Φ 0.86hole of Φ 1.52
		G30G31	JSQ13ST25_06B2	hole of Φ 0.74hole of Φ 1.04

10-12L

Replaced Part list

Replaced Part name	diagram	Volume	Gas type	Figure No.	Specification	NOTE
nozzle		16L/17L	G20	JSQ16L7_06_01B2	hole of Φ 0.74hole of Φ 1.28	The nozzle size is the same in the same row.The row line is the small size nozzle; the wipes row is the larger side nozzle.
			G30G31	JSQ16L7_06_01B3	hole of Φ 0.62hole of Φ 0.88
		14L	G20	JSQ16L7_06_01B1	hole of Φ 0.67hole of Φ 1.19
			G30G31	JSQ16L7_06_01B4	hole of Φ 0.56hole of Φ 0.80

14-17L

Table 2.1 Volume parameter settings

No.	Displayed Symbol	Parameter	Parameter Description
1	L	10	10L
2		11	11L
3		12	12L
1		14	14L
2		16	16L
3		17	17L

Table 2.2 Gas type parameter settings

No.	Displayed Symbol	Parameter	Parameter Description
1	q	12	G20
2		22	G30
3		19	G31

Table 3 the secondary pressure

Gas type	Capacity	P_2
		Max	Min
G20	10L	1050±20Pa	300±10Pa
	11L	1210±20Pa	300±10Pa
	12L	1430±20Pa	300±10Pa
G30	10L	1050±20Pa	300±10Pa
	11L	1260±20Pa	300±10Pa
	12L	1450±20Pa	300±10Pa
G31	10L	1310±20Pa	300±10Pa
	11L	1590±20Pa	300±10Pa
	12L	1890±20Pa	300±10Pa
G20	14L	1070±20Pa	250±10Pa
	16L	950±20Pa	250±10Pa
	17L	1040±20Pa	250±10Pa
G30	14L	1150±20Pa	250±10Pa
	16L	1080±20Pa	250±10Pa
	17L	1050±20Pa	250±10Pa
G31	14L	1340±20Pa	250±10Pa
	16L	1250±20Pa	250±10Pa
	17L	1320±20Pa	250±10Pa

▲Aention: Conversion to other gases shall be carried out by a qualified installer, as described in installation instructions

ErP Data

Model	GWB-12NP GWN-12NG
Declare load profile	M
Water heating energy efficiency efficiency (ηwh)	78.0%
Water heating energy efficiency class	A
Daily gas consumption (Corrected) (KWh)	7.836
Daily electrical consumption (Corrected) (KWh)	0.044
Annual fuel consumption AFC (GJ)	6
Annual Electricity consumption AE C (KWh)	10
NOx (mg/kWh)	47
Indoor sound power level LWA (dB)	61

PROCEDURE IN CASE OF FAILURE OF AN INFINITON PRODUCT

Dear customers, to request technical assistance or repair of your Infiniton product, you have our website, operating 24 hours a day and 7 days a week:

QR code image containing encoded data, no visible human-readable text

• Gama Blanca: rmablanca.infiniton.es
• Gama Marrón: rma.infiniton.es

Alternatively, if they wish, they can request technical assistance via email:

• Gama Blanca: [e-mail]
• Gama Marrón: [e-mail]

To streamline all procedures, the following information should always be indicated:

• Name and surname
- Telephone 1
- Telephone 2
- Full address
- Postal Code
- Population
- Brand
- Product model
- Serial number
- Failure presented by the product

If they wish, they can request technical assistance through the number 902 676 518 or 958 087 169, available only for white range products (except for free-standing microwaves).

INFINITON

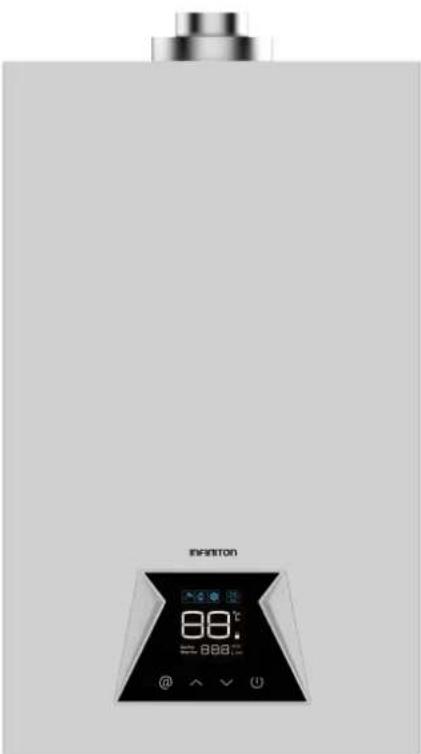

GAS WATER HEATER

MANUAL DE USUARIO USER'S MANUAL MANUAL DE USUÁRIO

INFESTON 88.0°C = 888.0°C @ ^ ∨ U

GWN-12NG

GWB-12NP

Read the technical instructions before installing the appliance. Read the user instructions before turning on the appliance.

ISO9001 Certificate

Thank you for purchasing our gas water heater.

Please read this manual before installing and operating and keep it for

future reference.

Aviso especial

Illustration of a hand washing a bottle with a pipe, showing a cartoon face and a spray bottle (no text or symbols)

Technical line drawing of a mechanical device with two heating elements and a base, no text or symbols present.

Technical line drawing of an electrical enclosure with cooling fans and wiring (no text or symbols)

Technical line drawing of a cabinet or enclosure with internal components and mounting base (no text or symbols)

Fig. 9 (Unit:mm)

air inlet hole (B23 ,B53type) (C13 type) (C33 type)

Fig. 11

w rong installation	problem caused	correct installation
	exhaust gas leak into room
	abnom al com bustion
	w ork abnorm ally

Fig. 12

Métodos de uso

Cartoon illustration of a character using a gas cylinder with an 'off' label (no text or symbols on the character itself)

Turn off gas after use.

Switch Don't touch

Open the window in case smelling
Fig. 15 Fig.16

Do not hang thing on or overhead

Cartoon character with a smiling face and raised hands, no text or symbols present

Fig.14

Acid Alkali flammable liquid

Fig.13 Fig.18

Technical line drawing of an internal electronic device with labeled components (no text or symbols present)

Technical diagram of an electrical enclosure with labeled components and light rays indicating illumination or signal paths.

pic 2

Technical line drawing of an internal mechanical or electrical device with no visible text or symbols

P2

10-12L

pic 1

Technical schematic diagram of a mechanical device with labeled components and directional arrows indicating assembly or flow.

Technical line drawing of an internal device with labeled components (no text or symbols present)

pic 2

Technical line drawing of an internal combustion chamber with labeled components (no text or symbols present)

Technical line drawing of an internal electronic device with a cable and labeled component P2 (no text or symbols beyond labels)

14-17L

Instruções técnicas

Replaced Part name	diagram	Gas type	Figure No.	Specification
Gas tube assembly		G20	JSQ13ST25_06B1	hole of Φ 0.86hole of Φ 1.52
		G30G31	JSQ13ST25_06B2	hole of Φ 0.74hole of Φ 1.04

10-12L

Replaced Part list

Replaced Part name	diagram	Volume	Gas type	Figure No.	Specification	NOTE
nozzle		16L/17L	G20	JSQ16L7_06_01B2	hole of Φ 0.74hole of Φ 1.28	The nozzle size is the same in the same row.The row line is the small size nozzle; the wipes row is the larger side nozzle.
			G30G31	JSQ16L7_06_01B3	hole of Φ 0.62hole of Φ 0.88
		14L	G20	JSQ16L7_06_01B1	hole of Φ 0.67hole of Φ 1.19
			G30G31	JSQ16L7_06_01B4	hole of Φ 0.56hole of Φ 0.80

14-17L

Table 2.1 Volume parameter settings

No.	Displayed Symbol	Parameter	Parameter Description
1	L	10	10L
2		11	11L
3		12	12L
1		14	14L
2		16	16L
3		17	17L

Table 2.2 Gas type parameter settings

No.	Displayed Symbol	Parameter	Parameter Description
1	q	12	G20
2		22	G30
3		19	G31

Table 3 the secondary pressure

Gas type	Capacity	P_2
		Max	Min
G20	10L	1050±20Pa	300±10Pa
	11L	1210±20Pa	300±10Pa
	12L	1430±20Pa	300±10Pa
G30	10L	1050±20Pa	300±10Pa
	11L	1260±20Pa	300±10Pa
	12L	1450±20Pa	300±10Pa
G31	10L	1310±20Pa	300±10Pa
	11L	1590±20Pa	300±10Pa
	12L	1890±20Pa	300±10Pa
G20	14L	1070±20Pa	250±10Pa
	16L	950±20Pa	250±10Pa
	17L	1040±20Pa	250±10Pa
G30	14L	1150±20Pa	250±10Pa
	16L	1080±20Pa	250±10Pa
	17L	1050±20Pa	250±10Pa
G31	14L	1340±20Pa	250±10Pa
	16L	1250±20Pa	250±10Pa
	17L	1320±20Pa	250±10Pa

QR code image containing encoded data, no visible human-readable text

• Linha Branca: rmablanca.infiniton.es
• Linha Marrom: rma.infiniton.es
