Product type	Electric heater
Brand	Grunkel
Model	CAR-R20
Dimensions (H x W x D)	60 cm x 40 cm x 20 cm
Weight	5 kg
Power supply	230 V ~ 50 Hz
Power consumption	2000 W
Heating element	Oil-filled radiator
Number of fins	7
Thermostat control	Adjustable thermostat
Power levels	3 power settings
Overheat protection	Yes
Tip-over switch	Yes
Safety certification	CE
Cleaning	Wipe with a dry cloth; do not use water
Spare parts availability	Contact Grunkel customer service
Warranty	2 years

Frequently Asked Questions - CAR-R20 Grunkel

How do I set the thermostat?

Turn the thermostat knob to the desired temperature setting. The heater will automatically maintain that temperature.

Can I use the heater in a bathroom?

This heater is designed for indoor domestic use. If used in a bathroom, ensure it is placed at a safe distance from water sources and follow local electrical safety regulations.

What should I do if the heater tips over?

The heater is equipped with a tip-over switch that will automatically turn off the unit if it falls. Simply place it upright and it will resume operation.

How to clean the heater?

Always unplug the heater and let it cool down before cleaning. Wipe the exterior with a dry, soft cloth. Do not use water or abrasive cleaners.

Why is the heater not heating?

Check that the power cord is plugged in and the thermostat is set above room temperature. Also ensure the overheat protection has not triggered; if so, unplug and let cool for 15 minutes.

Can I leave the heater unattended overnight?

While the heater has built-in safety features, it is not recommended to leave it unattended for long periods. Always follow the safety instructions in the manual.

What is the maximum room size this heater can warm?

The CAR-R20 is suitable for rooms up to approximately 20 m², depending on insulation and ambient temperature.

Does the heater have a timer function?

The basic model does not include a built-in timer. You can use an external timer plug if needed.

Why does the heater make clicking noises?

Clicking sounds are normal as the thermostat and heating elements expand and contract. This does not affect performance.

How do I obtain spare parts?

For spare parts and repairs, contact Grunkel customer service or an authorized service center. Do not attempt to disassemble the heater yourself.

USER MANUAL CAR-R20 Grunkel

Exterior view of two Crunkel air purifiers with red vented screens (no signage or text visible)

Manual de instruccionesES EN Instruction manual

A couple smiling while looking at a document or book, with cardboard boxes in the background (no visible text or symbols)

TV screen displaying a large wave of ocean waves, with a person on the waves (no text or symbols visible)

Modern kitchen blender with black handle and silver casing against purple background (no text or symbols visible)

White microwave oven with black lid and control knobs against orange background (no text or symbols visible)

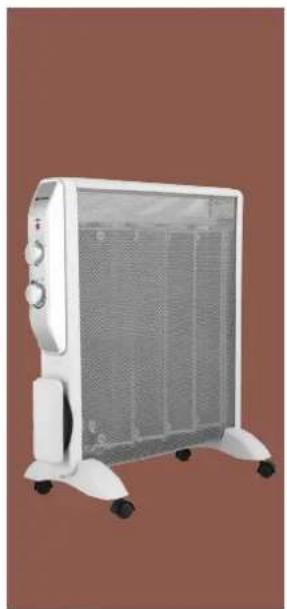

White portable electric heater with mesh insulation and wheels (no visible text or symbols)

Black rectangular oven with open lid and control knobs against orange background (no visible text or symbols)

Product photo of a white and red electric vacuum cleaner with control buttons (no visible text or symbols)

White portable toaster with a button and silver grille, set against a solid purple background (no text or symbols visible)

Modern stainless steel coffee maker with a curved handle against a solid purple background (no text or symbols visible)

Metallic coffee maker with black handle against a solid yellow background (no text or symbols visible)

Black outdoor fan with visible blades and a black handle against a blue background (no text or symbols)

Black hair dryer against a solid pink background (no text or symbols visible)

White and maroon electric iron with a spool, displayed against a solid teal background (no text or symbols visible)

White rectangular food processor with handles and a black handle, set against a solid purple background (no text or symbols visible)

DESCUBRE TODO LO QUE PODEMOS HACER POR TI EN

www.grunkel.com

grunkel

GRACIAS POR ESCOGER ESTE PRODUCTO GRUNKEL

White portable heating unit with black circular vent and brick grille (no visible text or symbols)

MODEL: CAR-G20 / CAR-R20

Read the instruction manual carefully before use and retain these instructions for reference

GENERAL SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before using the appliance.
2. To avoid fire or shock hazard, plug the appliance directly into a 220-240V AC electrical outlet. DO NOT use external timer, separate remote control system, and extension cable or external adaptor with the appliance.
3. The appliance is hot when in use. To avoid burns, DO NOT touch any hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 ft (0.9 m) from the front of the heater and keep them away from the sides and rear.
4. WARNING: In order to avoid overheating, DO NOT COVER the heater.
5. To prevent a possible fire, DO NOT block air intakes or exhaust vents in any manner. DO NOT use on soft surfaces, like a bed, where openings may become blocked.
6. DO NOT move the appliance when it is operating. Only move the appliance when it is cool.
7. DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or the like. Position the cord away from traffic area and where it will not be tipped over.
8. Do not abuse or damage the power cord. Fully unwind the cord before use as a coiled cord may overheat. Do not allow the supply cord to touch hot surfaces.
9. Discontinue use if plug or outlet is hot. It is recommended that the outlet be replaced if plug or outlet is hot to touch.
10. Connect to a suitably supply socket only, corresponding to the requirements of this appliance. Do not overload the circuit.
11. This appliance is not intended for use in bathrooms, laundry areas and similar indoor location where this it may come in contact with water. NEVER locate appliance where it may fall into a bathtub or other water container. Do not use

this heater in the immediate surroundings of a bath, a shower or a swimming pool.

1. Do not immerse any part of this appliance or supply cord in water. Do not use with wet hands or use in any damp conditions.
2. Extreme caution is necessary when any appliance is used by, or near children or invalids, and whenever the appliance is left operating and unattended.
3. Always unplug the appliance when not in use.
4. When unplugging, be sure to pull by the plug and not the cord.
5. DO NOT insert or allow foreign objects to enter any ventilation or exhaust vent opening as this may cause an electric shock or fire, or damage the appliance.
6. DO NOT operate the appliance with a damaged cord or plug, or after the appliance malfunctions, has been dropped or damaged in any manner. If the supply cord is damaged, it must be replaced by qualified electrical person in order to avoid a hazard.
7. Return appliance to the retail store or qualified service agent for examination, electrical or mechanical adjustment, or repair.
8. The appliance have part that get hot and spark during use. DO NOT use it in areas where gasoline, paint, or flammable liquids are used or stored.
9. Use appliance only for intended household use only as described in this manual. Any other

use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not recommended or sold by the manufacturer cause hazards.

1. This appliance is designed for indoors ONLY. DO NOT use outdoors.

2. To disconnect the appliance, turn the ON/OFF control switch to "OFF" (Position '0') BEFORE removing the plug from main power outlet.

3. Avoid the use of an extension cords, extension cord may overheat and cause a risk of fire.

4. DO NOT attempt to service this appliance yourself. Return it to a qualified service agent for repair.

5. Keep this instruction with the appliance. If the appliance is to be used by a third party, this instruction must be supplied with the item.

6. The safety instructions do not by themselves eliminate any danger completely, proper accident prevention measures must always be used.

7. Use of parts or accessories that does not come with the unit may cause danger and injuries.

8. This appliance is not intended for use by persons (INCLUDING CHILDREN) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

9. Children of less than 3 years should be kept away unless continuously supervised.

10. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. Heater must not be located immediately below a socket-outlet

1. Heater must not be located immediately below a socket-outlet

2. NO liability can be accepted for any damage caused by non-compliance with these instructions or any other improper use or mishandling.

PRODUCT SPECIFICATION

Power Input: 1700-2000W

Voltage Input: 220-240V \~50Hz

PACKAGE CONTENTS

1 Main Unit

1 Instruction Manual

NOTE: Confirm all parts before disposing of carton. Safely dispose of all plastic bags and other packaging components. They may be potentially dangerous to children.

ASSEMBLY AND OPERATION

- Ensure the ON/OFF control switch is in the OFF (position '0") position before connecting to main power.

• Make sure the appliance, including the plug and cord are not damaged.

- Insert power plug into a wall socket with correct power output, 220-240V 50Hz.

• Turn ON/OFF control switch to either:

• “” for Fan Only
• "I" for Low Heat
• "II" for High Heat

NOTE: When the heater is switched ON, the red power indicator light will turn ON (make sure to turn the temperature control setting pass the midpoint, selecting a lower setting will not turn the heater ON).

- Turn the temperature control setting clockwise to increase temperature and anti-clockwise to decrease temperature. The heater will turn ON and OFF to maintain the desired heat setting.

NOTE: The heater may emit small amount of smoke and odour when used for the first time. This is normal and caused by the lubricant on the heating element during the production process. It is non-toxic. If the smoke and odour are excessive, use the heater in a ventilated area. The smoke and odour should disappear after a few minutes of use.

CLEANING AND MAINTENANCE

Before cleaning

-When not in use or before cleaning, always disconnect the appliance from the main power supply.

Cleaning

-Cleaning can only be done when the unit is cooled. Do not immerse the whole unit in water. Do not use harsh solvents on this unit.
- Wipe the exterior of the appliance with a damp cloth. Dry the unit completely with a dry towel

Damage check

-Always check that the appliance is not damaged, is in good working order and that all parts are secure. Check the power supply cord and plug regularly for cuts or damage. For safety purposes, DO NOT use the heater if damage is found.

Store in a safe place

-When not in use, store your appliance and instruction manual in a safe and dry place.

NOTE: Always clean and store away your appliance with this instruction manual when not use.
