Type	Portable electric heater
Model	CAR-20 GIRO
Brand	Grunkel
Power	2000 W
Voltage	220-240 V ~ 50/60 Hz
Heating elements	Ceramic PTC
Fan	Yes, oscillating
Thermostat	Adjustable thermostat
Modes	Fan, low heat, high heat
Safety features	Overheat protection, tip-over switch
Housing material	Plastic
Dimensions (approx)	22 x 22 x 30 cm
Weight (approx)	2 kg
Cord length	1.5 m
Noise level	< 45 dB
Coverage area	Up to 25 m²
Filter	Washable dust filter
Maintenance	Clean filter regularly with vacuum; wipe exterior with dry cloth
Spare parts availability	Contact Grunkel service for spare parts
Repairability index	6/10 (user replaceable filter, fuse)
Certifications	CE, RoHS

Frequently Asked Questions - CAR-20 GIRO Grunkel

How do I turn on the heater?

Plug the heater into a mains socket, then press the power button on the control panel. Use the mode switch to select fan, low heat, or high heat.

Can I use the heater in a bathroom?

No, this heater is not designed for wet rooms. It should only be used in dry indoor areas.

What does the tip-over switch do?

The tip-over switch automatically turns off the heater if it is accidentally knocked over, preventing fire hazards.

How do I clean the filter?

Remove the filter cover and take out the filter. Vacuum gently or wash with mild soap and water. Let it dry completely before reinstalling.

Why does the heater turn off by itself?

This may be due to overheat protection. Ensure there is at least 50 cm clearance around the heater. If the problem persists, check if the filter is clogged.

Can I leave the heater unattended?

It is recommended not to leave the heater unattended for long periods. Always turn it off when leaving the room.

Does the heater have a remote control?

No, the Grunkel CAR-20 GIRO does not include a remote control. Adjust settings using the buttons on the unit.

What is the maximum room size for this heater?

The heater is suitable for rooms up to approximately 25 square meters, depending on insulation.

How do I store the heater when not in use?

Allow the heater to cool down completely. Clean the filter and exterior, then store in a cool, dry place out of direct sunlight.

Where can I find spare parts?

Spare parts such as filters and fuses can be ordered from Grunkel's official website or authorized service centers.

USER MANUAL CAR-20 GIRO Grunkel

White portable electronic device with black ventilation grille and circular control knobs (no visible text or symbols)

Two people smiling while looking at a document or book, with cardboard boxes in the background (no visible text or symbols)

Modern TV displaying multiple glossy blue spherical objects against a white background, set against a red and white background (no text or symbols visible)

Modern kitchen blender with black handle and blue control knob against purple background (no text or symbols)

White microwave oven with control knobs and a screen, set against an orange background (no text or symbols visible)

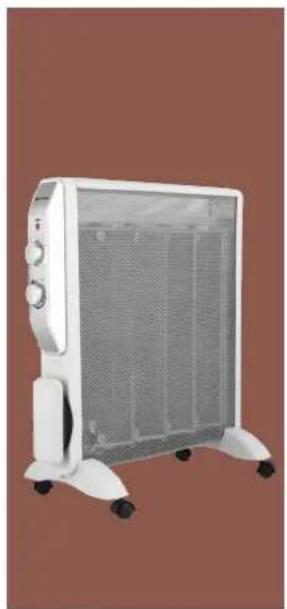

White portable electric heater with cooling fan and wheels (no visible text or symbols)

Black outdoor toaster oven with open door and control knobs, set against an orange background (no text or symbols visible)

3D rendering of a gray vacuum cleaner with orange internal components (no text or symbols visible)

White portable toaster with a black handle and control knob, set against a solid purple background (no text or symbols visible)

Close-up of a white and black juicer with green lime, placed on a purple background (no text or symbols visible)

Metallic coffee maker with black handle against a solid yellow background (no text or symbols visible)

Black outdoor fan with visible blades and a black stand against a blue background (no text or symbols)

White digital kitchen scale with a blue LCD display showing 650, set against a solid pink background (no text or symbols on the scale itself)

Blue and white steam iron on a green background (no text or symbols visible)

White kitchen grater with black handle and side slots, set against a solid purple background (no text or symbols visible)

DESCUBRE TODO LO QUE PODEMOS HACER POR TI EN

www.grunkel.com

grunkel

GRACIAS POR ESCOGER ESTE PRODUCTO GRUNKEL

• Please, read carefully the entire instruction manual before using it.
• Pay special attention to the safety indications.
• Keep this instruction manual. If you hand over this appliance to another person, these instructions must be also be transferred.
• Keep also the guarantee card, purchase ticket or invoice. If possible, keep the original box with all the accessories included for future inquiries.

General safety instructions

Before using the appliance ensure that the main voltage corresponds to the voltage displayed on the rating label. Always plug the appliance into a suitable electrical outlet.

In order to avoid electrical shock risk, please do not inmerse the power cord nor the appliance into water or any other kind of liquid. Check the cleaning instructions.

Do not use unauthorized accessories. This will result in cancellation of the guarantee and could cause accidents.

Do not keep the power cording hanging from the table or the shelf. Keep it away from hot sources. Do not allow sharp or blunt objects to touch it. Do not operate the appliance if the power cord or the plug are damaged, or if you notice unusual operation of the appliance.

Do not leave the appliance operating without supervision. Always switch off the appliance and unplug it. Pull the plug, not the power cord.

If any repair is needed, or if the power cord must be replaced, please ask a aqualified professional or contact the Official Technical Support.

CAUTION: to ensure children's safety, keep away packaging material such as plastic bags, carton boxes, etc.

Always watch the appliance when using it near children Never leave the appliance without supervision.

grunkel

Do not use the appliance near furniture, curtains, sheets or papers.

Do not use the appliance near liquids or flammable materials.

Do not place the appliance near or under an electrical outlet.

Do not let the appliance operating without supervision.

In order to avoid overheating, do not cover the appliance while it is operating.

In case the power cord has been damaged, please get in contact with the Official Technical support.

!

CAUTION: never cover the appliance as this may cause a fire. Do not use as clothesline to dry or warm clothes, towels, sheets, etc. If the appliance and its aire outlets are covered it may cause a fire.

The appliance must be placed on a plain, stable surface.

Turn off the appliance and unplug it before cleaning. When the appliance is not in use, turn it off and unplug it. Ensure all parts that may cause hazard to children are out of their reach.

Do not place the power cord over the appliance while it is hot.

The appliance can be used in vertical or horizontal position.

Do not use the appliance near a bathtub, shower or swimming pool.

Keep the appliance clean. Do not allow objects to enter or cover the air outlets. This may cause an electrical shock, fire or damage to the appliance.

Never attempt to open or dismantle the appliance or remove any of its internal parts.

!

WARNING: some parts of the appliance may reach very hot temperatures and cause burnings. Be extremely careful if the appliance is to be used by children or vulnerable people.

After its use, do not store the appliance until it has cooled down completely. Store the appliance in a dry and clean place while it is not being used.

Accumulated dust and dirt is the most common cause of overheating in the appliance. Ensure they are removed periodically by vacuum or cleaning the air outlets.

Do not place the appliance on a carpet, and do not cover the power cord under a carpet. Place the power cord far from common walking zones in order to avoid tripping.

A distance of at least 120cm from the front side and 50cm from the sides must be kept.

Do not use the appliance outdoors.

Do not handle the appliance with wet hands.

WARNING: In case of improper use, injuries and loss of guarantee may occur.

Children must be supervised so they do not play with the appliance.

Keep the appliance and its cord out of reach of children under 8 years old.

WARNING: This appliance is intended for domestic purposes exclusively. Do not use for commercial applications.

CAUTION!

CHILDREN UNDER 8 YEARS OLD SHOULD NOT USE NOR CLEAN THIS APPLIANCE WITHOUT THE SUPERVISION OF AN ADULT. NEITHER CAN BE USED NOR CLEAN BY PEOPLE WITH REDUCED PHYSICAL, MENTAL OR SENSORIAL CAPABILITIES, WITHOUT EXPERIENCE OR KNOWLEDGE CONCERNING THE USE OF THE APPLIANCE, OR WITHOUT HAVING RECEIVED PROPER TRAINING UNDER DIRECT SUPERVISION FROM AN EXPERIENCED PERSON RESPONSIBLE FOR THEIR SAFETY.

CAUTION

Hot surface

Part identification

Number Description
1	Thermostat knob
2	Power setting knob
3	Air inlet
4	Air outlet

Operation

Insert the plug into a suitable electrical outlet.

Turn the power setting knob to the desired position, the light indicator will turn on:

Position Power
O Off
I 1000W
II 2000W
	Fan

Turn the thermostat knob clockwise until it reaches the maximum temperature.

Once the room temperature has been increased, softly turn the thermostat knob counter-clockwise until the desired temperature has been reached.

To turn off the appliance set the power knob to the "O" position. Unplug it from the electrical outlet.

Overheating protection device

This appliance is equipped with a safety device that turns it off in any overheating is detected. If this device is activated, please turn off the appliance immediately, unplug it from the electrical outlet and allow it to cool down completely. Check if there is any object blocking the air inlets and outlets. Try to turn on the appliance again.

If the appliance is not working or if the safety device turns off the appliance again, please get in contact with the Official Technical Support for its revision and repair.

Cleaning

Before cleaning the appliance, check it is turned off and unplugged from the electrical outlet, and that it has cool down completely after its use.

Clean frequently the dust accumulated in the grid.

Use a dry or slightly moistened cloth for cleaning.

Do not use aggressive or chemical cleaning products directly on the appliance.

Never immerse the unit into water and never allow water to get into the appliance.

Storage

Always disconnect the appliance and allow it to cool down completely before storing it.

If the appliance is not going to be used for a long time, place the unit and the instruction manual in its original packaging box and store it in a dry and well-ventilated place.

Do not place heavy objects on top of the box while it is stored, as this may damage the appliance.

For your safety

WARNING

This appliance is intended for domestic use. Do not use it for commercial purposes. If so, guarantee would be cancelled.

220/240V \~50H/60z / 2000W

Product disposal

Regulation regarding waste from electronic appliances according to RAEE 2002/96/EC. This symbol means the appliance can not be treated as regular domestic waste; it must be returned to the distributor, handed over the corresponding electronic product collection point or delivered to the collection point empowered for such purpose, so its components are recycled and not mixed within domestic waste.

You can also contact your local waste collection service, so it can be collected and treated accordingly following the environment protection instructions, or to receive proper information about the steps to follow for the correct disposal of the appliance.

The correct disposal of an appliance implies avoiding negative consequences for both environment and health. A proper disposal allows to save a significant amount of energy and resources. As a reminder of the necessity of disposing the appliances separately, the product displays the symbol of a crossed out garbage bin.
