Power P6562S - Car speaker JBL - Free user manual and instructions

Product Type	Car Speaker
Brand	JBL
Model	Power P6562S
Speaker Size	6.5 inches (165 mm)
Woofer Cone Material	Polypropylene coated paper
Tweeter Type	1-inch (25 mm) soft dome
Power Handling (RMS)	60 Watts
Power Handling (Peak)	180 Watts
Frequency Response	55 Hz – 21 kHz
Sensitivity	92 dB (2.83V / 1m)
Impedance	4 ohms
Mounting Depth	2.5 inches (64 mm)
Cutout Diameter	5.5 inches (140 mm)
Magnet Type	Ferrite
Grille Included	Yes
Warranty	1 year limited
Weight	1.1 kg (2.4 lbs)
Dimensions (Overall)	6.5 x 2.5 inches (165 x 64 mm)
Maintenance	Clean with dry cloth; avoid liquids
Safety Precautions	Disconnect car battery before installation; avoid short circuits
Spare Parts Availability	Through authorized JBL service centers

Frequently Asked Questions - Power P6562S JBL

What is the power handling of the JBL Power P6562S?

The RMS power handling is 60 Watts, with a peak of 180 Watts. It is designed to work best with amplifiers rated between 20-60 Watts RMS per channel.

What is the impedance of this speaker?

The impedance is 4 ohms, which is standard for most car audio systems.

What size is the JBL Power P6562S?

It is a 6.5-inch (165 mm) speaker. The mounting depth is 2.5 inches (64 mm), and the cutout diameter is 5.5 inches (140 mm).

Does it come with a grille?

Yes, protective grilles are included to shield the speaker from damage.

What type of tweeter does it have?

It features a 1-inch (25 mm) soft dome tweeter for smooth high-frequency reproduction.

Can I install this speaker in my car?

Check if your car has 6.5-inch speaker openings with sufficient mounting depth (at least 2.5 inches). It fits most common vehicles, but verify with a template or measurements.

What is the sensitivity rating?

The sensitivity is 92 dB (measured at 2.83V/1m), meaning it can produce moderate volume even with low-power head units.

Does it require a separate crossover?

No, the speaker has a built-in crossover network that divides frequencies between the woofer and tweeter.

How should I maintain the speakers?

Keep them clean with a soft, dry cloth. Avoid moisture and harsh chemicals. Ensure the grille is properly attached to prevent debris entry.

Is there a warranty?

Yes, JBL offers a 1-year limited warranty against defects in materials and workmanship. Contact your dealer for details.

USER MANUAL Power P6562S JBL

car audio multielement owner's manual

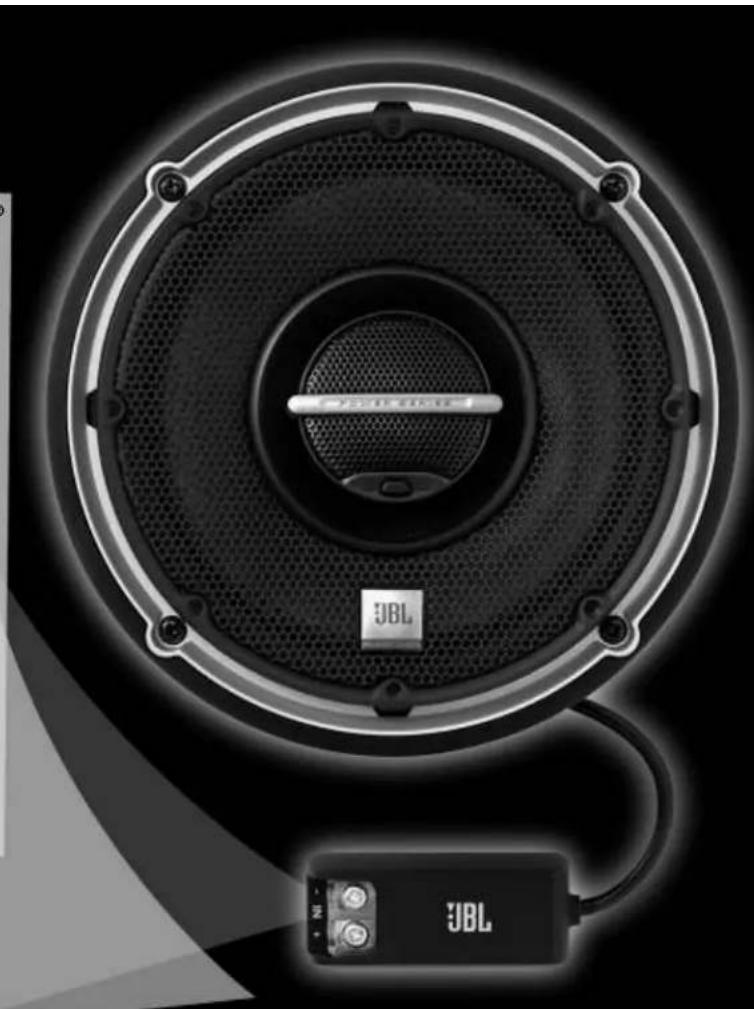

Black and white photo of a JBL speaker with visible grille and control panel (no text or symbols on the device itself)

Designed and Engineered in the USA

P562, P6562, P6562S, P963

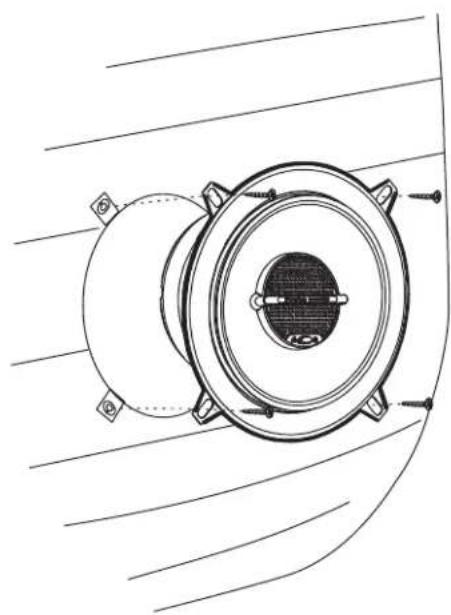

Technical line drawing of two circular mechanical components with mounting holes and a central hub (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a central circular housing (no text or symbols)

P462

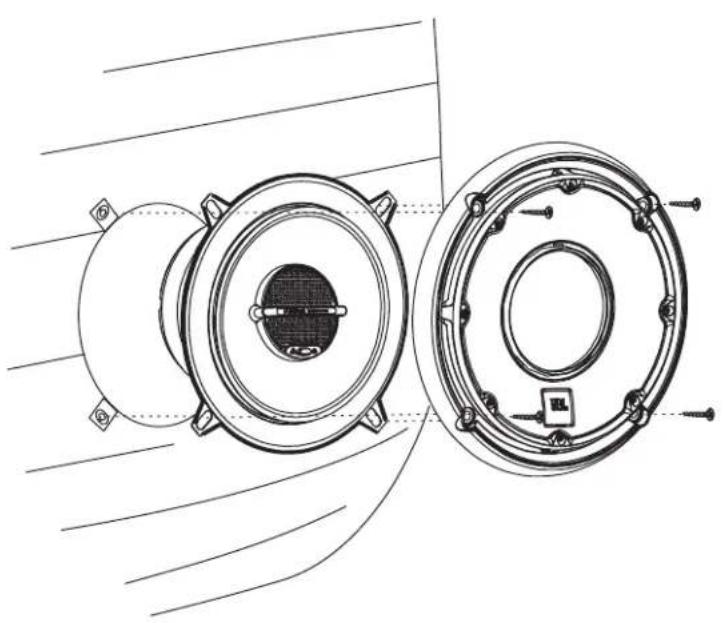

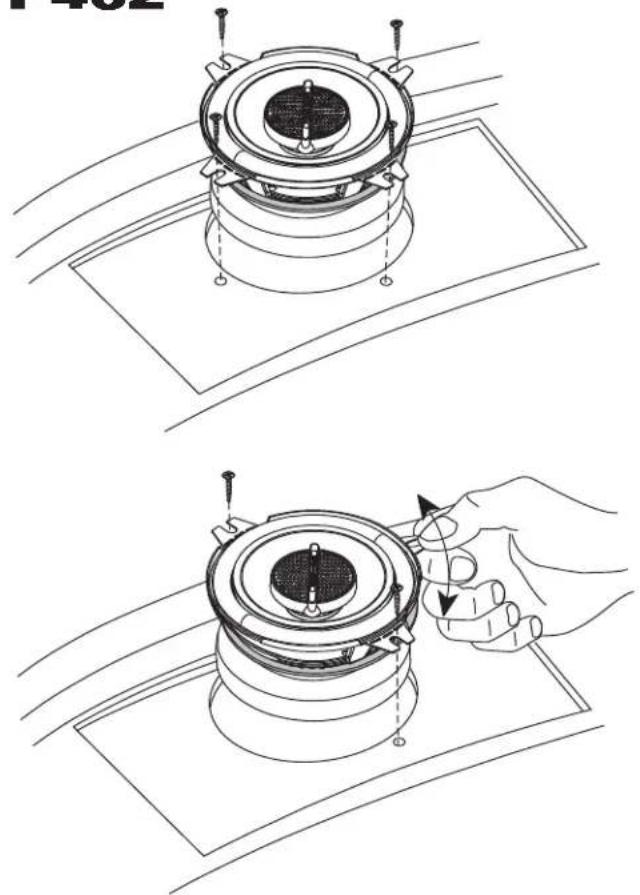

Technical line drawing showing two views of a mechanical component being adjusted, with no visible text or symbols.

Illustration of mechanical components including a screw, washer, and housing (no text or symbols)

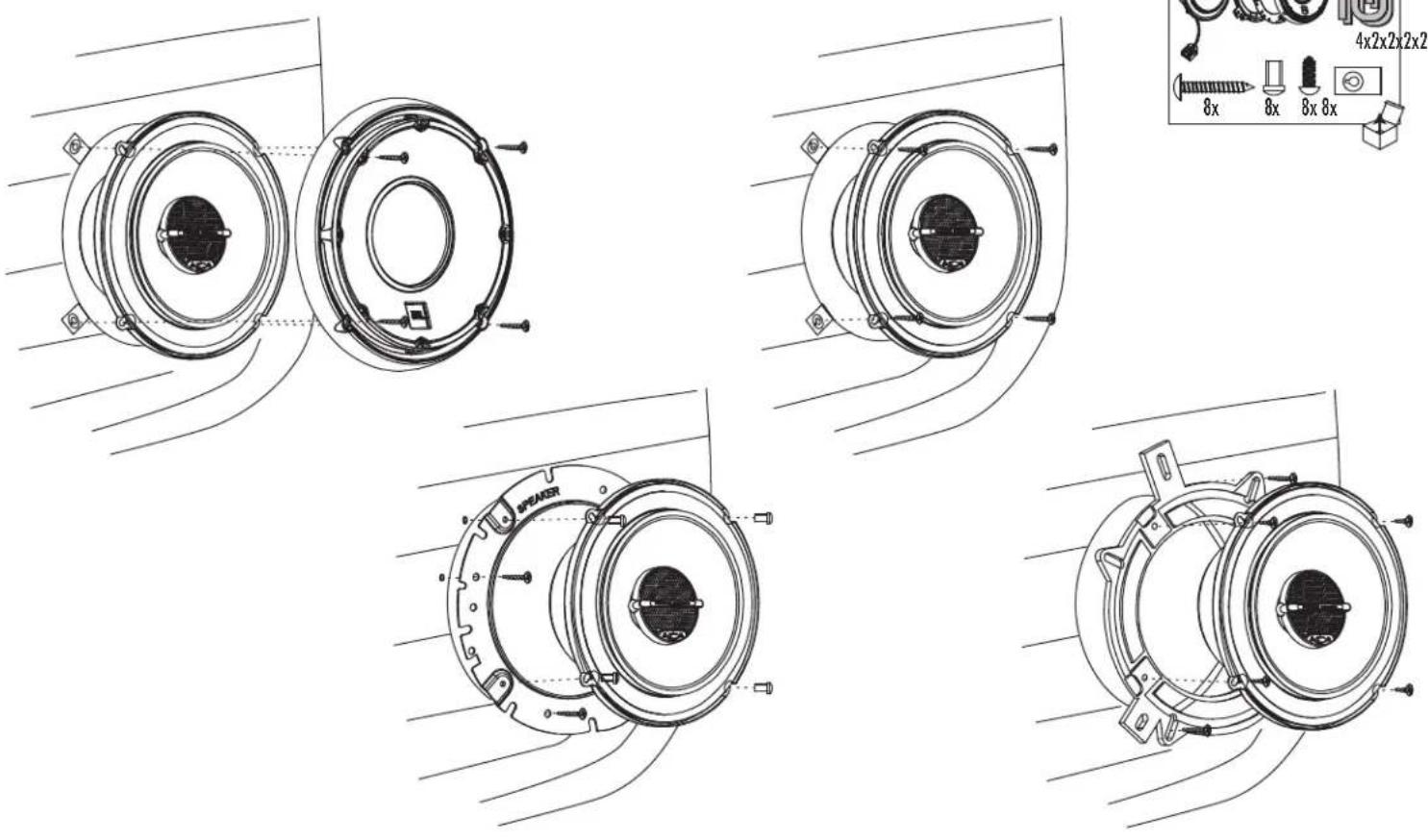

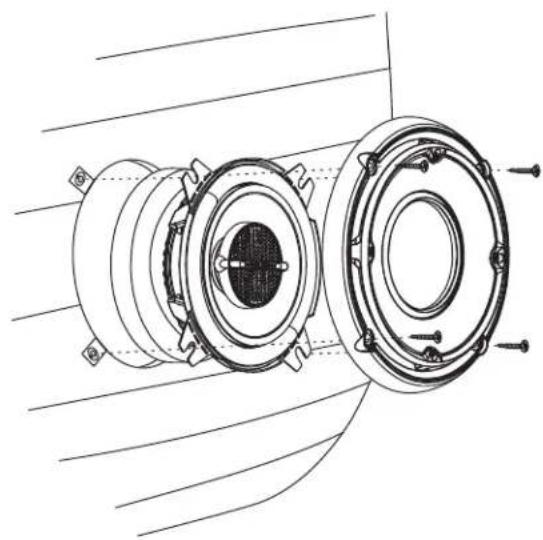

Technical line drawing of a mechanical assembly with two circular components and mounting holes (no text or symbols)

P662, P662S

P8662 P6462

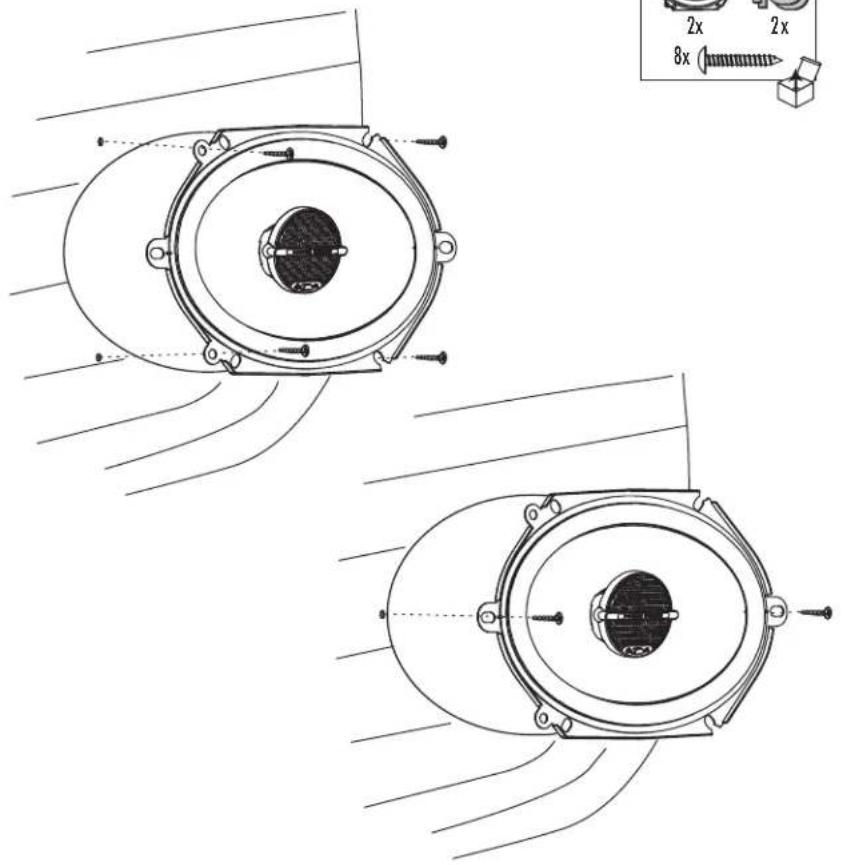

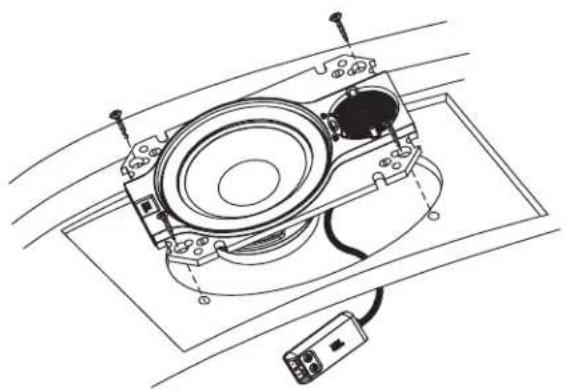

Technical line drawing of a mechanical assembly with no visible text or symbols

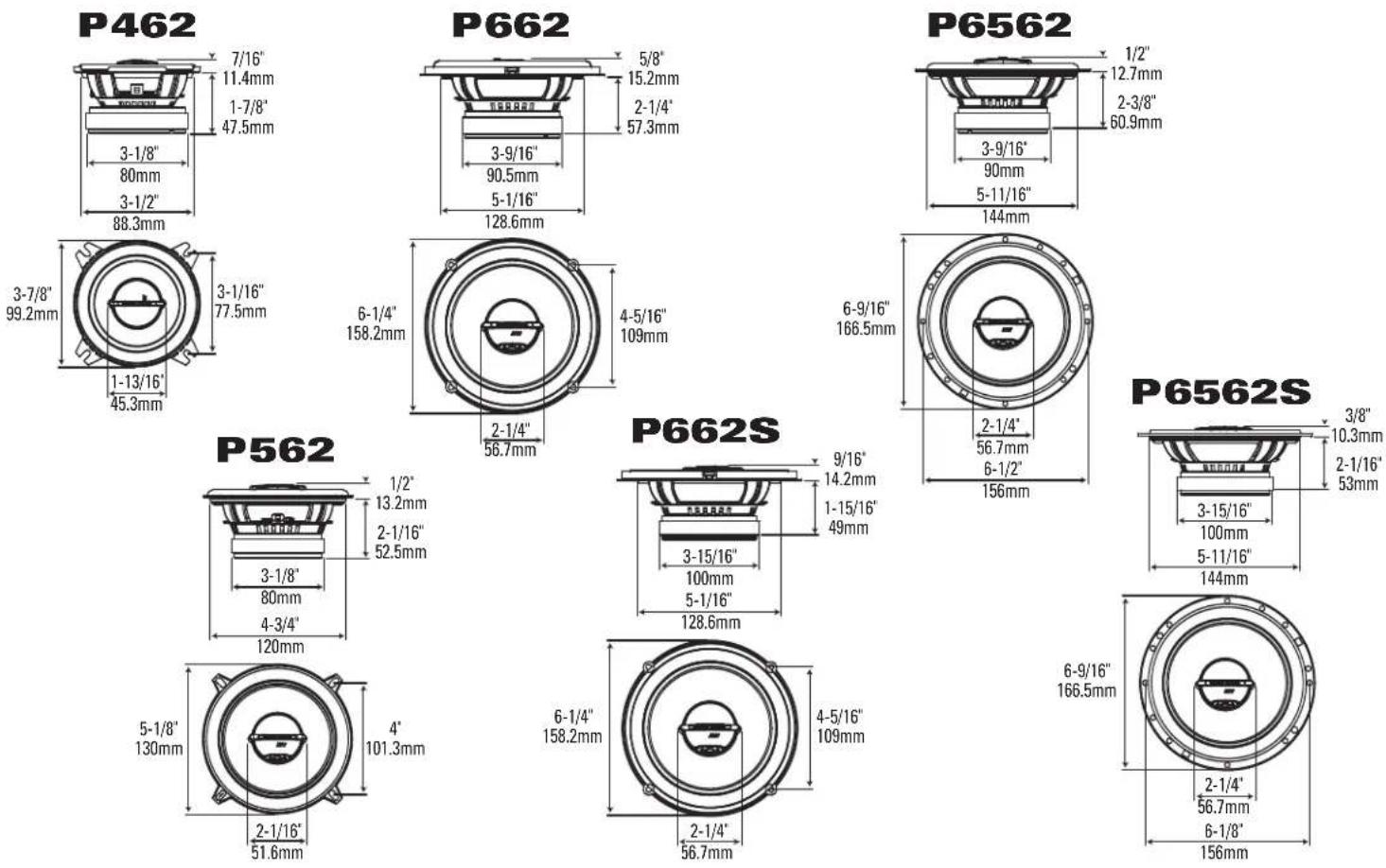

P462, P562, P662, P662S, P6562, P6562S, P963, P6462, P8662

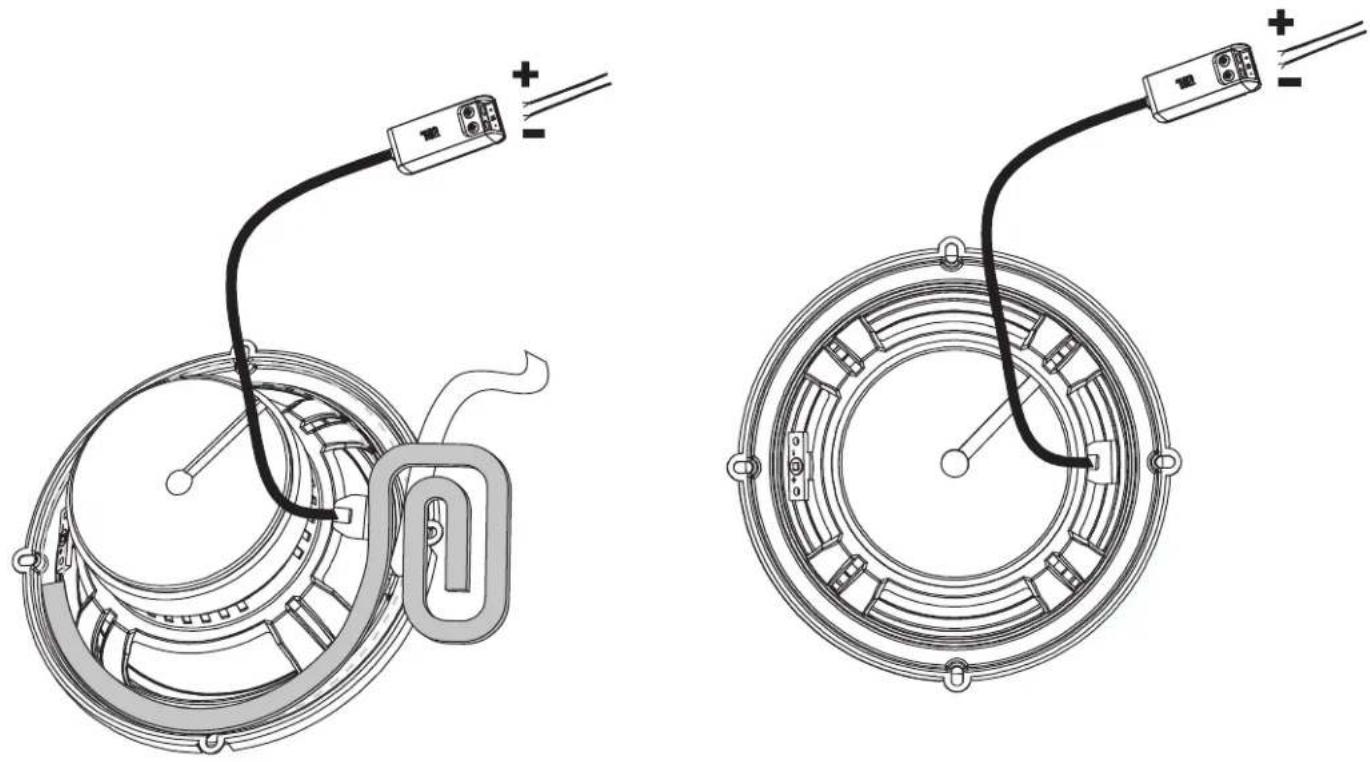

Two technical diagrams showing wiring connections between circular components, no text or symbols present

P562, P662, P662S, P6562S, P6562, P6462, P8662

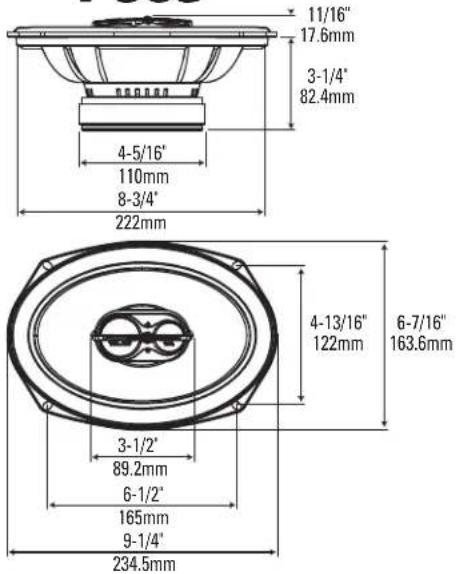

P963

P562, P662, P6562, P8662

Diagram of a power filter device with circular components and directional arrows indicating signal flow (no text or symbols)

P963

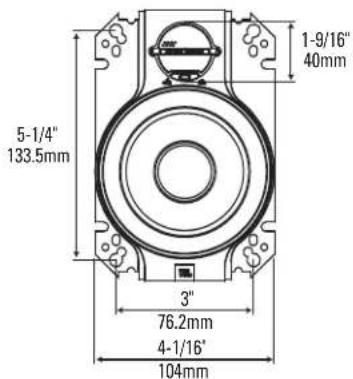

P6462

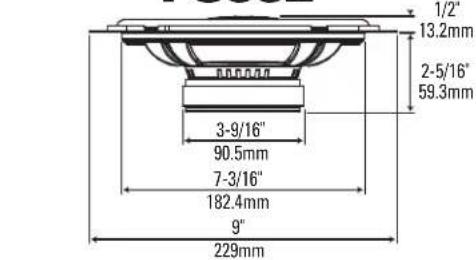

P8662

	P462	P562	P662	P662S	P6562	P6562S	P963	P6462	P8662
BL (T-m)	2.76	3.04	3.51	3.66	3.43	3.73	5.41	3.00	3.47
DCR (ohms)	2.28	2.38	2.38	2.30	2.34	2.48	2.44	2.19	2.40
Mms (g)	4.86	8.16	11.79	10.73	12.49	11.95	21.83	5.78	15.27
Sd (sq cm)	56.8	100.3	132.7	132.7	141.0	141.0	237.5	56.8	158.1
Cms (μm/N)	300	332	301	330	282	302	422	367	238
Vas (l)	1.36	4.69	7.45	8.17	7.87	8.43	33.43	1.66	8.35
Fs (Hz)	131.8	96.7	84.5	84.6	84.8	83.8	52.4	109.3	83.5
Qes	1.20	1.28	1.21	0.98	1.32	1.12	0.60	0.97	1.60
Qms	8.21	8.12	10.58	7.86	9.47	9.12	9.70	6.46	5.95
Qt	1.05	1.10	1.09	0.87	1.16	1.00	0.56	0.84	1.26
1wSPL (dB)	86.0	87.1	87.6	89.0	87.5	88.4	91.0	85.4	86.8

SPECIFICATIONS P462 P562 P662 P662S P6562 P6562S P963 P6462 P8662

Type:	4" 2-Way	5-1/4" 2-Way	6-1/2" 2-Way	6-1/2" 2-Way Shallow	165mm 2-Way	165mm 2-Way Shallow	6" x 9" 2-Way	4" x 6" 2-Way	5" x 7"/6" x 8" 2-Way
Nominal Impedance:	2 Ohms	2 Ohms	2 Ohms	2 Ohms	2 Ohms	2 Ohms	2 Ohms	2 Ohms	2 Ohms
Power Handling, RMS:	50W	55W	75W	55W	75W	55W	110W	50W	75W
Power Handling, Peak:	150W	165W	225W	165W	225W	165W	330W	150W	225W
Frequency Response:	75Hz – 23kHz	55Hz – 23kHz	45Hz – 23kHz	55Hz – 23kHz	45Hz – 23kHz	55Hz – 23kHz	35Hz – 23kHz	75Hz – 23kHz	40Hz – 23kHz
Sensitivity (2.83V, 1m):	91dB	92dB	93dB	93dB	93dB	93dB	96dB	91dB	92dB

GENERAL CARE: The loudspeaker grilles may be cleaned with a damp cloth. Do not use any cleaners or solvents on the grilles or the speaker cones.
WARRANTY: Power Series speakers are warranted against defects. The duration of the speaker's warranty depends on the laws in the country in which it was purchased. Your local JBL car audio retailer can help you determine the length of your warranty. To register your product, please visit us at www.jbl.com.

A valid serial number is required for warranty coverage.

Features, specifications and appearance are subject to change without notice.

These products are designed for mobile applications and are not intended for connection to the mains.

Harman Consumer Group, Inc. • 250 Crossways Park Drive, Woodbury, NY 11797 USA • www.jbl.com

© 2007 Harman International Industries, Incorporated. All rights reserved. Part No. POWERMEOM11/07

JBL and Power Series are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries.

H A Harman International Company

Declaration of Conformity

CE

We, Harman Consumer Group, Inc.

2, route de Tours

declare in own responsibility that the products described in this owner's manual are in compliance with technical standards:

EN 61000-6-3:2001

EN 61000-6-1:2001

Klaus Lebherz

Haman Consumer Group, Inc
