Grand Touring GTO920 - Car speaker JBL - Free user manual and instructions

Brand	JBL
Model	Grand Touring GTO920
Product Type	Car Loudspeaker
Speaker Size	6" x 9" (oval)
Speaker Design	2-Way Multielement
Woofer Cone Material	Rigitex™
Tweeter Diaphragm Material	Titanium Composite
Frequency Response	45 Hz – 21 kHz
Sensitivity (1W/1m)	91 dB
Recommended Amplifier Power (RMS)	5 W – 175 W
Mounting Depth	2-15/16" (75 mm)
Mounting System	Standard cutout; grille and trim ring included
Installation Compatibility	Direct replacement in many vehicles; check clearance
Protection	Not waterproof; avoid moisture
Safety Warnings	Disconnect battery; wear eye protection; avoid loud listening to prevent hearing loss
Cleaning Instructions	Wipe gently with a dry cloth; do not use liquids or abrasive cleaners
Woofer Size	6" x 9"
Included Accessories	Grille, trim ring, mounting hardware, owner's manual

Frequently Asked Questions - Grand Touring GTO920 JBL

What are the dimensions of the JBL GTO920 speaker?

The JBL GTO920 is a 6" x 9" oval speaker with a mounting depth of 2-15/16" (75 mm).

What is the power handling of the GTO920?

The recommended amplifier power range is 5W to 175W RMS. It can handle up to 175W RMS for optimal performance.

What is the frequency response of the GTO920?

The frequency response is 45 Hz to 21 kHz, providing deep bass and clear high frequencies.

Is the GTO920 a 2-way or 3-way speaker?

The GTO920 is a 2-way loudspeaker with a dedicated woofer and a titanium composite tweeter.

What is the sensitivity of the GTO920?

The sensitivity is 91 dB (1W/1m), meaning it produces high sound levels even with moderate power.

Does the GTO920 come with a grille?

Yes, the GTO920 includes a grille and trim ring for a finished look in most installations.

Can I install the GTO920 in a door?

Yes, but you must check window clearance with the windows fully open and closed to avoid interference.

What materials are used in the GTO920?

The woofer cone is made of JBL's Rigitex™ material, and the tweeter diaphragm is titanium composite for durability and clarity.

Do I need to disconnect the car battery before installation?

Yes, always disconnect the negative lead from the vehicle's battery before starting installation to avoid electrical hazards.

What is the warranty on the JBL GTO920?

JBL offers a limited warranty. Retain your original purchase receipt and return the enclosed warranty registration card for service.

USER MANUAL Grand Touring GTO920 JBL

Grand Touring® Series

GTO320, GTO420, GTO6420, GTO520, GTO620, GTO630, GTO7520, GTO920, GTO930

Owner's Manual

JBL

Thank you for purchasing JBL's Grand Touring Series multielement automotive loudspeakers. In order that we may better serve you should you require warranty service on your new speakers, please retain your original purchase receipt and return the enclosed warranty registration card.

Important: Installation of automotive stereo components can require extensive experience in performing a variety of mechanical and electrical procedures. Although these instructions explain in a general sense how to install GT Series loudspeakers, they may not show the exact installation methods for your particular vehicle. If you feel you lack the necessary tools or experience, ask your authorized JBL car audio dealer about professional installation options.

Installation Warnings and Tips

• Always wear protective eyewear when using tools.

- Turn off all audio systems and other electrical devices before you start. Disconnect the (-) negative lead from your vehicle's battery.

- Keep speakers in their package(s) until final installation. When moving a speaker, always rest it with the cone or dome facing up. Never use force to install any speaker.

- Check clearances on both sides of a planned mounting surface before drilling any holes or installing any screws. Remember that the screws can extend behind the surface.

- At the installation sites, locate and make a note of all fuel lines, hydraulic brake lines, vacuum lines and electrical wiring. Use extreme caution when cutting or drilling in and around these areas.

Caution: In some cars, fuel tanks may be located directly beneath the rear deck. Check for adequate speaker-basket clearance before considering this location!

- Before drilling or cutting holes, use a utility knife to remove unwanted fabric or vinyl to keep material from snagging in a drill bit or saw.

- For door installations, check the clearance with the windows in both closed and open positions and verify that a mounted speaker will not interfere with the window crank or with the power-window mechanism.

- If mounting speakers elsewhere, check for clearance around rear-deck torsion bars, glove box or other structural elements.

- Do not mount speakers where they will get wet.

Warning: Playing loud music in an automobile can permanently damage your hearing as well as hinder your ability to hear traffic. We recommend listening at low levels while in your car. JBL accepts no liability for hearing loss, bodily injury or property damage resulting from use or misuse of this product.

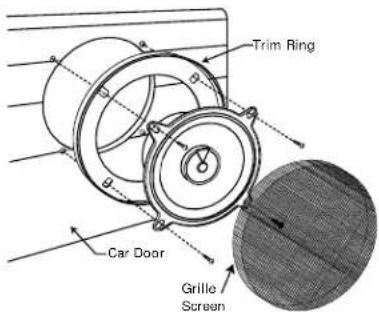

Typical installation of the GTO320, GTO520, GTO7520, GTO920 and GTO930 speakers with grilles as shown in Figure 1.

Figure 1.

Note: The GTO320 and GTO7520 are designed for direct replacement of factory speakers behind original factory grilles; therefore, they do not contain the grilles and trim ring shown in Figure 1.

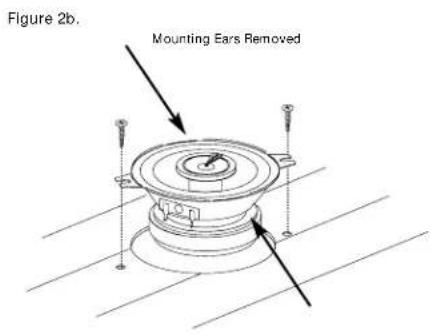

Installation of the GTO420 speaker as shown in Figures 2a and 2b.

Figure 2a.

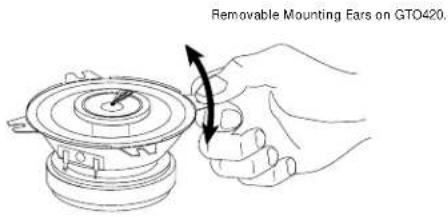

Bend up and down repeatedly to break off or use tin snips.

Note: Some installations may require some or all of the mounting ears to be removed from the GTO420. Remove your original speakers first to determine whether any mounting ears must be removed.

Mounting the GTO420.

Installation of the GTO6420 speaker as shown In Figure 3.

Figure 3.

Note: To install the GTO6420 in European cars with elliptical openings, detach the speaker from the metal adapter.

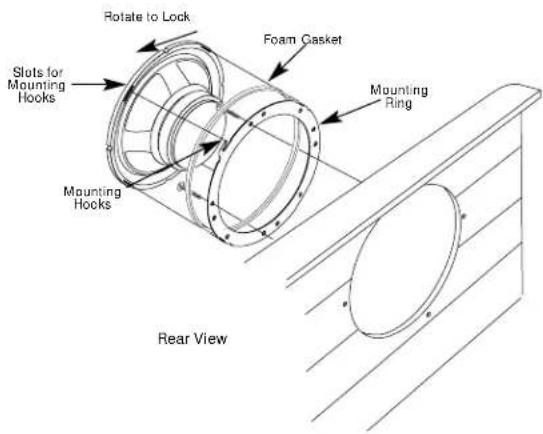

Installation of the GTO620 and GTO630 as shown in Figures 4a, 4b, 4c and 4d. The GTO620 and GTO630 use JBLs patented Intermount II™ mounting system. Intermount II provides for easy installation of these speakers in many standard and nonstandard locations that will accommodate a 6-1/2" speaker.

Using Intermount II™ in American and Japanese cars with openings for 6-1/2" speakers as shown in Figures 4a and 4b.

Figure 4b. Figure 4a.

Important: When using the steel mounting rings, you must use the sheet metal screws with undersized heads that are included in the hardware pack and make sure that the ring is mounted to a completely flat surface.

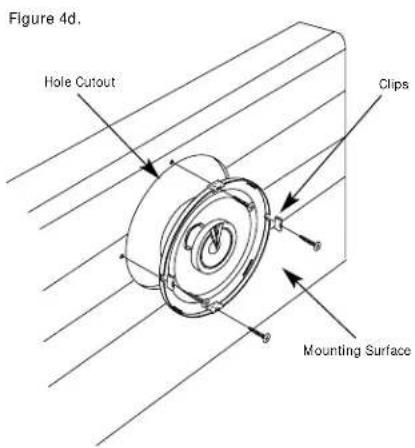

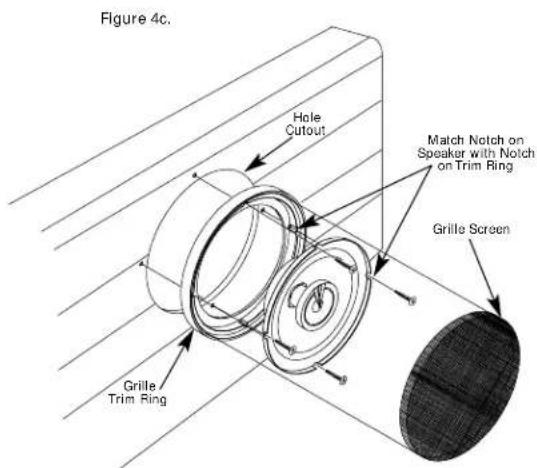

Using Intermount II™ in European and American 165mm openings or custom-mounting the speaker as shown in Figures 4c and 4d.

Note: If you are mounting the speakers behind the factory door panel or grille, omit the grille and trim ring. Place the U-shaped clips over the speaker's outside flange, align the hole in the clip with the notch in the speaker's basket and insert the screw through the hole in the clip.

Specifications

Multielement Loudspeakers

GTO320

GTO420

GTO6420

GTO520

GTO620

GTO630

3-1/2" 2-Way 4" 2-Way 4" x 6" 2-Way 5-1/4" 2-Way 6-1/2" 2-Way 6-1/2" 3-Way

Loudspeaker Loudspeaker Loudspeaker Loudspeaker Loudspeaker Loudspeaker

Woofer-Cone Material	RigitexTM	RigitexTM	RigitexTM	RigitexTM	RigitexTM	RigitexTM
Tweeter-Diaphragm Material	Titanium Composite	Titanium Composite	Titanium Composite	Titanium Composite	Titanium Composite	Titanium Composite
Recommended Amplifier Power Range	5W – 60W RMS	5W – 75W RMS	5W – 60W RMS	5W – 90W RMS	5W – 125W RMS	5W – 125W RMS
Frequency Response	100Hz – 21kHz	85Hz – 21kHz	75Hz – 21kHz	65Hz – 21kHz	55Hz – 21kHz	55Hz – 21kHz
Sensitivity	90dB	90dB	92dB	90dB	91dB	91dB
Mounting Depth	1-7/16" (37mm)	1-15/16" (50mm)	1-3/4" (45mm)	2-3/16" (56mm)	1-15/16" (50mm))	1-15/16" (50mm)

GTO7520 GTO920 GTO930
5" x 7" 2-Way 6" x 9" 2-Way
6" x 9" 3-Way

	Loudspeaker	Loudspeaker	Loudspeaker
Woofer-Cone Material	RigitexTM	RigitexTM	RigitexTM
Tweeter-Diaphragm Material	Titanium Composite	Titanium Composite	Titanium Composite
Recommended Amplifier Power Range	5W – 150W RMS	5W – 175W RMS	5W – 175W RMS
Frequency Response	50Hz – 21kHz	45Hz – 21kHz	45Hz – 21kHz
Sensitivity	91dB	91dB	92dB
Mounting Depth	2-3/8" (61mm)	2-15/16" (75mm)	2-15/16" (75mm)

Declaration of Conformity

We, JBL Europe A/S

Kongevjen 1948

DK-S460 Birkerod

DENMARK

declare in own responsibility, that the products described

in this owner's manual are in compliance with technical

standards:

EN 50081-1:1992

EN 50082-1:1992

Sleen Michaelsen

JBL Europe A/S Bikkerl DENMARK 209

JBL

JBL Consumer Products, 250 Crossways Park Drive, Woodbury, NY 11797

800-336-4JBL (4525) www.jbl.com Part No. GTOMEOM Made in China

H A Harman International Company
