Product Type	Car Speaker (Coaxial)
Brand	JBL
Model	Grand Touring GTO620
Speaker Size	6-1/2 inches (165 mm)
Configuration	2-Way
Woofer Cone Material	Rigitex™
Tweeter Diaphragm Material	Titanium Composite
Impedance	4 ohms (typical)
Power Handling (RMS)	5 – 125 Watts RMS
Frequency Response	55 Hz – 21 kHz
Sensitivity	91 dB
Mounting Depth	1-15/16 inches (50 mm)
Mounting System	Intermount II™ (compatible with standard and custom openings)
Recommended Amplifier Power	5 – 125 W RMS
Weight	Approx. 1.5 lbs (0.68 kg)
Included Accessories	Grille, trim ring, mounting hardware, U-clips
Care Instructions	Wipe with a dry cloth; avoid exposing to moisture
Safety Precautions	Disconnect battery negative terminal before installation; wear eye protection
Country of Origin	China
Warranty	See enclosed warranty registration card

Frequently Asked Questions - Grand Touring GTO620 JBL

What size is the JBL Grand Touring GTO620 speaker?

The GTO620 is a 6-1/2-inch (165mm) 2-way coaxial speaker designed for car audio systems.

What is the power handling of the GTO620?

The speaker handles 5 to 125 Watts RMS. It is recommended to pair with an amplifier within that power range for optimal performance.

What is the frequency response of the GTO620?

The frequency response is 55 Hz to 21 kHz, covering deep bass to clear highs.

How sensitive is the GTO620?

The sensitivity is 91 dB, meaning it can produce moderate volume with low power input.

What is the mounting depth required for the GTO620?

The mounting depth is 1-15/16 inches (50 mm). Ensure sufficient clearance behind the mounting surface.

Does the GTO620 come with a grille and mounting hardware?

Yes, the GTO620 includes a grille, trim ring, and necessary mounting hardware (screws, U-clips) for installation.

Can the GTO620 be used in doors or rear decks?

Yes, it can be installed in doors or rear decks, but check clearance with windows, door panels, and rear-deck torsion bars. Avoid locations where the speaker could get wet.

What materials are used in the GTO620?

The woofer cone uses JBL's Rigitex™ material, and the tweeter diaphragm uses Titanium Composite for durability and sound quality.

Is the GTO620 waterproof?

No, the GTO620 is not waterproof. Do not mount it where it can be exposed to water or excessive moisture.

What is Intermount II mounting system?

Intermount II is JBL's patented mounting system that allows flexible installation in standard 6-1/2 inch openings and custom locations using included adapters and rings.

USER MANUAL Grand Touring GTO620 JBL

Grand Touring® Series

GTO320, GTO420, GTO6420, GTO520, GTO620, GTO630, GTO7520, GTO920, GTO930

Owner's Manual

JBL

Thank you for purchasing JBL's Grand Touring Series multielement automotive loudspeakers. In order that we may better serve you should you require warranty service on your new speakers, please retain your original purchase receipt and return the enclosed warranty registration card.

Important: Installation of automotive stereo components can require extensive experience in performing a variety of mechanical and electrical procedures. Although these instructions explain in a general sense how to install GT Series loudspeakers, they may not show the exact installation methods for your particular vehicle. If you feel you lack the necessary tools or experience, ask your authorized JBL car audio dealer about professional installation options.

Installation Warnings and Tips

• Always wear protective eyewear when using tools.

- Turn off all audio systems and other electrical devices before you start. Disconnect the (-) negative lead from your vehicle's battery.

- Keep speakers in their package(s) until final installation. When moving a speaker, always rest it with the cone or dome facing up. Never use force to install any speaker.

- Check clearances on both sides of a planned mounting surface before drilling any holes or installing any screws. Remember that the screws can extend behind the surface.

- At the installation sites, locate and make a note of all fuel lines, hydraulic brake lines, vacuum lines and electrical wiring. Use extreme caution when cutting or drilling in and around these areas.

Caution: In some cars, fuel tanks may be located directly beneath the rear deck. Check for adequate speaker-basket clearance before considering this location!

- Before drilling or cutting holes, use a utility knife to remove unwanted fabric or vinyl to keep material from snagging in a drill bit or saw.

- For door installations, check the clearance with the windows in both closed and open positions and verify that a mounted speaker will not interfere with the window crank or with the power-window mechanism.

- If mounting speakers elsewhere, check for clearance around rear-deck torsion bars, glove box or other structural elements.

- Do not mount speakers where they will get wet.

Warning: Playing loud music in an automobile can permanently damage your hearing as well as hinder your ability to hear traffic. We recommend listening at low levels while in your car. JBL accepts no liability for hearing loss, bodily injury or property damage resulting from use or misuse of this product.

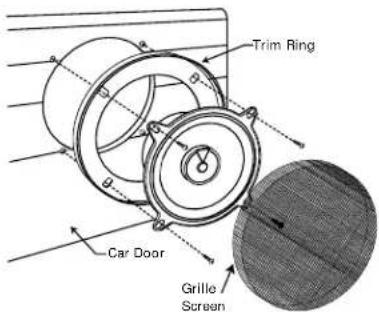

Typical installation of the GTO320, GTO520, GTO7520, GTO920 and GTO930 speakers with grilles as shown in Figure 1.

Figure 1.

Note: The GTO320 and GTO7520 are designed for direct replacement of factory speakers behind original factory grilles; therefore, they do not contain the grilles and trim ring shown in Figure 1.

Installation of the GTO420 speaker as shown in Figures 2a and 2b.

Figure 2a.

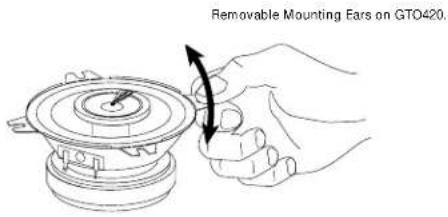

Bend up and down repeatedly to break off or use tin snips.

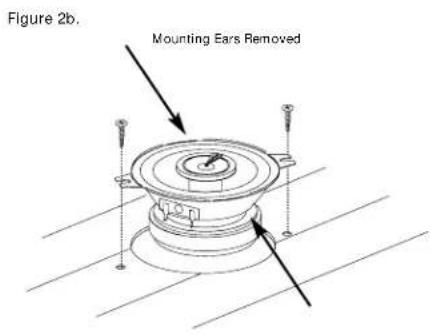

Note: Some installations may require some or all of the mounting ears to be removed from the GTO420. Remove your original speakers first to determine whether any mounting ears must be removed.

Mounting the GTO420.

Installation of the GTO6420 speaker as shown In Figure 3.

Figure 3.

Note: To install the GTO6420 in European cars with elliptical openings, detach the speaker from the metal adapter.

Installation of the GTO620 and GTO630 as shown in Figures 4a, 4b, 4c and 4d. The GTO620 and GTO630 use JBLs patented Intermount II™ mounting system. Intermount II provides for easy installation of these speakers in many standard and nonstandard locations that will accommodate a 6-1/2" speaker.

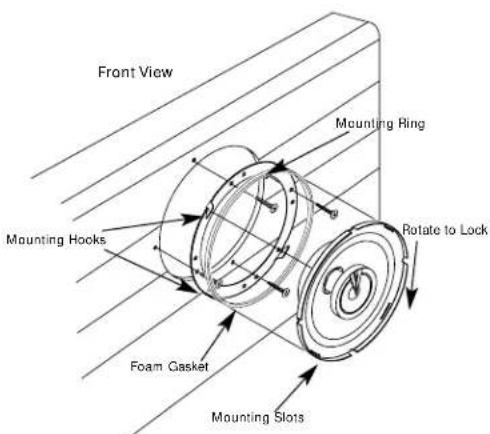

Using Intermount II™ in American and Japanese cars with openings for 6-1/2" speakers as shown in Figures 4a and 4b.

Figure 4b. Figure 4a.

Important: When using the steel mounting rings, you must use the sheet metal screws with undersized heads that are included in the hardware pack and make sure that the ring is mounted to a completely flat surface.

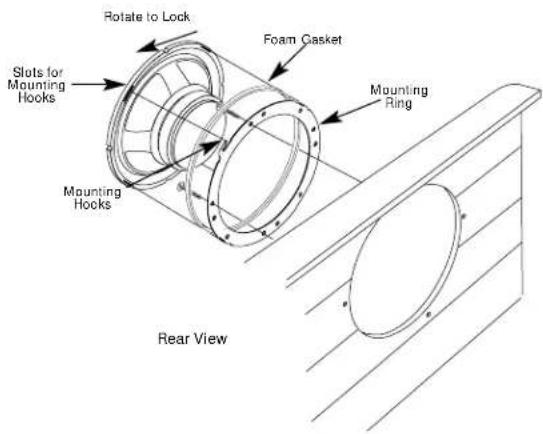

Using Intermount II™ in European and American 165mm openings or custom-mounting the speaker as shown in Figures 4c and 4d.

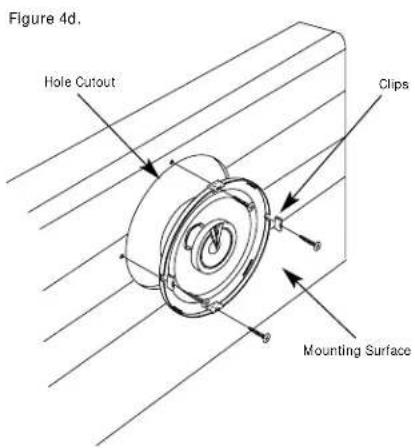

Note: If you are mounting the speakers behind the factory door panel or grille, omit the grille and trim ring. Place the U-shaped clips over the speaker's outside flange, align the hole in the clip with the notch in the speaker's basket and insert the screw through the hole in the clip.

Specifications

Multielement Loudspeakers

GTO320

GTO420

GTO6420

GTO520

GTO620

GTO630

3-1/2" 2-Way 4" 2-Way 4" x 6" 2-Way 5-1/4" 2-Way 6-1/2" 2-Way 6-1/2" 3-Way

Loudspeaker Loudspeaker Loudspeaker Loudspeaker Loudspeaker Loudspeaker

Woofer-Cone Material	RigitexTM	RigitexTM	RigitexTM	RigitexTM	RigitexTM	RigitexTM
Tweeter-Diaphragm Material	Titanium Composite	Titanium Composite	Titanium Composite	Titanium Composite	Titanium Composite	Titanium Composite
Recommended Amplifier Power Range	5W – 60W RMS	5W – 75W RMS	5W – 60W RMS	5W – 90W RMS	5W – 125W RMS	5W – 125W RMS
Frequency Response	100Hz – 21kHz	85Hz – 21kHz	75Hz – 21kHz	65Hz – 21kHz	55Hz – 21kHz	55Hz – 21kHz
Sensitivity	90dB	90dB	92dB	90dB	91dB	91dB
Mounting Depth	1-7/16" (37mm)	1-15/16" (50mm)	1-3/4" (45mm)	2-3/16" (56mm)	1-15/16" (50mm))	1-15/16" (50mm)

GTO7520 GTO920 GTO930
5" x 7" 2-Way 6" x 9" 2-Way
6" x 9" 3-Way

	Loudspeaker	Loudspeaker	Loudspeaker
Woofer-Cone Material	RigitexTM	RigitexTM	RigitexTM
Tweeter-Diaphragm Material	Titanium Composite	Titanium Composite	Titanium Composite
Recommended Amplifier Power Range	5W – 150W RMS	5W – 175W RMS	5W – 175W RMS
Frequency Response	50Hz – 21kHz	45Hz – 21kHz	45Hz – 21kHz
Sensitivity	91dB	91dB	92dB
Mounting Depth	2-3/8" (61mm)	2-15/16" (75mm)	2-15/16" (75mm)

Declaration of Conformity

We, JBL Europe A/S

Kongevjen 1948

DK-S460 Birkerod

DENMARK

declare in own responsibility, that the products described

in this owner's manual are in compliance with technical

standards:

EN 50081-1:1992

EN 50082-1:1992

Sleen Michaelsen

JBL Europe A/S Bikkerl DENMARK 209

JBL

JBL Consumer Products, 250 Crossways Park Drive, Woodbury, NY 11797

800-336-4JBL (4525) www.jbl.com Part No. GTOMEOM Made in China

H A Harman International Company
