Product type	Digital Piano
Brand	YAMAHA
Compatible Models	CLP-880, 880M, 880PE, 860, 860M, 840, 820, 820S
Keyboard	88 weighted keys (Graded Hammer Standard)
Maximum Polyphony	64 notes
Number of Voices	14 (including Grand Piano, E.Piano, Harpsichord, Strings, etc.)
Built-in Effects	Reverb, Chorus
Recording Functions	2-track MIDI recorder
Built-in Metronome	Yes, with tempo adjustment
MIDI Connectivity	MIDI In/Out (DIN 5-pin)
Audio Connectivity	Headphone jack (6.35 mm), audio input/output (RCA) on some models
Pedal Unit	3 pedals (damper, sostenuto, soft) built into the cabinet
Speakers	2 x 30 W (built-in amplification)
Dimensions (W x D x H)	Approximately 1350 x 430 x 860 mm (with music rest)
Weight	Approximately 45 kg
Power Supply	AC adapter 12 V DC (included)
Power Consumption	20 W (max)
Included Accessories	Music rest, bench (depending on model), AC adapter, owner's manual
Maintenance and Cleaning	Dust with a soft dry cloth; do not use abrasive cleaners or solvents
Safety Instructions	Disconnect the adapter during thunderstorms or extended periods of non-use; do not expose to moisture or heat
Repairability and Spare Parts	Parts available from your authorized Yamaha dealer; have any repairs carried out by a qualified technician

Frequently Asked Questions - CLP-880-880M-880PE-860-860M-840-820-820S YAMAHA

How do I connect my headphones to the CLP-880?

Use the 6.35 mm headphone jack located under the keyboard on the left. Plug in the headphones; the internal speaker will automatically turn off.

What is the maximum polyphony of this piano?

The CLP-880 offers 64-note polyphony, sufficient for most pieces.

How do I use the MIDI recorder?

Press the REC button to arm recording, then play. Press PLAY to listen. You can record on 2 separate tracks.

Can I connect this piano to a computer?

Yes, via the MIDI In/Out ports (MIDI cable to MIDI-USB interface) or via a USB-MIDI adapter. Use a sequencer like Cubase.

How do I adjust the metronome?

Press the METRONOME button, then use the – and + buttons to adjust the tempo (range: 32 to 280 bpm).

Are the keys weighted?

Yes, the keyboard uses Graded Hammer Standard technology: the keys are heavier in the bass and lighter in the treble.

How do I change the voice?

Press one of the VOICE buttons (Grand Piano, E.Piano, etc.) or use the numeric keypad to select a voice number (listed in the manual).

What should I do if the piano does not turn on?

Check that the AC adapter is properly connected and the outlet is working. If the problem persists, contact a qualified technician.

How do I clean the piano?

Use a soft dry cloth. Never use chemical products, alcohol, or damp cloths. Protect the piano from dust with the provided cover.

Are there built-in lessons?

Yes, the Lesson mode allows you to play preset songs with accompaniment. The right or left hand can be played separately.

USER MANUAL CLP-880-880M-880PE-860-860M-840-820-820S YAMAHA

Check your power supply

Make sure that your local AC mains voltage matches the voltage specified on the name plate on the bottom panel. In some areas a voltage selector may be provided on the bottom panel of the main keyboard unit near the power cord. Make sure that the voltage selector is set for the voltage in your area. The voltage selector is set at 240V when the unit is initially shipped. To change the setting use a "minus" screwdriver to rotate the selector dial so that the correct voltage appears next to the pointer on the panel.

SPECIALMESSAGE SECTION

PRODUCT SAFETY MARKINGS: Yamaha electronic products may have either labels similar to the graphics shown below or molded/stamped facsimiles of these graphics on the enclosure. The explanation of these graphics appears on this page. Please observe all cautions indicated on this page and those indicated in the safety instruction section.

See bottom of Keyboard enclosure for graphic symbol markings

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol, within the equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.

IMPORTANT NOTICE: All Yamaha electronic products are tested and approved by an independent safety testing laboratory in order that you may be sure that when it is properly installed and used in its normal and customary manner, all foreseeable risks have been eliminated. DO NOT modify this unit or commission others to do so unless specifically authorized by Yamaha. Product performance and/or safety standards may be diminished. Claims filed under the expressed warranty may be denied if the unit is/has been modified. Implied warranties may also be affected.

SPECIFICATIONS SUBJECT TO CHANGE: The information contained in this manual is believed to be correct at the time of printing. However, Yamaha reserves the right to change or modify any of the specifications without notice or obligation to update existing units.

ENVIRONMENTAL ISSUES: Yamaha strives to produce products that are both user safe and environmentally friendly. We sincerely believe that our products and the production methods used to produce them, meet these goals. In keeping with both the letter and the spirit of the law, we want you to be aware of the following:

Battery Notice: This product MAY contain a small nonrechargeable battery which (if applicable) is soldered in place. The average life span of this type of battery is approximately five years. When replacement becomes necessary, contact a qualified service representative to perform the replacement.

Warning: Do not attempt to recharge, disassemble, or incinerate this type of battery. Keep all batteries away from children. Dispose of used batteries promptly and as regulated by applicable laws. Note: In some areas, the servicer is required by law to return the defective parts. However, you do have the option of having the servicer dispose of these parts for you.

Disposal Notice: Should this product become damaged beyond repair, or for some reason its useful life is considered to be at an end, please observe all local, state, and federal regulations that relate to the disposal of products that contain lead, batteries, plastics, etc.

NOTICE: Service charges incurred due to lack of knowledge relating to how a function or effect works (when the unit is operating as designed) are not covered by the manufacturer's warranty, and are therefore the owners responsibility. Please study this manual carefully and consult your dealer before requesting service.

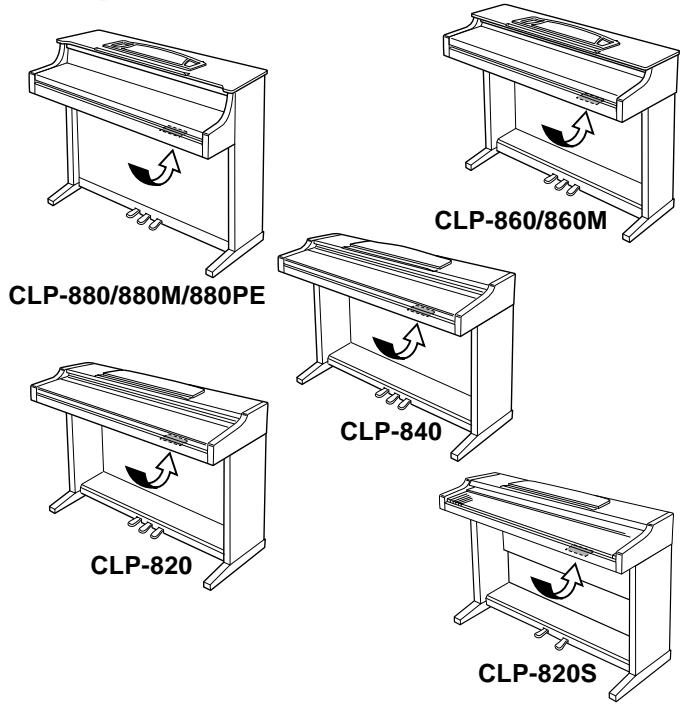

NAME PLATE LOCATION: The graphic below indicates the location of the name plate. The model number, serial number, power requirements, etc., are located on this plate. You should record the model number, serial number, and the date of purchase in the spaces provided below and retain this manual as a permanent record of your purchase.

Model
Serial No.
Purchase Date

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

• Please keep these precautions in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:

• Do not open the instrument or attempt to disassemble the internal parts or modify them in any way. The instrument contains no user-serviceable parts. If it should appear to be malfunctioning, discontinue use immediately and have it inspected by qualified Yamaha service personnel.
• Do not expose the instrument to rain, use it near water or in damp or wet conditions, or place containers on it containing liquids which might spill into any openings.
• If the power cord or plug becomes frayed or damaged, or if there is a sudden loss of sound during use of the instrument, or if any unusual smells or smoke should appear to be caused by it, immediately turn off the power

switch, disconnect the electric plug from the outlet, and have the instrument inspected by qualified Yamaha service personnel.

• Only use the voltage specified as correct for the instrument. The required voltage is printed on the name plate of the instrument.
• Before cleaning the instrument, always remove the electric plug from the outlet. Never insert or remove an electric plug with wet hands.
• Check the electric plug periodically and remove any dirt or dust which may have accumulated on it.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the instrument or other property. These precautions include, but are not limited to, the following:

• Do not place the power cord near heat sources such as heaters or radiators, and do not excessively bend or otherwise damage the cord, place heavy objects on it, or place it in a position where anyone could walk on, trip over, or roll anything over it.
• When removing the electric plug from the instrument or an outlet, always hold the plug itself and not the cord. Pulling by the cord can damage it.
• Do not connect the instrument to an electrical outlet using a multiple-connector. Doing so can result in lower sound quality, or possibly cause overheating in the outlet.
• Remove the electric plug from the outlet when the instrument is not to be used for extended periods of time, or during electrical storms.
• Before connecting the instrument to other electronic components, turn off the power for all components. Before turning the power on or off for all components, set all volume levels to minimum. Also, be sure to set the volumes of all components at their minimum levels and gradually raise the volume controls while playing the instrument to set the desired listening level.
• Do not expose the instrument to excessive dust or vibrations, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day) to prevent the possibility of panel disfiguration or damage to the internal components.
• Do not use the instrument near other electrical products such as televisions, radios, or speakers, since this might cause interference which can affect proper operation of the other products.
• Do not place the instrument in an unstable position where it might accidentally fall over.
• Before moving the instrument, remove all connected cables.
• When cleaning the instrument, use a soft, dry cloth. Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping cloths. Also, do not place vinyl, plastic or rubber objects on the instrument, since this might discolor the panel or keyboard.
• On the CLP-880PE, gently remove dust and dirt with a soft cloth. Do not wipe too hard since small particles of dirt can scratch the instrument's finish.
• On the CLP-880PE, bumping the surface of the instrument with metal, porcelain, or other hard objects can cause the finish to crack or peel. Use caution.

• Do not rest your weight on, or place heavy objects on the instrument, and do not use excessive force on the buttons, switches or connectors.

• (For instruments with a key cover) Take care that the key cover does not pinch your fingers, and do not insert a finger or hand in the key cover gap.

• (For instruments with a key cover) Never insert or drop paper or metallic or other objects between the slits of the key cover and the keyboard. If this happens, immediately turn off the power and remove the electric plug from the outlet and have the instrument inspected by qualified Yamaha service personnel.
• Do not place the instrument against a wall (allow at least 3cm /one-inch from the wall), since this can cause inadequate air circulation, and possibly result in the instrument overheating.
• Read carefully the attached documentation explaining the assembly process. Failure to assemble the instrument in the proper sequence might result in damage to the instrument or even injury.
• Do not operate the instrument for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.

USING THE BENCH (if included)

• Do not play carelessly with or stand on the bench. Using it as a tool or step-ladder or for any other purpose might result in accident or injury.
• Only one person should sit on the bench at a time, in order to prevent the possibility of accident or injury.
• (For height-adjustable benches) Do not attempt to adjust the bench height while sitting on the bench, since this can cause excessive force to be imposed on the adjustment mechanism, possibly resulting in damage to the mechanism or even injury.
• If the bench screws become loose due to extensive long-term use, tighten them periodically using the included tool.

SAVING USER DATA

• Save all data to an external device such as the Yamaha MIDI Data Filer MDF3, in order to help prevent the loss of important data due to a malfunction or user operating error.

Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.

Always turn the power off when the instrument is not in use.

Thank you for choosing a Yamaha Clavinova. Your Clavinova is a fine musical instrument that employs advanced Yamaha music technology. With the proper care, your Clavinova will give you many years of musical pleasure.

• Stereo sampling of the acoustic piano voices offers unmatched realism and expressive power, while the AWM (Advanced Wave Memory) tone generator system offers rich, realistic reproductions of all other voices.
• Piano-like touch response — adjustable in 4 stages — provides extensive expressive control and outstanding playability.
• Dual mode allows 2 voices to be played simultaneously.
• Split mode (CLP-880/860) allows different voices to be played by the left and right hands.
• On the CLP-880/860, damper pedal includes natural resonance effect for the piano voices, simulating the string and sound-board resonance of acoustic pianos.
• Metronome feature with variable tempo facilitates practice.
• 2-track digital recorder lets you record and play back anything you play on the keyboard.
• MIDI compatibility and a range of MIDI functions make the Clavinova useful in a range of advanced MIDI music systems.
• Built-in computer interface for direct connection to personal computers running advanced music software.

In order to make the most of your Clavinova's performance potential and features, we urge you to read this Owner's Manual thoroughly, and keep it in a safe place for later reference.

• The models CLP-880M, CLP-880PE and CLP-860M will be referred to as the CLP-880 and CLP-860 in this Owner's Manual.

Included Accessories

Owner's Manual
- Bench (included or optional depending on locale)
- Dust Cover (CLP-820S only)

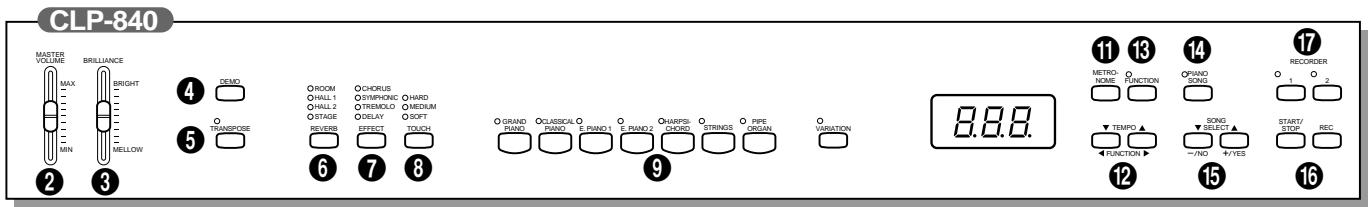

The Control Panel 6

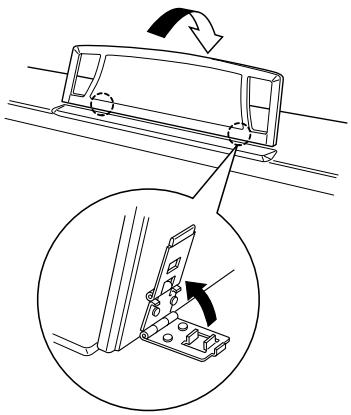

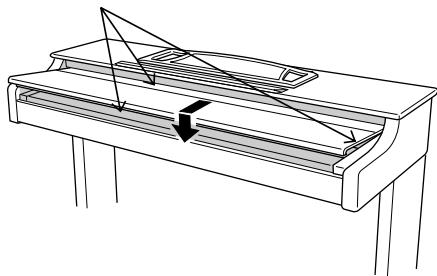

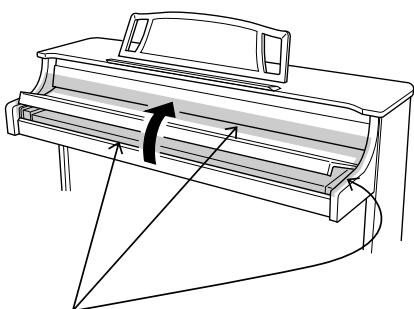

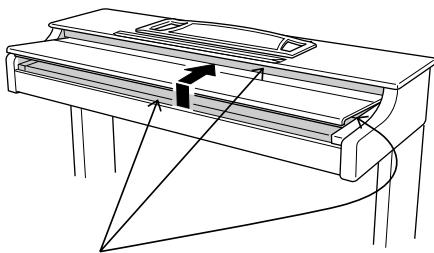

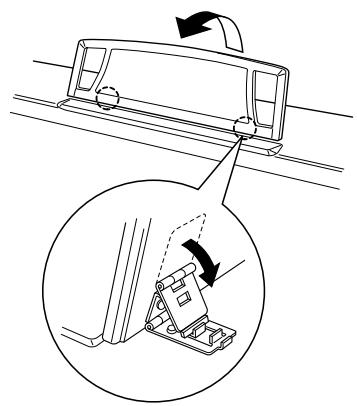

Key Cover & Music Stand 8

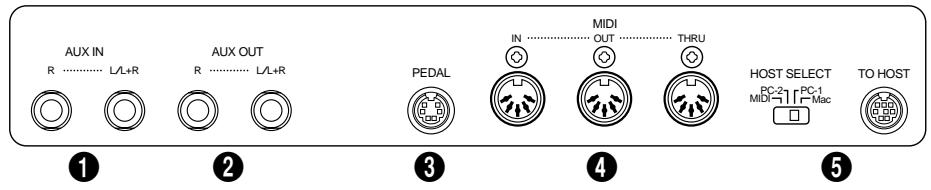

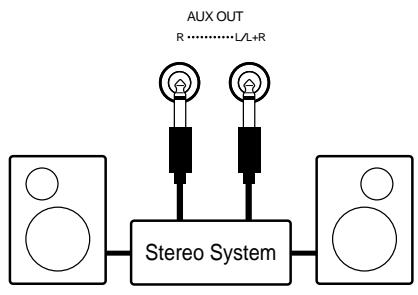

Connections 10

Selecting & Playing Voices 11

Playing the Demonstration Tunes 12

■ Voice Demo 12
Piano Song 13
Piano Song A-B Repeat 14
Piano Song Part Cancel 15
Synchro Start 15
- Left Pedal Start/Stop 15

The Dual Mode 16

• Other Dual Mode Functions 16

The Split Mode (CLP-880/860) 17

• Selecting the Right and Left Voices 17
• Setting the Split Point 17
• Other Split Mode Functions 17

Reverb 18

• Adjusting Reverb Depth 18

The Effect (CLP-880/860/840) 19
- Adjusting Effect Depth 19

Brilliance (CLP-880/860/840) 19

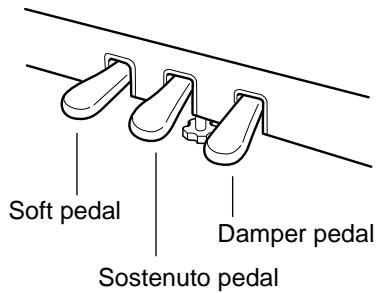

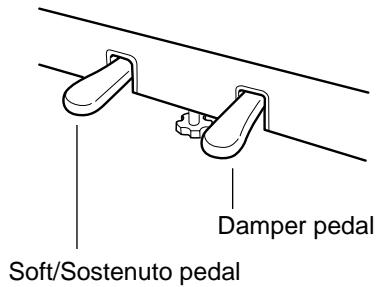

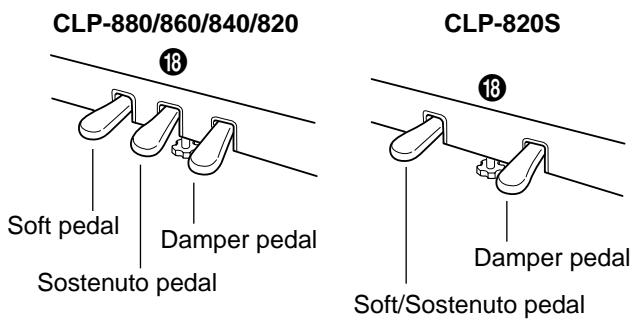

The Pedals 20

• Damper (Right) Pedal 20
• Sostenuto (Center) Pedal (except for CLP-820S) .... 20
• Soft (Left) Pedal 20

Touch Sensitivity 21

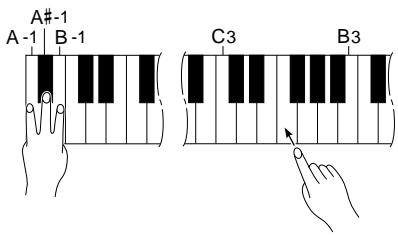

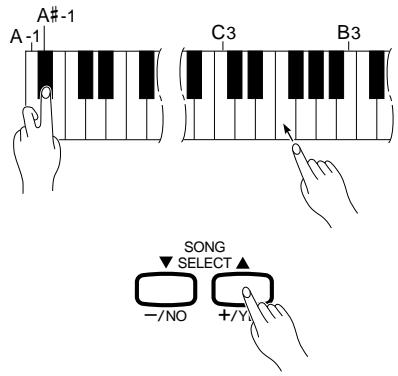

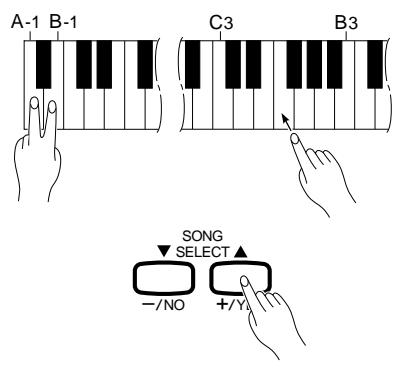

Transposition 21

Tuning 22

Tuning Up 22
Tuning Down 22
ToRestore Standard Pitch 22

The Metronome & Tempo Control 23

The Metronome 23
- Metronome Time Signature 23
- Metronome Volume Function 23

■ Tempo Control 23

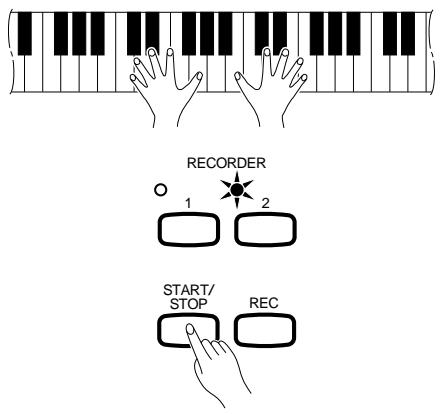

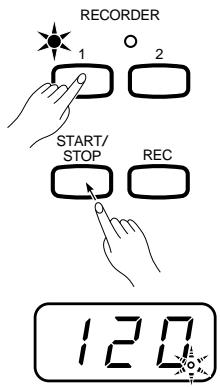

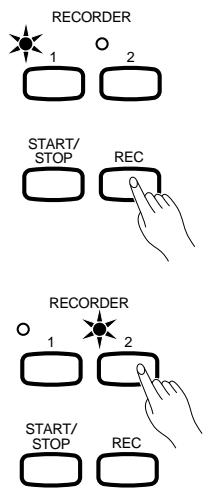

Using the Recorder 24

■ Recording 24

• Changing the Initial Settings 25
  Erasing a Single Track 25

■Playback 26

Synchro Start 26
- Left Pedal Start/Stop 26

The Function Mode 27

-To Select a Function 27

■ F1: Tuning 28
F2:Scale 28
F2.1: Scale 28
F2.2: Base Note 28

■ F3: Dual Mode Functions 29

F3.1: Dual Balance 29
F3.2: Dual Detune 29
F3.3: 1st Voice Octave Shift 29

F3.4: 2nd Voice Octave Shift 29
F3.5: 1st Voice Effect Depth (CLP-880/860/840) ....... 30
F3.6: 2nd Voice Effect Depth (CLP-880/860/840) ....... 30
F3.5: Reset (CLP-820/820S) 30
F3.7: Reset (CLP-880/860/840) 30

F4: CLP-880/860 Split Mode Functions 30

F4.1: Split Point 30
F4.2: Split Balance 30
F4.3: Right Voice Octave Shift 31
F4.4: Left Voice Octave Shift 31
F4.5: Right Voice Effect Depth 31
F4.6: Left Voice Effect Depth 31
F4.7: Damper Range 31
F4.8: Reset 31

F4: CLP-840/820/820S Left Pedal Mode 32

■ F5: CLP-880/860 Pedal Functions 32

F5.1: Left Pedal Mode 32
F5.2: Damper Mode 32
F5.3:Soundboard Depth 32

F5: CLP-840/820/820S Metronome Volume 33
F6: CLP-880/860 Metronome Volume 33
F6: CLP-840/820/820S Piano Song Part Cancel Volume .. 33
F7: CLP-880/860 Piano Song Part Cancel Volume 33

F7: CLP-840/820/820S MIDI Functions 34
■ F8: CLP-880/860 MIDI Functions 34

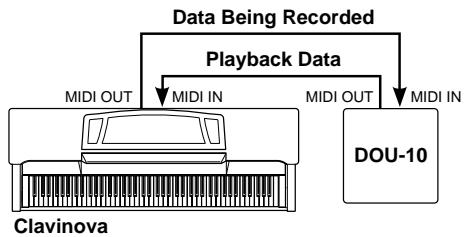

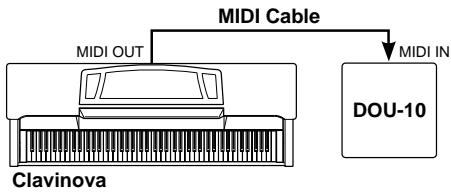

A Brief Introduction to MIDI 34
F7.1/F8.1: MIDI Transmit Channel Selection 34

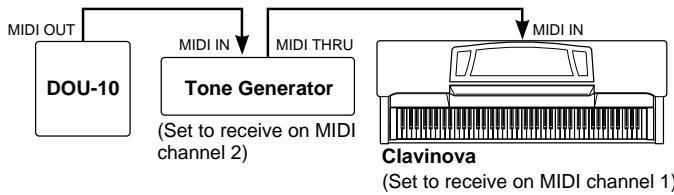

F7.2/F8.2: MIDI Receive Channel Selection 34

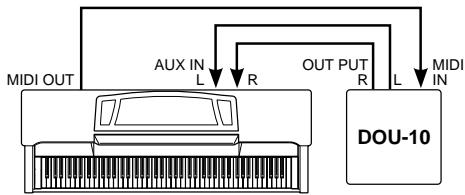

F7.3/F8.3: Local Control ON/OFF 35
F7.4/F8.4: Program Change ON/OFF 35
F7.5/F8.5: Control Change ON/OFF 36
F7.6/F8.6: MIDI Transmit Transpose 36
F7.7/F8.7: Panel/Status Transmit 36
F7.8/F8.8: Bulk Data Dump 36

■ F8: CLP-840/820/820S Backup Functions 37

■ F9: CLP-880/860 Backup Functions 37

F8.1/F9.1: Voice 37
F8.2/F9.2:MIDI 37
F8.3/F9.3: Tuning 37
F8.4/F9.4:Pedal 37

Connecting to a Personal Computer 38

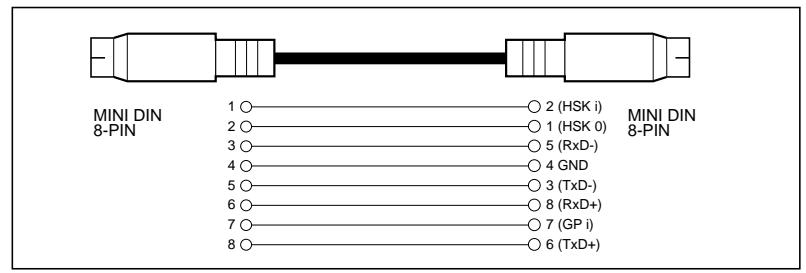

• Connecting to an Apple Macintosh Series Computer .... 38

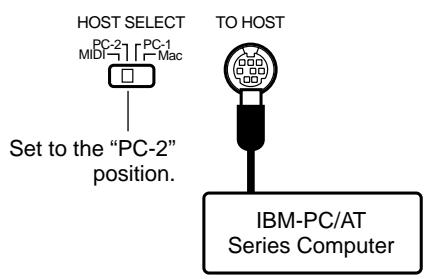

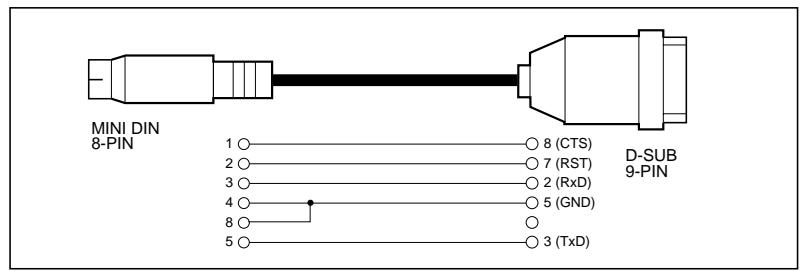

• Connecting to an IBM-PC/AT Series Computer .... 39

Factory Preset Recall 40

Troubleshooting 40

Options & Expander Modules 40

Demo Song List 41
Factory Setting List 42
MIDI Data Format 43
MIDI Implementation Chart 47
CLP-880: Keyboard Stand Assembly 48
CLP-860/840/820: Keyboard Stand Assembly 56
CLP-820S: Keyboard Stand Assembly 62
Specifications 68

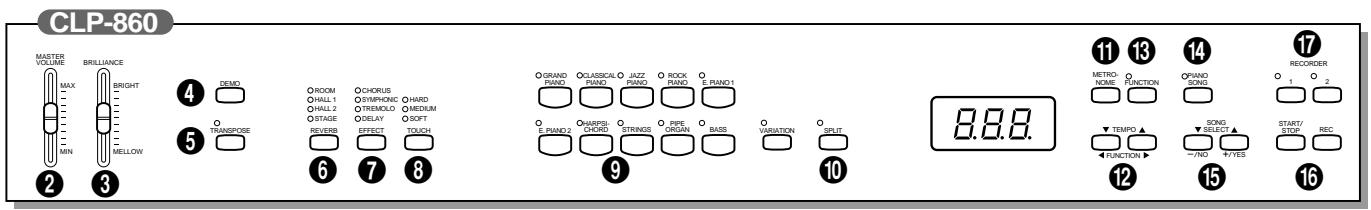

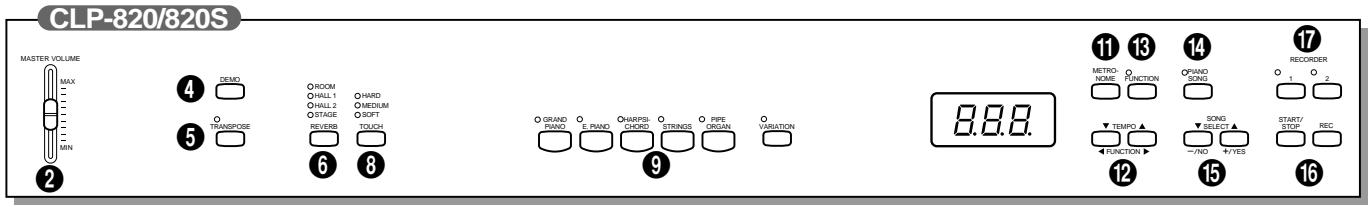

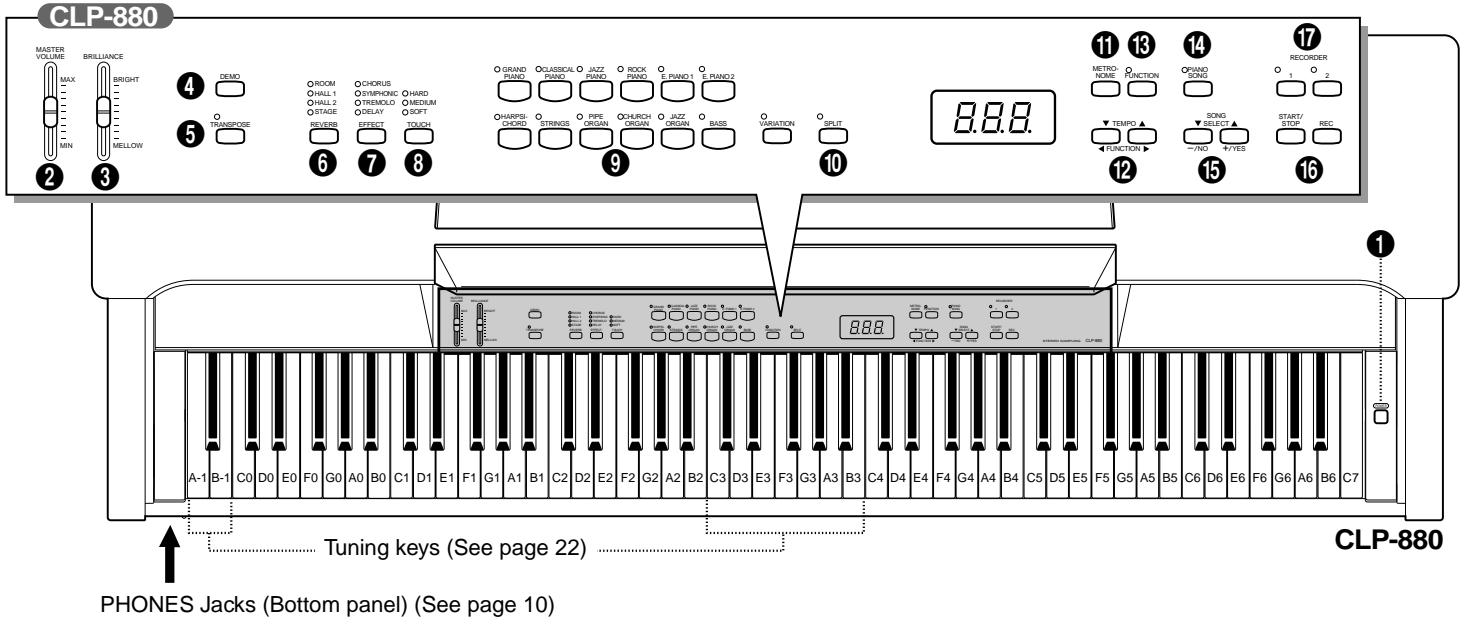

1 [POWER] Switch

Press the [POWER] switch once to turn the power ON, a second time to turn the power OFF. When the power is initially turned ON, a voice selector LED will light, and the power indicator located below the left end of the keyboard will light (except for CLP-820S).

2 [MASTER VOLUME] Control

The [MASTER VOLUME] control adjusts the volume (level) of sound produced by the Clavinova's internal stereo sound system. The [MASTER VOLUME] control also adjusts headphone volume

when a pair of headphones is plugged into the PHONES jack (page 10).

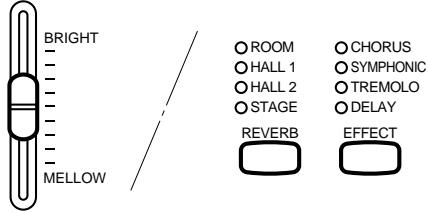

[BRILLIANCE] Control (CLP-880/860/840)

The [BRILLIANCE] Control adjusts the tonality or "timbre" of the output sound from a mellow tone to a bright tone.

4 [DEMO] Button

Activates the demo playback mode in which you can select playback of different demonstration sequences for each of the Clavinova's voices. See page 12 for details.

[TRANSPOSE] Button

The [TRANSPOSE] button allows access to the Clavinova's TRANSPOSE function (to shift the pitch of the entire keyboard up or down in semitone intervals).

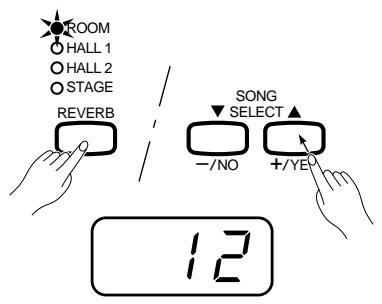

[REVERB] Button

The [REVERB] button selects a number of digital reverb effects that you can use for extra depth and expressive power. See page 18 for details.

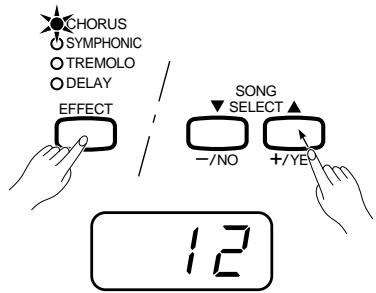

[EFECT] Button (CLP-880/860/840)

This button selects a number of effects which can give your sound greater depth and animation.

[TOUCH] Button

The [TOUCH] button makes it easy to adjust the touch response of the Clavinova to match your playing style. See page 21 for details.

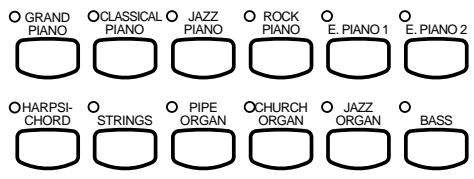

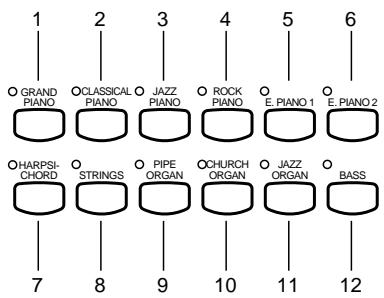

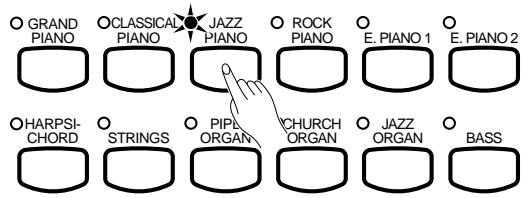

Voice Selectors & [VARIATION] Button

Simply press any of the voice selectors to select the corresponding voice. The voice selector LED will light to indicate which voice is currently selected. Press the [VARIATION] button so that its indicator lights to select a variation of the currently selected voice.

There is also a dual mode in which two voices can be played simultaneously across the full range of the keyboard (see page 16 for details), and a split mode on the CLP-880/860 which allows different voices to be played by the left and right hands (see page 17 for details).

[PLIT] Button (CLP-880/860)

Engages the split mode, in which different voices can be played on the left- and right-hand sections of the keyboard. See page 17 for details.

[METRONOME] Button

Turns the metronome sound on and off. The [TEMPO /] buttons, below, are used to set the tempo of the metronome sound. The [- / NO] and [+ / YES] buttons are used to change the time signature (beat) of the metronome if used while the [METRO-NOME] button is held — page 23.

[TEMPO▼/▲](FUNCTION / ) Buttons

These buttons adjust the tempo of the metronome function as well as the playback tempo of the re-

corder function. The tempo range is from 32 to 280 beats per minute — page 23. These same buttons are also used to select functions — page 27.

[FUNCTION] Button

This button accesses a range of utility functions — including the MIDI functions — that significantly enhance versatility and playability. See page 27 for details.

[PIANO SONG] Button

This button enters the Piano Song Mode. While in this mode you can use the [SONG SELECT / ] buttons to select from 50 songs.

[SONG SELECT /] (-/NO, +/YES) Buttons

These buttons select a piano song number for playback, and are also used to adjust a range of other parameters (i.e. their “-/NO” and “+/YES” functions).

RECORDER [START/STOP] and [REC] Buttons

These buttons control the Clavinova's recorder, letting you record and play back just about anything you play on the keyboard.

RECORDER [1] and [2] Buttons

The Clavinova has a 2-track recorder, and these buttons are used to select the track(s) to be recorded or played back. See page 24 for details.

18 Pedals

The soft (left), sostenuto (center) and damper (right) pedals (soft/sostenuto [left] and damper [right] in the case of the CLP-820S) provide a range of expressive control capabilities similar to the pedal functions on an acoustic piano. See page 20 for details.

Key Cover (except for CLP-820S)

Be careful to avoid catching your fingers when opening or closing the cover.

CLP-880

To open the key cover:

Gently lift the cover until it is fully open.

To close the key cover:

Gently lower the cover over the keys.

Be careful to avoid catching your fingers when opening or closing the cover.

CLP-860/840/820

To open the key cover:

1 Lift the cover slightly (not too much).
2 Slide the cover open.

To close the key cover:

1 Slide the cover toward you.
Gently lower the cover over the keys.

CAUTION

• Hold the cover with both hands when moving it, and do not release it until it is fully opened or closed. Be careful to avoid catching fingers (yours or others) between the cover and main unit.
• Do not place objects on top of the key cover. Small objects placed on the key cover may fall inside the main unit when the cover is opened and may not be able to be removed. This could cause electric shock, short circuit, fire or other serious damage to the instrument.

Music Stand

To raise the music stand:

Pull the stand up and toward yourself as far as it will go.
2 Flip down the two metal supports at the left and the right on the rear of the music stand.
3 Lower the music stand so that it rests on the metal supports.

As shown in the illustration, the angle of the music stand can be set in one of three positions, according to the position of the metal supports. Set the left and right metal supports to the same position.

To lower the music stand:

Pull the music stand toward yourself as far as it will go.
2 Raise the two metal supports (at the rear of the stand).
Gently lower the music stand backward until it is all the way down.

• Do not try to use the music stand in a half-raised position. When lowering the stand, do not release your hands from the music stand until it is all the way down.

1 AUX IN L/L+R and R Jacks

These jacks are intended for use with an external tone generator module such as the Yamaha DOU-10 Disk Orchestra Unit. The stereo outputs from the external tone generator module are connected to the AUX IN L/L+R and R jacks, allowing the sound of the tone generator to be reproduced via the Clavinova's internal sound system and speakers. A line-level mono source can be connected to the L/L+R jack.

• The input signal from the AUX IN jacks is controlled by the Clavinova's volume and brilliance (CLP-880/860/840) controls. Reverb and effect (CLP-880/860/840) functions will have no affect.
• The input signal from the AUX IN jacks is delivered to the AUX OUT jacks.

2 AUX OUT L/L+R and R Jacks

The AUX OUT L / L + R and R jacks deliver the output of the Clavinova for connection to an instrument amplifier, mixing console, PA system, or recording equipment. If you will be connecting the Clavinova to a monaural sound system, use only the L / L + R jack. When a plug is inserted into the L / L + R jack only, the left- and right-channel signals are combined and delivered via the L / L + R jack so you don't lose any of the Clavinova's sound.

• The AUX OUT jack signal must never be returned to the AUX IN jacks, either directly or through external equipment.
• The AUX OUT jack signal is not controlled by the Clavinova's volume control. Use the volume control on the external audio equipment to adjust the level.

3 PEDAL Jack

This terminal is for connecting the pedal cord from the pedal box (refer to the "Keyboard Stand Assembly" on pages 48-67).

4 MIDI IN, THRU and OUT Connectors

The MIDI IN connector receives MIDI data from an external MIDI device (such as the DOU-10 Disk Orchestra Unit) which can be used to control the Clavinova. The MIDI THRU connector re-transmits any data received at the MIDI IN connector, allowing "chaining" of several MIDI instruments or other devices. The MIDI OUT connector transmits MIDI data generated by the Clavinova (e.g. note and velocity data produced by playing the Clavinova keyboard).

More details on MIDI are given in "MIDI Functions" on page 34.

TO HOST Connector & HOST SELECT Switch

This jack and selector switch allow direct connection to a personal computer for sequencing and other music applications — without the need for a separate MIDI interface. See page 38 for details.

- PHONES Jacks (Bottom Panel)

Two sets of standard stereo headphones can be plugged in here for private practice or late-night playing. The internal speaker system is automatically shut off when a pair of headphones is plugged into either of the PHONES jacks.

Selecting & Playing Voices

1 Turn Power On

After making sure that the Clavinova's AC cord is properly plugged into the Clavinova itself and plugged into a convenient AC wall outlet, press the [POWER] switch located to the right of the keyboard to turn the power ON. In some areas a plug adaptor may be provided to match the pin configuration of the AC wall outlets in your area.

When the power is turned ON, one of the voice selector LEDs will light, and the power indicator located below the left end of the keyboard will light (except for CLP-820S).

2 Set the Volume

Initially set the [MASTER VOLUME] control about half way between the "MIN" and "MAX" settings. Then, when you start playing, re-adjust the [MASTER VOLUME] control for the most comfortable listening level.

3 Select a Voice

Select the desired voice by pressing one of the voice selectors. Use the [VARIATION] button to select a variation of the current voice, as required.

CLP-880

4 Play

The Clavinova also offers keyboard touch response, so the volume and timbre of notes played can be controlled according to how "hard" you play the keys. The amount of variation available depends on the selected voice.

BRILLIANCE

Add Effects As Required

You can add or change reverb, effects (CLP-880/860/840) and brilliance (CLP-880/860/840) as desired by using the [REVERB] button (page 18), [EFFECT] button (page 19) and the [BRIL-LIANCE] control (page 19).

Playing the Demonstration Tunes

Demonstration tunes are provided that effectively demonstrate each of the Clavinova's voices. There are also 50 piano songs that you can play individually, all in sequence, or in random order. Here's how you can select and play the demo tunes.

• The demo or piano song mode cannot be engaged while the recorder (page 24) is in use.
• No MIDI reception occurs in the demo/piano song mode.

• The demo/piano song data is not transmitted via the MIDI connectors.

• See page 41 for a complete listing of the demo tunes.

Voice Demo

1 Engage the Demo Mode

Press the [DEMO] button to engage the demo mode — the voice selector indicators will flash in sequence.

CLP-880

2 Play a Voice Demo

Press one of the voice selectors to start playback of all songs starting from the corresponding voice demo tune — featuring the voice normally selected by that voice selector button. (If you press the [START/STOP] button instead of a voice selector button, the GRAND PIANO demo tune will begin playback.) The indicator of the selected voice selector button will flash during playback, and “- - -” will appear on the LED display. You can start playback of any other voice demo tune during playback by simply pressing the corresponding voice selector. You can stop playback at any time by pressing the [START/STOP] button or the voice selector of the currently playing demo.

• Use the [MASTER VOLUME] control to adjust the volume and the [BRILLIANCE] control (CLP-880/860/840) to adjust the brilliance (page 19).

3 Exit From the Demo Mode.

Press the [DEMO] button to exit from the demo mode and return to the normal play mode.

Piano Song

1 Engage the Piano Song Mode

Press the [PIANO SONG] button to engage the piano song mode — the [PIANO SONG], [1] and [2] indicators will light.

2 Play a Piano Song

To play any of the 50 piano songs provided, use the [SONG SE-LECT /] buttons to select the number of the tune you want to play (the number will appear on the LED display), then press the [START/STOP] button. Playback will stop automatically when playback of the selected piano song has finished.

Select "RLL" instead of a number to play all piano songs in sequence, or select "rna" to continuously play all piano songs in random order. Press the [START/STOP] button to stop playback.

NOTE

• Use the [MASTER VOLUME] control to adjust the volume.
• You can use the [TEMPO▼/▲] buttons to adjust the playback tempo as required. This produces a relative tempo variation, with a range from “-50” through “---” to “50” at maximum; the range will differ depending on the selected song.
• The default tempo "---" is automatically selected whenever a new piano song is selected, or playback of a new piano song begins during "R L L" or "r o d" playback.
• You can play the keyboard along with the piano song playback. The voice playing on the keyboard can be changed.
• You can change the Brilliance control (CLP-880/860/840) and Reverb type that is applied to the voice you play on the keyboard and for the piano song playback. You can change the Effect type (CLP-880/860/840) and Touch sensitivity that is applied to the voice you play on the keyboard. When a new piano song is selected or a new piano song is automatically started in continuous play, the HALL 1 reverb type will automatically be selected.

3 Exit From the Piano Song Mode

Press the [PIANO SONG] button to exit from the piano song mode, the indicator will go off, and return to the normal play mode.

Piano Song A-B Repeat

The A-B Repeat function can be used to continuously repeat a specified phrase within a piano song. Combined with the Part Cancel function described below, this provides an excellent way to practice difficult phrases.

1 Specify the Beginning (A) of the Phrase

Select and play a piano song, then press the [FUNCTION] button at the beginning of the phrase you want to repeat. This sets the "A" point ("R - " will appear on the display).

To set the “A” point at the very beginning of the song, press the [FUNCTION] button before starting playback.

2 Specify the End (B) of the Phrase

Press the [FUNCTION] button a second time at the end of the phrase. This sets the “B” point (“ - ” will appear on the display). At this point repeat playback will begin between the specified A and B points.

3 StopPlayback

Press the [START/STOP] button to stop playback while retaining the specified A and B points. A-B repeat playback will resume if the [START/STOP] button is then pressed again.

To cancel the A and B points press the [FUNCTION] button once.

N
]

• The A and B points are automatically canceled when a new song is selected.
• The A-B Repeat function cannot be used during "RL L" or "r-na" playback.

Piano Song Part Cancel

The 50 piano songs have separate left- and right-hand parts that can be turned on and off as required so you can practice the corresponding part on the keyboard. The right-hand part is played by the recorder's [1] track, and the left-hand part is played by recorder's [2] track. (Some of the songs are arrangements for four-hands, tracks [1] and [2] correspond to primo and secondo parts of the arrangement.)

1 Turn the Desired Part Off

Press the REORDER [1] or [2] button to turn the corresponding part off — the corresponding indicator will go out (these buttons alternately toggle the corresponding part on and off).

• The parts can be turned on or off even during playback.
• The Piano Song Part Cancel function cannot be used during "ML" or "rnd" playback.
• The "Piano Song Part Cancel Volume" function described on page 33 can be used to set the canceled part so that it plays at a volume from "0" (no sound) to "20". The default setting is "5".
• Both parts are automatically turned ON whenever a new song is selected.

2 Start/StopPlayback

Press the [START/STOP] button to start and stop playback as required.

Synchro Start

When the Synchro Start function is engaged, playback of the selected piano song will begin automatically as soon as you start playing on the keyboard.

To engage the Synchro Start function press the [START/STOP] button while holding the part button corresponding to the part which is ON. A dot will appear in the lower right corner of the display. (Repeat the previous operation to disengage the Synchro Start function.)

Playback will then start as soon as you begin playing on the keyboard.

• If you hold a track button which is OFF while pressing the [START/STOP] button, that track will be turned ON and the Synchro Start mode will be engaged.

Left Pedal Start/Stop

The left pedal can be assigned to start and stop piano song playback via the "Left Pedal Mode" function described on page 32.

The dual mode makes it possible to play two voices simultaneously across the entire range of the keyboard.

Voice numbering priority

To activate the dual mode simply press two voice selectors at the same time (or press one voice selector while holding another). The voice indicators of both selected voices will light when the dual mode is active. To return to the normal single-voice play mode, press any single voice selector.

According to the voice numbering priority as shown in the diagram on the left, lower valued voice numbers will be designated as the 1st Voice (the other voice will be designated as the 2nd Voice).

The [STRINGS] [VARIATION] voice has a slow attack. This voice can sometimes be used with another voice in the Dual Mode to produce a better "blend".

• The dual and split modes (CLP-880/860) cannot be engaged at the same time.

• The [VARIATION] button indicator will light if the variation is engaged for either or both of the dual-mode voices. While the dual mode is engaged the [VARIATION] button can be used to turn the variation for both voices on or off. To use the variation for only one of the voices the setting must be made prior to engaging the dual mode.

- [EFFECT] in the Dual Mode

Depending upon the conditions one effect type will take priority over the other. Depth will be decided according to the depth default value of the voice combination. However, using function F3 (see page 29) you can change the depth value for each voice as you like.

Effect depth setting via the panel controls (i.e. pressing the [-/NO] or [+/YES] buttons while holding the [EFFECT] button — see page 19) will be applied to the 1st Voice only.

- [REVERB] in the Dual Mode

The reverb type assigned to the 1st Voice will take priority over the other. (If the reverb is set to OFF, the 2nd Voice's reverb type will be in affect.) Reverb depth setting via the panel controls (i.e. pressing the [-/NO] or [+/YES] buttons while holding the [REVERB] button — see page 18) will be applied to the 1st Voice only.

Other Dual Mode Functions

The Clavinova Function mode provides access to a number of other dual-mode functions, listed below. See the corresponding pages for details.

• Dual Balance 29
• Dual Detune 29
  1st Voice Octave Shift 29
• 2nd Voice Octave Shift 29
  1st Voice Effect Depth 30
  2nd Voice Effect Depth 30
• Reset 30

The Split Mode (CLP-880/860)

The split mode makes it possible to play two different voices on the keyboard — one with the left hand and another with the right hand. The Left Voice is played on all keys to the left of (and including) a specified "split point" key, while the Right Voice is played on all keys to the right of the split point key.

To activate the split mode simply press the [SPLIT] button so thats indicator lights. The split mode can be turned off at any time by pressing the [SPLIT] button again so that its indicator goes out.

NOTE The dual and split modes cannot be engaged at the same time.

Selecting the Right and Left Voices

The voice that was selected before the split mode was engaged becomes the Right Voice in the split mode. (The Right Voice can also be changed while in the split mode, by simply pressing the corresponding voice selector.)

To select a Left Voice press the corresponding voice selector while holding the [SPLIT] button (default: [BASS]). The indicator of the Left Voice selector will light while the [SPLIT] button is pressed, then only the Right Voice selector and [SPLIT] button indicators will remain lit.

• The variation can be individually turned on and off for the split mode voices. Normally the voice indicator of the Right Voice lights in the split mode. The [VARIATION] can be used to turn the variation for the Right Voice on or off as required. While the [SPLIT] button is held, however, the voice indicator of the Left Voice lights, and in this state the [VARIATION] button can be used to turn the variation for the Left Voice on or off as required.

• [EFFECT] in the Split Mode

Depending upon the conditions, one effect type will take priority over the other. Depth will be decided according to the depth default value of the voice combination. However, using function F4 (see page 30) you can change the depth value for each voice as you like.

Effect depth setting via the panel controls (i.e. pressing the [-/NO] or [+/YES] buttons while holding the [EFFECT] button — see page 19) will be applied to the Right Voice only.

• [REVERB] in the Split Mode

The reverb type assigned to the Right Voice will take priority over the other. (If the reverb is set to OFF, the Left Voice's reverb type will be in affect.)

Reverb depth setting via the panel controls (i.e. pressing the [-/NO] or [+/YES] buttons while holding the [REVERB] button — see page 18) will be applied to the Right Voice only.

Example:

A-1	b=1	C2	F-2
A-1	Bb-1	C2	F#2

• "b" is indicated with a lower " -".
• "#" is indicated with an upper "-".

Setting the Split Point

The split point is initially set at the F#2 key by default. You can change the split point to any other key by pressing the key while holding the [SPLIT] button (the name of the current split-point key appears on the LED display while the [SPLIT] button is held). The split point can also be set via the Function mode (see below).

Other Split Mode Functions

The Clavinova Function mode provides access to a number of other split-mode functions, listed below. See the corresponding pages for details.

• Split Point 30
• Split Balance 30
• Right Voice Octave Shift 31
• Left Voice Octave Shift 31
• Right Voice Effect Depth 31
• Left Voice Effect Depth 31
• Damper Range 31
• Reset 31

The [REVERB] button selects a number of digital reverb effects that you can use for extra depth and expressive power.

To select a reverb type press the [REVERB] button a few times until the indicator corresponding to the desired type lights (the indicators light in sequence each time the [REVERB] button is pressed). No reverb is produced when all indicators are off.

OFF

No reverb effect is selected when no REVERB indicator is lit.

ROOM

This setting add a continuous reverb effect to the sound that is similar to the type of acoustic reverberation you would hear in a room.

HALL 1

For a "bigger" reverber sound, use the HALL 1 setting. This effect simulates the natural reverberation of a small-size concert hall.

HALL 2

For a really spacious reverber sound, use the HALL 2 setting. This effect simulates the natural reverberation of a large concert hall.

STAGE

A simulation of the type of reverb produced in a stage environment.

• The default reverb type (including OFF) and depth settings are different for each voice.

Adjusting Reverb Depth

Adjust the reverb depth for the selected voice by using the [- / NO] and [+ / YES] buttons while holding the [REVERB] button. The depth range is from 0 through 20 (the current depth setting appears on the LED display while the [REVERB] button is held). A setting of "0" produces no effect, while a setting of "20" produces maximum reverb depth. Press the [- / NO] and [+ / YES] buttons simultaneously while holding the [REVERB] button to recall the default setting for the current voice (default depth settings are different for each voice).

The Effect (CLP-880/860/840)

The [EFFECT] button allows you to select one of the effects that can give your sound greater depth and animation.

To select an effect type press the [EFFECT] button a few times until the indicator corresponding to the desired type lights (the indicators light in sequence each time the [EFFECT] button is pressed). No effect is produced when all indicators are off.

OFF

No effect is selected when no EFFECT indicator is lit.

CHORUS

Shimmering, broadening effect

SYMPHONIC

Adds a deep, symphonic backdrop

TREMOLO

Tremolo effect

DELAY

Echo effect

NOTE

• The default effect type (including OFF) and depth settings are different for each voice.

Adjusting Effect Depth

Effect depth can be individually adjusted for the selected voice by using the [- / NO] and [+ / YES] buttons while holding the [EFFECT] button. The depth range is from 0 through 20 (the current depth setting appears on the LED display while the [EFFECT] button is held). A setting of "0" produces no effect, while a setting of "20" produces maximum effect depth. Press the [- / NO] and [+ / YES] buttons simultaneously while holding the [EFFECT] button to recall the default setting for the current voice (the default depth settings are different for each voice).

Brilliance (CLP-880/860/840)

This control can be used to change the tonality or "timbre" of the sound output. The control range is from MELLOW to BRIGHT.

For a brighter or "sharper" tone, slide the control towards the BRIGHT position. For a "rounder" more mellow tone, slide the control towards the MELLOW position.

NOTE

• When the BRILLIANCE is set to BRIGHT, the overall sound will be slightly louder. If the MASTER VOLUME is set at a high level the sound may become distorted. If so, lower the MASTER VOLUME level.

The CLP-820S has two and other models have three foot pedals that produce a range of expressive effects similar to those produced by the pedals on an acoustic piano.

CLP-880/860/840/820

CLP-820S

Damper (Right) Pedal

The damper pedal functions in the same way as a damper pedal on an acoustic piano. When the damper pedal is pressed notes played have a long sustain. Releasing the pedal immediately stops (damps) any sustained notes.

On the CLP-880/860, when GRAND PIANO, CLASSICAL PIANO, or JAZZ PIANO is selected the damper pedal also produces a special "resonance" that simulates the ring of the strings and the sound board of an acoustic piano.

The CLP-880/860 damper pedal additionally features continuous damping. This allows you to create shorter effects by pressing the damper pedal down only part of the way.

NOTE

• On the CLP-880/860, soundboard depth and damper pedal mode (switch/ continuous) settings can be changed using the "Pedal Functions" (page 32) in the function mode.

Sostenuto (Center) Pedal (except for CLP-820S)

If you play a note or chord on the keyboard and press the sostenuto pedal while the note(s) are held, those notes will be sustained as long as the pedal is held (as if the damper pedal had been pressed) but all subsequently played notes will not be sustained. This makes it possible to sustain a chord, for example, while other notes are played "staccato."

NOTE

• Organ and string voices will continue to sound for as long as the sostenuto pedal is depressed.

Soft (Left) Pedal

The soft pedal reduces the volume and slightly changes the timbre of notes played while the pedal is pressed. The soft pedal will not affect notes which are already playing when it is pressed.

The left pedal can also be assigned to song start/stop operation (or sostenuto in the case of the CLP-820S) via the "Left Pedal Mode" described on page 32.

Four different types of keyboard touch sensitivity — HARD, MEDIUM, SOFT or FIXED — can be selected to match different playing styles and preferences.

To select a touch sensitivity type press the [TOUCH] button a few times until the indicator corresponding to the desired type lights (the indicators light in sequence each time the [TOUCH] button is pressed).

HARD

The HARD setting requires the keys to be played quite hard to produce maximum loudness.

MEDIUM

The MEDIUM setting produces a fairly "standard" keyboard response. This is the initial factory default setting.

SOFT

The SOFT setting allows maximum loudness to be produced with relatively light key pressure.

FIXED (no indicator lit)

All notes are produced at the same volume no matter how hard the keyboard is played.

When the FIXED type is selected, the volume of notes played in the FIXED mode can be set by using the [- / NO] and [+ / YES] buttons while the [TOUCH] button is held (the current volume level appears on the display). The volume range is from 1 through 127. The default setting is 64.

NOTE

• This setting does not change the weight of the keyboard.
• The touch sensitivity type and volume set in the FIXED mode will become the common setting for all voices.

Transposition

The Clavinova's TRANSPOSE function makes it possible to shift the pitch of the entire keyboard up or down in semitone intervals up to a maximum of 12 semitones (i.e. a maximum of one octave up or down). "Transposing" the pitch of the Clavinova keyboard facilitates playing in difficult key signatures, and you can easily match the pitch of the keyboard to the range of a singer or other instrumentalist.

Use the [- / NO] or [+ / YES] button while holding the [TRANS-POSE] button to transpose down or up as required. The transposition range is from “-12” (down one octave) through “0” (normal pitch) to “12” (up one octave). The amount of transposition appears on the LED display while the [TRANSPOSE] button is held. The default transpose setting is “0”.

NOTE

• The [TRANSPOSE] button indicator remains lit when a transpose setting other than "0" is selected.
• Notes below and above the A-1 ... C7 range of the Clavinova sound one octave higher and lower, respectively.

Tuning makes it possible to adjust the pitch of the Clavinova over a 427.0Hz ... 453.0 Hz (corresponding to the A3 note's Hz) range in approximately 0.2 Hertz intervals. Pitch control is useful for tuning the Clavinova to match other instruments or recorded music.

Tuning Up

To tune up (raise pitch), hold the A-1 and B-1 keys simultaneously.
Press any key between C3 and B3. Each time a key in this range is pressed the pitch is increased by approximately 0.2Hz . The [- / NO] and [+ / YES] buttons can also be used to tune down or up, respectively, in approximately 1Hz increments. Press the [- / NO] and [+ / YES] buttons simultaneously to recall standard tuning (A3 = 440 Hz).
3 Release the A-1 and B-1 keys.

Tuning Down

To tune down (lower pitch), hold the A-1 and A#-1 keys simultaneously.
Press any key between C3 and B3. Each time a key in this range is pressed the pitch is decreased by approximately 0.2Hz . The [- / NO] and [+ / YES] buttons can also be used to tune down or up, respectively, in approximately 1Hz increments. Press the [- / NO] and [+ / YES] buttons simultaneously to recall standard tuning (A3 = 440 Hz).
3 Release the A-1 and A#-1 keys.

To Restore Standard Pitch

To restore the default pitch (A3 = 440 Hz), hold the A-1, A#-1 and B-1 keys simultaneously.
2 Press any key between C3 and B3.
3 Release the A-1, A#-1 and B-1 keys.

In terms of "Hertz", the overall tuning range is from 427.0Hz to 453.0Hz . The current tuning setting is shown on the LED display while the tuning is being adjusted. Tenth of a Hertz are indicated on the LED display by the appearance and position of one or two dots, as in the following example:

Display	Value
440	440.0
440	440.2
440	440.4
440	440.6
440	440.8

NOTE An alternative tuning method is available in the Function mode - page 28.

The Clavinova built-in metronome is a convenient feature for practice, and it can also provide a solid rhythmic guide when recording using the Recorder feature, described in the next section.

The Metronome

The metronome sound is alternately turned on and off by pressing the [METRONOME] button. When on, the beat indicator flashes at the current tempo.

Metronome Time Signature

The time signature (beat) of the metronome can be set by using the [- / NO] and [+ / YES] buttons while holding the [METRONOME] button. You can set the beat to 0, 2, 3, 4 or 6 (the current setting appears on the LED display while the [METRONOME] button is held). Press the [- / NO] and [+ / YES] buttons simultaneously while holding the [METRONOME] button to recall the default setting “0” (no accent).

Metronome Volume Function

The volume of the metronome sound can be adjusted via the Metronome Volume function in the Function mode—page 33.

Tempo Control

124

The tempo of the metronome and recorder playback (the recorder is described in the next section) can be set from 32 to 280 beats per minute by using the [TEMPO / ] buttons. The selected tempo will appear on the LED display while in the normal play mode and while the [TEMPO / ] buttons are being used to adjust the tempo in the recording/playback mode. The default tempo (120 or the recorded song tempo when the recorder contains data and the playback track indicator is lit) can be recalled by simultaneously pressing the [] and [] buttons.

Using the Recorder

The Clavinova features a two-track recorder that let you record what you play on the keyboard and then play it back. Two tracks mean that you can "overdub" one part on top of another, using a different voice if you like. The recorder feature is a useful adjunct to any keyboard study program, since it lets you hear exactly how you sound from the listener's perspective. It can also be just plain fun.

The recorder actually records the following data:

Entire Song

• Tempo - Time signature (beat) - Reverb type (including OFF)
  Effect type (CLP-880/860/840)

Individual Tracks

Notes played Voice selection
Dual mode voices Split mode voices (CLP-880/860)
- Damper pedal - Soft pedal
- Sostenuto pedal (not recorded as an initial setting)
Effect depth (CLP-880/860/840)
- Dual balance (F3) - Dual detune (F3)
- Split balance (F4: CLP-880/860) - Split octave shift (F4: CLP-880/860)

Recording

1 Make All Necessary Initial Settings

Before actually beginning to record, select the voice you want to record with (or voices if you will be using the dual or split mode). You might also want to set the volume and tempo controls.

2 Engage the Record Ready Mode

Press the REORDER [REC] button to engage the record ready mode (recording does not actually start yet). The record ready mode can be disengaged before recording by pressing the [REC] button a second time.

• The record ready mode cannot be engaged while the demo/piano song mode is engaged.

3 Select the Record Track

When the record mode is engaged in the previous step, the last-recorded track will automatically be selected for recording and its indicator — i.e. the [1] or [2] button indicator — will glow red. If you want to record on a different track, press the appropriate track button so that its indicator glows red.

• The track button indicators of tracks which contain previously recorded data will glow green (unless the track is turned off as described below). The previously-recorded data on the non-record track will normally be played back as you record, so you can play along with a previously-recorded track. If you don't want to hear the previously recorded track as you record (when you want to record a song different from what you recorded on the previous track etc.), press the playback track button before pressing the [REC] button (step 1, above) so that its indicator goes out.
• Recording on a track which already contains data will erase all previous data on that track.
• When the record mode is engaged the amount of memory available for recording will be shown on the LED display in approximate kilobytes (starting at "50" on the CLP-880/860 and "25" on the CLP-840/820/820S), and the rightmost dot on the LED display will flash at the current METRO-NOME tempo setting.

4 Start Recording

Recording will begin automatically as soon as you play a note on the keyboard or press the [START/STOP] button. The current measure number will appear on the display while recording.

• The left pedal can be assigned to start and stop recording via the "Left Pedal Mode" function described on page 32.
• If the metronome was on when you started recording, you'll be able to keep time with the metronome while recording, but the metronome sound will not be recorded.
• You can record up to a maximum of about 10,000 notes on the CLP-880/860 or 5,000 notes on the CLP-840/820/820S, depending on pedal usage and other factors. The record track indicator will begin to flash when recorder memory is almost full. If the memory becomes full during recording, "FULL" will appear on the display and recording will stop automatically. (All recorded data up to that point will be retained.)

5 Stop Recording

Press either the REORDER [REC] or [START/STOP] button to stop recording.

The indicator of the recorded track will glow green to indicate that it now contains data.

Changing the Initial Settings

The initial voice, tempo, reverb type, reverb depth, and effect settings made in step 1 of the recording procedure are actually recorded by the Clavinova.

These initial settings can be changed after the recording is finished by pressing the [REC] button to engage the record ready mode, pressing the appropriate track button, making the required changes, and then pressing the [REC] button again to exit from the record ready mode and register the changes.

If you do this, be careful not to press the [START/STOP] button or a key on the keyboard, either of which will start recording and erase all previous recorded data on the selected track.

It is possible to cancel the operation even after changes have been made: change tracks and then press the [REC] button to exit from the record mode (this also cancels data for the entire song).

• The following data for initial settings cannot be changed: "Dual balance (F3)", "Dual detune (F3)", "Dual octave shift (F3)", "Split balance (F4:CLP-880/860)" or "Split octave shift (F4:CLP-880/860)".

Erasing a Single Track

All data can be erased from either of the recorder's tracks by engaging the record mode, selecting the track you want to erase, and then pressing the [START/STOP] button twice without recording any data.

Playback

To play back what you've recorded, first make sure that the green track indicators of the tracks you want to play are lit. If not, press the corresponding track button(s) so that they are lit. Then press the RECORDER [START/STOP] button. Playback starts from the beginning of the recorded data, and will stop automatically at the end of the recorded data. You can also stop playback at any time by pressing the [START/STOP] button.

To mute a track so that it doesn't play back, press the corresponding track button so that its indicator goes out (press again to turn the track back on).

The current measure number appears on the display during playback.

NOTE

• It is possible to play along on the keyboard during playback. In this case, the playback voice and the voice you play on the keyboard are not the same. The playback voice is the voice that was set when the data was recorded. The voice you play on the keyboard is the voice that is selected on the panel.
• The playback volume and tempo can be adjusted by using the [MASTER VOL-UME] control and [TEMPO /] buttons (press both [TEMPO /] buttons simultaneously to recall the default tempo).
• All recorder data will be retained in memory for about one week after the power is turned off. If you want to keep your recorded data for longer periods, turn the power on for a few minutes at least once a week. It is also possible to store it to an external MIDI storage device such as the Yamaha MIDI Data Filer MDF3 by using the Bulk Data Dump function described on page 36.
• The track indicators will not light automatically when the power is turned on even if the recorder contains data. It is therefore necessary to press the track buttons so that the corresponding green indicators light before starting RECORDER playback. It is also a good idea to press the track buttons to check if the tracks contain data before recording. If the green indicator lights when the corresponding track button is pressed, that track contains data which will be erased and replaced by the newly-recorded data.
• If the metronome is being used during playback, the metronome will automatically stop when playback is stopped.
• During recorder playback, the volume of a track which is turned off will always be "0" (i.e. the "Piano Song Part Cancel Volume" function — page 33 — only affects piano song playback.
• The playback data is not transmitted via the MIDI OUT connector.
• Playback cannot be started when the demo/piano song mode is engaged.
• Playback cannot be started when the recorder contains no data, or when both track buttons are off.
• When using REVERB or EFFECT during playback, depending upon the conditions one reverb type and one effect type will take priority.

Synchro Start

When the Synchro Start function is engaged, recorder playback will begin automatically as soon as you start playing on the keyboard.

To engage the Synchro Start function press the [START/STOP] button while holding a track button which is ON. The rightmost dot on the display will flash at the current tempo. (Repeat the previous operation to disengage the Syncro Start function.) Playback will then start as soon as you begin playing on the keyboard.

If you hold a track button which is OFF while pressing the [START/STOP] button, that track will be turned ON and the Synchro Start mode will be engaged.

Left Pedal Start/Stop

The left pedal can be assigned to start and stop recorder playback via the "Left Pedal Mode" function described on page 32. This is convenient for starting playback of the recorded part anytime after you have started playing.

The Function Mode

The [FUNCTION] button provides access to a range of functions that give the Clavinova extraordinary versatility. The functions are categorized in groups as follows:

CLP-840/ CLP-880/

820/820S 860

F1 F1 Tuning 28
F2 F2 Scale 28
F3 F3 Dual Mode Functions 29
F4 Split Mode Functions 30
F4 Left Pedal Mode 32
F5 Pedal Functions 32
F5 F6 Metronome Volume 33
F6 F7 Piano Song Part Cancel Volume 33
F7 F8 MIDI Functions 34
F8 F9 Backup Functions 37

Operation Example

Press [+/YES]

Use FunctIO

Press [-/NO] or [+/YES] once

Use [-/NO], [+/YES]

5

To Select a Function

Press the [FUNCTION] button so that its indicator lights.
- Functions cannot be selected during demo/piano song playback or when the recorder is in operation.
2 Use the FUNCTION [▲] and [▶] buttons to select the desired function: F1 through F8 on the CLP-840/820/820S; F1 through F9 on the CLP-880/860.
3 In the case of the Scale (F2), Dual Mode (F3), Split Mode (F4: CLP-880/860), Pedal Functions (F5: CLP-880/860), MIDI (F7: CLP-840/820/820S, F8: CLP-880/860), and Backup (F8: CLP-840/ 820/820S, F9: CLP-880/860) functions, you will have to press the [+ / YES] button once to enter the respective sub-mode after the function has been selected, and then use the FUNCTION [ ] and [ ] buttons again to select the desired sub-function.

• The Dual or Split (CLP-880/860) mode must be engaged before the F3 and F4 functions can be selected, respectively. If the corresponding mode is not engaged, "F3." or "F4." will appear on the display and the corresponding sub-mode will not be available.
• The Dual mode can be engaged while in the Function mode, but the Function mode must be exited before the Split mode (CLP-880/860) can be engaged.

1. Set the function as required by using the [- / NO] and [+ / YES] buttons (see the individual function descriptions, below).
2. After selecting the function, the current setting will be displayed when the [-/NO] or [+/YES] button is pressed for the first time.
   Press the [FUNCTION] button so that its indicator goes out to exit from the function mode.

F1 Tuning

In addition to the tuning method described on page 22, overall tuning can also be accomplished via the F1 function.

After selecting "F1", use the [-/NO] and [+/YES] buttons to lower or raise the pitch in approximately 0.2Hz increments (the first time the [-/NO] or [+/YES] button is pressed simply switches to the tuning value display without actually changing the tuning). The overall tuning range is from 427.0Hz to 453.0Hz (corresponding to the A3 note's Hz ). Press the [-/NO] and [+/YES] buttons simultaneously to recall the default value "440 Hz".

Tents of a Hertz are indicated on the LED display by the appearance and position of one or two dots, as in the following example:

Display	Value
440	440.0
440	440.2
440	440.4
440	440.6
440	440.8

F2 Scale

After selecting “F2.Y”, press the [+ / YES] button to engage the scale function sub-mode, then use the FUNCTION [] and [] buttons to select the desired scale function, as listed below.

F2.1: Scale

In addition to the standard Equal Temperament tuning, the Clavinova includes 6 classic tunings that you can select and use to play music of the corresponding period, or experiment with in a more modern context. The tunings are:

1: Equal Temperament 5: Mean Tone
2: Pure Major 6: Werckmeister
3: Pure Minor 7: Kirnberger
4: Pythagorean

Use the [- / NO] and [+ / YES] buttons to select the number of the desired tuning. Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default settings (Equal Temperament tuning).

F2.2: Base Note

Unlike Equal Temperament tuning, these classic tunings must be tuned to a specific key. Use the [- / NO] and [+ / YES] buttons to select the key you want the previously selected tuning to be based. The selected key will appear on the display, followed by a low bar if flat (e.g. “ _- ” or a high bar if sharp (e.g. “ ^- ”).

Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default settings "C".

NOTE

• The base note setting is effective for tunings other than the Equal Temperament tuning.

F3 Dual Mode Functions

After selecting “F3.Y”, press the [+/YES] button to engage the dual-mode function submode, then use the FUNCTION [] and [] buttons to select the desired dual mode function, as listed below.

If the Dual mode is not engaged “F 3. - ” will appear instead of “F 3.4” and the Dual mode functions cannot be selected. If this happens engage the Dual mode and proceed.

SHORTCUT: You can jump directly to the dual-mode functions (F3) by pressing the [FUNCTION] button while holding the two dual-mode voice selectors.

NOTE - Dual mode function settings are set individually for each voice combination.

F3.1: Dual Balance

The volume levels of the two voices combined in the dual mode can be adjusted as required by using this function. Use the [- / NO] and [+ / YES] buttons to adjust the balance as required. The balance range is from 0 through 20. A setting of "10" produces equal balance between the two dual-mode voices. Settings below "10" increase the volume of the 2nd Voice in relation to the 1st Voice, and settings above "10" increase the volume of the 1st Voice in relation to the 2nd Voice ("1st" and "2nd" is explained on page 16). Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting (different for each voice combination).

You can set one voice as the main voice, and another voice as a softer, mixed voice.

F3.2: Dual Detune

This function makes it possible to detune the 1st and 2nd dual-mode Voices to create a thicker sound. Use the [- / NO] and [+ / YES] buttons to set the amount of detuning as required. The detune range is from -10 through 10. A setting of "0" sets both voices to the same pitch. Settings below "0" increase the pitch of the 2nd Voice in relation to the 1st Voice, and settings above "0" increase the pitch of the 1st Voice in relation to the 2nd Voice ("1st" and "2nd" is explained on page 16). Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting (different for each voice combination).

F3.3: 1st Voice Octave Shift

F3.4: 2nd Voice Octave Shift

Depending on which voices you combine using the dual mode, the combination may sound better if one of the voices is shifted up or down an octave. Use the [- / NO] and [+ / YES] buttons to set the octave of the 1st or 2nd Voice as required ("1st" and "2nd" is explained on page 16). The available settings are "0" for normal pitch, "−1" to shift the pitch down one octave, and "1" to shift the pitch up one octave. Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting (different for each voice combination).

F3.5: 1st Voice Effect Depth (CLP-880/860/840).

F3.6: 2nd Voice Effect Depth (CLP-880/860/840)

These functions make it possible to individually set the depth of the effect for the 1st and 2nd dual-mode Voices ("1st" and "2nd" is explained on page 16). Use the [- / NO] and [+ / YES] buttons to set the effect depth for the corresponding voice as required. The depth range is from 0 through 20. A setting of "0" produces no effect, while a setting of "20" produces maximum effect depth. Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting (different for each voice combination).

NOTE

• The effect depth settings cannot be changed unless the EFFECT is ON. The Function mode must be exited before EFFECT can be turned ON.

F3.5: Reset (CLP-820/820S)

F3.7: Reset (CLP-880/860/840)

This function resets all dual-mode functions to their default values. Press the [+/YES] button to reset the values. "End" will appear on the display when all functions have been reset.

F4 CLP-880/860 Split Mode Functions

After selecting “F 43”, press the [+ / YES] button to engage the split-mode function submode, then use the FUNCTION [] and [] buttons to select the desired split mode function, as listed below.

If the Split mode is not engaged “F 4.” will appear instead of “F 4.” and the Split mode functions cannot be selected. Also note that you must exit from the Function mode before the Split mode can be engaged.

SHORTCUT: You can jump directly to the split-mode functions (F4) by pressing the [FUNCTION] button while holding the [SPLIT] button.

NOTE

• Split mode function settings are set individually for each voice combination.

F4.1: Split Point

In addition to the split point setting method described on page 17, the split point can be set via this function. Use the [- / NO] and [+ / YES] buttons to set the split point as required, or simply press the appropriate key on the keyboard: from "A-1" to "C7". Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting "F#2".

F4.2: Split Balance

The volume levels of the two voices combined in the split mode can be adjusted as required by using this function. Use the [- / NO] and [+ / YES] buttons to adjust the balance as required. The balance range is from 0 through 20. A setting of "10" produces equal balance between the two split-mode voices. Settings below "10" increase the volume of the Left Voice in relation to the Right Voice, and settings above "10" increase the volume of the Right Voice in relation to the Left Voice. Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting (different for each voice combination).

F4.3: Right Voice Octave Shift

F4.4: Left Voice Octave Shift

Depending on which voices you combine using the split mode, the combination may sound better if one of the voices is shifted up or down an octave. Use the [- / NO] and [+ / YES] buttons to set the octave of the Left or Right Voice as required. The available settings are "0" for normal pitch, "−1" to shift the pitch down one octave, and "1" to shift the pitch up one octave. Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting (different for each voice combination).

Set according to the pitch extent for the song you want to play.

F4.5: Right Voice Effect Depth

F4.6: Left Voice Effect Depth

These functions make it possible to individually set the depth of the effect for the Left and Right split-mode Voices. Use the [- / NO] and [+ / YES] buttons to set the effect depth for the corresponding voice as required. The depth range is from 0 through 20. A setting of "0" produces no effect, while a setting of "20" produces maximum effect depth. Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting (different for each voice combination).

• The effect depth settings cannot be changed unless the EFFECT is ON. The Function mode must be exited before EFFECT can be turned ON.

F4.7: Damper Range

The Damper Range function determines whether the damper pedal affects the Right Voice, the Left Voice, or both the Left and Right Voices in the split mode. Use the [- / NO] and [+ / YES] buttons to select "2" for the Left Voice, "1" for the Right Voice, or "ALL" for both voices. Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting "ALL".

F4.8: Reset

This function resets all split-mode functions to their default values. Press the [+/YES] button to reset the values. "End" will appear on the display when all functions have been reset.

F4 CLP-840/820/820S Left Pedal Mode

This function sets the left pedal for normal soft-pedal operation, for song start/stop operation, or for sostenuto (CLP-820S only) operation. Use the [- / NO] and [+ / YES] buttons to select the desired left-pedal mode. "1" is the normal soft-pedal mode, "2" is the start/stop mode, and "3" is the sostenuto mode (CLP-820S only). When the start/stop mode is selected, the left pedal functions in the same way as the panel [START/STOP] button. Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting "1".

F5 CLP-880/860 Pedal Functions

After selecting “F5.Y”, press the [+/YES] button to engage the pedal functions sub-mode, then use the FUNCTION [] and [] buttons to select the desired pedal functions, as listed below.

F5.1: Left Pedal Mode

This function conveniently lets you set the left pedal for normal soft pedal operation, or for song start/stop operation. Use the [- / NO] and [+ / YES] buttons to select the desired left-pedal mode. Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting "1".

1: Soft The left pedal functions as the soft pedal.
2: Start/Stop The left pedal functions in the same manner as the [START/STOP] button.

F5.2: Damper Mode

This function lets you set how the damper pedal affects the sustain sound. There are two modes for pedal operation.

1: Switch In this mode the pedal acts as a simple on/off switch for sustain.
2: Continuous In this mode the pedal continuously changes the amount of sustain (in eight-step gradations) i.e., the further down you press the pedal the longer the sound sustains.

Use the [- / NO] and [+ / YES] buttons to select the desired damper mode. Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting “2”.

F5.3: Soundboard Depth

Certain piano voices (GRAND PIANO, CLASSICAL PIANO, and JAZZ PIANO) feature a special effect which recreates the ring of the strings and the soundboard resonance of an actual acoustic piano when the damper pedal is pressed. This function lets you adjust the depth of this effect. Use the [- / NO] and [+ / YES] buttons to set the effect depth as required. The effect depth range is from 0 through 20. A setting of “0” produces no effect, while a setting of “20” produces maximum effect depth. Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting “12”.

F5

F6

CLP-840/820/820S Metronome Volume

CLP-880/860 Metronome Volume

SHORTCUT: You can jump directly to the metronome functions by pressing the [FUNCTION] button while holding the [METRONOME] button.

The volume of the metronome sound can be changed. After selecting “F5” or “F6”, use the [-/NO] and [+/YES] buttons to set the metronome volume as required. The volume range is from 1 through 20. A setting of “1” produces minimum sound, while a setting of “20” produces maximum metronome volume. Press the [-/NO] and [+/YES] buttons simultaneously to recall the default setting “10”.

F6

F7

CLP-840/820/820S Piano Song Part Cancel Volume

CLP-880/860 Piano Song Part Cancel Volume

This function sets the volume at which a "canceled" part is played during piano song playback (see page 15 for information on the "part-cancel" function). Use the [- / NO] and [+ / YES] buttons to set the volume as required. The volume range is from 0 through 20. A setting of "0" produces no sound, while a setting of "20" produces maximum volume. Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting "5".

Adjust the part volume to a comfortable level to use the "canceled" part as a guide to play along with. Set to "0" if you don't want to hear the part.

CLP-840/820/820S MIDI Functions

CLP-880/860 MIDI Functions

A Brief Introduction to MIDI

MIDI, the Musical Instrument Digital Interface, is a world-standard communication interface that allows MIDI-compatible musical instruments and equipment to share musical information and control one another. This makes it possible to create "systems" of MIDI instruments and equipment that offer far greater versatility and control than is available with isolated instruments. For example, most MIDI keyboards (including the Clavinova, of course) transmit

note and velocity (touch response) information via the MIDI OUT connector whenever a note is played on the keyboard. If the MIDI OUT connector is connected to the MIDI IN connector of a second keyboard (synthesizer, etc.) or a tone generator (essentially a synthesizer with no keyboard), the second keyboard or tone generator will respond precisely to notes played on the original transmitting keyboard. The result is that you can effectively play two instruments at once, providing thick multi-instrument sounds.

This same type of musical information transfer is used for MIDI sequence recording. A sequence recorder can be used to "record" MIDI data received from a Clavinova, for example. When the recorded data is played back, the Clavinova automatically "plays" the recorded performance in precise detail.

The examples given above really only scratch the surface. MIDI can do much, much more. The Clavinova MIDI functions allow it to be used in fairly sophisticated MIDI systems.

After selecting “F7.4” or “F8.4”, press the [+ / YES] button to engage the MIDI function submode, then use the FUNCTION [] and [] buttons to select the desired MIDI function, as listed below.

• The rear-panel HOST SELECT switch must be set to "MIDI" in order to use the MIDI connectors. When you use the TO HOST connector, set the HOST SELECT switch to the appropriate position for the type of computer you are using (see page 38). In this situation, all MIDI settings described below will have affect on the MIDI signal in and out of the TO HOST connector.
• Always use a high-quality MIDI cable to connect MIDI OUT to MIDI IN terminals. Never use MIDI cables longer than about 15 meters, since cables longer than this can pick up noise which can cause data errors.

F7.1/F8.1: MIDI Transmit Channel Selection

F7.2/F8.2: MIDI Receive Channel Selection

The MIDI system allows transmission and reception of MIDI data on 16 different channels. Multiple channels have been implemented to allow selective control of certain instruments or devices connected in series. For example, a single

MIDI sequence recorder could be used to "play" two different instruments or tone generators. One of the instruments or tone generators could be set to receive only on channel 1, while the other is set to receive on channel 2. In this situation the first instrument or tone generator will respond only to channel-1 information transmitted by the sequence recorder, while the second instrument or tone generator will respond only to channel-2 information. This allows the sequence recorder to "play" two completely different parts on the receiving instruments or tone generators.

In any MIDI control setup, the MIDI channels of the transmitting and receiving equipment must be matched for proper data transfer. A "Multi-timbre" receive mode is also available, which allows simultaneous reception of different parts on all 16 MIDI channels, allowing the Clavinova to play multi-channel song data received from a music computer or sequencer. There's also a "1-2" mode which allows simultaneous reception on channels 1 and 2.

Use the [- / NO] and [+ / YES] buttons to select the desired transmit or receive channel. The transmit channel parameter can also be turned "OFF" if you don't want the Clavinova to transmit any MIDI data. To select the multi-timbre receive mode, set the receive channel to "ALL". Select "1-2" for multi-timbre reception on channels 1 and 2 only.

Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting: transmit = "1"; receive = "ALL".

• In the dual mode first voice data is transmitted on its set channel, and in the split mode right voice data is transmitted on its set channel. In the dual mode second voice data is transmitted on the next greater channel number of the set channel, and in the split mode left voice data is transmitted on the next greater channel number of the set channel. In either mode, no data is transmitted if the transmit channel is set to "OFF".
• Demo/piano song data and recorder playback data are not transmitted via MIDI.
• No MIDI reception occurs when the demo/piano song mode is engaged.
• Program change and other like channel messages received will not affect the Clavinova's panel settings or what is being played on the keyboard.

F7.3/F8.3: Local Control ON/OFF

Clavinova

"Local Control" refers to the fact that, normally, the Clavinova keyboard controls its internal tone generator, allowing the internal voices to be played directly from the keyboard. This situation is "Local Control On" since the internal tone generator is controlled locally by its own keyboard.

Local control can be turned OFF, however, so that the Clavinova keyboard does not play the internal voices, but the appropriate MIDI information is still transmitted via the MIDI OUT connector when notes are played on the keyboard. At the same time, the internal tone generator responds to MIDI information received via the MIDI IN connector.

When using the DOU-10 Disk Orchestra Unit with the Clavinova, for example, Local Control should be turned OFF when recording using the DOU-10 voices only, and ON when recording the Clavinova voices while listening to playback of the DOU-10 voices.

Use the [- / NO] and [+ / YES] buttons to turn local control "On" or "OFF".

Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting "On".

F7.4/F8.4: Program Change ON/OFF

Normally the Clavinova will respond to MIDI program change numbers received from an external keyboard or other MIDI device, causing the correspondingly numbered voice to be selected on the corresponding channel (the keyboard voice does not change). The Clavinova will normally also send a MIDI program change number whenever one of its voices is selected, causing the correspondingly numbered voice or program to be selected on the external MIDI device if the device is set up to receive and respond to MIDI program change numbers.

This function makes it possible to cancel program change number reception and transmission so that voices can be selected on the Clavinova without affecting the external MIDI device.

Use the [- / NO] and [+ / YES] buttons to turn program change transmission and reception "On" or "OFF".

Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting "On".

• For information on program change numbers for each of the Clavinova's voices, refer to page 44 in the MIDI Data Format section.

F7.5/F8.5: Control Change ON/OFF

Normally the Clavinova will respond to MIDI control change data received from an external MIDI device or keyboard, causing the voice on the corresponding channel to be affected by pedal and other "control" settings received from the controlling device (the keyboard voice is not affected). The Clavinova also transmits MIDI control change information when one of its pedals or other appropriate controls are operated.

This function makes it possible to cancel control change data reception and transmission so that, for example, the Clavinova pedals and other controls can be operated without affecting an external MIDI device.

Use the [- / NO] and [+ / YES] buttons to turn control change transmission and reception "On" or "OFF".

Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting "On".

NOTE

• For information on control changes that can be used with the Clavinova, refer to the MIDI Data Format on page 43.

F7.6/F8.6: MIDI Transmit Transpose

This function allows the MIDI note data transmitted by the Clavinova to be transposed up or down in semitone increments by up to plus or minus 12 semitones. The pitch of the Clavinova itself is not affected.

Use the [- / NO] and [+ / YES] buttons to set the desired amount of MIDI transmit transposition. The range is from “-12” (down one octave) through “0” (no transposition) to “12” (up one octave).

Press the [- / NO] and [+ / YES] buttons simultaneously to recall the default setting "0".

F7.7/F8.7: Panel/Status Transmit

This function causes all the current Clavinova panel settings (selected voice, etc.) to be transmitted via the MIDI OUT terminal. This is particularly useful if you will be recording performances to a MIDI sequence recorder such as the Yamaha MIDI Data Filer MDF3 which will be used to control the Clavinova on playback. By transmitting the Clavinova panel settings and recording them on the MIDI sequence recorder prior to the actual performance data, the Clavinova will be automatically restored to the same settings when the performance is played back.

Press the [+ / YES] button to transmit the panel/status data. "E n d" will appear on the LED display when the data has been successfully transmitted.

NOTE

• See page 44 for list of the "Panel Data Contents" transmitted by this function.
• Panel setting data that is transmitted to an external device can only be reloaded on a model of the same type. Panel setting data can also be directly transferred to or from instruments of the same model type.

F7.8/F8.8: Bulk Data Dump

This function is used to transmit all data stored in the Recorder memory to a MIDI data storage device such as the Yamaha MIDI Data Filer MDF3, other sequence recorders, or MIDI compatible computers.

Press the [+ / YES] button to begin bulk transmission. "E n d" will appear on the LED display when the data has been successfully transmitted.

NOTE

• Bulk data dump will not function when the recorder is in operation.
• Recorder data that is transmitted to an external device can only be reloaded on a model of the same type. Recorder data can also be directly transferred to or from instruments of the same model type.
• The reload operation cannot be executed when the Recorder is in operation or the Function mode is engaged.
• No MIDI note/panel data transmission or data reception occurs during a bulk data dump transmit operation.

F8

F9

CLP-840/820/820S Backup Functions

CLP-880/860 Backup Functions

After selecting “F8.9” or “F9.9”, press the [+/YES] button to engage the backup function sub-mode, then use the FUNCTION [] and [] buttons to select the desired backup function, as listed below.

• The backup settings themselves, and the contents of the recorder memory, are always backed up.
• Even if the Backup is turned on, factory presets can be recalled at any time (see page 40). The factory setting list is found on page 42.

Even if backup is turned on via one of the functions described below, the data will only be retained in memory for about 1 week if the power is not turned on during this time. If the backup period is exceeded, all settings will be reset to their default values. If you want to retain the backup settings for longer periods, be sure to turn the power switch on for a few minutes at least once a week.

F8.1/F9.1: Voice

Turns backup of the voice functions listed below on or off. Use the [- / NO] and [+ / YES] buttons to turn backup "On" or "OFF".

The default backup mode is "OFF".

Voice (Keyboard, Dual, and Split)
- Dual (ON/OFF, Voice, and Dual Functions for each voice combination)
- Split (ON/OFF, Voice, and Split Functions for each voice combination : CLP-880/860)
- Reverb (ON/OFF, Type, and Depth for each voice)
- Effect (ON/OFF, Type, and Depth for each voice : CLP-880/860/840)
- Variation (for each voice)
- Touch Sensitivity (including the FIXED volume)
- Metronome (Beat, Volume)
- Piano Song Part Cancel Volume

F8.2/F9.2: MIDI

Turns backup of the MIDI functions listed below on or off. Use the [- / NO] and [+ / YES] buttons to turn backup "On" or "OFF".

The default backup mode is "OFF".

• Channel (Transmit, Receive)
• Local ON/OFF
• Program Change ON/OFF
  Control Change ON/OFF
• MIDI Transmit Transpose

F8.3/F9.3: Tuning

Turns backup of the tuning functions listed below on or off. Use the [- / NO] and [+ / YES] buttons to turn backup "On" or "OFF".

The default backup mode is "OFF".

• Transpose - Tuning - Scale (including base note)

F8.4/F9.4: Pedal

Turns backup of the pedal functions listed below on or off. Use the [- / NO] and [+ / YES] buttons to turn backup "On" or "OFF".

The default backup mode is "OFF".

• Left Pedal Mode - Damper Mode (CLP-880/860)
  Soundboard Depth (CLP-880/860)

Connecting to a Personal Computer

Although the Clavinova can be connected to a personal computer via the MIDI IN/OUT connectors and a MIDI interface, the TO HOST connector and HOST SELECT switch allow direct connection to Apple Macintosh or IBM-PC/AT personal computers for sequencing and other music applications without the need for a separate MIDI interface.

Connecting to an Apple Macintosh Series Computer

Connect the TO HOST connector of the Clavinova to the modem or printer port on your Macintosh, depending on which port your MIDI software is using for MIDI data communication, using a standard Macintosh 8-pin system peripheral cable. Set the HOST SELECT switch to the "Mac" position.

You may also have to make other MIDI interface settings on the computer side, depending on the type of software you use (refer to your software owner's manual). In any case the clock speed should be set to 1 MHz.

- "Mac" Cable Connections

• 8-pin system peripheral cable.
  Data transfer rate: 31,250 bps.

NOTE

• When using the [TO HOST] terminal of the Clavinova, first turn the power off on both the Clavinova and the computer before connecting the cable. After connecting the cable, turn the power of the computer on first, then the Clavinova.
• When not using the [TO HOST] terminal of the Clavinova, make sure the cable is disconnected from the [TO HOST] terminal. If the cable is left connected, the Clavinova may not function properly.
• "H5" will appear in the display if the host computer is not turned on, the connecting cable is not properly connected, the HOST SELECT switch is not in the proper position, or the MIDI driver or MIDI application is not active. In this case, turn the power off on both the Clavinova and the computer, and check the cable connection and the position of the HOST SELECT switch. Once the connection and HOST SELECT switch position is verified, turn the power of the computer on first, then the Clavinova, to check if the MIDI driver and MIDI application function properly.
• When the HOST SELECT switch is set to "Mac", "PC-1", or "PC-2, no data transfer occurs via the MIDI connectors. To use the MIDI connectors for connection via a standard MIDI interface, set the HOST SELECT switch to "MIDI".

Connecting to an IBM-PC/AT Series Computer

Connect the TO HOST connector of the Clavinova to the RS-232C port on your IBM computer, using a standard 8-pin MINI DIN 9-pin D-SUB cross cable. Set the HOST SELECT switch to the "PC-2" position.

Refer to your software owner's manual for information on any settings you might have to make on the computer side.

- "PC-2" Cable Connections

• 8-pin mini DIN 9-pin D-SUB cable.
  Data transfer rate: 38,400 bps.

NOTE

• If your system doesn't work properly with the connections and settings listed above, your software may require different settings. Check your software operation manual and if it requires a 31,250 bps. data transfer rate, set the HOST SELECT switch to "PC-1".
• When using the TO HOST terminal to connect to a personal computer using Windows, a Yamaha MIDI driver must be installed in the personal computer. The Yamaha MIDI driver can be obtained at Yamaha's home page on the World Wide Web, http://www.yamaha.co.jp/english/xg/.

- Connector Pin Numbers

MINI DIN 8-PIN

D-SUB 9-PIN

Trademarks

• Apple and Macintosh are trademarks of Apple Computer, Inc.
• IBM-PC/AT is a trademark of International Business Machines Corporation.
• Windows is the registered trademark of Microsoft® Corporation.

All other trademarks are the property of their respective holders.

All dual mode, split mode, reverb, effect, touch sensitivity, tuning settings, and the settings affected by the Backup Functions can be restored to their original factory preset values by holding the C7 key (rightmost key on the keyboard) while turning the [POWER] switch ON. This also erases all recorder data, and sets all Backup on/off settings (F8: CLP-840/820/820S, F9: CLP-880/860) to “OFF”.

NOTE

The factory setting list is found on page 42.

Troubleshooting

If you encounter what appears to be a malfunction, please check the following points before assuming that your Clavinova is faulty.

1. No Sound When the Power is Turned ON

Is the AC plug properly connected to the Clavinova and an AC wall outlet? Check the AC connection carefully. Is the MASTER VOLUME control turned up to a reasonable listening level?

Also make sure that a pair of headphones is not plugged into the PHONES jack, and that the Local Control (page 35) is ON.

2. The Damper Pedal Doesn't Work

If the damper pedal doesn't work, or notes are sustained even when the pedal is not pressed, make sure that the pedal cord is properly plugged into the main unit (page 66: CLP-820S, page 60: CLP-860/840/820, page 52: CLP-880).

3. The Clavinova Reproduces Radio or TV Sound

This can occur if there is a high-power transmitter in your vicinity. Contact your Yamaha dealer.

4. Intermittent Static Noise

This is usually due to turning ON or OFF a household appliance or other electronic equipment which is fed by the same AC mains line as your Clavinova.

5. Interference Appears On Radio or TV Sets Located Near the Clavinova

The Clavinova contains digital circuitry which can generate radio-frequency noise. The solution is to move the Clavinova further away from the affected equipment, or vice versa.

6. Distorted Sound When the Clavinova is Connected to An External Amplifier/Speaker System

If the Clavinova is connected to a stereo system or instrument amplifier and the sound is distorted, reduce the volume of the external equipment to a level at which the distortion ceases.

• If “ S_subset ” appears on the display an internal malfunction has occurred. In this case, contact your Yamaha dealer.

Options & Expander Modules

- Options

BC-8 Bench

A comfortable bench styled to match your Yamaha Clavinova.

HPE-160 Stereo Headphones

High-performance lightweight dynamic headphones with extra-soft ear pads.

KC-883 Key Cover (for the CLP-820S only)

A convenient way to keep your keyboard clean and dust-free.

- Expander Modules

DOU-10 Disk Orchestra Unit

A range of MIDI recording and playback functions, plus Yamaha DOC software, Disklavier PianoSoft™, and General MIDI/Standard MIDI File disk playback capability.

Demo Song List/Verzeichnis der Demo-Songs/ Liste des morceaux de démonstration/ Lista de canções de demostración

Voice Demo Tune Titles

Voice Name	CLP-880	CLP-860	CLP-840	CLP-820/820S	Title	Composer
GRAND PIANO	O	O	O	O	Fantaisie Impromptu	F.F.Chopin
CLASSICAL PIANO	O	O	O	–	Für Elise	L.v.Beethoven
JAZZ PIANO	O	O	–	–	Original	–
ROCK PIANO	O	O	–	–	Original	–
E.PIANO 1*	O	O	O	O	Original	–
E.PIANO 2	O	O	O	–	Original	–
HARPSICHORD	O	O	O	O	Gavotte (French Suite)	J.S.Bach
STRINGS	O	O	O	O	Eine Kleine Nachtmusik 3rd Mov.	W.A.Mozart
PIPE OPRGAN	O	O	O	O	Trio Sonata 2	J.S.Bach
CHURCH ORGAN	O	–	–	–	Noël 3	L.C.d'Aquin
JAZZ ORGAN	O	–	–	–	Original	–
BASS	O	O	–	–	Original	–

• Indicated as E. PIANO on the CLP-820/820S
  Some of the demonstration pieces listed above are short excerpts from the original compositions. Original songs are all rights reserved (© 1998 by YAMAHA CORPORATION).

• Bei manchen der oben aufgeführten Demo-Stücke handelt es sich um kurze Auszüge aus den Originalkompositionen. Originalkompositionen sind urheberrechtlich geschützt (© 1998 by YAMAHA CORPORATION).

• Certains morceaux de démonstration enumerés ci-dessus sont de courts extrais des compositions originales. Les morceaux originaux sont protégés par la loi sur les droits d'auteur © 1998 par YAMAHA CORPORATION).

• Algunas de las piezas de demostración arriba mentionadas son pasajes cortos de las composiones originales. Las canciones originales tienen derechos reservados (© 1998 por YAMAHA CORPORATION).

	CLP-880/860	CLP-840/820/820S	Backup Group
			CLP-880/860	CLP-840/820/820S
Voice	GRAND PIANO	GRAND PIANO	F9.1	F8.1
Dual Mode	OFF	OFF
Split Mode	OFF	—
Split Mode Left Voice	BASS	—
Reverb Type	Preset for each voice	Preset for each voice
Reverb Depth	Preset for each voice	Preset for each voice
Effect Type	Preset for each voice	Preset for each voice
Effect Depth	Preset for each voice	Preset for each voice
Touch Sensitivity	MEDIUM	MEDIUM
Volume in the FIXED Mode	64	64
Metronome	OFF	OFF	—	—
Metronome Time Signature	0 (no accent)	0 (no accent)	F9.1	F8.1
Tempo	120	120	—	—
Transpose	0	0	F9.3	F8.3

"——": Not memorized

Function

CLP-880/860	CLP-840	CLP-820/820S	Function	Default	Backup Group
					CLP-880/860	CLP-840/820/820S
F1	F1	F1	Tuning	A3=440Hz	F9.3	F8.3
F2.1	F2.1	F2.1	Scale	1 (Equal Temperament)
F2.2	F2.2	F2.2	Base Note	C
F3.1	F3.1	F3.1	Dual Balance	Preset for each voice combination	F9.1	F8.1
F3.2	F3.2	F3.2	Dual Detune	Preset for each voice combination
F3.3, F3.4	F3.3, F3.4	F3.3, F3.4	Dual Octave Shift	Preset for each voice combination
F3.5, F.3.6	F3.5, F.3.6	—	Dual Effect Depth	Preset for each voice combination
F4.1	—	—	Split Point	F#2
F4.2	—	—	Split Balance	Preset for each voice combination
F4.3, F4.4	—	—	Split Octave Shift	Preset for each voice combination
F4.5, F4.6	—	—	Split Effect Depth	Preset for each voice combination
F4.7	—	—	Damper Range	ALL
F5.1	F4	F4	Left Pedal Mode	1 (soft pedal)	F9.4	F8.4
F5.2	—	—	Damper Mode	2 (continuous)
F5.3	—	—	Soundboard Depth	12
F6	F5	F5	Metronome Volume	10	F9.1	F8.1
F7	F6	F6	Piano Song Part Cancel Volume	5
F8.1	F7.1	F7.1	MIDI Transmit Channel	1	F9.2	F8.2
F8.2	F7.2	F7.2	MIDI Receive Channel	ALL
F8.3	F7.3	F7.3	Local Control	ON
F8.4	F7.4	F7.4	Program Change Send & Receive	ON
F8.5	F7.5	F7.5	Control Change Send & Receive	ON
F8.6	F7.6	F7.6	MIDI Transmit Transpose	0
F9	F8	F8	Backup	All OFF	Always backed up	Always backed up

If you're already very familiar with MIDI, or are using a computer to control your music hardware with computer-generated MIDI messages, the data provided in this section can help you to control the Clavinova.

Data format: [9nH] -> [kk] -> [vv]

9nH = Note ON/OFF event (n = channel number)

kk = Note number (Transmit: 09H ~ 78H = A-2 ~ C8 / Receive: 00H ~ 7FH = C-2 ~ G8)*

vw = Velocity (Key ON = 01H 7FH Key OFF = 00H

Data format: [8nH] -> [kk] -> [vV] (reception only)

8nH = Note OFF event (n = channel number)

kk = Note number: 00H ~ 7FH = C-2 ~ G8

• If received value exceeds the supported range for the selected voice, the note is adjusted by the necessary number of octaves.

2. CONTROL CHANGE

Data format: [BnH] -> [cc] -> [vv]

BnH = Control change ( = channel number)

cc = Control number

Bank selection processing does not occur until receipt of next Program Change message.

(2) Main Volume (reception only)

ccH Parameter Data Range (vvH) 07H Volume MSB 00H...7FH

(3) Expression

ccH Parameter Data Range (vvH) 0BH Expression MSB 00H...7FH

(4) Damper

ccH Parameter Data Range (vvH) 40H Damper MSB 00H...7FH

(5) Sostenuto

ccH Parameter Data Range (vvH) 42H Sostenuto 00H-3FH:off, 40H-7FH:on

(6) Soft Pedal

ccH Parameter Data Range (vvH) 43H Soft Pedal 00H-3FH:off, 40H-7FH:on

(7) Effect1 Depth (Reverb Send Level)

ccH Parameter Data Range (vvH) 5BH Effect1 Depth 00H...7FH

Adjusts the reverb send level.

(8) Effect4 Depth ( Variation Effect Send Level ) (CLP-880/860/840)

ccH Parameter Data Range (vvH) 5EH Effect4 Depth 00H...7FH

Data format: [BnH] -> [cc] -> [vv]

BnH = Control event (n = channel number)

cc = Control number

Switches off all sound from the channel. Does not reset Note On and Hold On conditions established by Channel Messages.

(2) Reset All Controllers

ccH Parameter Data Range (vvH) 79H Reset All Controllers 00H

Resetscontrollersasfollows.

Controller Value
Expression 127 (max)
Damper Pedal 0 (off)
Sostenuto 0 (off)
Soft Pedal 0 (off)

(3) Local Control (reception only)

ccH Parameter Data Range (vvH) 7AH Local Control 00H (off), 7FH (on)

(4) All Notes Off

ccH Parameter Data Range (vvH) 7BH All Notes Off 00H

Switches OFF all the notes that are currently ON on the specified channel. Any notes being held by the damper or sostenuto pedal will continue to sound until the pedal is released.

(5) Omni Off (reception only)

ccH Parameter Data Range (vvH) 7CH Omni Off 00H

Same processing as for All Notes Off.

(6) Omni On (reception only)

ccH Parameter Data Range (vvH) 7DH Omni On 00H

Same processing as for All Notes Off.

(7) Mono (reception only)

ccH Parameter Data Range (vvH)

7EH Mono 00H

Same processing as for All Sound Off.

(8) Poly (reception only)

ccH Parameter Data Range (vvH) 7FH Poly 00H

Same processing as for All Sound Off.

• When control change reception is turned OFF in the Function mode, control change data will not be transmitted or received except for Bank Select and Mode messages.
• Local on/off, OMNI on/off are not transmitted. (The appropriate note off number is supplied with "All Note Off" transmission).
• When a voice bank MSB/LSB is received, the number is stored in the internal buffer regardless of the received order, then the stored value is used to select the appropriate voice when a program change message is received.
• The Multi-timbre and Poly modes are always active. No change occurs when OMNI ON, OMNI OFF, MONO, or POLY mode messages are received.

4.PROGRAM CHANGE

Data format: [CnH] -> [ppH]

CnH = Program event (n = channel number)

ppH = Program change number

P.C.#=Program Change number

	CLP-880						CLP-860
	Normal Voice			VARIATION Voice			Normal Voice			VARIATION Voice
	MSB	LSB	P.C.#	MSB	LSB	P.C.#	MSB	LSB	P.C.#	MSB	LSB	P.C.#
GRAND PIANO	0	112	0	0	113	0	0	112	0	0	113	0
CLASSICAL PIANO	0	114	0	0	115	0	0	114	0	0	115	0
JAZZ PIANO	0	112	1	0	113	1	0	112	1	0	113	1
ROCK PIANO	0	114	1	0	115	1	0	114	1	0	115	1
E.PIANO 1	0	112	5	0	112	88	0	112	5	0	112	88
E.PIANO 2	0	112	4	0	118	4	0	112	4	0	118	4
HARPSICHORD	0	112	6	0	115	6	0	112	6	0	115	6
STRINGS	0	112	48	0	113	49	0	112	48	0	113	49
PIPE ORGAN	0	112	19	0	113	19	0	112	19	0	113	19
CHURCH ORGAN	0	115	19	0	114	19
JAZZ ORGAN	0	112	16	0	113	16
BASS	0	112	32	0	114	32	0	112	32	0	114	32

	CLP-840						CLP-820/820S
	Normal Voice			VARIATION Voice			Normal Voice			VARIATION Voice
	MSB	LSB	P.C.#	MSB	LSB	P.C.#	MSB	LSB	P.C.#	MSB	LSB	P.C.#
GRAND PIANO	0	112	0	0	113	0	112	0	0	0	113	0
CLSSICAL PIANO	0	114	0	0	115	0
E.PIANO 1*	0	112	5	0	112	88	112	5	5	0	112	88
E.PIANO 2	0	112	4	0	118	4
HARPSICHORD	0	112	6	0	115	6	112	6	6	0	115	6
STRINGS	0	112	48	0	113	49	112	48	48	0	113	49
PIPE ORGAN	0	112	19	0	113	19	112	19	19	0	113	19

• Indicated as E. PIANO on the CLP-820/820S
• When program change reception is turned OFF in the Function mode, no program change data is transmitted or received.
  Also, Bank MSB/LSB is not transmitted or received.

5. SYSTEM REALTIME MESSAGES

[rrH]
F8H: Timing clock
FAH: Start
FCH: Stop
FEH: Active sensing

Data	Transmission	Reception
F8H	Transmitted every 96 clocks	Received as 96-clock tempo timing when MIDI clock is set to External
FAH	Recorder start	Recorder start Not received when the MIDI clock is set to Internal.
FCH	Recorder stop	Recorder stop Not received when the MIDI clock is set to Internal.
FEH	Transmitted every 200 milliseconds	If a signal is not received via MIDI for more than 400 milliseconds, the same processing will take place for All Sound Off, All Notes Off and Reset All Controllers as when those signals are received.

• Caution: If an error occurs during MIDI reception, the Damper, Sostenuto, and Soft effects for all channels are turned off and an All Note Off occurs.

6. SYSTEM EXCLUSIVE MESSAGES (Yamaha MIDI Format)

Panel Data Transmit

Data format: [F0H] -> [43H] -> [0nH] -> [7CH] -> ... -> [F7H]

FOH, 43H, 0nH, 7CH

(n: channel number)

00H, 2CH

(data length)

43H, 4CH, 20H, 20H

(CL)

43H, 4CH, 50H, 27H, 39H, 38H

CLP-880/860/840/820/820S)

30H. 30H

(version x,y)

[PANEL DATA]

[ \text{[CHECK SUM (1byte)]} = 0 - (43H + 4CH + 20H + \dots + \text{Data end}) ]

F7H

• Panel Data Contents

	CLP-880/860	CLP-840	CLP-820/820S
(1) 1'st Voice	○	○	○
(2) Dual On/Off	○	○	○
(3) Dual Voice	○	○	○
(4) Dual Balance	○	○	○
(5) Dual Detune	○	○	○
(6) Dual Voice1 Octave	○	○	○
(7) Dual Voice2 Octave	○	○	○
(8) Dual Voice1 Effect Depth	○	○	○
(9) Dual Voice2 Effect Depth	○	○	○
(10) Split On/Off	○	×	×
(11) Split Voice	○	×	×
(12) Split Point	○	×	×
(13) Split Balance	○	×	×
(14) Split Voice1 Octave	○	×	×
(15) Split Voice2 Octave	○	×	×
(16) Split Voice1 Effect Depth	○	×	×
(17) Split Voice2 Effect Depth	○	×	×
(18) Split Dumper Mode	○	×	×
(19) Reverb Type 1	○	○	○
(20) Reverb Type 2	○	○	○
(21) Reverb Depth1	○	○	○
(22) Reverb Depth2	○	○	○
(23) Effect Type 1	○	○	×
(24) Effect Type 2	○	○	×
(25) Effect Depth	○	○	×
(26) Variation 1 On/Off	○	○	○
(27) Variation 2 On/Off	○	○	○
(28) Touch Sensitivity	○	○	○
(29) Fixed Data	○	○	○
(30) Left Pedal Function	○	○	○
(31) Absolute tempo low byte	○	○	○
(32) Absolute tempo high byte	○	○	○

• "X" indicates no affect.
• Panel data send requests cannot be received.

7. SYSTEM EXCLUSIVE MESSAGES (Universal System Exclusive)

(1) Universal Realtime Message

Data format: [F0H] -> [7FH] -> [XnH] -> [04H] -> [01H] -> [llH] -> [mmH] -> [F7H]

MIDI Master Volume

• Simultaneously changes the volume of all channels.
• When a MIDI master volume message is received, the volume only has affect on the MIDI receive channel, not the panel master volume.

FOH = Exclusive status
7FH = Universal Realtime
7FH = ID of target de
04H = Sub-ID #1=Device Control Message
01H = Sub-ID #2=Master Volume
[ l / H = \text{Volume LSB} ]
mmH = Volume MSB
F7H = End of Exclusive

or

F0H = Exclusive status
7FH = Universal Realtime
XnH = When n is received n = 0 F , whichever is received.
X = don't care
04H = Sub-ID #1=Device Control Message
01H = Sub-ID #2=Master Volume
[ \text{llH} = \text{Volume LSB} ]
mmH = Volume MSB
F7H = End of Exclusive

(2) Universal Non-Realtime Message (GM On)

General MIDI Mode On

Data format: [F0H] -> [7EH] -> [XnH] -> [09H] -> [01H] -> [F7H]

F0H = Exclusive status
7EH = Universal Non-Realtime
7FH = ID of target device
09H = Sub-ID #1=General MIDI Message
01H = Sub-ID #2=General MIDI On
F7H = End of Exclusive

or

F0H = Exclusive status
7EH = Universal Non-Realtime
XnH = When received, n=0~F.
X = don't care
09H = Sub-ID #1=General MIDI Message
01H = Sub-ID #2=General MIDI On
F7H = End of Exclusive

When the General MIDI mode ON message is received, the MIDI system will be reset to its default settings.

This message requires approximately 50ms to execute, so sufficient time should be allowed before the next message is sent.

8. SYSTEM EXCLUSIVE MESSAGES (XG Standard)

(1) XG Native Parameter Change

Data format: [F0H] -> [43H] -> [1nH] -> [4CH] -> [hhH] -> [mmH] -> [llH] -> [ddH] -> [F7H]

FOH = Exclusive status

43H =YAMAHA ID

1nH = When received, n=0~F.

When transmitted, n = 0 .

4CH = Model ID of XG

hhH = Address High

mmH = Address Mid

llH = Address Low

ddH = Data

1

F7H = End of Exclusive

Data size must match parameter size (2 or 4 bytes).

When the XG System On message is received, the MIDI system

will be reset to its default settings.

The message requires approximately 50ms to execute, so suffi

cient time should be allowed before the next message is sent.

(2) XG Native Bulk Data (reception only)

Data format: [F0H] -> [43H] -> [OnH] -> [4CH] -> [aaH] -> [bbH] -> [hhH] -> [mmH] -> [llH] -> [ddH] -> ... -> [ccH] -> [F7H]

FOH Exclusive status
43H YAMAHA ID
0nH When received, n = 0 F .
When transmitted, n = 0
4CH Model ID of XG
aaH ByteCount
bbH ByteCount
hhH Address High
mmH Address Mid
llH Address Low
ddH Data
1
1
ccH Check sum
F7H End of Exclusive
- Receipt of the XG SYSTEM ON message causes reinitialization of relevant parameters and Control Change values. Allow sufficient time for processing to execute (about 50 msec) before sending the Clavinova another message.
- XG Native Parameter Change message may contain two or four bytes of parameter data (depending on the parameter size).
- For information about the Address and Byte Count values, refer to Table 1 below. Note that the table's Total Size value gives the size of a bulk block. Only the top address of the block (00H, 00H, 00H) is valid as a bulk data address.

9. SYSTEM EXCLUSIVE MESSAGES (Clavinova MIDI Format)

Data format: [F0H] -> [43H] -> [73H] -> [xxH] -> [nnH] -> [F7H]

FOH = Exclusive status
43H = Yamaha ID
73H = Clavinova ID
xxH = Product ID (CLP-880/860/840/820/820S common ID: 50H or CLP common ID: 01H)
nnH = Substatus

nn Control
02H Internal MIDI clock
03H External MIDI clock
06H Bulk Data (the bulk data follows 06H)

F7H = End of Exclusive

• When nn=02H or 03H, Clavinova common ID (01H) is recognized as well as 50H.

BULK DUMP FORMAT

FOH, 43H, 73H
xxH =Product ID (CLP-880: 56H, CLP-860:
54H, CLP-840: 53H, CLP-820/820S:
52H)
06H =BulkID
05H =Sequence data
0nH, 0nH, 0nH, 0nH, 0nH, 0nH, 0nH =Data length
[BULK DATA]
[ \text{[CHECK SUM (1byte)]} = 0 - \text{sum (BULK DATA)} ]
F7H = End of Exclusive

10. SYSTEM EXCLUSIVE MESSAGES (Special Control)

Data format: [F0H] -> [43H] -> [73H] -> [xxH] -> [11H] -> [0nH] -> [ccH] -> [vwH] -> [F7H]

FOH = Exclusive status
43H =Yamaha ID
73H = Clavinova ID
50H = CLP-880/860/840/820/820S common ID
11H = Clavinova special control
0nH = Control MIDI change (n=channel number)
cc = Control number
V = Value
F7H = End of Exclusive

Control

Split Point

m - 1 0 ;

Metronome

On

Always 00H

m - 1 0 ;

Always 00H

ccH vvH

14H 14H : Split Key Number

(CLP-880/860)

1BH 00H:off

01H:
02H:2/4
03H:3/4
04H:4/4
06H:6/4
Se:17:57FH : No accent

Damper Level

ch: 00H-OFH

3DH (Sets the Damper Level

ach channel)

00H-7FH

Channel Detune

ch:00H-0FH

43H (Sets the Detune value for

n channel)

00H-7FH

Voice Reserve

ch: 00H-0FH

45H 00H:Reserve off

7FH : on*

• When Volume, Expression is received for Reserve On, they will be effective from the next Key On. Reserve Off is normal.

11. SYSTEM EXCLUSIVE MESSAGES (Others)

Data format: [F0H] -> [43H] -> [1nH] -> [27H] -> [30H] -> [00H] -> [00H] -> [mmH] -> [llH] -> [ccH] -> [F7H]

Master Tuning (XG and last message priority) simultaneously changes the pitch of all channels.

F0H = Exclusive Status
43H =Yamaha ID
1nH = Transmission from n=CLP is always 0. 0-F is received.
27H = Model ID of TG100
30H = Sub ID
00H
00H =
mmH = Master Tune MSB
llH = Master Tune LSB
ccH =don't care (under 7FH)
F7H = End of Exclusive

MIDI Parameter Change table (SYSTEM)

Address (H)	Size (H)	Data (H)	Parameter	Description	Default value (H)
00 00 00	4	020C - 05F4(*1)	MASTER TUNE	-50 - +50[cent]	00 04 00 00
01				1st bit 3 - 0 → bit 15 - 12	400
02				2nd bit 3 - 0 → bit 11 - 8
03				3rd bit 3 - 0 → bit 7 - 4
				4th bit 3 - 0 → bit 3 - 0
04	1	00 - 7F	MASTER VOLUME	0 - 127	7F
05	1	—	—
06	1	34 - 4C(*2)	TRANSPOSE	-12 - +12[semitones]	40
7E		00	XG SYSTEM ON	00=XG sytem ON
7F		00	RESET ALL PARAMETERS	00=ON (receive only)
TOTAL SIZE	07

*1: Values lower than 020CH select -50 cents. Values higher than 05F4H select +50 cents. *2: Values from 28H through 33H are interpreted as -12 through -1. Values from 4DH through 58H are interpreted as +1 through +12. MIDI Parameter Change table ( EFFECT 1) Refer to the "Effect MIDI Map" for a complete list of Reverb, Chorus and Variation type numbers.

Address (H)	Size (H)	Data (H)	Parameter	Description	Default value (H)
02 01 00	2	00-7F	REVERB TYPE MSB	Refer to Effect MIDI Map	01(=HALL1)
		00-7F	REVERB TYPE LSB	00 : basic type	00
02 01 40	2	00-7F	VARIATION TYPE MSB	Refer to Effect MIDI Map	00(=Effect off) (CLP-880/860/840)
		00-7F	VARIATION TYPE LSB	00 : basic type	00 (CLP-880/860/840)

"VARIATION" refers to the EFFECT on the panel. MIDI Parameter Change table (MULTI PART)

Address (H)	Size (H)	Data (H)	Parameter	Description	Default value (H)
08 nn 11	1	00 - 7F	DRY LEVEL	0 - 127	7F (CLP-880/860/840)
nn = Part Number

Effect MIDI Map

REVERB

	MSB	LSB
ROOM	02H	10H
HALL 1	01H	10H
HALL 2	01H	11H
STAGE	03H	10H

EFFECT (CLP-880/860/840)

	MSB	LSB
CHORUS	42H	10H
SYMPHONIC	44H	10H
TREMOLO	46H	10H
DELAY	05H	10H

Function		Transmitted	Recognized	Remarks
Basic Channel Changed		11~16	11~16
Mode Messages Altered		3×**********	1*1××	Poly Mode only
Note Number : True voice		9~120**********	0~12721~108
Velocity Note on Note off		○ 9nH, v=1~127× 9nH, v=0	○ v=1~127×
After key's Touch Ch's		××	××
Pitch Bender		×	×
Control Change
	0, 32	○	○	Bank Select Volume Expression Damper Sostenuto Soft pedal Reverb Depth Effect Depth
	07	×	○
	11	×	○
	64	○	○
	66	○	○
	67	○	○
	91	○	○
	94	○	○
	120	×	○	All sounds off Reset All Controllers
	121	×	○
Program Change : True #		○**********	○
System Exclusive		○	○
System : Song Position : Song Select Common : Tune		×××	×××
		××	××
System : Clock Real Time : Commands		○○	○○
Aux : Local ON/OFF : All Notes Off Messages : Active Sense : Reset		×○○	○(123~127)○×
Notes : *1 = Recieve Mode is always multi timbre and Poly mode.

 1  5 x 40 mm long gold screws   6 × 20 ~mm round-head screws   4 x 12 mm round-head screws   4 × 20 ~mm tapping screws   6 × 16 mm flat-head screws   Cord holders x2  - AC power cord B and C are already attached on the CLP-880PE. The 5× 40mm long gold screws are not supplied with the CLP-880PE.

CLP-880: Keyboard Stand Assembly


NOTE

- Be careful not to confuse parts, and be sure to install all parts in the correct direction. Please assemble in accordance with the sequence given below. Assembly should be carried out by at least two persons. - Be sure to use the correct screw size, as indicated above. Use of incorrect screws can cause damage. - Be sure to tighten up all screws upon completing assembly of each unit. - To disassemble, reverse the assembly sequence given below. Have a Phillips-head (+) screwdriver ready.

1 Open the box and remove all the parts.

On opening the box you should find the parts shown in the illustration. Check to make sure that all the required parts are provided. 2  It is not necessary to perform this procedure on the CLP-880PE.  3

2 Assemble the side panels (B) and feet (C).

Secure the feet (C) to the side panels (B) with the 5 × 40 millimeter long gold-colored screws (13 each). Depending on the unit type, the feet (C) may or may not have cutouts. If the feet have cutouts, make sure that the cutouts on the feet face the bracket side of the side panels. It is not necessary to perform this procedure on the CLP-880PE.

3 Attach the side panels (B) to the pedal box (D).

Before installing the pedal box, untie and straighten out the bundled cord attached to the bottom of the pedal box. Place the pedal box on top of the brackets attached to the side panels (B), and attach using the four 6 × 20 millimeter round-head screws ② — two screws on each side. Make sure the pedals extend in the same direction as the feet.

4 Attach the front panel (E).

The front panel attaches to the front end of the pedal box and side panels. Fit the front panel into position and eliminate any gaps between the front and side panels. Align the small hole in each six brackets and attach the front panel using the six 4 × 12 millimeter round-head screws .

Install the main unit (A).

Rest the rear edge of the main unit (A) on the front edges of the cutouts in the side panels (B), then slide the main unit backward firmly until it stops (so that there is no clearance between the main unit side panels and the stand, as shown in illustration "a"). WATCH YOUR FINGERS WHILE DOING THIS!! There is slight horizontal play between the main unit and side panels, so center the main unit, as shown in illustration "b", then use the four 6 × 16 millimeter flat-head screws to attach the main unit. Two screws can be attached from the front side and two screws from the rear.

CAUTION

- Do not hold the keyboard in any position other than the position shown in the above illustration. - Fingers can become pinched between the main unit and the front or side panels, be extra careful so as not to drop the main unit.   (a) (b)   6  - Before connecting the speaker cord, remove the two tapes attaching the speaker cord to the speaker box.

Connect the speaker cord.

The speaker cord from the speaker box must be plugged into the corresponding connector in the main unit. The plug only goes in one way (the lug on the connector should face the rear of the main unit, as shown in the illustration), so don't try to force it in the wrong way around.  7

7 Attach the rear panel (F).

With the rear panel slightly angled as shown in the illustration, lower it onto the feet's protruding edge at the rear of the pedal box. Then, secure the top of the rear panel to the side panel brackets using two 4 × 12 ~mm round-head screws ③. Finally, secure the bottom of the rear panel to the pedal box using four 4 × 20 ~mm tapping screws ④. 8 9  A voltage selector is provided in some areas.

8 Connect the pedal cord.

The pedal cord from the pedal box must be plugged into the PEDAL connector on the rear of the main unit. Once connected, attach the cord holders to the rear panel as shown, then clip the cord into the holders.

Voltage Selector

Before connecting the AC power cord, check the setting of the voltage selector which is provided in some areas. To set the selector for 110V, 127V, 220V or 240V main voltages, use a "minus" screwdriver to rotate the selector dial so that the correct voltage for your region appears next to the pointer on the panel. The voltage selector is set at 240V when the unit is initially shipped. After the proper voltage has been selected connect the AC power cord. A plug adaptor may be also provided in some areas to match the pin configuration of the AC wall outlets in your area. 10

10 Set the adjuster.

For stability, an adjuster is provided on the bottom of the pedal box (D). Rotate the adjuster until it comes in firm contact with the floor surface. The adjuster ensures stable pedal operation and facilitates pedal effect control. If the adjuster is not in firm contact with the floor surface, distorted sound may result.

CAUTION

- When moving the instrument after assembly, always hold the lower surface of the main unit, NEVER the top portion or keyboard cover. Improper handling can result in damage to the instrument or personal injury.

After completing the assembly, please check the following.

- Are there any parts left over? Review the assembly procedure and correct any errors. - Is the Clavinova clear of doors and other movable fixtures? Move the Clavinova to an appropriate location. - Does the Clavinova make a rattling noise when you shake it? Tighten all screws. - Does the pedal box rattle or give way when you step on the pedals? Turn the adjuster so that it is set firmly against the floor. - Are the pedal and power cords inserted securely into the sockets? Check the connection. - If the main unit creaks or is otherwise unsteady when you play on the keyboard, refer to the assembly diagrams and retighten all screws.  1  5 x 40 mm long gold screws X6 1     6 × 20 ~mm round-head screws X4 2    Bundled pedal cord inside  4 × 12 ~mm round-head screws X2 3  4 x 20 mm tapping screws X4 ④   Cord holders x 2  - AC power cord  6 x 16 mm flat-head screws X4 5

CLP-860/840/820: Keyboard Stand Assembly

The CLP-860/840/820 all require the same assembly procedures. Illustrations use the CLP-860 for reference.

NOTE

- Be careful not to confuse parts, and be sure to install all parts in the correct direction. Please assemble in accordance with the sequence given below. Assembly should be carried out by at least two persons. - Be sure to use the correct screw size, as indicated above. Use of incorrect screws can cause damage. - Be sure to tighten up all screws upon completing assembly of each unit. - To disassemble, reverse the assembly sequence given below. Have a Phillips-head (+) screwdriver ready.

Open the box and remove all the parts.

On opening the box you should find the parts shown in the illustration. Check to make sure that all the required parts are provided.  2 3

2 Assemble the side panels (D) and feet (E).

Secure the feet (E) to the side panels (D) with the 5 × 40 millimeter long gold-colored screws (1) (3 each). Depending on the unit type, the feet (E) may or may not have cutouts. If the feet have cutouts, make sure that the cutouts on the feet face the bracket side of the side panels.

3 Attach the side panels (D) to the pedal box (C).

Before installing the pedal box, untie and straighten out the bundled cord attached to the bottom of the pedal box. Don't discard the vinyl tie, you'll need it later in step 6. Place the pedal box on top of the brackets attached to the side panels (D), and attach using the four 6 × 20 millimeter roundhead screws ② — two screws on each side. Make sure the pedals extend in the same direction as the feet. 4

4 Attach the rear panel (B).

With the rear panel slightly angled as shown in the illustration, lower it onto the feet's protruding edge at the rear of the pedal box. Then, while eliminating any gaps between the rear and side panels, secure the top of the rear panel to the side panel brackets using two 4 × 12 mm round-head screws. Finally, secure the bottom of the rear panel to the pedal box using four 4 × 20 mm tapping screws. - Be sure to place your hands at least 10 centimeters from either end of the main unit when positioning it. 5  6 x 16 mm flat-head screws

Install the main unit (A).

Place the main unit (A) on the side panels (D) with the screws on its bottom panel (toward the rear of the main unit) just behind the grooves in the brackets located at the top of the side panels. Then slide the main unit forward until it stops. WATCH YOUR FINGERS WHEN DOING THIS!! Align the holes on the bottom panel of the main unit with the holes in the brackets on the side panels (also center the main unit to produce equal clearance on the left and right sides, as shown in the illustration), then use the four 6 × 16 millimeter flat-head screws to attach the main unit. Two screws can be attached from the front side and two screws from the rear.

CAUTION

- Do not hold the keyboard in any position other than the position shown in the above illustration. - Fingers can become pinched between the main unit and the rear or side panels, be extra careful so as not to drop the main unit.

6 Connect the pedal cord.

The pedal cord from the pedal box must be plugged into the PEDAL connector on the rear of the main unit. Once connected, attach the cord holders to the rear panel as shown, then clip the cord into the holders.

Voltage Selector

Before connecting the AC power cord, check the setting of the voltage selector which is provided in some areas. To set the selector for 110V, 127V, 220V or 240V main voltages, use a "minus" screwdriver to rotate the selector dial so that the correct voltage for your region appears next to the pointer on the panel. The voltage selector is set at 240V when the unit is initially shipped. After the proper voltage has been selected connect the AC power cord. A plug adaptor may be also provided in some areas to match the pin configuration of the AC wall outlets in your area. 8    CAUTION - When moving the instrument after assembly, always hold the lower surface of the main unit, NEVER the top portion or keyboard cover. Improper handling can result in damage to the instrument or personal injury.

Set the adjuster.

For stability, an adjuster is provided on the bottom of the pedal box (C). Rotate the adjuster until it comes in firm contact with the floor surface. The adjuster ensures stable pedal operation and facilitates pedal effect control. If the adjuster is not in firm contact with the floor surface, distorted sound may result.

After completing the assembly, please check the following.

- Are there any parts left over? Review the assembly procedure and correct any errors. - Is the Clavinova clear of doors and other movable fixtures? Move the Clavinova to an appropriate location. - Does the Clavinova make a rattling noise when you shake it? Tighten all screws. - Does the pedal box rattle or give way when you step on the pedals? Turn the adjuster so that it is set firmly against the floor. - Are the pedal and power cords inserted securely into the sockets? Check the connection. - If the main unit creaks or is otherwise unsteady when you play on the keyboard, refer to the assembly diagrams and retighten all screws.

1

     Bundled pedal cord inside    5 x 40 mm long gold screws x6   6 × 20 ~mm round-head screws X4   6 × 16 mm flat-head screws x8   - AC power cord

CLP-820S: Keyboard Stand Assembly


NOTE

- Be careful not to confuse parts, and be sure to install all parts in the correct direction. Please assemble in accordance with the sequence given below. Assembly should be carried out by at least two persons. - Be sure to use the correct screw size, as indicated above. Use of incorrect screws can cause damage. - Be sure to tighten up all screws upon completing assembly of each unit. - To disassemble, reverse the assembly sequence given below. Have a Phillips-head (+) screwdriver ready.

1 Open the box and remove all the parts.

On opening the box you should find the parts shown in the illustration. Check to make sure that all the required parts are provided.  2 3

2 Assemble the side panels (D) and feet (E).

Secure the feet (E) to the side panels (D) with the 5 × 40 millimeter long gold-colored screws 1 (3 each). Depending on the unit type, the feet (E) may or may not have cutouts. If the feet have cutouts, make sure that the cutouts on the feet face the bracket side of the side panels.

3 Attach the side panels (D) to the pedal box (C).

Before installing the pedal box, untie and straighten out the bundled cord attached to the bottom of the pedal box. Don't discard the vinyl tie, you'll need it later in step 6. Place the pedal box on top of the brackets attached to the side panels (D), and attach using the four 6 × 20 millimeter roundhead screws ② — two screws on each side. Make sure the pedals extend in the same direction as the feet.   6x16mm flat-head screws

4 Attach the center panel (B) to the side panels (D).

The center panel (B) is installed between the side panels (D) with the brackets on each end toward the rear of the stand assembly. Place the square holes in the center-panel brackets over the lugs extending from the side panels, then slide down. Each side of the center panel is attached using two 6 × 16 flat-head screws - Be sure to place your hands at least 10 centimeters from either end of the main unit when positioning it.  5

Install the main unit (A).

Place the main unit (A) on the side panels (D) with the screws on its bottom panel (toward the rear of the main unit) just behind the grooves in the brackets located at the top of the side panels. Then slide the main unit forward until it stops. WATCH YOUR FINGERS WHEN DOING THIS!! Align the holes on the bottom panel of the main unit with the holes in the brackets on the side panels (also center the main unit to produce equal clearance on the left and right sides, as shown in the illustration), then use the four 6 × 16 millimeter flat-head screws to attach the main unit. Two screws can be attached from the front side and two screws from the rear.

CAUTION

- Do not hold the keyboard in any position other than the position shown in the above illustration. - Fingers can become pinched between the main unit and the side panels, be extra careful so as not to drop the main unit.

6 Connect the pedal cord.

Pass the pedal cord through the two cord holders on the side panel. Plug the free end of the cord into the PEDAL connector on the rear of the main unit.

Voltage Selector

Before connecting the AC power cord, check the setting of the voltage selector which is provided in some areas. To set the selector for 110V, 127V, 220V or 240V main voltages, use a "minus" screwdriver to rotate the selector dial so that the correct voltage for your region appears next to the pointer on the panel. The voltage selector is set at 240V when the unit is initially shipped. After the proper voltage has been selected connect the AC power cord. A plug adaptor may be also provided in some areas to match the pin configuration of the AC wall outlets in your area.

8



CAUTION

- When moving the instrument after assembly, always hold the lower surface of the main unit, NEVER the top portion. Improper handling can result in damage to the instrument or personal injury.

8

Set the adjuster.

For stability, an adjuster is provided on the bottom of the pedal box (C). Rotate the adjuster until it comes in firm contact with the floor surface. The adjuster ensures stable pedal operation and facilitates pedal effect control. If the adjuster is not in firm contact with the floor surface, distorted sound may result.

After completing the assembly, please check the following.

- Are there any parts left over? Review the assembly procedure and correct any errors. - Is the Clavinova clear of doors and other movable fixtures? Move the Clavinova to an appropriate location. - Does the Clavinova make a rattling noise when you shake it? Tighten all screws. - Does the pedal box rattle or give way when you step on the pedals? Turn the adjuster so that it is set firmly against the floor. - Are the pedal and power cords inserted securely into the sockets? Check the connection. - If the main unit creaks or is otherwise unsteady when you play on the keyboard, refer to the assembly diagrams and retighten all screws.

Specifications/Technische Daten/Caracteristiques techniques/Especillasiones

		CLP-880	CLP-860	CLP-840	CLP-820	CLP-820S
KEYBOARD		88 KEYS (A-1 ~ C7)
POLYPHENY		64 NOTES MAX.		32 NOTES MAX.
VOICE SELECTORS		12 voices + Variation for each voice	10 voices + Variation for each voice	7 voices + Variation for each voice	5 voices + Variation for each voice
REVERB		ROOM, HALL 1, HALL 2, STAGE
EFFECT		CHORUS, SYMPHONIC, TREMOLO, DELAY			—
TOUCH SENSITIVITY		HARD, MEDIUM, SOFT, FIXED
RECORDER		1, 2, START/STOP, REC
PEDAL CONTROLS		SOFT, SOSTENUTO, DAMPER				SOFT/SOSTENUTO, DAMPER
OTHER CONTROLS		MASTER VOLUME, BRILLIANCE (CLP-880/860/840), DEMO, TRANSPOSE, SPLIT (CLP-880/860), METRONOME, TEMPO [▲]/[▼], FUNCTION, PIANO SONG, SONG SELECT [▲]/[▼], LED Display
JACKS/CONNECTORS		PHONES x 2, AUX OUT R & L/L+R, AUX IN R & L/L+R, MIDI IN/OUT/THRU, HOST SELECT, TO HOST, PEDAL
INPUT & OUTPUT LEVEL/IMPEDANCE		AUX OUT: Output impedance 600 Ω AUX IN: Input impedance 10 kΩ / Input sensitivity -10 dBm
MAIN AMPLIFIERS		120W (60W x 2)	80W (40W x 2)		40W (20W x 2)
SPEAKERS		14 cm x 2, 3 cm (dome type) x 2		14 cm x 2, 5 cm x 2	16 cm x 2
DIMENTIONS (W x D x H)	Music stand down	1427 x 506 x 969 mm (56-3/16" x 19-15/16" x 38-1/8")	1414 x 512 x 887 mm (55-11/16" x 20-1/8" x 34-15/16")	1397 x 515 x 870 mm (55" x 20-1/4" x 34-1/2")	1397 x 515 x 871 mm (55" x 20-1/4" x 34-5/16")	1379 x 515 x 851 mm (55" x 20-1/4" x 33-1/2")
	Music stand up	1427 x 506 x 1132 mm (56-3/16" x 19-15/16" x 44-9/16")	1414 x 512 x 1051 mm (55-11/16" x 20-1/8" x 41-3/8")	1397 x 515 x 1033 mm (55" x 20-1/4" x 40-11/16")	1397 x 515 x 1037 mm (55" x 20-1/4" x 40-13/16")	1379 x 515 x 1017 mm (55" x 20-1/4" x 40-1/16")
WEIGHT		CLP-880 70.0 kg (154.3 lbs.) CLP-880PE 82.0 kg (180.8 lbs.)	56.0 kg (123.4 lbs.)	56.0 kg (123.4 lbs.)	53.0 kg (116.8 lbs.)	48.0 kg (105.8 lbs.)

- Specifications and descriptions in this owner's manual are for information purposes only. Yamaha Corp. reserves the right to change or modify products or specifications at any time without prior notice. Since specifications, equipment or options may not be the same in every locale, please check with your Yamaha dealer. - Die technischen Daten und Beschreibungen in dieser Bedienungsanleitung dienen nur der Information. Yamaha Corp. besteht sich das Recht vor, Produkte oder deren technische Daten jederzeit ohne vorherige Ankündigung zu verändern oder zu modifizieren. Da die technischen Daten, das Gerät selbst oder Sonderezubehör nicht in jedem Land gleich sind, setzen Sie sich im Zweifelitte mit Ihr Yamaha-Handler in Verbindung. - Les caractéristiques techniques et les descriptions du mode d'emploi ne sont données que pour information. Yamaha Corp. se reserve le droit de change ou modifier les produits et leurs caractéristiques techniques à tout moment sans aucun avis. Du fait que les caractéristiques techniques, les équipements et les options peuvent différer d'un pays à l'autre, adressé-vous au distributeur Yamaha le plus proche. - Las asignaciones y descricciones de este manual del propietario tienen solo el propuesto de servir como información. Yamaha Corp. se reserva eldeocho a efectuar Cambios o改动aciones en los productos o asignaciones enequalquiermomento sin previo aviso. Puesto que las asignaciones,equipos u opiciones peuvent no ser las malmas en todos losmercados,solicite informaciona su distribuidor Yamaha.

IMPORTANT SAFETY INSTRUCTIONS

INFORMATION RELATING TO PERSONAL INJURY, ELECTRICAL SHOCK, AND FIRE HAZARD POSSIBILITIES HAS BEEN INCLUDED IN THIS LIST.

WARNING- When using any electrical or electronic product, basic precautions should always be followed. These precautions include, but are not limited to, the following: 1. Read all Safety Instructions, Installation Instructions, Special Message Section items, and any Assembly Instructions found in this manual BEFORE marking any connections, including connection to the main supply. 2. Main Power Supply Verification: Yamaha products are manufactured specifically for the supply voltage in the area where they are to be sold. If you should move, or if any doubt exists about the supply voltage in your area, please contact your dealer for supply voltage verification and (if applicable) instructions. The required supply voltage is printed on the name plate. For name plate location, please refer to the graphic found in the Special Message Section of this manual. 3. This product may be equipped with a polarized plug (one blade wider than the other). If you are unable to insert the plug into the outlet, turn the plug over and try again. If the problem persists, contact an electrician to have the obsolete outlet replaced. Do NOT defeat the safety purpose of the plug. 4. Some electronic products utilize external power supplies or adapters. Do NOT connect this type of product to any power supply or adapter other than one described in the owners manual, on the name plate, or specifically recommended by Yamaha. 5. WARNING: Do not place this product or any other objects on the power cord or place it in a position where anyone could walk on, trip over, or roll anything over power or connecting cords of any kind. The use of an extension cord is not recommended! If you must use an extension cord, the minimum wire size for a 25^ cord (or less) is 18 AWG. NOTE: The smaller the AWG number, the larger the current handling capacity. For longer extension cords, consult a local electrician. 6. Ventilation: Electronic products, unless specifically designed for enclosed installations, should be placed in locations that do not interfere with proper ventilation. If instructions for enclosed installations are not provided, it must be assumed that unobstructed ventilation is required. 7. Temperature considerations: Electronic products should be installed in locations that do not significantly contribute to their operating temperature. Placement of this product close to heat sources such as; radiators, heat registers and other devices that produce heat should be avoided. 8. This product was NOT designed for use in wet/damp locations and should not be used near water or exposed to rain. Examples of wet/damp locations are; near a swimming pool, spa, tub, sink, or wet basement. 9. This product should be used only with the components supplied or; a cart, rack, or stand that is recommended by the manufacturer. If a cart, rack, or stand is used, please observe all safety markings and instructions that accompany the accessory product. 10. The power supply cord (plug) should be disconnected from the outlet when electronic products are to be left unused for extended periods of time. Cords should also be disconnected when there is a high probability of lightning and/or electrical storm activity. 11. Care should be taken that objects do not fall and liquids are not spilled into the enclosure through any openings that may exist. 12. Electrical/electronic products should be serviced by a qualified service person when: a. The power supply cord has been damaged; or b. Objects have fallen, been inserted, or liquids have been spilled into the enclosure through openings; or c. The product has been exposed to rain: or d. The product dose not operate, exhibits a marked change in performance; or e. The product has been dropped, or the enclosure of the product has been damaged. 13. Do not attempt to service this product beyond that described in the user-maintenance instructions. All other servicing should be referred to qualified service personnel. 14. This product, either alone or in combination with an amplifier and headphones or speaker/s, may be capable of producing sound levels that could cause permanent hearing loss. DO NOT operate for a long period of time at a high volume level or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an audiologist. IMPORTANT: The louder the sound, the shorter the time period before damage occurs. 15. Some Yamaha products may have benches and/or accessory mounting fixtures that are either supplied as a part of the product or as optional accessories. Some of these items are designed to be dealer assembled or installed. Please make sure that benches are stable and any optional fixtures (where applicable) are well secured BEFORE using. Benches supplied by Yamaha are designed for seating only. No other uses are recommended.

PLEASE KEEP THIS MANUAL

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. 2. IMPORTANT: When connecting this product to accessories and/ or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA. 3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class "B" digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit "OFF" and "ON", please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s. In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA90620 The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries. * This applies only to products distributed by YAMAHA CORPORATION OF AMERICA. (class B)

IMPORTANT NOTICE FOR THE UNITED KINGDOM

Connecting the Plug and Cord

IMPORTANT. The wires in this mains lead are coloured in accordance with the following code: BLUE NEUTRAL BROWN : LIVE As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured makings identifying the terminals in your plug proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. Making sure that neither core is connected to the earth terminal of the three pin plug. (2 wires) - This applies only to products distributed by Yamaha-Kemble Music (U.K.) Ltd. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND. (polarity) - This applies only to products distributed by Yamaha Canada Music Ltd. - Ceci ne s'applique qu'aux produits distribués par Yamaha Canada Musique Ltee. For details of products, please contact your nearest Yamaha or the authorized distributor listed below. Pour plus de détails sur les produits, veuillez-vous adresser à Yamaha ou au distributeur le plus proche de vous figurant dans la liste suivante. Die Einzelheiten zu Produkten sind bei ihrer unten aufgeführten Niederlassung und bei Yamaha Vertragshandlern in den jeweiligen Bestimmungsändern erhältlich. Para detailles sobre produits, contacte su tienda Yamaha más cercana o el distribuidor autorizzato que se lista bajo.

NORTH AMERICA

CANADA

Yamaha Canada Music Ltd. 135 Milner Avenue, Scarborough, Ontario, M1S 3R1, Canada Tel: [phone]

U.S.A.

Yamaha Corporation of America, Keyboard Division 6600 Orangethorpe Ave., Buena Park, Calif. 90620, U.S.A Tel: [phone]

CENTRAL & SOUTH AMERICA

MEXICO

Yamaha de Mexico S.A. De C.V., Departamento de ventas Javier Rojo Gomez No.1149, Col. Gpe Del Moral, Deleg. Iztapalapa, 09300 Mexico, D.F. Tel: [phone]

BRAZIL

Yamaha Musical do Brasil LTDA. Av. Rebouças 2636, São Paulo, Brasil Tel: [phone]

ARGENTINA

Yamaha Music Argentina S.A. Viamonte 1145 Piso2-B 1053, Buenos Aires, Argentina Tel: [phone]

PANAMA AND OTHER LATIN

AMERICAN COUNTRIES/

CARIBBEAN COUNTRIES

Yamaha de Panama S.A. Torre Banco General, Piso 7, Urbanizacion Marbella, Calle 47 y Aquilino de la Guardia, Ciudad de Panamá, Panamá Tel: [phone]

EUROPE

THE UNITED KINGDOM

Yamaha-Kemble Music (U.K.) Ltd. Sherbourne Drive, Tilbrook, Milton Keynes, MK7 8BL, England Tel: [phone]

IRELAND

Danfay Ltd. 61D, Sallynoggin Road, Dun Laoghaire, Co. Dublin Tel: [phone]

GERMANY/SWITZERLAND

Yamaha Europa GmbH. Siemensstraße 22-34, 25462 Rellingen, F.R. of Germany Tel: [phone]

AUSTRIA

Yamaha Music Austria Schleiergasse 20, A-1100 Wien Austria Tel: [phone]

THE NETHERLANDS

Yamaha Music Nederland Kanaalweg 18G, 3526KL, Utrecht, The Netherlands Tel: [phone]

BELGIUM

Yamaha Music Belgium Keiberg Imperiastraat 8, 1930 Zaventem, Belgium Tel: [phone]

FRANCE

Yamaha Musique France, Division Clavors BP 70-77312 Marne-la-Vallee Cedex 2, France Tel: [phone]

ITALY

Yamaha Musica Italia S.P.A., Home Keyboard Division Viale Italia 88, 20020 Lainate (Milano), Italy Tel: [phone]

SPAIN/PORTUGAL

Yamaha-Hazen Electronica Musical, S.A. Jorge Juan 30, 28001, Madrid, Spain Tel: [phone]

GREECE

Philippe Nakas S.A. Navarinou Street 13, P.Code 10680, Athens, Greece Tel: [phone]

SWEDEN

Yamaha Scandinavia AB J. A. Wettergrens Gata 1 Box 30053 S-400 43 Göteborg, Sweden Tel: [phone]

DENMARK

YS Copenhagen Liaison Office Generatorvej 8B DK-2730 Herlev, Denmark Tel: [phone]

FINLAND

F-Musiikki Oy Kluuvikatu 6, P.O. Box 260, SF-00101 Helsinki, Finland Tel: [phone]

NORWAY

Norsk filial av Yamaha Scandinavia AB Grini Næringspark 1 N-1345 Østerås, Norway Tel: [phone]

ICELAND

Skifan HF Skeifan 17 P.O.Box 8120 IS-128 Reykjavik, Iceland Tel: [phone]

OTHER EUROPEAN COUNTRIES

Yamaha Europa GmbH. Siemensstraße 22-34, 25462 Rellingen, F.R. of Germany Tel: [phone]

AFRICA

Yamaha Corporation, International Marketing Division Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650 Tel: [phone]

MIDDLE EAST

TURKEY/CYPRUS

Yamaha Europa GmbH. Siemensstraße 22-34, 25462 Rellingen, F.R. of Germany Tel: [phone]

OTHER COUNTRIES

Yamaha Music Gulf FZE LB21-128 Jebel Ali Freezone P.O.Box 17328, Dubai, U.A.E. Tel: [phone]

ASIA

HONG KONG

Tom Lee Music Co., Ltd. 11/F., Silvercord Tower 1, 30 Canton Road, Tsimshatsui, Kowloon, Hong Kong Tel: [phone]

INDONESIA

PT. Yamaha Music Indonesia (Distributor) PT. Nusantik Gedung Yamaha Music Center, Jalan Jend. Gatot SubROTO Kav. 4, Jakarta 12930, Indonesia Tel: [phone]

KOREA

Cosmos Corporation 1461-9, Seocho Dong, Seocho Gu, Seoul, Korea Tel: [phone]

MALAYSIA

Yamaha Music Malaysia, Sdn., Bhd. Lot 8, Jalan Perbandaran, 47301 Kelana Jaya, Petaling Jaya, Selangor, Malaysia Tel: [phone]

PHILIPPINES

Yupangco Music Corporation 339 Gil J. Puyat Avenue, P.O. Box 885 MCPO, Makati, Metro Manila, Philippines Tel: [phone]

SINGAPORE

Yamaha Music Asia Pte., Ltd. 11 Ubi Road #06-00, Meiban Industrial Building, Singapore Tel: [phone]

TAIWAN

Yamaha KHS Music Co., Ltd. 10F, 150, Tun-Hwa Northroad, Taipei, Taiwan, R.O.C. Tel: [phone]

THAILAND

Siam Music Yamaha Co., Ltd. 121/60-61 RS Tower 17th Floor, Ratchadaphisek RD., Dindaeng, Bangkok 10320, Thailand Tel: [phone]

THE PEOPLE'S REPUBLIC OF CHINA

AND OTHER ASIAN COUNTRIES

Yamaha Corporation, International Marketing Division Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650 Tel: [phone]

OCEANIA

AUSTRALIA

Yamaha Music Australia Pty. Ltd. 17-33 Market Street, South Melbourne, Vic. 3205, Australia Tel: [phone]

NEW ZEALAND

Music Houses of N.Z. Ltd. 146/148 Captain Springs Road, Te Papapa, Auckland, New Zealand Tel: [phone]

COUNTRIES AND TRUST

TERRITORIES IN PACIFIC OCEAN

Yamaha Corporation, International Marketing Group Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650 Tel: [phone]

YAMAHA
