USER MANUAL 6727DG SYLVANIA

Line drawing of a vintage television set with a large screen and living room furniture (no text or symbols)

27 INCH ANALOG / DIGITAL DVD TRIPLE COMBO

TO RECEIVE DIGITAL SIGNAL YOU MUST CONNECT ANTENNA

If you need additional operating assistance after reading this owner's manual or to order replacement accessories, please call TOLL FREE : 1-800-605-8453 or visit our WEB SITE at http://www.SylvaniaConsumerElectronics.com

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

The important note is located on the rear of the cabinet.

IMPORTANT SAFEGUARDS

1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS - The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS - All operating and use instructions should be followed.
5. CLEANING - Unplug TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

1. ATTACHMENTS - Do not use attachments not recommended by the TV manufacturer as they may cause hazards.
2. WATER AND MOISTURE - Do not use this TV near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
3. ACCESSORIES - Do not place this TV on an unstable cart, stand, tripod, bracket, or table. The TV may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV.

Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

PORTABLE CART WARNING

1. VENTILATION - Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the TV on a bed, sofa, rug, or other similar surface. This TV should never be placed near or over a radiator or heat register. This TV should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
2. POWER SOURCES - This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TVs intended to operate from battery power, or other sources, refer to the operating instructions.
3. GROUNDING OR POLARIZATION - This TV is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
4. POWER-CORD PROTECTION - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

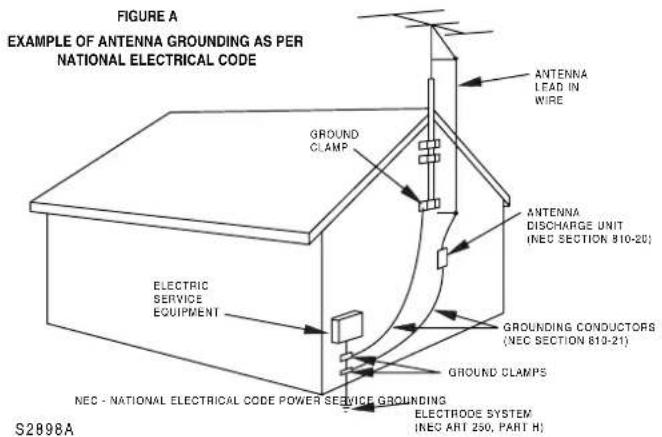

FIGURE A EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE ANTENNA LEAD IN WIRE GROUND CLAMP ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) ELECTRIC SERVICE EQUIPMENT GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS NEC - NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) S2898A

1. OUTDOOR ANTENNA GROUNDING - If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

2. LIGHTNING - For added protection for this TV receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning and power-line surges.

3. POWER LINES - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light of power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

4. OVERLOADING - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.OBJECT AND LIQUID ENTRY - Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV.

18.SERVICING - Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

1. DAMAGE REQUIRING SERVICE - Unplug this TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged or frayed.
b. If liquid has been spilled, or objects have fallen into the TV.
c. If the TV has been exposed to rain or water.
d. If the TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation.
e. If the TV has been dropped or damaged in any way.
f. When the TV exhibits a distinct change in performance, this indicates a need for service.

1. REPLACEMENT PARTS - When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21.SAFETY CHECK - Upon completion of any service or repairs to this TV, ask the service technician to perform routine safety checks to determine that the TV is in proper operating condition.

1. HEAT - This TV product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

PRECAUTIONS

• Place your TV in a room with adequate ventilation.
• Keep your TV set away from sources of direct heat, such as heat registers or direct sunlight.
• Do not place your TV on soft surfaces, such as rugs or blankets.
• Leave enough room for air to circulate around the bottom, top and back of the set.

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

A NOTE ABOUT RECYCLING: This product's packaging materials are recyclable and can be reused.

Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the building as close to the point of cable entry as practical.

The serial number of this product may be found on the back of the TV. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft.

Model No.		Date of Purchase
Serial No.		Dealer Phone No.
Dealer Purchase from		Dealer Address

SUPPLIED ACCESSORIES

- Owner's Manual (1EMN21905)

- Remote control unit (NF105UD)

- Batteries ("AA" x 2)

• If you need to replace these accessories, please refer to the PART NO. above the illustrations and call our help line mentioned on the front page.
• Depending on your antenna system, you may need different types of Combiners (Mixer) or Separator (Splitter). Contact your local electronics store for these items.

FEATURES

• DTV/TV/CATV

This TV lets you easily switch TV(NTSC) and DTV(ATSC) with the remote control. This feature enables you to simply view from conventional analog TV to Standard Definition TV or High Definition TV. You can also connect this TV to CATV if you have a CATV box.

• Program Information Display (DTV)

You can display the title, contents and other information of the current DTV program on the screen.

• Auto Preset Channel

This TV can automatically scan and memorize the channels receivable in your residential area. This feature eliminates the need of a difficult setting procedure.

• V-CHIP

This feature lets you set the viewing limitations to prevent your children from watching inappropriate programs.

- Closed Caption Decoder

This TV contains the built-in Closed Caption Decoder that displays text across the screen. It allows you to read the dialogue of a TV program or other information in the Closed Caption-supported programs.

• MTS/SAP Tuner

This feature allows you to select with the remote control your desired audio language.

• Auto Shut Off Function

The power of the unit is automatically turned off when there has been no signal and no key input for more than 15 minutes.

- Sleep Timer

This feature will automatically turn off the power of the unit at a specific time.

- On-Screen Function Display (ENGLISH/SPANISH/FRENCH)

This feature lets you select the language displayed in the menu screen from ENGLISH, SPANISH or FRENCH.

- Stereo Sound Function

• Full-Function Remote Control

Features of digital broadcasting

Digital broadcasting uses the newest broadcasting technology such as compression of audio and video signals and provides much more improved image and sound quality than analog broadcasting. For image quality, digital broadcasting have realized the High Definition Television (HDTV) that can display sharper and finer images than Standard Definition Television (SDTV) with double scanning lines, and can adopt the 16:9 wide screen format that fits more to range of human vision.

For audio quality, digital broadcasting offers the 5.1ch surround broadcast to give you the feeling of being at a stadium or a theater.

In addition, digital broadcasting enables to broadcast 2 or 3 programs of Standard Definition Television (SDTV), which is the analog television format, at the same time by 1 channel. This feature has made the program planning more diversified. In addition, digital broadcasting has overcome problems experienced with analog television such as ghosting or interference with digital technology.

Minor channel of digital broadcasting

In digital broadcasting, the selected channel can have the sub channel. It is called the minor channel. Though the minor channel programs provide a little poorer image quality than the High Definition Television (HDTV) programs, they have such an advantage as it will not move back other programs even when a sport relay is extended.

IMPORTANT SAFEGUARDS 2

PRECAUTIONS 4

SUPPLIED ACCESSORIES 5

FEATURES 5

CONTENTS 6

PREPARATION FOR USE 8

CONNECTION 8

ANTENNA/BASIC CABLE CONNECTION 8

CONNECTION TO CABLE/SATELLITE BOX 9

EXTERNAL CONNECTION 9

USING FRONT A/V CONNECTION 10

DIGITAL AUDIO CONNECTION 10

INSTALLING THE BATTERIES 10

BATTERY PRECAUTIONS 10

OPERATING CONTROLS AND FUNCTIONS 11

TV/DTV SECTION

TV OPERATION AND SETTINGS 12

WATCHING TV 12

ON-SCREEN DISPLAY 13

STATUS DISPLAY 13

CHECKING THE STATUS 13

MTS (Multi-channel Television Sound) SYSTEM 14

OPTIONAL SETTINGS 15

SLEEP TIMER / PICTURE CONTROL 15

MENU SCREEN 15

CLOCK SET UP 16

CLOSED CAPTION SYSTEM 17

V-CHIP SET UP 18

CHANGING THE SCREEN DISPLAY MODE 19

OTHER SETTINGS 20

AUTO PRESET CH 20

CHANNEL ADD/DELETE 21

ON-SCREEN MENU LANGUAGE 22

D. S. T. (Daylight Saving Time) 22

TIME ZONE 23

VCR SECTION

VIDEO CASSETTE ....24

SELECTING TAPE SPEEDS 24

ERASE PREVENTION 24

PLAYBACK 24

BASIC PLAYBACK 24

OTR (One Touch Recording) 27

COPYING A VIDEO CASSETTE (from another source) 30

DVD SECTION

ABOUT THE DISCS 31

PLAYABLE DISCS 31

UNPLAYABLE DISCS 31

PLAYING A DISC 32

BASIC PLAYBACK 32

DISC MENU / TITLE MENU 32

SPECIAL PLAYBACK FUNCTIONS & SETTINGS 33

FUNCTION TABLE 33

AUDIO MENU 34

SUBTITLE LANGUAGE 34

ANGLE MENU 34

ZOOM 34

BLACK LEVEL MENU 35

V.S.S. (Virtual Surround System) 35

SEARCH MENU 35

REPEAT PLAYBACK 36

PROGRAMMED PLAYBACK 37

RANDOM PLAYBACK 37

ON-SCREEN INFORMATION 37

CHANGING THE DVD SET UP ITEMS 38

CUSTOM MENU 38

INITIALIZE 40

MISCELLANEOUS 41

TROUBLESHOOTING GUIDE 41

MAINTENANCE 44

APPENDIX 45

CABLE CHANNEL DESIGNATIONS 45

LANGUAGE CODE LIST 45

SPECIFICATIONS 46

WARRANTY Back Cover

SYMBOLS USED IN THIS MANUAL

The following is the description for the symbols used in this manual.

TV

: Settings for the analog mode.

DTV

: Settings for the digital mode.

VCR

: Description refers to playback and recording of videotapes.

DVD-V

: Description refers to playback of DVDs.

CD

: Description refers to playback of Audio CDs.

QUICK

: Description refers to the items to be set by the QUICK mode.

CONNECTION

This section describes how to connect this TV to reception and other sources.

MAKE SURE YOU HAVE AN ANTENNA

As DTV is only available over the air, you need an antenna to receive digital signal.

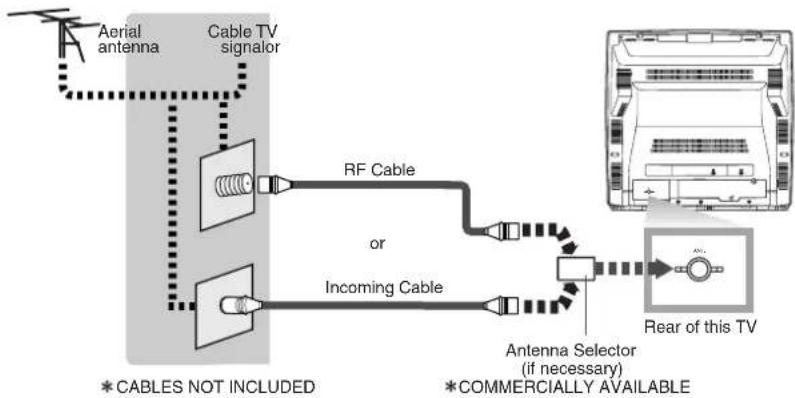

[ANTENNA / BASIC CABLE CONNECTION]

1) When connecting TV to antenna

Connect the RF cable or antenna cable on your home outlet to the ANT. jack of this TV.

2) When connecting TV to basic cable (without box)

Connect the RF cable or incoming cable on your home outlet to the ANT. jack of this TV.

NOTES:

- For your safety and to avoid damages to the unit, unplug the antenna cable from the ANT. jack before moving the unit.

- If you use an antenna in order to receive analog TV, the same antenna generally will work for DTV reception. Outdoor or attic antennas will be more effective than set-top versions.

- Some cable channels cannot be viewed when the TV is connected to an aerial antenna because DTV program does not cover all cable channels. You can watch them by switching to the cable connected to CATV.

- To easily switch between antenna and cable wires, you can purchase "Antenna Selector" commercially available.

*Once connections are completed, turn on the TV and begin initial setup.

Channel scanning is necessary for the TV to memorize all available channels in your area if using antenna or basic cable.

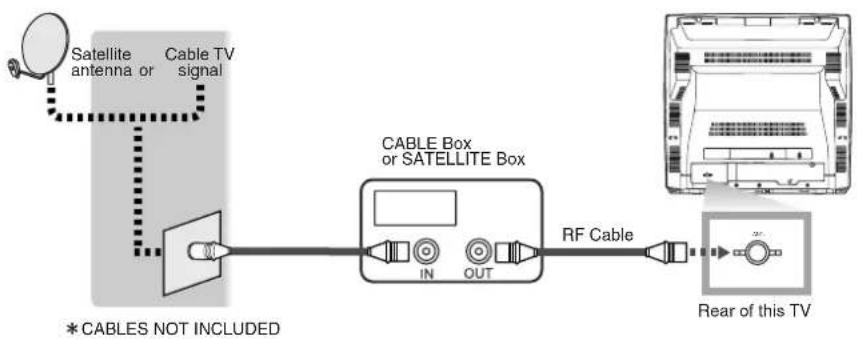

[CONNECTION TO CABLE / SATELLITE BOX]

1) Connect the antenna cable on your home outlet to the input jack of the CABLE/SATELLITE box.
2) Use the corresponding cable to connect the ANT. jack of this TV and the output jack of the CABLE/SATELLITE box.

*Required cables in 2) and connecting methods differ depending on the CABLE/SATELLITE box. For more information, please contact the store where you purchased the CABLE/SATELLITE box or nearby electric appliance stores.
    note right of B "* CABLES NOT INCLUDED"

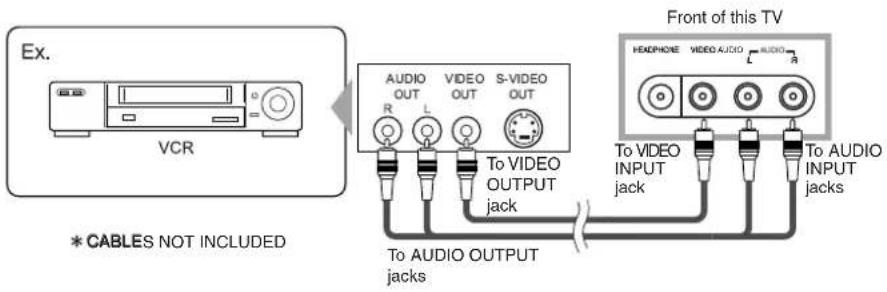

[EXTERNAL CONNECTION]

When using the Audio/Video cables

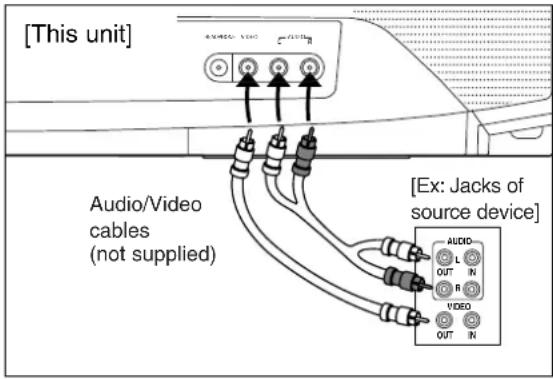

1) This is the general method to connect this TV to video devices with the video or audio output jacks, such as VCR etc.

When the audio jack of video devices is monaural, connect this TV to the AUDIO L jack.

Ex. VCR * CABLES NOT INCLUDED AUDIO OUT R L VIDEO OUT S-VIDEO OUT To VIDEO OUTPUT jack Front of this TV HEADPHONE VIDEO AUDIO L AUDIO R To VIDEO INPUT jack To AUDIO INPUT jacks

[USING FRONT A/V CONNECTION]

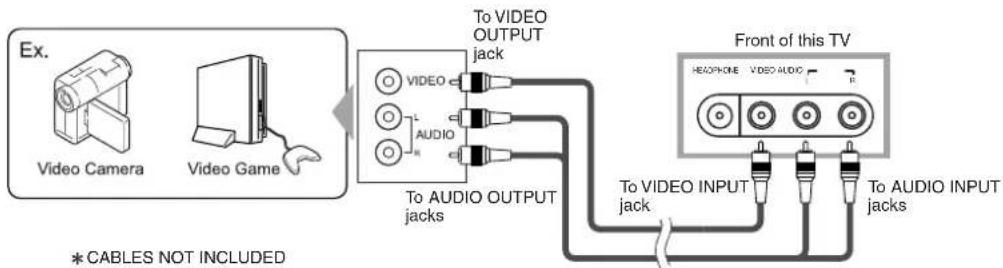

1) This is how to use the A/V jack in front of this TV and connect to external devices.

This is useful when you use game playing devices etc.

When the audio jack of external devices is monaural, connect this TV to the AUDIO L jack.


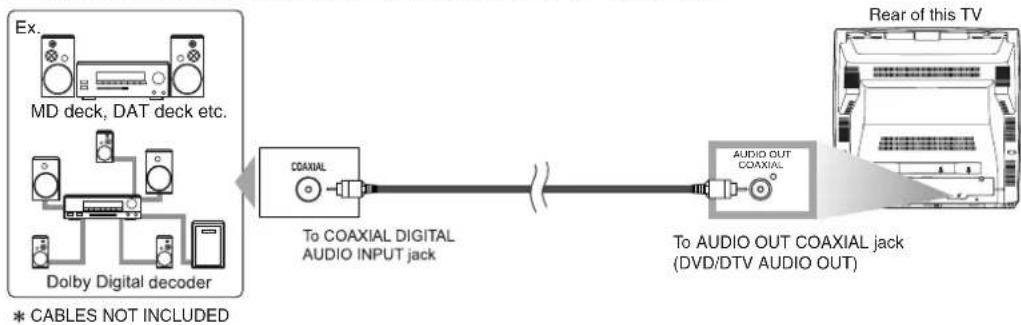

[DIGITAL AUDIO CONNECTION]

1) If you connect this TV to an external audio device, you can enjoy much more of the digital broadcasting programs with the feeling of being at a live program.

Use the digital audio coaxial cable (commercially available) for connection.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

INSTALLING THE BATTERIES

1) Open the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.
2) Insert 2 "AA" penlight batteries into the battery compartment in the direction indicated by the polarity (+/-) markings.
3) Replace the cover.

[BATTERY PRECAUTIONS]

• Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.
• Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc) or old batteries with fresh ones.
• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

• Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.

• CONTROL PANEL -


DVD buttons TV/VCP buttons 1 2 3 4 5 6 7 8 9 10 11 12 13 14 4 15 16 17 18 19 20 21

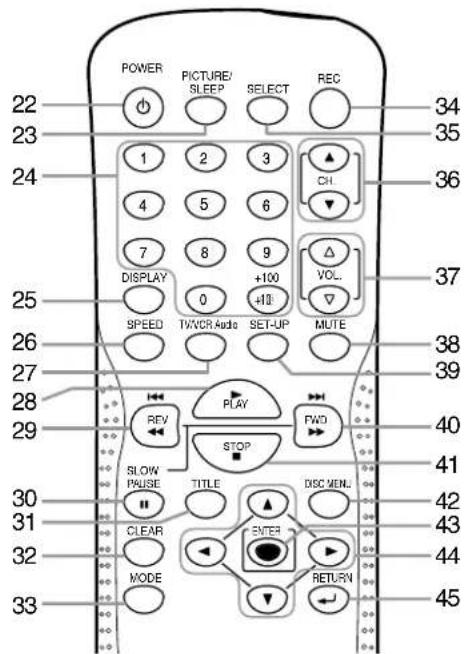

• REMOTE CONTROL -


POWER PICTURE/ SLEEP SELECT REC 22 34 23 35 24 1 2 3 ▲ CH. 36 4 5 6 ▼ 7 8 9 +100 △ VOL. 25 37 SPEED T/WCR Audio SET-UP MUTE 26 38 27 39 28 29 PLAY FWD REV STOP SLOW TAUSE TITLE DISC VEN. 40 41 30 42 31 CLEAR ENTER 43 32 44 MODE RETURN 45 33

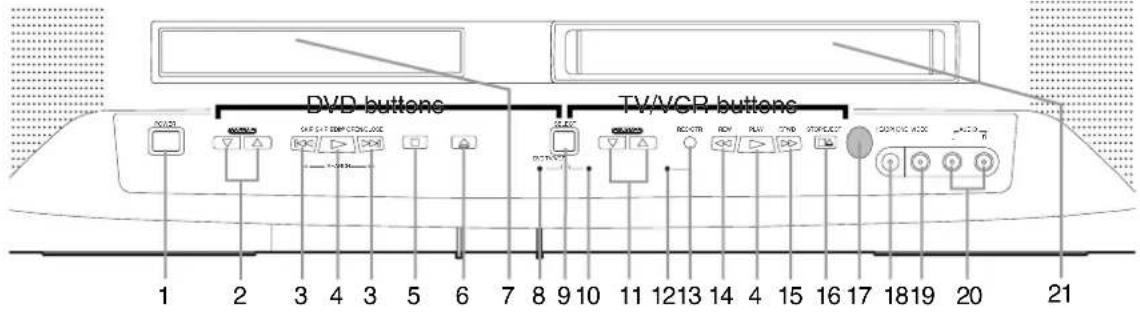

[CONTROL PANEL]

1 POWER Button [TV/VCR P.12 / DVD P.32]
2 VOLUME ▼ /▲ Buttons [P.12]
3 SKIP |◀◀/▶▶Buttons [DVD P.35] SEARCH ◀◀/▶▶ Buttons [DVD P.32]
4 PLAY▶Button [TV/VCR P.24 / DVD P.32]
5 STOP ■Button [TV/VCR P.24 / DVD P.32]
6 OPEN/CLOSE ▲Button [DVD P.32]
7 Disc loading tray
8 DVD Indicator
9 SELECT Button [TV/VCR P.12]
10 TV/VCR Indicator
11 CHANNEL ▼ / ▲ Buttons [TV/VCR P.12]
12 Recording Indicator
13 REC/OTR Button [TV/VCR P.27]
14 REW ◀◀Button [TV/VCR P.24]
15 F.FWD ▶▶Button [TV/VCR P.24]
16 STOP/EJECT ■▲Button [TV/VCR P.24]

17 Remote sensor window
18 HEADPHONE Jack
19 VIDEO input Jack [P.9]
20 AUDIO L/R input Jacks[P.9]
21 Cassette compartment

[REMOTE CONTROL]

22 POWER Button [TV/VCR P.12 / DVD P.32]
23 PICTURE/SLEEP Button [TV/VCR P.15]
24 Number Buttons [TV/VCR P.12 / DVD P.35]
25 DISPLAY Button [TV/VCR P.13 / DVD P.37]
26 SPEED Button [TV/VCR P.27]
27 TV/VCR Audio Button [TV/VCR P.14]
28 PLAY ▶ Button [TV/VCR P.24 / DVD P.32]
29 REV ◀◀Button [TV/VCR P.24 / DVD P.32] SKIP ◀◀Button [DVD P.35]
30 PAUSE II Button [TV/VCR P.24 / DVD P.32]
31 TITLE Button [DVD P.32]
32 CLEAR Button [TV/VCR P.25 / DVD P.35]
33 MODE Button [DVD P.34]
34 REC Button [TV/VCR P.27]
35 SELECT Button [TV/VCR P.12]
36 CH. ▲ / ▼ Buttons [TV/VCR P.12]
37 VOL.△/▽ Buttons [TV/VCR P.12]
38 MUTE Button [TV/VCR P.12]
39 SET-UP Button [TV/VCR P.25 / DVD P.38]
40 FWD ▶▶Button [TV/VCR P.24 / DVD P.32] SKIP ▶▶|Button [DVD P.35]
41 STOP ■Button [TV/VCR P.24 / DVD P.32]
42 DISC MENU Button [DVD P.32]
43 ENTER Button [TV/VCR P.25 / DVD P.34]
44 ▲/▼/◄/►Buttons [TV/VCR P.25 / DVD P.32]
45 RETURN Button [TV/VCR P.16 / DVD P.34]

NOTES:

• We do not recommend the use of universal remote controls as it may not control all the functions. Note that the code number given by universal remote controls may not program with this unit. For more details, contact the manufacturer of the universal remote control.
• Unless stated, all operations described are based on remote control use. Operations on the DVD mode mostly can be carried out using [MODE] with the menu bar on the TV screen.

TV/DTV SECTION

TV OPERATION AND SETTINGS

WATCHING TV

TV DTV

The unit selects available TV channels automatically when you connect an Antenna or Cable TV signal to it. To reset TV channels, see page 21.

If you are using a Cable Box or Satellite Receiver, you do not need to set channels at the unit.

1 Press [POWER] to turn on the unit.

2 To watch TV, use [CH. ▲/▼] to select memorized channels. Memorized channels are those that appear when you flip through channels. If a channel is skipped, you still can use the Number buttons to select it. This is a non-memorized channel; it may have weak reception in your area. To update your memorized and non-memorized channels, see page 20. Remember, if you are using a Cable Box/Satellite Receiver, set the unit to channel 3, 4 or AUX. Change channels at the Cable Box/Satellite Receiver.

3 Press [VOL. △/▽] to adjust the volume. Press [MUTE] to instantly mute the sound. Press it again to restore the previous sound level.

CHANNEL SELECTION

TV

• To select the memorized channels, use [CH. ▲/▼] or the Number buttons.
• The deleted channels can only be selected with the Number buttons.
• When selecting the channels larger than 100, press [+100] first. Then use the Number buttons to press the lower 2 digits.

DTV

• When selecting the channels with [CH. ▲A▼], the major channel selection will be followed by the minor channel selection.
• When selecting the channels with the Number buttons, enter the major channel number followed by the minor channel number. For example, if the channel you want to select is 12 (major)-3 (minor), press 1 2 0 3 . (You must press 0 first when entering a single digit channel number.)
• To search the minor channel of the major channel currently viewed in DTV, press [+100] . If you know the minor channel while viewing the major channel with 1-digit channel number, press the major channel number and press [ENTER]. Then, press the minor channel number you want to view. In case the major channel number is 2 digits, press the major channel number and press the minor channel number directly. If you press [ENTER] after pressing the 2-digit major channel number, the smallest minor channel will be selected.

Major Channel/Minor Channel

In the DTV broadcasting, one channel may consist of one main channel and multiple sub-channels depending on the airtime. In this case, the main channel is called major channel and the sub-channel is called minor channel.

SWITCHING MODE

TV

DTV

VCR

DVD-V

CD

- Press [SELECT] to select TV/VCR or DVD mode. (TV/VCR mode includes Analog TV, Digital TV or AUX mode.)

The corresponding light (TV/VCR or DVD) will appear on the front of the unit to indicate which mode is active. Details are on page 11.

• To put the unit into the VCR mode, press [PLAY▶] (VCR) when in any mode other than DVD.
• When the unit switches from analog to digital, it may take a while until the digital channel selection is completed.

STATUS DISPLAY

TV

VCR

On screen display examples are shown below.

PLAY HIFI 12:00AM CH 123 STEREO/SAP 4 5 6 SP COUNT 0:00:00 7

1. VCR status

Displays the current VCR motion:

PLAY / STOP / REC / OTR / PAUSE / FF / REW

2. VCR sound mode status (during playback)

Displays "HIFI" when the tape is recorded in Hi-Fi stereo mode.

3. Tape speed (during recording)

Displays the tape speed: SP / SLP

4. Clock

5. Channel number (in TV mode)

Displays the current channel number.

"AUX" is displayed in external input mode.

6. MTS status (in TV mode)

Displays the current sound status of the broadcast: STEREO / SAP

7. Tape counter (during playback or recording)

Shows the elapsed recording or playback time. (Not available for a blank tape or blank portions on the tape.) You can reset the counter by pressing[CLEAR].

CHECKING THE STATUS

While receiving a broadcast or playing a VHS tape, you can check the status displayed on the screen by pressing [DISPLAY]. You can also check the status of the preset MTS (Multi-Channel Television sound). The display will change as shown below each time you press [DISPLAY].

TV

VCR

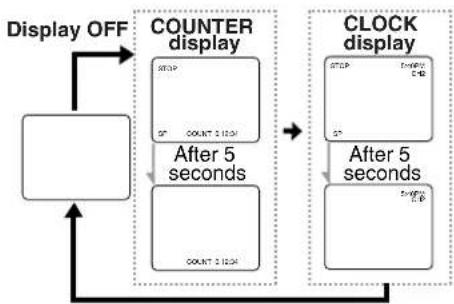

WHEN THE CLOSED CAPTION IS OFF

The display switches among VCR counter and clock.

WHEN THE CLOSED CAPTION IS ON

The CLOCK/COUNTER display appears by pressing [DISPLAY].

Display OFF CLOCK/COUNTER display STOP S4CPM CHE *The display will disappear after 5 seconds

DTV

In the digital mode, the detailed information for the currently selected channel such as the program guide is displayed.

1 Press [DISPLAY] to display the detailed information for the channel.

- Every time you press [DISPLAY], the display mode will be switched as below.

- The following information is displayed in the INFO1 mode.

(1) Channel title
(2) Program title (max. 2 lines displayed)
(3) Audio language ("OTHER" is displayed when the audio language cannot be acquired, or the acquired languages are other than ENGLISH, SPANISH or FRENCH.)
(4) Channel number
(5) Program air time

(1) KABC CH 95-03 (2) AB WORLD (3) ENGLISH 11:00AM- 1:00PM (4) (5)

- The program guide added to the displayed information in the INFO1 mode is displayed in the INFO2 mode.

KABC AB WORLD ENGLISH CH 95-03 11:00AM 1:00PM We bring you the latest information from around the world as quickly as possible.

NOTES:

• When the program guide is displayed in more than 6 lines, use [ENTER] and scroll for reading.
• "No description provided" is displayed when the program guide is not provided.
• While the information is displayed in the INFO2 mode, the CLOSED CAPTION function is interrupted.

MTS (Multi-channel Television Sound) SYSTEM

TV

DTV

VCR

MTS allows for reception of sound other than the main audio program. You can listen or record monaural audio sound, stereo sound or Secondary Audio Program (SAP).

WHEN RECEIVING AN MTS BROADCAST

TV

Press [TV/VCR Audio] repeatedly to select a sound mode when you watch or record a TV program.

- The mode changes according to the broadcast among "STEREO", "SAP" and "MONO" every time you press the button.

STEREO

DTV

Press [TV/VCR Audio] repeatedly to select the language. Every time you press [TV/VCR Audio], the language and the number of received languages will be switched.

Audio language

KABC CH 95-03 Jay Jay the Jet Plane ENGLISH 1/3 11:00AM- 1:00PM

- Languages you can switch differ depending on the receiving broadcast.

NOTES:

• The initial setting is "STEREO". The unit records automatically MTS broadcasts in Hi-Fi stereo sound unless you select "SAP" beforehand.
• If you select "SAP" when second audio is not available, the unit will record in normal audio.
• This setting returns to the initial value when you turn off the unit or unplug the power cord.
• If you press [TV/VCR Audio] in external input, the audio will not be switched.

WHEN PLAYING CASSETTES

VCR

Press [TV/VCR Audio] repeatedly to select "HIFI" or "MONO".

- This setting is saved until the cassette is ejected.

NOTE:

- The initial setting is "HIFI". When you play non-HIFI tapes, the unit will play only in the monaural mode even if the setting is "HIFI".

WHEN IN THE EXTERNAL INPUT ("AUX") MODE

Any output mode setting does not affect the audio output, and the current audio output mode does not appear on the TV screen.

SLEEP TIMER / PICTURE CONTROL

TV

DTV

You can set Sleep Timer and picture adjustment with [PICTURE / SLEEP].

SLEEP TIMER SETTING

The Sleep Timer function is used to turn off the unit without pressing [POWER] after a desired time.

1 Press [PICTURE / SLEEP] to display the Sleep Timer menu.

SLEEP 0 MINUTE

2 Within 5 seconds, set your desired sleep time using [◀/▶].

• [▶]...Increase by 30 min. (Up to 120 min.)
  • [◀]...Decrease by 30 min.

NOTE:

- To cancel the Sleep Timer, use [CLEAR] or [◀/▶] to set the time to "0".

3 To confirm the remainder time to shutdown, press [PICTURE / SLEEP].

PICTURE CONTROL

1 Press [PICTURE / SLEEP] twice.
2 Within 5 seconds, use [▲ / ▼] to select the picture control you want to adjust.

- You can select BRIGHT, CONTRAST, COLOR, TINT or SHARPNESS.

3 Use [◀/▶] to adjust to your desired level within 5 seconds.

	◀	▶
BRIGHT	to decrease brightness	to increase brightness
CONTRAST	to decrease contrast	to increase contrast
COLOR	to pale	to brilliant
TINT	to purple	to green
SHARPNESS	to soft	to clear

- Even if any power failure occurs, the unit will retain its memory for this feature.

MENU SCREEN

TV

DTV

This section describes the overview of the menu screen displayed when you press [SET-UP]. For more details, see the reference page for each item.

The menu screen consists of the function setting items below.

In TV/DTV/AUX Mode

- MAIN MENU -

▶ TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP USER'S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH DTV SET UP

In DVD Mode

- MAIN MENU - ▶ TIMER PROGRAMMING SETTING CLOCK USER'S SET UP LANGUAGE [ENGLISH] ZERO RETURN

• TIMER PROGRAMMING (P.28)
- SETTING CLOCK (P.16)
• CHANNEL SET UP (P.20)
- USER'S SET UP (P.25)
• V-CHIP SET UP (P.18)
• LANGUAGE (P.22)
- CAPTION (P.17)
• ZERO RETURN (P.25)
• TIME SEARCH (P.26)
• INDEX SERCH (P.26)
• DTV SET UP (P.17, 19)

You can set the screen display or CAPTION in the DTV mode.

(Refer to "CHANGING THE SCREEN DISPLAY MODE" on page 19.)

NOTES:

• "DTV SET UP" can be displayed only in the DTV mode.
• To move to the normal screen, press[SET-UP].

CLOCK SET UP

TV

DTV

VCR

Set the unit clock correctly for VCR timer recording. We suggest that you should set the clock manually when you first set up the unit, then set the auto clock setting to "ON" to correct the time periodically.

NOTES:

• If you cannot receive a station with time signals, auto clock setting is not available. Use manual setting only.
• You must use the remote control for the clock setting.

MANUAL CLOCK SETTING

In the example below, the clock is to be set to: DATE: May 5th, 2006 SETTING TIME: 5:40PM

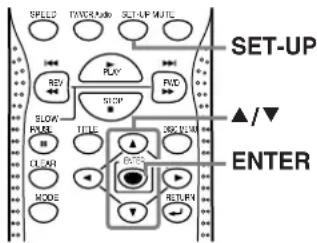

1 Press [SET-UP].

Use [▲/▼] to select "SETTING CLOCK", then press [ENTER].

2 Use [▲/▼] to select

"MANUAL CLOCK SET", then press [ENTER].

- If there is no local PBS station in your area or on your cable system, select "AUTO CLOCK [ENTER] to turn "OFF" the fun step.

SETTING CLOCK

AUTO CLOCK [ON]

AUTO CLOCK CH SEARCH

AUTO CLOCK CH [ 02]

▶ MANUAL CLOCK SET

D.R.T. [OFF]

TIME ZONE [OFF]

3 Use [▲/▼] to set your

desired month, day, year, hour and minute.

Use [◀/▶] to move to another item.

- MANUAL CLOCK SET -

MONTH DAY YEAR

65.1.05.59.2026

05.1.05 PH 2006

HOUR MINUTE

05 40 PM

不

4 Press [SET-UP].

Although seconds are not

displayed, they begin counting

from 0 when you press [SET-UP]. Use this feature to synchronize the clock with the correct time.

NOTE:

- When unplugging the AC cord or if there is a power failure for more than 3 seconds, you may have to reset the clock.

TO CHANGE CLOCK SETTING

1 Follow steps 1 to 2 above.
2 Select the item you want to change using [▶].
3 Enter correct numbers using [▲/▼].
4 Press [SET-UP] to start the clock.

AUTOMATIC CLOCK SETTING

NOTES:

• If a cable converter box is being used, make sure it is turned on.
• You must use the remote control for the clock setting.
• If the unit is connected directly to a cable converter box or satellite box, the local PBS station must be selected on the cable box itself and the unit must be set to the output channel of the cable converter box or satellite box (usually channel 3 or 4), to enable to set up or correct the clock automatically.

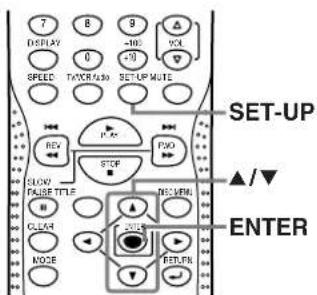

1 Press [SET-UP].

Use [▲/▼] to select "SETTING CLOCK", then press [ENTER].

2 Press [ENTER] to select "ON".

- SETTING CLOCK - ▶ AUTO CLOCK [ON] AUTO CLOCK CH SEARCH AUTO CLOCK CH [ 02] MANUAL CLOCK SET D.ST. [OFF] TIME ZONE [OFF]

3 Press [▼] to select

"AUTO CLOCK CH SEARCH". Then press [ENTER].

• The unit begins searching for the station which contains the auto clock set signal. The search for a signal may take up to 20 seconds per channel.
• When the search has finished, _ "_" appears at the lower left of the screen.

• AUTO CLOCK CH SEARCH -
  08 10 13
  [Non-Text]
  --

• SETTING CLOCK -
  AUTO-CLOCK(ON)
  AUTO CLOCK CH SEARCH
  AUTO CLOCK CH | PZI
  MANUAL CLOCK SET
  DST JOFF
  TIME ZONE [OFF]

NOTES:

• During "AUTO CLOCK CH SEARCH", the picture may be distorted.
• If no number appears on the TV screen, there are no stations in your area which contain the Auto Clock signal. Auto Clock Setting is not possible. Please use Manual Clock Setting on this page.

4 Write down the numbers that appear on the screen. They are the auto clock stations in your area.

5 Press [RETURN] to go back to

"SETTING CLOCK" menu.

Press [▼] to select

"AUTO CLOCK CH".

Use [◀/▶] until you locate an auto clock station number.

- SETTING CLOCK - AUTO CLOCK [ON] AUTO CLOCK CH SEARCH ▶ AUTO CLOCK CH [02] MANUAL CLOCK SET D.ST. [OFF] TIME ZONE [OFF]

6 Press [SET-UP] to exit the menu.

NOTE:

- Once the unit is turned off, it will periodically check and set the correct date and time.

CLOSED CAPTION SYSTEM

You can view specially labeled (cc) TV programs, movies, news and pre-recorded tapes with either a dialogue caption or text display.

TV

1 Select analog mode by pressing [SELECT].

2 Press [SET-UP].

Use [▲ / ▼] to select "CAPTION".

3 Press [ENTER] repeatedly to select your desired caption mode.

LANGUAGE (ENGLISH) CAPTION (CAPTION 1) — ZERO RETURN TIME SEARCH INDEX SEARCH

• OFF: Select if you do not want CAPTION. This is the default.
• CAPTION mode: You can watch dramas, movies and news while captioning the dialogues and the contents of news.
• TEXT mode: You can watch half screen text information if you want.
  * "CAPTION2" is usually used for a second language (if available).

4 Press [SET-UP] to exit the menu.

NOTES:

• Even if any power failure, the unit will retain its memory for this feature.
• Some programs are not broadcasted with closed captions.
  The unit is designed to provide error-free closed captions with high quality antenna, cable and VCR signals.
  Conversely, poor quality signals are likely to result in caption errors or no captions at all.
• Common signal conditions which may cause caption errors are listed below:

- Electric motor brush noise

- Weak snowy reception on TV screen

- Multiplex signal reception displaying

picture ghosts or airplane flutter

- If the unit displays a black box on the TV screen, this means that the unit is set to the TEXT mode. To clear screen, select "CAPTION1", "CAPTION2" or "OFF".

DTV

1 Select digital mode by pressing [SELECT].

2 Press [SET-UP].Use [▲ / ▼] to select "DTV SET UP", then press [ENTER].

3 Use [▲ / ▼] to select

"DTVCC", then

press [ENTER].

- DTV SET UP - DTV DISPLAY [LETTER BOX] ▶ DTVCC

4 Use [▲ / ▼] to select "CAPTION SERVICE". Press [ENTER] repeatedly to select your desired CAPTION SERVICE.

• OFF: Select if you do not want DTV CC. This is the default.
• Service 1 to Service 6: Select one of these before changing any other item in the Closed Caption menu. Choose Service 1 under normal circumstances.

NOTE:

- CAPTION SERVICE you can switch differs depending on the broadcast description.

5 Use [▲ / ▼] to select "USER SETTING".

Press [ENTER] repeatedly to select "ON".

• The "USER SETTING" function lets you change the caption size and font style.
• When "USER SETTING" is set to "ON", you can set the following items.

6 Use [▲ / ▼] to select

the item you want to set. Press [ENTER] repeatedly to select your desired setting.

- The setting description for each item is shown below.

CAPTION SIZE MIDDLE, LARGE or SMALL
FONT STYLE STYLE	/8 to STYLE8/8
CHARACTER EDGE	NONE, RAISED, DEPRESSED, UNIFORM, SHADOW LEFT or SHADOW RIGHT
FORE OPACITY SOL	D, TRANSLUCENT or FLASH
FORE COLOR TRANSPARENT, WHITE, BLACK, RED, GREEN, BLUE, YELLOW, MAGENTA or CYAN
BACK OPACITY SOL	D, TRANSLUCENT or FLASH
BACK COLOR TRANSPARENT, WHITE, BLACK, RED, GREEN, BLUE, YELLOW, MAGENTA or CYAN

V-CHIP SET UP

TV

DTV

This feature enables parents to prevent their children from watching inappropriate material on TV. When you try to access a blocked program, "PROTECTED PROGRAM by ..." message appears on the TV screen.

NOTE:

• To change the rating, the TV must be turned to an unprotected program. If the screen on the right is displayed, change the channel to a station that is not protected.

PROTECTED PROGRAM by TV-Y

1 Select TV/VCR mode by pressing [SELECT].

2 Press [SET-UP].

Use [▲/▼] to select "V-CHIP SET UP", then press [ENTER].

3 Use the Number buttons to enter the access code.

- For the first time set-up or in the event the unit has lost power, enter the default code

4 Use [▲/▼] to select "TV RATING", "MPAA RATING" or "CHANGE CODE", then press [ENTER].

Refer to the pages below to set up each item.

-V-CHIP SET UP - TV RATING MPAA RATING CHANGE CODE P.18 A P.19 B P.19 C

A TV RATING SET UP

5 Use [▲/▼] to select a rating that you wish to block.

Press [ENTER] repeatedly to set it to "BLOCK" or "VIEW".

Selection	Rating Category Explanations
TV-Y Appropriate for all children
TV-Y7	Appropriate for children seven and older
TV-G General Audience
TV-PG Parental Guidance suggested
TV-14 Unsuitable for children under 14
TV-MA Mature audience only

NOTES:

- When you select a rating and set it to "BLOCK", the higher ratings will be blocked automatically. The lower ratings will be available for viewing.

- When you set "TV-MA" to "VIEW", all ratings will turn to "VIEW" automatically.

6 The TV-Y7, TV-PG, TV-14 and TV-MA ratings have the option of sub rating categories.

Use [▲/▼] to select a rating with sub-ratings, then press [ENTER] twice.

7 Use [▲/▼] to select a sub-rating, then press [ENTER] to set it to "BLOCK" or "VIEW".

Example: TV-Y7 sub-rating

NOTE:

- The blocked sub-ratings will appear next to the rating category in the "TV RATING" menu.

Selection	Rating Category Explanations
TV-Y7
FV Fantasy	sy Violence
TV-PG, TV-14, TV-MA
D	Suggestive Dialog (TV-PG, TV-14 only)
L Coarse	Language
S Sexual	Situation
V Violence

8 Press [SET-UP] to exit the menu.

MPAA RATING SET UP

5

Use [▲/▼] to point to your desired item, then press [ENTER] to select "BLOCK" or "VIEW".

Selection	Rating Category Explanations
G General Audience
PG Parental Guidance suggested.
PG-13 Unsuitable for children under 13
R Restricted; under 17 requires accompanying parent or adult guardian
NC-17 No one under 17 admitted
X Mature audience only

6

Press [SET-UP] to exit the menu.

CHANGE ACCESS CODE

5

Use the Number buttons to enter your desired access code in the "NEW CODE", then enter the same code in the "CONFIRM CODE". When completed, the menu will return to "V-CHIP SET UP".

6

Press [SET-UP] to exit the menu.

NOTE:

- Your personal access code will be erased and will return to the default (0000) when a power failure occurs or when you turn off the power using a wall switch. If you forget the code, unplug the power cord for 10 seconds to restore the access code to 0000.

CHANGING THE SCREEN DISPLAY MODE

DTV

2 types of display modes can be selected in the digital mode.

You can select your favorite display mode and enjoy the program.

7 DISPLAY 8 0 +10 +20 VOL SPEED TWO/ASO SET-UP MUTE REV STOP PPO SLOW PAUSE TITLE CLEAR NODE CLOS FERRUK SET-UP ▲/ ENTER

1 Select digital mode by pressing [SELECT].
2 Press [SET-UP].

Use [▲ / ▼] to select "DTV SET UP", then press [ENTER].

3 Use [▲ / ▼] to select "DTV DISPLAY", then press [ENTER].

Every time you press [ENTER], "LETTERBOX" and "ZOOM" will be switched alternately.

LETTERBOX

ZOOM

[LETTERBOX]

Display the digital-supported program in full-screen.

Black borders will spread in the upper and lower screen.

[ZOOM]

Enlarge and display the center area of the digital-supported program.

The right and left side of image will be cut off.

4

Press [SET-UP] to exit the menu.

NOTE:

- You may not switch the display mode depending on the program.

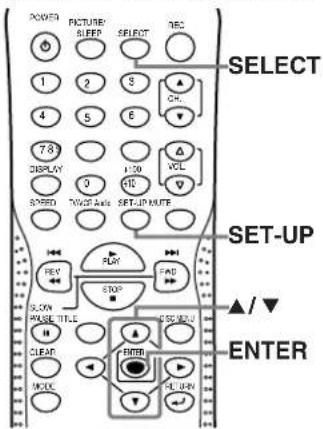

AUTO PRESET CH

If you switch wires (e.g. between antenna and CATV) or if you move the TV to a different area after the initial setting, or if you need to add the DTV channel you deleted, you will need to perform AUTO PRESET CH again. This function lets you easily select the receivable channels with [▲/▼] and the TV memorizes them even if you switch wires.

POWER PICTURE/ SLEEP SELECT REC 1 2 3 4 5 6 78 DISPLAY 0 1:30 VOL SPRING TWOOP AUTO SET-UP HUTE PREF STOP PADD SELLING TILLER CLEAR ENTER MUSH RUN-IN SELECT SET-UP ▲/▼ ENTER

NOTE:

- Make sure if the TV is connected to antenna or cable. When aerial antenna is connected, select "AUTO PRESET CH (TV)" or "AUTO PRESET CH (TV/DTV)" at step 3. When connected to CATV, select "AUTO PRESET CH (CATV)".

TV

When scanning TV or CATV

1 Select analog mode by pressing [SELECT].

2 Press [SET-UP].

Use [▲ / ▼] to select "CHANNEL SET UP", then press [ENTER].

3 For TV channels

- Use [▲/▼] to select "AUTO PRESET CH(TV)", then press [ENTER].

- CHANNEL SET UP -

ADD/DELETE

▶ AUTO PRESET CH (TV) AUTO PRESET CH (CATV) AUTO PRESET CH (TV/DTV) AUTO PRESET CH (CATV) 1 CATV takes approx. 50min.

- Scanning and memorizing the channels automatically starts.

AUTO PRESET CH(TV)

0

- When the scanning and memorizing are completed, the smallest memorized channel in the analog broadcasting will be displayed.

3 For CATV channels

- Use [▲ / ▼] to select "AUTO PRESET CH(CATV)", then press [ENTER].

CHANNEL SETUP

ADD / DELETE CH

AUTO PRESET CH (TV) ▶ AUTO PRESET CH (CATV) AUTO PRESET CH (TVIDTV) AUTO PRESET CH (CATV) 1 CATV taxes approx. 50min.

- Scanning and memorizing the channels automatically starts.

AUTO PRESET CHICATVI

000000000000000

- When the scanning and memorizing are completed, the smallest memorized channel in the CATV will be displayed.

DTV

When scanning DTV

1 Select digital mode by pressing [SELECT].

2 Press [SET-UP].

Use [▲ / ▼] to select "CHANNEL SET UP", then press [ENTER].

3 Use [▲ / ▼] to select "AUTO PRESET CH(DTV)", then press [ENTER].

- CHANNEL SET UP

ADD: DELETE CH (DTV)

▶ AUTO PRESET CH (DTV) AUTO PRESET CH (TV/DTV) AUTO PRESET CH (CATV) I CATV takes approx. 50min.

- Scanning and memorizing the channels automatically starts.

AUTO PRESET CHIDTV

000000000000000

- When the scanning and memorizing are completed, the smallest memorized channel in the digital broadcasting will be displayed.

TV

DTV

When scanning both TV and DTV at the same time

* You can access this menu from both modes (analog / digital).

1 Select TV/VCR mode by pressing [SELECT].

2 Press [SET-UP]. Use [▲ / ▼] to select "CHANNEL SET UP", then press [ENTER].

3 Use [▲ / ▼] to select "AUTO PRESET CH(TV/DTV)", then press [ENTER].

- Scanning and memorizing the channels automatically starts.

AUTO PRESET CH(TVIDTV)

- When the scanning and memorizing are completed, the smallest memorized channel in the analog broadcasting will be displayed. If no analog channel is memorized, the smallest memorized channel in the digital broadcasting will be displayed.

NOTES:

• If you press [POWER] or [SET-UP] while setting AUTO PRESET CH, AUTO PRESET CH setting will be canceled.
• If there is no TV signal input, "NO TV SIGNALS" will appear on the display after the completion of channel scanning.

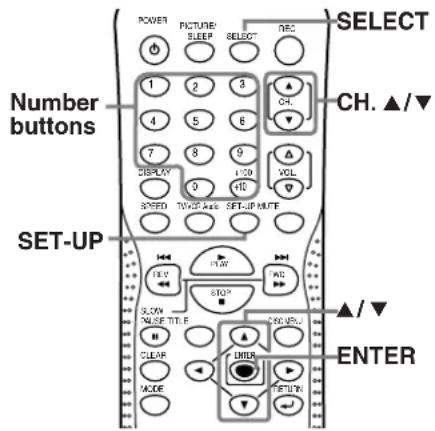

CHANNEL ADD/DELETE

The CHANNEL ADD/DELETE function lets you add the channel that was not added by the AUTO PRESET CH function due to the bad reception status at the initial setting. You can also delete the unnecessary channels.

POWER PICTURE/ SLEEP SELECT REC SELECT Number buttons 1 2 3 ▲ CH. CH. ▲/▼ 4 5 6 ▼ DISPLAY 8 9 VOL 0 HG SET-UP MODE SPEED TWISP Angle SET-UP MUTE SET-UP FLOW ALL SLOW MUSE TTR STOP CHANGE ENTER ▲/▼ CLEAR MACE

TV

1 Select analog mode by pressing [SELECT].
2 Press [SET-UP]. Use [▲ / ▼] to select "CHANNEL SET UP", then press [ENTER].
3 Use [▲ / ▼] to select "ADD / DELETE CH", then press [ENTER].
3 Use [▲ / ▼] to select "ADD / DELETE CH", then press [ENTER].

4 Select the channel you want to add or delete. Use [CH. ▲ / ▼] or the Number buttons to select your desired channel number. (You can also use [▲ / ▼] to enter it.)

5 Press [ENTER] repeatedly to select "ADD" or "DELETE".

NOTE:

• Color of channel number displayed at the right top of the screen;
-Blue/Green: The selected channel will be added. -Pink/Red: The selected channel will be deleted.

6 Press [SET-UP] to exit the menu.

DTV

1 Select digital mode by pressing [SELECT].

2 Press [SET-UP]. Use [▲ / ▼] to select "CHANNEL SET UP", then press [ENTER].

3 Use [▲ / ▼] to select "ADD/DELETE CH (DTV)", then press [ENTER].

- CHANNEL SET UP - ▶ ADD / DELETE CH (DTV) AUTO PRESET CH (DTV) AUTO PRESET CH (TV:DTV) AUTO PRESET CH (CATV) ! CATV lakes approx. 50min.

4 Select the channel you want to add or delete.

Use [CH. ▲ / ▼] or the Number buttons to select your desired channel number. (You can also use [▲ / ▼] to enter it.)

5 Press [ENTER] repeatedly to select "ADD" or "DELETE".

NOTE:

- Color of channel number displayed at the right top of the screen; -Blue/Green: The selected channel will be added. -Pink/Red: The selected channel will be deleted.

6 Press [SET-UP] to exit the menu.

NOTES:

• The menu will disappear automatically after about 10 seconds.
• In the digital mode (DTV), you can add or delete channels only for Major channel.
• Once you delete a DTV channel, you cannot add the channel again without performing AUTO PRESET CH again. (Refer to "AUTO PRESET CH" on page 20.)

ON-SCREEN MENU LANGUAGE

TV

DTV

You can select the language of on-screen menu among English, Spanish and French.

1 Press [SET-UP]. Use [▲/▼] to select "LANGUAGE".

2 Press [ENTER] repeatedly to select "ENGLISH", "ESPAÑOL" or "FRANÇAIS".

3 Press [SET-UP] to exit the menu.

NOTES:

• This function effects only the language on the screen menu and not the audio source.
• If for some reason the menu is already in Spanish or French, press [SET-UP], using [▲/▼] point to "IDIOMA [ESPAÑOL]" or "LANGUAGE [FRANÇAIS]", then press [ENTER] repeatedly to select desired language, then press [SET-UP].

D.S.T. (Daylight Saving Time)

TV

DTV

When you set this function to ON, the clock will automatically move forward one hour at 2:00 a.m. on the first Sunday in April and move back one hour at 2:00 a.m. on the last Sunday in October.

1 Press [SET-UP]. Use [▲ / ▼] to select "SETTING CLOCK", then press [ENTER].

2 Use [▲/▼] to select "D.S.T."

Press [ENTER] repeatedly to select "ON" or "OFF".

- SETTING CLOCK - AUTO CLOCK [ON] AUTO CLOCK CH SEARCH AUTO CLOCK CH [02] MANUAL CLOCK SET D.S.T. - [ON] TIME ZONE [ALASKÄ]

3 Press [SET-UP] to exit the menu.

NOTE:

- Make sure if "D.S.T." and "TIME ZONE" are set correctly to display the correct program air time.

TIME ZONE

TV

DTV

You must select the time zone of your area to ensure the proper performance of the clock.

7 B5 DISPLAY 0 +100 VOL 8FRED TAVES (4.50) SET-UP MUTE SET-UP ▲/▼ ENTER SLOW PREF TITLE RICHING CLEAR MODE RESET RETURN

1 Press [SET-UP].

Use [▲ / ▼] to select "SETTING CLOCK", then press [ENTER].

2 Use [▲/▼] to select "TIME ZONE".

3 Press [ENTER] repeatedly to select your desired "TIME ZONE".

- Based on the world standard time information acquired from digital broadcasting, the time difference will be adjusted as below.

OFF 0 hour
ALASKA -9 hours
HAWAII -10 hours
PACIFIC	-8 hours
MOUNTAIN	-7 hours
CENTRAL	-6 hours
EASTERN	-5 hours
ATLANTIC	-4 hours

4 Press [SET-UP] to exit the menu.

NOTE:

- If you move to a different area after the time zone setting, you must set the time zone again when you first turned on the power.

VCR SECTION

IDEO CASSETTE

This unit will operate with any cassette that has the VHS mark. For best results, we recommend the use of high-quality tapes. Do not use poor quality or damaged tapes.

SELECTING TAPE SPEEDS

Before recording, select the tape speed from : SP mode (Standard Play) or SLP mode (Super Long Play). You can also play a tape recorded inLP mode (Long Play).

Tape Speed Recording/Playback time
		T120 T 60T60Type
		2 hours 2-2/3 hours1
		$L@hours8 hours3 hour

LAYBACK

BASIC PLAYBACK

VCR

1 Insert a pre-recorded tape so that the unit turns on automatically (Auto Power On).

2 Select TV/VCR mode by pressing [SELECT].

NOTE:

- If the erase-prevention tab has been removed, the unit will change the VCR mode and starts playback automatically.

3 To start playback, press [PLAY ▶].

NOTE:

- Even in the DVD mode, you can start the VCR playback if you press [PLAY▶] on the control panel (of the TV/VCR side).

4 To stop the playback, press [STOP ■].

5 To rewind the tape, press [REV◀◀].To forward the tape, press [FWD▶▶]. To stop winding, press [STOP ■].

6 To eject the tape from the unit, press [STOP/EJECT ■▲] on the control panel.

ERASE PREVENTION

Break off the tab on the back edge of the cassette to prevent accidental erasing of recording.

Tab

Cover the hole with plastic tape to record on the tape again.

Plastic Tape

NOTES:

• In the TV/VCR mode, if the cassette without tab is inserted, playback will start automatically.
• If you press [REC/OTR] or [REC] when a cassette without tab is inserted, the unit will eject it automatically.

TRACKING ADJUSTMENT

• Tracking adjustment will be set automatically when you start playback (Digital tracking function).
• If noise lines (black and white streaks) appear on the playback picture, use [CH. ▲ / ▼] until the streaks disappear (Manual tracking adjustment). This is available in Pause/Still/Slow mode, too.
• To release manual tracking mode, stop the tape once and start playback again.

STILL PICTURE

• During playback, press [PAUSE II] to freeze the picture.
  You can advance the picture frame by frame by pressing [PAUSE II] repeatedly.
  • To release the Still mode, press [PLAY▶].

SLOW MOTION

• During playback, press [PAUSE II] then press [FWD▶▶].
• To release the Slow mode, press [PLAY▶].

NOTE:

- If the unit keeps the slow mode or still mode for more than 5 minutes, it will automatically enter the stop mode.

RENTAL PLAYBACK AUTO REPEAT PLAYBACK

VCR

This function enables you to improve the picture quality when playing back worn cassettes such as rented tapes.

1 Press [SET-UP]. Use [▲/▼] to point to "USER'S SET UP", then press [ENTER].

2 Use [▲/▼] to point to "RENTAL". Press [ENTER] to select "ON".

NOTE:

• To cancel the setting, select "OFF" at this step.

3 Press [SET-UP] to exit the menu.

4 Press [PLAY ▶] to start playback.

RENTAL PLAY

NOTE:

• This setting will not change even if you turn off the unit.

VCR

This function allows you to repeat a tape indefinitely.

1 Press [SET-UP]. Use [▲/▼] to point to "USER'S SET UP", then press [ENTER].

2 Use [▲/▼] to point to "REPEAT PLAY".

Press [ENTER] repeatedly until your desired selection "ALL" or "BLANK" appears.

• ALL: Repeat playback from the beginning to the end of
• BLANK: Repeat playback from the beginning to a part, which is blank for more than 10 seconds.
  • OFF: Cancel repeat playback.

3 Press [SET-UP] to exit the menu.

4 Press [PLAY ▶] to start the Repeat Play.

REPEAT PLAY

NOTES:

• If the rental mode is set to "ON", "RENTAL PLAY ►" display has priority.
• This setting will not change even if you turn off the unit.

SEARCH FUNCTION

ZERO RETURN

VCR

This function allows you to search easily a beginning point that you want to review by rewinding or fast forwarding.

NOTE:

- Zero Return WILL NOT work on a blank tape or a blank portion of a tape.

1 Rewind or forward the tape to the beginning point at which you want to review.

2 Press [CLEAR] repeatedly to set the counter to "0:00:00".

COUNT 00000

3 Press [PLAY ▶] for playback or [REC] for recording. Press [STOP ■] when playback or recording is completed.

4 Press [SET-UP]

Use [▲/▼] to point to "ZERO RETURN", then press [ENTER].

The unit will begin rewinding and the counter will appear on the TV screen.

The tape will automatically stop when the counter returns to 0:00:00 (approx.).

PICTURE SEARCH

VCR

This function is useful in finding or skipping over a particular scene on a tape. In this mode, the sound will be muted.

1 During playback, press [REV ◀◀] or [FWD ▶▶] to view at a high speed (in reverse/forward).

2 Press [REV ◀◀] or [FWD ▶▶] again to view at super high speed (in LP/SLP modes only).

NOTE:

- Tapes recorded in the SP or LP mode will normally display a noise bar on the TV screen and the picture may revert to black and white.

3 Press [PLAY ▶] to return to normal playback.

TIME SEARCH

VCR

This function allows you to quickly advance the tape to your desired position simply by entering the exact amount of playback time you want to skip.

In the example below: To watch a program before/after 2 hours 50 minutes from the present position, in either direction.

1 Press [SET-UP].

Use [▲/▼] to point to "TIME SEARCH", then press [ENTER].

2 Use [▲/▼] until your desired time appears.

To cancel the Time Search at this point, press [SET-UP].

NOTE:

- Time Search can be set up to a maximum of 9 hours 50 minutes (9:50) by 10 minutes at a time.

3 Use [◀/▶] to rewind or fast forward to the specified point.

The time counts down during the search. When the counter reaches "0:00:00", the tape will start playback automatically.

TO CANCEL DURING TIME SEARCH

Press [STOP/EJECT ■▲] on the unit or [STOP ■].

INDEX SEARCH

VCR

This function allows you to index the starting point to make it easy to reach the point in either fast forward or rewind mode.

• E very time you start recording an index is marked automatically. The index mark also works as the starting point of Timer recording and OTR.
• The index mark will not be recorded if [PAUSE II] is used during recording.
• The time gap between making the index marks on the tape should be greater than 1 minute for SP recording, 2 minutes for LP recording and 3 minutes for SLP recording.
• In some cases, the index mark at the beginning of video tape cannot be detected.

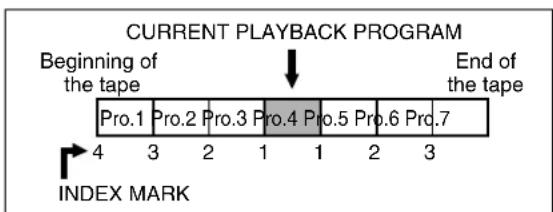

Example: You are watching program number 4 and want to fast forward to program number 7. Skip three programs.

1 Press [SET-UP].

Use [▲A▼] to point to "INDEX SEARCH", then press [ENTER].

2 Use [▲/▼] until the number of programs that you want to skip appears.

3 Use [◀/▶]. The unit begins rewinding or fast forwarding to the beginning of desired program.
4 When the search is completed, the unit will start playback automatically.

- The numbers of Index Search can be set up to 20.

- This function is not available during recording.

TO CANCEL DURING INDEX SEARCH

Press [STOP/EJECT ■▲] on the unit or [STOP ■].

NOTES:

• Insert a cassette tape with its erase-prevention tab in place.
• This unit cannot record the contents from the built-in DVD.
• You can ONLY watch the same TV program that is being recorded.

NORMAL RECORDING

VCR

1 Use [CH. ▲/▼] or the Number buttons to select the channel to be recorded.

CH 10

NOTE:

- If the unit is connected to a cable box or satellite box, the unit must be on CH3 or CH4. Select the channel to be recorded on the cable box or satellite box.

2 Press [SPEED] to select the desired tape speed (SP/ SLP). (Refer to "SELECTING TAPE SPEEDS" on page 24.)

SP

3 Press [REC] to start recording.

REC

4 Press [PAUSE II] to temporarily stop recording unwanted scenes. Press [PAUSEII] again or [REC] to resume recording.

PAUSE

NOTE:

- If the recording is paused for more than 5 minutes, the unit will automatically switch to the recording mode to prevent tape from damage.

5 Press [STOP ■] to stop recording.

OTR (One Touch Recording)

VCR

This function enables you to start recording for specified length simply by pressing [REC/OTR] on the unit.

1 Use [CH. ▲/▼] or the Number buttons to select the channel to be recorded.

NOTE:

- If the unit is connected to a cable box or satellite box, the unit must be on CH3 or CH4. Select the channel to be recorded on the cable box or satellite box.

2 Press [SPEED] to select the desired tape speed (SP/SLP). (Refer to "SELECTING TAPE SPEEDS" on page 24.)

3 Press [REC/OTR] on the unit repeatedly until your desired length appears on the screen. The recording time will increase by 30 minutes up to 8 hours.

OTR (2:30)

Recording starts immediately when you press [REC/OTR].

Time(s)	Display	Recording length
1 time (normal recording)
2 times 0:30 30 minutes
3 times 1:00 60 minutes
↓	↓	↓
17 times	8:00	480 minutes

NOTES:

• If you press [REC/OTR] when "OTR (8:00)" is displayed, the unit returns to the normal recording mode.
• Even if you press [POWER] during OTR, the unit continues recording.
• You cannot start OTR with the remote control.
• In the SLP mode, maximum recording time, assuming the tape starts at the beginning, is 8 hours using T-160 (or 6 hours using T-120).
• If the tape runs out before the end time, the unit will switch to the stop mode immediately, eject the tape and turn itself off.
• To show the remaining time of OTR, press[DISPLAY] on the remote control to display "OTR" on the TV screen. (It will show up momentarily then disappear.)

TO CANCEL OTR IN PROGRESS

Press [STOP/EJECT ■▲] on the unit or [STOP ■].

You can set 9 programs to record on specific days, daily or weekly within 1 year period.

In the example below, the timer is being set to record:

DATE: July 3rd, 2006

SETTING TIME: from 7:30PM to 8:50PM

CHANNEL: CH61

TAPE SPEED: SP

1 Press [SET-UP].

Use [▲/▼] to select "TIMER PROGRAMMING", then press [ENTER].

NOTE:

- If you have not yet set the clock, "MANUAL CLOCK SET" menu appears. Set to the present time and date (refer to "MANUAL CLOCK SETTING" on page 16) then start setting the timer recording.

2 Use [▲/▼] to select the desired program position, then press [▶].

3 With first cell flushing, use

[▲/▼] to select "D" (for Digital) or "-" (for Analog), then press [▶].

When you select "D" (Digital) or "-" (for Analog), the channel you were watching last will be entered in the CH field automa

Example: Analog channel is selected.

4 Use [▲/▼] until the desired channel number appears, then press [▶].

NOTE:

- If the unit is connected to a cable box or satellite box, the unit must be on CH3 or CH4. Select the channel to be recorded on the cable box or satellite box.

5 Set the starting date.

For once recording :

Press [▲] until the desired date appears. Then press [▶].

For everyday recording :

To record the same channel at the same time everyday. Press [▼] until "EVRY DAY" appears, then press [▶].

For weekly recording :

Torecord the same channel at the same time every week.

Press [▼] until "EVRY" and your desired day of the week (Ex. Every Monday) appear, then press [▶].

6 Use [▲/▼] to set the desired begin/end hour and minute. Press [▶] to move to next item.

7 Use [▲/▼] until the desire tape speed appears. (Refer to "SELECTING TAPE SPEEDS" on page 24.)

8 Press [ENTER] to complete setting.

• To set another program, repeat steps 2 to 7.
- To correct the program while setting, press[◀] to go back one step and use [▲/▼] to enter the correct information.
- Press [SET-UP] to exit the menu.

9 Press [POWER] to set automatic timer recording. The recording indicator lights up.

NOTES:

• You must turn off the unit to activate automatic timer recording.
• If power is not turned off and you continue watching TV, "TIMER REC STANDBY" starts flashing on the TV screen 2 minutes before the programmed start time.
• Make sure a cassette with erase-prevention tab is inserted before turning off the unit. If the cassette does not have the tab, it will be ejected when you press [POWER] to turn off.

10 At the programmed start time, the unit begins recording.

NOTES:

• The recording starts without turning on the TV screen.
- During recording, you can watch only currently being recorded TV program or DVD playback.
Press [POWER] and [SELECT] to select the desired mode.
- If the tape runs out before the end time, the recording stops immediately and the cassette will be ejected.

TO CONFIRM THE PROGRAM

1 Press [POWER] to turn on the unit. (The Recording indicator turns off.)

2 Press [SET-UP].

Use [▲/▼] to select "TIMER PROGRAMMING", then press [ENTER].

3 Confirm the details of programs that appear on the TV screen.
4 Press [SET-UP] to exit the menu.

ABOUT OVERLAP OF PROGRAMS

When programs overlap, a program may not be recorded.

• The program with an earlier start has priority.
- Once the earliest program finishes, the overlapping programs will begin recording in sequence.
- When the starting time is the same, the program set on the highest position in the program list has priority.

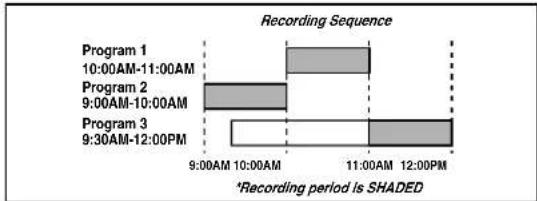

- The illustration below demonstrates the sequence of recordings.

TIMER PROGRAM EXTENSION

You can shift the time schedule of an automatic timer recording after programming or during recording.

1 Press [POWER] to turn on the unit.

2 Press [SET-UP]. Use [▲/▼]. to select "TIMER PROGRAMMING", then press [ENTER].

3 Press [REC] and use [▲/▼] to select the desired program.

4 Press [REC] repeatedly until your desired begin/end time appears. Each press will shift forward the begin/end time for recording by 10 minutes.

NOTES:

• When the recording is already in progress, each press will shift forward the end time only.
• If you want to cancel while setting, press[PAUSE II] on the remote control. The recording time returns to the original time.
• When you shift forward the time schedule during recording, the recording speed will be automatically set to the SLP mode.

5 Press [ENTER] to complete the setting. Then press [SET-UP] to exit the menu.

TO CORRECT A PROGRAM AFTERWARD

1 Press [POWER] to turn on the unit.
2 Repeat steps 1 to 2 of "AUTOMATIC TIMER RECORDING" on page 28.
3 Press [▶] (or press [◀] to go back one step) until the part you want to correct begins flashing, then use [▲/▼] to make the changes. Press [ENTER] to confirm.

4 Press [POWER] to set automatic timer recording.

TO CANCEL A PROGRAM

1 Press [POWER] to turn on the unit.
2 If recording is in progress, press [STOP/EJECT ■▲] on the unit.
3 Press [SET-UP]. Use [▲/▼].to select "TIMER PROGRAMMING", then press [ENTER].
4 Use [▲/▼] to select a program you want to cancel and press [CLEAR].
5 Press [SET-UP] to exit the menu.

RECORDING

AUTO RETURN

VCR

This function allows you to automatically search the beginning of the recorded program(s) after timer recording finishes.

1 Press [SET-UP].

Use [▲/▼] to point to "USER'S SET UP", then press [ENTER].

2 Use [▲▼] to point to "AUTO RETURN", then press [ENTER] to select "ON".

3 When all the timer recordings are completed, the unit will rewind to the beginning of the recorded program(s) and then turn itself off.

NOTE:

- If you turn off the unit while rewinding the tape, the AUTO RETURN will stop.

TO CANCEL THE AUTO RETURN MODE

Repeat steps 1 to 2 and press [ENTER] to select "OFF".

- Even if any power failure occurs, the unit will retain its memory for this feature.

AUTO REWIND-EJECT

VCR

• When the end of a tape is reached during recording, playback, or fast forward, the tape will automatically rewind to the beginning. After rewinding finishes, the unit will eject the tape and turn itself off.
• This function is operative when REPEAT PLAY is set to "OFF".
• The tape will not auto-rewind during timer recording or One Touch Recording (OTR).

COPYING A VIDEO CASSETTE (from another source)

VCR

You can make copies of video tapes for your enjoyment.

You CANNOT copy a DVD to a videotape.

WARNING: Unauthorized recordings of copyrighted video tapes may be an infringement of copyright laws.

Connect this unit and a source (for playing) device as shown the following diagram.

[This unit] Audio/Video cables (not supplied) [Ex: Jacks of source device] AUDIO L IN OUT IN R VIDEO OUT IN

NOTE:

1 Insert a pre-recorded video cassette into the source device (VCR, camcorder, etc.).
2 Insert a video cassette to record into this unit's cassette compartment.
3 Press [SPEED] to select the desired recording speed (SP/SLP).
4 Press [SELECT] until "AUX" appears on the screen.
5 Press [REC/OTR] on the unit.
6 Begin playback of the tape in the source device.
- For best results during copying, use the control panel whenever possible. The remote control might affect the operation of the source device.
7 To stop copying, press [STOP/EJECT ■▲] on the unit, then stop the playback on the source device.

DVD SECTION

ABOUT THE DISCS

PLAYABLE DISCS

Playable discs	Mark (logo)		Region code	Recorded signals	Disc size	Disc types
DVD-Video*1,2,4,6,10,11			r	Digital video (MPEG2)	12 cm or 8 cm
DVD-RW DVD-R*1,3,4,5,6,7,9,10			-
DVD+RW DVD+R*1,3,4,5,6,8,9,10			-
Audio CD*4,6,10			-	Digital audio	12 cm or 8 cm
CD-RW CD-R*4,5,6,9,10
		[IMAGE]

DVD is a trademark of DVD Format/Logo Licensing Corporation.

If you cannot play back a disc which bears one of the marks above, check the following notes.

*1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL cannot be played back.
*2: Certain DVD-Video discs do not operate as described in this manual due to the intentions of the disc's producers.
*3: Discs recorded in the VR (Video Recording) format cannot be played back.
*4: Scratched or stained discs may not be played back.
*5: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs.
*6: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not play them back. Even if they are played back, the sound or video quality will be compromised.
*7: You may play back the unfinalized DVD-R/RW disc recorded in the video format on our brand's DVD recorder. However, depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.). In this case, you need to finalize the disc with the DVD recorder. Refer to the manual accompanying the DVD recorder.
*8: Only the discs recorded in the video format and finalized can be played back. Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.).
*9: If there is too much recording space left on a disc (the used portion is less than 55mm across), it may not play back properly.
*10: Do not glue paper or put stickers on to the disc. These may damage the disc and the unit may not read it correctly.
*11: The number inside the symbol refers to a region of the world and a disc encoded in a specific region format can only be played back on unit with the same region code.

UNPLAYABLE DISCS

• NEVER play back the following discs. Otherwise, malfunction may result!
  DVD-RAM / CD-i / Photo CD / Video CD / DVD-Audio / DVD with region codes other than 1 or ALL / DTS-CD / DVD-ROM for personal computers / CD-ROM for personal computers / CD-RW/-R with MP3 files
  • The sound MAY NOT be heard: Super Audio CD

NOTE:

- Only the sound recorded on the normal CD layer can be delivered.

The sound recorded on the high density Super Audio CD layer cannot be delivered.

- Any other discs without compatibility indications

BASIC PLAYBACK

DVD-V

CD

1 Press [POWER] to turn on the unit.

2 Press [OPEN/CLOSE ▲] on the unit.

3 Place the disc in the tray, with the label facing up.

4 Press [PLAY ▶]

- The tray will close automatically and playback will start. When you play back a DVD which features a title menu, it may appear on the screen.

NOTES:

• Closing the disc tray manually or by pressing [OPEN/CLOSE ▲] also starts playback.
• With DVDs that use titles for playback program signals, playback may start from the second title or it may skip these titles.

5 To freeze the picture, press [PAUSE II] during playback.

NOTE:

• The sound will be muted in pause mode.

6 Press [STOP ■] to stop playback temporarily.

• Press [PLAY▶] to resume the playback.
• To cancel resume and stop the disc, [STOP ■] again.

NOTES:

• The resume information stays on even if the unit is turned off.
• A "prohibited icon" may appear at the top-right on the TV screen during operation. This means that the operation is not available on the disc.

STEP BY STEP PLAYBACK

DVD-V

• During playback, press [PAUSE II]. You can advance the picture frame by frame by pressing [PAUSE II] repeatedly.
• To return to normal playback, press[PLAY▶].

- During playback, press and hold [FWD▶▶] for fast forward or [REV◀◀] for fast reverse.

- Every time you press and hold the button, playback speeds up and the level of the speed appears on the screen.

NOTES:

• For DVDs, fast forward/reverse speed is different depending on the disc. Approximate speed is 1 (×2), 2 (×8), 3 (×20), 4 (×50) and 5 (×100).
• For Audio CDs approximate speed is 1 (×2), 2 (×8) and 3 (×30).
• When you use buttons on the control panel, use [SEARCH ◀◀ /▶▶].

- To return to normal playback, press[PLAY▶].

SLOW FORWARD / SLOW REVERSE

DVD-V

- During playback, press [PAUSEII]

- Press and hold [FWD ▶▶] for slow forward or [REV ◀◀] for slow reverse.

- Every time you press and hold the button, playback is slowed down and the level of the speed appears on the screen.

NOTES:

• Slow forward / reverse speed varies with the disc. Approximate speed is 1 (1/16), 2 (1/8) and 3 (1/2).
• When you use buttons on the unit, use [SEARCH ◀◀/▶▶].

- To return to normal playback, press[PLAY▶].

DISC MENU / TITLE MENU

DVD-V

DVD may contain menus to navigate the disc and access special features.

1 Press [DISC MENU] or [TITLE].

• The DVD main menu / the title menu will appear.
• You can call up the menu even during playback.

2 Use [▲/▼/◄/►] to select an item, and press [ENTER].

NOTES:

• If disc menu is available on the disc, audio language, subtitle options, chapters for the title and other options will appear for selection.
• Contents of menu and corresponding menu operations may vary between discs. Refer to the manual accompanying the disc for details.

FUNCTION TABLE

DVD-V

CD

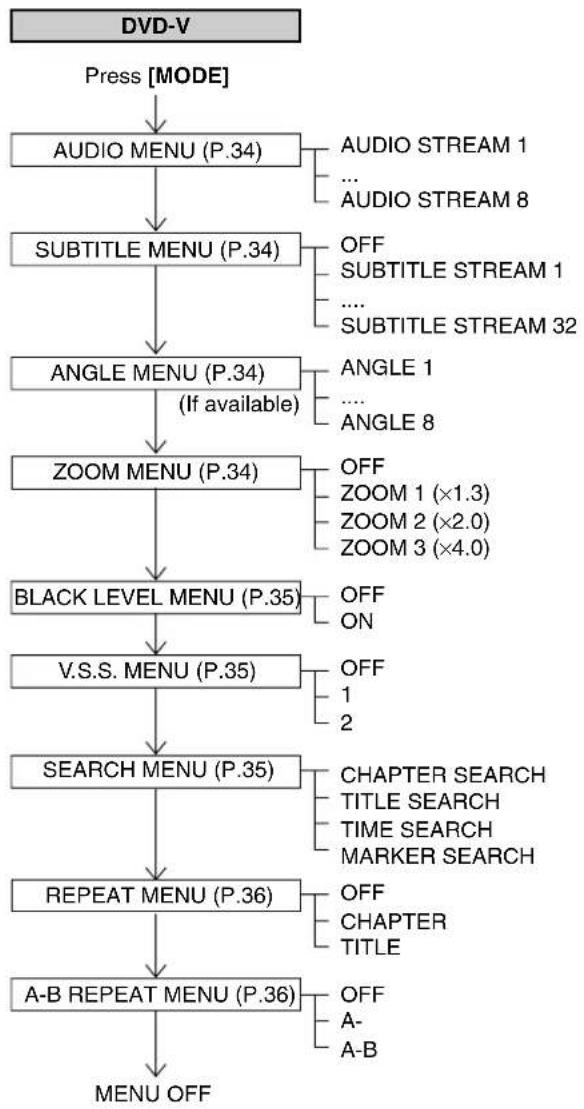

Setting menu switches as below every time you press [MODE] during playback.

See the reference page for how to set each menu. Some functions are not available in specific modes, but this is not a malfunction.

    C --> M["AUDIO STREAM 1"]
    C --> N["AUDIO STREAM 8"]
    D --> O["OFF"]
    D --> P["SUBTITLE STREAM 1"]
    D --> Q["..."]
    D --> R["SUBTITLE STREAM 32"]
    E --> S["ANGLE 1"]
    E --> T["..."]
    E --> U["ANGLE 8"]
    F --> V["OFF"]
    F --> W["ZOOM 1 (×1.3)"]
    F --> X["ZOOM 2 (×2.0)"]
    F --> Y["ZOOM 3 (×4.0)"]
    G --> Z["OFF ON"]
    H --> AA["OFF 1 2"]
    I --> AB["CHAPTER SEARCH TITLE SEARCH TIME SEARCH MARKER SEARCH"]
    J --> AC["OFF CHAPTER TITLE"]
    K --> AD["OFF A-A-B"]

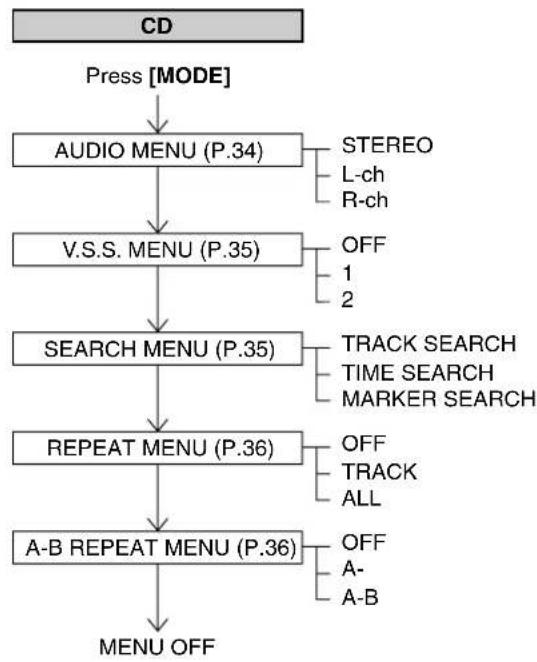

    C --> I["STEREO\nL-ch\nR-ch"]
    D --> J["OFF\n1\n2"]
    E --> K["TRACK SEARCH\nTIME SEARCH\nMARKER SEARCH"]
    F --> L["OFF\nTRACK ALL"]
    G --> M["OFF\nA-\nA-B"]

AUDIO MENU

AUDIO LANGUAGE

DVD-V

You can select audio language during DVD playback (if multi languages are available).

1 Press [MODE] during playback.

2 Use [▲/▼] to select your desired language.

NOTES:

• This function may not work on some DVDs with multiple audio languages. In this case, set it on the disc menu. (Operation varies depending on discs. Refer to the manual of the disc.)
• When "NOT AVAILABLE" appears on the TV screen, it means this function is not available on the disc.

3 Press [RETURN] to exit the menu.

STEREO SOUND MODE

CD

You can select sound output mode.

1 Press [MODE] during playback.

2 Use [▲/▼] to select the sound mode. STEREO: stereo sound with left and right channels L-ch: left channel sound only R-ch: right channel sound only
3 Press [RETURN] to exit the menu.

SUBTITLE LANGUAGE

DVD-V

You can select a language for subtitles during DVD playback (if available).

1 During playback, press [MODE] repeatedly until SUBTITLE menu appears.

2 Use [▲/▼] to select your desired subtitle language. To cancel subtitles, select "OFF".
3 Press [RETURN] to exit the menu.

NOTES:

- This function may not work on some DVDs with multiple subtitle languages. In this case, set it on the disc menu. (Operation varies depending on discs. Refer to the manual of the disc.) - If the selected language does not have 3-letter code, "--" will be displayed on the screen. (Refer to "LANGUAGE CODE LIST" on page 45.)

ANGLE MENU

DVD-V

Some DVD discs contain scenes which have been shot from various angles and you can change them as you like.

1 During playback, press [MODE] repeatedly until ANGLE menu appears.

2 Use [▲/▼] to select your desired angle.
3 Press [RETURN] to exit the menu.

NOTE:

- If multiple angle function is not available, this menu does not appear on the screen.

ZOOM

DVD-V

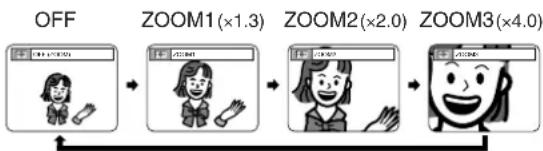

The Zoom function allows you to enlarge the video image and to pan through the enlarged image.

1 During playback, press [MODE] repeatedly until ZOOM menu appears.

2 Press [ENTER] repeatedly to select the required zoom factor.

3 Use [▲/▼/◄/►] to move the zoomed picture across the screen.
4 Press [RETURN] to exit.

- The zoomed position guide appears on the right corner of the TV screen in the zoom mode.

NOTES:

• Zooming function does not work while disc menu is shown.
• Zooming function is not available on some discs.
• It may take several seconds to slide the zoomed picture.
• The picture may be distorted if you operate other functions (ex. pause, fast forward etc.) repeatedly in the zoom mode.
• To cancel the zoom mode, repeat steps 1-2 and press [ENTER] until "OFF" appears.

BLACK LEVEL MENU

DVD-V

You can adjust the Black Level to make the black parts of the picture brighter.

1 During playback, press [MODE] repeatedly until BLACK LEVEL menu appears.

2 Use [▲/▼] to select "ON" or "OFF". ON: Makes the dark parts brighter. OFF: Shows the original picture as recorded. (default)

3 Press [RETURN] to exit the menu.

NOTE:

- The setting will be saved even if the unit is turned off.

V.S.S. (Virtual Surround System)

DVD-V

CD

You can enjoy surround-sound effect over two speakers on this unit.

1 During playback, press [MODE] repeatedly until V.S.S. menu appears.

2 Use [▲/▼] to select the desired sound effect.

1: Natural effect
2: Emphasized effect
OFF: No effect (default)

3 Press [RETURN] to exit the menu.

NOTES:

- When playing back 96kHz with Virtual Surround function, the sound will be down sampled at 48kHz and output as digital audio.

(for CD play only)

- Virtual Surround System will be effective only when you set the sound mode to "STEREO". (Refer to "STEREO SOUND MODE" on page 34.)

SEARCH MENU

You can begin playback at a specific track, title, chapter or from a specific point on a disc.

TRACK SEARCH

CD

1 During playback, press [MODE] repeatedly until SEARCH menu appears.

2 Within 60 seconds, use the Number buttons to select the desired track number. Playback will start from the selected track.

NOTES:

• For single digit press [0] first, if the total track of the disc is 10 tracks or more.
• During playback or pause, you can also select tracks by skipping with [|◀◀/▶▶] (or [SKIP |◀◀/▶▶] on the control panel), or entering the desired track number with the Number buttons.

3 Press [RETURN] to exit the menu.

CHAPTER SEARCH

DVD-V

1 During playback, press [MODE] repeatedly until SEARCH menu appears.

2 Use the Number buttons to enter the desired chapter number. Playback will start at the selected chapter.

• Press [CLEAR] to erase the incorrect input.
• For single digit press [0] first, if the total number of chapters of the disc is 10 or more.

3 Press [RETURN] to exit the menu.

TITLE SEARCH

DVD-V

1 During playback, press [MODE] repeatedly until SEARCH menu appears.

2 Use [▲/▼] to display TITLE SEARCH menu.

3 Use the Number buttons to enter the desired title number. Playback will start at the selected title.

• Press [CLEAR] to erase the incorrect input.
• For single digit press [0] first, if the total number of titles of the disc is 10 or more.

4 Press [RETURN] to exit the menu.

TIME SEARCH

DVD-V

CD

1 During playback, press [MODE] repeatedly until SEARCH menu appears.

2 Use [▲/▼] repeatedly to display TIME SEARCH menu.

3 Within 60 seconds, use the Number buttons to enter a desired disc time. Playback will start at the specified time.

• Press [CLEAR] to erase the incorrect input.
• When there is no need to enter a number, "0" appears automatically.

4 Press [RETURN] to exit.

MARKER SEARCH

DVD-V

CD

You can set markers to memorize your favorite places on a disc.

1 During playback, press [MODE] repeatedly until SEARCH menu appears.

2 Use [▲/▼] repeatedly to display MARKER SEARCH menu.

3 Use [◀/▶] to select a marker number among 1 to 10.
4 When the track (or title) reaches your desired point, press [ENTER] to set a marker.

The track (or title) number and elapsed playing time will appear on the TV screen.

5 You can play from the desired point by selecting the marker number by using [◀/▶] and then pressing [ENTER].
6 To clear a marker, select the marker number and press [CLEAR]. To clear all markers at once, select "AC" with [◀/▶] and press [ENTER].

NOTE:

• The following operation will also erase all markers:
• Opening the disc tray
  – Turning off the power
• Pressing [SELECT]

7 Press [RETURN] to exit the menu.

REPEAT PLAYBACK

REPEAT TRACK

CD

1 During playback, press [MODE] repeatedly until REPEAT menu appears.

2 Use [▲/▼] to select your desired repeat mode. OFF: Repeat function off TRACK: Current track repeat ALL: All track repeat

NOTE:

- Repeat Track setting will be cleared when moving to other track.

3 Press [RETURN] to exit the menu.

REPEAT TITLE / CHAPTER

DVD-V

1 During playback, press [MODE] repeatedly until REPEAT menu appears.

2 Use [▲▼] to select your desired repeat mode. OFF: Repeat function off CHAPTER: Current chapter repeat TITLE: Current title repeat

NOTES:

• Repeat Title/Chapter is not available in some scenes.
• The REPEAT setting will be cleared when moving to other title or chapter.

3 Press [RETURN] to exit the menu.

REPEAT A-B

DVD-V

1 Press [MODE] repeatedly until A-B REPEAT menu appears.

2 Press [ENTER] at your desired starting point (A). To cancel it, press [CLEAR].

3 Press [ENTER] again at your desired ending point (B). The repeat sequence begins.

4 To exit the sequence, follow step1 and press [ENTER] repeatedly until "OFF" appears and press [RETURN] to exit the menu.

NOTES:

• The A-B repeat section can be set only within the current title (for DVDs) or current track (for Audio CDs).
• A-B repeat is not available with some scenes in DVD.
• A-B repeat playback is not available during other repeat playback.

PROGRAMMED PLAYBACK

CD

You can determine the playing order of tracks.

1 In the stop mode, press [MODE].

• The PROGRAM screen appears.

2 Use [▲/▼] to select a track, then press [ENTER].

NOTES:

• Up to 99 tracks can be entered.
• Press [CLEAR] to erase the most recently entered track.
• If you enter more than 8 tracks, you can change pages of the program list with [|◀◀ /▶▶].
• To erase all tracks in the program at once, select "ALL CLEAR" at the bottom of the track list.

3 Repeat step 2 until you select all the tracks you want to play in the program.

4 Press [PLAY ▶] to play the programmed tracks.
5 Press [STOP ■] to temporarily stop the playback. You can resume the playback by pressing [PLAY ▶]. Press [STOP ■] twice to cancel the programmed playback.

NOTE:

- REPEAT setting is available during programmed playback. (Refer to "REPEAT TRACK" on page 36.)

RANDOM PLAYBACK

CD

This function shuffles the playing order of tracks.

1 In the stop mode, press [MODE] twice.

• The RANDOM screen appears.

2 Press [PLAY ▶] to start random playback.

NOTE:

- REPEAT setting is available during random playback. (Refer to "REPEAT TRACK" on page 36.)

3 Press [STOP ■] to stop random playback.

N-SCREEN INFORMATION

You can check the information about the current disc by pressing [DISPLAY].

For DVD-Videos

DVD-V

1 Press [DISPLAY] during playback to show current Chapter.

• The elapsed and remaining playing time of the current chapter will be displayed.

2 Press [DISPLAY] again to show current Title.

• The elapsed and remaining playing time of the current title will be displayed.

3 Press [DISPLAY] again.

• The bit rate and the current repeat setting will be displayed.

- If you are playing a dual layered disc, the layer number will also be displayed.

(L0: Layer 0 is playing. L1: Layer 1 is playing).

4 Press [DISPLAY] again to exit.

For Audio CDs

CD

1 Press [DISPLAY] during playback to show the current Track.
• The elapsed and remaining playing time of the current track will be displayed.

2 Press [DISPLAY] again to show current Total Track.

- The elapsed and remaining playing time of the total track will be displayed.

When in the PROGRAM mode.

3 Press [DISPLAY] again to exit.

You can change the DVD player's settings by pressing [SET-UP] in DVD mode.

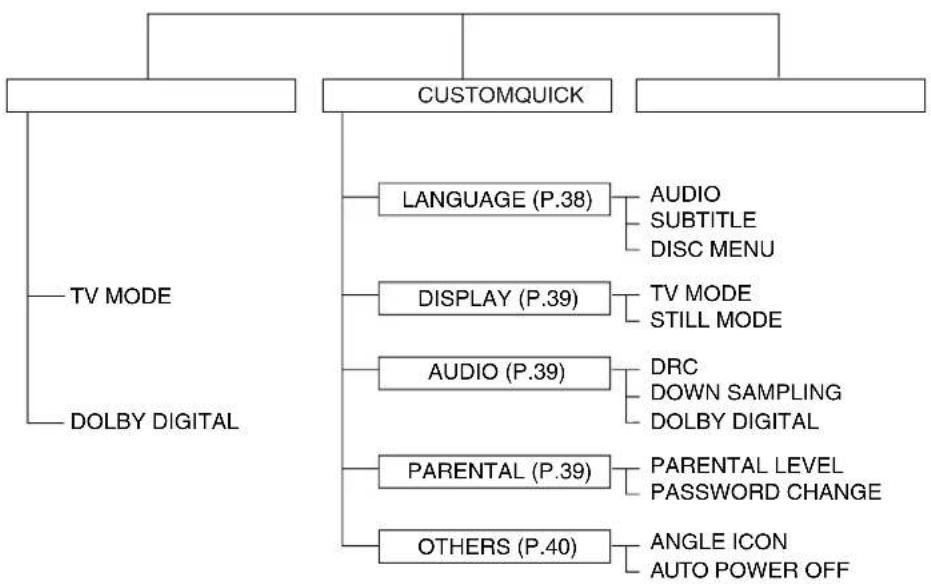

The set up items are shown in the diagram below.

Press [SET-UP] twice

INITIALIZE

CUSTOM MENU

DVD-V

1 In the stop mode, press [SET-UP] twice to display the DVD SETUP menu.

NOTES:

• Pressing [SET-UP] once will show TV/VCR SETUP menu partly.
• If the menu does not appear, press [STOP C] first. Make sure the unit is in DVD mode before setting.

2 Use [▲/▼] to select "CUSTOM", then press [ENTER].

3 Use [▲/▼] to select the desired item, then press [ENTER].

Refer to the pages below for continuation to set up each item.

• LANGUAGE SETTING: P.38 A
• DISPLAY SETTING: P.39 B
• AUDIO SETTING: P.39
• PARENTAL SETTING: P.39 D
- OTHERS SETTING: P.40

LANGUAGE SETTING

4 Use [▲/▼] to select the desired item, then press [ENTER].

• AUDIO: Sets the audio language.
- SUBTITLE: Sets the subtitle language.
• DISC MENU: Sets the language for DVD menu.

5 Use [▲/▼] to select your desired language from the list, then press [ENTER].

6 Press [SET-UP] to exit the menu.

NOTES:

- If your desired language is not on the list, select "OTHER" and enter the code of the language. (Refer to "LANGUAGE CODE LIST" on page 45.)

• This feature may not be valid due to default setting of the disc. In this case, press [MODE] to select the language. (Refer to "AUDIO MENU" on page 34.)
• If you select a language that is not supported by the disc, subtitle will be "OFF" automatically and the default language of the disc will be selected.
• To change the language for the on-screen menus, call up the TV/VCR SETUP menu by pressing [SET-UP] once and set the language. (Refer to "ON-SCREEN MENU LANGUAGE" on page 22.)

B DISPLAY SETTING

4 Use [▲/▼] to select an item, then press [ENTER].

• TV MODE: QUICK

You can change certain aspects of the DVD display screens and on-screen messages on the TV screen.

- 4:3 LETTER BOX (default): To show black bars on top and bottom of the screen.

- 4:3 PAN & SCAN:

To show a full height picture with both sides trimmed.

NOTE:

- You can access this setting directly by selecting "QUICK" at step 2 on page 38.

- STILL MODE:

This function allows you to adjust picture resolution and quality in the still mode.

- AUTO (default):

Automatically select the best resolution setting (FRAME or FIELD) based on the data characteristics of the pictures.

- FIELD:

Select "FIELD" when the pictures are still unstable even if "AUTO" is selected. FIELD stabilizes the pictures, although the picture quality may become coarse due to the limited amount of data.

- FRAME:

Select "FRAME" to display relatively motionless pictures in higher resolution. FRAME improves the picture quality, although it may unstabilize the pictures due to simultaneous output of two field data.

5 Press [SET-UP] to exit the menu.

C AUDIO SETTING

Choose the appropriate Audio settings for your equipment as it only affects during the playback of DVD discs.

4 Use [▲/▼] to select an item, then press [ENTER] repeatedly until your desired setting appears.

• DRC (Dynamic Range Control):

- ON: T o compress the range of soft to loud sound. (default)

- OFF : Output the original sound.

- DOWN SAMPLING:

• ON : Output in 48kHz. (default)
• OFF : Output the original sound.

NOTE:

• When playing a disc with copyright protection, the sound will be output at 48kHz even if the setting is "OFF".
  • DOLBY DIGITAL: QUICK

- BITSTREAM:Output a Dolby Digital signal. (default)

- PCM: Convert the Dolby Digital to PCM. (2 channel stereo)

NOTES:

• You can access this setting directly by selecting "QUICK" at step 2 on page 38.
• Set to "BITSTREAM" when the unit is connected to a Dolby Digital Decoder.

5 Press [SET-UP] to exit the menu.

D PARENTAL SETTING

This feature allows you to set the rating level of your DVD discs. Playback will stop if the disc ratings exceed the level you set.

PARENTAL LEVEL

4 Enter four-digit password with the Number buttons, then press [ENTER].

NOTE:

- Enter any 4 digits (except for 4737) to set the password for the first time, and record it for your memory.

5 Use [▲/▼] to select "PARENTAL LEVEL", then press [ENTER].

CHANGING THE DVD SET UP ITEMS

6 Use [▲A▼] to select the desired level, then press [ENTER].

7 Press [SET-UP] to exit the menu.

• CONTROL LEVELS

- ALL: All parental locks are canceled.

- 8 [ADULT]: DVD software of any grade (adult/general/children) can be played back.

- 7 to 2: Only DVD software intended for general use and children can be played back.

- 1 [KID SAFE]: Only DVD software intended for children can be played back, with those intended for adult and general use prohibited.

NOTE:

- With some DVDs, it may be difficult to find if they are compatible with parental lock. Be sure to check if the parental lock function operates in the way that you have set.

PASSWORD CHANGE

4 Enter current password with the Number buttons, then press [ENTER].

5 Use [▲/▼] to select "PASSWORD CHANGE", then press [ENTER].

6 Enter four-digit password with the Number buttons, then press [ENTER].

7 Press [SET-UP] to exit the menu.

NOTE:

- If you forget the current password, enter 4737 first, then enter your new password. The former password will be cleared and parental level will be set to "ALL" (default).

E OTHERS SETTING

4 Use [▲/▼] to select an item, then press [ENTER] repeatedly to set the feature "ON" or "OFF".

- ANGLE ICON:

- ON: To show the angle icon when multiple camera angles are available during DVD playback. (default) - OFF: To keep angle icon from the display.

• AUTO POWER OFF:

- ON: To activate screen saver program and turn off the unit automatically. (default) - OFF: To deactivate Auto Power Off function.

NOTE:

- The screen saver program starts when there is no input from the unit for 5 minutes in the stop mode. After the screen saver program is activated for 15 minutes, the power is automatically turned off.

5 Press [SET-UP] to exit the menu.

INITIALIZE

DVD-V

This allows you to return all items of SETUP menu (except for PARENTAL setting and menu language) to their default settings.

1 In the stop mode, press [SET-UP] twice to display the DVD SETUP menu.

2 Use [▲/▼] to select "INITIALIZE", then press [ENTER].

3 Use [▲/▼] to select "YES", then press [ENTER] twice.

- To cancel the initialization, select "NO".

4 Press [SET-UP] to exit the menu.

TROUBLESHOOTING GUIDE

Before calling for service, check the following chart again.

Symptom Remedy
No power	·Be sure the Power cord is connected to outlet.·If a power failure occurs, unplug the power cord for 30 minutes to allow the unit to reset itself.
No picture or sound	·Check if the power is on.·Check the outlet connection.·Check the antenna or cable connection to the main unit.·When the outside antenna is used, check the wire condition and connection.·Try to view other channels. It may be the problem on the broadcasting station.·Turn off the power and wait for about 1 minute, then turn it on again.
No color	·Check the antenna or cable connection to the main unit.·When the outside antenna is used, check the wire condition and connection.·Try to view other channels. It may be the problem on the broadcasting station.·Adjust COLOR in the picture control.
Sound OK, picture poor	·Check the antenna or cable connection to the main unit.·When the outside antenna is used, check the wire condition and connection.·Electric waves may be interfered due to the electric appliances, etc. nearby.·Adjust CONTRAST and BRIGHT in the picture control.·Try to view other channels. It may be the problem on the broadcasting station.
Picture distorted	·When the outside antenna is used, check the wire condition and connection.·Try to view other channels. It may be the problem on the broadcasting station.
Weak picture	·Check the antenna or cable connection to the main unit.·When the outside antenna is used, check the wire condition and connection.·Adjust CONTRAST and BRIGHT in the picture control.·Try to view other channels. It may be the problem on the broadcasting station.
Lines or streaks in picture	·When the outside antenna is used, check the wire condition and connection.·Electric waves may be interfered due to the electric appliances, etc. nearby.·Try to view other channels. It may be the problem on the broadcasting station.
Picture blurred	·When the outside antenna is used, check the wire condition and connection.·Try to view other channels. It may be the problem on the broadcasting station.
Ghosts in picture	·Check the antenna or cable connection to the main unit.·When the outside antenna is used, check the wire condition and connection.·Electric waves may be interfered due to the electric appliances, etc. nearby.·Try to view other channels. It may be the problem on the broadcasting station.
Bars on screen	When the outside antenna is used, check the wire condition and connection.Electric waves may be interfered due to the electric appliances, etc. nearby.
Picture rolls vertically	When the outside antenna is used, check the wire condition and connection.Electric waves may be interfered due to the electric appliances, etc. nearby.Try to view other channels. It may be the problem on the broadcasting station.
Different color marks on screen	Move the TV apart from electric appliances nearby. Turn off the power and wait for about 30 minutes, then turn it on again.Try to view other channels. It may be the problem on the broadcasting station.
Poor reception on some channels	Check the antenna or cable connection to the main unit.When the outside antenna is used, check the wire condition and connection.Electric waves may be interfered due to the electric appliances, etc. nearby.Try to view other channels. It may be the problem on the broadcasting station.
Picture OK, sound poor	Electric waves may be interfered due to the electric appliances, etc. nearby.Try to view other channels. It may be the problem on the broadcasting station.
Remote control doesn't work	Check the antenna or cable connection to the main unit.Check the battery life of the remote control.Check if there is an obstacle between the sensor and the remote control.Test the signal output. If OK, then possible remote sensor trouble. (Refer to "IR SIGNAL CHECK" on page 44.)
Problems on Closed CaptionMisspelled captions are displayed.	Closed captioning production companies may broadcast programs without correcting the misspelling in a live broadcast.
Captions are not entirely displayed, or captions are delayed behind the dialogue.	Captions that are delayed a few seconds behind the actual dialogue are common for live broadcasts. Most captioning production companies can display a dialogue to a maximum of 220 words per minute. If a dialogue exceeds that rate, selective editing is used to insure that the captions remain up-to-date with the current TV screen dialogue.
Captions are displayed as a white box. No caption is displayed in the Closed Caption-supported program.	When electric waves are interfered due to buildings, weather conditions etc., incomplete captions may be displayed.Broadcasting station may shorten the program to insert the advertisement. The closed caption decoder cannot read the information of the shortened program.
No caption is displayed when playing the videotape containing captions.	The videotape may be illegally copied, or the caption signal may fail to be read while coping.
Black box is displayed in the screen.	[TEXT] mode is selected for caption. Select [CAPTION 1], [CAPTION2] or [OFF].
VCR mode
Poor or no picture in playback	Adjust tracking control.Try video head cleaning.The videotape may be old or worn. Replace with new one.
Cannot go into recording mode	Make sure the cassette has an erase-prevention tab. If necessary, cover the hole with plastic tape.
Timer recording does not work or results in failure	Make sure the begin/end time is set correctly.Make sure the power is off to activate timer recording.Check if the unit's clock is set to current time and date.The program may contain copy protection signals that restrict copying.The timer setting overlapped with another setting has priority.Check if the tape reached the end during recording.Check if the power failure during recording.
Picture or color fades in and out when copying a videotape	You cannot copy a copyrighted videotape. You are experiencing copy guard protection.
DVD mode
No picture	This unit cannot play DVD-RAM/CD-i/Photo CD/Video CD/DVD with region codes other than "1" and "ALL".
Disc cannot be played	Clean the disc.Place the disc correctly, with the label side up.Cancel the parental setting or change the control level.
No sound	Correct the audio output settings.Confirm the power and audio settings of external audio component.
No DTS audio is output	This unit does not support DTS audio. This is not a malfunction.
Distorted picture	During the playback of a 2-layered disc, pictures may stop for a moment. This happens while the 1st layer is being switched to the 2nd layer. This is not a malfunction.This happens right after fast forwarding or rewinding.
Audio or subtitle language does not match the setting	The selected language is not available for audio or subtitle on the DVD.
The camera angle cannot be changed	The DVD does not contain sequences recorded from different camera angles.
Audio or subtitle language cannot be changed	The DVD does not contain audio source or subtitles in the selected language.
"Prohibited icon" appears on the screen	That operation is not available by the unit or the disc.
CD/DVD sound dropoutNo CD/DVD reproductionDVD picture poor	Scratched disc. Replace with an unscratched one.

CABINET CLEANING

• Wipe the front panel and other exterior surfaces of the TV with a soft cloth immersed in lukewarm water and wrung dry.
• Never use a solvent or alcohol. Do not spray insecticide liquid near the TV. Such chemicals may cause damage and discoloration to the exposed surfaces.

PICTURE TUBE CLEANING

Wipe the picture tube of the TV with a soft cloth. Before cleaning the picture tube, disconnect the power cord.

SERVICING

Should your unit become inoperative, do not try to correct the problem by yourself. There are no userserviceable parts inside. Turn off, unplug the power cord and please call our help line mentioned on the front page, to locate an Authorized Service Center.

IR SIGNAL CHECK

If the remote control doesn't work properly, you can test if the remote control sends out the infrared signal with AM radio or a digital camera (including built-in camera of cellular phone). It will help to define the cause of malfunction.

- With an AM radio:

Tune an AM radio to a station with no broadcasting. Press any button on remote control toward

the radio. Sound will be fluttering when you press any key and the radio receives the signal. This means the remote control unit is working.

- With a digital camera (including built-in camera of cellular phone):

Direct a digital camera to remote control, press and hold any button on remote control. If infrared light appears through digital camera, the remote control is working.

DEGAUSSING

A degaussing circuit in this unit clears up color errors on the TV screen. Color errors occur when there is any excess magnetism close to the unit. This circuit is designed to operate once when the unit is first plugged in. If you see minor color errors on the screen, unplug the unit for approximately 30 minutes. When you plug the unit again, the degaussing circuit will operate to clear errors. Take this step any time the TV screen is accidentally magnetized or when you move the unit.

AUTO HEAD CLEANING

• Automatically cleans video heads as you insert or remove a cassette, so you can see a clearer picture.

• Playback picture may become blurred or interrupted while the TV program reception is clear. Dirt accumulated on the video heads after long periods of use or the usage of rental or worn tapes can cause this problem. If a streaky or snowy picture appears during playback, the video heads in your unit may need to be cleaned.

• Please visit your local Audio/Video store and purchase a good quality VHS Video Head Cleaner.

• If a Video Head Cleaner does not solve the problem, please call our help line mentioned on the front page, to locate an Authorized Service Center.

NOTES:

• Remember to read the instructions included with the video head cleaner before use.
• Clean video heads only when problems occur.

IF THE LASER OPTICAL PICKUP UNIT IS DIRTY

- If the unit still does not perform properly when it is operated, while referring to the relevant sections and to "TROUBLESHOOTING GUIDE" in this Owner's Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

DISC HANDLING

- Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.

• Always store the disc in its protective case when it is not used.
- To clean-off, use a soft cloth.
- Do not use a hard cloth since this will mar the disc.
- Wipe the disc in a straight line from center to edge.
- N ever wipe with a circular motion.
- Do not use detergent or abrasive cleaning agents.

CABLE CHANNEL DESIGNATIONS

If you subscribe to cable TV, the channels are displayed as 1-125. Cable companies often designate channels with letters or letter-number combinations. Please check with your local cable company. The following is a chart of common cable channel designations.

CATV channel	5A	2	3	4	5	6	7	8	9	10	11	12	13	A	B
TV Display	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
CATV channel	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q
TV Display	16	17	18	19	20	21	22	23	24	25	26	27	28	29	30
CATV channel	R	S	T	U	V	W	W+1	W+2	W+3	W+4	W+5	W+6	W+7	W+8	W+9
TV Display	31	32	33	34	35	36	37	38	39	40	41	42	43	44	45
CATV channel	W+10	W+11	W+12	W+13	W+14	W+15	W+16	W+17	W+18	W+19	W+20	W+21	W+22	W+23	W+24
TV Display	46	47	48	49	50	51	52	53	54	55	56	57	58	59	60
CATV channel	W+25	W+26	W+27	W+28	W+29	W+30	W+31	W+32	W+33	W+34	W+35	W+36	W+37	W+38	W+39
TV Display	61	62	63	64	65	66	67	68	69	70	71	72	73	74	75
CATV channel	W+40	W+41	W+42	W+43	W+44	W+45	W+46	W+47	W+48	W+49	W+50	W+51	W+52	W+53	W+54
TV Display	76	77	78	79	80	81	82	83	84	85	86	87	88	89	90
CATV channel	W+55	W+56	W+57	W+58	A-5	A-4	A-3	A-2	A-1	W+59	W+60	W+61	W+62	W+63	W+64
TV Display	91	92	93	94	95	96	97	98	99	100	101	102	103	104	105
CATV channel	W+65	W+66	W+67	W+68	W+69	W+70	W+71	W+72	W+73	W+74	W+75	W+76	W+77	W+78	W+79
TV Display	106	107	108	109	110	111	112	113	114	115	116	117	118	119	120
CATV channel	W+80	W+81	W+82	W+83	W+84
TV Display	121	122	123	124	125

LANGUAGE CODE LIST

Language Code		Language Code
A-B		German [GER]	5051
Abkhazian	4748	Greek [GRE] 5158
Afar	4747	Greenlandic	5758
Afrikaans	4752	Guarani	5360
Albanian	6563	Gujarati	5367
Amharic	4759	Hausa	5447
Arabic 4764		Hebrew	5569
Armenian	5471	Hindi	5455
Assamese	4765	Hungarian [HUN]	5467
Aymara 4771		I-K
Azerbaijani	4772	Icelandic [ICE] 5565
Bashkir 4847		Indonesian	5560
Basque 5167		Interlingua	5547
Bengali;Bangla	4860	Interlingue	5551
Bhutani 5072		Inupiak	5557
Bihari	4854	Irish [IRI]	5347
Bislama	4855	Italian [ITA]	5566
Breton	4864	Japanese [JPN]	5647
Bulgarian	4853	Javanese	5669
Burmese	5971	Kannada	5760
Byelorussian	4851	Kashmiri	5765
C-E		Kazakh 5757
Cambodian	5759	Kinyarwanda 6469
Catalan	4947	Kirghiz	5771
Chinese [CHI]	7254	Kirundi	6460
Corsican	4961	Korean [KOR]	5761
Croatian	5464	Kurdish 5767
Czech [CZE]	4965	L-N
Danish [DAN]	5047	Laothian	5861
Dutch [DUT] 6058		Latin	5847
English [ENG]	5160	Latvian; Lettish 5868
Esperanto	5161	Lingala	5860
Estonian	5166	Lithuanian 5866
F-H		Macedonian	5957
Faroese	5261	Malagasy	5953
Fiji	5256	Malay	5965
Finnish [FIN]	5255	Malayalam	5958
French [FRE]	5264	Maltese	5966
Frisian	5271	Maori	5955
Galician	5358	Marathi 5964
Georgian	5747	Moldavian	5961

Language Code		Language Code
Mongolian 5960		T
Nauru 6047		Tagalog	6658
Nepali 6051		Tajik	6653
Norwegian [NOR] 6061		Tamil 6647
O-R		Tatar	6666
Occitan 6149		Telugu	6651
Oriya 6164		Thai	6654
Oromo(Afan) 6159		Tibetan 4861
Panjabi 6247		Tigrinya	6655
Pashto;Pushto 6265		Tonga	6661
Persian 5247		Tsonga 6665
Polish [POL] 6258		Turkish [TUR]	6664
Portuguese [POR]	6266	Turkmen	6657
Quechua	6367	Twi	6669
Rhaeto-Romance 6459		U-Z
Romanian [RUM]	6461	Ukrainian	6757
Russian [RUS]	6467	Urdu	6764
S		Uzbek 6772
Samoan 6559		Vietnamese	6855
Sangho	6553	Volapuk	6861
Sanskrit	6547	Welsh	4971
Scots Gaelic	5350	Wolof	6961
Serbian	6564	Xhosa 7054
Serbo-Croatian	6554	Yiddish 5655
Sesotho	6566	Yoruba	7161
Setswana	6660	Zulu	7267
Shona	6560
Sindhi	6550
Singhalese	6555
Siswat	6565
Slovak	6557
Slovenian	6558
Somali	6561
Spanish [SPA]	5165
Sundanese	6567
Swahili	6569
Swedish [SWE]	6568

GENERAL SPECIFICATIONS

Television system: NTSC-M

TV Standard

Closed Caption

System: §15.119/FCC (Analog CC)

§15.122/FCC (Digital CC)

Channel coverage

VHF: 2 \~ 13

UHF: 14 \~ 69

DTV: 2 \~ 69

Tuning System Channel frequency

synthesized tuning system

Channel access: Direct access keyboard,

programmable

scan and up/down

Terminals

Antenna input: VHF/UHF/DTV/CATV

75 ohm unbalanced

(F-type)

Video input: RCA connector x 1

Audio input: RCA connector x 2

Coaxial digital audio output:

One pin jack, 500m Vpp (75 ohm)

Stereo Sound System

2 speakers

ELECTRICAL SPECIFICATIONS

Sound output: 1W, 8 ohm x 2

OTHER SPECIFICATIONS

Remote control: Digital encoded

infrared light system

Operating

temperature: 5°C to 40°C

(41°F to 104°F)

Power requirements: AC120V, 60Hz

Power consumption

(Maximum): 140W

Picture tube: 27"

Dimensions: H : 25-1/2" (648mm)

W: 26-9/16" (675mm)

D : 19-11/16" (500mm)

Weight: 77.7 lbs. (35.3kg)

DVD

Product type	DVD Player
Discs	DVD video, Audio CD
Output signal format	NTSC color

• Designs and specifications are subject to change without notice and without our legal obligation.
• If there is a discrepancy between languages, the default language will be English.

SYLVANIA

LIMITED WARRANTY

FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION:

PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Two (2) years for Picture Tube. Certain parts are excluded from this warranty.

LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.

LIMITS AND EXCLUSIONS:

THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PURCHASER. A PURCHASE RECEIPT OR OTHER PROOF OF ORIGINAL RETAIL PURCHASE WILL BE REQUIRED TOGETHER WITH THE PRODUCT TO OBTAIN SERVICE UNDER THIS WARRANTY.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This limited warranty does not apply to any product not purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which occurs in shipment, failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES.

ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY AN AUTHORIZED SERVICE CENTER. THIS WARRANTY IS ONLY VALID WHEN THE UNIT IS CARRIED-IN TO AN AUTHORIZED SERVICE CENTER.

THE PRODUCT MUST BE ACCOMPANIED BY A COPY OF THE ORIGINAL RETAIL PURCHASE RECEIPT. IF NO PROOF OF PURCHASE IS ATTACHED, THE WARRANTY WILL NOT BE HONORED AND REPAIRS COSTS WILL BE CHARGED.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

WARRANTY STATEMENT REGARDING NON AUTHORIZED REPAIRS:

To obtain warranty service, you must take the product, or deliver the product freight prepaid, in either its original packaging or packaging affording an equal degree of protection, to any AUTHORIZED SERVICE CENTER. FUNAI CORP. will not reimburse you for any service done by unauthorized service providers without prior written approval.

To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries, please contact us at :

FUNAI CORPORATION

Customer Service

Tel :[phone]

http://www.SylvaniaConsumerElectronics.com

19900 Van Ness Avenue, Torrance, CA 90501

MANUAL DEL USUARIO

6727DG

Line drawing of a vintage television set with sofa, coffee table, and living room furniture (no text or symbols)

COMBO DVD TRIPLE ANALÓGICA/DIGITAL DE 27 PULGADAS

PARA RECIBIR SEÑAL DIGITAL

DEBE CONECTAR LA ANTENA

1 REPRODUCIR ▶ 12:00AM HIFI CA 123 ESTÉREO /SAP 2 3 SP CONTEO 0:00:00 4 5 6 7

1. Estado de VCR

Visualiza el estado actual de VCR: REPRODUCIR / PARAR / GRABAR / OTR / PAUSA / AV RAPIDO / REBOBINAR

4. Reloj

- AJUSTE RELOU - ▶ RELOU AUT. [ON] BUSO. AUTO RELOU CA. CAN. RELOU AUT. [02] AJUSTE MANUAL RELOU HORA VER. [OFF] HUSO HORARIO [OFF]

3 Presione [▼] para seleccionar "BUSQ. AUTO RELOJ CA.". Luego presione [ENTER].

7 DISPLAY 8 9 VOL 6 +0 TAX/ALAB SET-UP ULTE SPEED P.V. REV STOP PUO DECIMAL ▲/▼ SLOW FAIR TITLE CLEAR MODE COLD RETURN ENTER

▶ AGREGAR / BORRAR (DTV)

PREA. AUTO CA. (DTV) PREA. AUTO CA. (TV/DTV) PREA. AUTO CA. (CATV) 1 CATV demora uns 50min.

HORA DE AJUSTE: de7:30PM a 8:50PM

CANAL: CA61

VELOCIDAD DE CINTA: SP

1 Presione [SET-UP].

Utilice [▲▼] para seleccionar "CÓMO PROGRAMAR", y presione [ENTER].

NOTA:

Illustration of a remote control with wireless signals and antenna (no text or symbols)

19900 Van Ness Avenue, Torrance, CA 90501
