Product Type	Portable CD Player
Brand	Naxa
Model	NPB-245
Dimensions	Approximately 7.5 x 5.5 x 1.5 inches
Weight	Approximately 0.7 lbs (without batteries)
Power Supply	2 x AA batteries or AC adapter (not included)
Disc Compatibility	CD, CD-R, CD-RW
Playback Functions	Play, Pause, Stop, Skip Forward/Back, Repeat 1/All, Random
Anti-Skip Protection	Electronic skip protection (ESP) for up to 40 seconds
Audio Output	3.5mm stereo headphone jack
Audio Format	CD audio (16-bit, 44.1 kHz)
Controls	Buttons on top panel
Display	LCD screen showing track number, elapsed time
Battery Life	Up to 12 hours with typical use
Construction	Plastic body, scratch-resistant lid
Cleaning	Wipe with a soft, dry cloth; do not use liquids
Safety	Do not expose to moisture; avoid dropping; use only specified power
Spare Parts & Repairability	Replacement battery cover available; internal repair recommended by qualified technician

Frequently Asked Questions - NPB-245 Naxa

How do I insert a CD?

Open the lid by pressing the OPEN button on the side. Place the CD with the label facing up onto the spindle. Close the lid until it clicks shut.

How can I prevent skipping while moving?

Enable ESP (Electronic Skip Protection) by pressing the ESP button on the player. This reduces skipping during light movement.

What batteries does the NPB-245 use?

It requires two AA alkaline batteries. Insert them according to the polarity markings inside the battery compartment.

Can I connect headphones?

Yes, plug your headphones into the 3.5mm headphone jack located on the side of the player. The built-in speaker will be muted automatically.

How do I repeat a single track?

Press the REPEAT button repeatedly until the display shows "REPEAT 1". The player will then play the current track over and over.

My CD player won't turn on. What should I do?

First, check that the batteries are fresh and inserted correctly. If using an AC adapter, ensure it is plugged in firmly. If still no power, try replacing the batteries.

How to clean the CD player?

Use a soft, dry cloth to gently wipe the exterior and the lens. Do not use any liquids or cleaning agents as they may damage the components.

Can I play CD-R or CD-RW discs?

Yes, the NPB-245 is compatible with CD-R and CD-RW discs. However, some discs with damaged recordable surfaces may not play.

What does the 'RANDOM' button do?

Pressing RANDOM plays all tracks on the disc in a random order. Press again to turn off random playback.

Is the NPB-245 safe to use in humid environments?

No, the player is not waterproof. Avoid exposing it to rain, high humidity, or splashing water to prevent electrical damage.

USER MANUAL NPB-245 Naxa

Portable CD Player With AM/FM Stereo Radio

MODEL: NPB-245

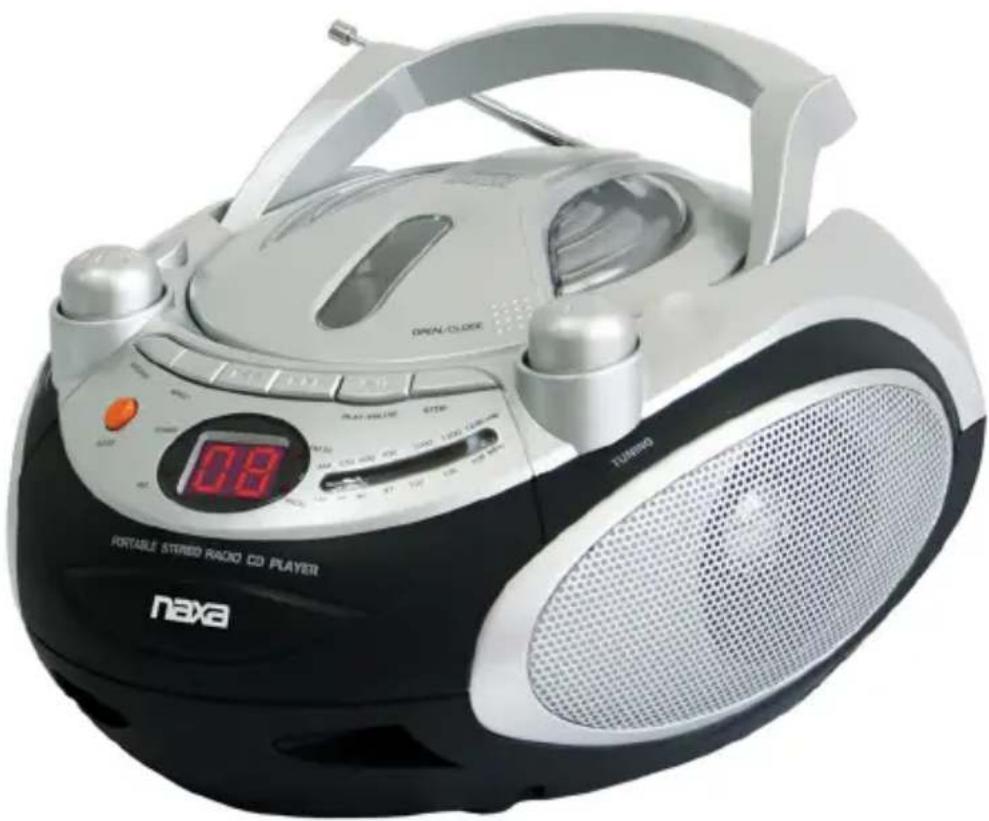

Portable stereo radio CD player naxa with open clock and digital display (no visible text or symbols on device body)

Please read these instructions carefully and keep for future reference

IMPORTANT NOTES

INTRODUCTION

• Thank you for buying our product.
• Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

WARNING

To prevent fire or shock hazard, do not expose this appliance to rain or moisture. To avoid electrical shock, do not open the cabinet; refer servicing to qualified personnel only.

CAUTION

Use of controls or adjustment or performance of procedures other than those specified herein may result in hazardous radiation exposure.

DANGER

Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT

This Compact Disc player is classified as a Class 1 LASER PRODUCT.

THE CLASS 1 LASER PRODUCT label is located on the rear exterior.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications could void the user's authority to operate the equipment.

• Avoid installing the unit in locations described below:
• Places exposed to direct sunlight or close to heat radiating appliance such as electric heaters, on top of other stereo equipment that radiate too much heat.
• Places locking ventilation or dusty places.
• Places subject to constant vibration.
• Humid or moist places.
• Operate turning controls and switches as instructed in manual.
• Before turning on the power for the first time, make sure that the power cord is properly installed.
• Store your tapes or CD in a cool area to avoid damage from heat.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO DOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: Remove batteries if exhausted or if they will not be used again for a long period.

The incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst, therefore:

Do not mix battery types, e.g. alkaline with zinc carbonate.

When inserting new batteries, replace all batteries at the same time.

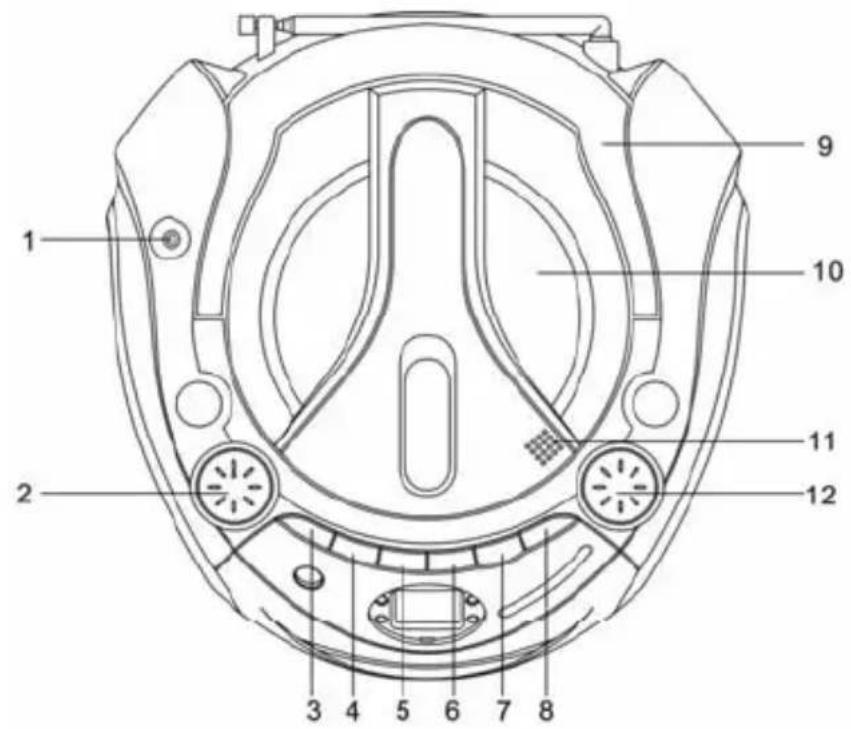

LOCATION OF CONTROLS

NAMES OF CONTROLS

1. AUX IN JACK
2. VOLUME CONTROL
3. CD PROGRAM BUTTON
4. CD REPEAT BUTTON
5. CD SKIP/SEARCH BACKWARD BUTTON
6. CD SKIP/SEARCH FORWARD BUTTON
7. CD PLAY/PAUSE BUTTON
8. CD STOP BUTTON
9. FOLDING HANDLE
10. CD COMPARTMENT

11. CD DOOR OPEN/CLOSE

12. TUNING CONTROL

13. BASS BOOST BUTTON
14. POWER INDICATOR
15. CD REPEAT INDICATOR
16. CD LED DISPLAY
17. FM STEREO INDICATOR
18. CD PROGRAM INDICATOR
19. FM TELESCOPIC ANTENNA
20. BAND SELECTOR
21. AC SOCKET
22. BATTERY COMPARTMENT
23. FUNCTION SWITCH
24. SPEAKERS

INTRODUCTION

• Thank you for purchasing this product.
• Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

CAUTION:

• Do not block the ventilation openings or holes.
• Do not place any naked flame sources, such as lighted candles, on the apparatus.
• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.
• Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.
  • To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

NOTE:

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications could void the user's authority to operate the equipment.

Discs for Playback

This system can playback all digital audio CD, finalized digital audio CD-Recordable (CD-R) discs, finalized digital audio CD-Rewritable (CD-RW) discs and CD-DA format digital audio CD/CD-R/CD-RW discs.

POWER SOURCE

This unit is designed to be operated on AC/DC.

AC OPERATION

Plug the smaller end of AC power cord into AC jack on unit and the other bigger end into AC wall outlet. The batteries will be automatically disconnected. For dual voltage version, make sure that the AC voltage selector (located on the bottom of the unit) is switched to your local voltage.(optional)

DC OPERATION

Open the BATTERY COMPARTMENT DOOR. Install 6 pcs UM-2/C size batteries (not included) into compartment. Please follow correct polarities as indicated.

CAUTION

• Remove batteries if they are flat or not being used for a long period of time.
• Batteries contain chemical substances, so they should be disposed of properly.

BASIC FUNCTION

SWITCHING ON THE UNIT

Set the FUNCTION switch to CD/AUX or RADIO.

TO ADJUST VOLUME

Rotate the VOLUME CONTROL back and forth to increase and decrease volume.

BASS BOOST SYSTEM

For more extra bass, press the BASS BOOST button. Press again to turn off bass.

AUX-IN OPERATION

This unit has provided special AUX-IN jack, through this jack other audio sources can be connected to this unit and be amplified.

1. Set the FUNCTION switch to CD/AUX position.
2. Connect the audio cable into the AUX-IN jack and the other end connect to the AUDIO OUT jack of the external audio source. The unit will change to AUX mode automatically.
3. Adjust the volume of the main unit to your desired level. Press PLAY of the external audio source (eg. MP3 player) to start playback.

USING THE RADIO

TUNING IN RADIO STATIONS

1. Move the FUNCTION switch to RADIO position, the POWER indicator will illuminate.
2. Slide the BAND switch to select the desired wave band: AM/FM.
3. Tune to required station by rotating the TUNING KNOB.
4. Rotate the VOLUME CONTROL to comfortable volume level.
5. Extend the TELESCOPIC ANTENNA to its full length if you are listening to FM broadcasting. Gently rock the unit back and forth to get the best reception when you are listening to AM program, or place the unit in an open place.
   Note: If the broadcasting program is too noisy when you are listening to FM stereo station, please slide the BAND switch to FM. The FM STEREO indicator will be on if you are receiving FM stereo program.
6. Turn off the radio by switching the FUNCTION switch to "OFF" position

USING THE CD

LOADING A DISC

1. Set the FUNCTION switch to CD/AUX position.
2. Open the CD door.
3. Place an audio CD into the tray with the label side facing up.
4. Close the CD door.

The total number of tracks will appear on the display after several seconds.

1. To remove the CD, press OPEN to open CD compartment lid, grasp the CD by its edges, and carefully take it out.

Note:

• To ensure good system performance; wait until the disc tray completely reads the disc before proceeding.
• If no disc is loaded into the compartment, or the disc is placed upside down, the display will show 0 0.

PLAYING A DISC

1. Press the PLAY/PAUSE button to start playback.

The playback starts from track 1, the PLAY/PAUSE indicator on the right lower corner of the display illuminates.

To interrupt playback, press the PLAY/PAUSE button. The PLAY/PAUSE indicator flashes on and off.

To resume playback, press the PLAY/PAUSE button again, the PLAY/PAUSE indicator becomes steady on the display.

1. To stop playback, press the STOP button, the total number of tracks appear on the display.

SELECTING A DESIRED TRACK/PASSAGE

To select a desired track

• Press the CD SKIP/SEARCH FORWARD/BACKWARD button repeatedly in stop mode or during play until the desired track appears on the display.
• Press the PLAY/PAUSE button to start play.

To search for a particular passage during playback (track scanning at high speed)

Press and hold the CD SKIP/SEARCH FORWARD/BACKWARD button to scan the current playing track at high speed until desired point passage, then release the button.

Playback will start again from this point.

PROGRAM TRACKS

Programming tracks of disc are possible when playback is stopped. Up to 20 tracks can be stored in the memory in any order.

1. In stop mode, press the PROGRAM button, the 0 1 will flash and the PROGRAM indicator will be on.

2. Press the CD SKIP/SEARCH FORWARD button to select the first desired track to be programmed.

3. Press the PROGRAM button to enter. The display changes to show 02 flashing.

4. Repeat steps 2 & 3 to store other desired tracks until all tracks are programmed.

5. Press the PLAY/PAUSE button to start playback from the first programmed track.

6. Press the STOP button to stop program playback.

Note: Program function can only be done in stop mode.

To Erase the Memory (Program)

To clear the program, you have two options:

1. Press the STOP button when the disc is stopped, or
2. Open the CD compartment lid, program will be erased.

REPEAT

You can play one track or all tracks on the disc repeatedly.

To Repeat a Single Track

1. Press the REPEAT button once during play, the CD REPEAT indicator will flash on and off. The current track will be played over and over again till you press the STOP button.
2. To cancel repeat play, press the REPEAT button twice. the CD REPEAT indicator turns off.

To repeat all Tracks

1. Press the REPEAT button twice during play, the CD REPEAT indicator becomes steady on, all tracks on the disc will be played over and over again till you press the STOP button.
2. To cancel repeat play, press the REPEAT button once, the CD REPEAT indicator turns off.
   Note: Repeat function also can be done in stop mode.

SPECIFICATIONS

CD SECTION

Channels:		2	channels
Optical pick-up:		3	beams	laser
Frequency Response:	100Hz - 16KHz

RADIO SECTION

Receiving	Band:	AM/FM
Tuning Range:		AM:	530	-	1600	KHz
	F	M	:	8	8	-	1	08	M	H	z
Antenna:		FM rod antenna, AM built-in ferrite bar

GENERAL

Output Power:	1.2 W x 2 (RMS)
AUX IN Jack:	3.5mm
Power Source:	AC 127V ~ 60Hz
	DC	9V	1.5V UM-2/C	x	6pcs
Power Consumption:	13.5W

Note: Specifications are subject to change for continuous improvement without prior notice.

ESD Remark:

In case of malfunction due to electrostatic discharge, just reset the product (reconnect of power source may be required) to resume normal operation.
