JLE47BC3001 - Television JVC - Free user manual and instructions

Product Type	LED Television
Screen Size	47 inches (diagonal)
Resolution	1920 x 1080 (Full HD)
Backlight Type	Edge-lit LED
Refresh Rate	60 Hz
Aspect Ratio	16:9
Dimensions (with stand)	107.5 x 67.0 x 24.0 cm
Dimensions (without stand)	107.5 x 62.5 x 8.0 cm
Weight (with stand)	14.8 kg
Weight (without stand)	12.5 kg
Power Consumption (typical)	100 W
Standby Power Consumption	<0.5 W
Input Voltage	100-240 V ~ 50/60 Hz
HDMI Ports	3
USB Ports	1 (for media playback)
Composite Video Input	1
Component Video Input	1
Digital Audio Output	1 (optical)
Headphone Jack	1
Built-in Tuner	ATSC / NTSC (analog & digital)
Speaker Power	2 x 10 W
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquid cleaners.
Safety Warnings	Do not block ventilation. Use only specified stand/wall mount.
Spare Parts Availability	Remote control, stand, screws available from JVC support.
Repairability Index	5.5 / 10 (based on typical LED TV design)

Frequently Asked Questions - JLE47BC3001 JVC

How do I set up the TV for the first time?

Connect the TV to power and an antenna or cable. Turn on the TV and follow the on-screen setup wizard to select language, scan for channels, and configure network settings if using smart features.

What is the maximum USB storage size supported?

The TV supports USB drives up to 32 GB formatted in FAT32 or NTFS for media playback (photos, music, videos).

Can I mount this TV on the wall?

Yes, the TV is VESA compatible (400x200 mm). Use a wall mount that supports at least 30 kg and follow the instructions in the manual.

Why is there no sound from the TV speakers?

Check if the volume is muted or too low. Ensure external audio devices are disconnected. Go to Settings > Audio and reset audio settings, or perform a power cycle (unplug for 1 minute).

How do I connect external devices like a Blu-ray player?

Use HDMI cables for best quality. Connect the device to any HDMI port on the TV. Select the correct input source by pressing the 'Source' button on the remote.

The remote control is not working. What should I do?

Replace the batteries with new ones. Check for obstructions between remote and TV sensor. If still not working, try resetting the remote by removing batteries and pressing all buttons for 10 seconds.

How can I improve picture quality?

Go to Settings > Picture. Adjust brightness, contrast, and sharpness. Select a preset mode (e.g., Movie, Standard) for optimized settings. Ensure the source signal is at least 720p.

Does the TV have built-in Wi-Fi?

No, this model does not have built-in Wi-Fi. For internet connectivity, use an Ethernet cable or an external streaming device.

What do I do if the TV turns off by itself?

The TV may have a sleep timer enabled. Go to Settings > Timer to disable. Also check for overheating; ensure ventilation is not blocked. If issue persists, unplug for 10 minutes.

How do I clean the TV screen safely?

Turn off the TV and let it cool. Use a soft, lint-free microfiber cloth slightly dampened with water. Wipe gently in a circular motion. Do not spray any liquid directly on the screen.

USER MANUAL JLE47BC3001 JVC

BlackCrystal™ 3001 Series LED TV

JLE32BC3001 32" Class

JLE37BC3001 37" Class

JLE42BC3001 42" Class

JLE47BC3001 47" Class

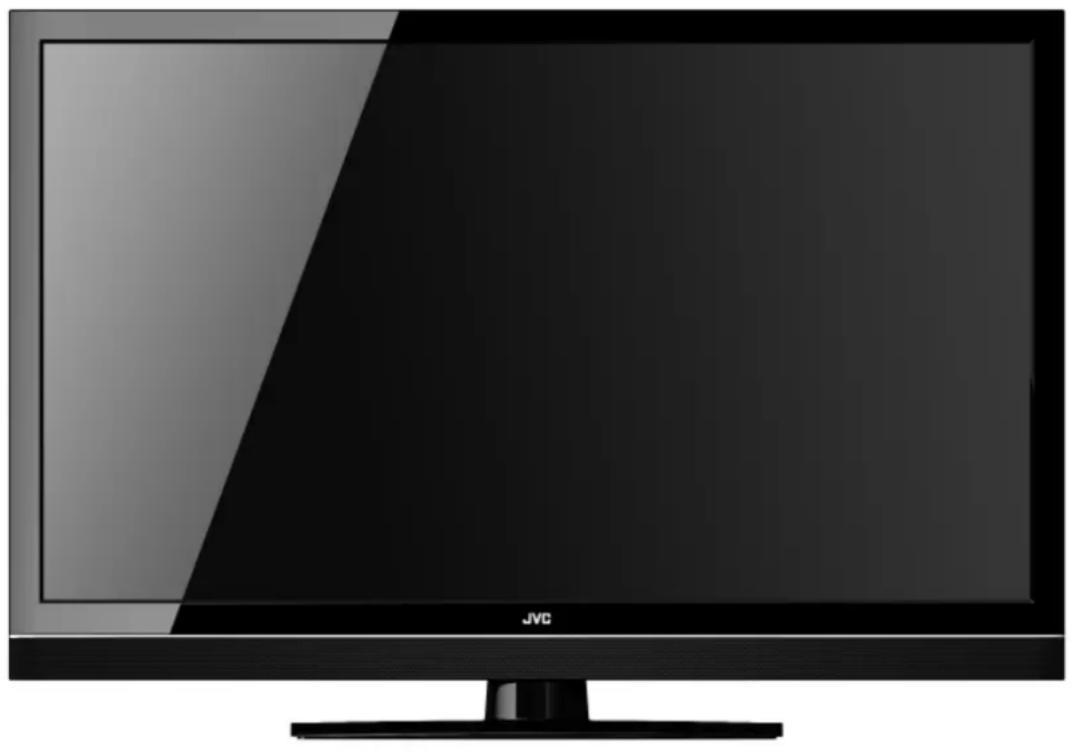

Front view of a black JVC TV monitor with a blank screen and stand (no text or symbols on the device itself)

Congratulations on purchasing your new JVC TV. To get the most out of your JVC LED TV, read these instructions before making any adjustments, and retain them for future reference.

For assistance, call the JVC Customer Support and Service Center 1-855-868-1928 or visit our website http://go.jvc.com/HDTVSupport/

We recommend that you register your JVC LED TV either at our wesite http://go.jvc.com/HDTVSupport/ or fi ll out and mail the Product Registration Card on the back of the manual.

Retain your purchase receipt and write down the model and serial number located at the back of your LED TV for easy reference when obtaining service support.

Serial Number:

Model Number:

SRS StudioSound HD is a trademark of SRS Labs, Inc.
StudioSurround HD technology is incorporated under license from SRS Labs, Inc.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

This product qualifies for ENERGY STAR in the "factory default" setting and this is the setting in which power savings will be achieved. Changing the factory default picture setting or enabling other features will increase power consumption that could exceed the limits necessary to qualify for Energy Star rating.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

HE TRADEMARKS SHOWN HEREIN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS; IMAGES USED ARE FOR ILLUSTRATION PURPOSES ONLY. JVC, THE JVC LOGO, AND OTHER JVC TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF JVC KENWOOD Corporation. PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Copyrights © 2011 AmTRAN Video Corporation. ALL RIGHTS RESERVED.

Black triangular warning symbol with a lightning bolt symbol (no text or numbers)

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Black triangular warning symbol with exclamation mark (no text or numbers)

CAUTION: To Reduce The Risk Of Electric Shock, Do Not Remove Cover (Or Back). No User-Serviceable Parts Inside. Refer Servicing To Qualified Service Personnel.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY FROM THIS PRODUCT AT TIMES.

CAUTION: TO PREVENT ELECTRIC SHOCK. DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.

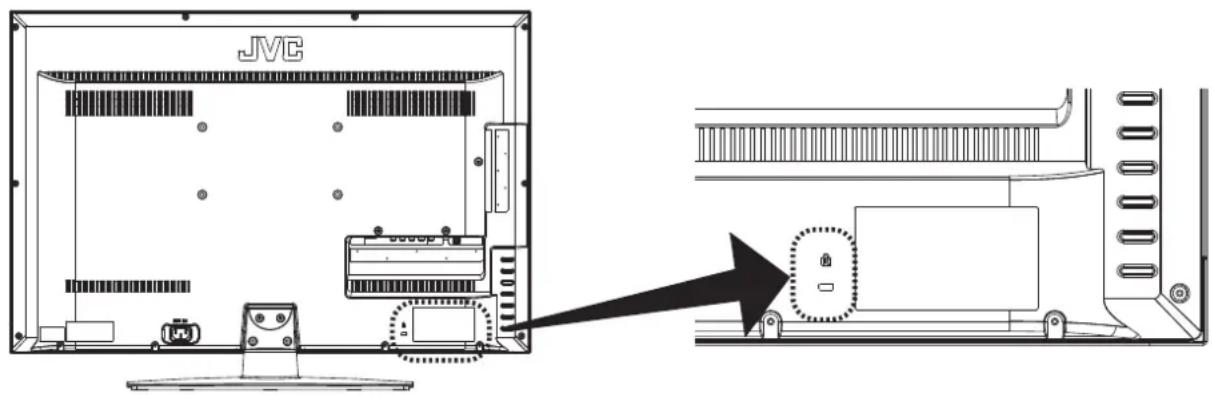

Location of the required Marking

The rating sheet and the safety caution are on the rear of the unit.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as vases, should not be placed on the apparatus.

16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.

17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.

18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.

19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

20) When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

22) When you connect the product to other equipment, turn off the power and unplug all of the equipment from the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's manual of the other equipment carefully and follow the instructions when making any connections.
23) Sudden high volume sound may cause hearing or speaker damage. When you use headphones, (if the unit is equipped with a headphone jack) keep the volume at a moderate level. If you use headphones continuously with high volume sound, it may cause hearing damage.
24) Do not allow the product to output distorted sound for an extended period of time. It may cause speaker overheating and fi re.
25) This reminder is provided to call the cable TV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
26) The socket-outlet must be installed near the unit and easily accessible.

CHILD SAFETY:

It Makes A Difference How and Where You Use TV

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:

THE ISSUE

The home theater entertainment experience is a growing trend and larger TVs are popular purchases. However, TVs are not always supported on the proper stands or installed according to the manufacturer's recommendations.

TVs that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and cause injury.

THIS MANUFACTURER CARES!

The consumer electronics industry is committed to making home entertainment enjoyable and safe.

TUNE INTO SAFETY

One size does NOT fit all. Follow the manufacturer's recommendations for the safe installation and use of your TV.

Carefully read and understand all enclosed instructions for proper use of this product.

Don't allow children to climb on or play with furniture and television sets.

Don't place TVs on furniture that can easily be used as steps, such as a chest of drawers.

Remember that children can become excited while watching a program, especially on a "larger than life" TV. Care should be taken to place or install the display where it cannot be pushed, pulled over, or knocked down.

Care should be taken to route all cords and cables connected to the TV so that they cannot be pulled or grabbed by curious children.

CONDENSATION

Moisture will form in the operating section of the unit if the unit is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, unit's performance will be impaired. To prevent this, let the unit stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually. Condensation may also form during the summer if the unit is exposed to the breeze from an air conditioner. In such cases, change the location of the unit.

HOW TO HANDLE THE LED PANEL

• Do not press hard or jolt the LED panel. It may cause the LED panel glass to break and injury may occur.
• If the LED panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin infl ammation.
• If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.

Possible Adverse Effects on LED Panel:

If a fixed (non-moving) pattern remains on the LED Panel for long periods of time, the image can become permanently engrained in the LED Panel and cause subtle but permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your TV on for long periods of time while it is displaying the following formats or images:

• Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.
• Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a widescreen (16:9) display (black bars on left and right sides of screen).

The following symptoms are not signs of malfunction but technical limitation.

• LED Panels are manufactured using an extremely high level of precision technology, however sometimes parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.
• Do not install the TV near electronic equipment that produces electromagnetic waves. Some equipment placed too near this unit may cause interference.
• Effect on infrared devices – There may be interference while using infrared devices such as infrared cordless headphones.

Television Antenna Connection Protection

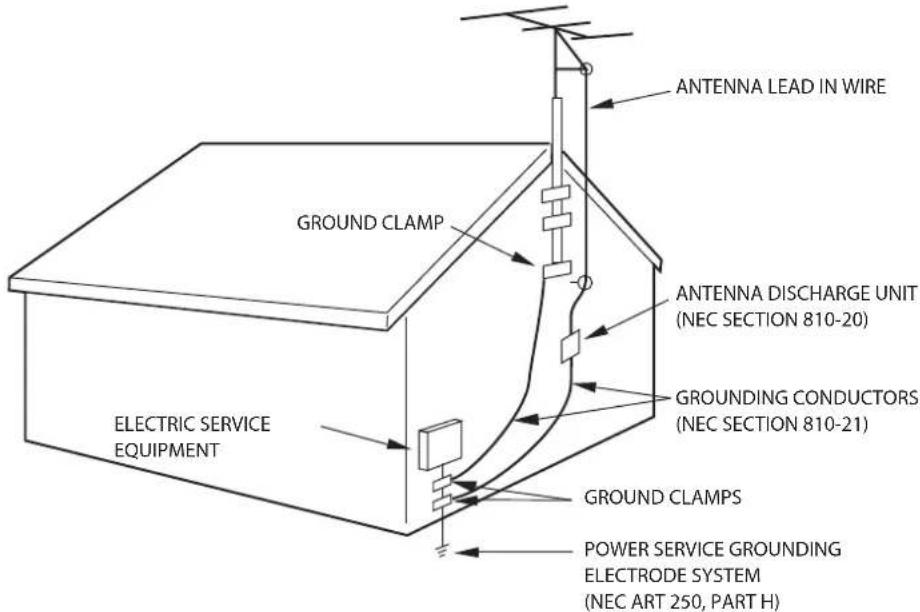

External Television Antenna Grounding

If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and static charges.

Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of the grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements of the grounding electrode.

Lightning Protection

For added protection of the TV during a lightning storm or when it is left unattended or unused for long periods of time, unplug the TV from the wall outlet and disconnect the antenna or cable system.

Power Lines

Do not locate the antenna near overhead light or power circuits, or where it could fall into such power lines or circuits.

DTV Transition Advisory

As of June 12, 2009, all U.S. television stations have switched to digital broadcasting. As a result, owners of analog television sets must connect a digital-to-analog converter box to the television set or subscribe to cable or satellite TV to receive over-the-air TV. Analog-only TVs continue to work as before to receive low power, Class A or translator television stations and with cable and satellite TV services, gaming consoles, VCRs, DVD players, and similar products.

For more information about the DTV transition, visit www.dtv.gov.

FCC's Consumer Center

Email: [e-mail]

Phone: 1-888-CALL-FCC (1-888-225-5322)

Fax: [phone]; or writing to:

Mail: Federal Communications Commission

Consumer and Governmental Affairs Bureau

Consumer Inquiries and Complaints Division

445 12th Street, SW

Washington, DC 20554

Contents

Important Safety Instructions ....3

Television Antenna Connection Protection ...6

DTV Transition Advisory ....7

Attaching the Stand 10

Unpacking the TV 10

JLE32BC3001 & JLE37BC3001 ....10

JLE42BC3001 & JLE47BC3001 ....11

Removing the Stand 11

Package Contents ......12

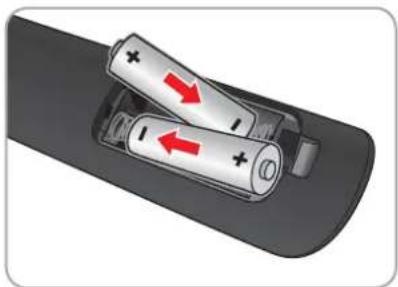

Remote Control Batteries ....12

Parts and Functions ......13

Front Views 13

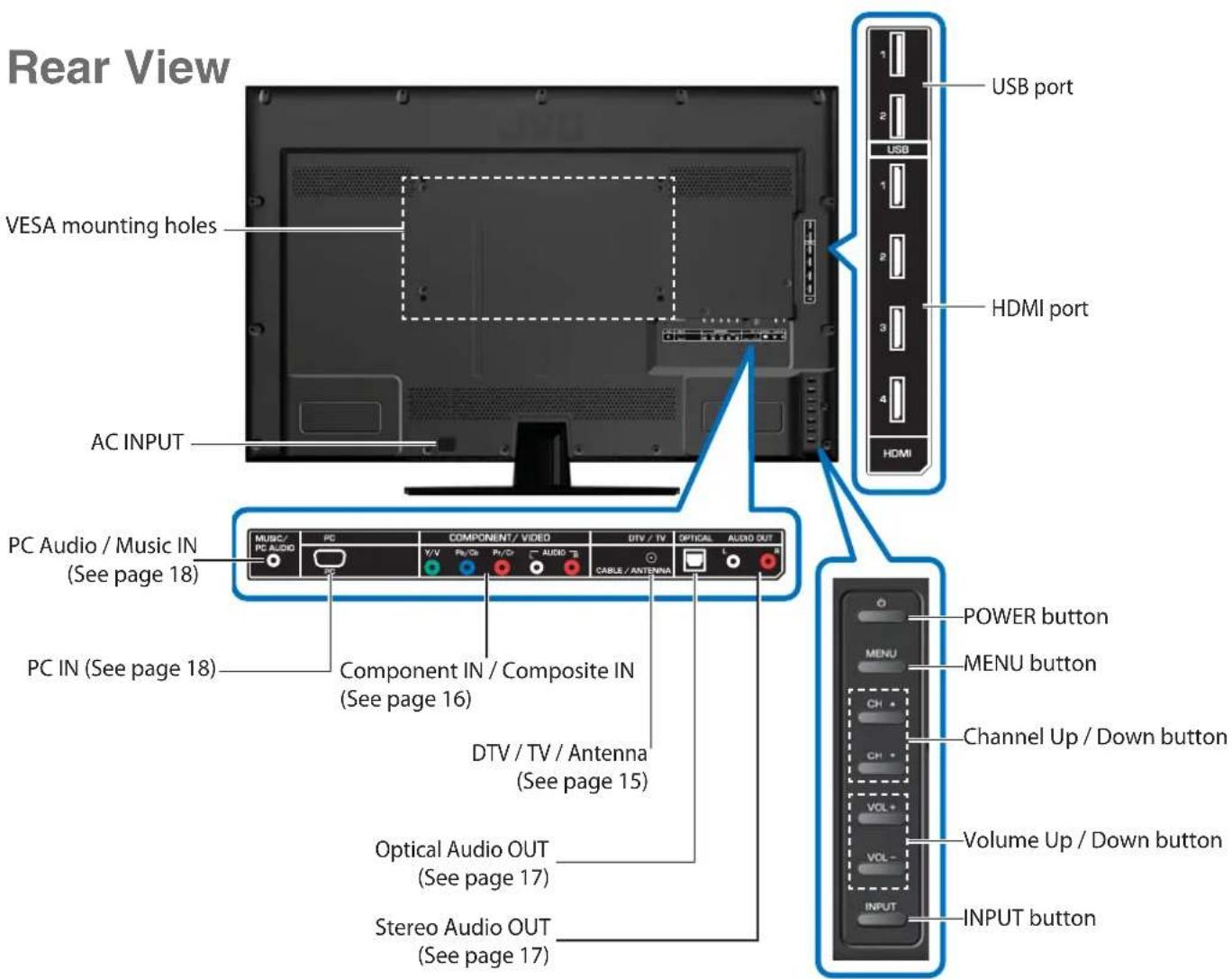

Rear View ....13

Remote Control 14

Making Connections ....15

Connecting Antenna / Cable ....15

Connecting HD Devices 15

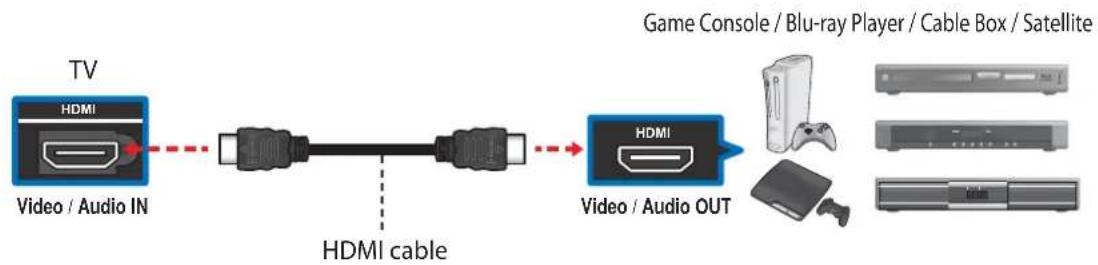

HDMI....15

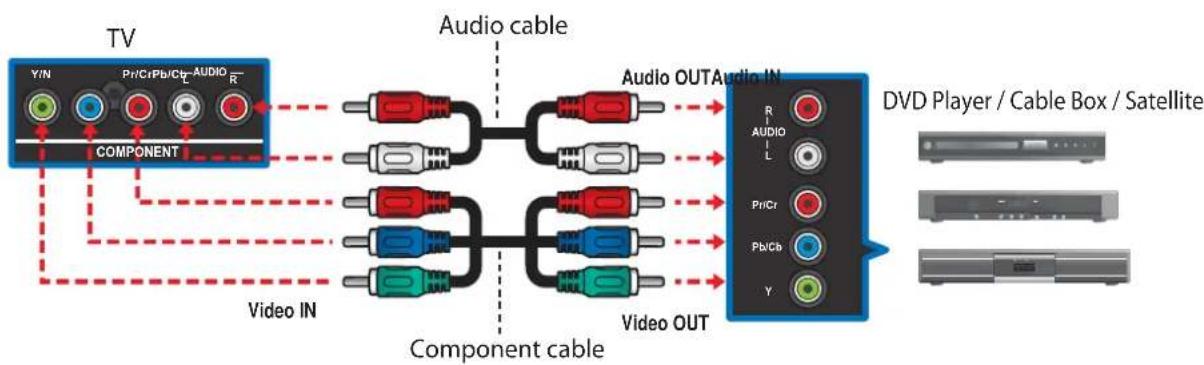

Component......16

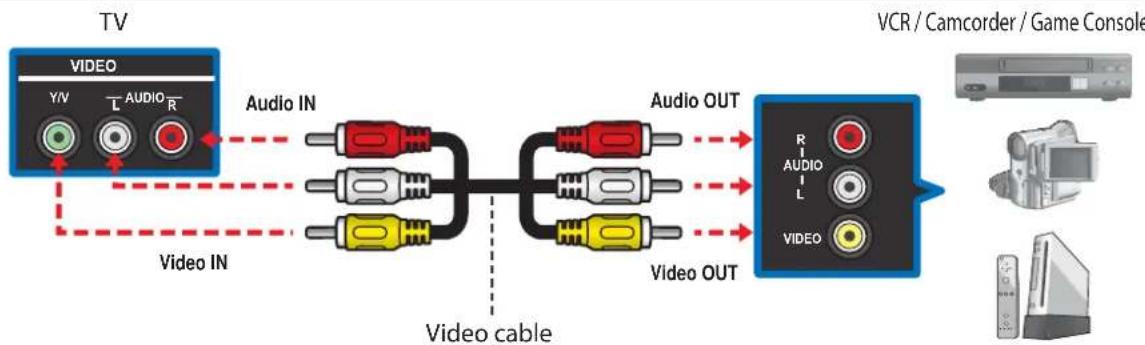

Composite 16

Connecting External Speakers /

Soundbar / AV Receivers 17

Digital Connection ....17

Analog Connection ....17

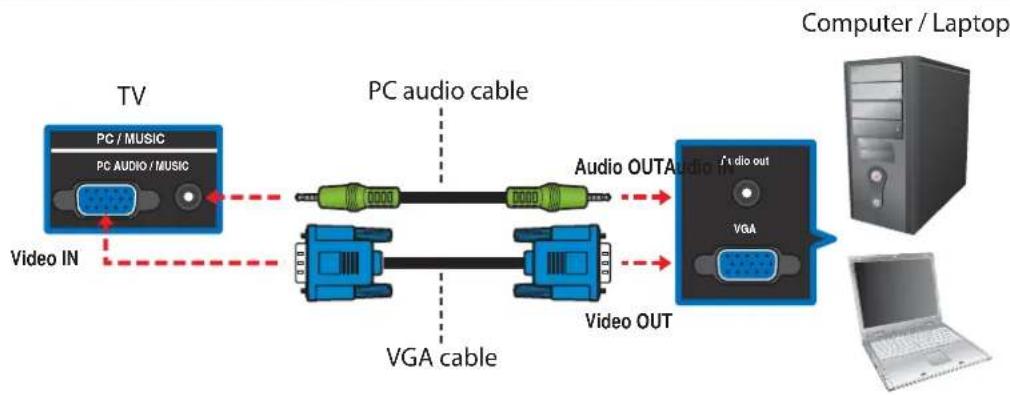

Connecting Computers and Laptops .....18

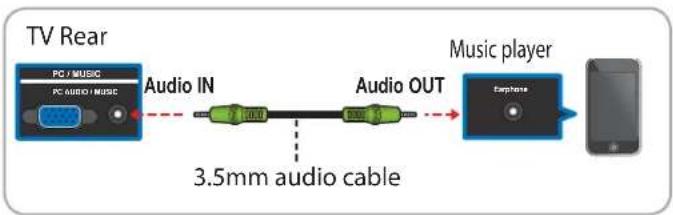

Connecting Music Port 18

Basic Operations ....19

Setup Wizard 19

Exit Retail Mode 20

Basic TV Operation ....20

Changing Channel 20

Mute Volume 21

Set Sleep Timer 21

Display Info....21

Set Aspect Ratio 21

Selecting Input Source 22

Multimedia Mode 22

Playing Multimedia Files ......22

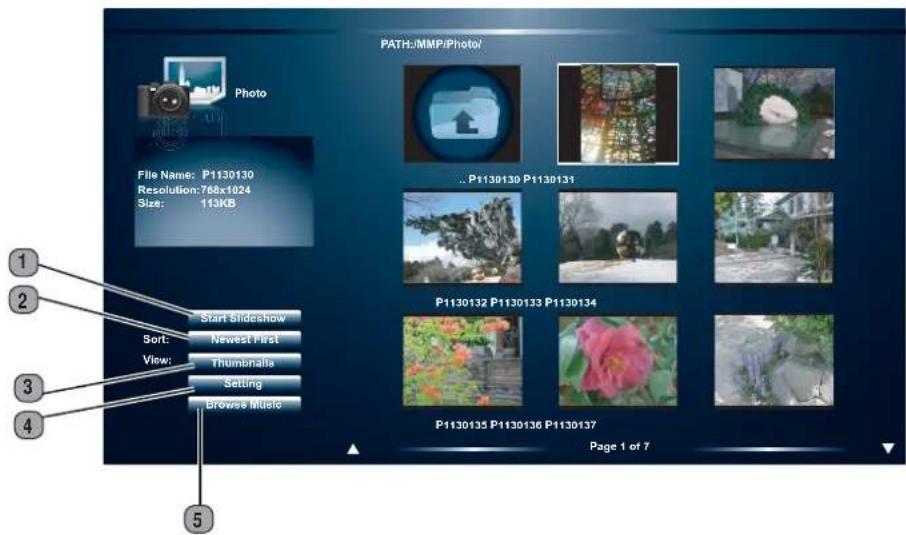

Multimedia: Photo 23

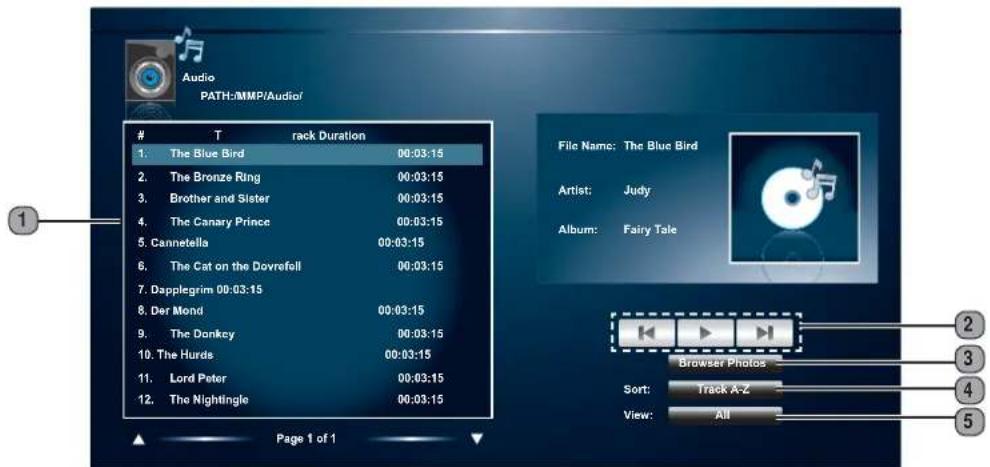

Multimedia: Music 23

Multimedia: Video 24

Audio Only Mode 24

Kensington Lock 25

Wall Mount 26

Adjusting the Menu Settings ....27

Quick Menu Operation 27

Input Menu 28

Picture Menu 28

Picture Mode 28

Backlight 28

Contrast 28

Brightness....28

Color 28

Tint 29

Sharpness 29

Size & Position 29

Color Temperature 29

Ambient Light Sensor....29

Advanced Picture 29

Reset Picture Mode 29

Audio Menu 30

SRS StudioSound ....30

SRS TruVolume 30

Bass 30

Treble....30

Balance 30

Lip Sync 30

TV Speakers 30

Audio Only 30

Digital Audio Out ....30

Analog Audio Out 30

Equalizer Settings ....30

Reset Audio Mode ....30

Setup Menu 31

Name Input 31

Game Mode 31

CEC Settings 31

Menu Language 31

Time & Local Settings 32

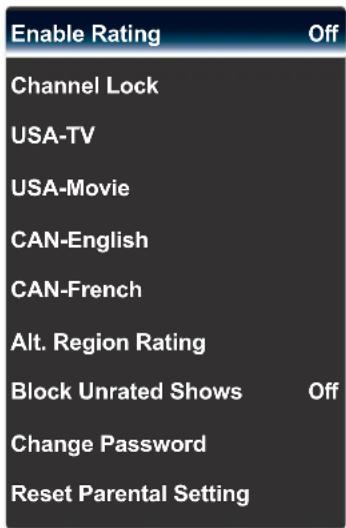

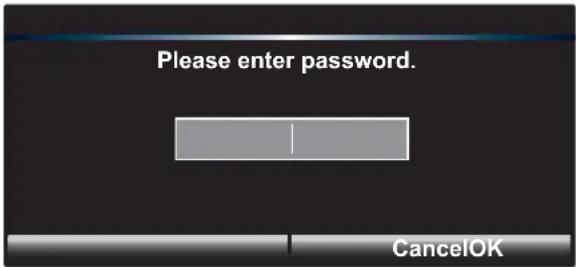

Parental Control 32

Setup Wizard 33

System Information 33

Reset All Settings ....33

Picture-in-Picture (PIP) 33

PIP (Picture-In-Picture) 33

POP (Picture-Over-Picture) 34

Closed Caption 35

Channel Menu 35

Select Antenna / Cable 35

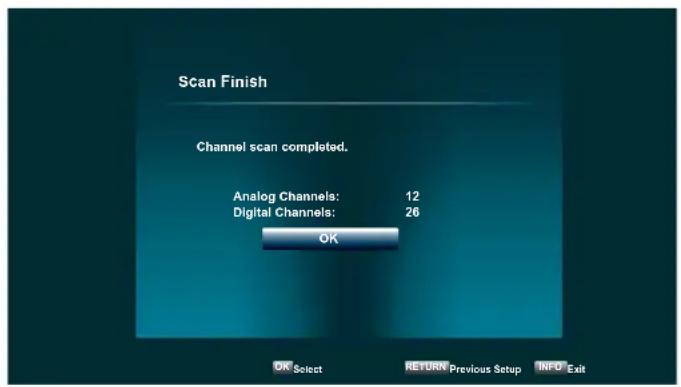

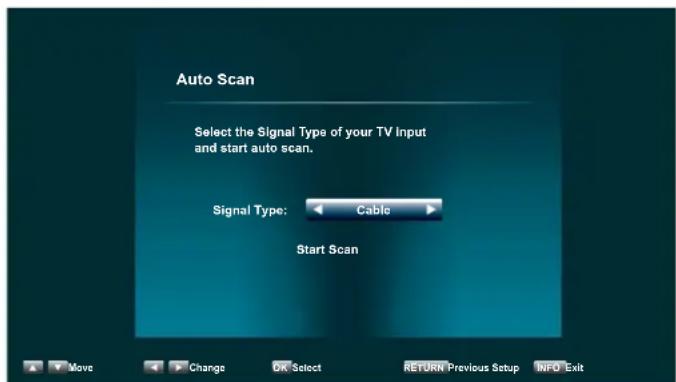

Scan Channels 35

Add Channel 36

Delete Channel ....36

Sleep Timer 36

Appendix 37

Supported Input Source for PIP/POP ....37

Supported Resolution 37

Troubleshooting....38

Specifi cations ....39

Limited Warranty 41

Product Registration 43

Attaching the Stand

The stand installation varies depending on model. Perform the installation according to the instructions of your TV model.

Unpacking the TV

1 Remove the remote control, power cord, and other accessories from the foam and caps.
2 Remove the top foam caps.

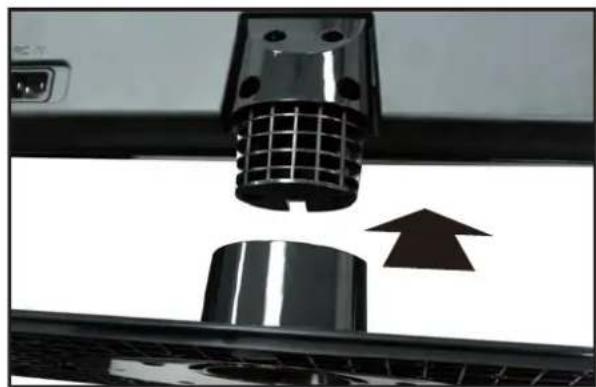

3 Remove the stand.
4 Remove the TV from the box.
5 Place the TV face down on a flat and clean surface.
6 Attach the stand according to the instructions of your TV model.

JLE32BC3001(32") & JLE37BC3001(37")

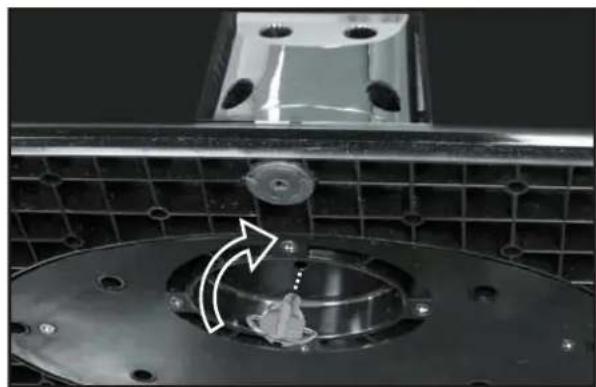

1 Connect the TV's neck to the stand.

Close-up of a mechanical press or printer component with a metallic cylindrical base and a grid-patterned top, showing an upward arrow (no text or symbols visible)

2 Secure the base with the provided thumbscrew.

Close-up of a mechanical component with a circular recess and internal features, showing no visible text or symbols.

JLE42BC3001(42") & JLE47BC3001(47")

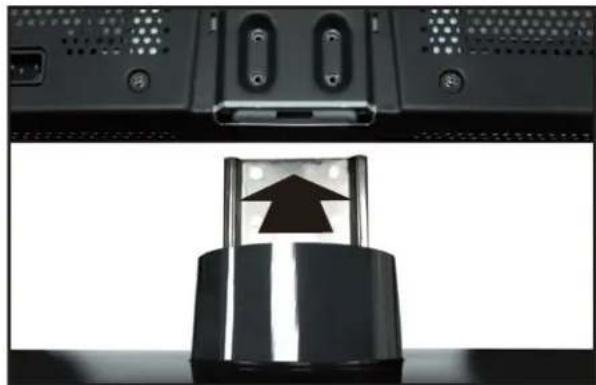

1 Align the metal neck of the stand to the slot at the back of the TV and insert the neck into the slot.

Black-and-white photo showing a computer monitor with an upward arrow emerging from its screen, placed on a stand (no text or symbols visible)

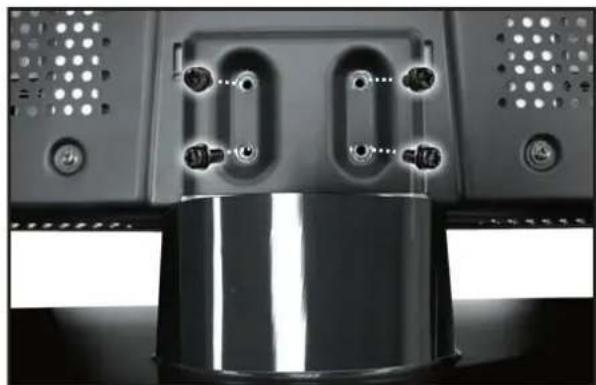

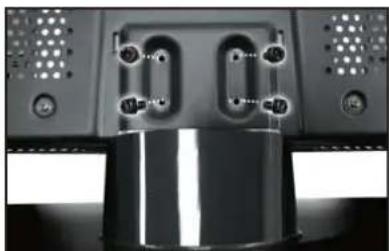

2 Align the bottom four screw holes with the neck and stand, and secure with the provided four screws and screwdriver.

Close-up of a metallic mechanical component with multiple mounting holes and a cylindrical base (no visible text or symbols)

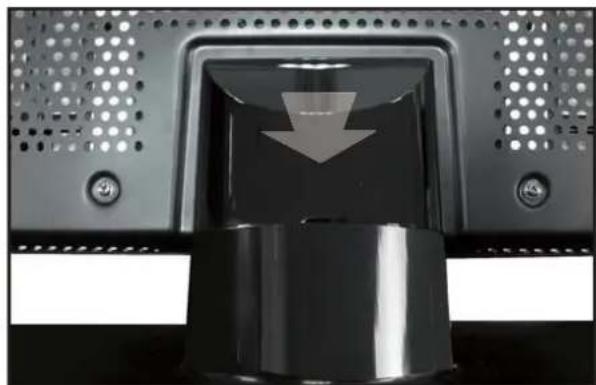

3 Insert the neck cover into the slot and attach it firmly until it locks into place.

Close-up of a metallic mechanical component with a downward arrow indicator, mounted on a perforated metal panel (no text or symbols visible)

Removing the Stand

When the TV needs to be transported, remove the stand and pack the TV back in the carton. To remove the stand, perform the assemble steps in reverse order according to your TV model.

Package Contents

Check if the following items are included in your package.

LED TV

Front view of a black flat-screen monitor with a blank screen (no text or symbols visible)

Quick Start Guide

Remote Control

User Manual

Batteries

Power Cord

Remote Control Batteries

1 Push the tab, then lift to open the cover.

Close-up of a black remote control mouse with a red circular arrow indicating rotation (no text or symbols)

3 Close the battery cover.

Diagram of a black remote control panel with a red circular arrow indicating rotation (no text or symbols)

2 Insert the batteries, making sure the [+] and [-] polarities are correct.

Diagram of two batteries inside a remote control casing, showing red arrows indicating charging direction (no text or symbols)

Battery Precautions:

Be sure to follow the correct polarity. Incorrect installation may cause battery leakage or damage the remote control. Always replace batteries in pair. Do not combine a used battery with a new one.

Do not use different battery types together (e.g. "Alkaline" and "Carbon-zinc").

If the remote control is not to be used for a long period of time, remove the batteries to prevent battery leakage.

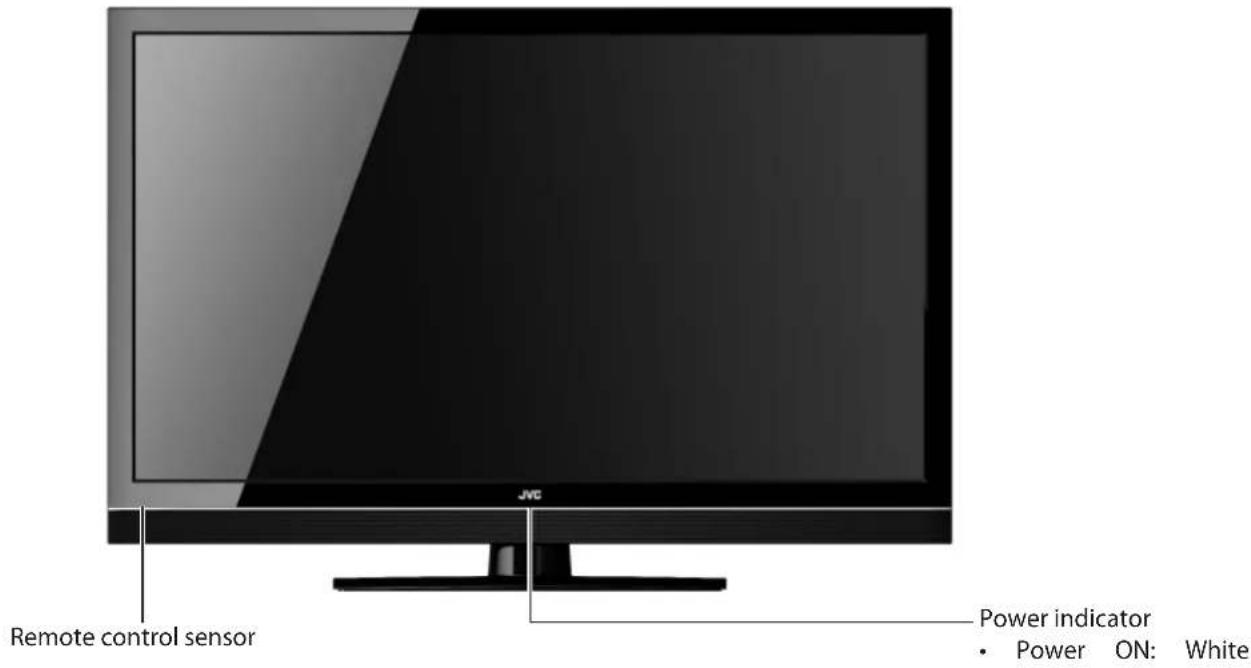

Front Views

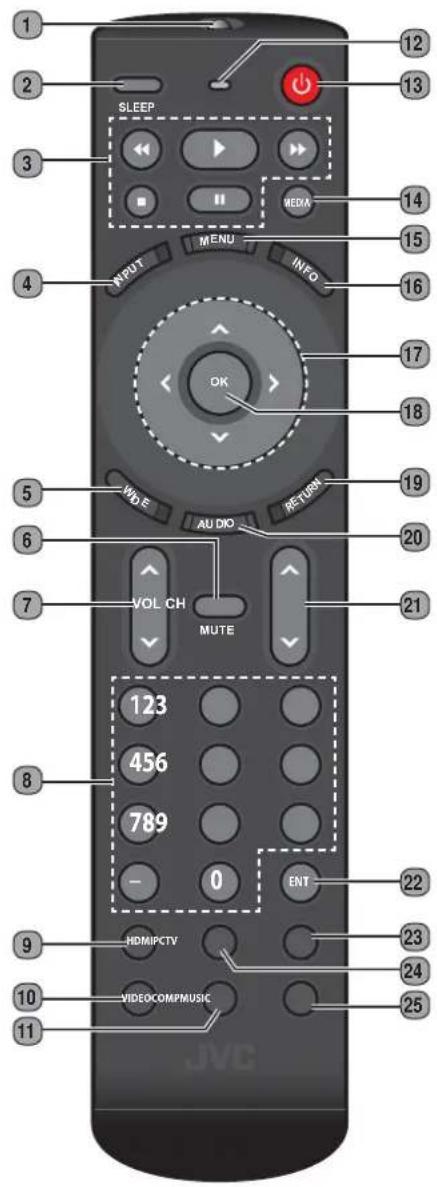

Remote Control

1 IR Transmitter: Sends remote control signal to the TV.

2 SLEEP button: Select a sleep mode timer (Off, 30 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes).

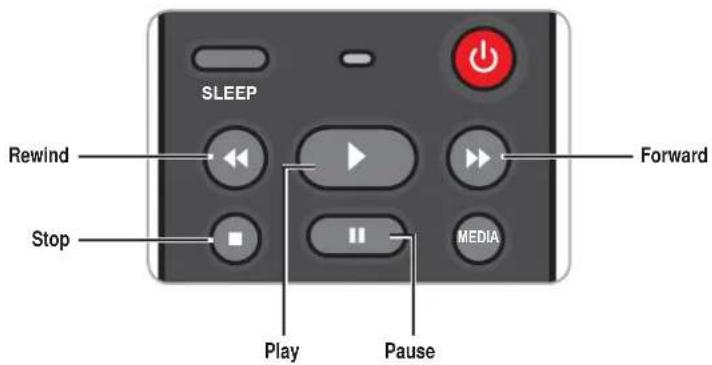

3 Playback controls: The buttons are used for Photo, Music, Video, and HDMI CEC function.

4 INPUT button: Change the input source.

5 WIDE button: Change the display mode (Normal, Wide, Zoom Panoramic).

6 MUTE button: Turn the TV audio off or on.

7 VOL (Volume) buttons: Press VOL ▲ to increase volume or VOL ▼ to decrease volume.

8 Number pad (0\~9, -): Use the number keys to directly change channel.

9 HDMI button: Press to directly set HDMI as the input source signal.

10 VIDEO button: Press to directly set Composite VIDEO as the input source signal.

11 COMP button: Press to directly set Component as the input source signal.

12 Remote Control LED: Lights red when a button is pressed.

13 POWER button: Turn the TV on or off.

14 MEDIA button: Enter USB media mode.

15 MENU button: Display the MENU screen.

16 INFO button: Display program information (if available).

17 Direction buttons ▲ / √/ ◀ > Navigate the menu, select options, or adjust settings value.

18 OK button: Enter a menu or confirm an option.

19 RETURN button: Return to a previous menu or screen.

20 AUDIO button: Enter Audio Only mode and turn the screen off. See page 24.

21 CH (Channel) buttons: Use CH ▲ to increase the channel number or CH ▼ to decrease the channel number.

22 ENT (Enter) button: Access the entered channel number or display the Channel list screen.

23 TV button: Directly set TV as the input source signal.

24 PC button: Directly set PC as the input source signal.

25 MUSIC button: Directly set Music as the input source signal.

Notes:

To obtain best results, use the remote control with a proper distance from the TV and ensure that there are no obstacles between them.

Aim the remote control transmitter to the remote control sensor on the TV.

Do not expose the remote control to direct sunlight. This may affect the performance of the remote control.

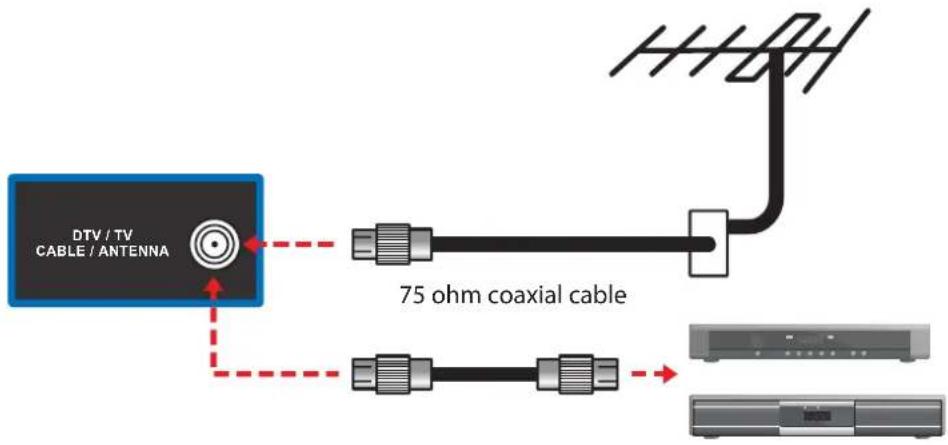

Connecting Antenna / Cable

Connect the 75 ohm coaxial cable directly to the DTV/TV Cable/Antenna jack of the TV.

Connecting HD Devices

You can connect different devices to the TV using HDMI, DVI, Composite, or Component connections. Check the type of connection available on your device.

HDMI

HDMI connection transmits both digital video and audio signals from an HDMI device to the TV.

Note: The HDMI cable is not included with the TV.

Component

Note: The component and audio cable are not included with the TV.

Composite

Note:

• The video and audio cable are not included with the TV.
- When connecting to devices, the Video IN color may not match with the video cable.

Connecting External Speakers / Soundbar / AV Receivers

Digital Connection

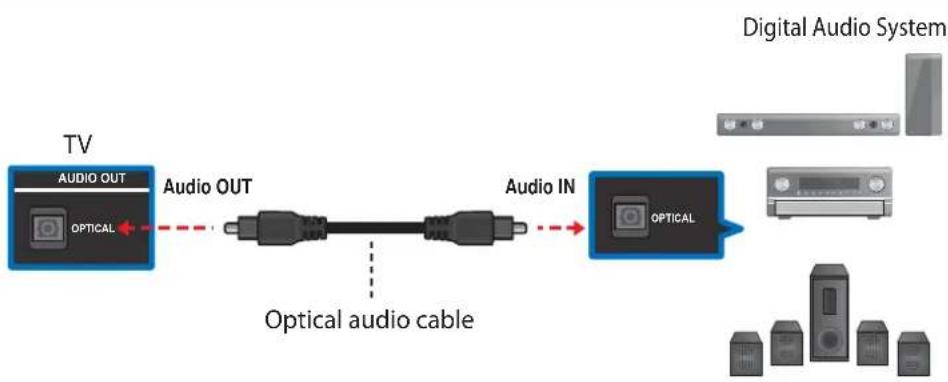

Connect the SPDIF/Optical audio cable to the Audio OUT optical port of the TV and the optical port of the soundbar, AV receiver, or audio system.

Note:
• The optical audio cable is not included with the TV.

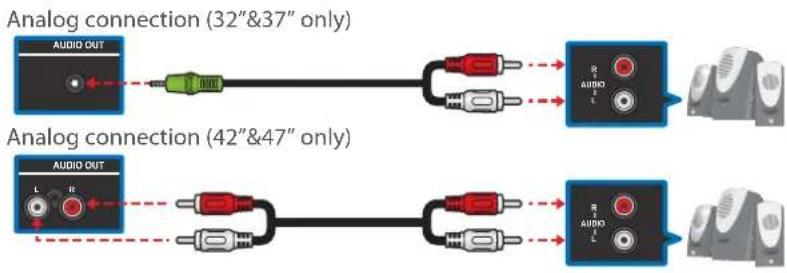

Analog Connection

Connect the audio cable to the Audio OUT L/R port of the TV and the port of the soundbar, AV receiver, or audio system.

Connect to External Speakers/Amplifiers

Note:
• The audio cable is not included with the TV.

Connecting Computers and Laptops

1 Connect one end of a VGA cable to the PC port of the TV.

2 Connect the other end of the VGA cable to the RGB port of the computer or laptop.

3 For audio, connect a 3.5mm audio cable to the PC audio port of the TV and audio out port of the computer or laptop.

Note:

• The VGA and audio cable are not included with the TV.
• The TV will automatically go into power saving mode and turn off when no signal is detected for a period of time.
• The TV is best viewed at native resolution (1920 x 1080 @ 60Hz).
- If the screen is abnormal, press the MENU button to enter the TV's menu screen and go to Picture->Size & Position->Auto Adjust to adjust the picture automatically.

Connecting Music Port

The TV supports music playback from portable music players, such as an MP3 player or iPod™.

1 Connect one end of an audio cable to the Music/PC Audio IN port of the TV, then connect the other end to the Audio OUT port of the music player.

2 Press MUSIC on the remote control to change to the music port. The Music screen is displayed. Music playback from the music player is heard through the TV speakers.

Setup Wizard

The Setup Wizard will assist you with setting up your TV for the first time. Please follow the instruction carefully.

Note: If you would like to setup over-the-air or cable programming, make sure the antenna or cable TV system is connected. See page 15 for setup.

1 When you turn on the TV for the first time, the Setup Wizard screen will appear.

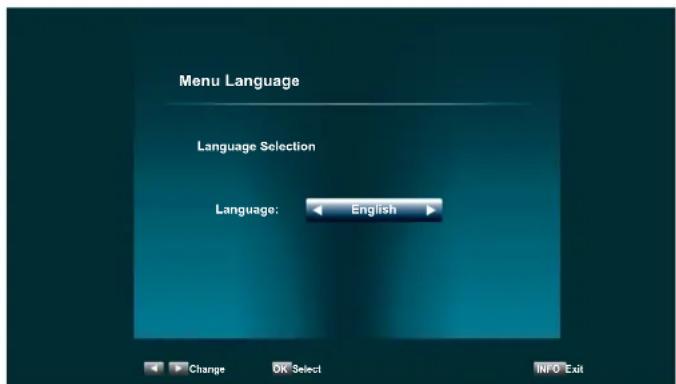

2 Press to select the menu language, then press OK.

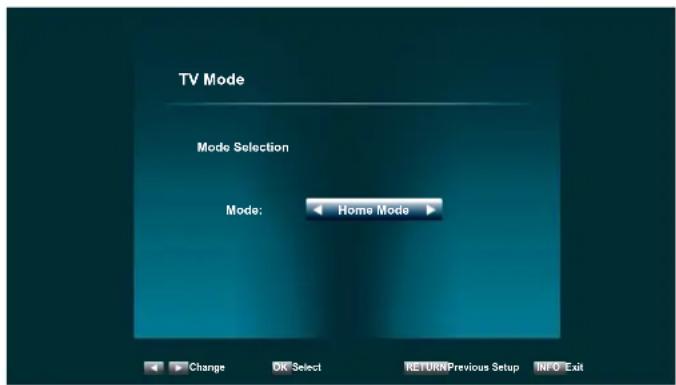

3 Press o select the TV Mode, then press OK.

TV Mode options :

• Home Mode: Select this mode for in home use.
• Retail Mode: Select this mode for in store demo.

Note:

• Retail mode is for retailers only.
• To exit Retail mode, see page 20.

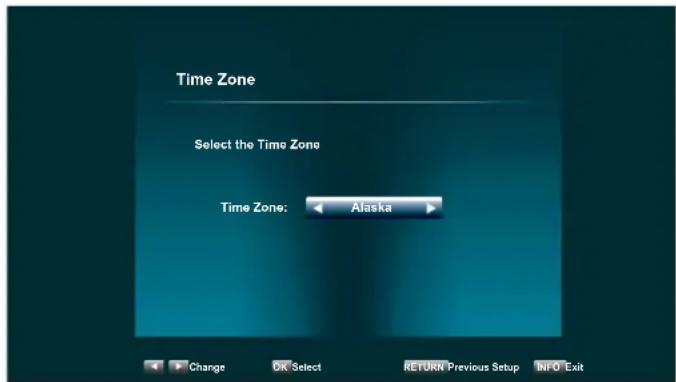

4 Press to select the Time Zone, then press OK.

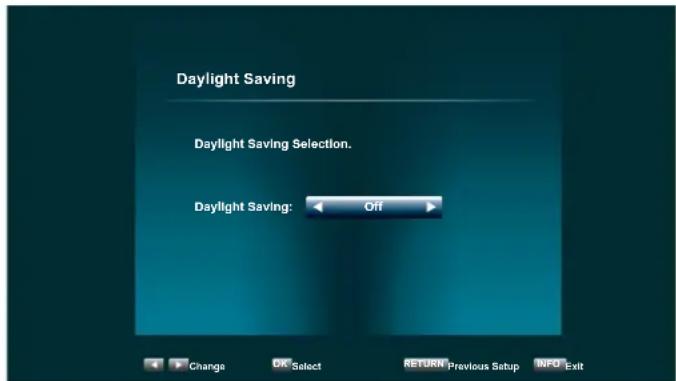

5 Press to set Daylight Saving Time "ON" or "OFF", then press OK.

6 Press to select the TV service, then press OK.

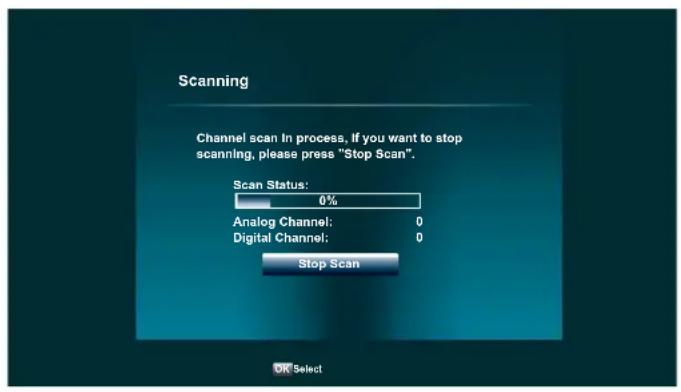

7 Press OK to start channel scan.

Note:

• Scanning may take some time to complete.
• Select Stop Scan to cancel the auto scan at anytime.

8 When auto scan is complete, press OK to continue.

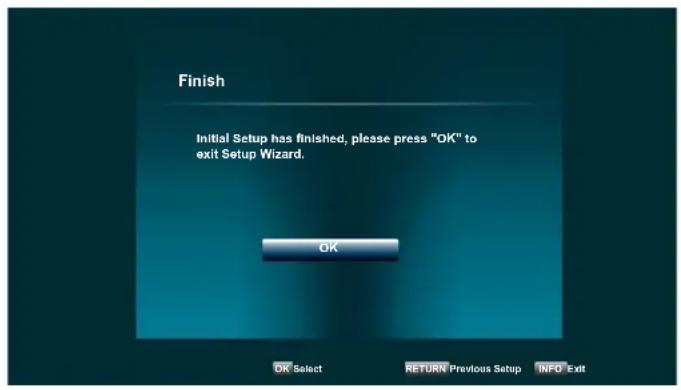

9 Press OK to complete setup.

Exit Retail Mode

1 Press RETURN.
2 Press to select "OK", then press OK to confirm.

Basic TV Operation

Changing Channel

Press the number buttons to directly select channels.

Note: After pressing the number buttons, there will be a few seconds delay before the TV changes channel. To change to the channel right away, press ENT after pressing the number buttons.

To Browse Channel

Press the Channel up/down buttons on the remote control or ^CH , ^CH on the TV to increase or decrease the channel.

To Select Analog Channels

1\~9 Press 1\~9 as needed. Example, to select channel 2, press 2, then press ENT.

10\~99 Press the 2 digits in order. Example, to select channel 15, press 1, 5, then ENT.

100\~135: Press the 3 digits in order, Example, to select channel 130, press 1, 3, 0, then press ENT.

To Select Digital Channels

Press the first 3 digits, then press-, followed by the remaining number. Example, to select channel 15-1, press 1, 5, -, 1, then press ENT.

To Select by Channel List

All channels found from channel scan are listed on the Channel List screen. You can select channels from this screen.

1 Press ENT to display the Channel List screen.
2 Press √ to select a channel number, then press ENT.
3 Press RETURN to close the Channel List screen.

Mute Volume

Press MUTE to turn the sound off. To turn the sound back on, press MUTE again or any of the VOL buttons.

Set Sleep Timer

Sleep timer sets the TV to automatically turn off after a preset amount of time. After setting a preset amount of time, the TV will automatically turn off after the timer has expired.

1 Press SLEEP to display the Sleep screen.
2 Press SLEEP repeatedly or press √ or ▲ to scroll through the options, then press OK.

To cancel sleep, set the timer to Off.

Display Info

Press INFO to display the channel or input information on the screen.

Press INFO again to hide the Info screen.

Set Aspect Ratio

1 Press WIDE to display the Wide menu.
2 Press WIDE repeatedly or press √ or ▲ to scroll through the options, then press OK.

Normal

When watching a 4:3 content, the TV displays a standard picture with black side bars. When viewing a 16:9 content, it displays a full picture.

Wide

When displaying a 4:3 content, the picture is stretched horizontally to fill the width of the screen. When watching a 16:9 content, the image is slightly overscan.

Simple diagram with five circles arranged in a rectangle, no text or symbols present

Zoom

The entire picture is uniformly enlarged to retain its original proportion. However, some parts of the picture may be hidden.

Panoramic

The picture is stretched horizontally on the left and right sides to fill the width of the screen. The center of the picture is not stretched.

Stretch

The picture is stretched horizontally on the left and right sides.

Note:

• Panoramic mode is only available on 4:3 contents.
• Stretch is only available on 16:9 contents.

Aspect Ratio options in PC mode.

Normal

When watching a 4:3 content, the TV displays a standard picture with black side bars. When viewing a 16:9 content, it displays the full picture, pixel to pixel.

Simple diagram with five circles arranged in a grid pattern, no text or symbols present.

Stretch

When watching a 4:3 content, the picture is stretched hozontally to fill the width of the screen. When watching a 16:9 content, the picture is stretched horizontally on the left and right sides.

Simple diagram with five circles arranged in a rectangle (no text or symbols)

Selecting Input Source

The TV provides various ways to select the input source:

On the TV Panel

- Press INPUT repeatedly to scroll through the input source options. The highlighted input source is selected after a few seconds.

On the Remote Control

• Press INPUT repeatedly to scroll through the input source options, then press OK to select the input.
• To directly select an input source, press the direct input button located at the bottom of the remote control.

Multimedia Mode

Depending on your TV model, the TV allows you to play slide shows, videos, and music from a USB memory stick.

Note:

• Only supported multimedia files can be played back.
• Music and video playback are not supported in JLE32BC3001(32") and JLE37BC3001(37"). Both models play slide show of image files only.

Playing Multimedia Files

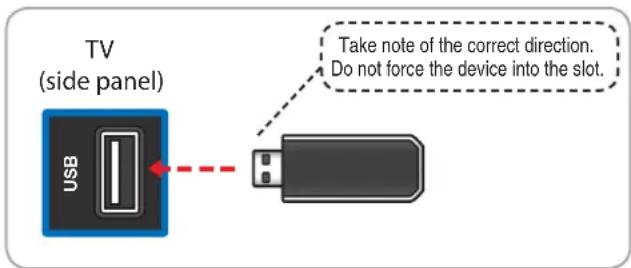

1 Insert the USB memory stick into the USB slot of the TV.

2 A message box will appear on the screen. Press for to select OK.

3 Press OK to select your option.
4 Press √ to select the USB source, then press OK.
5 If prompted, press √ to select Audio, Video, or Photo player, then press OK.

6 The displayed screen varies depending on the media type you selected.

Press √, ▲or to select a file or function, then press OK.

Multimedia: Photo

1 Start Slideshow button: Play slide show.
2 Sort button: Change sorting order. The label on this button varies depending on the current sorting order. (Name A-Z, Name Z-A, Newest First, Oldest First)
3 View button: Change view mode. The button label varies depending on the current view. (Folders, Thumbnails)
4 Setting button: Change slide show settings.
5 Browse Music: Switch to Multimedia: Music.

Multimedia: Music

1 File directory: Displays the music files.
2 Playback controls: Use to go to the previous track, play/pause, or go to next track.
3 Browser Photos button: Switch to Multimedia: Photo.
4 Sort button: Change sorting order. The label on this button varies depending on the current sorting order. (Track A-Z, Track Z-A, Newest First, Oldest First)
5 View button: Change view mode. The button label varies depending on the current view.

Multimedia: Video

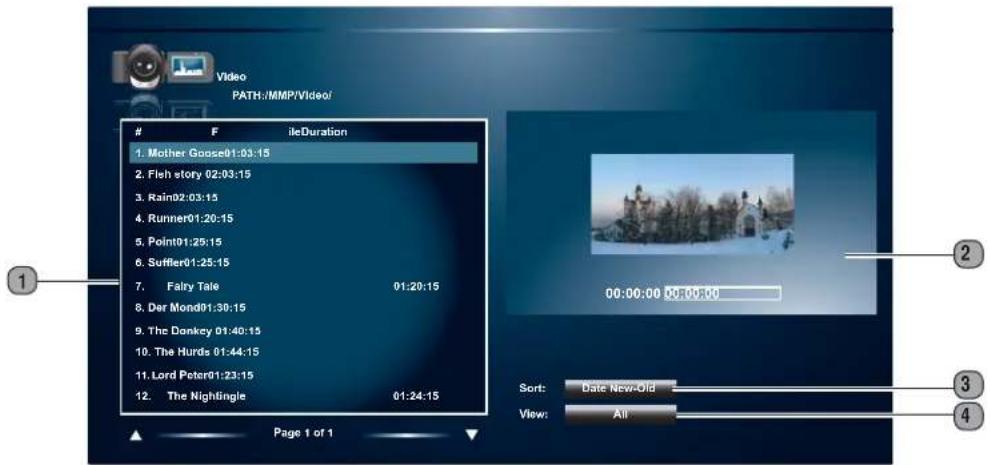

1 File Directory: Displays the video files.
2 Preview screen: Displays video information such as video length.
3 Sort button: Change sorting order. The label on this button varies depending on the current sorting order.
4 View button: Change view mode. The button label varies depending on the current view.

7 During media playback, press the playback controls on the remote control to perform its function.

8 To exit USB mode, press MEDIA. Or, to go back to a previous screen, press RETURN.

Note: To playback files in Multimedia mode at a later time, press MEDIA.

Audio Only Mode

While watching TV or playing music, you can set the TV to Audio Only mode to turn off the TV display and save power.

1 Press AUDIO to activate Audio Only mode. A message appears on the screen, then after a few seconds, the TV display turns off.
2 Press any button to turn on the display again and exit Audio Only mode.

Kensington Lock

Security Deterrent Kensington Lock

The JVC 3001 Series provides you with security deterrent slot hole that are compatible to Kensington Locks. This helps securely affix the TV physically to other objects. The appearance and locking method differs depending on the manufacturer. Refer to the manual provided with the Kensington Lock for information on installation.

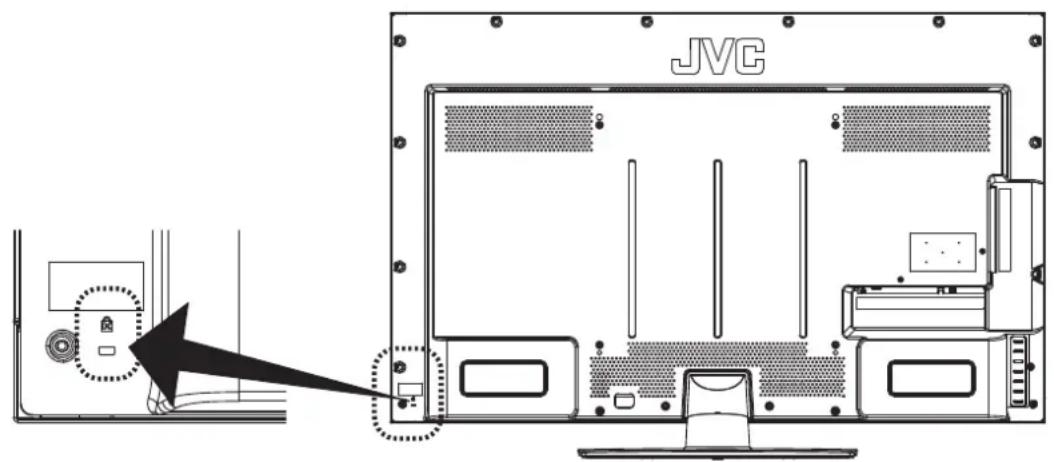

The location of the security deterrent slot differs depending on the TV model. Please refer to your TV model and security deterrent slot location below:

JLE32BC3001(32") & JLE37BC3001(37")

JLE42BC3001(42") & JLE47BC3001(47")

Note: The Kensington Lock is not included with the product.

Wall Mount

Installing Wall Mount

The wall mount kit allows you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the wall mount kit.

Note: The wall mount kit is not included with the product.

For product protection and safety reasons, JVC strongly recommends contacting a technician or professional for assistance installing the wall mount and setting up the TV. If you decide to install the wall mount and TV without the assistance of a technician or professional, JVC will not be responsible for any damage to the product or injury to yourself or others.

Do not install your wall mount while your TV is turned on. It can result in personal injury due to electric shock

1 Disconnect all cables connected to your TV.
2 Carefully place the TV face down on a flat and clean surface. It is recommended to place the TV cover or protection sheet between the TV and flat surface.
3 Using a philips-head screwdriver, remove the screws on the neck of the TV.

Close-up of a metallic mechanical component with mounting holes and a cylindrical base (no visible text or symbols)

4 Remove the neck and stand from the TV.

Close-up of a black USB flash drive with a metallic tip, mounted on a reflective surface (no visible text or symbols)

5 Attach your wall mount and TV to the wall, carefully following the instructions provided with the wall mount.

Wall Mount Specifications (VESA)

Product Model # VESA hole pattern (mm) Standard Screw Screw Length (mm)
JLE32BC3001 (32")	200 x 100 M4 10mm
JLE37BC3001 (37")	200 x 200 M4 10mm
JLE42BC3001 (42")	400 x 200 M6 16mm
JLE47BC3001 (47")	400 x 400 M6 16mm

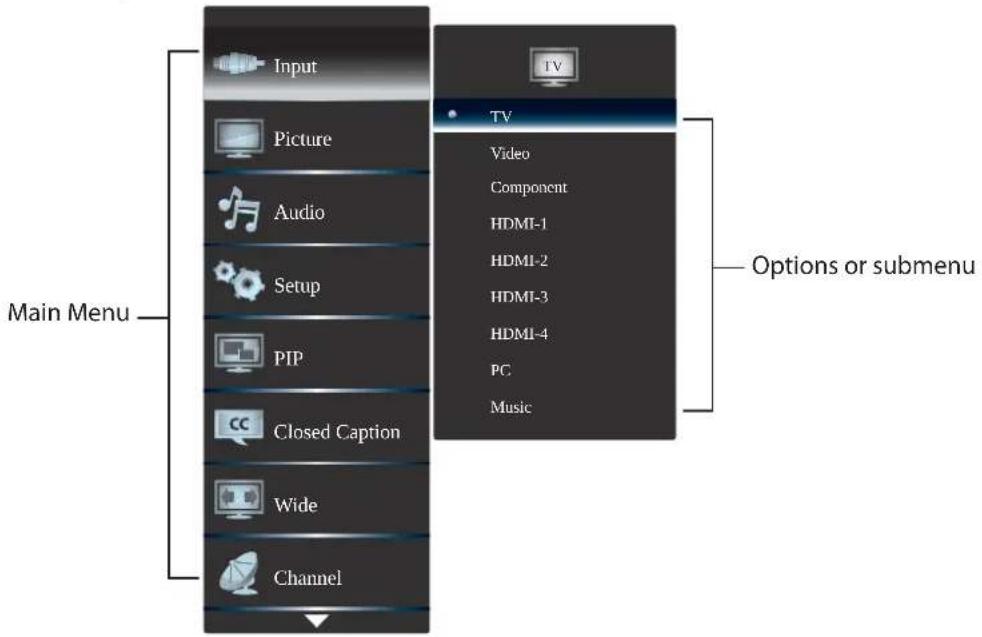

Quick Menu Operation

	Remote Control TV Panel
1 Display the menu.	Press MENU.	Press MENU.
2 Select a menu option.	1. Press √ or ▲ to select a menu or option.2. Press OK or > to enter a menu or confi rm an option.	1. Press CH ▼ or CH ▲ to select a menu or option.2. Press INPUT to enter a menu or confi rm an option.
3 Adjust or select the setting.	1. Press √ or ▲ to select an option. Or, press <or > to adjust a setting, such as Brightness.2. Press OK to apply the settings.	1. Press CH ▼ or CH ▲ to select an option. Or, press VOL - or VOL + to adjust a setting, such as Brightness.2. Press INPUT to apply the settings.
4 Exit the menu.	To exit the menu, press RETURN. Or, to return to a previous screen one at a time, press MENU or ◀	Press MENU.

Input Menu

Select the input source signal.

• TV: To watch analog or digital TV channels.
- Video: To use VCRs, camcorders, or game consoles connected via composite connection.
- Component: To use VCRs, camcorders, or game consoles connected via component connection.

- HDMI 1 (ARC) / 2 / 3: To use devices connected via HDMI connection.

- HDMI 4 (For JLE4BC3001(42") & JLE47BC3001(47") only): To use devices connected via HDMI connection.

- PC: To use the TV as a monitor when a computer or laptop is connected via the PC IN jack. See page 36 for supported resolution & timing.

• Music: To play music from a music player connected via music port.

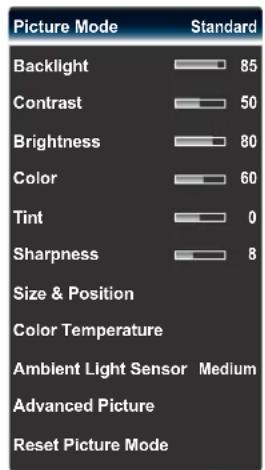

Picture Menu

Adjust picture options such as birghtness, contrast, and advanced picture settings.

Picture Mode

Select the picture mode.

Custom For custom picture settings.
Standard For standard picture settings.
Movie For moving pictures such as movies.
Game	For fast and dynamic pictures suitable with playing games.
Vivid For bright and vivid picture settings.
Sport Suggested settings for sporting events.

Backlight

Adjust the backlight that affects the overall brilliance of the picture. (0 \~ 100)

Contrast

Adjust the white level in the picture. Low contrast makes pictures look dark, high contrast makes pictures washed out. (0 \~100)

Brightness

Adjust the brightness setting. (0 \~100)

Color

Adjust the amount of color level in the picture. (0 \~100)

Tint

Adjust the picture hue. (-50 \~ 50)

Sharpness

Adjust the sharpness of the edges of elements in the picture.

Size & Position

Auto Adjust Automatically adjust the picture size and position.

Horiz. Position / Vertical Positon Adjust the horizontal / vertical position of the picture.

Horizontal Size / Vertical Size Adjust the horizontal / vertical size of the picture.

Color Temperature

Color Temperature	Apply a preset color temperature setting. (Custom / Cool / Natural / Warm)
Red / Green / Blue Gain	Adjust the red / green / blue gain settings according to your preference.
Red / Green / Blue Off set	Adjust the red / green / blue off set settings according to your preference.
Reset Color Temperature Reset	the color temperature to default settings.

Ambient Light Sensor

Select the sensitivity of the ambient light sensor to automatically adjust to light changes in the room. (Off / Low / Medium / High)

Advanced Picture

CrystalColor^TM	CrystalColor^TM produces more vivid and crisp color pictures. (Off / Normal / Rich)
Dynamic Contrast	Dynamic contrast automatically enhances the image for greater picture details.
Adaptive Backlight Enable or disable adaptive backlight. (Off / On)
Noise Reduction	Reduce the noise level.(Off / Low / Medium / High)
Digital NR	Reduce noise level of digital signals.(Off / Low / Medium / High)
CrystalMotion^TM (Only JLE42BC3001/47BC3001)	CrystalMotion^TM produces sharper motion pictures. (Off / Clear / Standard / Smooth)
CrystalMotion^TM Demo(Only JLE42/47BC3001)	Show a demo of the CrystalMotion^TM feature.
Film Mode	Produce smoother motion picture when viewing movies .

Crystal ColorTM	Off
Dynamic Contrast	Off
Adaptive Backlight	Off
Noise Reduction	Off
Digital NR	Off
Crystal MotionTM	Off
Crystal MotionTM Demo
Film Mode	Off

Reset Picture Mode

Reset the picture mode settings to default.

Audio Menu

SRS StudioSound

When SRS StudioSound is set to "On", the TV speakers produce impressive surround sound with rich bass, clear dialog, and high frequency detail.

Note: When SRS StudioSound is on, Equalizer Settings menu is not available.

SRS TruVolume

When SRS TruVolume is set to "On", volume level is controlled to produce a consistent level.

Bass

Adjust the bass level to your preference. (-12 \~ 12)

Treble

Adjust the treble level to your preference. (-12 \~ 12)

Balance

Adjust the audio level of the L/R channels of the speakers to your preference. (-10 \~ 10)

Lip Sync

Adjust to match the movements and the lips of the person talking on the screen. (0 \~ 5)

TV Speakers

Turn the internal speakers on or off.

Audio Only

Output audio from the TV speakers but turn off the TV display. See page 24.

Digital Audio Out

Select the type of digital audio output. (Off / Dolby Digital / PCM)

Analog Audio Out

Select the type of analog audio output. (Fixed / Variable)

Equalizer Settings

Adjust the equalizer settings. (120Hz / 500Hz / 1.5KHz / 5KHz / 10KHz)

Reset Audio Mode

Reset the audio mode settings to default settings.

SRS StudioSound HD		On
SRS TruVolume		On
Bass		0
Treble		0
Balance		0
Lip Sync		0
TV Speakers		On
Audio Only
Digital Audio Out		PCM
Analog Audio Out		Fixed
Equalizer Settings
Reset Audio Mode

Setup Menu

Name Input

The Name Input feature of the TV allows you to add a label name on an input source.

To label an input source, perform the following steps:

1 Press MENU.
2 Press √ or ▲ to select "Setup", then press > or OK.
3 Press or to select "Name Input", then press or OK.
4 Press or to select "Input Source", then press or OK.
5 Press √ or ▲ to select the input source that you want to add a label name to, then press OK.
6 To select a custom label:

1. Press √ or ↗ to select "Input Labels", then press >or OK.

2. Press √ or ↗ to select "Custom" and press OK.

To enter desired label:

1. Press √ or ↗ to select the text box, then press OK.
2. Press √, ∧, to select a character, then press OK.
3. Press √, ∧, to select "OK", then press OK.

Press RETURN to close the menu screen.

Name Input
Game Mode	Off
CEC Settings
Menu Language	English
Time & Local Settings
Parental Control
Power Indicator	On
Setup Wizard
System Information
Reset All Settings

Input Source	Component
Input Labels	Custom
My Input

Game Mode

(For JLE42BC3001(42") and JLE47BC3001(47") only)

Turn Game Mode to "On" for fast interactive experience when playing video games on game consoles.

CEC Settings

CEC allows you to control devices using your TV remote control when the CEC devices are connected via HDMI.

CEC Function	Enable or disable CEC function.
Device Search If CEC Function is enabled, select to search for CEC devices.
System Audio Control	Connect to your device though Audio Return Channel-enabled HDMI Port (HDMI 1)

Menu Language

Select the on-screen menu language.

Time & Local Settings

Time Zone Select a location to apply the time zone. Daylight Saving Enable or disable daylight saving time.

Parental Control

The Parental Control feature allows you to control and restrict TV programs by Channel Lock, TV Rating, or Movie Rating.

Access Parental Control Menu

The Parental Control menu requires you to enter the password to access its submenu.

1 Press MENU.
2 Press √ or ▲ to select "Setup", then press > or OK.
3 Press √ or ▲ to select "Parental Control", then press > or OK.
4 Enter the 4-digit password. Press √, < or > to select "OK", then press OK to access the submenu options.

Note: The default password is "0000".

5 Press √ or ▲ to select the submenu options, then press > or OK to enter the submenu.

Restrict By Channel

Use the Channel Lock feature to restrict viewing a specified channel. Once locked channel is selected, the TV displays a blank screen.

1 In the "Parental Control" menu, press ▼ or ▲ to select "Channel Lock", then press ▷ or OK.
2 Press √ or ▲ to highlight a channel that you want to lock.
3 Press OK to mark and lock the channel.
4 Press <to return to the previous screen or press RETURN to close the menu screen.

Restrict By TV/Movie Rating

You can select which TV/Movie rating to lock for viewing.

1 In the "Parental Control" menu, press √ or ▲ to select a rating submenu, then press >or OK.

• "Enable Rating": Select "On" to enable rating.
• "USA-TV": Set the rating by age level and genre.

• "USA-Movie": Set by USA movie rating standards.
• "CAN-English": Set by Canadian English movie rating standards.
• "CAN-French": Set by Canadian French movie rating standards.
• "Block Unrated Shows": Select "On" to block unrated shows.

2 Press ▼ or ∧, then press OK to select the rating.
3 Press <to return to the previous screen or press RETURN to close the menu screen.

Change Password

1 In the "Parental Control" menu, press √ or ∧ to select "Change Password", then press > or OK.
2 Enter a new password, then press OK.
3 Re-enter the new password, then press OK to complete.

Setup Wizard

Run the guided setup.

System Information

Display the system information of the TV.

Reset All Settings

Reset all TV settings to default settings.

Picture-in-Picture (PIP)

(For JLE42BC3001(42") and JLE47BC3001(47") only)

The PIP feature allows you to view 2 input sources simultaneously. This feature is available only when the selected input source is HDMI.

PIP (Picture-In-Picture)

With PIP, a smaller screen displays the picture from a second input source within the main input source picture.

1 Press MENU.
2 Press ▼ or ▲ to select "PIP", then press ▷ or OK.
3 Press or to select "PIP Mode", then press or OK.
4 Press or to select "PIP", then press or OK.
5 Press ▼ or ▲ to select "Source", then press ▷ or OK to enter the submenu.
6 Press √ or ∧ to select the second input source, then press > or OK.

PIP Mode	PIP
Source	HDMI-1
Position	Top Right
Size	Small
Audio	Main

Note: Some input sources do not support this feature. See the PIP/POP Table on page 37.

7 Press or to select "Position", then press or OK.
8 Press or to select where you want to display the second screen, then press OK.
9 Press or to select "Size", then press or OK.
10 Press or to select the screen size, then press OK.
11 Press or to select "Audio", then press or OK.
12 Press or to select an option, then press OK. Options are:

- "Main": The output audio is from the main input source.

- "PIP/POP": The output audio is from the secondary input source.

13 Press OK.

14 Press <to return to the previous screen or press RETURN to close the menu screen.

POP (Picture-Over-Picture)

With POP, you can select a second input source and display its output over the main input source picture. The picture size and position are the same with the main input source.

1 Press MENU.
2 Press √ or ∧ to select "PIP", then press > or OK.
3 Press or to select "PIP Mode", then press or OK.
4 Press or to select "POP", then press or OK.
5 Press √ or ▲ to select "Source", then press > or OK to enter the submenu.
6 Press √ or ▲ to select the second input source, then press > or OK.

Note: Some input sources do not support this feature. See the PIP/POP Table on page 37.

7 Press or to select "Audio", then press or DK.
8 Press or to select an option, then press OK. Options are:

• "Main": The output audio is from the main input source.
• "PIP/POP": The output audio is from the secondary input source.

9 Press OK.

10 Press <to return to the previous screen or press RETURN to close the menu screen.

Closed Caption

Closed Caption decodes and displays closed caption data of television programs as subtitle. This feature displays text on the screen or it translates and displays text in another language.

1 Press MENU.
2 Press √ or ▲ to select "Closed Caption", then press > or OK.
3 Press or to select "Analog Closed Caption" or "Digital Closed Caption, then press or OK.

Analog Closed Caption	Off
Digital Closed Caption	Off
Digital CC Options

Note: Either "Analog Closed Caption" or "Digital Closed Caption" is available depending on your TV service.

4 Press √ or ▲ to select a closed caption type or select "Off" to disable this feature, then press OK. For digital closed caption, you can select closed caption options, such as text size and text color. Press √ or ▲ to select "Digital CC Options", then press OK. Select desired options.
5 Press RETURN to close the menu screen.

Channel Menu

Select Antenna / Cable

Select Antenna or Cable for the service connected to your TV.

1 Press MENU.
2 Press ▼ or ▲ to select "Channel", then press ▶ or OK.
3 Press or to select "TV Mode", then press or OK.
4 Press √ or ∧ to select "Antenna" or "Cable", then press OK.

Scan Channels

Auto Scan Channels

TV Mode	Cable
Auto Channel Scan
Partial Channel Scan
Find Channel
Channel Management
Digital MTS	English

When you run auto scan, the TV scans for all available channels. Make sure the antenna/cable is connected properly. See page 15.

Note: Auto scan may take 15 to 30 minutes to find available channels.

1 Press MENU.
2 Press √ or ∧ to select "Auto Channel Scan", then press > or OK.
3 Press √ or ▲ to select "Start Scan", then press OK.

Scanning progress is displayed on the menu screen. To stop scanning, select "Stop Scan" and press OK.

Partial Scan Channels

You can partially scan for network signal within a specified range of channels.

1 Press MENU.
2 Press √ or ▲ to select "Partial Channel Scan", then press > or OK.
3 Press or to select "Scan Mode", then press or OK.
4 Press or to select an option, then press OK.

• "Analog/Digital": scan for both analog and digital channels
• "Analog": scan for analog channels
  • "Digital": scan for digital channels

5 Press √ or ▲ to select "From Channel", then enter a starting channel range.
6 Press √ or ▲ to select "To Channel", then enter an ending channel range.
7 Press ▼ or ▲ to select "Start Scan", then press OK.

Scanning progress is displayed on the menu screen. To stop scan, select "Stop Scan" and press OK.

Add Channel

New channels may be added to your area periodically. Use the Add Channel function to add new channels.

1 Press MENU.
2 Press ▼ or ▲ to select "Channel", then press ▶ or OK.
3 Press or to select "Find Channel", then press or OK.
4 Press √ or ▲ to select "Enter Channel", then enter a channel.
5 Press ▼ to select "Add Channel", then press OK.

Added channels are listed on the Channel List screen.

Delete Channel

To remove a channel from the Channel List screen.

1 Press MENU.
2 Press √ or ∧ to select "Channel", then press > or OK.
3 Press √ or ∧ to select "Channel Management", then press > or OK.
4 Press √ or ∧, then press OK to mark the channels that you want to remove from the Channel List.
5 Press RETURN to close the menu screen.

Sleep Timer

Sleep timer sets the TV to automatically turn off after a preset amount of time. See page 21.

Appendix

Supported Input Source for PIP/POP

(For JLE42BC3001(42") and JLE47BC3001(47") only)

• Supported
  ○ - Not supported

Supported Resolution

Model Name	JLE32BC3001 JLE37BC3001	JLE42BC3001 JLE47BC3001
Supported PC Timing (VGA & HDMI)	720 x 400 @ 70Hz 720 x 400 @ 70Hz 720 x 400 @ 70Hz 720 x 400 @ 70Hz
	640 x 480 @ 60, 75Hz 640 x 480 @ 60, 75Hz 640 x 480 @ 60, 75Hz
	800 x 600 @ 60, 75Hz 800 x 600 @ 60, 75Hz 800 x 600 @ 60, 75Hz
	1024 x 768 @ 60, 75Hz 1024 x 768 @ 60, 75Hz 1024 x 768 @ 60, 75Hz
	1280 x 1024 @ 75Hz 1280 x 1024 @ 75Hz 1280 x 1024 @ 75Hz
	1920 x 1080 @ 60Hz 1920 x 1080 @ 60Hz 1920 x 1080 @ 60Hz
Supported Video Timing (NTSC, Composite)	480i 480i 480i 480i
Supported Video Timing (ATSC, Component, HDMI)	480i, 480p, 720p, 1080i, 1080 24p/60p	480i, 480p, 720p, 1080i, 1080 24p/60p	480i, 480p, 720p, 1080i, 1080 24p/60p	480i, 480p, 720p, 1080 i, 1080 24p/60p

Troubleshooting

If your TV fails to work properly, check the following guidelines for possible causes and solutions. Consult your local dealer or service outlet if problems persist.

Problem Solution
No power. • Make sure the power cord is plugged in.The power is off, press the Power button to turn on the TV.Try another outlet.Unplug the unit for an hour, then plug it back in.
Poor sound or no sound. • Press the VOL ▲ button on the remote control or the VOL + button on the TV.Press MUTE on the remote control to ensure that mute is not on.The channel or cable TV is experiencing problems, tune to another channel.Check the TV audio settings.Check for possible sources of interference.
Poor picture or no picture. • The channel or cable TV is experiencing problems, tune to another channel.Make sure that channels are set into memory.Check the antenna or cable TV connections.Check for possible sources of interference.
Poor reception on some channels.	The channel or cable TV is experiencing problems, tune to another channel.Make sure that channels are set into memory.The network signal is weak, adjust the antenna to receive better reception.Check for possible sources of interference.
The remote control does not work.	Batteries may be weak, dead, or inserted incorrectly.Point the remote control directly at the remote sensor on the TV with an angle of 35^ .Remove any obstacles between the remote control and the TV.Remote control is out of range, move closer to the TV.
TV shuts off. • Sleep timer is set.Power is interrupted.
No CATV reception. • Check all cable TV connections.Set the TV Mode in Channel menu.
Closed caption is not activated.	The program tuned is not closed captioned. Try another channel.Enable Closed Caption in the menu.

Specifications

Specifications are subject to change without prior notice.

Model No.	JLE32BC300132" Black Crystal 3000 Series LED TV	JLE37BC300137" Black Crystal 3000 Series LED TV
Panel Type	LED Panel LED Panel
Size	32" Class 37" Class
	31.55" (measured diagonally) 37.0" (measured diagonally)
Resolution / Aspect FHD 1920 x 1080 / 16:9 FHD 1920 x 1080 / 16:9
Refresh Rate 60Hz 60Hz
Audio Output Power 20W (10W x 2) 20W (10W x 2)
Input	Antenna (NTSC/ATSC/ClearQAM)
	3 x HDMI
	1 x Component /Composite
	1 x PC
	1 x PC Audio / Music port
	1 x USB (JPEG)
Output	1 x Optical Digital Audio Out
	1 x Stereo Audio Out
Special Features	Multimedia: Picture
	Ambient Light Sensor
	Dynamic Contrast
	CrystalColorTM
	SRS StudioSound
	Power Saving Mode
	Audio Only Mode
	Input Naming Capability
	Parental Control
	Closed Caption
Power
Power Requirement 100 ~ 240 VAC @ 50/60Hz
Power Consumption	≤ 51.3 W	≤ 65.2 W
Dimension & Weight
Dimensions (W x H x D)With Stand Without Stand	30.3" x 22.1" x 8.3"	35.1" x 24.8" x 8.3"
	30.3" x 19.9" x 1.9"	35.1" x 22.6" x 1.9"
Wall-mount hole pattern (mm)	200 x 100, M4	200 x 200, M4
Net WeightWith Stand Without Stand	7.6 ± 1.0 kg	9.6 ± 1.0 kg
	7.0 ± 1.0 kg	9.0 ± 1.0 kg
Compliance / Certifications	EnergyStar 5.3, CSA-US, FCC Class B, HDMI v1.3
Model No.	JLE42BC300142" Black Crystal 3000 Series LED TV	JLE47BC300147" Black Crystal 3000 Series LED TV
Panel Type	LED Panel LED Panel
Size 42" Class 47" Class
	42.02" (measured diagonally) 46.96" (measured diagonally)
Resolution / Aspect FHD 1920 x 1080 / 16:9 FHD 1920 x 1080 / 16:9
Refresh Rate 120Hz 120Hz
Audio Output Power 20W (10W x 2) 20W (10W x 2)
Input	Antenna (NTSC/ATSC/ClearQAM)
	4 x HDMI
	1 x Component / Composite
	1 x PC
	1 x PC Audio / Music port
	2 x USB (JPEG/Music/Video)
Output	1 x Optical Digital Audio Out
	1 x Stereo Audio Out
Special Features	Multimedia: Picture, Music, Video
	Ambient Light Sensor
	Dynamic Contrast
	120Hz CrystalMotionTM
	SRS StudioSound
	Power Saving Mode
	Audio Only Mode
	Input Naming Capability
	Parental Control
	Game Mode
	Picture-In-Picture (PIP) / Picture-Over-Picture (POP)
	Closed Caption
Power
Power Requirement 100 ~ 240 VAC @ 50/60Hz
Power Consumption	≤ 81.4 W	≤ 97.1 W
Dimension & Weight
Dimensions (W x H x D)With Stand Without Stand	39.4" x 27.3" x 9.5" 43.7" x 29.8" x 9.7"39.4" x 25.0" x 2.2" 43.7" x 27.4" x 2"
Wall-mount hole pattern (mm) 400 x 200, M6		400 x 400, M6
Net WeightWith Stand Without Stand	14.5 ± 1.0 kg13.0 ± 1.0 kg	21.3 ± 1.0 kg19.6 ± 1.0 kg
Compliance / Certifications	EnergyStar 5.3, CSA-US, FCC Class B, HDMI v1.4

ON PARTS AND LABOR

This Limited Warranty covers units that are purchased as new and in the United States Only. This Product is manufactured, distributed, and warranted by AmTRAN Video Corporation (hereinafter known as "Warrantor") under brand license by JVC KENWOOD Corporation. The Warrantor provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one (1) year of non-commercial usage and ninety (90) days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, the Warrantor will either repair or replace the Product at its sole option and discretion.

To obtain warranty service, contact our Technical Support:

Visit the Web Site : go.jvc.com/HDTVSupport/

Or call our Customer Support and Service Center

1-855-868-1928

PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A DESIGNATED SERVICE CENTER.

Proof of purchase in the form of a purchase receipt or copy thereof is required to show that a Product is within the warranty period.

Parts and Labor

There will be no charge for parts or labor during the warranty period. Replacement parts and Products may be new or recertified at the Warrantor's option and sole discretion. Replacement parts and Products are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service or replacement, whichever is longer.

Type of Service

Defective Products must be sent to the designated service center to obtain warranty service. The Warrantor is not responsible for the transportation costs to the service center, but will cover the costs for return shipping to the customer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A DESIGNATED SERVICE CENTER FOR WARRANTY SERVICE.

Product returned to designated service centers must utilize either the original carton box and shipping material or packaging that aff ords an equal degree of protection. Technical Support will provide instructions for packing and shipping the covered Product to the designated service center.

Limitations and Exclusions

The Warrantor's one-year limited warranty only covers defects in materials and workmanship. This warranty does not cover product issues caused by any other reason, including but not limited to cosmetic damage, normal wear and tear, improper operation, improper voltage supply or power surges, signal issues, damages from shipping, acts of God, any type of customer misuse, modifications or adjustments, as well as installation and set-up issues or any repairs attempted by anyone other than by an authorized service center. Products with unreadable or removed serial numbers, or requiring routine maintenance are not covered. This one year limited warranty does not cover Products that are sold "AS IS", "Open Box", "FACTORY RECERTIFIED", or by a non-authorized reseller.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. THE WARRANTOR'S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING WARRANTY'S NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT. THE WARRANTOR SHALL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE. CHECK TV.JVC.COM FOR THE MOST CURRENT VERSION.

Personal Data

If your Product is capable of storing personal data and other information, all contents and information will be deleted in the course of some in-home and all ship-in warranty service. If this occurs, your product will be restored to you configured as originally purchased. You will be responsible for restoring all applicable data and passwords. Recovery and reinstallation of user data is not covered under this Limited Warranty. In order to protect your personal information, we recommends that you always clear all personal information from the unit before it is serviced, regardless of the servicer.

AmTRAN Video Corporation, PO Box 50427 Irvine, CA 92619

Important Open Source Software Notice

Your JVC device contains free software which is based on the license granted under the GNU General Public License and Lesser General Public License (hereinafter "GPL/LPGL") that are subject to the GPL2.0/LGPL2.1. You may use, modify, or distribute only if you agree to all of the terms and conditions of the GPL/LGPL.

Please note that any software component developed or created independently by AmTRAN Video Corporation shall not be subject to "GPL/LGPL" requirement for provision of the source code. Users are urged to read the details for the relevant license carefully before using the software component covered by "GPL/LGPL"

You can obtain a copy of the GPL, LGPL license from http://www.gnu.org/licenses/gpl-2.0.html and http://www.gnu.org/licenses/lgpl-2.1.html.

For details of any open source software on your JVC device, please visit the following website: http://go.jvc.com/HDTVSupport/

Please note that we are unable to answer any inquiry relating to the contents, etc. of the source code.

Permission is hereby granted, free of charge, to any person obtaining a copy of any such software and associated documentation files (the "Open Source Software"), to deal in the Open Source Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Open Source Software, and to permit persons to whom the Open Source Software is furnished to do so, subject to the following conditions:

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONIN-FRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Please do not send products or other correspondence to this address.

PLACE STAMP HERE

JVC

Attn: Product Registration

P.O. BOX 50427 IRVINE, CA 92619

PRODUCT REGISTRATION CARD / QUESTIONAIRE

USA CUSTOMERS ONLY

Registering your product will allow us to contact you in the unlikely event a product safety notification is required.

This form is for Product Registration purposes only. Failure to return this form does not diminish your rights during the warranty period.

THANK YOU FOR PURCHASING THIS JVC PRODUCT

REGISTER ONLINE AT: GO.JVC.COM/HDTVSUPPORT

JVC

Register online at

GO.JVC.COM/HDTVSUPPORT and receive

a special offer!

PRODUCT REGISTRATION

First Name:

Last Name:

Address

Apt. #

City

State:

Zip Code:

Phone Number:

E-Mail Address:

1) Would you like to receive the JVC Community e-mail newsletter? Yes No
2) Would you like to receive special offers from JVC? Yes No
3) Have you purchased an extended warranty for this product? Yes No

Date of Purchase:

Model Number:

Serial Number:

Purchase Price:

Dealer:

On a scale of 1 to 5, with 5 being the best, please rate each of the following attributes about your new JVC product.

Performance	1	2	3	4	5
Features	1	2	3	4	5
Ease of use	1	2	3	4	5
Design	1	2	3	4	5
Value	1	2	3	4	5

Comments:

Thank You for completing this questionnaire

Instruction: Fold at crease and tape open edge in the middle

JVC
