Product Type	Wired Optical Gaming Mouse
Model Number	SGM-2000-MLON1
Brand	Cooler Master
Dimensions (L x W x H)	125 x 70 x 40 mm (approx.)
Weight	100 g (approx.)
Connection Type	Wired USB 2.0/3.0
Cable Length	1.8 m
Sensor Technology	Optical, up to 4000 DPI
Number of Buttons	6 (including scroll wheel)
Programmable Buttons	Yes, via software
Lighting	RGB, 7 preset modes
Polling Rate	1000 Hz
Power Source	USB bus power (5V, 100 mA)
Software Support	Cooler Master Portal (Windows/macOS)
Compatible Operating Systems	Windows 7/8/10/11, macOS 10.12+
Main Functions	Cursor control, click, scroll, DPI switching, programmable macros
Maintenance & Cleaning	Wipe with a soft, dry cloth. Avoid liquids.
Safety Precautions	Do not expose to moisture or extreme temperatures. Unplug during cleaning.
Spare Parts & Repairability	No user-replaceable parts. Contact Cooler Master support for repairs.
General Information	Gaming mouse with ergonomic design, braided cable, and PTFE feet.
What's in the Box	Mouse, user manual, quick start guide
Warranty	2 years limited warranty

Frequently Asked Questions - SGM-2000-MLON1 COOLER MASTER

How do I adjust the DPI on my Cooler Master SGM-2000-MLON1 mouse?

Press the DPI button located near the scroll wheel to cycle through preset DPI levels. You can customize DPI settings using the Cooler Master Portal software.

Is the mouse compatible with macOS?

Yes, the mouse works with macOS 10.12 or later. However, advanced customization requires the Cooler Master Portal software, which is available for both Windows and macOS.

How do I clean my mouse?

Unplug the mouse and gently wipe the exterior with a soft, dry cloth. For stubborn dirt, slightly dampen the cloth with water. Do not use alcohol or abrasive cleaners. Avoid getting moisture into the sensor or buttons.

Can I program the mouse buttons?

Yes, you can assign custom functions or macros to each button using the Cooler Master Portal software. The software allows remapping, macro recording, and profile management.

Why is my mouse not being detected by the computer?

Try connecting to a different USB port. Ensure the cable is securely inserted. If the issue persists, test the mouse on another computer. If it still fails, the mouse may be defective; contact Cooler Master support.

How do I change the RGB lighting?

Use the Cooler Master Portal software to select from 7 preset lighting modes or customize your own colors and effects. You can also adjust brightness and speed.

Is the mouse suitable for left-handed users?

The SGM-2000-MLON1 has a right-handed ergonomic design. It is not ambidextrous and may be less comfortable for left-handed users.

What is the polling rate and can I change it?

The default polling rate is 1000 Hz. You can adjust it to 125, 500, or 1000 Hz via the Cooler Master Portal software.

Does the mouse have onboard memory?

Yes, the mouse stores your profile settings (DPI, lighting, button mappings) internally, so you can use your custom settings on other computers without installing software.

How long is the warranty and how do I claim it?

The mouse comes with a 2-year limited warranty. To claim, visit the Cooler Master support website and provide proof of purchase. The warranty covers manufacturing defects but not physical damage or misuse.

USER MANUAL SGM-2000-MLON1 COOLER MASTER

Modern computer mouse with red and black design, glowing abstract light effect (no text or symbols)

3500 DPI

PRECISION OPTICAL SENSOR

SPAWN

USER MANUAL : ENGLISH

CMSTORM SPAWN

TABLE OF CONTENTS

INTRODUCTION 03
SPAWN OUTLOOK 04
INSTALLATION 05
MAIN CONTROL 06
BUTTON ASSIGNMENT 07
ADVANCE SETTINGS ASSIGNMENT 08
MACRO 09
CUSTOM 10
■ SUPPORT AND UPDATE 11

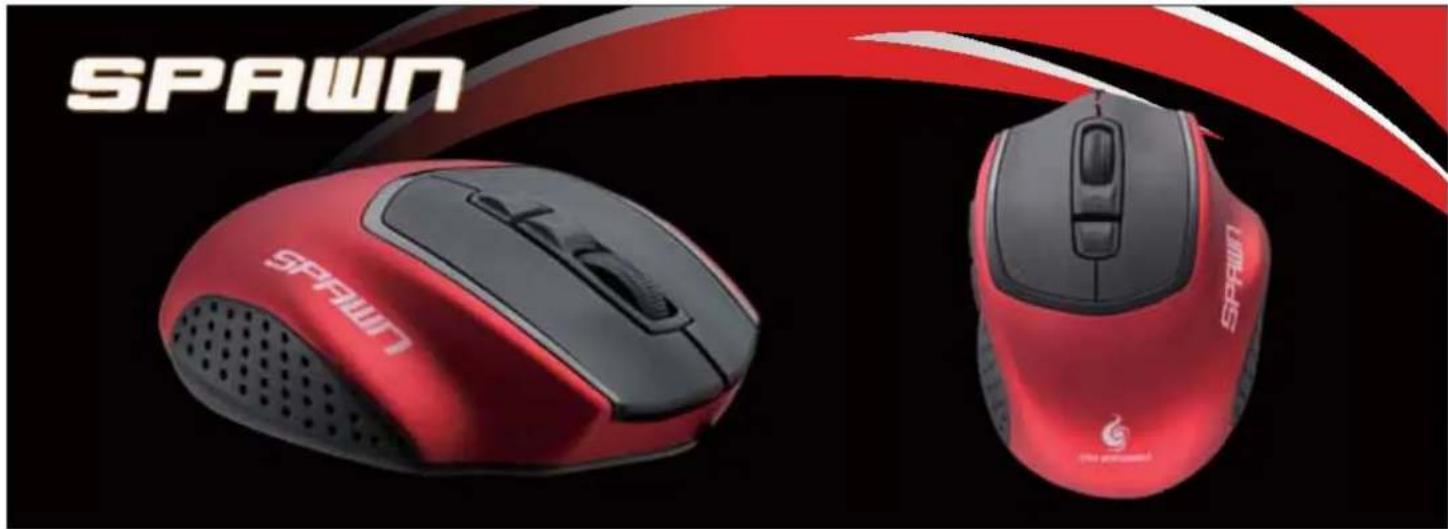

INTRODUCTION

CMSTORM SPAWN

SPAWN SPAWN SPAWN SPAWN

THE SPAWN - LIGHTWEIGHT, ERGONOMIC, AND FORGED WITH A REASSURINGLY SOLID DESIGN. THE SPAWN GAMING MOUSE IS AN ARMED DEVICE ESPECIALLY CRAFTED FOR CLAW GRIP GAMERS.

PRECISE ON SIGHT AND SPECIALLY MADE FOR IN-GAME TACTICAL INCISIONS, THE SPAWN IS TOPPED WITH AN ULTRA HIGH-PERFORMANCE 3500 DPI SENSOR, AN ULTRA-STEP WHEEL ENCODER, AND ARMED WITH JAPANESE-MADE ONLY OMRON MICRO-SWITCHES. STRENGTHENING EACH ACTUATION SENSORY DEVICE WITH THE HIGHEST QUALITY, EACH MOVEMENT, EVEN IN SMALLEST DISTANCE FLIES TRUE - MAKING THE SPAWN THE BEST GAMING DEVICE FOR FPS PLAYERS.

PRESENTED IN A CRIMSON RED HIGH-GLOSS FINISH, THE SPAWN IS RESTHETICALLY ENHANCED AND VISUALLY BREATHTAKING. GET YOUR PAWS ON THE SPAWN NOW AND FEEL THE ULTIMATE DIFFERENCE.

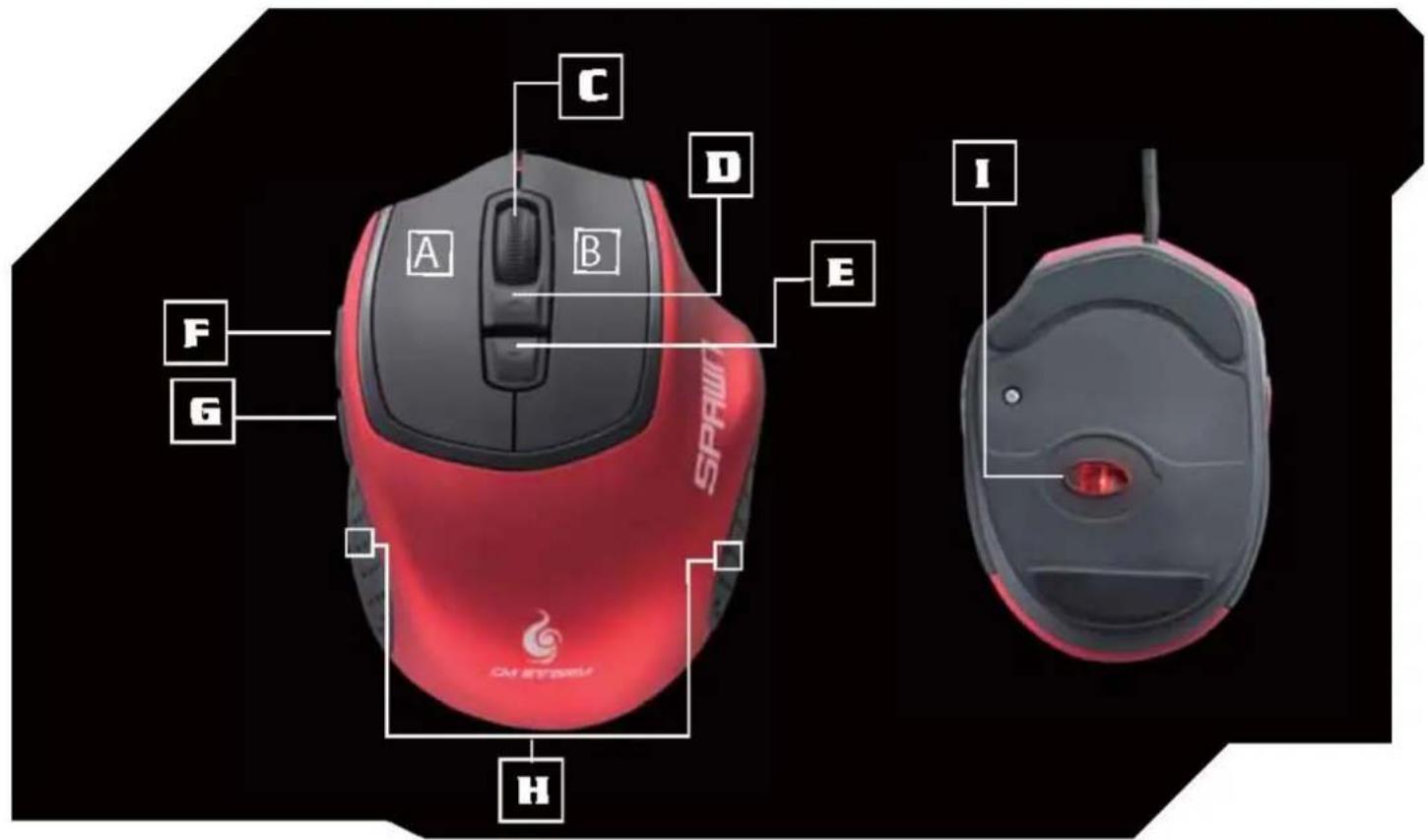

SPAWN OUTLOOK

C A B D E F G H I SPEAM

A Button 1 Left Click
B Button 2 Right Click
C Button 3 Scoll Wheel
D Button 4 DPI+
E Button 5 DPI-
F Button 6 Side Button [IE, Forward]
G Button 7 Side Button [IE, Backward]
H Grip Superior Anti-Slip Rubberized Grip Design
I Sensor Precision Anti-Drift Control Sensor

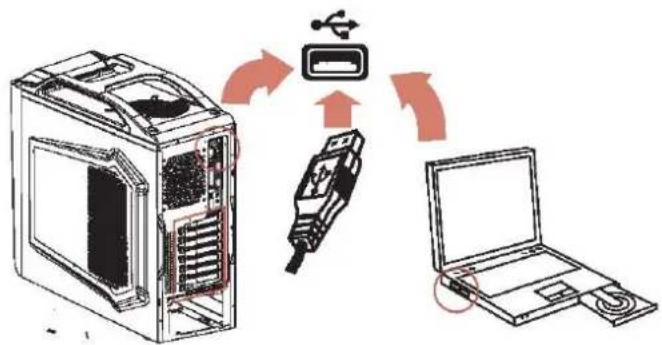

INSTALLATION

SPAWN START UP GUIDE

SYSTEM REQUIREMENTS:

WINDOWS® 2000/XP/VISTA/7

FREE USE PORT

For software download please visit:

http://www.cmstorm.com/en/products/peripherals/spawn/

THE SPAWN GAMING MOUSE IS A FULL SPEED, PLUG AND PLAY USE DEVICE. JUST DOWNLOAD THE SOFTWARE FROM OUR WEBSITE AND YOU WILL BE ABLE TO CUSTOMIZE YOUR MOUSE AND SAVE THE SETTINGS TO THE SPAWN'S INTERNAL MEMORY. ALTHOUGH MOST USE PORTS TODAY ARE HOT-SWAPPABLE, WE DO RECOMMEND SHUTTING DOWN YOUR SYSTEM BEFORE PLUGGING IN OR REMOVING THE USE DEVICE.

STEP 1: PLUG THE SPAWN GAMING MOUSE INTO ANY FREE USE PORT ON YOUR COMPUTER SYSTEM.

STEP 2: TURN ON THE COMPUTER SYSTEM; WINDOWS® WILL AUTOMATICALLY INSTALL THE NECESSARY PROGRAMS.

STEP 3: OPEN->CONTROL PANEL->SYSTEM->HARDWARE->DEVICE MANAGER AND CONFIRM THAT YOUR MOUSE IS WORKING PROPERLY.

STEP 4: DOWNLOAD THE LATEST DRIVERS FROM http://www.cmstorm.com/en/products/peripherals/spawn/

STEP 5: AFTER INSTALLING THE SPAWN APPLICATION, YOU CAN LOAD IT FROM THE SYSTEM TRAY ON THE BOTTOM RIGHT HAND CORNER

STEP 6: CUSTOMIZE YOUR SPAWN THROUGH THE STORM TACTIC AP SOFTWARE

NOTE:

1 REGULAR UPDATES WILL BE AVAILABLE FOR THE SPAWN. FOR THE LATEST FIRMWARE PLEASE VISIT THE CM STORM HOME PAGE: HTTP://WWW.CMSTORM.COM.

2 THE SPAWN IS A HIGH PERFORMANCE GAMING MOUSE WITH MASS DATA TRANSFER RATES. TO ENSURE OPTIMAL PERFORMANCE WE DO RECOMMEND PLUGGING THE MOUSE DIRECTLY TO SYSTEM USE PORT AND NOT A USE HUE.

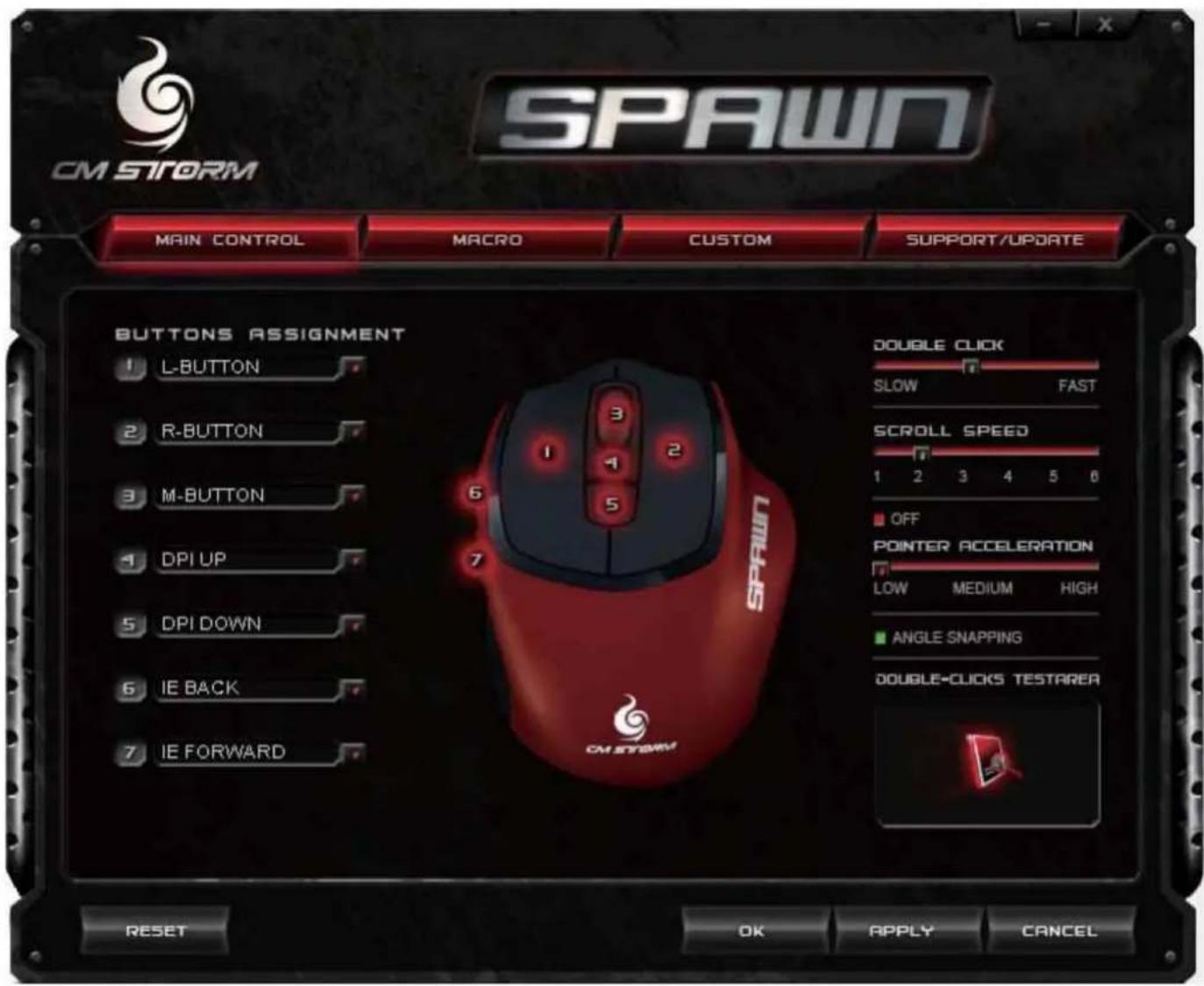

MAIN CONTROL

CONFIGURING YOUR STORM TACTIC AP SOFTWARE

SPAWN CM STORM MAIN CONTROL MACRO CUSTOM SUPPORT/UPDATE BUTTONS ASSIGNMENT 1 L-BUTTON 2 R-BUTTON 3 M-BUTTON 4 DPI UP 5 DPI DOWN 6 IE BACK 7 IE FORWARD DOUBLE CLICK SLOW FAST SCROLL SPEED 1 2 3 4 5 6 OFF POINTER ACCELERATION LOW MEDIUM HIGH ANGLE SNAPPING DOUBLE-CLICKS TESTARER RESET OK APPLY CANCEL

MAIN CONTROL

THE MAIN CONTROL ALLOWS USERS TO HAVE FULL CONTROL OVER DPI LEVELS, INTRINSIC MOUSE SETTINGS, AND PROGRAMMABLE BUTTON ASSIGNMENTS. AFTER CONFIGURATION IS COMPLETE, YOU CAN SAFEGUARD ALL YOUR SETTINGS INSIDE THE 32KB SENTINEL-X™ ONBOARD MEMORY; ALL SETTINGS ARE MANAGERCLE WITHIN THE ON-BOARD MEMORY.

NOTE: ALL SETTINGS CAN BE STORED INTERNALLY, ALLOWING APPLIED SETTINGS TO BE UTILIZED ON ANOTHER COMPUTER WITHOUT THE STORM TACTIC AP SOFTWARE INSTALLED.

MAIN CONTROL MODULES:

BUTTON ASSIGNMENT
DOUBLE CLICK SPEED
SCROLL SPEED
POINTER ACCELERATION
ANGLE SNAPPING

MAIN CONTROL

BUTTON ASSIGNMENT

BUTTONS ASSIGNMENT

L-BUTTON

L-BUTTON

R-BUTTON

M-BUTTON

IE FORWARD

IE BACK

DF OF

DPI DOWN

CYCCLIC DPI[+]

SCROLL UP

SCROLL DOWN

KEYBOARD KEY

KEYBOARD MACRO

DISABLE

FROM THE DROP DOWN MENU, YOU CAN RE-DEFINE EACH BUTTON BASED ON YOUR OWN PREFERENCE.

IN ADDITION TO BUTTONS RE-ASSIGNMENT, THERE ARE ALSO VARIOUS FUNCTIONS TO UTILIZE SUCH AS MACROS, AND KEYBOARD KEY

NOTE: TO ASSIGN SCRIPTS AND MACROS TO A SPECIFIC BUTTON, YOU MUST FIRST RECORD MACRO OR SCRIPT IN THE CORRESPONDING MENU OF YOUR SELECTION.

GENERAL BUTTON ASSIGNMENTS

DISABLE:

L-BUTTON

R-BUTTON

M-BUTTON

IE FORWARD

IE BACK

DPI UP

DPI DOWN

CYCLIC DPI [+]

KEYBOARD KEY

KEYBOARD MACRO

SCROLL UP

SCROLL DOWN

SWITCHES THE MOUSE BUTTON OFF

LEFT CLICK

RIGHT CLICK

SCROLL WHEEL CLICK

SELECT THE NEXT PREVIOUSLY SELECTED PROGRAM OR WEBSITE

SELECT THE PREVIOUS PROGRAM OR WEBSITE

INCREASES DPI RESOLUTION

DECREASE DPI RESOLUTION

DPI RESOLUTION LOOP INCREASE

ASSIGNS A KEYBOARD KEY TO BUTTON

ASSIGNS PRESET MACRO TO BUTTON

PAGE SCROLL UP

PAGE SCROLL DOWN

MAIN CONTROL

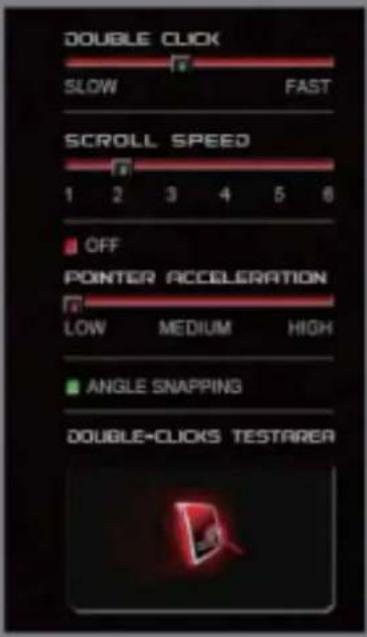

ADVANCED SETTING ASSIGNMENT

DOUBLE CLICK SLOW FAST SCROLL SPEED 1 2 3 4 5 6 OFF POINTER ACCELERATION LOW MEDIUM HIGH ANGLE SNAPPING DOUBLE-CLICKS TESTAREA

DOUBLE CLICK SPEED

THE DOUBLE-CLICK RESPONSE SLIDER AREA ALLOWS YOU TO ADJUST YOUR DOUBLE-CLICK SPEED FROM SLOW TO FAST. ESSENTIALLY SLOW MEANS A LONGER INTERVAL BETWEEN EACH CLICK, AND FAST AS A SHORTER INTERVAL BETWEEN EACH CLICKS.

POINTER ACCELERATION

ADJUST WINDOWS POINTER ACCELERATION HERE FROM LOW TO HIGH. WE RECOMMEND HAVING IT OFF IF YOU ARE A FPS PLAYER.

SCROLL SPEED

CONTROL THE SPEED OF YOUR SCROLL WHEEL WITH 1 AS SLOWEST AND 6 AS FASTEST

ANGLE SNAPPING

ANGLE SNAPPING IS A BUILT IN ALGORITHM THAT TOGLES VELOCITY PREDICTIONS. [THIS HELPS YOU DRAW STRAIGHTER LINES]

NOTE:

ENABLE ANGLE SMAPPING IF YOU ARE A FPS PLAYER.

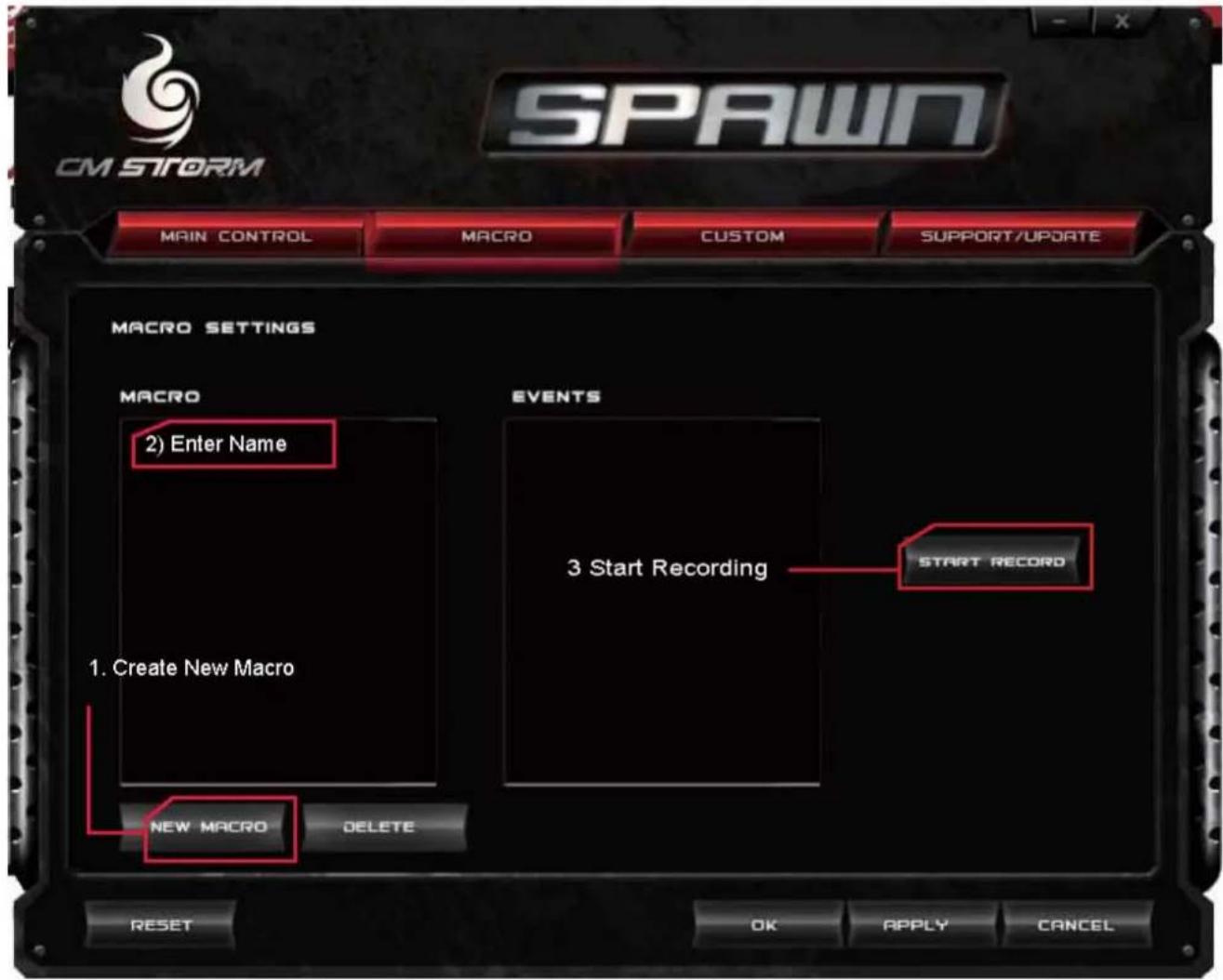

MACRO

CONFIGURING YOUR STORM TACTIC MACRO SUPPORT

MACRO FUNCTION

VITAL TO IN-GAME SITUATIONS AND TO FURTHER FORTIFY INPUT PERFORMANCE, THE STORM TACTICS MACRO SUPPORT SYSTEM ALLOWS GAMERS TO RECORD ALL KEYBOARD INPUTS AND STORE ITS ACTUATION INTO A MOUSE BUTTON OF CHOICE.

SPAWN CM STORM MAIN CONTROL MACRO CUSTOM SUPPORT/UPDATE MACRO SETTINGS MACRO 2) Enter Name 1. Create New Macro EVENTS 3 Start Recording START RECORD NEW MACRO DELETE RESET OK APPLY CANCEL

CREATING A MACRO

UNDER THE "MACRO" MENU CLICK NEW MACRO TO CREATE A BRAND NEW MACRO, ENTER A NAME FOR THE MACRO AND START RECORDING. USERS MAY ASSIGN THE MACRO TO ANY CUTTON LATER IN THE MAIN CONTROL AREA.

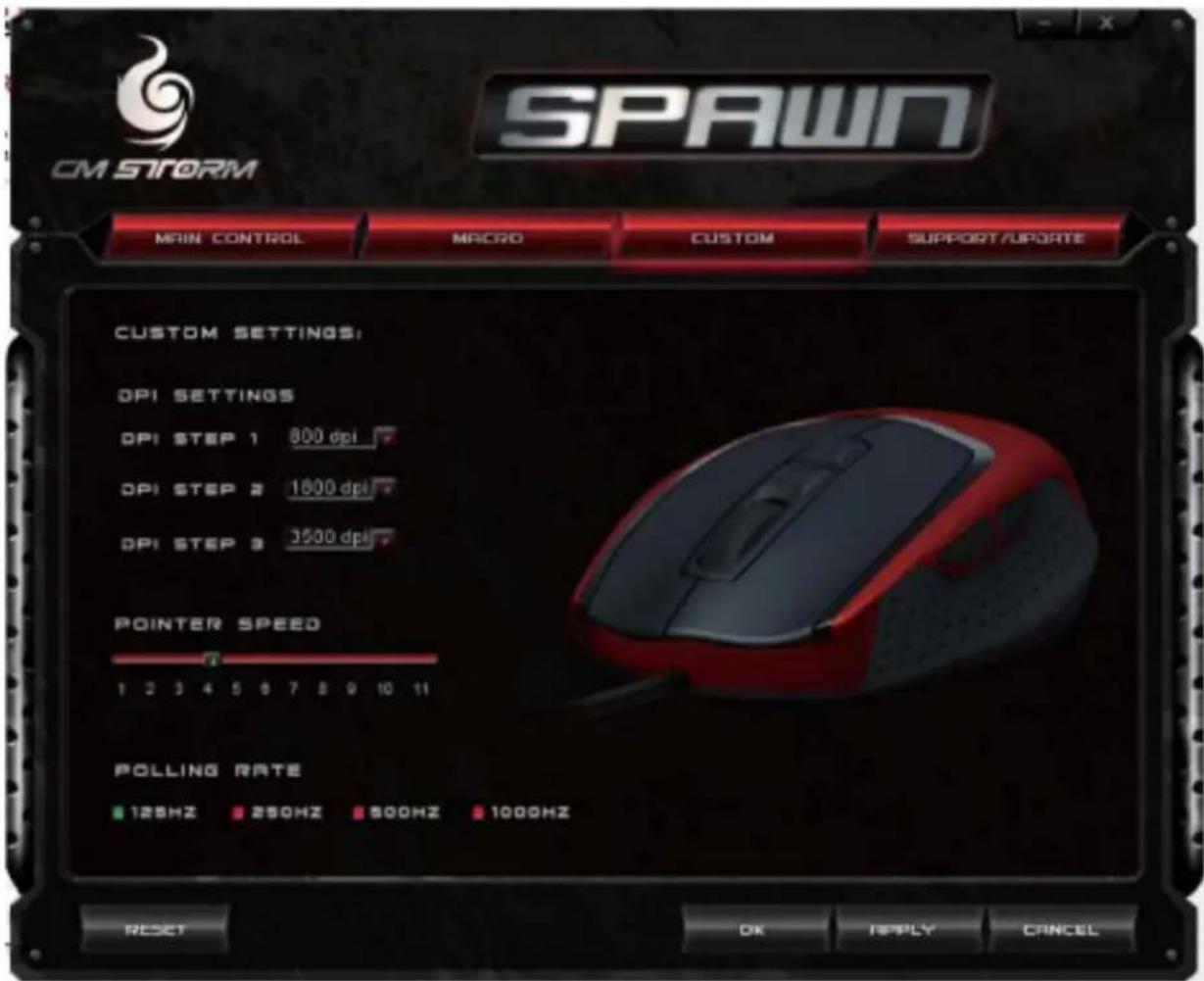

CUSTOM

CUSTOM CONFIGURATION FOR SPAWN

SPAWN CM STORM MAIN CONTROL MACRO CUSTOM SUPPORT/UPORTE CUSTOM SETTINGS: DPI SETTINGS DPI STEP 1 800 dpi DPI STEP 2 1600 dpi DPI STEP 3 3500 dpi POINTER SPEED 7 1 2 3 4 5 6 7 8 9 10 11 POLLING RATE 125HZ 250HZ 500HZ 1000HZ RESET OK REPLY CANCEL

DPI LEVEL CONTROL

WITH DEFAULT DPI LEVELS SET AT 800 1800 AND 3500; YOU CAN MANUALLY ORGANIZE EACH STEP TO DESIRED DPI.

POLLING RATE

THE USE POLLING RATE CAN BE SET TO 125H2, .250H2, 500H2, AND OR 1000H2.

THE HIGHER THE USE REPORT RATE THE MORE TIMES THE COMPUTER COMMUNICATES WITH THE MOUSE WITH INFORMATION, AT A HIGH DPI RESOLUTION WE SUGGEST SETTING THE REPORT RATE ABOVE 500HZ.

POINTER SPEED

ADJUST WINDOWS POINTER SENSITIVITY HERE FROM SLOW TO FAST. WE RECOMMEND KEEPING THE SENSITIVITY LEVEL IN THE MIDDLE UNDER REGULAR USAGE, AND TUNING THE SENSITIVITY SLOWER WHILE OPERATING UNDER A HIGH DPI SETTING SUCH AS 3500DPI.

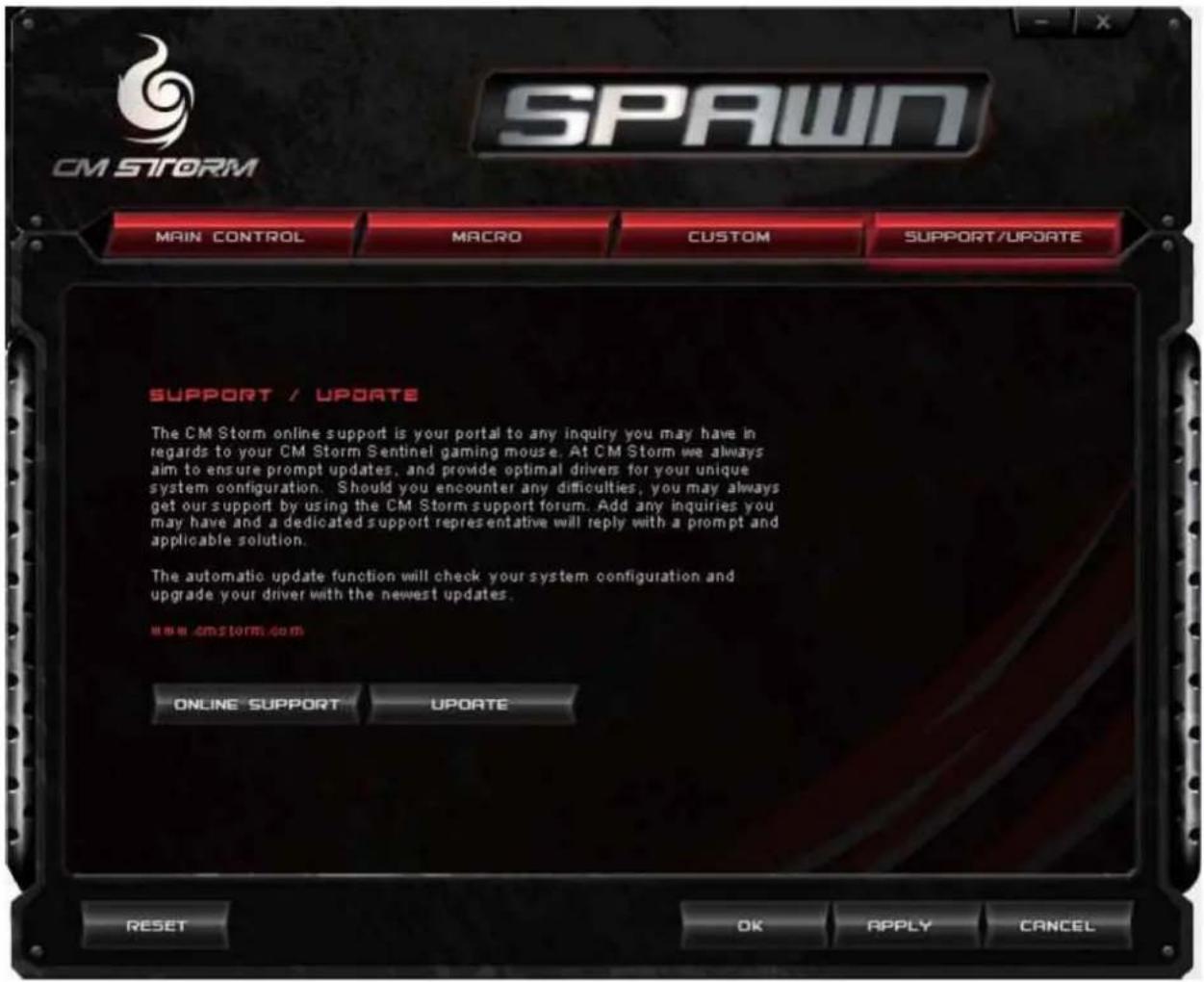

SUPPORT AND UPDATE

CUSTOM CONFIGURATION FOR SPAWN

SPAWN CM STORM MAIN CONTROL MACRO CUSTOM SUPPORT/UPDATE SUPPORT / UPDATE The CM Storm online support is your portal to any inquiry you may have in regards to your CM Storm Sentinel gaming mouse. At CM Storm we always aim to ensure prompt updates, and provide optimal drivers for your unique system configuration. Should you encounter any difficulties, you may always get our support by using the CM Storm support forum. Add any inquiries you may have and a dedicated support representative will reply with a prompt and applicable solution. The automatic update function will check your system configuration and upgrade your driver with the newest updates. www.cmstorm.com ONLINE SUPPORT UPDATE RESET OK APPLY CANCEL

TECHNICAL SUPPORT

FOR TECHNICAL SUPPORT AND THE LATEST DRIVERS AND FIRMWARE, PLEASE VISIT

WWW.CMSTORM.COM

EMAIL: ESERVICE.TWPCMSTORM.COM

UPDATE FIRMWARE

DOWNLOAD THE LATEST FIRMWARE FROM CM STORM WEBSITE AND CLICK UPDATE TO LOAD THE LATEST FIRMWARE.

WARRANTY

TWO YEARS' LIMITED MANUFACTURER'S WARRANTY

OM STORM

Cooler Master Co., Ltd.

9F, No.786, Chung Cheng Road, Chung Ho city, Taipei, Taiwan, R.O.C.
