USER MANUAL DF6026W2VV Profilo

Line drawing of a rectangular appliance with lid and side buttons (no text or symbols)

en Index

Informationconcerningdisposal3...... Warning messages 8

Safetyandwarninginformation3...... Switchingoff and disconnecting

Observeambienttemperature the appliance ... 8

andventilation5.... Freezingandstoringfrozenfood 9.....

Installingtheappliance6.... Defrosting 11

Connectingthe appliance6...... Tips for saving energy .... 12

Gettingtoknowyour appliance7...... Operating noises 13

Fascia .... 7 Eliminatingminorfaultsyourself ... 13....

Switchingonthe appliance .... 8 Customer service .... 14

tr İçindekiler

The packaging protects your appliance from damaged during transit. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

Disposalofyourold oppliance

Oldappliancesarenotworthlessrubbish! Valuablerawmaterialscanbereclaimed byrecyclingoldappliances.

This appliance is labelled in accordance with European Directive 2002/96/EG concerning used trical and electronic appliances, steelectrical and electronic component-WEEE). The guideline terminesthe framework for thereturn recycling of used appliances as applicable throughout the EU.

Warning

Redundantappliances:

1. Pulloutthemainsplug.
2. Cutoff the power cord and discard with themains plug.

Refrigeratorscontainrefrigerantsandthe insulationcontainsgases. Refrigerant andgasesmustbedisposedofproperly. Ensurethattubingoftherefrigerant circuitisnotdamagedpriortoproper disposal.

Safetyandwarning information

BeforeyouswitchONthe appliance

Pleasereadtheoperatingandinstallation instructionscarefully. Theycontainimportantinformationon howtoinstall,useandmaintainthe appliance. Keepalldocumentationforsubsequent useorforthenextowner.

Technicalsafety

The appliance contains a small amount of therefrigerant R600a, which is environmentally friendly but flammable. Makesure that therefrigerant circuit pipes are not damaged during transport or fitting. If refrigerants sprays out, it can cause eye injuries or ignite.

Intheeventofdamage:

• Keepopenflamesorsourcesofignition awayfromtheappliance,
• Ventilatetheroomwellforafew minutes,
• Switchofftheapplianceandunplugit fromthemains,
  •Informcustomerservice.

Themorerefrigeranttheappliance contains, the greater thespace requirements for theroomwhereitis installed. Iftheroomistoosmall, a flammablegas/airmixturemay accumulate if there is leak.

Theroommustbeatleast1 m ^3 largeper 8 gofrerigerant. The quantity of refrigerant in the appliance is stated on the name plate inside the appliance.

en

If the appliance's main scable is damaged, it must bere placed by the manufacturer, customerservices, or a similarly qualified person. Improper installation and repair job scan placethe user in considerable danger.

Repairsmayonlybecarriedoutbythe manufacturer,customerservices,ora similarlyqualifiedperson.

Onlyoriginalpartsofthemanufacturer maybeused. Themanufactureronly guaranteeesthatthesafetyrequirements aremetifthesepartsareused.

Amainscableextensionleadmayonly beprocuredviacustomerservices.

Importantinformationwhen usingtheappliance

• Neveruseelectricalappliancesinside theappliance(e. g. heaters,electricice makers,etc.).Riskofexplosion!
• NEVER use a steam cleaner to defrost orcleantheappliance. Thesteammay penetrateelectricalpartsandcause a short-circuit. Riskofelectricshock!

- Donotusepointedorsharp-edged implementstoremovefrostorlayers of ice. Youcoulddamagetherefrigerant tubing.Leakingrefrigerantmayignite or causeeyeinjuries.

- Donotstoreproductswhichcontain flammablepropellants(e. g. spraycans) orexplosivesubstancesinthe appliance.Explosionhazard!

- Donotstandorsupportyourselfon the base, drawersordoors, etc.

- Beforedefrostingandcleaningthe appliance,pulloutthemainsplugor switchoffthefuse. Donotpulloutthemainsplugby tuggingthecable.

• Bottleswhichcontainahigh percentageofalcoholmustbesealed andstoredinanuprightposition.
• Keepplasticpartsandthedoorseal freeofoilandgrease. Otherwise, parts anddoorsealwillbecomeporous.
• Nevercoverorblocktheventilation openingsfortheappliance.
  •Peoplewhohavelimitedphysical, sensory ormentalabilitiesor inadequateknowledgemustnotuse thisapplianceunlessstheyare supervisedorgivenmeticulous instructions.
• Donotstorebottledorcanneddrinks (especiallycarbonateddrinks)inthe freezercompartment.Bottlesandcans mayexplode!
• Neverputfrozenfoodstraightfromthe freezercompartmentintoyourmouth. Riskoflow-temperatureburns!
• Avoidprolongedtouchingoffrozen food,iceortheevaporatorpipes,etc. Riskoflow-temperatureburns!

Childreninthehousehold

• Keepchildrenawayfrompackaging anditsparts.Dangerofsuffocation fromfoldingcartonsandplasticfilm!
• Donotallowchildrentoplaywiththe appliance!
• If the appliance features a lock, keep the key out of there each of children.

Generalrequirements

Theapplianceissuitable

•forfreezingfood,

- formakingice.

The appliance is designed for domestic use.

The appliance has been interference-suppressed in compliance with EUDirective 89/336/EEC.

Therefrigerantcircuithasbeentestedfor leaks.

Thisproductcomplieswiththerelevant safetyregulationsforelectricalappliances (EN 60335/2/24).

Observeambient temperatureand ventilation

Irrespectiveoftheclimaticclass (see ratingplate), the appliance can be operated at the following ambient temperatures: (Therating plate is located in the chest freezer lid. Fig. 1/10)

ClimaticAmbienttemperature classfrom...to

SN+10 °C to 32 °C

N+16 °C to 32 °C

ST+16 °C to 38 °C

T+16 °C to 43 °C

If the ambient temperature drops below the lower ambient temperature limit, the running time of there refrigerating unit is reduced. As a result, the freezer compartment is not adequately refrigerated. The frozen food may thaw in extreme cases.

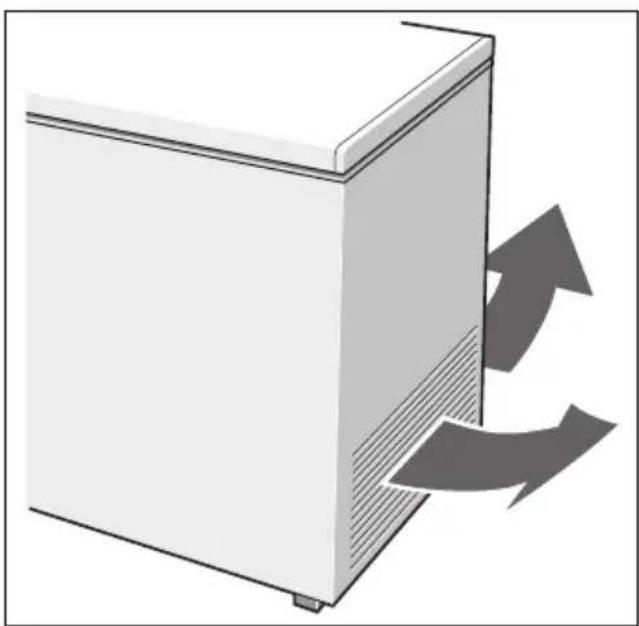

Ventilation

Fig. 10

Theairontherearpanelandonthe side panelsoftheapplianceheatsup. The warmairmustbeabletoescape. Otherwise,therefrigeratormustwork harder.Thiswillincreasethepower consumption.Therefore:Nevercover or blockventilationopenings!

Installingtheappliance

Installtheapplianceinadry,well ventilatedroom.Theinstallationlocation shouldneitherbeexposedtodirect sunlightnornearaheatsource,e.g. a cooker,radiator,etc.lfinstallationnext toaheatsourceisunavoidable,use a suitableinsulatingplateorobservethe followingminimumdistancestoaheat source:

3cmtoanelectriccooker. 30cmtoanoilorsolid-fuelcooker.

Theflooroftheinstallationlocationmust notgiveway;ifrequired,reinforcefloor.

Alignappliancewithaspiritlevel.

If the floor is uneven, compensate with supports.

The appliance can be transported on its smooth-running rollers. Fig. 4

Warning!

Ifrequired,securetheapplianceto preventitfromrollingaway

If the appliance is placed next to the wall, there must be a minimum distance of 70 mmbetween the wall and rear panel or side panels.

Removing the transportation protectiondevices

Removethefourtransportationprotection devices, Fig. 3, which are attached between the chest freezer lid and appliance.

Inserttwoofthesetransportation protectiondevicesintothedesignated holdersatthebackoftheappliance. This maintains the minimum distance betweentheapplianceandthewall,the chestfreezerlidcanbe openedcorrectly andventilationisguaranteed.

Connecting the appliance

Afterinstallingtheappliance, waitatleast 12 hourbeforeswitchingonthe appliance. Duringtransportationtheoilin thecompressormayhaveflowedinto the refrigerationsystem.

Beforeswitchingontheapplianceforthe firsttime,cleantheinterior (see Cleaning).

Thesocketshouldbefreelyaccessible. Connecttheapplianceto220-240 V/50 Hzalternatingcurrentviaacorrectly installedearthedsocket. Thesocketmust befusedwitha10to16Afuse.

Forappliancesoperatedinnon-European countries, the identification plates should be checked whether the electricity supply and the current model stated match the vales of themainssupply. Thesespecifications can be found on the rating plate.

Fig. 11

Themainsconnectioncablemaybe replacedbyanelectricianonly.

Warning!

Neverconnecttheappliancetoelectronic energysaverplugsortopowerinverters whichconvertthedirectcurrentto230 V alternatingcurrent(e.g.solarequipment, powersuppliesonships).

Gettingtoknow your appliance

Illustration showing a hand interacting with a document and a grid, with an arrow indicating direction or transformation.

Pleasefoldouttheillustratedlastpage. Theseoperatinginstructionsreferto severalmodels.

Theillustrationsmaydiffer.

Fig. 1

* notallmodels

1-5Fascia

6Interiorlight *

7Basket *

8Storagedrawer

9Defrostwaterdrainage with drainagestopper

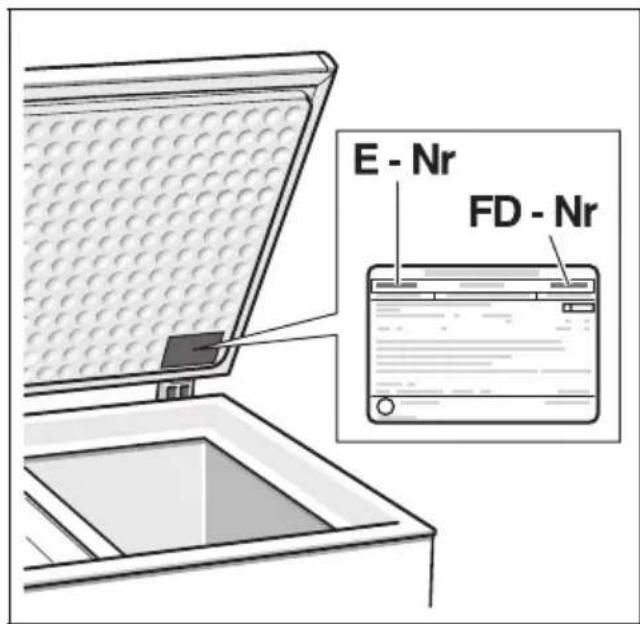

10Ratingplate

11 Loweredgeofcoverframe (stackinglimit)

12Prefreezercompartment *

13Removablepartition *

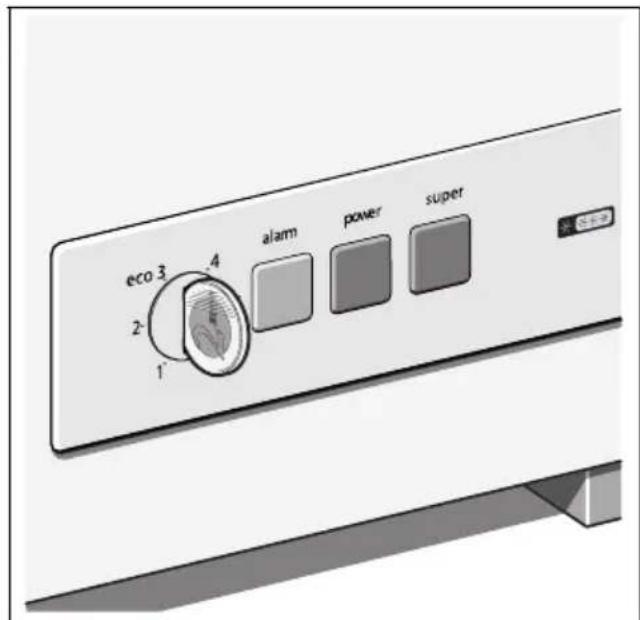

Fascia

Fig. 2

1"eco"setting

If the appliance is only partially filled (for appliances with partition up to maximum "e" mark on the partition), this setting can be selected to save energy.

2Temperatureselector

Thetemperatureinthefreezer compartmentcanbesetbyturning thetemperatureselectorwithacoin.

Position 1:highesttemperature

Position 6: lowesttemperature

3"alarm"display

Ifthereddisplayislit,thisindicates thatthetemperaturesinthe appliancearetoolow.

4On/Offdisplay

Whenthegreendisplayislit, this indicatesthattheappliance is switchedon.

5"super"function

Switchessuperfreezingon andoff. The "super" function is switched on when they yellow display is lit.

Switchingon the appliance

Switchingontheappliance

• Whentheapplianceisconnected, it switchesonandthegreendisplay, Fig. 2/4,islit.
• If the red display is lit, Fig. 2/3, this indicate that the temperature in the appliance is too warm; donotput frozen food in the appliance until the reddisplay goes out.

Selectingthetemperature

Thetemperatureselectorhasbeenset to setting 4atthefactory.

Tochangethesetting, rotatethe temperature selector. Fig. 2/2

Position 1:highesttemperature

Position 6: lowest temperature

Attention: Temperature changes donot take effect straight away.

Operatingtips

• Whentheapplianceisswitchedon, the temperatureforthefreezer compartmentisautomaticallysetto approx.-18 °Cifnotemperaturehas beeninput.
• Ifthelidcannotbeimmediatelyopened againwhenthechestfreezerisclosed, waittwotothreeminutesuntilthe resultinglowpressurehasequalised.

Warningmessages

Temperaturealarm

If the temperature in the freezer compartment becomes too warm (approx. -9 °C) and the frozen food is at risk, the “alarm” display is lit. Fig. 2/3

Switchingoff and disconnecting the appliance

Switchingofftheappliance

Pulloutthemainsplugorswitchoffthe fuse.

Disconnecting the appliance

If the appliance is not used for a prolonged period:

1. Pulloutthemainsplugorswitchoff the fuse.
2. Defrostandcleantheappliance.
   3.Leavechestfreezerlidopen.

Freezingandstoring frozenfood

Freezingcapacity

Informationaboutthemax.freezing capacitywithin24 hourscanbefound on theratingplate.

Packingfood

1. Placethefoodinthewrapping.
2. Pressoutalltheair.
   3.Sealthewrapping.
   4.Labelthewrappingwiththecontents anddate.

The following products are not suitable for wrapping food:

Wrappingpaper, greaseproofpaper, cellophane, refusebags and used shoppingbags.

The following products are suitable for wrapping food:

Plasticfilm, polyethyleneblownfilm, aluminiumfoilandfreezertins. Theseproductscanbepurchasedfrom yourdealer.

The following products are suitable for sealing the wrapped food:

Rubberbands, plasticclips, string, cold-resistantadhesivetape. Bagsandpolyethyleneblownfilmcanbe sealedwithafilmsealer.

Freezingfreshfood

In the prefreezer compartment, Fig. 1/12, fresh food is frozen especially quickly and therefore also gently. Distributethe food over the bottom and along the side panel so the prefreezer compartment. Already frozen food must not come into contact with food which is to be frozen. If required, restack frozen food in the storage compartment.

If more food is frozenthan there is space in the pre-freezer compartment, the left side of the bottom of the storage compartment can be used for freezing.

Fastfreezing

Inordertoretainthevitamins,nutritional value,appearanceandflavourfood shouldbefrozenasquicklyaspossible. Donotexceedthemax.freezing capacity.Vitamins,nutritionalvalues, appearanceandtastearetherefore retained.

Topreventanundesirabletemperature risewhenplacingfreshfoodinthefreezer compartment,switchonfastfreeze severalhoursbeforehand.

Asarule, 4-6 hoursisadequate.

lfmax.freezingcapacityistobeutilised, 24 hoursarerequired.

Smallerquantitiesoffood(approx. 10 % of thefreezingcapacity)canbefrozen withoutfastfreeze.

To switch fast freezeon and off, press the "super" button. Fig. 2/5

Fastfreezehasstartedwhenthe"super" displayislit. Fig. 2/5

Therefrigeratingunitnowoperates continuously. Thefreezercompartment dropstoalowtemperature.

Storingfood

Glassbottlescontainingliquidswhich mayfreezemustnotbestoredinthe appliance.Bottleswillcrack.

Thebasketsallowtheproducetobe clearlyarranged. Thechestfreezercan alsobeloadedwithoutthebasketsup to the stacking limit, Fig. 1/11, (lower edgeofthecoverframe). In this case morefrozenfoodcanbestored, the energyconsumptionreducedand, if a faultoccurs, the temperaturerise delayed.

Attention!

Donotstackfoodabovetheloweredge of the cover frame. Fig. 1/11

Ensure that the storage temperature is at least -18 °C.

If the temperature in the applianerises duetoafaultor power failure, check whether the produce has started to thaw.

Donotrefreezethawedfood.Exception: If youusethefoodtomakeareadymeal (boilingorfrying),youcanrefreezethis readymeal.

Storageduration

Toretainthequalityofthefrozenfood,do notexceedthepermittedstorage durationat-18 °C.

Fish, coldmeats, ready meals, cakes and pastries

Upto6months

Cheese, poultry, meat

Upto8months

Vegetables, fruit Upto 12 months

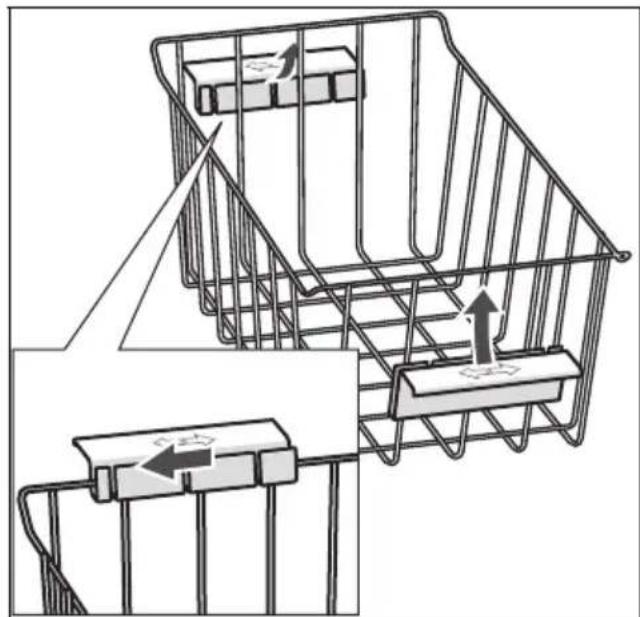

Smallbasket

Fig. 9 (notallmodels)

Forstorageofsmallitemsoffrozenfood.

Ifbasketsaretobeplacedonthebaseof theappliance,firstremoveorfoldinthe handles.

Ifrequired, purchasemorebasketsina specialistshop, specifying the appliance designation. Fig. 12

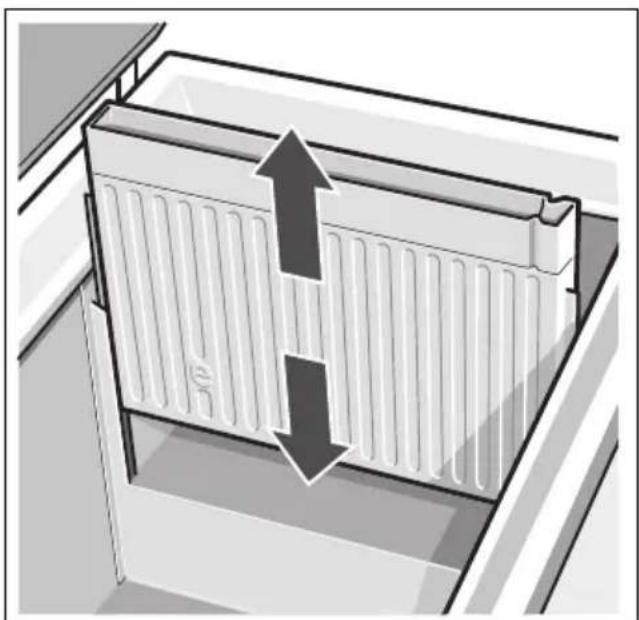

Removablepartition

Fig. 6 (some models only)

The partition prevents food which histobe frozen in the pre-freezer compartment from coming into contact with already frozen food in the storage compartment.

If the partition is pulled out and placed on the bottom of the chest freezer, small item soffrozen food, e.g. strawberries, can be frozen quickly and above all individually. When defrosting the appliance, the partition can be placed under the drain aged to catch the defrost water.

Defrosting

Alayeroffrostonthecontainerwalls impairsrefrigerationofthefrozenfood andincreasespowerconsumption. Removethelayerofhoarfrostregularly.

Generaltips

• Whenloadingandunloadingthechest freezer,openthelidasbrieflyas possible.
• Donotinstallthechestfreezer in a damproom.Highairhumidity promotesformationoffrost.
• Packfreshfoodasairtightaspossible.
  Attention: Donotscrapeoffhoarfrostor icewithaknifeor pointedobject. You could damage therefrigerant tubes. Leakingrefrigerant may ignite or cause eye injuries.

Thawingtheappliance

• Approx. 4 hours before defrosting switch on fast freezeto ensure that the food is frozensolid.
• Thenremovefrozenfoodandwrapin severallayersofnewspaperora blanketandstoreinacoollocation.
• Opentheliidandpulloutthemains plug.
• Pulloutouterdrainagestopper, Fig. 7/1, takeflattrayor, ifavailable, appliance partition, Fig. 7/2, out of the appliance, placeunderthedrainage holetocatchthedefrostwater, Fig. 7/3, andpullouttheinner drainagestopper, Fig. 7/4.
• Afterdefrosting, cleantheappliance andwipetheinsidedry.
• Closedefrostwaterdrainagewithboth stoppers,insertpartition,connect applianceandputbackfrozenfood.

Defrostingaids

Toacceleratethedefrostingprocess, a plasticspatulacanbeusedtoremove thelayerofice

Warning! Neveruseelectricappliances, defrosting spraysoranakedflametodefrostthe appliance, suchasheaters, steam cleaningequipment, candlesor petroleumlamps, etc. Donotplaceapanofhotwaterinthe appliancetoacceleratethedefrosting process.

Cleaningtheappliance

• Itisadvisabletocleanthefreezer compartmentaftereachdefrosting process.
• Pulloutthemainsplugorremove the fuse.
  •Takeoutthefrozenfoodandstore in a collocation.Piacetheiceblock (if enclosed)onthefood.
• Cleantheappliancewithlukewarm waterandalittlewashing-upliquid.
  •After cleaning:Reconnectthe appliance.
• Occasionallycleantherearofthe appliancewithavacuumcleaneror paintbrushtopreventanincreased powerconsumption.

Attention

Donotuseabrasiveoracidiccleaning agentsandsolvents.

Cleanthelidsealwithwateronlyanddry thoroughlywithacloth.

Thecleaningwatermustnotgetintothe controlpanelorthelight.

Tipsforsavingenergy

• Install appliance in a cool, dry, well ventilated room! but not indirect sunlight and not near a heat source (e.g. radiator, cooker, etc.). If required, use an insulating plate.
• Leavewarmfoodtocooldownbefore placingitintheappliance!
• Thawfrozenfoodbyplacingitinthe refrigerator. Thelowtemperatureofthe frozenfoodthencoolsthefoodinthe refrigerator.
• Openappliancelidasbrieflyas possible!
• Alayerofhoarfrostinthefreezer compartmentwillimpairrefrigeration of thefrozenfoodandincreasepower consumption.Defrosttheappliance if frostforms!
• Occasionallycleantherearofthe appliancewithavacuumcleaneror paintbrushtopreventanincreased powerconsumption.
• Ifonlyaveragequantitiesoffood (approx. 40% - 60% ofthemaximum freezingcapacity) are frozen, the food can be placed in the appliance 6 hours after fast freezewasswitchedon and then fast freezecan beswitchedoff.
• If the appliance is only partially loaded (for appliances with partition no higher than "e" mark on the partition), load with food which uses the "eco" setting.

Operatingnoises

Normalnoises

Humming-refrigeratingunitisrunning.

Bubbling, gurgling or whirring noises—refrigerantisflowing through the tubing.

Clicking-motorisswitchingonoroff.

Preventingnoises

Theapplianceisnotlevel

Please align the appliance with as spirit level. If the floor is uneven, compensate with supports.

The appliance is not free-standing

Pleasemovetheapplianceawayfrom adjacentunitsorappliances.

Basketsorpartitionpanelwobble or stick

Pleasechecktheremovablepartsand, if required,reinsertthem.

Receptaclesaretouchingeachother

Movethereceptaclesslightlyawayfrom eachother.

Eliminatingminorfaultsyourself

Beforeyoucallcustomerservice:

Please check whether you can eliminate the faulty yourself based on the following information.

Customerservicewillchargeyouforadvice,eveniftheapplianceisstillunder guarantee!

Fault	Possible cause	Remedial action
Temperature differs greatly from the set value.		Insomecasesitisadequatetoswitchoff the appliancefor5 minutes.Ifthetemperatureistoohigh,waitafew hoursandcheckwhetherthetemperature hasapproachedthesetvalue.If the temperature is too low, check the temperatureagainthenextday.
Interior light does not function.	Thebulbisdefective.Replacebulb	1.Pulloutthemainsplugordisconnect the fuse.2.Remove bulb cover, Fig. 8.3.Changethebulb(replacementbulb,220-240 Va.c., E14 bulbholder,seedefectivebulbfor wattage).
The refrigerating unit is switchingonmore frequently and for longer.	Thechestfreezerlid is openedfrequently.Theventilationopenings have been covered. Fig. 10	Donotopenlidunnecessarily.Removeobstacles.
“alarm” display, Fig. 2/3,islit.(It is too warminside the appliance)	Thechestfreezerlid is openedfrequently.Alotoffoodwasplaced in thefreezer.Theventilationopenings havebeencovered.Applianceissituatednear aheatsource	Donotopenlidunnecessarily.SwitchonSupercoolingbeforeplacingfood inthefreezer.Removeobstacles.Observetheminimumdistanceoruse insulatingplate.
Greenindicatorlight, Fig. 2/4, is not lit.	Appliancehasbeen switchedoff.Powerfailure;thefusehas beenswitchedoff;the mainsplughasnotbeen insertedproperly.	Connectmainsplug.Checkwhetherthepowerison,checkthe fuses.
Thickerfrostalong the upper edge of the appliance.	Defrostwaterstoppers not fittedcorrectly.Transportationprotection deviceswerenotremoved.Thechestfreezerlid is openedfrequently.	Correctlyinsertdefrostwaterstopperson thebaseoftheapplianceandonthefront of theappliance.Removeallfourtransportationprotection devices, Fig. 3 (see Installing the appliance).Donotopenlidunnecessarily.

Customerservice

Pleasecheckyourtelephonebookorthe customer-servicelistforyournearest customer-servicefacility.When contactingcustomerservice,please ALWAYSquotetheproductnumber (E-number)andproductionnumber (FD-number)ofyourappliance.

Thesenumberscanbefoundonthe ratingplate. Fig. 11

Tøpreventunnecessarycall-outs, please assistcustomerservicebyquotingthe productandproductionnumbers. This willsaveyouadditionalcosts.

GidermeBilgileri

Illustration showing a hand holding a folded document with a curved arrow indicating direction or transformation.

Illustration showing a hand holding an open document with a grid layout and an arrow indicating direction or transformation.

Diagram of a mechanical assembly with arrows indicating motion, showing components connected to a grid-like structure (no text or symbols present)

3

Illustration of a white rectangular container with downward arrows and a warning sign (no text or symbols)

4

eco 3 2 1' 4 alarm power super

5

Diagram of a refrigerator interior with ventilation grilles and upward arrow indicating airflow direction (no text or symbols)

6

Diagram illustrating a refrigerator interior with labeled steps and instructions for cleaning or cleaning the interior.

7

Diagram illustrating a mechanical or structural assembly with labeled components 1, 2, and 3, showing directional arrows and a textured background.

8

Diagram illustrating a shopping cart with directional arrows and labeled components, showing structural changes.

9

Diagram of a white refrigerator with a door and airflow arrows indicating movement (no text or symbols)

10

E - Nr FD - Nr

11

573 410

806 643

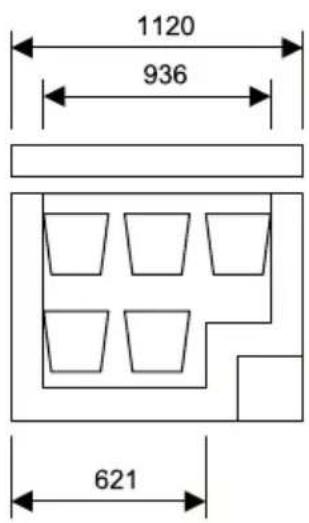

1120 936 621

1345 1161 846

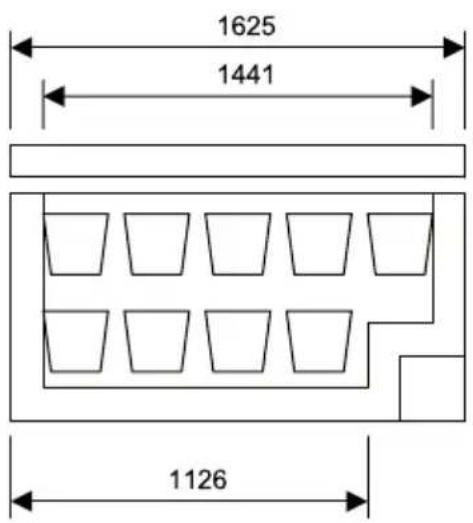

1625 1441 1126
