USER MANUAL DFTV270 SANSUI

27" MTS STEREO FLAT COLOR TELEVISION WITH DIGITAL TUNER

DFTV270

Line drawing of a flat-screen TV with remote control and indicator lights (no text or symbols)

ATTENTION

If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the required programming code.

TV/CABLE MODE SELECTION

When shipped from the factory, the TV/CABLE menu option is set to the "CABLE" (Cable Television) mode. If not using Cable TV, set this menu option to the "TV" position.

IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED

PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL

CUSTOMER SERVICE - 1-800-289-0980

ORION WEBSITE

FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT

www.orionsalesinc.com

Before operating the unit, please read this manual thoroughly.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFEGUARDS

1. READ INSTRUCTIONS

All the safety and operating instructions should be read before the unit is operated

2. RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3. HEED WARNINGS

All warnings on the unit and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS

All operating and use instructions should be followed

5. CLEANING

Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning the exterior cabinet only.

6. ATTACHMENTS

The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards.

7. WATER AND OMBTURE

Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

8. ACCESSORIES

Do not place this unit on an unstable cart, stand, tripod, bracket, or table.

The unit may fall, causing serious injury, and serious damage to the unit.

8A. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9. VENTILATION

PORTABLE CART WARNING (symbol provided by RETAC)

Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the unit and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation, such as a bookcase, or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10. POWER SOURCE

This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions.

11. GROUNDING OR POLARIZATION

This unit is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. If your unit is equipped with a 3-wire grounding-type plug a plug having a third (grounding) pin, this plug will only fit into a grounding-type power outlet. This too, is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

12. POWER-CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13. LIGHTNING

To protect your unit during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line surges.

14. POWER LINES

An outside antenna system should not be located in the vicinity of overhead power lines, other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal

15. OVERLOADING

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

16. OBJECT AND LIQUID ENTRY

Do not push objects through any openings in this unit as they may touch dangerous voltage points or short out parts that could result infire or electric shock. Never spill or spray any type of liquid into the unit.

17. O UTDOOR ANTENNA GROUNDING

If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

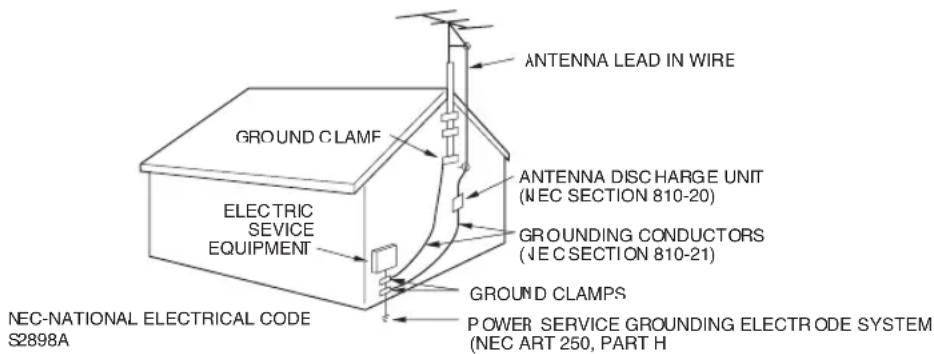

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE

18. SERVICING

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel

19. DAMAGE REQUIRING SERVICE

U nplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. he the power-supply cord or plug is damaged
b. f liquid has been spilled, or objects have fallen into the unit.
c. f thel unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to its normal operation.
e. f thel unit has been dropped or the cabinet has been damaged.
f. When the unit exhibits a distinct change in performance, this indicates a need for service

20. REPLACEMENT PARTS

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock or other hazards.

21. SAFETY CHECK

U pon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

22. HEAT

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat

23. NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

PREPARATIONS

IMPORTANT SAFEGUARDS 2

Contents 4

Features 5

Power source ....5

Parts and functions 6

Remote control ....7

Antenna connections 8

Cable TV connections 9

Connections to other equipment 10

Selecting the VIDEO INPUT source 12

Setting the language ....13

Memorizing channels ....14

OPERATION

TV operation 17

Setting the V-Chip 19

Setting the clock 23

Setting the picture size 24

Picture control adjustment/Resetting your picture adjustment ....25

Closed Caption 26

CC advanced 28

Selecting Stereo/Second Audio Program (SAP) ......29

Selecting the audio language (DIGITAL MODE) 30

Checking the Digital-signal strength (DIGITAL MODE) ......31

Using the auto shut off feature ....32

OTHERS

Troubleshooting....33

SPECIFICATIONS....34

LIMITED WARRANTY 35

High Quality Picture Horizontal Resolution more than 500 lines exceeds Super VHS (400 lines) or Laser Disc (430 lines) in resolution.

• Integrated Digital Tuner - You can view digital broadcasts without using a Digital TV Set-Top Box.
• Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for hearing impaired viewers.
• Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.
• Programmable TV Sleep Timer- Operable from the remote control, the TV can be programmed for up to 120 minutes to turn off automatically.
• V-Chip - The V-Chip function can read the rating of a TV program or movie content if the program is encoded with this in formation. V-chip will allow you to set a restriction level.
• Stereo/SAP Reception - This TV is designed to receive stereo and second audio program (SAP) broadcasts where available.
• S-Video/Component Videojacks - A VCR, DVD player, satellite receiver or other audio/video component can be connected to this unit.
• Video In put Jacks - This unit is equipped with 3 types of video input jacks. The component video in jacks and S-video in jack enable you to watch the DVD player or the video devices with a high quality picture.
• On-Screen 3 Language Display - You can select one of 3 languages, English, Spanish or French for on-screen programming.

Power source

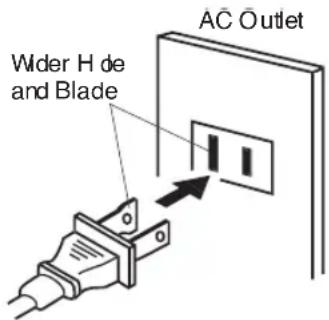

Polarized AC Cord Plug (One blade is wider than the other)

TO USE AC POWER SOURCE

Use the AC polarized line cord provided for operation on AC. Insert the AC cord plug into a standard 120V 60Hz polarized AC outlet

NOTES:

• Never connect the AC line cord plug to other than the specific voltage (120V 60Hz). Use the attached power cord only.
• If the polarized AC cord does not fit into a non-polarized AC outlet, do not attempt to file or cut the blade. It is the user's responsibility to have an electrician replace the obsolete outlet.
• If you cause a static discharge when touching the unit and the unit fails to function, simply unplug the unit from the AC outlet and plug it back in. The unit should return to normal operation.

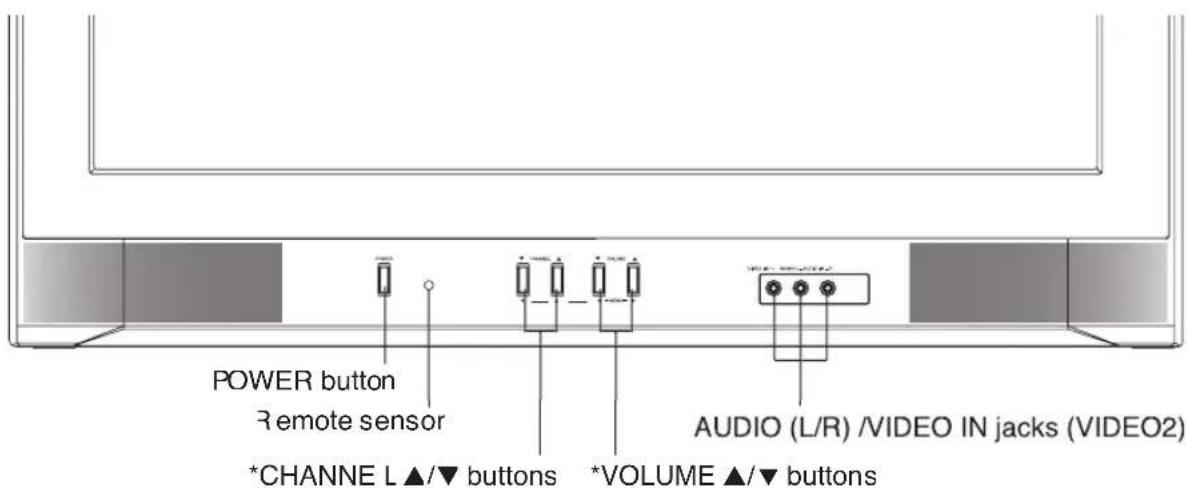

Front

* Todisplay the menu screen
Press both VOLUME ▲/▼ buttons at the same time to display the menu screen.
CHANNEL ▲/▼ buttons and VOLUME ▲/▼ buttons can be used to select the desired setting during the menu screen operations

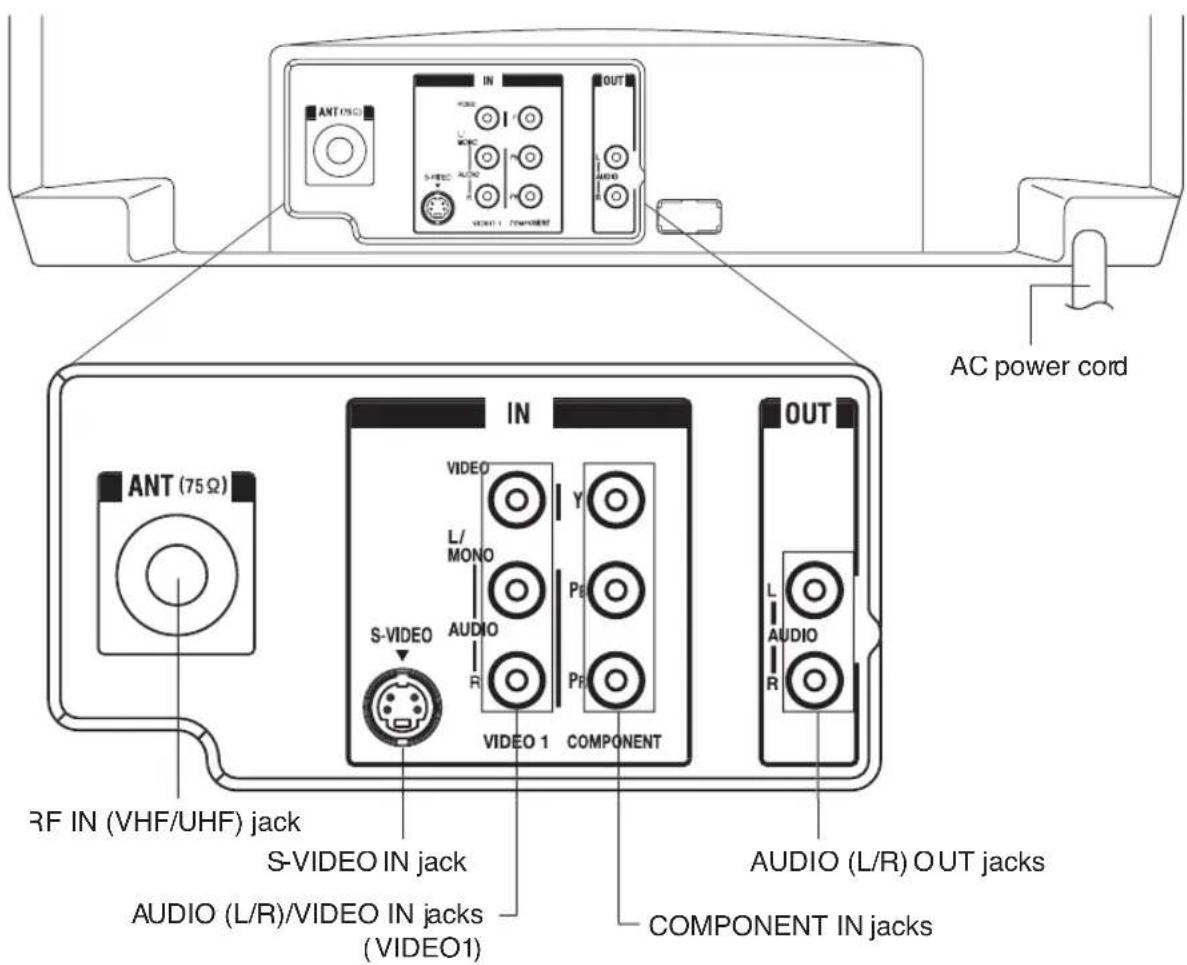

Rear

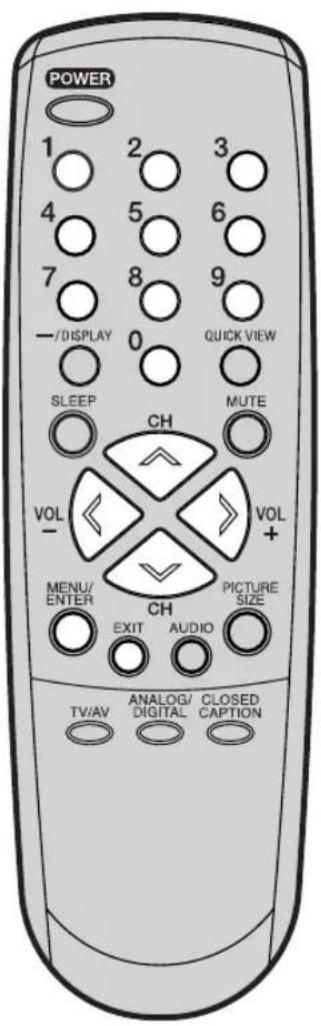

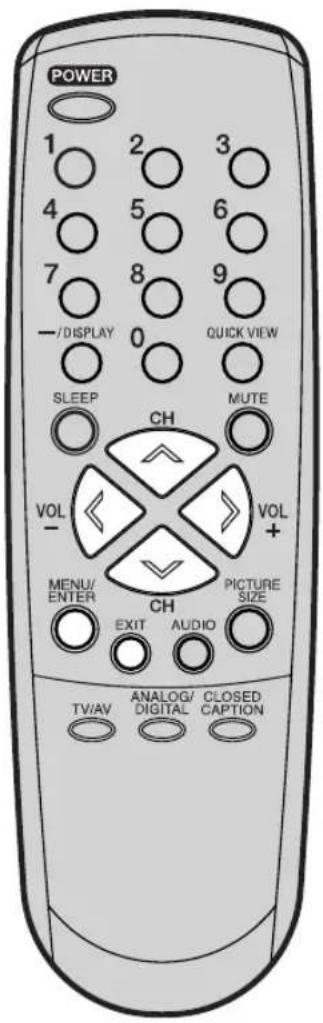

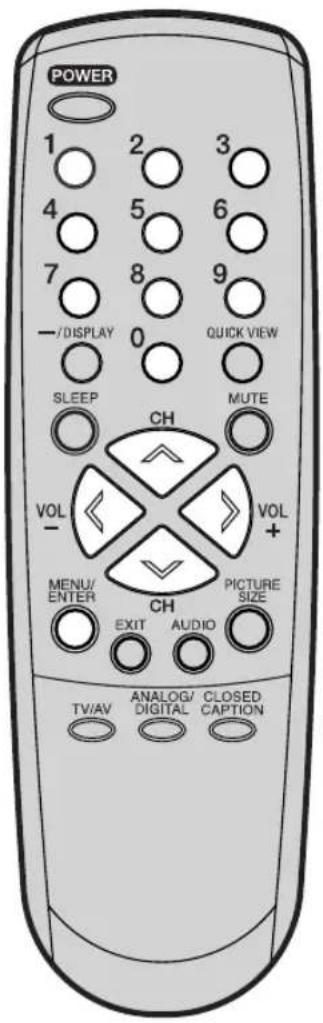

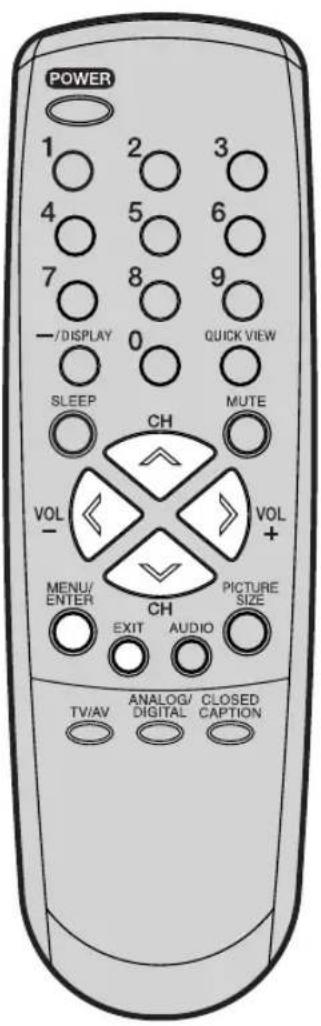

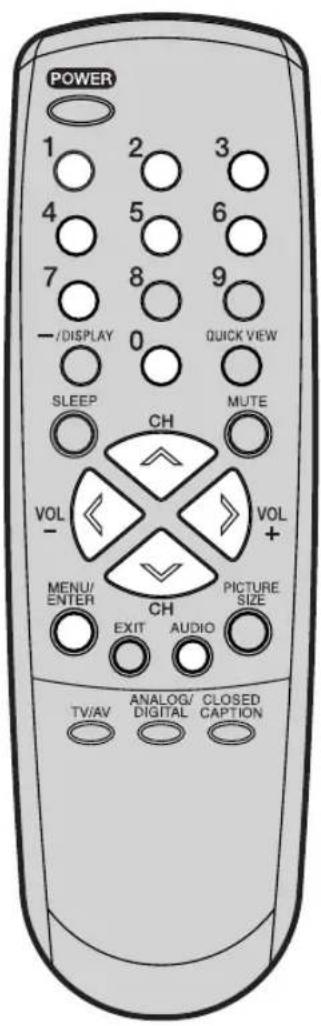

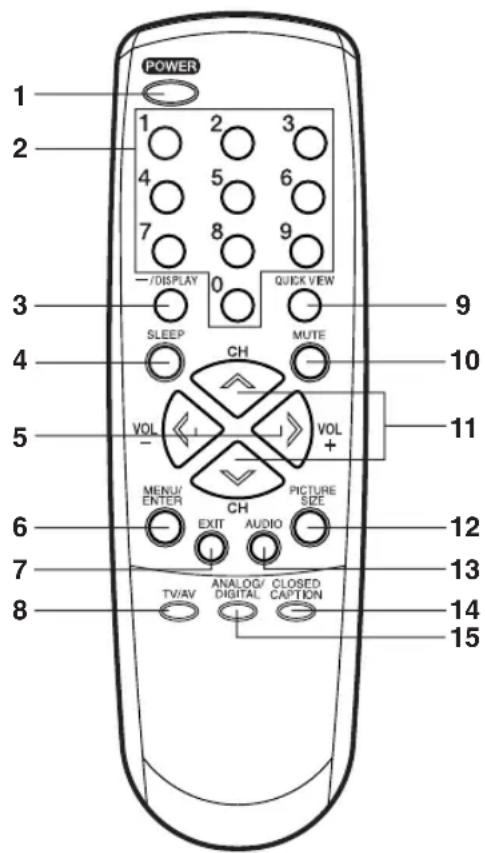

1. POWER Button- Press to turn the power on/off to the TV.
2. Direct Channel Selection Buttons (0-9) - Allow direct access to any channel.

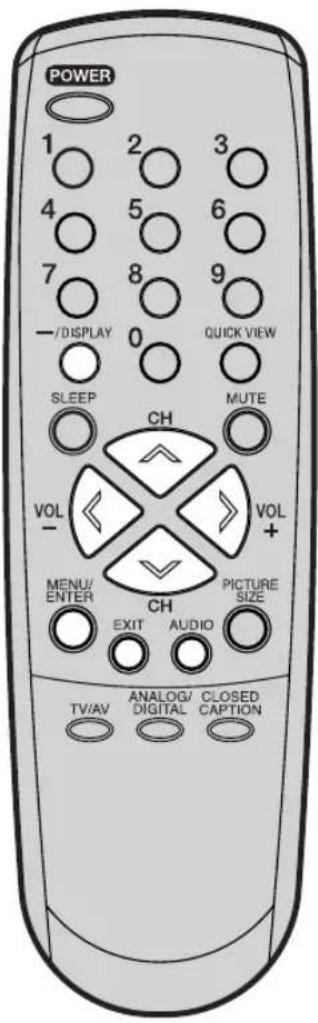

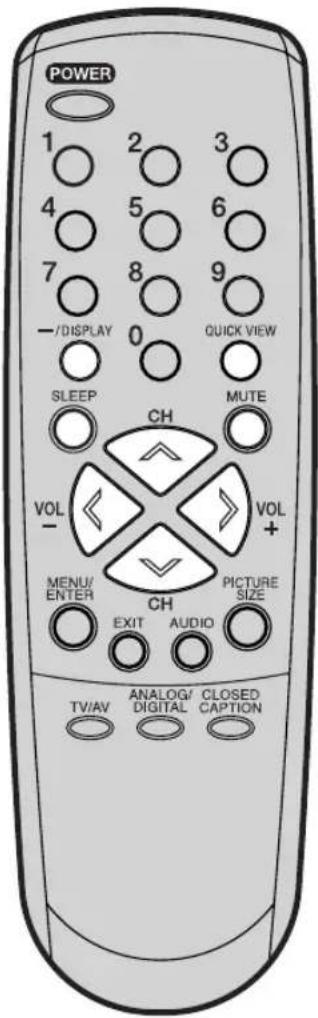

3. 4DISPLAY Button · When the TV is receiving an analog signal pressin g this button will display the current information on-screen. When the TV is receiving a digital signal, pressing this button once will display the digital information on-screen; pressing it a second time

will display the analog information on-screen. To remove the display from the screen, press this button again. This button is also the “−” button used when selecting digital channels.

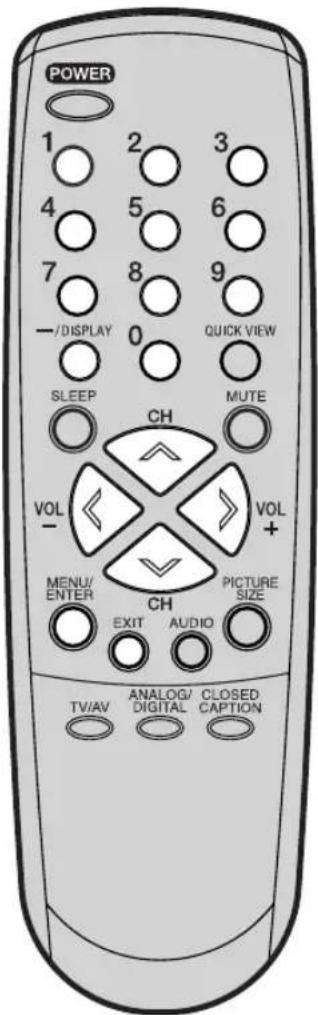

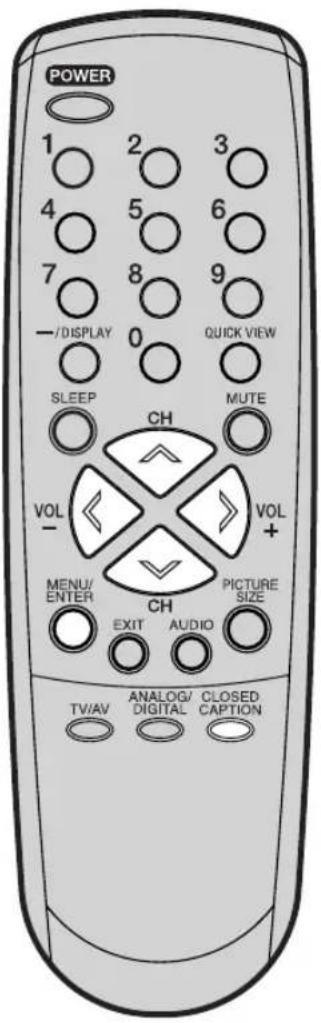

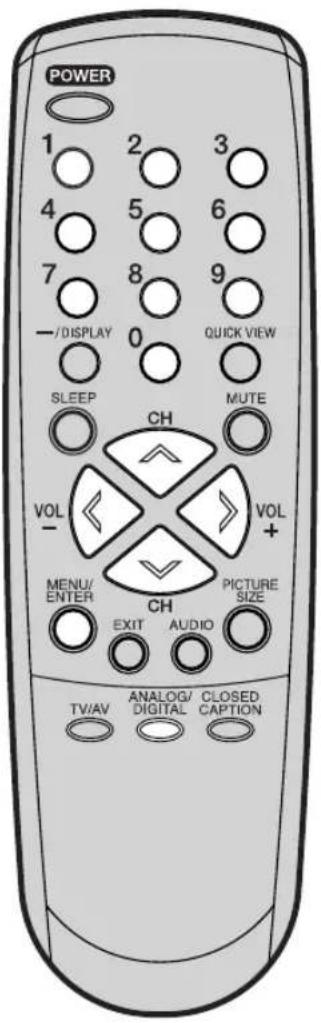

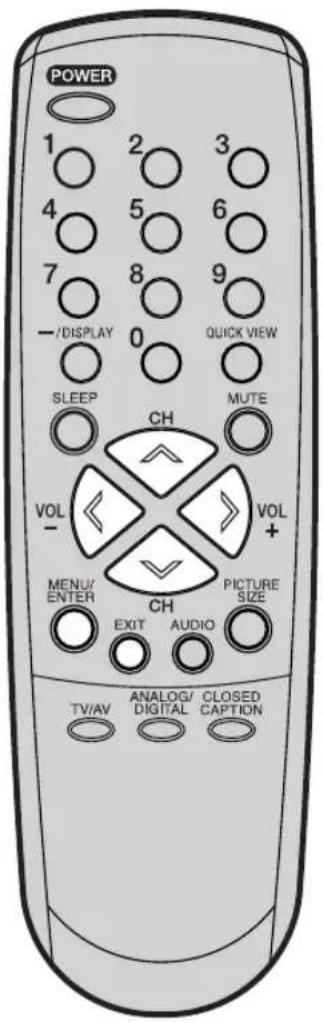

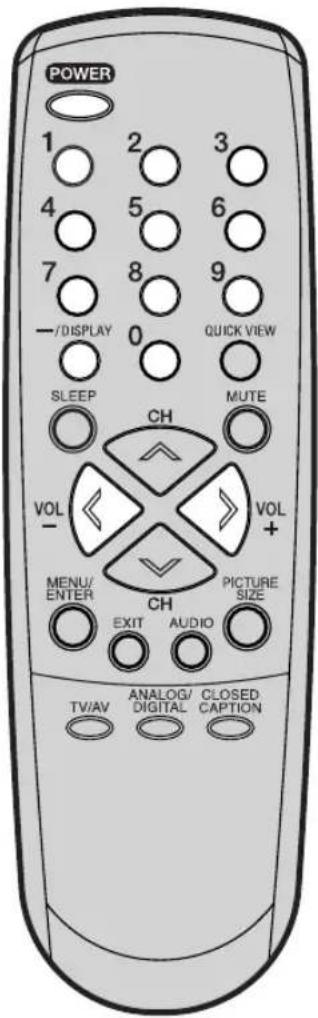

1. SLEEP Button To set the TV to turn off after a preset amount of time, press the SLEEP button. The clock will count up 10 minutes each time the button is pressed in the order of 0, 10, 20, ...100, 110, 120. After the sleep time is programmed, the d isplay will disappear then reappear momentarily every ten minutes to remind you the sleep timer function is operating. To confirm the sleep time setting, press the SLEEP button once and the remaining time will be momentarily displayed. To cancel sleep time, press the SLEEP button repeatedly until the display turns to 0.
2. VOL(VOLUME) + / - Buttons - Press the + button to increase, or the “-” button to decrease the volume level. Use to select the desired setting during the menu screen operation.
3. MENU/ENTER Button - Press to display the menu screen. While in the on-screen menu, press to enter or select options.

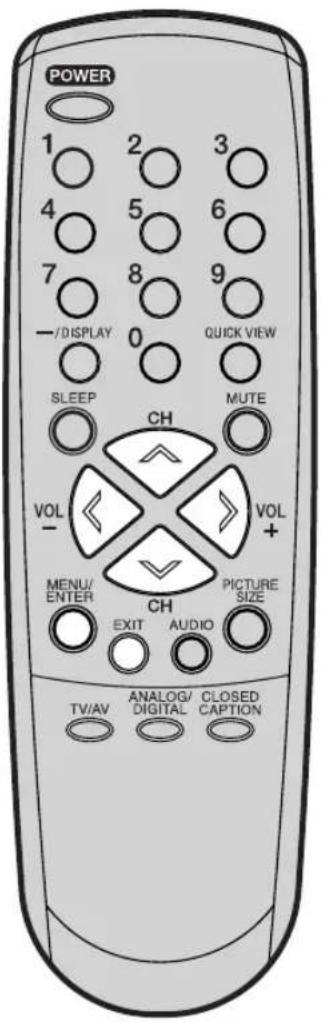

4. EXT Button - Press to exit the menu screen.
5. TV/AV Button - Press this button to display SOURCE SELECTION menu to select the video input source.
6. QUICK VIEW Button - This button allows you to go back to the previous channel selected by pressing the QUICK VIEW button. Press this button again to return to the channel you were watching.
7. MUTE Button · To turn off the sound, press this button once. The TV will be silenced and the symbol "MUTE" will appear on the screen. The muting feature can be released by pressing the MUTE button again or one of the VOL + or - buttons
8. CH (CHANNEL) ✗ √ Buttons - Press the ▲ button to change to ah igher numbered channel set into memory. Press the √ button to change to a lower numbered channel set into memory. Use to select he desired setting during the menu screen operation.

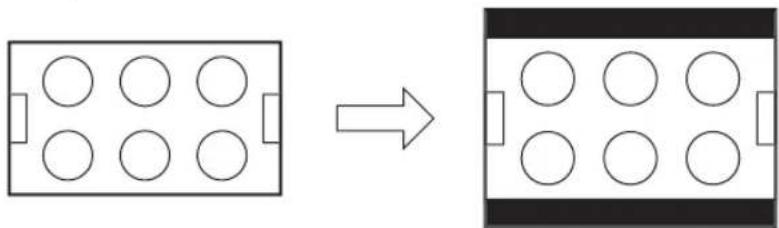

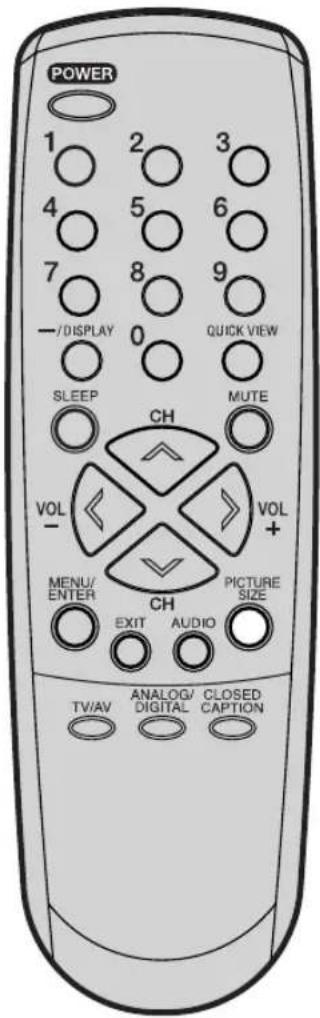

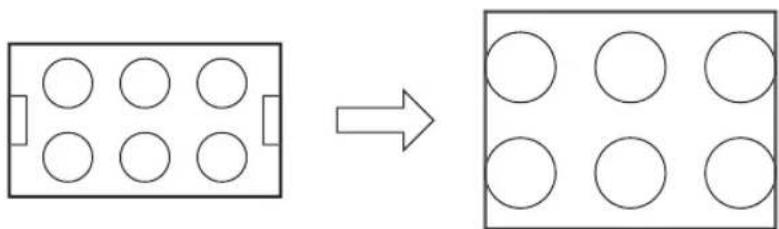

9. PICTURE SIZE Button - Press to change the picture size.
10. AUDIO Button- Press to select the desired audio setting.
11. CLOSED CAPTION Button - Press this button to display CLOSED CAPTION menu.

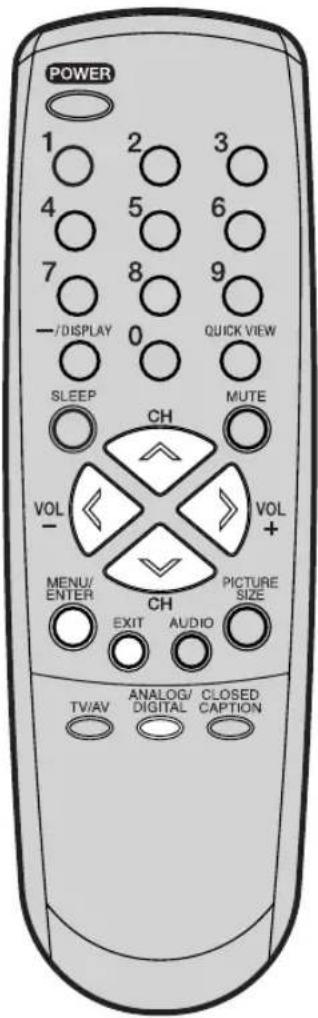

12. ANALOG/DIGITAL Button - Press to select analog/digital mode.

3 before using the remote control, batteries must first be installed.

HOW TO INSTALL BATTERIES

1. Open the battery compartment cover

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

1. Install two "AAA" batteries (not supplied).

Simple line drawing of a battery connected to a U-shaped conductor (no text or symbols)

1. Replace the battery compartment cover.

Use two "AAA" size batteries (not supplied). The batteries may last approximately one yeard spending on how much the remote control is used. For best performance, it is recommended that batteries should be replaced on a yearly basis, or when the remote operation becomes erratic. Do not mix old and new batteries or different types.

BATTERY PRECAUTIONS

These precautions should be followed when using batteries in this device:

• Use only the size and type of batteries specified.
• Be sure to allow the correct polarity when installing the batteries as indicated in the battery compartment. Heversed batteries may cause damage to the device.
• Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.
• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
• Do not try to rechart batteries not intended to be recharged; they can overheat and rupture (follow battery manufacturer's directions).

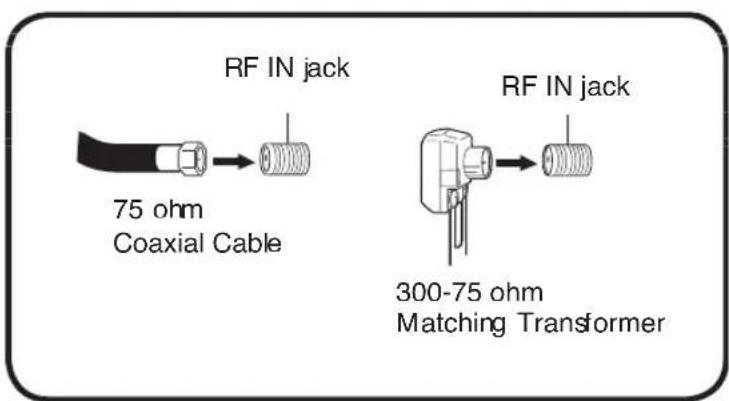

If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a cable TV service (CABLE), see page 9 for Cable TV connections.

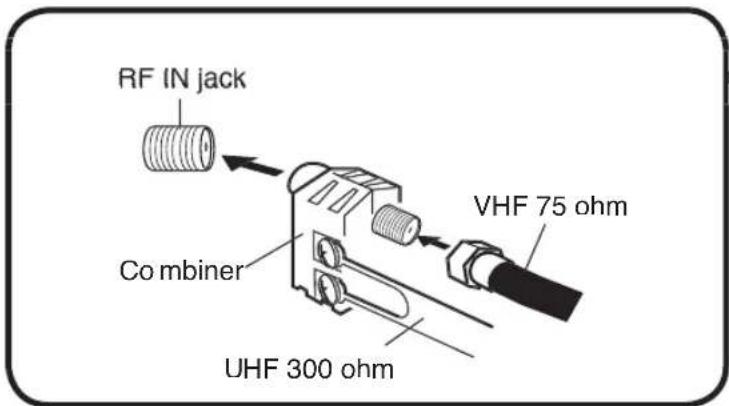

Combination VHF/UHF Antenna (Single 75 ohm Cable or 300 ohm Twin-lead Wire)

Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm Twin-lead Wires)

Separate VHF/UHF Antennas (75 ohm VHF Cable and 300 ohm UHF Twin-lead Wires)

Connect ohm Combiner

the Twin-lead to

VHF Wire t

75 to

This unit has an extended tuning range and can tune most cable channels without using a Cable TV Converter box. Some Cable TV companies offer “premium pay channels” in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the Cable TV company.

FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE

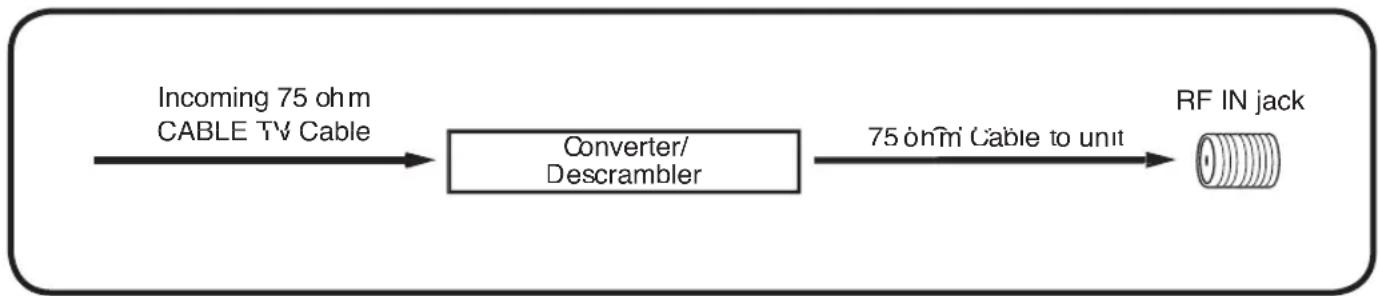

FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE

If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect the incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable, connect the output jack of the Converter/Descrambler box to the RF IN Jack on the unit. Follow the connections shown below. Set the unit to the output channel of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to select channels.


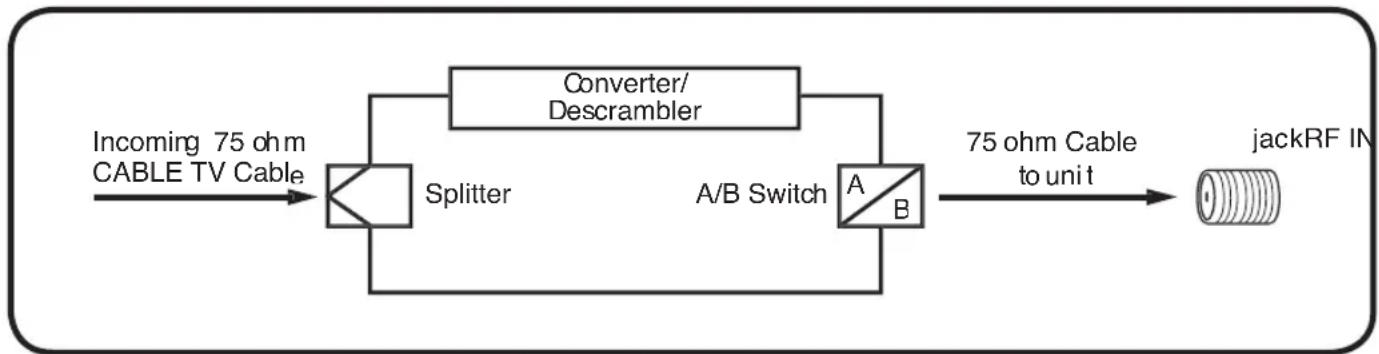

FOR SUBSCRIBERS TO UNSCRAMBLED BASIC CABLE TV SERVICE WITH SCRAMBLED PREMIUM CHANNELS

If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require the use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available from the Cable TV company or an electronics supply store). Follow the connections shown below. With the switch in the "B" position, you can directly tune any nonscrambled channels on your unit. With the switch in the "A" position, tune your unit to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to tune scrambled channels.

Connections to other equipment

The exact arrangement you use to interconnect various video and audio components to the TV is dependent on the model and features of each component. Check the Owner's Manual provided with each component for the location of video and audio inputs and outputs.

The connection diagrams below are offered as suggestions. You may need to modify them to accommodate your particular assortment of components. The diagrams are intended to show component video and audio interconnections only.

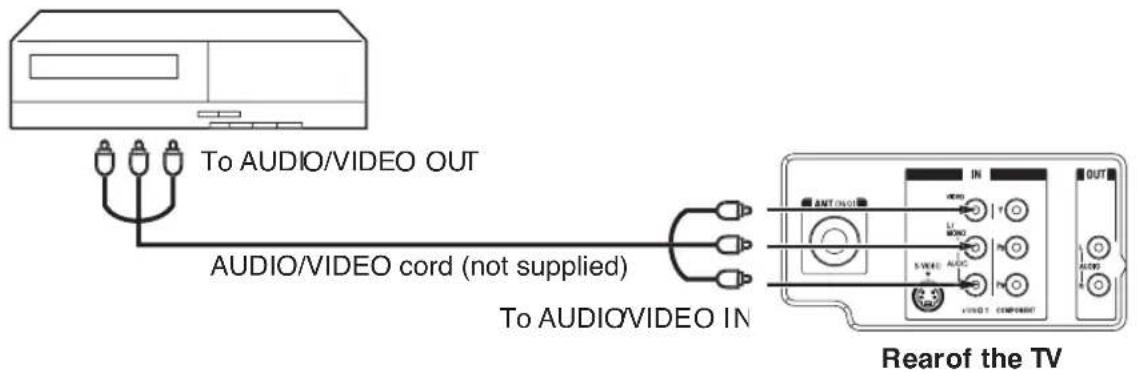

To connect the TV to a VCR

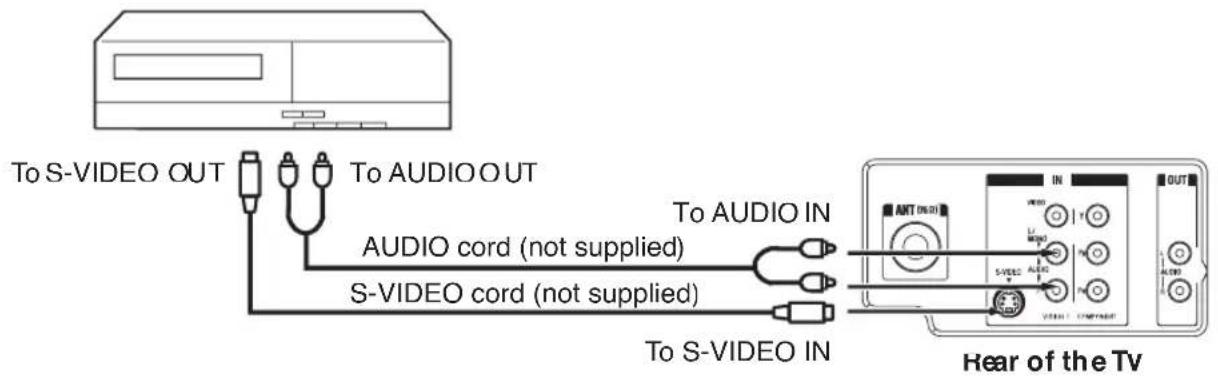

To connect the TV to a VCR with an S-Video cord

If you connect a VCR with a S-VIDEO cord to the S-VIDEO IN jack on the rear of the TV, you must also connect the audio cords to the AUDIO IN jacks on the rear of the TV. The S-VIDEO cord only carries the video signal. The audio signal is separate.

NOTE:

When the S-video cord and the video cord are connected to each jack at the same time, the S-video cord takes precedence over the video cord.

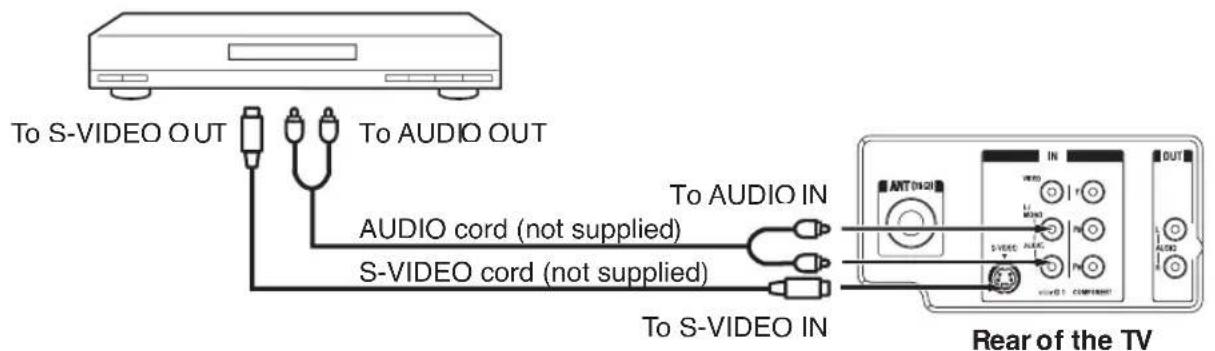

To connect the TV to a DVD player/Satellite receiver

If your DVD player or Satellite receiver has a S-Video out jack, connect cords as shown

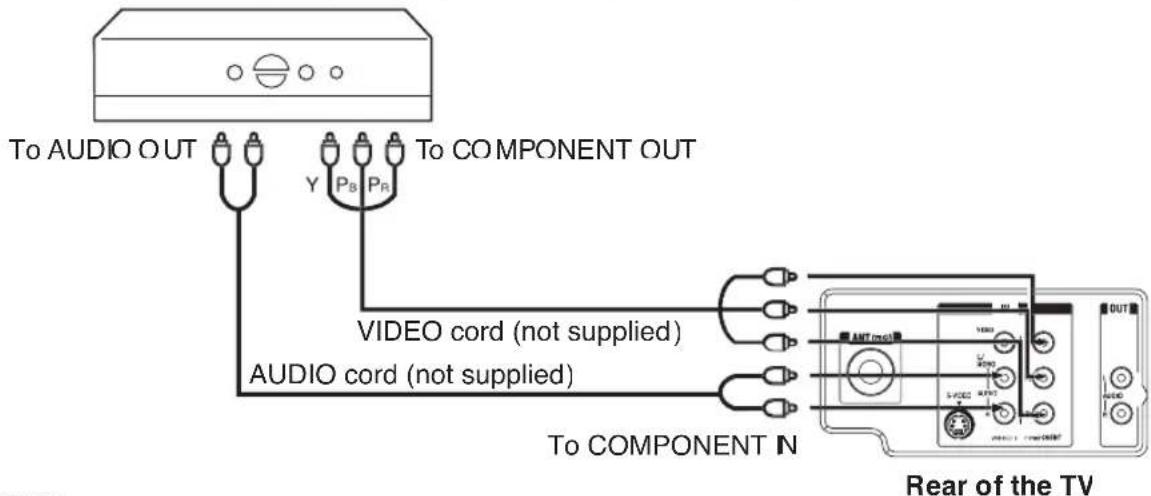

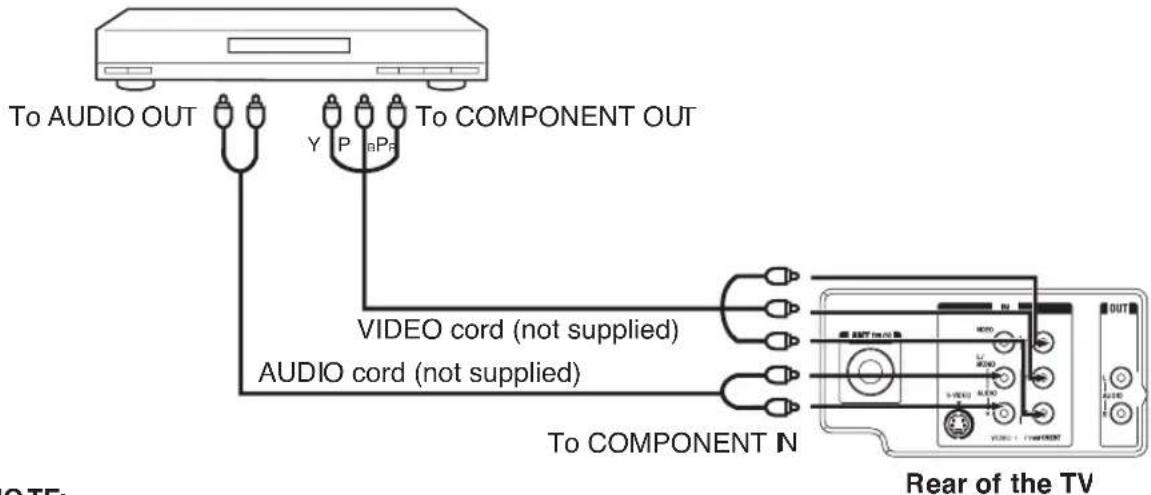

To connect the TV to a DVD player with component video

If your DVD player has component video out jacks, connect your TV to a DVD player using a component video cord. It can greatly enhance picture quality and performance.

NOTE:

This unit is only capable of displaying 480i interlaced signal when connected to a digital device with component video outputs. If you input a 480p, 720p or 1080i signal to the component video inputs, "COMPONENT" and "NO SIGNAL OR NOT SUPPORTED VIDEO RESOLUTION" will be displayed on a black screen. If this screen appears, set the digital device's component output to 480i

To connect the TV to a set-top box

If you connect a set-top box, connect your TV to it by using a component video cord.

NOTE:

This unit is only capable of displaying 480i interlaced signal when connected to a digital device with component video outputs. If you input a 480p, 720p or 1080i signal to the component video inputs, "COMPONENT" and "NO SIGNAL OR NOT SUPPORTED VIDEO RESOLUTION" will be displayed on a black screen. If this screen appears, set the digital device's component output to 480i

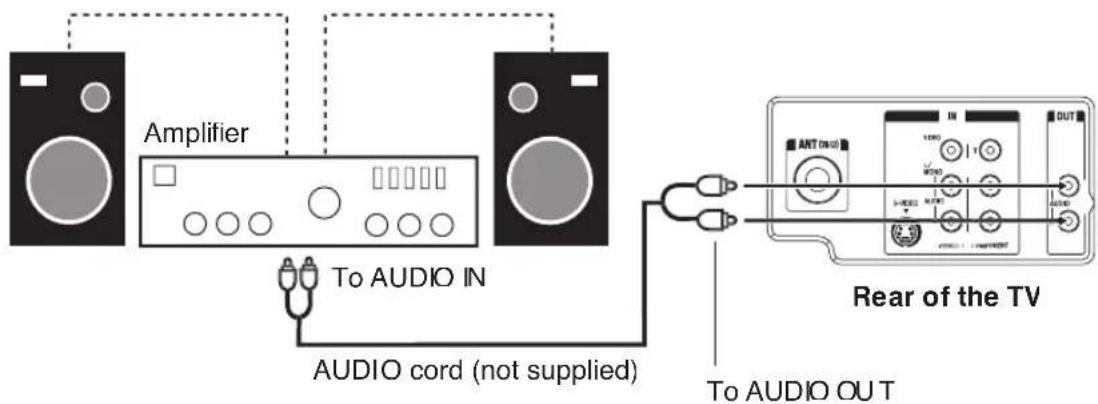

To connect an audio system

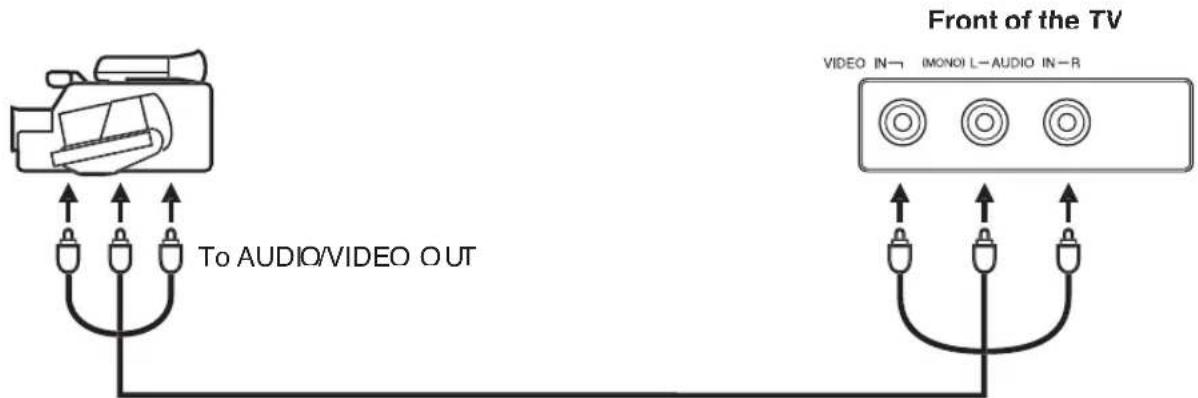

To connect the TV to a camcorder

To play back from a camcorder, connect the camcorder to the TV as shown.

AUDIO/VIDEO cord (not supplied)

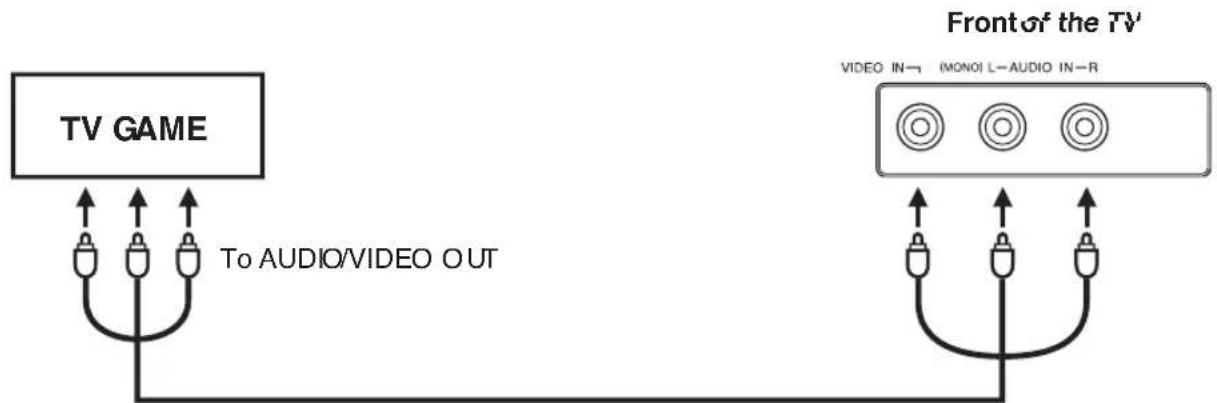

To connect the TV to a Game

The TV can also be used as a display device for many video games. However, due to the wide variety of signals generated by these devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual for additional information.

A UDI/OVIDO cord (not supplied)

Selecting the VIDEO input source

Press TV/AV to view a signal from another device connected to your TV, such as a VCR or DVD player. You can select "ANALOG", "DIGITAL", "VIDEO1", "VIDEO2" (on the front panel), or "COMPONENT" depending on which input jacks you used to connect your devices.

Pressing TV/AV on the remote control displays the current signal source.

Press ∧ / ∨ or the number buttons (0-4) to select desired mode.

You can choose from three different lang uages (English, French and Spanish) for the on-screen displays.

NOTE: It no buttons are pressed for more than 60 seconds, the MENU screen will return to normal TV-operation automatically

1 Press MENU/ENTER. The menu screen will appear

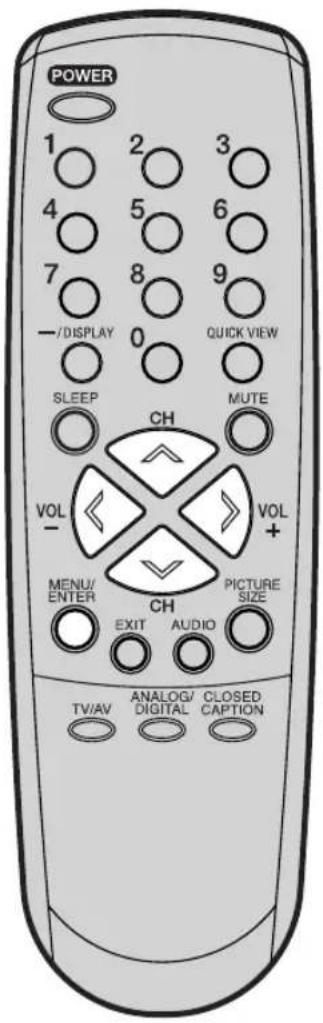

2 Press < or > to select 📄 (SETUP) menu.

3 Press ∧ or to select "LANGUAGE/IDIOMA/LANGUE". Then press to display the LANGUAGE/IDIOMA/LANGUE menu.

4 Press ∧ or to select the desired language: English (ENGLISH), French (FRANÇAIS) or Spanish (ESPAÑOL).

5 Press MENU/ENTE F repeatedly until the menu screen is cleared. Otherwise, press EXIT to return to the normal screen immediately.

Memorizing channels

This TV is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the TV's memory. To use this TV with an antenna, set the TV/CABLE menu option to the TV mode. When shipped from the factory, this menu option is in the CABLE mode.

NOTE: It may take a few seconds for a digital channel picture to appear on screen after being selected

TV/CABLE selection

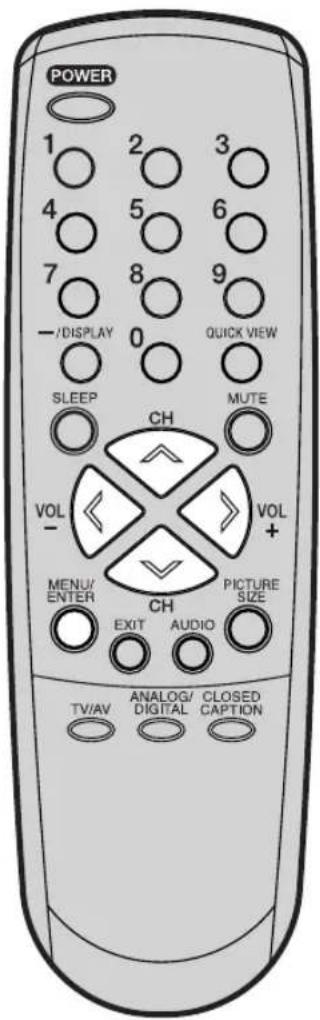

1 Press MENU/ENTER. The menu screen will appear

2 Press < or to se lect (SETUP) menu.

3 Press ∧ or √ to select "TV/CABLE".

4 Press < or to select "TV" or "CABLE".

TV - VHF/UH channels c CABLE - CABLE TV channels

5 Press MENU/ENTER repeatedly until the menu screen is cleared. Otherwise, press EXIT to return to the normal screen immediately.

CABLE CHART

The chart below is typical of many cable system channel allocations.

Number on this TVCorresponding CABLE channel

14A

15B

16C

17D

18E

19F

20G

21H

22I

23J

24K

25L

26M

27N

28O

29P

30Q

31R

32S

33T

34U

35V

36W

37AA

38BB

39CC

40DD

41EE

42FF

43GG

44HH

45II

46JJ

47KK

48LL

49MM

50NN

51OO

52PP

53QQ

54RR

55SS

56TT

57UU

58VV

59WW

60AAA

61BBB

62CCC

63DDD

64EEE

65FFF

66GGG

67HHH

68III

69JJJ

70KKK

71LLL

72MMM

73NNN

74OOO

75PPP

76QQQ

77RRR

78SSS

79TTT

80UUU

81VVV

82WWW

83XXX

84YYY

85ZZZ

8686

8787

8888

8989

9090

9191

9292

9393

9494

95A-5

96A-4

97A-3

98A-2

99A-1

100100

101101

102102

103103

104104

105105

106106

107107

108108

109109

110110

111111

112112

113113

114114

115115

116116

117117

118118

119119

120120

121121

122122

123123

124124

125125

015A

VOTES:

• Memorizing channels is best accomplished during evening "PRIMETIME" hours, as more stations are broadcasting digital signals. Memorizing channels can only be accomplished while a station is broadcasting a digital signal to set that channel into memory.
• If you are unsure of the digital channels available in your area you may visit www.antennaweb.org to receive a list based on your address or zip code. Should you require further assistance you may call our toll-free customer service line at 1-800-289-0980.
• New digital channels may be added to your area periodically, it is recommended that you perform the "AUTOCH MEMORY" procedure regularly.

Automatic memory tuning

1 Press MENU/ENTER. The menu screen will appear

2 Press < or to select (SETUP) menu, then press ∧ or to select "AUTO CH MEMORY".

3 Press >T he TV will begin memorizing all the channels available in your area. After finishing Analog Tuning, Digital Tuning starts automatically

- It may take from 15 minutes to 30 minutes to complete memorizing digital cable channels. Depending on the reception condition, a BAR display may not advance for several minutes.

To add or delete channels (ANALOG MODE)

1 Press ANALOG/DIGITAL to select the analog mode.
2 Press MENU/ENTER. The menu screen appears.
3 Press < or to select ⚠ (OPTION) menu, then press ∧ or to select "ADD/DELETE".
4 Press >T he ADD/DELETE menu appears.
5 Select the desired channel to be memorized or deleted using ∧ or ∨.
6 Press < or to select "ADD" or "DELETE".
7 Repeat steps 5-6 for other channels you want to add or delete
8 Press MENU/ENTER repeatedly until the menu screen is cleared. Otherwise, press EXIT to return to the normal screen immediately.

To add or delete channels (DIGITAL MODE)

1 Press ANALOG/DIGITAL to select the digital mode
2 Press MENU/ENTER. The menu screen appears
3 Press < or to select (OPTION) menu, then press ^ or to select "DIGITAL SETUP".
4 Press >The DIGITAL SETUP menu appears.
5 Press ∧ or to se lect "ADD/DELETE", then press >. The ADD/DELETE (DTV) menu appears.

6 Press ∧ or √ to select "ADD/DELETE", then press >.
7 Select the desired channel to be memorized or deleted using ∧ or ∨.
8 Press < or to select "ADC" or "DELETE".
9 Repeat steps 7-8 for other channels you want to add or delete
10 Press MENU/ENTER repeatedly until the menu screen is cleared.

To add a digital channel you are watching

Select the digital channel you want to add. Press ∧ or √se lect "ADDING CHANNEL" as in step 6 above, then press >.

NOTES:

• It a channel with no broadcast is selected, the sound will automatically be muted
• If a station being viewed stops broadcasting, the TV will automatically shut itself off after 15 minutes.
• It may take a few seconds for a digital channel picture to appear on screen after being selected.

1 To turn on the TV, press POWER.
2 Adjust the volume level by pressing VOL + or - . The volume level will be indicated on the screen by green bars. As the volume level increases, so do the number of bars. If the volume decreases, the number of green bars also decreases.
3 Set the TV/CABLE menu option to the appropriate position (see page 14).
4 Press the Direct Channel Selection buttons to select the channel.

To select analog channels

When the TV/CABLE menu option is in the TV position, all channels can be instantly selected by using two buttons.

(For example, to select channel 2, press "0", then "2". If you press only "2", channel selection will be delayed for a few seconds.)

For channels 10 and above, press the 2 digits in order.

When the TV/CABLE menu option is in the CABLE position, channels can be selected as follows:

1-9: Press U twice, then 1-9 as needed.
Example, to select c channel 2, press 002.
10-12: Press U, then remaining 2 digits. Example, to select c hannel 12, press 012.
13-99: Press h 2dig its in order. Example, to select c hannel 36, press 36.
100-125: Press the 3dig its in order Example, to select c hannel 120, press 120.

To select digital channels

Press the channel number in order.

When “−” is contained in the channel number, press the first digits, then press “−/DI SPLAY”, followed by the remaining 3 digits.

(Example, to select channel 015-001, press 015-001.)

• If a channel is selected with only audio content, "AUDIO ONLY" will be displayed on the screen.
• If a channel is selected with a weak digital signal, "DIGITAL CHANNEL SIGNAL STRENGTH IS LOW" will be displayed on the screen. If the digital channel has the same analog channel, you may be able to watch the same channel with analog.
• If a channel is selected to which you have not subscribed, "DIGITAL CHANNEL & ENSCRIPTED" will be displayed on the screen.

VHF/UHF/CABLE CHANNELS

TV	CABLE
VHF2-13	VHF2-13
UHF14-69	STD/HRC/IRC14-36 (A) (W)37-59 (AA) (WW)60-85 (AAA) (ZZZ)86-94 (86) (94)95-99 (A-5) (A-1)100-125 (100) (125)01 (5A )

NOTE:

After 10 seconds, DISPLAY screen will return to normal TV-operation automatically, when a Digital signal is received After 4 seconds, DISPLAY screen will return to normal TV-operation automatically, when an Analog signal is received

CH^/

Press and release CH ∧ or ∨.

The channel automatically stops at the next channel set into memory.

For proper operation, before selecting channels, they should be set into the memory. See pages 14 - 16

"Memorizing channels".

DISPLAY

Press -/DISPLAY to display the current information on the screen.

When the TV receives a digital signal, the digital information will appear.

• Broadcast program name
• Station name
• Remaining time
  • Audio language • græbrøname
  • V-CHIP RATING • V-Chip mark

When the TV receives an Analog signal, press-/DISPLAY again, the analog information will appear.

• Clock
  • Channel number or VIDEO mode selected
• Stereo or SAP (second audio program) audio status
• Picture size

Press -/DISPLAY again to clear the call display

QUICK VIEW

This button allows you to go back to the last channel selected by pressing QUICK VIEW. Press QUICK VIEW again to return to the last channel you were watching.

MUTE

Press MUTE to switch off the sound.

The unit's sound will be silenced and "MUTE" will appear on the screen.

The sound can be switched back on by pressing this button again or one of the VOL +or - buttons

SLEEP

To set the unit to turn off after a preset amount of time, press SLEEP on the remote control. The clock will count up 10 minutes for each press of the SLEEP button (0, 10, 20, ...100, 110, 120).

After the sleep time is programmed, the display will appear briefly every ten minutes to remind you that the sleep timer is operating.

To confirm the sleep timer setting, press SLEEP and the remaining time will be displayed for a few seconds. To cancel the sleep timer, press SLEEP repeatedly until the display turns to 0.

An age limitation can be set to restrict children from viewing or hearing violent scenes or pictures that you may choose to exclude. The restriction applies to "TV RATING" and "MOVIE RATING" if this data is transmitted. You may set this restriction separately. To use the V-Chip function, you must register a password.

NOTES:

• If you forget the password, contact Customer Service at 1-800-289-0980 for assistance. Your original remote control will be required.
• To avoidorgetting the password, write it down and keep it in a safe place.

To set a password

1 Press MENU/ENTER. The menu screen appears.

2 Press < or to select (OPTION) menu, then press ^ or to select "V-CHIP".
3 Press >T he password entering screen appears.
4 Select and enter a password (4 digits) using the number buttons (0-9), then press MENU/ENTER

“*” appears instead of the number.

5 Enter the same password again to confirm, then press MENU/ENTER. The password is now set and the V-CHIP menu appears on the screen.

To use the TV after the TV is protected.

When a program is received that is blocked by the V-Chip, enter the password, then press MEN U/ENTER. When the password is entered correctly the protection will be temporarily overridden.

If the TV is turned off, or the channel is changed the V-Chip restriction will be reactivated.

NOTES:

• The V-Chip function is activated only on prog rams and input sources that include a rating sg na.
• The V-CHIP SET (DTV) will only be selectable when the unit receives a digital road cast using the new rating system. It may take several minutes for the initial V-Chip Set-up to complete. At this time some stations are still developing this signal, in those cases the V-CHIP SET (DTV) will not function

To set the V-CHIP

1 Press MENU/ENTER. The menu screen appears
2 Press < or > to select 🏠 (OPTION) menu.
3 Press ∧ or tv select "V-CHIP"
4 Press > to display the password entering mode. Use number buttons (0-9) to enter your password, then press MENUENTER The V-CHIP menu appears.
5 Press ∧ or to select "V-CHIP SET" , then press < or .The V-CHIP SET menu appears.
6 Press ∧ or to select "TV RATING", then press < or to display the desired rating.

OFF : TV RATIN G is not set

TV-Y : Alhildren

IV-Y7 : 7years old and above

TV-G : General audience

TV-PG : Parental gdiance

TV-14 : 14 years old and above

TV-MA : 17 years old and above

- When you select TV-Y7, TV-PG, TV-14, or TV-MA, press -/DISPLAY to further define the rating.

Press ∧ or to select t he desired rating you want. Press < or > to select the setting "ON" or "OFF".

7 Press ∧ or to select "MOVIE RATING", then press >. The RATING SET menu appears.

8 Press ∧ or to select t he rating, then press < or to select "ON" or "OFF" for each rating.

G : All a ges

PG : Parental guidance

PG-13 : Parental guidance less than 13 years old

R : Under 17 years old parental guidance suggested

NC-17 : 17 years old and above

X : Adult only

9 Press MENU/ENTER twice to return to the V-CHIP menu, then press ∧ or ∨ to select "V-CHIP".

0 Press < or > to select "ON". Your settings are now set into memory.
1 Press MENU/ENTER repeatedly until the menu screen is cleared. Otherwise, press EXIT to return to the normal screen immediately.

To change the password

1 Press MENU/ENTER. The menu screen appears

2 Press < or to select (OPTION) menu, then press ∧ or to select "V-CHIP".

3 Press to display the password entering mode. Use the number buttons (0-9) to enter your password, then press MENU/ENTER. The V-CHIP menu appears.

4 Press ∧ or ∨ select "CHANGE PASSWORD", then press >.

5 Enter a new password using the number buttons (0-9), then press MENU/ENTER.

6 Enter the same password again to confirm, then press MENU/ENTER.

7 Press MENU/ENTER repeatedly until the menu screen is cleared. Otherwise, press EXIT to return to the normal screen immediately.

NOTES

• You can only download the additional V-Chip rating system when your TV is receiving a digital signal.
• When you download the additional rating system, it may take some time for the download to occur.
• The V-Chip rating information and system are ndetermined or controlled by the TV.
• The standard V- Chip rating system is available whether your TV is receiving a digital signal or not, and will block both analog and digital programs. To set the restriction level using the standard V-Chip rating system, select VCHIP SET in step 5.
• The downloadable V-Chip rating system is an evolving technology, and availability, content, and format may vary.
• You cannot select this feature if the TV is not receiving a digital signal for the current station.

Downloading the additional V-Chip rating system

As a supplement to the standard V-Chip rating system, your television will be able to download an additional rating system, if such a system becomes available in the future.

To download the additional V-Chip rating system (when available)

1 Press ANALOG/DIGITAL to select the digital mode
2 Press MENU/ENTER, then press < or t> display 🔊 (OPTION) menu.
3 Press ∧ or to select "V-CHIP", then press >.
4 Use the Channel Number buttons (0-9) to enter your password. Press MENU/ENTER.The V-CHIP menu appears.
5 Press ∧ or to select "V-CHIP SET (DTV)", then press >.
6 If the TV is not storing the additional rating system, the TV will begin downloading it, which may take some time to be completed.
7 Press ∧ or √select "RRT SET", then then press >, and set your preferred content rating limits for the additional rating system.

NOTE:

After a power failure or disconnection of the power, the clock settings will be lost. In this case, reset the present time.

EXAMPLE: Setting the clock to "8:30 AM", 29 th (MON) October, 2007.

1 Press MENU/ENTER, then press < or to select (SETUP) menu.

2 Press ▲ or to select "CL OCK SET". Then press .The CL OCK SET menu will appear.

3 Press < or > to set the MONTH, then press √.

4 Set the DAY, YEAR and TIME as in step 3.

After setting the date and time, the clock will begin functioning automatically.

5 Press MENU/ENTER repeatedly until the menu screen is cleared. Otherwise, press EXIT to return to the normal screen immediately.

You can view 480i format programs in three picture sizes—4:3, 16:9 and ZOOM.

NOTES:

• It receiving an Analog signal, you can choose 4:3 or 16:9 picture size.
• If you are receiving a Digital signal in the 4:3 format, you are restricted to the 4:3 picture size.
• It receiving a Digital signal of 16:9, you can choose 4:3, 16:9 or ZOOM.

Selecting the picture size

You can change the picture size by pressing the PICTURE SIZE button on the remote control.

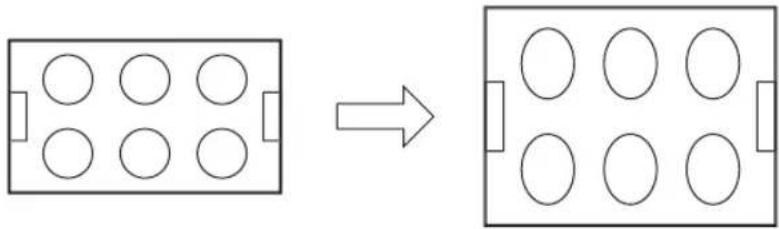

4:3 picture size

To fill the screen, the top and bottom edges are extended more widely though the center of the picture remains near former ratio.

- If receiving a 4:3 format program, the image is displayed its originally formatted proportion.

16:9 picture size

This image will display the size of standard 16:9 with black bars at the top and bottom.

- If receiving a 4:3 format program, the image is displayed with blackbars at the top and bottom and stretched wider.

NOTE:

If a fixed black bar remains on the screen for long periods of time, the image can become permanently engrained in the screen and cause subtle but permanent ghost images. Never leave your TV on for an extended period of time while displaying a stationary image(s).

ZOOM picture size (for 16:9 format programs)

The entire picture is uniformly enlarged—it is stretched the same amount both wider and taller (retains its original proportion). The right and left edges of the picture may be hidden.

Picture control adjustment/Resetting your picture adjustment

Picture control adjustment

1 Press MENU/ENTER, then press < or > to selectt (PICTURE) menu.

2 Press ∧ or to select the item you want to adjust. Press < or > to adjust the setting.

	<	>
BRIGHTNESS	decrease brightness	increase brightness
CONTRAST	decrease contrast	increase contrast
COLOR	paler color	brilliant color
TINT	reddish color tint	greenish color tint
SHARPNESS	makes picture softer	makes picture clearer

3 After you have made your selection, press EXIT to return to the normal screen

NOTE: The CONTRAST default setting is set to maximum at the factory.

Resetting your picture adjustment

The RESET function returns your picture quality adjustments to the following factory settings:

BRIGHTNESS.... CENTER (0) TINT .... CENTER (0) CONTRAST.... MAX (32) SHARPNESS .... CENTER (0) COLOR.... CENTER (0)

1 Press MENU/ENTER, then press < or > to select (PICTURE) menu.

2 Press ∧ or to select "RE SET", then press >.

WHAT IS CLOSED CAPTIONING?

This television has the capability to decode and display Closed Captioned television programs. Closed Captioning will display text on the screen for hearing impaired viewers or it will translate and display text in another language.

Captions: This Closed Caption Mode will display text on the screen in English or another language. Generally, Closed Captions in English are transmitted on C1 and Closed Captions in other languages are transmitted on C2.

Text: The Text Closed Caption Mode will usually fill 1/2 of the screen with a programming schedule or other information

To turn on closed captions (ANALOG MODE)

1 Tune the television to the desired program in the analog mode.
2 Press MENU/ENTER, then press < or >o display 🔒 (OPTION) menu.
3 Press ∧ or ∨ to select "CLOSED CAPTION".
4 Press >The CLOSED CAPTION menu appears.

NOTES:

• Depending on the b road cast signal, some analog captions function with a digital broadcast signal.
• This screen can be displayed by pressing CLOSED CAPTION.

5 Press ∧ or ∨ select the desired closed caption mode, then press MENU/ENTER.

NOTES:

• To view captions, select C1 or C2 (C1 displays translation of the primary language in your area). If the program or video you selected is not closed captioned, no captions will display on-screen.
• To view text, select T1 or T2. If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set the Closed Caption feature to OFF.

6 Press MENU/ENTER repeatedly until the menu screen is cleared. Otherwise, press EXIT to return to the normal screen immediately.

NOTES:

• If the program or video you selected is not closed-captioned, no captions will display on-screen.
• If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set the Closed Caption feature to "OFF".
• When selecting Closed Captions, the captioning will be delayed approx. 10 seconds
• If no caption signal is received, no captions will appear, but the television will remain in the Caption Mode.
• Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with Closed Captioning especially with live programs. This is because during live programs, captions are also entered live. These transmissions do not allow time for editing.

- When Captions are being displayed, on-screen displays, such as volume and mute may be seen but may interfere with Closed Captions.

- Some Cable TV systems and copy protection systems may interfere with the Closed Captioned signal.

- If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder may not appear or may appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or use an outdoor antenna.

NOTE: To turn the closed caption feature off, select OFF in step 7, above.

To turn on closed captions (DIGITAL MODE)

1 Tune the television to the desired program in the digital mode

2 Press MENU/ENTER. The menu screen appears

3 Press < or to select 🔊 (OPTION) menu, then press ∧ or to select "DIGITAL SETUP".

4 Press >The DIGITAL SETUP menu appears.

5 Press ∧ or √ to select "CL OSED CAPTION", then press > The CLOSED CAPTION menu appears.

- This screen can be displayed by pressing CLOSED CAPTION

6 Press ∧ or ↗ select "ANAL OG CAPTION" or "DIGITAL CAPTION".

7 Press < or to select the desired closed caption mode.

8 Press MENU/ENTER repeatedly until the menu screen is cleared.

Adjusting closed captioning

Closed captions are factory preset. However you can adjust them individually. This feature is designed to customize digital captions only.

Closed Captions are factory preset however you can adjust them individually as follows:

NOTES

• Do not set the Closed Caption "TEXT COLOR" and "BACKGROUND COLOR" as the same color or you will not be able to see the text
• Do not set both the "TEXT O PACITY" and the "BA CKG ROUND OPACITY" to "TRANSPARENT" or you will not be able to see the text.

This feature is designed to customize Digital Captions only.

1 Tune the television to the desired program in the digital mode.
2 Press MENU/ENTER. The menu screen appears
3 Press < or > to select (OPTION) menu, then press ∧ or √ to select "DIGITAL SETUP".
4 Press. The DIGITAL SETUP men u appears.
5 Press ∧ or ∨ to select "CC ADVANCED", then press >. The CC ADVANCED menu appears

6 Press ∧ or √ to select the item you want to adjust, then press >.
7 Press ∧ or ∨ to select the setting, then press MENU/ENTER.

You can select from among the following items and parameters.

TEXTSIZE : AUTO, SMALL, STANDARD, LARGE

TEXT TYPE : AUTO, DEFAULT, MONO W. SERIF, PROP W. , MONERWO. SERIF, PROP W/O. SERIF, , CLASSIXE, SMALL CAPITALS

TEXT EDGE: AUTO, NONE, RAISED, DEPRESSED, UNIFORM, LEFT DROP SHADOW, RIGHT DROP SHADOW TEXT COLOR: AUTO, BLACK, WHITE, RED, GREEN, BLUE, MAGEENVA, CYAN

BACKGROUND COLOR: AUTO, BLACK, WHITE, RED, GREEN, BLUE, YELLOW, MAGENTA CYAN

TEXTOPACITY: AUTO, TRANSPARENT, TRANSLUCENT, SOLID, GFLASHIN

BACKGROUND OPACITY: AUTO, TRANSPARENT, TRANSLUCENT, SOLID, FLASHING

8 Press MENU/ENTER repeatedly until the menu screen is cleared.

Selecting Stereo/Second Audio Program (SAP)

The multi-channel TV sound (MTS) feature provides high-fi delity stereo sound. MTS also can transmit a second audio program (SAP) containing a second language or other audio information When the TV receives a stereo or SAP broadcast, the word "STEREO" or "SAP" displays on-screen every time you turn the TV on, change the channel, or press -/DISPLAY.

To set the S AP

1 Press MENU/ENTER in the analog mode, then press < or > to display (OPTION) menu.

2 Press ∧ or ∨ to select “ SAP”, then press ∠ or to select “ ON” or “OFF”.

3 Press MENU/ENTER repeatedly until the menu screen is cleared. Otherwise, press EXIT to return to the normal screen immediately.

To listen to stereo sound

When the TV is turned on or a channel selection is made, the STEREO will appear on the screen. This means that Stereo broadcasting is available. You can enjoy stereo sound from the left and right speakers.

• When mono broadcasting is received, no indication is displayed.
• If the broadcasting signal is not strong enough or clear stereo sound is not available, press AUDIO to change to mono sound. The noise should be eliminated. Press it again to return to the stereo sound.

To listen to second audio program (SAP)

When the TV is turned on or a channel selection is made, SAP will appear on the screen. This means that the Second Audio Program broadcasting is available.

Selecting the audio language (DIGITAL MODE)

NOTE: You can also display the AUDIO LANGUAGE menu by pressing "AUDIO" on the remote control.

Selecting the audio language (DIGITAL MODE)

When two or more audio languages are included in a digital signal, you can select one of the audio language.

To select the audio language

1 Tune the television to the desired program in the digital mode
2 Press MENU/ENTE R. The menu screen appears
3 Press < or to select (OPTION) menu, then press ^ or to select "DIGITAL SETUP".
4 Press >The DIGITAL SETUP menu appears.
5 Press ▲ or ▼ to select "AUDI O LANGUAGE", then press ▲ to display the AUDIO LANGUAGE menu.
6 Press ∧ / ∨ or the number buttons (0-7) to select your desired language, then press MENU/ENTER.
7 Press MENU/ENTER repeatedly until the menu screen is cleared.

Checking the Digital-signal strength (DIGITAL MODE)

This television allows you to view the digital signal meter for digital channels.

NOTES:

• Signal meter feature is not available for analog channels.
• After 240 seconds, SIGNAL METER screen will return to normal TV-operation automaticall

To check the digital signal strength

1 Tune the television to the desired program in the digital mode
2 Press MENU/ENTER. The menu screen appears
3 Press < or to select (OPTION) menu, then press ^ or to select "DIGITAL SETUP".
4 Press >The DIGITAL SETUP menu appears.
5 Press ∧ or √ to select “ SIGNAL METER”, then press ➤ o check the digital-signal strength.
6 Press MENU/ENTER repeatedly until the menu screen is cleared.

Using the auto shut off feature

If the AUTO SHUT OFF feature is ON, and a station being viewed stops broadcasting, the TV will automatically shut itself off after 15 minutes.

To use the auto shut off feature

1 Press MENU/ENTER. The Menu screen will appears.

2 Press < or > to display 🎨 (OPTION) menu.

3 Press ∧ or to hi g h light "AUTO SHUT OFF", then press < or > to select "ON" or "OFF".

4 Press MENU/ENTER repeatedly until the menu screen is cleared. Otherwise, press EXIT to return to the normal screen immediately.

Jse the following check list for troubleshooting when you have problems with your TV. Consult your local dealer or service outlet if problems persist. Be sure all connections are properly made when using with other units.

SYMPTOMS	POSSIBLE SO LUTIONS
TV does not operate.	Make sure the power cordis plugged in.Try another AC outlet.Power is off, check fuse or circuit breaker.Unplug unit for an hour, then plug it back in.
Poor sound or no sound.	Station or CABLE experiencing problems, tune to another station.Check sound adjustments (Volume and Mute).Check for sources of possible interference.
Poor picture or no picture.	Station or CABLE experiencing problems, tune to another station.Make sure dh annels are set into memory.Check antenna or CABLE connections, ad just antennaCheck for sources of possible interference.Check picture control adjustments.
Poor reception on some channels.	Station or CABLE experiencing problems, tune to another stationMake sure dh annels are set into memory.Station is weak, adjust antenna to receive desired station.Check for sources of possible interference.
Poor color or no color	Station or CABLE experiencing problems, tune to another station.Make sure dh annels are set into memory.Check picture control adjustments.Check antenna or CABLE connections, ad just antennaCheck for sources of possible interference.
Picture wobbles or drifts.	Station or CABLE experiencing problems, tune to another station.Make sure dh annels are set into memory.CABLE company is scrambling signal.Adjust antenna.
Digital broadcasting screen problem	Check digital signal strength.

SYMPTOMS	POSSIBLE SOLUTD NS
No C ATV reception.	•Check all CABLE connections. Set TV/CABLE menu option to the CABLE mode.•Station or CABLE system problems, try another station.
Horizontal or diagonal bars on screen.	•Check antenna connections, adjust or re-direct antenna.•Check for sources of possible interference.
No reception above channel 13.	•Make sure TV/CABLE menu option is in the appropriate mode.•If using antenna, check UHF antenna connections.
No Remote operation.	Batteries are weak, dead or inserted incorrectly.•Remote is out of range, move closer to TV (within 15 feet).•Make sure Remote is aimed at sensor.•Confi rm there are no obstructions between the Remote and the TV.•Make sure the power cord is plugged in.
TV shuts off.	•Nob road cast on station tuned.•Sleep Timer is set.•Power interrupted.
Closed - Caption is not activated.	•TV station experiencing problems or program tuned is not closed captioned. Try another channel•Check CABLE connection or VHF/UHF antenna, reposition or rotate antenna.•Set closed caption decoder in the menu.
Display is not shown in your language.	•Select proper language in the menu options.

SANSUI®

FOR CUSTOMER SERVICE, ADDITIONAL SET-UP OR OPERATING ASSISTANCE, OR TO ORDER ACCESSORIE PLEASE CALL: 1-800-289-0980

WHEN CALLING CUSTOMER SERVICE – PLEASE HAVE YOUR MODEL NUMBER READY

OR WRITE TO: ORION SALES, INC.

3471 N. UNION DR. OLNEY, ILLINOIS 62450

FOR INFORMATION ON OUR OTHER PRODUCTS OR TO ORDER ACCESSORIES ONLINE PLEASE VISIT OUR

WEBSITE AT www.orionsalesinc.com

Power supply: AC 120V, 60Hz

Power Consumption: Operation : 110 Watts

Stand by : 3 W

Weight: 87.1 lbs (39.5 k g)

Dimensions: Width: (250.0 mm) inches gh@ei22-1/2 inches (571.5 mm) Depth: 20-1/8 inches (510.5 mm)

Inputs: VIDEO: 1 V (p-p)/75 ohms

AUDIO: -8 dBm/50k ohms

S-VIDEO: Y: 1 V (p-p), 75 ohms

C: 0.286 V (p-p), 75 ohms

COMPONENT: Y: 1 V (p-p), 75 ohms

Output: AUDIO: -8 dBm/50k ohms

Antenna input: VHF/UHF/CABLE In 75 ohm coaxial

Picture Tube: 27 inches (676.0 mm diagonal)

Tuner Type: NTSC Standard

ATSC Stan(£/B), QAM

Receiving Channels: VHF 2-13

UHF 914-6

CABLE TV 14-36 (A)-(W

37-59 (AA)-(WW)

60A85A)-(ZZZ)

8(680)4(94)

95A95)-(A-1)

100(125)-(125)

01 (5A)

Speakers: 1-13/16 inches (45.7 mm) × 3-7/8 inches (99.1 mm), 8 ohm × 2

Sound output power: 1.0 W + 1.0 W

ACCESSORY: Remote Control

Design and specifications are subject to change without notice.

LIMITED WARRANTY

ORION warrants this product to be free from manufacturing defects in material and workmanship under normal use and conditions for a period of ninety (90) days from date of original purchase in the United States only.

Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the first ninety (90) days from date of original purchase, ORION will provide carry-in repair service at an ORION authorized Independent Service Center at no charge. Also, if an original part fails due to manufacturing defect in material and workmanship within one year from date of original purchase (two years from date of original purchase for picture tube) we will replace the defective part only LABOR NOT INCLUDED AFTER THE INITIAL NINETY (90) DAY WARRANTY PERDD) provided the defect or malfunction is verified along with dated proof of purchase.

There are ORION authorized Independent Service Centers located throughout the country. For the one nearest you, DIAL TOLL FREE: 1-800-289-0980 or visit our website at www.orionsalesinc.com. This product is eligible for CARRY-IN service only. ORION will not be liable for damages incurred in shipment of the unit. If there are no ORION authorized Independent Service Centers in your area please call - 1-888-296-7466 for assistance.

Note: This warranty is void if the product is:

(a) Damaged through negligence, misuse, abuse, or accident.
(b) Used in a commercial application or rentals.
(c) Modifi ed or repaired by anyone other than an Independent Service Center authorized by ORION to affect warranty repairs to the class of product or by the ORION Factory Service Center.
(d) Damaged because it is improperly connected to the equipment of other manufacturers.

This warranty does not cover:

(a) Damage to equipment not properly connected to the product
(b) Costs incurred in the shipping of the product to an ORION authorized Independent Service Center or ORION Factory Service Center
(c) Damage or improper operation of unit caused by customer abuse, misuse, negligence, or failure to follow operating instructions provided with the product.
(d) Ordinary adjustments to the product which can be performed by customer as outlined in the owner's manual.
(e) Signal reception problems caused by external antenna or cable systems.

THIS WARRANTY IS NON-TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER AND DOES NOT EXTEND TO SUBSEQUENT OWNERS OF THE PRODUCT. ANY APPLICABLE IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED IN DURATION TO A PERIOD OF THE EXPRESS WARRANTY AS PROVIDED HEREIN BEGINNING WITH THE DATE OF ORIGINAL PURCHASE AT RETAIL AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED SHALL APPLY TO THIS PRODUCT THEREAFTER. ORION MAKES NO WARRANTY AS TO THE FITNESS OF THE PRODUCT FOR ANY PARTICULAR PURPOSE AND USE.

UNDER N CIRCUM STANCES SHALLO RIO N BE LIABLE FOR ANY LOSS, DIRECT, INDIRECT, INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGE ARISING OUT OF OR IN CONNECTION WITH THE USE OF THIS PRODUCT.

THIS WARRANTY IS VALID ONLY IN THE UNITED STATES OF AMERICA. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, HOWEVER, YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.SOME STATES DO NOT ALLOW LIMITATION ON IMPLIED WARRANTIES OR EXCLUSION OF CONSEQUENTIAL DAMAGE, THEREFORE, THESE RESTRICTIONS MAY NOT APPLY TO YOU.

ORION SALES, INC.

3471 N. UNION DR.

OLNEY, ILLIN OIS 62450
