N 314 - Electric blanket Daga - Free user manual and instructions
Find the device manual for free N 314 Daga in PDF.
| Product Type | Electric Blanket |
| Brand | Daga |
| Model | N 314 |
| Controller Type | 2-key digital control (models N, N2, N4) |
| Temperature Levels | 4 levels (1 = lowest, 4 = highest) |
| Selectable Operation Times | 45, 60, and 90 minutes |
| Automatic Temperature Reduction | After 90 minutes at levels 3 or 4, reduces to level 1 |
| Safety Autostop | Activates after 8 continuous hours of operation |
| Comfort Program | Not available on this model (available on L models) |
| Heat-up Time | Heat is felt within 5 minutes of startup |
| Maximum Temperature | Approximately 70-80°C at highest setting (laboratory conditions) |
| Material / Finish | Textile CLASS: velvety cotton padded fabric (Textil CLASS) |
| Cleaning (Blanket) | Do not wash with water or dry-clean; use dry foam only |
| Cleaning (Cover) | Removable cover; machine wash at 30°C, delicate cycle |
| Power Supply | Mains voltage (check product label for exact rating) |
| Warranty | 3 years (Spanish territory) |
| Country of Origin | Spain (Barcelona) |
| Certification | Complies with WEEE Directive 2002/96/EC |
Frequently Asked Questions - N 314 Daga
User questions about N 314 Daga
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric blanket in PDF format for free! Find your manual N 314 - Daga and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. N 314 by Daga.
USER MANUAL N 314 Daga
Please read the instructions for use carefully prior to using the product. Store these in a safe place for future reference.
Prior to plugging in the pad, check that your mains voltage is the same as the one indicated on the product label.
The mains connection cable must not be tangled or wrapped around the pad during use.
Do not pull on the cable to unplug it or use it to carry the pad.
Do not wrap the cable around the control.
Do not cover or lay the regulator control on top of the heating pad during use in order to ensure its proper operation.
The heating pad should not be folded to prevent the formation of creases and folds in order to ensure its proper use and operation.
Do not stick any pins or needles or any other pointy metal objects into the pad.
Do not use the heating pad if it is wet or damp.
Never soak the pad in water.
Refer to the maintenance section of this manual for instructions on how to clean the pad.
People that are disabled, handicapped or that cannot feel heat, as well as children or sick people should only use this product under direct adult supervision.
Children should be supervised at all times while using this product; this product is not a toy.
It should not be used under the effects of alcohol, sleeping tablets or sedatives.
Do not use the pad to provide heat to animals.
While the electromagnetic field generated by this heating pad is extremely low, we recommend checking with your medical specialist prior to using this product if you are fitted with a pacemaker or any other similar cardiovascular device.
Prolonged use of the pad at high temperatures may lead to skin damage. While the product has a temperature reduction and automatic disconnection function, we still recommend adjusting the temperature controls to the minimum operation level (level 1) during long periods of use.
This device is intended solely for domestic use and is not intended for medical use in hospital.
Materials will suffer wear and tear over time and after prolonged use.
Carry out a regular inspection of the heating pad, including the control and flexible cable to check for any signs of wear or damage.
Do not use the product if you spot any visible flaws and contact any DAGA Authorised Technical support service.
Unplug the product immediately from the mains in the event of any breakdown and contact an authorised Technical support service.
In order to prevent any risk of danger, do not open the control or connection. Only qualified technical personnel from the brand's Official Technical support service may carry out repairs or procedures on the device.
Any incorrect use or improper handling of the heating pad shall render the warranty null and void.
Only an authorised technical support service centre may carry out repairs on this product.
B&B TRENDS, SL. accepts no liability for any damage that may be caused to people, animals or objects owing to the failure to observe this warning correctly.
TRADITIONAL LINE-HEATING PADS
The reference of the pad model that you have purchased is found on its original packaging and the textile label attached to the product itself.
TExTIL PLUS - L AND L2
TExTIL CLASS - N, N2, N4
CONTROL
ENGLISH

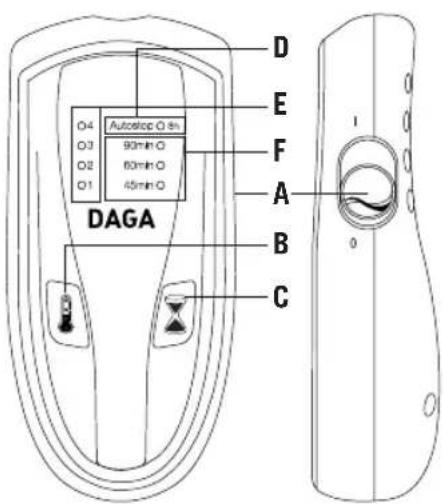

CONTROL SCREEN FOR TWO-KEY CONTROL MODELS: N, N2, N4.
A. Pad on/off switch.
CONTROL KEYPAD
B. Desired temperature level selection key.
C. Desired operation time selection key.
CONTROL SCREEN
D. Amber LED: Indicates safety autostop activation.
E. Red LEDs: Indicates selected temperature level.
F. Green LEDs: Indicates selected operation time.
CONTROL SCREEN FOR FOUR-KEY CONTROL MODELS: L, L2.
A. Heating pad on/off switch.
CONTROL KEYPAD
B. Increase temperature level key.
C. Decrease temperature level key.
D. Desired operation time selection key.
E. Key to activate/deactivate the comfort program mode.
CONTROL SCREEN
F. Amber LED: safety autostop activation indicator.
G. Green LED: comfort program mode activation indicator.
H. Red LEDs: selected temperature level indicator.
I. Green LEDs: selected operation level indicator.
BASIC FUNCTIONS
This pad includes a new generation of controls from the DAGA-TRADITIONAL innovative line with a range of additional functions such as:
- Temperature selector: 4 levels, 1 being the lowest and 4 the highest temperature level.
- Automatic temperature reduction: This function allows the control to regulate the pad use time and temperature parameters for their gradual and automatic control. This enables the pad to operate uninterrupted for 90 minutes at high temperatures (position 3 and 4) after which the temperature is automatically reduced, with level 1 lighting up on the screen.
If you wish to deactivate this function, press the central key to allow you to once again select the higher temperature.
- Automatic safety stop or Autostop: In order to minimise the risk posed to the user from inadvertently leaving the heating pad on for a long period of time, this series includes a special safety automatic stop feature, which actives after the device has been left on for 8 continuous hours if the control key has not been activated. The automatic stop time will go back to the start every time the central key is pressed. After activating this Autostop feature, the pad will remain turned off and inoperative with the control screen indicates the reason with a flashing red LED displaying the previous temperature level used.
If you wish to deactivate this function, press the central key to allow you to once again select the desired temperature.
- Comfort program (only available in models L, L2): press the “comfort” key once in order to activate this option (as indicated in the diagram of the four-key control with the letter “E”). This function activates the pad operation, according to the pre-set program.
Comfort, including the control itself. The program automatically varies the temperature over 90 minutes, with the Comfort and temperature program remaining lit up at all times.
After this time, the control automatically turns off the heating pad. If you wish to deactivate this function while the program is running, press the “” key again, which will allow you to select the desired temperature and operation time again.
INSTRUCTIONS FOR USE
Prior to connecting the pad to the mains, check your power supply voltage to ensure it is the same as the one indicated on the label included on the product.
Select the ON position indicated with the "I" symbol located on the side sliding button on the control in order to turn on the device. Wait until the automatic start check is completed, which will finish when
ENGLISH
the level 1 temperature lights up. The heating pad is now ready to operate.
From this point on, the instructions for use depend on the particular control model.
2-KEY CONTROL
Press the temperature selection key several times selecting one of the 4 optional levels in order to set the desired temperature level. The regulator operates continuously at the temperature level that has been pre-set with the LED lit up on the regulator control indicating the selected temperature.
The maximum operation time is 8 hours, after which an automatic safety stop is activated, displaying the last temperature used which flashes on the screen. The pad will stop producing heat when in this state.
If you wish to deactivate this function, press the central key to allow you to once again select the desired temperature.
4-KEY CONTROL
Press on the “” y “” keys to set the desired temperature level choosing one of the 4 optional levels.
The regulator operates continuously at the temperature position that has been pre-set with the LED lit up on the regulator control indicating the selected temperature. The maximum operation time is 8 hours, after which an automatic safety stop is activated, displaying the last temperature used which flashes on the screen. The pad will stop producing heat when in this state. If you wish to deactivate this function, press the central key to allow you to once again select the desired temperature.
Press the right-hand key until the desired option has been set to select one of the desired pre-set operation times (45/90 mins). The green LED indicates the time selected at all times (each time you press the key). This allows you to select the automatic disconnect time. Once the selected time has elapsed, the pad is automatically turned off, and the temperature leds that have been turned off are displayed on the screen indicating that it is not heating while the selected time remains on.
If you wish to deactivate this function, press any key that will allow you to select the desired temperature and operation time again.
Press the "comfort" key once to activate the Comfort program at any time in the 4-key control L and L2 models. The program automatically changes the temperature over 90 minutes, with the Comfort and temperature program remaining lit up at all times. After this time, the control automatically turns off the pad. If you wish to deactivate this function while the program is running, press the "Comfort" key again, which will allow you to select the desired temperature and operation time again.
Otherwise, the pad will stop heating once the total time programmed has elapsed, with all the LEDs remaining switched off on the control screen except the green LED, which is the Comfort program indicator.
This pad comes with rapid heating technology to allow the heat to be felt only 5 minutes after the control has been started-up, regardless of the temperature selected.
We recommend adjusting the control to the minimum level (level 1) when using the product for prolonged periods of time. However, the pad will automatically reduce in temperature if this is not observed as a safety measure 90 minutes after continuous operation at high levels (positions 3 and 4) to prevent excessive heat exposure.
Select the OFF position indicated with the "O symbol on the side sliding button on the control in order to turn off the pad or prior to disconnecting the device.
Let the pad cool down prior to folding it for storage and do not place objects on top of it.
SAFETY AUTOSTOP, OPERATION AND Comfort PROGRAM TIMES ACCORDING TO MODELS
| Comfort program | |||||||
| Models | Selectable operation times (mins) | Temperature reduction (mins) | Safety Autostop | No. of stages | Time per stage (mins) | Total program time (hours) | Temperature sequence (level) |
| L, L2 (4-key control) | 60-90 90 | 8h 3 30 1.5 4-3-2 | |||||
| N, N2, N4 (2-key control) | 45-60-90 90 | 8h --- --- --- | |||||
ENGLISH
TROUBLESHOOTING GUIDE:
Possible operational problems
| PROBLEM SOLUTION | |
| The control screen does not light up when the On/Off side switch is activated. | Ensure that there is voltage in the mains being used and that the pad is correctly plugged into the same. Check that the On/Off side switch is set to the “I” position. If the problem continues, contact an authorised technical support service centre. |
| The pad is not heating up | The pre-set stop time or safety Autostop may be activated. Check that the heating pad is in operation, checking to see if any of the LEaDs on the screen are lit up. If in doubt, press any of the keys to select the desired temperature and time again or alternatively, turn the side ON/OFF button off and on again. |
| After completing the initial check, the control screen is not correctly configured (the position 1 LED does not light up) and the pad does not heat up. | The control could be experiencing a problem with start-up, blocking the heating pad from operating for safety reasonsRe-start the device by turning the control off and on again. If the problem continues, contact an authorised technical support service centre. |
| After turning on the control screen, it is correctly configured (with the position 1 LED Lighting up by default), but the pad does not heat up or only heats up a little. | If the pad does not heat up, cover it with an item of clothing, set the regulator to the position 4 and wait for 45 minutes. If it still has not heated up after this time, contact our authorised technical support service centre. Checks on the pad cannot be reliably carried out in open spaces or outdoors as this may lead to flawed heat readings. |
| The control screen shows incomprehensible information.The LEDs will not stop flashing. | The control could have a problem, blocking the heating pad from operating for safety reasons. Turn the control off and on again. If the problem continues, contact an authorised technical support service centre. |
The pad reaches temperatures of between 70^ and 80^ C when set at its maximum position.
This information is meant as a guide only.
The measurements are made under laboratory conditions, according to the procedures described in Standard UNE-EN 60335-2-17.
FLEXIBLE HEAT CONCEPT
Taking care of your needs to enjoy comfort to the max!
The heating pad are a perfectly combination of flexible heat technology and heating electronics, which have been intelligently adapted with the merging of technical advances, design and natural fabrics to bring you the best feeling of pleasant comfort.
The Daga heating pads are also a benchmark in textile heating, an essential traditional product to prevent chills that come in soft fabrics. The dry heat that it emits has been recognised for its efficacy as a muscular relaxant. However, we do not recommend using the heating pad on inflamed, injured or swollen skin without first consulting with your doctor.
The Daga heating pads come in a range of sizes and operational modes for ease of use.
Models with a textile finish (L, L2, N, N2, N4) allows you to feel the smooth and even distribution of heat with a breathable effect, amounting to a pleasant sensation of comfort, thanks to velvety cotton padded fabric. The Textil Plus, L and L2 models come with an additional plastic cover to allow the application of creams and specific ointments, thus promoting the application of heat to localized areas.
For the application of specific dry heat, we recommend using ergonomic specially-designed heating pads to adapt to the different areas of the body.
DAGA QUALITY VALUES
Daga guarantees that this product that you have purchased has been designed, manufactured and checked with the most advanced technology and in accordance with the highest quality standards, contained in the legal standards applicable at the time of manufacture.
Only carefully selected and tested materials and components have been used in the production of these products, in order to create a safe product ideal for direct application, which will prolong its shelf-life and provide optimum product functionality.
Comfort technology application is based on Flexyheat®, which has been developed and included in our entire heating pad range, to offer high-precision temperature control around the flexible part of the product, retaining uniform heat dispersion throughout the entire surface of the pad. This retains user comfort during its use, improving the comfort of its application.
The technology and precision of the adapted ergonomic design of the electronic control offers rapid heating of the project, allowing the heat to be felt 5 minutes after it is turned on. The control then activates the product, retaining a constant, uniform temperature throughout the entire surface of the pad.
ENGLISH
PRODUCT DISPOSAL AND MAINTENANCE
PRODUCT MAINTENANCE.
Unplug the heating pad when you do not intend to use it for an extended period of time to prolong its shelf-life.
Store it in its original packaging in a dry place, trying to fold it as little as possible and preventing the formation of creases.
Do not cover the pad with other heated elements during operation.
Let it cool down prior to storage.
Do not place any objects on top of the pad during storage in order to prevent the formation of creases.
PRODUCT CLEANING.
Do not wash pad models with a textile finish with water or dry-clean.
Do not soak or treat with chemical agents in order to prevent flaws in the product.
Use dry foam to clean the textile part of the pad, spreading it uniformly over the product fabric, and then combing it length-wise.
If it is damp, leave it to dry prior to plugging it into the mains again.
Never iron the pad.
CLEANING THE COVER.
To clean the cover, first remove it from the pad and turn it inside out to prevent it fraying while being washed. It can be machine or handwashed, using liquid detergent at maximum temperature of 30 °C , selecting the delicate wash program.
We recommend using a wash bag to prevent the zipper from catching on other clothes.
PRODUCT DISPOSAL.
Do not dispose of the pad at the end of its shelf-life.
Contact the organic collection centre closest to your home in accordance with the waste electrical and electronic equipment (WEEE) Directive 2002/96/EC to contribute to the protection of the environment.
Request detailed information regarding their current methods of disposing of packaging and scrappage of used devices from your distributor.
We hope that you will be satisfied with this product.
AVISO IMPORTANTE
Textil CLASS - N, N2, N4
COMANDO DE CONTROLO
ECRÃ DE CONTROLO PARA OS MODELOS COM COMANDO DE CONTROLO DE DUAS TECLAS: N, N2, N4.
Carefully read the instructions for use.
Do not use when creased or folded.
Do not stick any pins or needles or any other pointy metal objects into the pad.
Children under the age of three are not to use this appliance due to their inability to react to overheating.
Machine wash at a maximum temperature of 30 °C
Lavar à máquina, máximo 30 °C
No usar lejía.
Do not use bleach.
Não usar lixívia
No usar secadora.
Do not use in the dryer.
Do not dry clean (dry cleaners or launderette)
Dry on a flat surface.
Hang without wringing or folding.
This product complies with European Directive 2002/96/EC on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), which provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.
Sales date Sales establishment stamp
Data de Venda Carimbo do estabelecimento de venda
B&B TRENDS S.L.
C/Catalunya, 24 P.L Ca N'Oller - 08130 Santa Perpetua de Mogoda
Barcelona Spain
WARRANTY REPORT
B&B TRENDS, SL. guarantees compliance of this product for the purpose for which it is intended for a period of three years for the entire Spanish territory. In the case of breakdown during the term of this warranty, you are entitled to repair or to the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible or disproportionate. In this latter case, you can then choose a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is unaccredited by B&B TRENDS, SL. This warranty does not affect your rights as a consumer in accordance with the provisions of Law 23/2003 dated 10 July 2003 on warranties on the sale of consumer goods in the Spanish territory.
USE OF WARRANTY
Consumers should contact a technical service centre authorised by B&B TRENDS, S.L. for repair of the product as any tampering thereof by persons not authorised by Daga, as well as misuse or inappropriate use, will lead to the cancellation of this warranty.
The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.
Claims must take place within three years from deliver of the project according to the provisions of the warranty, and the consumer must inform the sales vendor of the lack of conformity, provided that such claim is made within the statutory period of warranty
This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights.
For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item or by contacting B&B TRENDS, SL. directly.
BOLETIM DE GARANTIA
Technical Assistance Service (TAS)
(+34) 937 065 349
(+34) 661 369 285
ANDALUCÍA
04001 ALMERÍA
FERMIN AZNAR LOZANO
CIRCUNVALACION MERCADO, 6 950235989
14014 CÓRDOBA
SAN COR S.I
VIRGEN DE FATIMA, 15 957430756
41400 ECIjA
ELECTRICIDAD FUENTES AVILA,CB SAN FRANCISCO, 14 954830860
18014 GRANADA
JUAN UNICA ARANDA DR. JAIME ROYO, S/N 958278716
23008 jAÉN
ANTONIO MUÑOZ SALVADOR PERPETUA SOCORRO, 5 953226102
29010 MÁLAGA
CAMBEL ELECTRONICA MORALES VILLARRUBIA, 17 952277247
18600 MOTRIL
SERVIRAD, S.L. FRANCISCO PEREZ GARCIA, S/N. 958823601
14400 POZOBLANCO
TE LO ARREGLO SAN GREGORIO, 27 957 27 49 29
41003 SEVILLA
LA CASA DE LAS PLANCHAS, S.L. JOSE GESTOSO, 20 954211643
41006 SEVILLA
PALACIO DE LAS PLANCHAS, S.L. AFAN DE RIBERA, 107 954631191
23400 UBEDA
MAGOSE UBEDA, S.L. GRANADA, 7 953751838
ARAGON
50007 ZARAGOZA
A.NAPOLES BALDOVIN CORDOBA, 7 976254061
BALEARES
07008 PALMA DE MALLORCA
ELECTROTECNICA LLADO, S.L. REIS CATOLICS, 109 971247695
CANTABRIA
39008 SANTANDER
TELEC - CANTABRIA TRES DE NOVIEMBRE, 1 - B 942371757
39300 TORRELAVEGA
DEL CASTILLO CEFERINO CALDERON, 13 942880390
CASTILLA LA MANCHA
02003 ALBACETE
V.CAMACHO Y J.ANTONIO,C.B. PEDRO COCA, 50 967224554
13003 CIUDAD REAL
J. M. BARANDIARAN, 2
944332651
48011 BILBAO
R.E. ABAD
GREGORIO DE LA REVILLA, 34
944215271
20600 EIBAR
EIBAR SAT
IFAR KALE, 8
943206717
01400 LLODIO
TELETRON
GOIENURI, 17
946724988
20001 SAN SEBASTIAN
ELOY TEJEDOR
GLORIA, 4 (GROS)
943287193
20002 SAN SEBASTIAN
GROSTON, S.L
USANDIZAGA, 29
943272736
48980 SANTURCE
JULEN - SAT
LAS VIÑAS, 20
944617193
01001 VITORIA
AREA GLOBAL
OLAGIBEL. 48
945128200
EXTREMADURA
06002 BADAj0Z
ELECTRONICA MIRANDA, S.L.
RAMON ALBARRAN, 17
924207428
10002 CÁCERES
TALLERES MONTERO
C.B. PLAZA MARRÓN, 15
927226556
06800 MERIDA
POLY-ELECTRICIDAD
SAN SALVADOR, 28
924319106
GALICIA
15402 EL FERROL
SAT GREMAR, S.L.
ESPANOLETO, 21-23
981323256
15006 LA CORUÑA
EUGENIO SUAREZ SERRANTES
CARRIL DE LAS FLORES, 34-B
982242015
27003 LUGO
D. ALONSO - TALLER ALMAR
OTERO PEDRAYO,42 - 3° 1"
619837814
32002 ORENSE
ELECTRO COUTO, S.L.
MELCHOR DE VELASCO, 17
988235115
36004 PONTEVEDRA
IMASON
LOUREIRO CRESPO, 43
986841636
15703 SANTIAGO DE COMPOSTELA
CANCELA, S.L.
BONAVAL, 29 - BJS.
981564016
36211 VIGO
ELECTROSAT
LOPEZ MORA, 63
986290607
LA RIOjA
26004 LOGROÑO
ASOC. IND. RIOJANA, S.L.U.
JOSE MANUEL PEDREGAL, 14
985569792
33209 GIJON
- Please read the instructions for use carefully prior to using the product. Store these in a safe place for future reference.
- TRADITIONAL LINE-HEATING PADS
- ENGLISH
- CONTROL SCREEN FOR TWO-KEY CONTROL MODELS: N, N2, N4.
- CONTROL KEYPAD
- CONTROL SCREEN
- CONTROL SCREEN FOR FOUR-KEY CONTROL MODELS: L, L2.
- BASIC FUNCTIONS
- INSTRUCTIONS FOR USE
- 2-KEY CONTROL
- 4-KEY CONTROL
- TROUBLESHOOTING GUIDE:
- FLEXIBLE HEAT CONCEPT
- DAGA QUALITY VALUES
- PRODUCT DISPOSAL AND MAINTENANCE
- PRODUCT MAINTENANCE.
- PRODUCT CLEANING.
- CLEANING THE COVER.
- PRODUCT DISPOSAL.
- AVISO IMPORTANTE
- COMANDO DE CONTROLO
- WARRANTY REPORT
- USE OF WARRANTY
- BOLETIM DE GARANTIA
- ALMERÍA
- CÓRDOBA
- ECIjA
- GRANADA
- jAÉN
- MÁLAGA
- MOTRIL
- POZOBLANCO
- SEVILLA
- SEVILLA
- UBEDA
- ZARAGOZA
- PALMA DE MALLORCA
- SANTANDER
- TORRELAVEGA
- ALBACETE
- CIUDAD REAL
- BILBAO
- EIBAR
- LLODIO
- SAN SEBASTIAN
- SAN SEBASTIAN
- SANTURCE
- VITORIA
- EXTREMADURA
- BADAj0Z
- CÁCERES
- MERIDA
- GALICIA
- EL FERROL
- LA CORUÑA
- LUGO
- ORENSE
- PONTEVEDRA
- SANTIAGO DE COMPOSTELA
- VIGO
- LA RIOjA
- LOGROÑO
- GIJON
Brand : Daga
Model : N 314
Category : Electric blanket
