L - Electric blanket Daga - Free user manual and instructions
Find the device manual for free L Daga in PDF.
| Product Type | Electric Blanket |
| Brand | Daga |
| Model | L |
| Dimensions (approx.) | 150 x 180 cm |
| Weight (approx.) | 1.5 kg |
| Power Supply | 220-240 V ~ 50/60 Hz |
| Controller Type | Four-key electronic controller |
| Heat Settings | 4 levels (1-4) |
| Operation Modes | Free mode, Autostop mode, Comfort Program mode |
| Autostop Timer | 60 or 90 minutes (selectable) |
| Safety Autostop | Automatic shut-off after 8 hours |
| Comfort Program Duration | 90 minutes with automatic heat decrease |
| Automatic Heat Decrease | After 2 hours at high setting, temperature reduces for safety |
| Material | Textile (cloth) with fluffy soft cover |
| Cleaning (Inner Pad) | Do not wash; wipe with damp cloth if plastic model, cloth models: do not wash inner pad |
| Cleaning (Removable Cover) | Machine washable at ≤ 50°C |
| Safety Features | Overheat protection, automatic shut-off, low EMF |
| Warranty | 3 years |
| Spare Parts Availability | Contact authorized technical service; use only original controller |
| Certifications | AENOR, CE |
| Intended Use | Personal comfort and therapeutic warmth |
Frequently Asked Questions - L Daga
User questions about L Daga
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric blanket in PDF format for free! Find your manual L - Daga and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. L by Daga.
USER MANUAL L Daga
Carefully read the instructions for use. Keep them in a safe place for future reference.
Before turning on your heating pad, check that the voltage of your electric supply is the same as that indicated on the label or on the plastic printing attached to the heating pad. In those that incorporate a power supply or network adaptor, check that the voltage of your electric supply corresponds to that indicated on the adaptor label. With these heating pads, only use adaptor supplied, avoiding exchange with other devices.
In the case of heating pads with disconnectable controller, only use the controller that comes with the heating pad. Do not exchange with other devices.
For the correct use of the heating pad, do not fold it and avoid the molding and creases. Do not stick the heating pad with pins, needles or other sharp metal objects. Do not cover it with objects or place things on top of it during storage.
Do not use the heating pad if it is moist or wet. Do not place it under water. For cleaning, read the maintenance section of this manual.
Invalid, handicapped and people insensitive to heat as well as children should not use the heating pad without direct supervision. It should also not be used under the effects of alcohol, sleeping pills, sedatives or drugs. Do not use the heating pad to warm animals. If you have a pacemaker or other cardiovascular devices, even though the electromagnetic field generated by this heating pad is very low, we recommend that you check with your doctor before using the product.
The prolonged use of the heating pad at maximum level is susceptible to provoking skin burns. When the heating pad is used for long periods of time – for example, to sleep with – the controls should be adjusted as recommended in the manual for continuous use (heat setting 1).
This device was not conceived for medical use in hospitals.
It is important that the power cord is not wound up or touching the heating pad during use. To unplug the pad, do not pull on the cord or use it as a strap.
ENGLISH
Examine the heating pad frequently, including the controller and the flexible cord, to detect possible signs of wear or damage. If there is damage, do not use the product and contact an authorized technical service center.
Incorrect use or manipulation of the heating pad will not be covered by the warranty; for repair, use an authorized technical service center.
Especialidades Eléctricas Daga, S.A. declines all responsibility for damage that could occur to people, animals or objects, for not abiding these warnings.
TRADITIONAL HEATING PAD LINE
The reference of the heating pad model you have acquired is located on the original packaging and in the textile label, or on the plastic printing attached to the product.
TExTIL LUj0 - L AND L2
TExTIL BITENSIÓN - NB (125-220V) AND N2B (125-220V)
TEXTIL CLASS - N, N2 AND N4
TWO-KEY CONTROL (Models N, N2, N4)
B. Key to select heat setting.
C. Key to select operation time.
Control panel
D. Amber light: Indicates the activation of the safety autostop.
E. Red lights: Indicate the selected heat setting.
F. Green lights: Indicate the selected operation time.

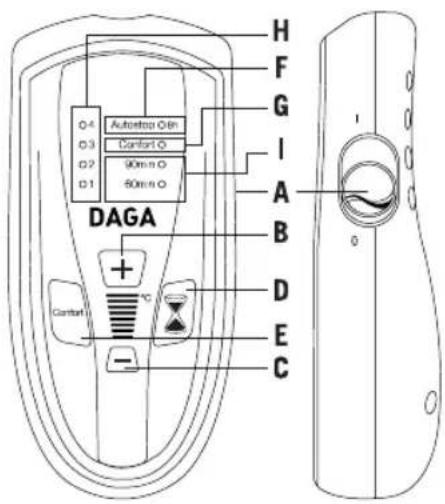

FOUR-KEY CONTROL (Models L, L2, NB, N2B)
A. On/off switch.
Control key
B. Key to turn up the heat setting.
C. Key to turn down the heat setting.
D. Key to select the operation time.
E. Key to turn on/off the comfort program mode.
Control panel
F. Amber light: Indicates the activation of the safety autostop.
G. Green light: Indicates that comfort program is activated.
H. Red lights: Indicate the selected heat setting.
I. Green lights: Indicate the selected operation time.
BASIC CHARACTERISTICS OF THE CONTROLLER
Various additional functions have been incorporated in this new generation of controllers exclusive to the new and innovative line of DA-GA heating pads.
WORK MODES
It offers the user 3 work modes:
a. Free mode: The regulator works non-stop in the heat setting selected by the user.
b. Autostop mode: The regulator activates the heating pad, in the heat setting and for the amount of time selected by the user. After this time has passed, the regulator automatically disconnects the heating pad. The controller operation time may differ according to the heating pad model acquired.
ENGLISH
c. Comfort Program Mode (only available in the four-key controller models): The controller activates the heating pad according its pre-set Comfort program, automatically controlling the heat and time. After this time has passed, the regulator automatically disconnects the heating pad.
AUTOMATIC HEAT DECREASE
To activate this option on your controller, press the "comfort" key (marked on the 4-key controller with the letter "E"). This program has been designed so the heat setting and the operating time of your heating pad are controlled automatically and both parameters are gradually regulated. The total duration of the program is 90 minutes. After this time has passed, the controller automatically turns off the heating pad. If you wish to quit the program, press the "comfort" key at any time. The regulator will move the free mode (default preset heat level 1).
AUTOMATIC SAFETY AUTOSTOP
To avoid possible risks due to accidentally leaving the heating pad on for a prolonged amount of time, a safety automatic Autostop standard feature has been incorporated into all the regulator models, that activates after 8h of non-stop operation, without the user having to touch the controller. After activating this safety Autostop, the heating pad will disconnect from the power supply and the controller will indicate this circumstance by lighting up the yellow light Autostop indicator.
To leave the Autostop mode, just press any key on the controller. The regulator will move the default mode (free mode, heat setting 1).
USAGE MODE
1) Connect the heating pad to the correct power supply. In the models with an adaptor, first connect the cord to the heating pad, and then, plug in the adaptor to the power supply.
2) To turn it on, use the controller and turn the side On/Off switch to the "I" position.
Immediately, the electronic controller will do a quick check to detect possible anomalies indicated on the panel through a light scan. Then, the default work mode will be configured: Light 1 on (minimum heat setting) and Free mode (no time selected).
3) From this point, the operation instructions depend on the regulator model.
TWO-KEY REGULATOR
Next, adjust the heat setting using one of the 4 possible levels, repeatedly pressing the temperature selection key. From now on, the heating pad will operate normally in Free mode. In this mode, only the red light on the control panel will be on, indicating the temperature selected, while all the others are off.
FOUR-KEY REGULATOR
Adjust the desired heat setting using one of the 4 possible levels by pressing the temperature the keys + and .From now on, the heating pad will operate normally in Free mode. In this mode, only the red light on the control panel will be on, indicating the selected temperature.
4) In the 2 and 4-key controller models, you can choose an Autostop time among those pre-set on the screen, pressing the key until you reach the desired option (indicated with green light).
The operation times vary from 45 and 90 minutes depending on the heating pad acquired. The green light indicates the selected time at every moment when you press the key ☒). This lets you select the automatic off time.
Once the preselected operation time has passed, the heating pad will disconnect and all the temperature lights on the control panel will turn off and the preselected operation time indicator light will turn back on. Press any key to immediately return to the Free mode.
When no green light is on, the heating pad moves to the Free mode and automatically turns itself off.
5) In the four-button regulators, you can activate the Comfort mode at any time by pressing the key "Confort" once.
From now on, the green Comfort light will be on, located on the right side of the controller screen. This program controls the operation of the heating pad. The heat setting and time will now be controlled directly by the controller. During the program (90 min), the heat (+/-) and time setting keys remain blocked. To leave the Comfort mode at any time and return to the Free mode, press the "Cokkeyonce.
On the contrary, once the preselected operation time has passed, the heating pad will disconnect and all the temperature lights on the controller will turn off except the green Comfort program light. Press any key to immediately return to the Free mode.
6) To turn off the heating pad, turn the side On/Off switch to the "0" position.
To the start using your heating pad, we recommend that you put the regulator at the maximum position (heat setting 4) for 20 minutes for quick heating. Then, lower to desired temperature. It is advisable that the maximum heat setting (level 4) be used only during the first 20 min of operation in order to quickly heat the heating pad; however-
ENGLISH
er, if you do not follow this instruction, and as a safety measure, the heating pad will automatically lower its temperature after approximately 2h of non-stop operation.
On this point, we remind you that the beneficial effects of heat supplied by the heating pad do not need high temperatures and continuous skin exposure to heat could cause burns. The highest heat settings should only be used for the time necessary to reach a comfortable temperature. It should then be turned gradually down.
As previously indicated, after prolonged use of the heating pad at the 3 and 4 heat settings, if you feel the temperature decreasing, it is not a failure; but rather the activation of the automatic elevated temperature time control system, incorporated in the Daga heating pads, to avoid excessive application of heat to the skin.
When storing the heating pad, let it cool off before putting away and do not place objects on top of it.
SAFETY AUTOSTOP TIMES, OPERATION TIMES AND COMFORT PROGRAM PER MODEL
| Comfort program | |||||||
| Models | Available operation times (min) | Tempera-ture Decrease (min) | Safety Autostop | Number of phases | Time per phase (min) | Program total time (h) | Tempera-tures sequence (setting) |
| L,L2,NB,N2B Four-key controller | 60-90 90 | 8h 3 30 1.5 | 4-3-2 | ||||
| N,N2,N4 Two-key controller | 45-60-90 90 | 8h --- --- --- | |||||
TROUBLESHOOTING GUIDE
| PROBLEM SOLUTION | |
| The controller does not turn on when I move the side On/Off switch | Make sure the power supply is working and that the heating pad is correctly plugged in.For heating pads with incorporated adaptors, also check the connection between the adaptor and the heating pad.Also, make sure that the side On/Off switch is in the “I” position. |
| The heating pad doesn’t warm up | The preselected operation time stop or safety Autostop could have activated itself. Verify that the heating pad is working by checking that some of the red lights are turned on. In case of doubt, press any of the keys to return to the Free mode or turn the heating pad off and on again. |
| After turning it on, the control panel does not configure the Free mode, heat setting 1, and the heating pad does not heat up. | The controller could have found an anomaly in the start-up and blocked the heating pad’s operation for safety purposes.Turn the controller off and on again. If this incidence persists, please contact our authorized technical service center. |
| After the turning the pad on, the controller correctly configures the Free mode, heat setting 1, but the heating pad doesn’t heat up. | If you do not feel heat, cover it with a blanket, towel or thick cloth, place the regulator at the maximum position and wait 45 minutes. If this does not work, contact our authorized technical service center. Tests done with the heating pad uncovered or outdoors are not reliable because they can give erroneous heat evaluations. |
| The heating pad doesn’t heat up enough | If the heat is not sufficient at its maximum position, we recommend you place it directly on the skin, covering the other side with a towel or similar item, this way impeding that the heat is released into the air. |
ENGLISH
| PROBLEM SOLUTION | |
| The control panel shows incomprehensible information.The lights don't stop flashing. | The controller could have found an anomaly in the start-up and blocked the heating pad's operation for safety purposes. Turn the controller off and on again. If the anomaly persists, please contact our authorized technical service center. |
The heating pads reach temperatures between 65° and 75° C at their maximum position. This data should serve as a guideline. Monitoring is carried out in laboratories, according to the procedure in the UNE-EN 60335-2-17 directive.
BENEFITS OF FLEXIBLE HEAT
The electric heating pads provide soft flexible heat letting the user take advantage of its two basic and complementary properties.
First, flexible heat mitigates the effects of the cold and humidity, offering personal comfort.
Also, heat is very efficient in therapeutic pain treatments to alleviate muscular and articular discomfort. However, we recommend that you do not apply the heating pad to areas of the body that are swollen, injured or bloated without first consulting your doctor.
The plastic models and the L and L2 models have an extra plastic cover to make the application of lotions and special ointments easier and help heat penetration to local areas.
The cloth models give smooth heat that transpires and their fluffy and soft cloth give a sensation of comfort.
Flexible heat is a dry heat that creates a calming effect, stimulates the circulation and reduces muscles tension. For these reasons, it is recommended in pain treatments such as arthrosis, arthritis and rheumatism in the soft parts of the body.
For specific localized treatments, we recommend the use of ergonomic heating pads designed especially to adapt to specific body parts. For more information, consult the attached Daga catalogue.
Values of Daga Quality
The Daga Flexy Heat technology guarantees that the product you have acquired has been designed, manufactured and verified using the latest technology and in compliance with the highest quality standards.
The heating pads are manufactured using only carefully chosen and tested material and components to offer the ideal direct-application, long-life and defect-free product.
The precision of the electronic control circuit ensures intelligent heat regulation while it supervises correct product operation, preventing any risk of failure or wrongful use.
Thanks to the special design, all the products made with Daga Flexy Heat technology generate a very low electromagnetic field (EMF). This way, the user is not exposed to radiation while using the product.
ENGLISH
MAINTENANCE AND DISPOSAL
To increase the life of your heating pad, unplug it when not in use. Keep it in its original packaging in a dry place, with the least number of folds possible and do not smooth out the creases.
In the cloth models (Lujo, Bitensión and Textil Class), do not wash the inside of the heating pad, not even with dry cleaning. In the plastic models, use a damp cloth for cleaning.
If there are signs of dampness, dry the pad before plugging it in.
To clean the cover, remove it from the heating pad. It can be machine washed at a temperatures under 50^ C.
When throwing away your heating pad, please bring it to your nearest recycling center in accordance with the European directive for Waste Electrical and Electronic Equipment 2002/96/EC, to help preserve the environment.
We hope that you like and are satisfied with this product.
SIMBOLOGÍA\_SIMBOLS
Please read the instructions of use carefully.
Do not use folded or creased.
Do not insert pins, needles or any other pointed metallic object.
Never dispose of this product in the bin. Take it to the
green collection point nearest to your home.
No planchar.
Do not iron.
No usar lejía.
Do not bleach.
No lavar en seco.
Do not dry clean.
No usar secadora.
Do not tumble dry.
Do not wet the product.
CERTIFICACIONES\_CERTIFICATIONS
AENOR
Empresa
Registrada
ER-0195/2008
BOLETÍN DE GARANTÍA
ESPECIALIDADES ELECTRICAS DAGA, S.A. guarantees the conformity of this product for its intended use, for a period of 3 years and in all the Spanish territory. During the validity period and during the breakdown, the user has the right to the repair or replacement of the product, free of charge, except in the case that one of these options is not possible or disproportionate, then he may opt to a reduction in the price or cancellation of the sale, having to address in this case the vendor establishment; it also covers the replacement of spare parts whenever, in both cases, the product was used in accordance to the recommendations specified in this handbook, and it was not handled improperly by third parties not authorised by DAGA S.A.
This warranty does not affect the consumer rights in accordance to that provided in Law 23/2003, of 10th of July 2003 on guarantees in the sale of consumption goods in Spain.
USE OF THE WARRANTY.
For the repair of the product, the consumer must address the Technical Service authorised by DAGA, S.A. as any inappropriate handling of such by personnel non-authorised by Daga, or any bad or inappropriate use, will oblige us to cancel this warranty. For the efficient exercise of the rights of this warranty it must be duly filled-in and with the invoice, purchase bill or delivery note. In order to claim the compliance of the provisions in the warranty will prescribe after 3 years from the delivery of the product; the consumer having to inform the vendor of the non-conformity, whenever this claim is carried out within the legal period of the warranty. This warranty must remain in the power of the user, as well as the invoice, the purchase bill or delivery note to facilitate the exercise of these rights. For Technical Service and After sales attention outside the Spanish territory, please refer to the dealer where you purchased the product or contact directly with DAGA S.A.
SERVICIOS DE ATENCION TECNICA (SAT)
Technical Assistance Service (TAS)
(+34) 937 065 349
(+34) 661 369 285
ANDALUCÍA
04001 ALMERÍA
FERMIN AZNAR LOZANO
CIRCUNVALACION MERCADO, 6 950235989
14014 CÓRDOBA
SAN COR S.L.L.
VIRGEN DE FATIMA, 15 957430756
41400 ECIjA
ELECTRICIDAD FUENTES AVILA,CB SAN FRANCISCO, 14 954830860
18014 GRANADA
JUAN UNICA ARANDA DR. JAIME ROYO, S/N 958278716
23008 iAÉN
ANTONIO MUÑOZ SALVADOR PERPETUA SOCORRO, 5 953226102
29010 MÁLAGA
CAMBEL ELECTRONICA MORALES VILLARRUBIA, 17 952277247
18600 MOTRIL
SERVIRAD, S.L
FRANCISCO PEREZ GARCIA, S/N. 958823601
14400 POZOBLANCO
TE LO ARREGLO SAN GREGORIO, 27 957 27 49 29
41003 SEVILLA
LA CASA DE LAS PLANCHAS, S.L. JOSE GESTOSO, 20 954211643
41006 SEVILLA
PALACIO DE LAS PLANCHAS, S.L. AFAN DE RIBERA, 107 954631191
23400 UBEDA
MAGOSE UBEDA, S.L. GRANADA, 7 953751838
ARAGÓN
50007 ZARAGOZA
A. NAPOLES BALDOVIN CORDOBA, 7 976254061
BALEARES
07008 PALMA DE MALLORCA
ELECTROTECNICA LLADO, S.L. REIS CATOLICS, 109 971247695
CANTABRIA
39008 SANTANDER
TELEC - CANTABRIA TRES DE NOVIEMBRE, 1 - B 942371757
39300 TORRELAVEGA
DEL CASTILLO CEFERINO CALDERON, 13 942880390
CASTILLA LA MANCHA
02003 ALBACETE
V.CAMACHO Y J.ANTONIO,C.B. PEDRO COCA, 50 967224554
13003 CIUDAD REAL
J. M. BARANDIARAN, 2
944332651
48011 BILBAO
R.E. ABAD
GREGORIO DE LA REVILLA, 34
944215271
20600 EIBAR
EIBAR SAT
IFAR KALE, 8
943206717
01400 LLODIO
TELETRON
GOIENURI, 17
946724988
20001 SAN SEBASTIÁN
ELOY TEJEDOR
GLORIA, 4 (GROS)
943287193
20002 SAN SEBASTIÁN
GROSTON, S.L
USANDIZAGA. 29
943272736
48980 SANTURCE
JULEN - SAT
LAS VIÑAS. 20
944617193
01001 VITORIA
AREA GLOBAL
OLAGIBEL, 48
945128200
EXTREMADURA
06002 BADA|OZ
ELECTRONICA MIRANDA, S.L.
RAMON ALBARRAN. 17
924207428
10002 CÁCERES
TALLERES MONTERO
C.B. PLAZA MARRÓN, 15
927226556
06800 MERIDA
POLY-ELECTRICIDAD
SAN SALVADOR, 28
924319106
GALICIA
15402 EL FERROL
SAT GREMAR. S.L.
ESPANOLETO, 21-23
981323256
15006 LA CORUÑA
EUGENIO SUAREZ SERRANTES
CARRIL DE LAS FLORES, 34-B
982242015
27003 LUGO
D. ALONSO - TALLER ALMAR
JOSE MANUEL PEDREGAL, 14
985569792
33209 GIJON
- Carefully read the instructions for use. Keep them in a safe place for future reference.
- ENGLISH
- TRADITIONAL HEATING PAD LINE
- FOUR-KEY CONTROL (Models L, L2, NB, N2B)
- BASIC CHARACTERISTICS OF THE CONTROLLER
- WORK MODES
- AUTOMATIC HEAT DECREASE
- AUTOMATIC SAFETY AUTOSTOP
- USAGE MODE
- TWO-KEY REGULATOR
- FOUR-KEY REGULATOR
- BENEFITS OF FLEXIBLE HEAT
- Values of Daga Quality
- MAINTENANCE AND DISPOSAL
- SIMBOLOGÍA\_SIMBOLS
- CERTIFICACIONES\_CERTIFICATIONS
- BOLETÍN DE GARANTÍA
- USE OF THE WARRANTY.
- SERVICIOS DE ATENCION TECNICA (SAT)
- ALMERÍA
- CÓRDOBA
- ECIjA
- GRANADA
- iAÉN
- MÁLAGA
- MOTRIL
- POZOBLANCO
- SEVILLA
- SEVILLA
- UBEDA
- ZARAGOZA
- PALMA DE MALLORCA
- SANTANDER
- TORRELAVEGA
- ALBACETE
- CIUDAD REAL
- BILBAO
- EIBAR
- LLODIO
- SAN SEBASTIÁN
- SAN SEBASTIÁN
- SANTURCE
- VITORIA
- EXTREMADURA
- BADA|OZ
- CÁCERES
- MERIDA
- GALICIA
- EL FERROL
- LA CORUÑA
- LUGO
- GIJON
Brand : Daga
Model : L
Category : Electric blanket
