Cruiser P3210 - Loudspeaker Syba - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Syba
Model	Cruiser P3210
Dimensions	7.5 x 2.5 x 3 inches (190 x 64 x 76 mm)
Weight	1.2 lbs (540 g)
Power Output	10W RMS
Battery Type	Rechargeable Li-ion
Battery Life	Up to 8 hours
Charging Time	2-3 hours
Bluetooth Version	5.0
Wireless Range	33 ft (10 m)
Speaker Driver	2 x 2.5 inches (63 mm)
Frequency Response	80 Hz - 20 kHz
Impedance	4 ohms
Inputs	3.5mm AUX, USB (charging), Micro SD card slot
Water Resistance	IPX5 (splash-proof)
Controls	Power, Volume, Play/Pause, Track Skip
Included Accessories	Micro USB cable, AUX cable, Manual
Color	Black

Frequently Asked Questions - Cruiser P3210 Syba

How do I pair the Syba Cruiser P3210 with my phone?

Turn on the speaker and press the Bluetooth button (if available) or simply power on. On your phone, go to Bluetooth settings and select Syba Cruiser P3210 from the list. If prompted, enter PIN 0000.

What is the battery life of the Cruiser P3210?

The speaker offers up to 8 hours of playtime on a full charge, depending on volume level and audio content.

How do I charge the speaker?

Use the included Micro USB cable. Connect the micro USB end to the speaker and the USB end to a power adapter (5V/1A) or computer USB port. Charging time is approximately 2-3 hours.

Can I use the speaker while it is charging?

Yes, you can use the speaker while it is charging, but it may affect battery health over time. It is recommended to charge fully before use for optimal performance.

Is the Syba Cruiser P3210 waterproof?

It has an IPX5 rating, meaning it is splash-proof and can withstand light rain or sweat, but it should not be submerged in water.

How do I connect via AUX cable?

Insert one end of the 3.5mm AUX cable into the speaker's AUX input and the other end into your device. The speaker should automatically switch to AUX mode. Use the volume controls on both devices.

Can I play music from a Micro SD card?

Yes, insert a Micro SD card into the slot and the speaker will automatically play audio files. Supported formats typically include MP3, WMA, WAV.

How do I reset the speaker to factory settings?

If the speaker is unresponsive, try turning it off and on again. Alternatively, press and hold the power button for 10 seconds until you hear a beep or the LED flashes. This resets Bluetooth pairing.

My speaker is not pairing. What should I do?

Ensure the speaker is in pairing mode (LED blinks rapidly). Turn off Bluetooth on your device, then turn it back on and search again. If problems persist, reset the speaker or try pairing with another device.

How do I clean and maintain the speaker?

Use a soft, dry cloth to wipe the exterior. Avoid using liquids. Keep the charging port dry. Do not expose to extreme temperatures or direct sunlight for long periods.

USER MANUAL Cruiser P3210 Syba

Abstract black and white geometric logo resembling a stylized letter or symbol (no text or symbols present)

GAMESTERGEAR

Cruiser P3210

Gaming Headset Manual

TECHNICAL SPECIFICATIONS

Acoustic Design:

Frequency Response:

Driver:

Bass Enhance Driver:

Sensitivity:

Mic Type:

Mic Frequency Response:

Cable Length:

Connector Type:

Closed Back

20hz - 20khz

50 mm @ 32 ohms

30 mm @ 16 ohms

112dB SPL, 1mW @ 1khz

Detachable Boom Mic

70hz - 15khz

12.5 ft (3.8 m)

3.5mm for Game Audio

USB for Power & Voice Chat

Package Contents

Line drawing of a pair of hardcover headphones (no text or symbols)

Cruiser P3210 Headset

Pure electrical circuit lines without any symbols

RCA to 3.5mm Audio Splitter Cable

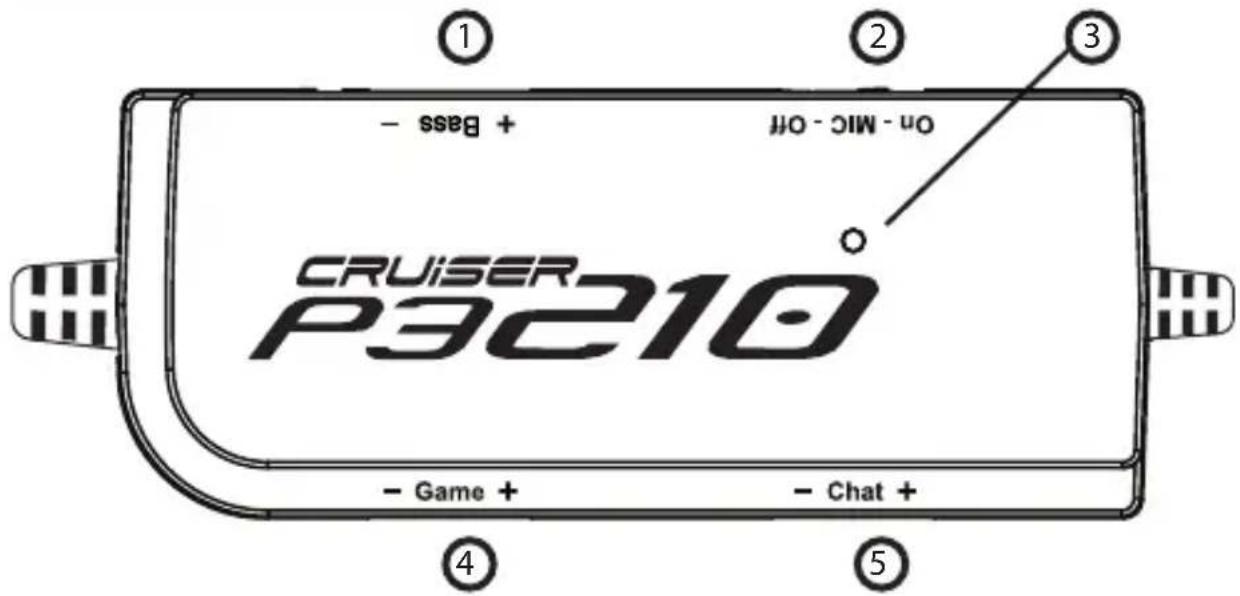

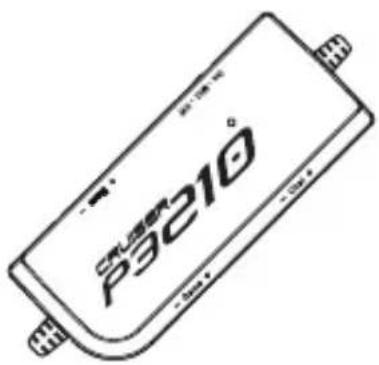

Control Dongle

1. Bass Level
2. Mic Mute switch

3. Mic Mute LED

4. Game Volume

5. Chat Volume

PS3™ Audio Configuration

In the PS3™ XMB, select [Setting] - [Sound Settings] - [Audio Multi-Output]

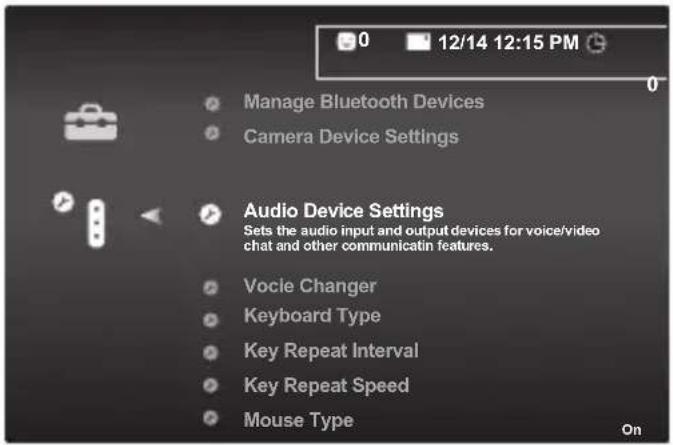

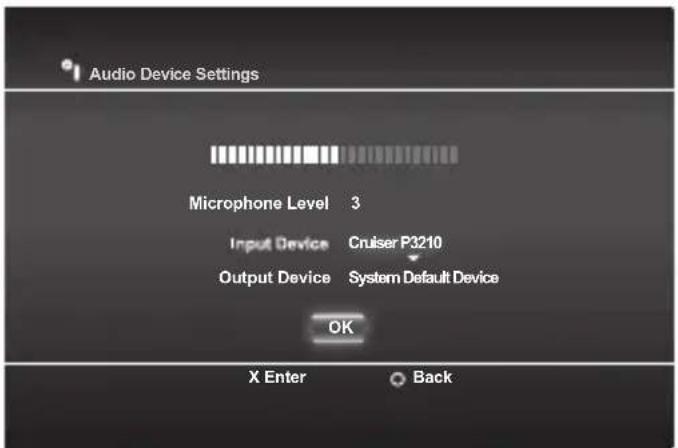

PS3™ Microphone Setup

In the PS3™ XMB, select [Setting] - [Accessories Settings] - [Audio Device settings]

Adjust the Microphone to level 3

Go down to "Input Device" and select "Cruiser P3210"

Go to "Output Device" and select "Cruiser P3210"

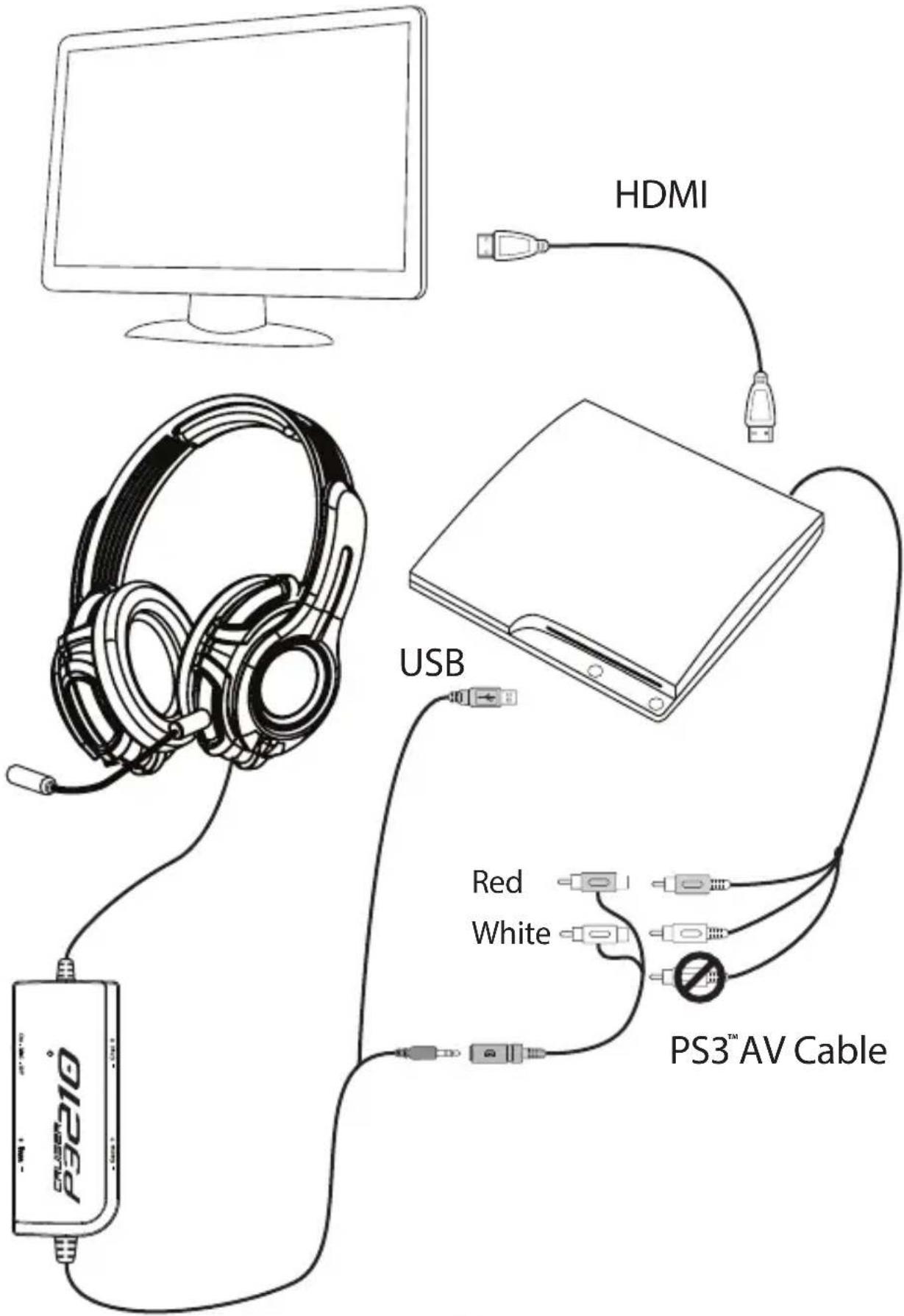

HDMI Setup

RCA Setup

PC Setup

Before using the headset, please go to the [Control Panel] then select the [Sound] folder in Windows to configure the headset.

PC Setup Cont.

Right click on the device name to where the headphone is plugged into, and set it to "Default Device". This needs to be done for best performance

The Cruiser P3210 device needs to be set to "Default Communication Device" by right clicking on the device name.

Device image/text may vary depending on system setup

FAQ

Q: Why do I have no sound coming out of my new Cruiser Headset?

A: Be sure to plug in both the USB and the RCA plugs (3.5mm plug for PC) into the correct slot of your system.

Q: I'm sure I plugged everything in correctly to my PS3 ^TM , but I still have no audio.

A: Please refer to page 3. There we show how to enable multi-output for your PS3".

Q: Why is the mic not picking up my voice?

A: Make sure that the microphone has been properly locked into place, as it will not work if it has not been.

Q: I followed the steps required to mic set up, but I still don't have my mic working.

A: Be sure that you don't accidentally have the mic set to Mute on the dongle.

Q: My Volume Channel is only working on "Chat" in PC-why is that?

A: Please refer to page 8 for proper PC set up of your Cruiser Headset.

Q: I have misplaced/damaged my detachable microphone, how can I request a replacement?

A: Simply visit the gamestergear website and send us an email request for a new detachable microphone. Please do note that there will be a fee for a replacement microphone.

Maintenance

Do not expose headphones to extreme temperatures. Wipe the headphones and head-band with mild antiseptic to avoid infections. Do not use alcohol-based disinfectants.

Safety Notice

To avoid potential damage to the device, always disconnect all cables before transporting it.

WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time, so it is important to keep the volume at a safe level. Over time, your ears adapt to loud volume levels, so a level that may not cause initial discomfort can still damage your hearing. If you experience ringing in your ears after listening with the headset, it means the volume is set too loud. The louder the volume is set the less time it takes to affect your hearing. Be sure to listen at moderate levels.

Tips:

• Before placing a headset on your ears, turn the volume down completely, then slowly increase it to a comfortable level.
• Turn down the volume if you can't hear people speaking near you.
• Avoid turning up the volume to block out noisy surroundings.

Cautions

Do not make any modifications to the system or accessories. Unauthorized alterations may compromise safety, regulatory compliance, system performance, and may void the warranty

Operate this product within the temperature range of -4^ to 113^ ( -20^ to 45^ ) only. Damage caused by use outside of that range may not be covered by the warranty

Check and follow local laws regarding use of a mobile phone and headset/headphones while operating any vehicle or using equipment that requires your full attention. If you use the headset/headphones while engaging in any such activity, be sure to focus on safety.

Limited 1 Year Warranty

GamesterGear hereby warrants that this product will be free from defects in materials and workmanship for a period of one year from the date of purchase. At its option GamesterGear will repair or replace the defective product and promptly return it to you. You should retain proof of purchase to validate the purchase date and return it with any warranty claim.

If you believe this product is defective within the warranty period, carefully repack the unit, insure it, and return it postage prepaid.

For return RMA and address, please visit www.gamestergear.com.

Certification

This device complies with FCC and industry Canada RF radiation exposure limits set forth for general population. It must not be co-located or be operating in conjunction with any other antenna or transmitter.

Eligible to bear CE marking.

Conforms to European EMC. Tested with standards: EN55022, EN55022, CE-LVD, EN60065 (EN50332-1)

Customer Service

For additional help in solving problems, please visit www.gamestergear.com for online support.
