ASUS Gaming Desktop PC ROG TYTAN CG8480 User Manual

First Edition June 2012

Copyright © 2012 ASUSTeK Computer Inc. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.

Connecting devices to your computer

Connecting a USB storage device 29

Connecting microphone and speakers 30 Connecting multiple external displays 33 Connecting an HDTV 35

Proper posture when using your Desktop PC 37

Using the memory card reader 38 Using the optical drive 39 Using the ASUS ROG U9N Gaming Keyboard 40 Using the ASUS GX900 Gaming Mouse 41 Using the multimedia keyboard (on selected models only) 48

Connecting to the Internet

Wireless connection (on selected models only) 55

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of

Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

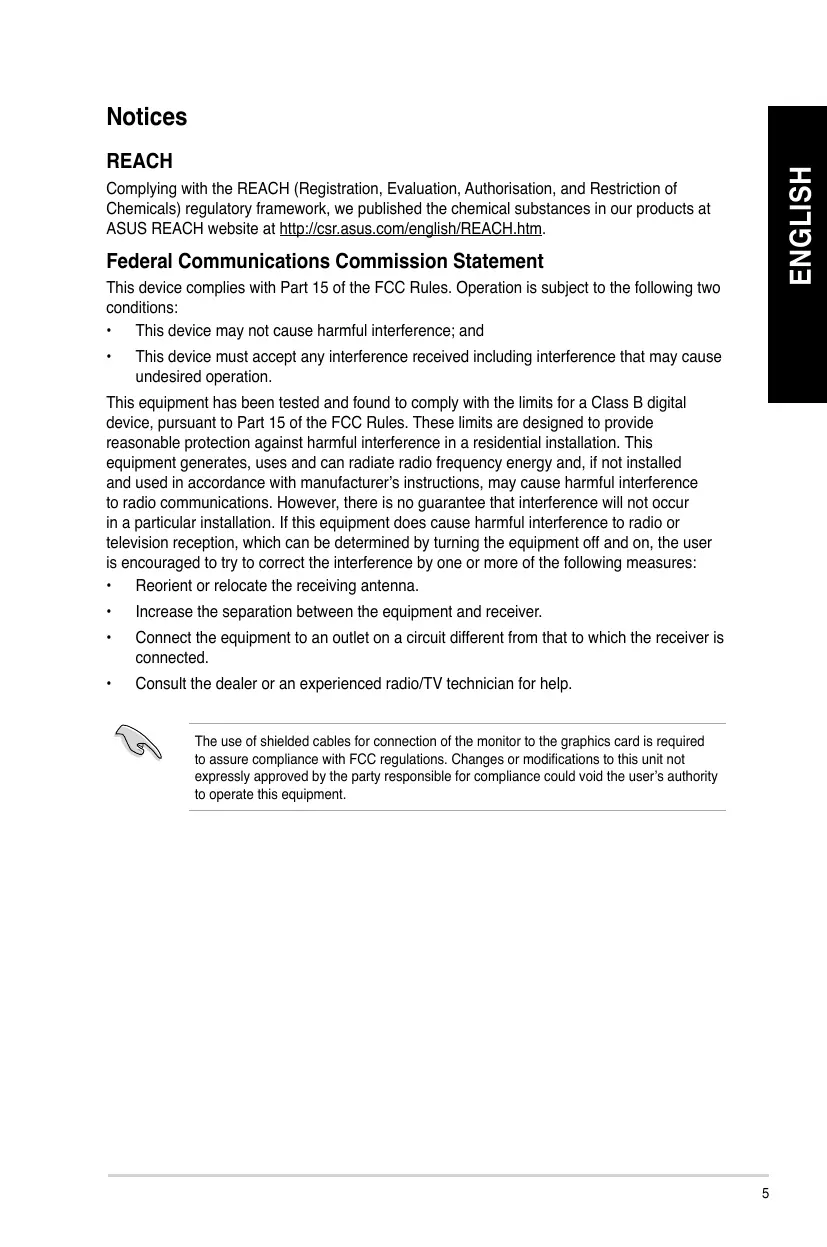

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference; and •

This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna. •

Increase the separation between the equipment and receiver.

Consult the dealer or an experienced radio/TV technician for help.

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

ENGLISH RF exposure warning

This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of

Communications. This class B digital apparatus complies with Canadian ICES-003.

Macrovision Corporation Product Notice

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision

Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Lithium-Ion Battery Warning

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different regions.

ENGLISH Disconnect the AC power and peripherals before cleaning. Wipe the Desktop PC using a clean cellulose sponge or chamois cloth dampened with solution of nonabrasive detergent and a few drops of warm water then remove any extra moisture with a dry cloth.

DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.

DO NOT expose to dirty or dusty environments. DO NOT operate during a gas leak. DO NOT place or drop objects on top and do not shove any foreign objects into the Desktop PC. DO NOT expose to strong magnetic or electrical fields.

DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.

Battery safety warning: DO NOT throw the battery in fire. DO NOT short circuit the contacts. DO NOT disassemble the battery.

Use this product in environments with ambient temperatures between 0˚C (32̊F) and

35˚C (95̊F). DO NOT cover the vents on the Desktop PC to prevent the system from getting overheated. DO NOT use damaged power cords, accessories, or other peripherals.

To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.

Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.

Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.

If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Conventions used in this guide

ENGLISH Where to find more information

Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS website www.asus.com. ASUS Local Technical Support Visit ASUS website at http://support.asus.com/contact for the contact information of local Technical Support Engineer.

ENGLISH Package contents

ASUS ROG TYTAN CG8480

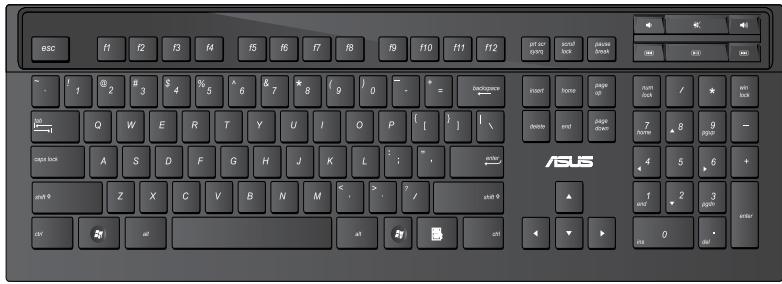

Gaming Desktop PC Keyboard x1

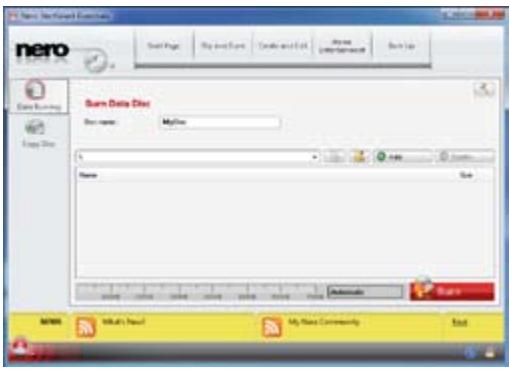

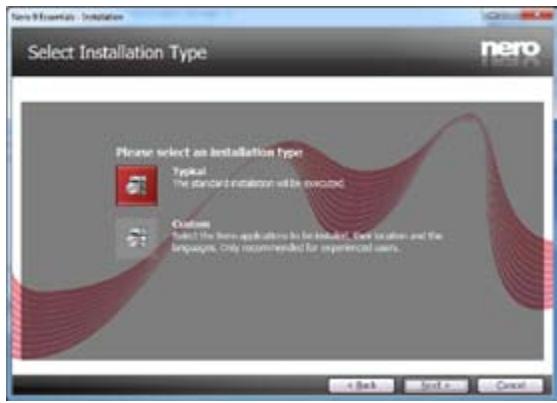

Nero 9 burning software DVD x1

If any of the above items is damaged or missing, contact your retailer.

• The illustrated items above are for reference only. Actual product specifications may vary with different models.

• For details on using the bundled gaming keyboard and mouse, refer to sections Using the ASUS ROG Gaming Keyboard and Using the ASUS GX900 Gaming Mouse.

ENGLISH Getting started

Thank you for purchasing the ASUS ROG TYTAN CG8480 Gaming Desktop PC!

The ASUS ROG TYTAN CG8480 Desktop PC provides cutting-edge performance, uncompromised reliability, and user-centric utilities. All these values are encapsulated in a stunningly futuristic and stylish system casing. Read the ASUS Warranty Card before setting up your ASUS Desktop PC.

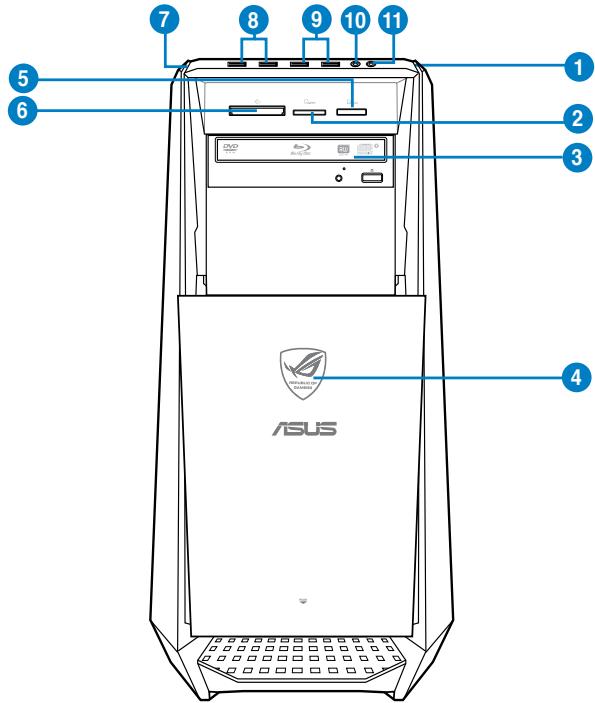

Getting to know your computer

Illustrations are for reference only. The ports and their locations, and the chassis color vary with different models.

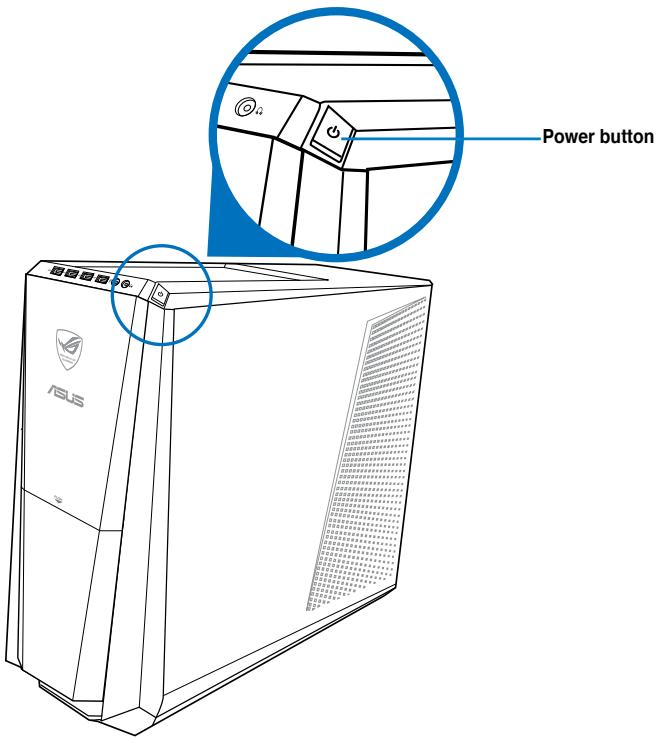

Power button. Press this button to turn on your computer.

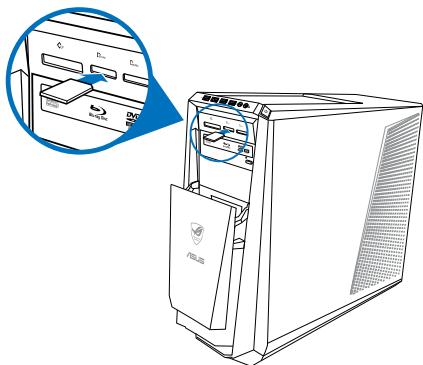

Secure Digital™ / MultiMediaCard slot. Insert a Secure Digital™ card or

MultiMediaCard into this slot.

Optical disk drive bay. There is an optical disk drive in this bay.

Power LED. This LED lights up when you turn on your computer.

Memory Stick™ / Memory Stick Pro™ card slot. Insert a Memory Stick™ / Memory

Stick Pro™ card into this slot.

CompactFlash® / Microdrive™ card slot. Insert a CompactFlash® / Microdrive™ card into this slot.

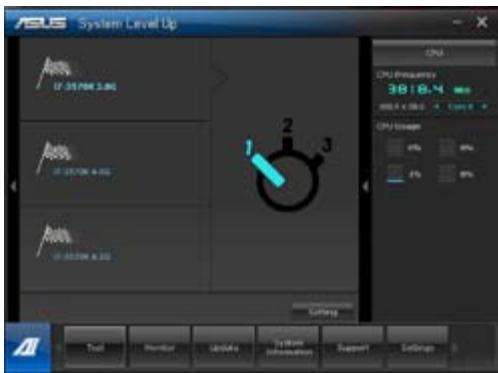

OC Button. This button adjusts the System Level Up profile of your computer.

USB 3.0 ports. These Universal Serial Bus 3.0 (USB 3.0) ports connect to USB 3.0 devices such as a mouse, printer, scanner, camera, PDA, and others.

DO NOT connect a keyboard / mouse to any USB 3.0 port when installing Windows® operating system.

• Due to USB 3.0 controller limitations, USB 3.0 devices can only be used under a

Windows® OS environment and after USB 3.0 driver installation. • USB 3.0 devices can only be used as data storage only. • We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster and better performance for your USB 3.0 devices.

USB 2.0 ports. These Universal Serial Bus 2.0 (USB 2.0) ports connect to USB 2.0 devices such as a mouse, printer, scanner, camera, PDA, and others.

Microphone port. This port connects to a microphone.

Headphone port. This port connects to a headphone or speaker.

Chapter 1: Getting started

USB 3.0 ports, support ASUS USB 3.0 Boost UASP Mode. These Universal Serial

Bus 3.0 (USB 3.0) ports connect to USB 3.0 devices such as a mouse, printer, scanner, camera, PDA, and others. • The USB 3.0 ports only support Windows® 7 or later versions. UASP standard only supports Windows® 8. • DO NOT connect a keyboard / mouse to any USB 3.0 port when installing Windows® operating system. • Due to USB 3.0 controller limitation, USB 3.0 devices can only be used under Windows® OS environment and after the USB 3.0 driver installation. • USB 3.0 devices can only be used as data storage only. • We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster and better performance for your USB 3.0 devices.

USB 2.0 ports. These Universal Serial Bus 2.0 (USB 2.0) ports connect to USB 2.0 devices such as a mouse, printer, scanner, camera, PDA, and others.

DisplayPort. This port connects a display monitor or a home-theater system.

DVI-D port. This port is for any DVI-D compatible device and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected content.

USB 3.0 ports support ASUS USB 3.0 Boost UASP Mode. Bottom port supports

Side Speaker Out port (gray). This port connects to the side speakers in an 8-channel audio configuration.

Center/Subwoofer port (orange). This port connects to the center/subwoofer speakers.

9. ������������������������

Microphone port (pink). This port connects to a microphone. 10. ���������������������� Line Out port (lime). This port connects to a headphone or speaker. In a 4, 6, or 8channel configuration, the function of this port becomes Front Speaker Out. 11. ��������������������������� Line In port (light blue). This port connects to a tape, CD, DVD player, or other audio sources. 12.

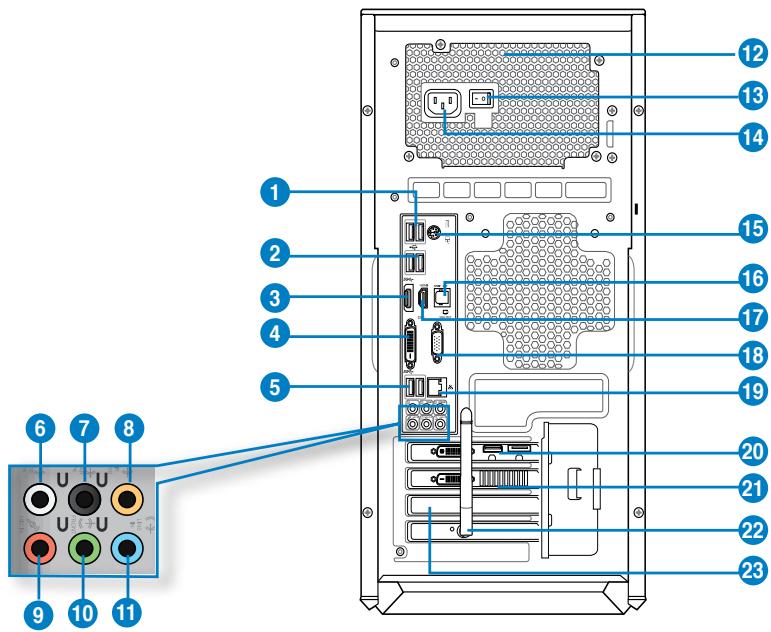

Air vents. These vents allow air ventilation.

Refer to the audio configuration table below for the function of the audio ports in a 2, 4, 6, or 8-channel configuration.

Chapter 1: Getting started

ENGLISH DO NOT block the air vents on the chassis. Always provide proper ventilation for your computer.

Power switch. Switch to turn ON/OFF the power supply to your computer.

14. Power connector (input rated: 100~120/200~240Vac, 60/50Hz, 10/5A). Plug the power cord to this connector.

PS/2 Keyboard / Mouse combo port. This port is for a PS/2 keyboard or mouse.

HDMI port. This port is for a High-Definition Multimedia Interface (HDMI) connector, and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected content.

VGA port. This port is for VGA-compatible devices such as a VGA monitor. 19. ������������������ LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN) through a network hub. LAN port LED indications

Activity/Link LED Speed LED Status

OFF BLINKING No link

OFF GREEN ACT/LINK SPEED LED LED

Setting up your computer

ENGLISH This section guides you through connecting the main hardware devices, such as the external monitor, keyboard, mouse, and power cord, to your computer.

Connecting an external monitor

Using the ASUS Graphics Card (on selected models only)

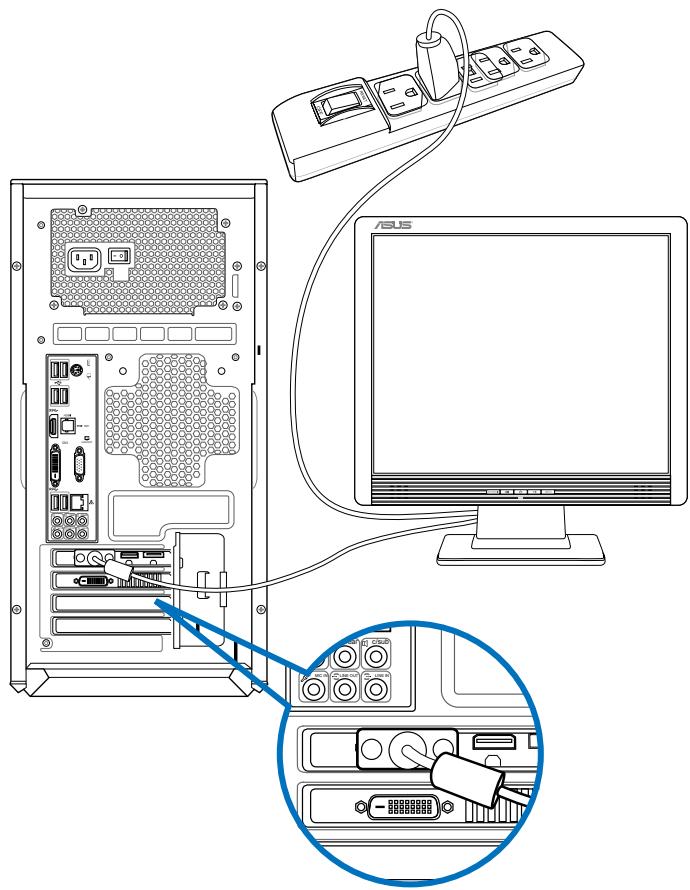

Connect your monitor to the display output port on the discrete ASUS Graphics Card.

To connect an external monitor using the ASUS Graphics Card: 1. 2.

Connect a monitor to a display output port on the ASUS Graphics Card.

Plug the monitor to a power source.

The display output ports on the ASUS Graphics Card may vary with different models.

LINE OUT LINE IN MIC IN

LINE OUT LINE IN Chapter 1: Getting started

Using the onboard display output ports

ENGLISH Connect your monitor to the onboard display output port.

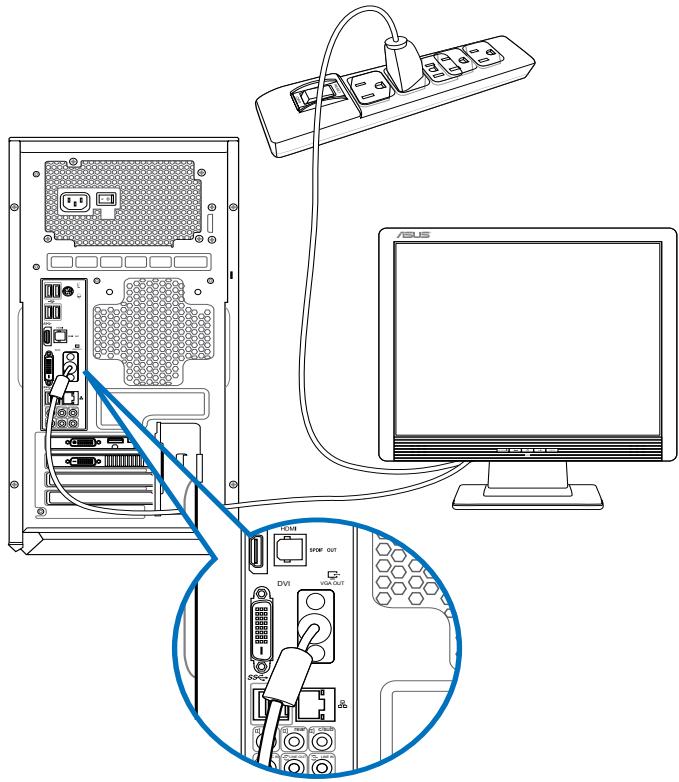

To connect an external monitor using the onboard display output ports: 1. 2.

Connect a VGA monitor to the VGA port, or a DVI-D monitor to the DVI-D port, or an

HDMI monitor to the HDMI port on the rear panel of your computer. Plug the monitor to a power source.

LINE OUT LINE IN DVI MIC IN VGA OUT

• If your computer comes with an ASUS Graphics Card, the graphics card is set as the primary display device in the BIOS. Connect your monitor to a display output port on the graphics card.

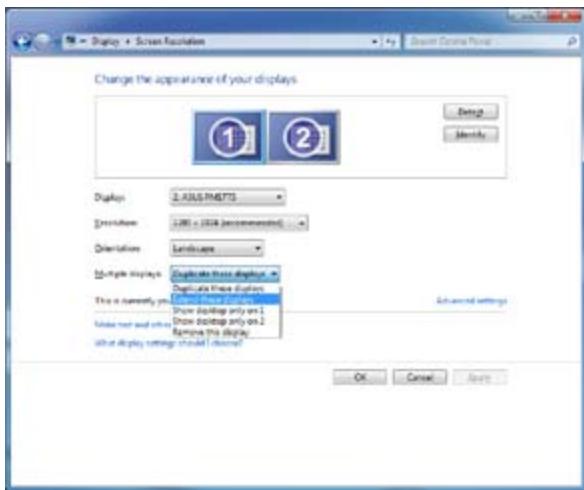

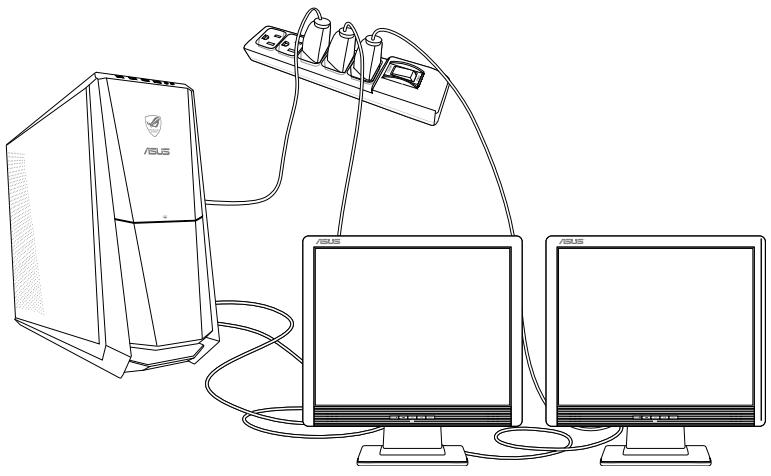

• To connect multiple external monitors to your computer, refer to Connecting multiple external monitors in Chapter 3 of this user manual for details.

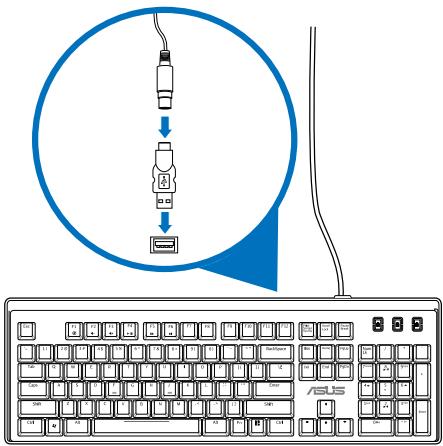

Connecting a USB keyboard and a USB mouse

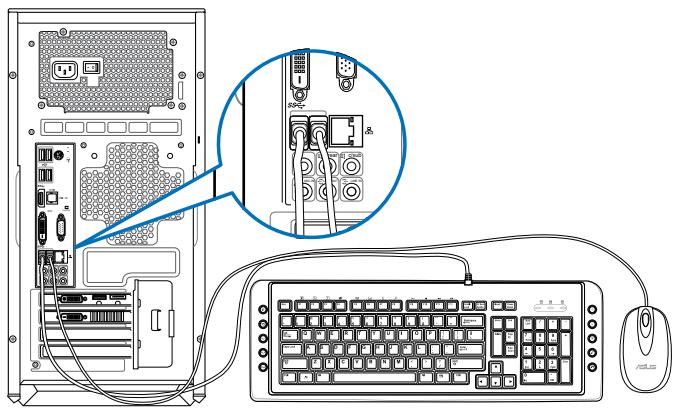

ENGLISH Connect a USB keyboard and a USB mouse to the USB ports on the rear panel of your computer.

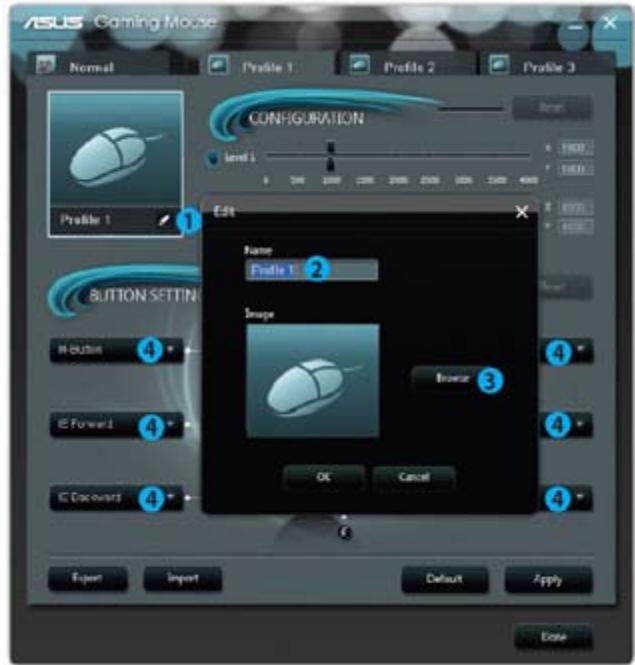

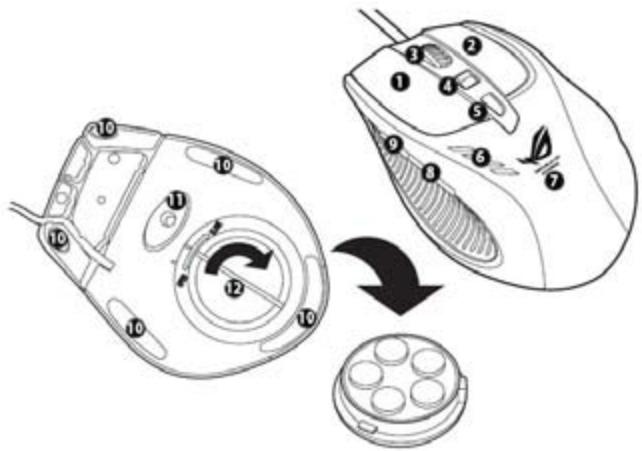

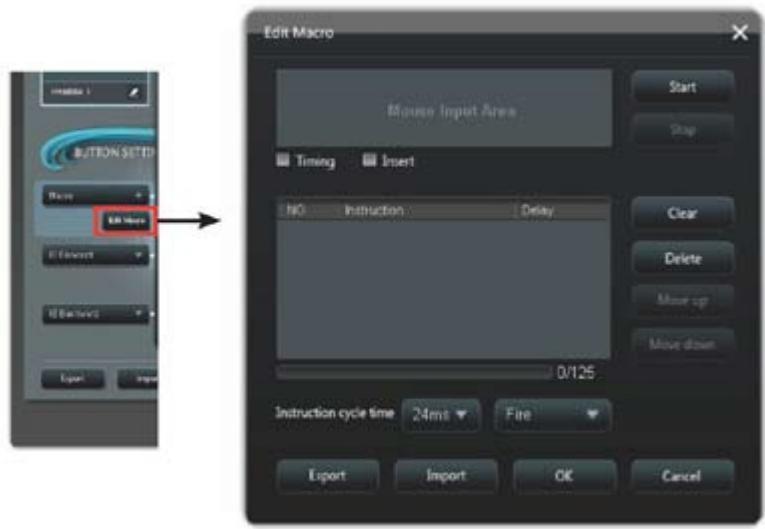

The pre-installed setup utility for the bundled ASUS GX900 Gaming Mouse can be accessed only when connecting the mouse to your computer before starting Windows® 7 for the first time. Otherwise, you will have to manually install the setup utility from the bundled Support DVD. Refer to section Using the ASUS GX900 Gaming Mouse of Chapter 4 for details.

LINE OUT LINE IN VGA OUT

Connecting the power cord

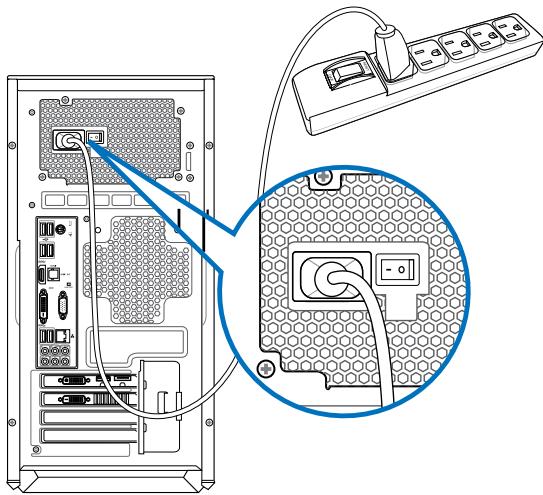

Connect one end of the power cord to the power connector on the rear panel of your computer and the other end to a power source.

LINE OUT LINE IN Chapter 1: Getting started

Turning your computer ON/OFF This section describes how to turn on/off your computer after setting up your computer.

ENGLISH Turning your computer ON To turn your computer ON:

Turn your monitor ON.

Turn the power switch ON, then press the power button on your computer.

Wait until the operating system loads automatically.

Turning your computer OFF To turn your computer OFF:

Close all running applications.

on the Windows® desktop. to shut down the operating system.

Chapter 1: Getting started

ENGLISH Using Windows® 7

Starting for the first time

When you start your computer for the first time, a series of screens appear to guide you in configuring the basic settings of your Windows® 7 operating system. To start for the first time: 1.

Turn your computer on. Wait for a few minutes until the Set Up Windows screen appears.

From dropdown list, select your language, then click Next.

From the dropdown lists, select your Country or region, Time and currency, and

Keyboard layout, then click Next.

Key in uniques names for the user name and computer name, then click Next.

Key in the necessary information to set up your password, then click Next. You may also click Next to skip this step without entering any information.

If you want to set up a password for your account later, refer to the section Setting up a user account and password in this chapter.

Carefully read the license terms. Tick I accept the license terms and click Next.

Select Use recommended settings or Install important updates only to set up the security settings for your computer. To skip this step, select Ask me later.

Review your date and time settings. Click Next. The system loads the new settings and restarts. You may now start using your computer.

Using Windows® 7 desktop

ENGLISH Click the Start icon

> Help and Support to obtain more information about Windows® 7.

Using the Start menu

The Start menu gives you access to programs, utilities, and other useful items on your computer. It also provides you with more information about Windows 7 through its Help and

Launching items from the Start menu

To launch items from the Start menu: 1. 2.

From the Windows® taskbar, click the Start icon

From the Start menu, select the item that you want to launch.

You may pin programs that you want constantly displayed on the Start menu. For more details, refer to the section Pinning programs on the Start menu or taskbar on this chapter.

Using the Getting Started item

The Getting Started item on the Start menu contains information about some basic tasks such as personalizing Windows®, adding new users, and transferring files to help you to familiarize yourself with using Windows® 7.

To use the Getting Started item: 1.

From the Windows® taskbar, click the Start icon

to launch the Start menu.

Select Getting Started. The list of available tasks appears.

Select the task that you want to do.

The taskbar allows you to launch and manage programs or items installed on your computer.

Launching a program from the taskbar

To launch a program from the taskbar: •

From the Windows® taskbar, click an icon to launch it. Click the icon again to hide the program.

You may pin programs that you want constantly displayed on the taskbar. For more details, refer to the section Pinning programs on the Start menu or taskbar on this chapter.

Pinning items on the jumplists

ENGLISH When you right-click an icon on the taskbar, a jumplist launches to provide you with quickaccess to the program’s or item’s related links.You may pin items on the jumplist such as favorite websites, often-visited folders or drives, or recently played media files.

To pin items to the jumplist: 1. 2.

From the taskbar, right-click an icon.

From the jumplist, right-click the item that you want to pin, then select Pin to this list.

Unpinning items from the jumplist

To unpin items from the jumplist: 1. 2.

From the taskbar, right-click an icon.

From the jumplist, right-click the item that you want to remove from the jumplist, then select Unpin from this list.

Pinning programs on the Start menu or taskbar

To pin programs on the Start menu or taskbar: 1.

From the Windows® taskbar, click the Start icon

Select Pin to Taskbar or Pin to Start menu.

to launch the Start menu.

Right-click the item that you want to pin on the Start menu or taskbar.

You may also right-click on the icon of a running program on the taskbar, then select Pin this program to taskbar.

Unpinning programs from the Start menu

To unpin programs from the Start menu: 1.

From the Windows® taskbar, click the Start icon

to launch the Start menu.

From the Start menu, right-click the program that you want to unpin, then select

Remove from this list.

Unpinning programs from the taskbar

To unpin programs from the taskbar: 1.

From the taskbar, right-click the program that you want to remove from the taskbar, then select Unpin this program from taskbar.

Using the notification area

ENGLISH By default, the notification area shows these three icons:

Action Center notification Click this icon to display all the alert messages/notifications and launch the Windows® Action Center. Network connection This icon displays the connection status and signal strength of the wired or wireless network connection. Volume Click this icon to adjust the volume.

Displaying an alert notification

To display an alert notification: •

Click the Notification icon

, then click the message to open it.

For more details, refer to the section Using Windows® Action Center in this chapter.

Customizing icons and notifications

You may choose to display or hide the icons and notifications on the taskbar or on the notification area.

To customize icons and notifications: 1.

From the notification area, click on the arrow icon

From the dropdown list, select the behaviors for the icons or items that you want to customize.

Managing your files and folders

Using Windows® Explorer

Windows® Explorer allows you to view, manage, and organize your files and folders.

Launching Windows® Explorer

To launch Windows Explorer:

From the Windows® taskbar, click the Start icon

Click Computer to launch Windows Explorer.

to launch the Start menu.

Exploring files and folders

From the navigation or view pane, browse for the location of your data.

From the breadcrumb bar, click the arrow to display the contents of the drive or folder.

ENGLISH To explore files and folders:

Customizing the file/folder view

To customize the file/folder view: 1.

From the navigation pane, select the location of your data.

From the toolbar, click the View icon

From the View menu, move the slider to select how you want to view the file/folder.

You may also right-click anywhere on the View pane, click View, and select the view type that you want.

Arranging your files

To arrange your files: 1.

From the Arrange by field, click to display the dropdown list.

Select your preferred arrangement type.

To sort your files: 1.

Right-click anywhere on the View pane.

From the menu that appears, select Sort by, then select your preferred sorting type.

To group your files: 1.

Right-click anywhere on the View pane.

From the menu that appears, select Group by, then select your preferred grouping type.

ENGLISH Adding a new folder

To add a new folder: 1.

From the toolbar, click New folder.

Key in a name for the new folder.

You may also right-click anywhere on the View pane, click New > Folder.

Backing up your files

Setting up a backup To set up a backup:

> All Programs > Maintenance > Backup and Restore.

Click Set up backup. Click Next.

Select your backup destination. Click Next.

Select Let Windows choose (recommended) or Let me choose as your backup mode.

If you select Let Windows choose, Windows will not back up your programs, FATformatted files, Recycle Bin files, or temporary files that are 1GB or more.

Follow the onscreen instructions to finish the process.

Restoring your system settings

The Windows® System Restore feature creates a restore point where the computer’s system settings are stored at certain time and date. It allows you to restore or undo changes to your computer’s system settings without affecting your personal data. To restore your system:

Close all running applications.

Follow the onscreen instructions to complete the process.

> All Programs > Accessories > System Tools > System Restore.

Protecting your computer

ENGLISH Using Windows® 7 Action Center

Windows® 7 Action Center provides you with alert notifications, security information, system maintenance information, and the option to automatically troubleshoot and fix some common computer problems.

You may customize the notifications. For more details, refer to the previous section Customizing icons and notifications in this chapter.

Launching Windows® 7 Action Center

To launch Windows® 7 Action Center: 1.

To launch Windows 7 Action Center, click the Notification icon

From Windows 7 Action Center, click the task that you want to do.

Using Windows® Update

Windows Update allows you to check and install the latest updates to enhance the security and performance of your computer.

Launching Windows® Update

To launch Windows® Update: 1.

From the Windows® taskbar, click the Start icon

to launch the Start menu.

Select All Programs > Windows Update.

From the Windows Update screen, click the task that you want to do.

Setting up a user account and password

You may create user accounts and passwords for people who will use your computer.

Setting up a user account

To set up a user account:

> Getting Started > Add new users.

From the Windows® taskbar, click

Select Manage another account.

Select Create a new account.

Key in the name of the new user.

Select either Standard user or Administrator as the user type.

Setting up a user’s password

ENGLISH To set up a user’s password:

Select the user that you would like to set a password.

Select Create a password.

Key in a password and confirm it. Key in your password’s hint.

When done, click Create password.

Activating the anti-virus software

Trend Micro Internet Security is pre-installed on your computer. It is a third-party anti-virus software protecting your computer from virus. It is purchased separately. You have a 30-day trial period after activating it.

To activate Trend Micro Internet Security: 1.

Run the Trend Micro Internet Security application.

Carefully read the license terms. Click Agree & Activate.

Input your e-mail address and select your location. Click Next.

Click Finish to complete the activation.

Getting Windows® Help and Support

Windows® Help and Support provides you with guides and answers in using the applications in Windows® 7 platform. To launch Windows® Help and Support, click

Ensure that you are connected to the Internet to obtain the latest Windows® online help.

Connecting devices to your computer

Connecting a USB storage device This desktop PC provides USB 2.0/1.1 and USB 3.0 ports on both the front and rear panels. These USB ports allow you to connect USB devices such as storage devices. To connect a USB storage device: •

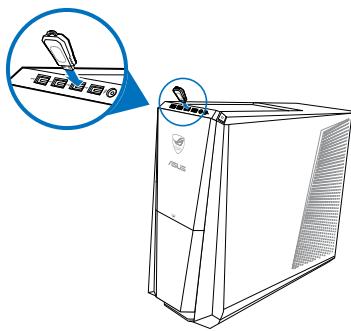

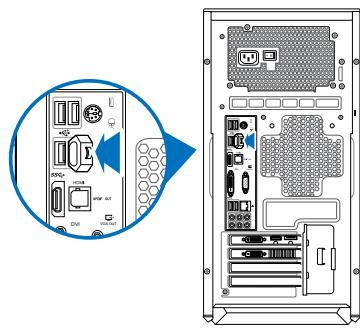

Insert the USB storage device to your computer.

DVI DVI VGA OUT Front panel

LINE OUT LINE IN Rear panel

To remove a USB storage device:

Click from the Windows notification area on your computer, then click Eject USB2.0 FlashDisk or Eject

USB3.0 FlashDisk if you are using the USB3.0 flash drive or USB3.0-compatible devices.

When the Safe to Remove Hardware message pops up, remove the USB storage device from your computer.

DO NOT remove a USB storage device when data transfer is in progress. Doing so may cause data loss or damage the USB storage device.

Connecting microphone and speakers

ENGLISH This desktop PC comes with microphone ports and speaker ports on both the front and rear panels. The audio I/O ports located on the rear panel allow you to connect 2-channel,

4-channel, 6-channel, and 8-channel stereo speakers.

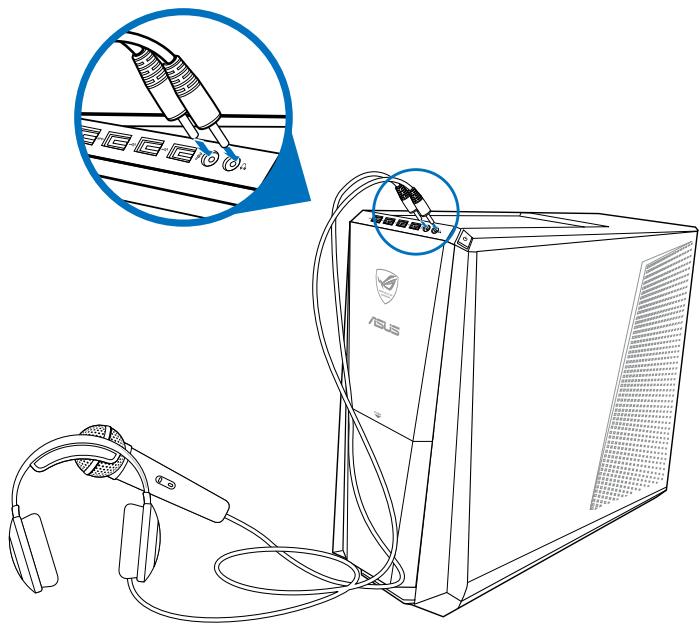

Connecting Headphone and Mic

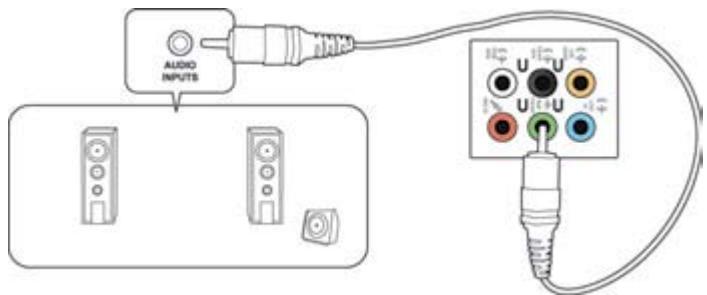

Connecting 2-channel Speakers

Chapter 3: Connecting devices to your computer

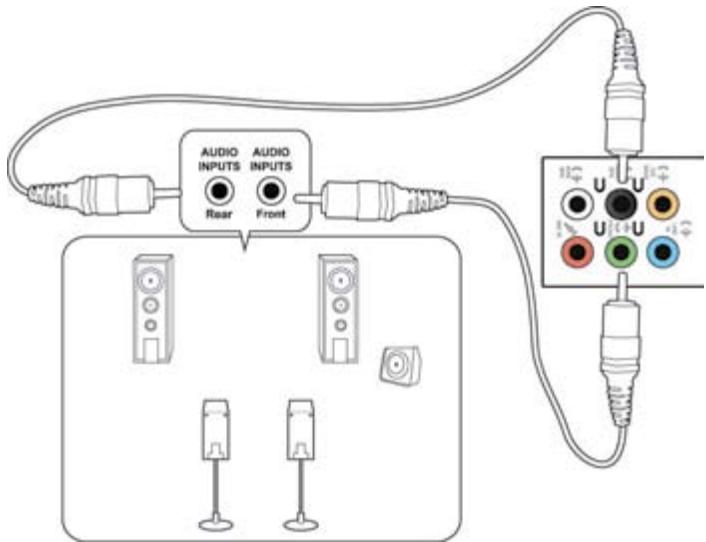

ENGLISH Connecting 4-channel Speakers

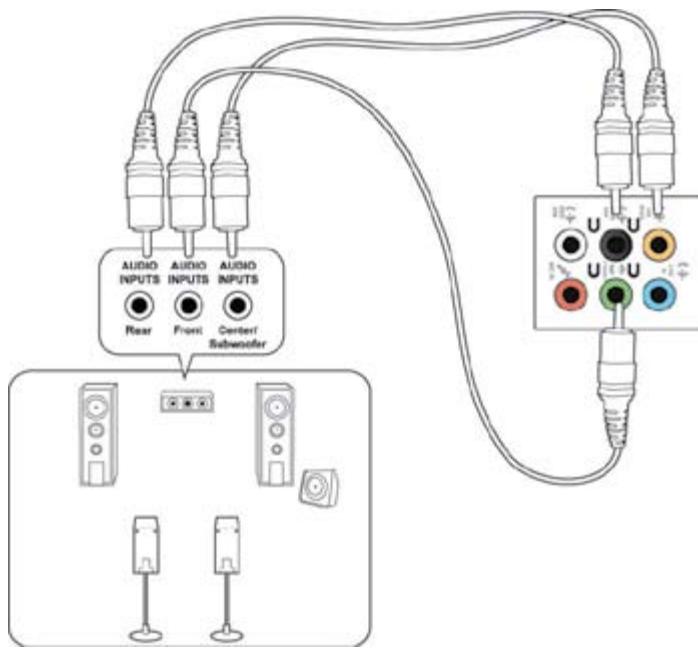

Connecting 6-channel Speakers

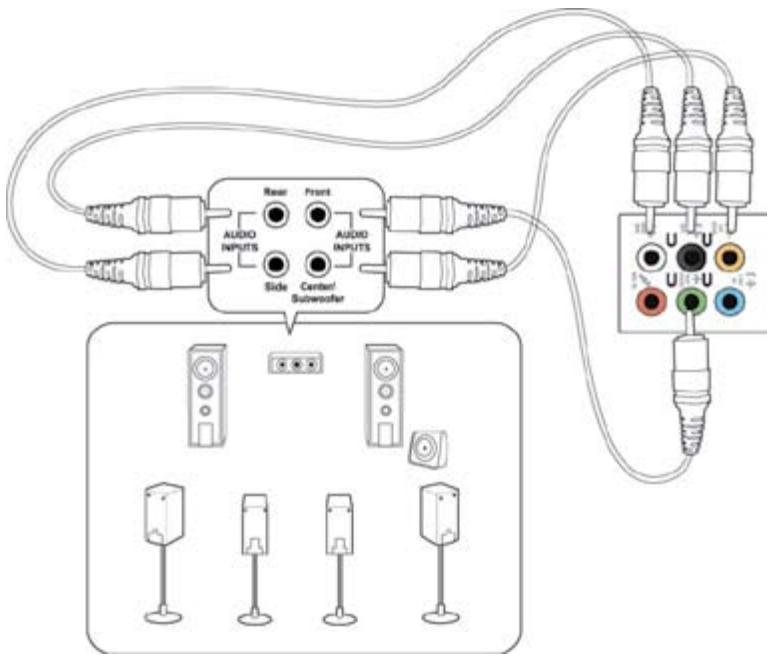

Connecting 8-channel Speakers

Chapter 3: Connecting devices to your computer

Connecting multiple external displays

ENGLISH Your desktop PC may come with VGA, HDMI, or DVI ports and allows you to connect multiple external displays.

When a graphics card is installed in your computer, connect the monitors on the output ports of the graphics card.

When using multiple monitors, you are allowed to set display modes. You can use the additional monitor as a duplicate of your main display, or as an extension to enlarge your

Windows desktop. To set up multiple displays: 1.

Turn off your computer.

Connect the two monitors to your computer and connect the power cords to the monitors. Refer to Setting up your computer section in Chapter 1 for details on how to connect a monitor to your computer.

For some graphic cards, only the monitor that is set to be the primary display has display during POST. The dual display function works only under Windows.

Turn on your computer.

Do any of the following to open the Screen Resolution setting screen:

> Control Panel > Appearance and Personalization > Display > Change display settings.

Right click anywhere on your Windows desktop. When the pop-up menu appears, click Personalize > Display > Change display settings.

Select the display mode from the Multiple displays: drop-down list.

Duplicate these displays: Select this option to use the additional monitor as a duplicate of your main display.

Extend these displays: Select this option to use the additional monitor as an extension display. This increases your desktop space.

Show desktop only on 1 / 2: Select this option to show desktop only on monitor

Remove this display: Select this options to remove the selected display.

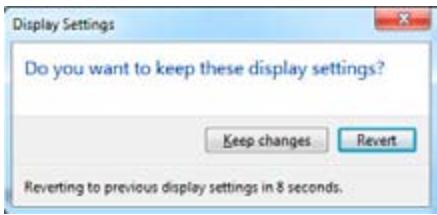

Click Apply or OK. Then click Keep Changes on the confirmation message.

Chapter 3: Connecting devices to your computer

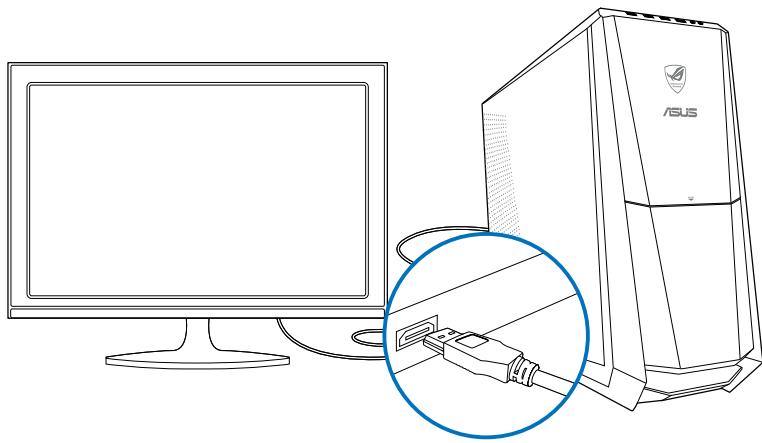

Connecting an HDTV ENGLISH Connect a High Definition TV (HDTV) to the HDMI port of your computer.

• You need an HDMI cable to connect the HDTV and the computer. The HDMI cable is purchased separately. • To get the best display performance, ensure that your HDMI cable is less than 15 meters.

Chapter 3: Connecting devices to your computer

ENGLISH Using your computer

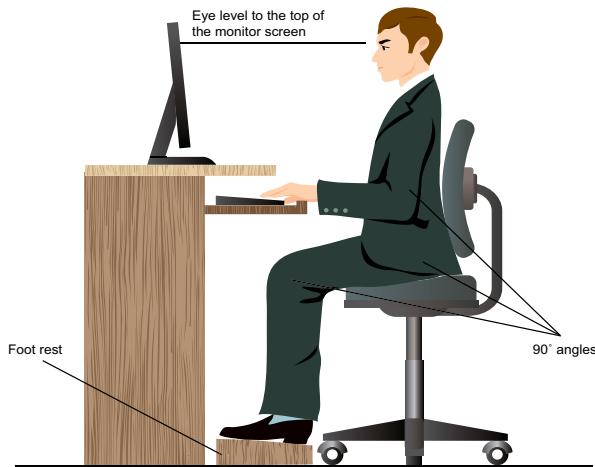

Proper posture when using your Desktop PC When using your Desktop PC, maintaining the proper posture is necessary to prevent strain to your wrists, hands, and other joints or muscles. This section provides you with tips on avoiding physical discomfort and possible injury while using and fully enjoying your Desktop PC. Eye level to the top of the monitor screen

To maintain the proper posture:

Position your computer chair to make sure that your elbows are at or slightly above the keyboard to get a comfortable typing position.

Adjust the height of your chair to make sure that your knees are slightly higher than your hips to relax the backs of your thighs. If necessary, use a footrest to raise the level of your knees.

Adjust the back of your chair so that the base of your spine is firmly supported and angled slightly backward.

Sit upright with your knees, elbows and hips at an approximately 90º angle when you are at the PC.

Place the monitor directly in front of you, and turn the top of the monitor screen even with your eye level so that your eyes look slightly downward.

Keep the mouse close to the keyboard, and if necessary, use a wrist rest for support to reduce the pressure on your wrists while typing.

Use your Desktop PC in a comfortably-lit area, and keep it away from sources of glare such as windows and straight sunlight.

Take regular mini-breaks from using your Desktop PC.

Using the memory card reader

ENGLISH Digital cameras and other digital imaging devices use memory cards to store digital picture or media files. The built-in memory card reader on the front panel of your system allows you to read from and write to different memory card drives.

To use the memory card:

Insert the memory card into the card slot.

• A memory card is keyed so that it fits in only one direction. DO NOT force a card into a slot to avoid damaging the card. • You can place media in one or more of the card slots and use each media independently. Place only one memory card in a slot at one time.

Select a program from the AutoPlay window to access your files.

• If AutoPlay is NOT enabled in your computer, click Windows® 7 Start button on the taskbar, click Computer, and then double-click the memory card icon to access the data on it. • Each card slot has its own drive icon which is displayed on the Computer screen. • The memory card reader LED lights up and blinks when data is being read from or written to the memory card.

When finished, right-click the memory card drive icon on the Computer screen, click

Eject, and then remove the card. Never remove cards while or immediately after reading, copying, formatting, or deleting data on the card or else data loss may occur. To prevent data loss, use “Safely Remove Hardware and Eject Media” in the Windows notification area before removing the memory card.

Chapter 4: Using your computer

ENGLISH Using the optical drive

Inserting an optical disc

To insert an optical disc: 1.

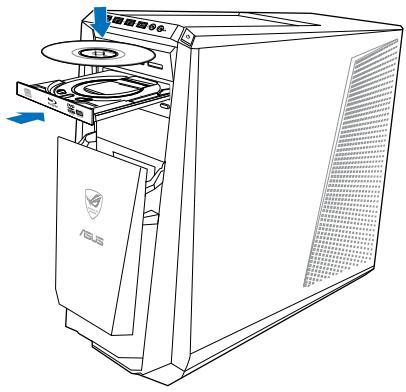

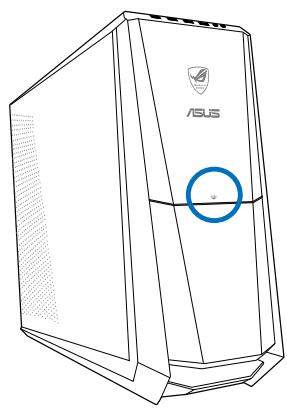

While your system is on, press the PUSH button.

Press the eject button below the drive bay cover to open the tray.

Place the disc to the optical drive with the label side facing up.

Push the tray to close it.

Select a program from the AutoPlay window to access your files.

If AutoPlay is NOT enabled in your computer, click Windows® 7 Start button on the taskbar, click Computer, and then double-click the CD/DVD drive icon to access the data on it.

Removing an optical disc

To remove an optical disc: 1.

While the system is on, do either of the following to eject the tray:

Press the eject button below the drive bay cover.

Right-click the CD/DVD drive icon on the Computer screen, and then click Eject.

Remove the disc from the disc tray.

Using the ASUS ROG U9N Gaming Keyboard

ENGLISH Your CG8580 Essentio Desktop PC comes with the bundled ASUS ROG U9N Gaming

Keyboard for an optimal gaming experience. Check the section Package contents for the package contents of the ASUS ROG U9N Gaming Keyboard.

Installing the ASUS ROG U9N Gaming Keyboard

Use the bundled PS/2 to USB adaptor to connect your gaming keyboard to your computer’s USB 2.0 port.

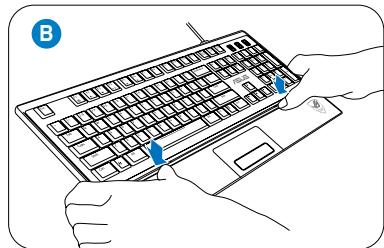

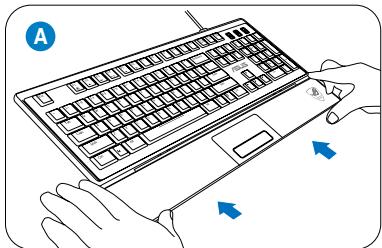

Align and insert the wrist pad into the gaming keyboard’s wrist pad slots (A). Using both thumbs, push down the wrist pad until it snaps in place (B).

B Restart your computer. Windows® automatically installs all necessary drivers for your keyboard.

Chapter 4: Using your computer

Using the ASUS GX900 Gaming Mouse

ENGLISH Your CG8580 Essentio Desktop PC comes with the bundled ASUS GX900 Gaming Mouse for your full-blast game control.

Check the section Package contents for the package contents of the ASUS GX900 Gaming Mouse.

The ASUS GX900 Gaming Mouse comes with a left button, a right button, a scroll wheel, two side buttons, a DPI button, and a specially designed Profile Switch button.

DPI switch Profile switch button/Profile indicator* LED DPI indicator**

Mouse feet Mouse feet and Twin-Eye Laser sensor Weight base (5 x 4.5g blocks)***

*** To adjust the mouse weight, add or remove the weight blocks.

*Profile switch LED indications

**DPI switch LED indications

Launching the program

A specially designed program is pre-installed on your computer, which allows you to set up your ASUS GX900 Gaming Mouse to avail all its features.

When you connect ASUS GX900 Gaming Mouse to your computer before starting Windows® 7 for the first time, the program automatically detected the mouse and can be accessed directly. Otherwise, you will have to manually install the setup utility from the bundled Support DVD. To install the program from Support DVD, place the support DVD into the optical drive and follow the onscreen instructions to launch the program. If Autorun is NOT enabled in your computer, browse the contents of the support DVD to locate the GX900.exe file. Double-click the GX900.exe file to launch the program.

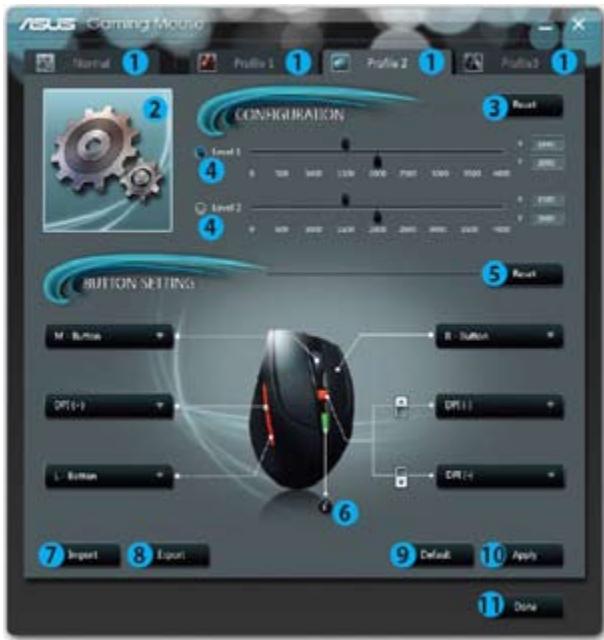

Setting your ASUS GX900 Gaming Mouse

Ensure that your gaming mouse is connected to your computer’s USB port. The program automatically detects the mouse and displays the main menu.

Chapter 4: Using your computer

Displays the profile icon to configure profile 1-3 menus.

Click to reset the DPI configuration to the previously saved settings.

Drag the slider to adjust the DPI value for each level. Click to reset the button settings to the previous settings Click to display the different profile color indicators and their status. Click to load the saved profile to your mouse. Click to save the current profile settings to your hard disk drive. Click to reset all the mouse settings to the factory default settings. Click to save the settings you have made. Click to save the settings you have made and exit the program.

* Each profile provides two DPI levels. Two DPI switch LEDs light up indicating that you are using Level 1, and four LEDs light up indicating that you are using Level 2.

ENGLISH Profile 1 menu

Enter the desired profile name.

Click to open the Edit menu and change the profile name and profile icon.

Click to locate the image file you want to use as the profile icon. Select the function for each button/action from the drop down list. * Refer to the table below for more details.

Left mouse button function

Middle mouse button function

IE Backward button function. If selected, press the button to go back to the previous page. IE Forward button function. If selected, press the button to go to the next page.

Chapter 4: Using your computer

Macro Script #1-6 DPI [+] DPI [-] DPI Level 1/2 Profile Switch Normal Profile User Profile 1/2/3

Press the button to perform a keystroke or keystroke sequence.

Press the button to run a command or series of commands that you can edit via the Edit Macro menu. See Macro menu for details. Press the button to run a script that you can edit via the Edit Script menu. See Edit Script menu for details. Press the button to increase the DPI value. Press the button to decrease the DPI value. Press the button to use the DPI Level 1/2. Profile Switch button function. Press the button to use the normal profille. Press the button to use the customized profile 1/2/3. Press the button to scroll leftward/rightward as a tilt wheel does.

Rapid Fire (key) Web Browser E-mail Media Player Play/Pause Stop Next Track Prev Track Volume Up/Down Mute Calculator My Computer Disabled

This function only works for Microsoft® Office applications under the Windows® 7/Vista operating systems.

Press the button to do a rapid fire in a click-to-attack game, which is the same as triple clicking the left mouse button.

Press the button to do a rapid fire in a game using the spacebar to attack, which is the same as pressing the keyboard’s spacebar thrice. Press the button to launch your default web browser. Press the button to launch your default e-mail application. Press the button to launch your default media player. These buttons become playback control buttons in an active media player. Press the button to increase/decrease the system volume. Press the button to turn the volume’s mute mode on/off. Press the button to launch the Calculator application. Press the button to open My Computer window. Select this item to deactivate the mouse’s selected button.

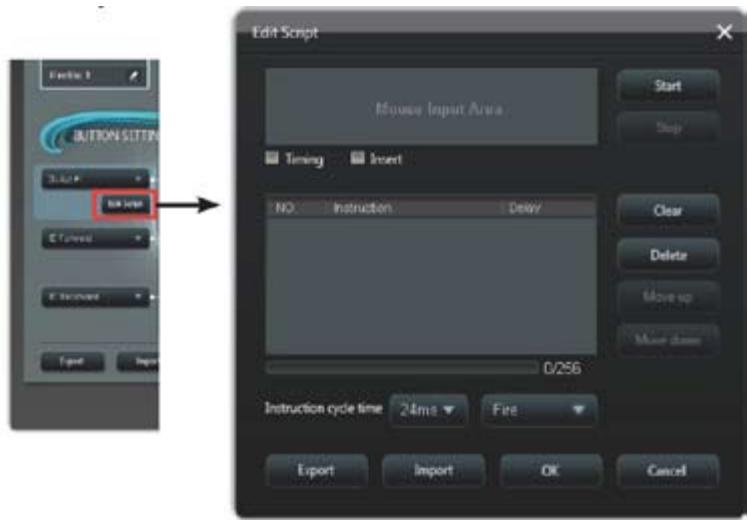

ENGLISH Edit Macro menu

Click to open the Edit Macro menu.

Check this item to record the time between pressing down and Timing releasing a button. (Default: 12 milliseconds) When checked, the new instruction will be inserted before the selected Insert instruction. Otherwise, any new instruction will be given the first priority. Start* Click to start recording the keystrokes and/or mouse actions. Stop Click to stop recording the keystrokes and/or mouse actions. Clear Click to clear all saved instructions. Move up/down Click to move up/down the selected instruction. Instruction When Timing is unchecked, all the actions’ delay time will be the value cycle time you chose from the drop down list. Loop Sets the macro to run at a click and stop when clicked again. Fire Sets the macro to run once in one click. Sets the macro to run when you hold down the button and stop when Keeping fire you release the button. Export Click to save the current macro to your hard disk drive. Import Click to load a macro from your hard disk drive.

Chapter 4: Using your computer

ENGLISH Edit Script menu

Click to open the Edit Script menu.

Check this item to record the time between pressing down and Timing releasing a button. (Default: 12 milliseconds) When checked, the new instruction will be inserted before the selected Insert instruction. Otherwise, any new instruction will be given the first priority. Start Click to start recording the keystrokes and/or mouse actions. Stop Click to stop recording the keystrokes and/or mouse actions. Clear Click to clear all saved instructions. Move up/down Click to move up/down the selected instruction. Instruction When Timing is unchecked, all the actions’ delay time will be the value cycle time you chose from the drop down list. Loop Sets the script to run at a click and stop when clicked again. Fire Sets the script to run once in one click. Sets the script to run when you hold down the button and stop when Keeping fire you release the button. Export Click to save the current script to your hard disk drive. Import Click to load a script from your hard disk drive.

ENGLISH Using the multimedia keyboard

(on selected models only) The keyboard varies with models. The illustrations on this section are for reference only.

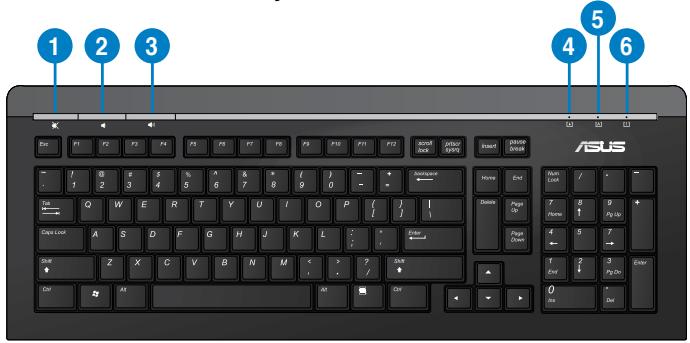

ASUS PRIMAX/KB2621 keyboard

Decreases the system volume.

Turns the volume’s mute mode on/off. Increases the system volume. Goes to the previous track in a media player.

Plays or pauses playback in a media player.

Goes to the next track in a media player.

• There is no driver installation required for this keyboard.

• The special function keys only work on Windows® Vista / Windows® 7 operating systems.

Chapter 4: Using your computer

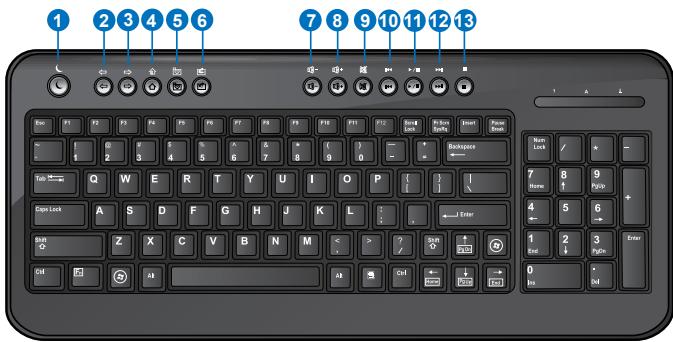

ENGLISH ASUS KB34211 modern wired keyboard

Turns the volume’s mute mode on/off.

Decreases the system volume. Increases the system volume.

5. Caps Lock LED This LED lights when the caps lock is enabled.

6. Num Lock LED This LED lights when the numeric keypad is enabled.

4. Scroll Lock LED This LED lights when the scroll lock is enabled.

• There is no driver installation required for this keyboard.

• The special function keys only work on Windows® Vista / Windows® 7 / Windows® XP operating systems.

Enters into sleep mode. Press any key to wake up your computer and return to the previous working status.

Returns to the last page you viewed. Goes to the next page you viewed before.

Launches the default homepage in

Windows® Internet Explorer. Launches the Favorites folder in Windows® Internet Explorer.

Launches your default email application.

Increases the system volume.

Turns the volume’s mute mode on/off. Goes to the previous track in a media player. Plays or pauses playback in a media player.

Goes to the next track in a media player.

Stops playback in a media player.

Decreases the system volume.

• The special function keys work on Windows® ME / 2000 / XP / Vista / 7 operating systems without installing a driver. For Windows® 98SE operating system, visit the BTC website at www.btc.com.tw to download the driver.

• Install Microsoft® Internet Explorer 5.0 or later versions before using the Internet keys.

Chapter 4: Using your computer

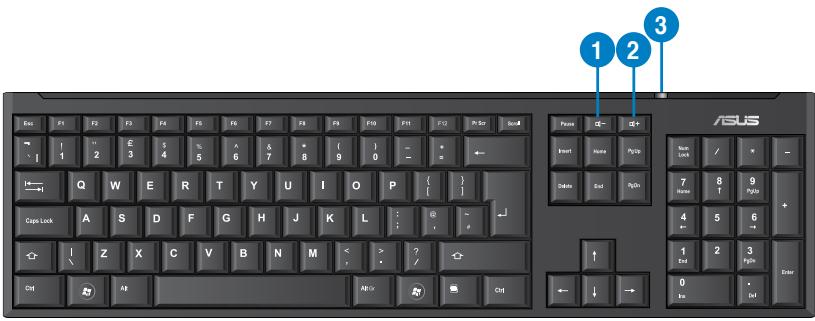

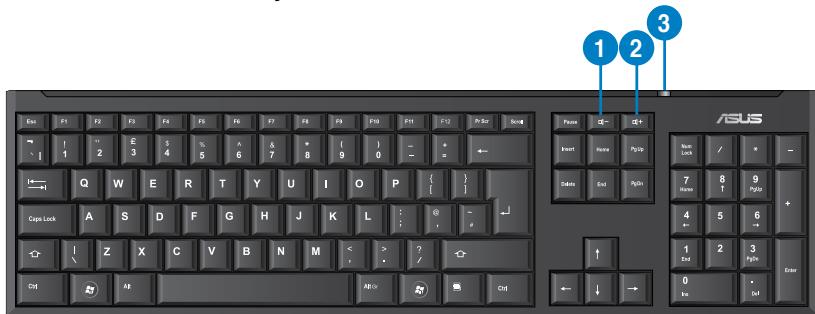

ASUS RF U79 wireless keyboard

This LED lights when the power is low.

Decreases the system volume. Increases the system volume.

• There is no driver installation required for this keyboard.

• The special function keys only work on Windows® Vista / Windows® 7 / Windows® XP operating systems.

Chapter 4: Using your computer

ENGLISH Connecting to the Internet

Wired connection Use an RJ-45 cable to connect your computer to a DSL/cable modem or a local area network (LAN).

Connecting via a DSL/cable modem

To connect via a DSL/cable modem: 1.

Set up your DSL/cable modem.

Refer to the documentation that came with your DSL/cable modem.

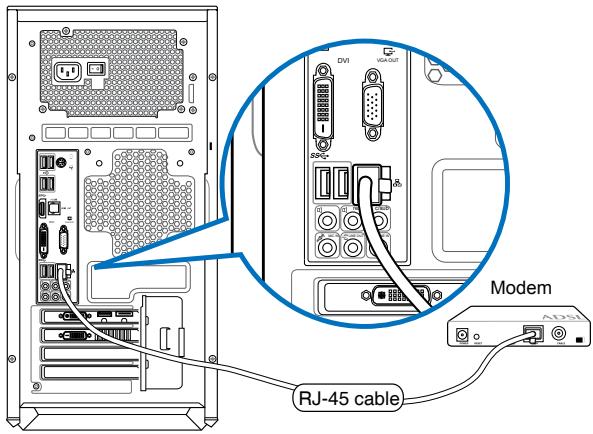

Connect one end of an RJ-45 cable to the LAN (RJ-45) port on the rear panel of your computer and the other end to a DSL/cable modem.

LINE OUT LINE IN VGA OUT MIC IN MIC IN VGA OUT

LINE OUT LINE IN Modem

Turn on the DSL/cable modem and your computer.

Configure the necessary Internet connection settings.

Contact your Internet Service Provider (ISP) for details or assistance in setting up your Internet connection.

Connecting via a local area network (LAN)

ENGLISH To connect via a LAN:

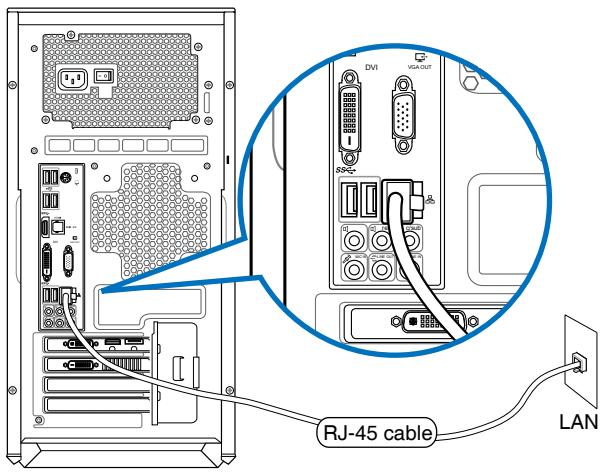

Connect one end of an RJ-45 cable to the LAN (RJ-45) port on the rear panel of your computer and the other end to your LAN.

LINE OUT LINE IN VGA OUT MIC IN MIC IN VGA OUT

LINE OUT LINE IN RJ-45 cable

Turn on your computer.

Configure the necessary Internet connection settings.

LAN Contact your network administrator for details or assistance in setting up your Internet connection.

Chapter 5: Connecting to the Internet

Wireless connection (on selected models only)

ENGLISH Connect your computer to the Internet through a wireless connection.

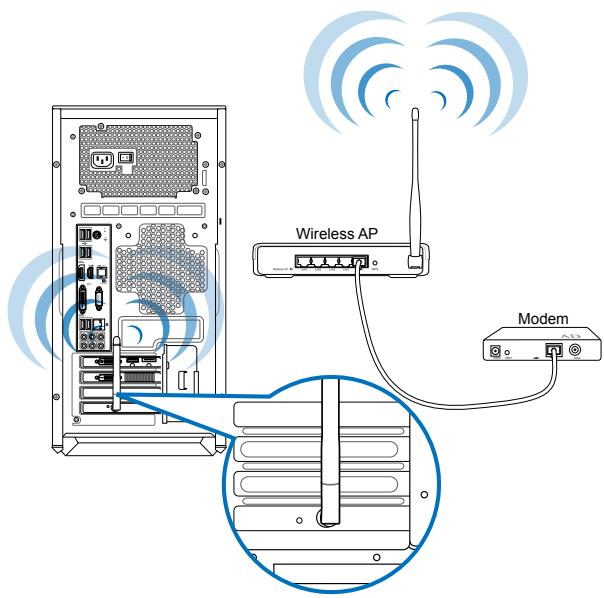

To establish a wireless connection, you need to connect to a wireless access point (AP).

Wireless AP DVI VGA OUT Modem

• To increase the range and sensitivity of the wireless radio signal, connect the external antennas to the antenna connectors on the ASUS WLAN Card.

• Place the antennas on the top of your computer for the best wireless performance. • The external antennas are optional items.

To connect to a wireless network:

in the notification area to display the available wireless

Select the wireless network that you want to connect to, then click Connect.

You may need to key in the network security key for a secured wireless network, then click OK.

Wait while your computer is connecting to the wireless network.

Click the network icon networks.

The wireless connection is established successfully. The connection status is displayed

and the network icon displays the connected

Chapter 5: Connecting to the Internet

ENGLISH Using the utilities

The Support DVD and Recovery DVD may not be included in the package. You may use the Recovery Partition feature to create the Support DVD and Recovery DVD. For details, refer to Recovering your system in this chapter.

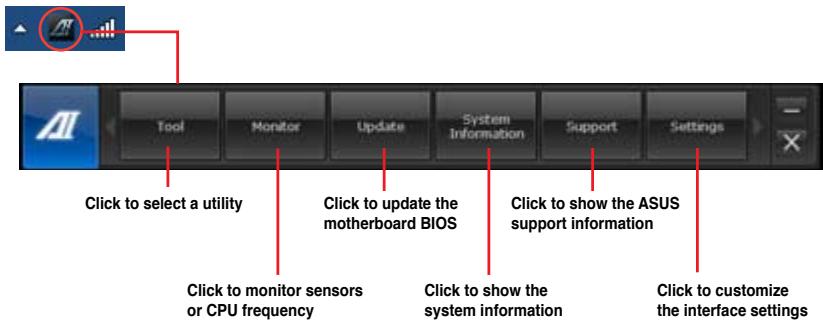

ASUS AI Suite II ASUS AI Suite II is an all-in-one interface that integrates several ASUS utilities and allows users to launch and operate these utilities simultaneously.

Using AI Suite II AI Suite II automatically starts when you enter the Windows® operating system. The AI Suite

II icon appears in the Windows® notification area. Click the icon to open the AI Suite II main menu bar. Click each button to select and launch a utility, to monitor the system, to update the motherboard BIOS, to display the system information, and to customize the settings of AI Suite II.

Click to select a utility

motherboard BIOS Click to monitor sensors or CPU frequency

Click to show the ASUS support information

Click to show the system information

Click to customize the interface settings

• The applications in the Tool menu vary with models.

• The screenshots of AI Suite II in this user manual are for reference only. The actual screenshots vary with models.

ENGLISH The Tool menu includes the System Level Up, Probe II, Sensor Recorder, USB 3.0 Boost, and Ai Charger+.

System Level Up allows you to overclock the system in Windows® environment using the profile settings.

To launch System Level up, click Tool > System Level Up on the AI Suite II menu bar.

In setting the function, assign the hot keys for the system level up profile exchange. You can adjust the hot key settings manually. See figure below for details.

Adjust the System Level Up via two methods:

BIOS In the BIOS Setup program, click AI Tweaker > System Level Up, and select your desired option. OC Button Press the OC button on the upper left side corner of the front panel.

Chapter 6: Using the utilities

Launching and configuring Probe II ENGLISH Probe II is a utility that monitors the computer’s vital components, and detects and alerts you of any problem with these components. Probe II senses fan rotations, CPU temperature, and system voltages, among others. With this utility, you are assured that your computer is always at a healthy operating condition.

To launch Probe II: •

Click� Tool > Probe II on the AI Suite II main menu bar.

Click the Voltage/Temperature/Fan Speed tabs to activate the sensors or to adjust the sensor threshold values.

The Preference tab allows you to customize the time interval of sensor alerts, or change the temperature unit.

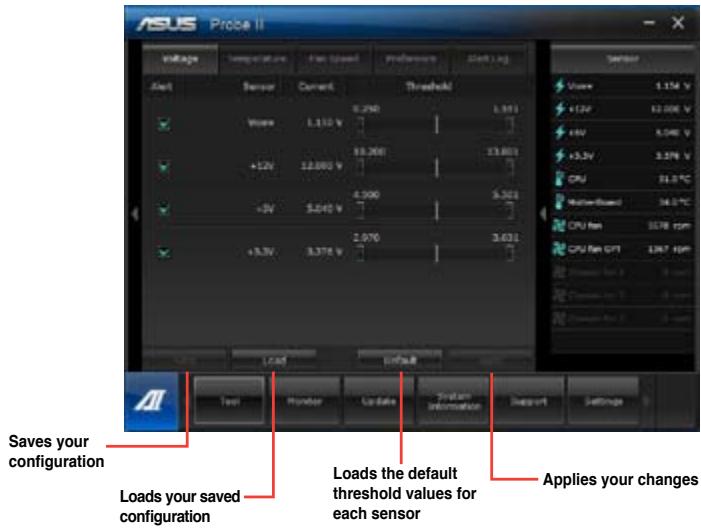

Saves your configuration

Loads your saved configuration

Applies your changes

Launching and configuring Sensor Recorder

ENGLISH Sensor Recorder allows you to monitor the changes in the system voltage, temperature, and fan speed, as well as recording the changes.

To launch Sensor Recorder: •

Click Tool > Sensor Recorder on the AI Suite II main menu bar.

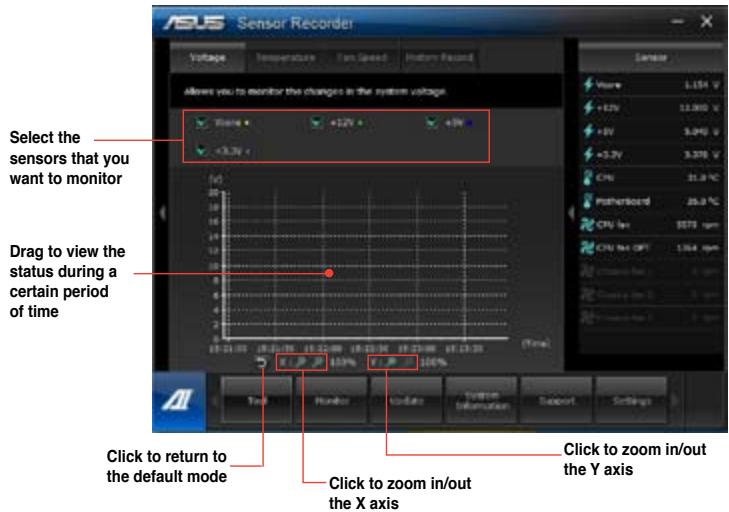

Click the Voltage/Temperature/Fan Speed tabs and select the sensors that you want to monitor.

The History Record tab allows you to record the changes in the sensors that you enable.

Select the sensors that you want to monitor

Drag to view the status during a certain period of time

Click to return to the default mode

Click to zoom in/out the X axis

Click to zoom in/out the Y axis

Chapter 6: Using the utilities

Launching and configuring Ai Charger+

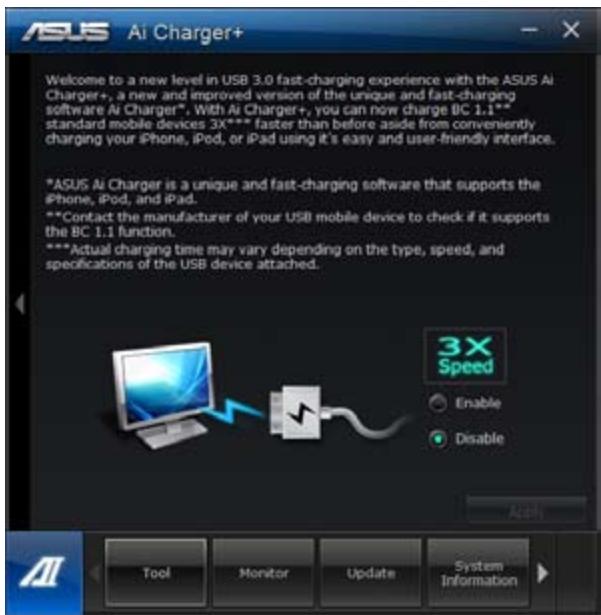

ENGLISH Ai Charger+, a unique and fast-charging software, allows you to charge your BC 1.1* mobile devices on your computer’s USB port three times faster than the standard USB devices**.

• Ai Charger+ is available only on USB 3.0 ports and starts when your PC is in S0 State. • Ai Charger+ helps charge the connected USB devices even when your PC is in S3/S4/ S5 States after it starts in S0 State. •

* Check your USB device manufacturer if it fully supports the BC 1.1 function.

** The actual charging speed may vary with your USB device’s conditions.

Ensure to remove and reconnect your USB device after enabling or disabling Ai

Charger+ to ensure normal charging function.

To launch Ai Charger+, click Tool > Ai Charger+ on the AI Suite II main menu bar.

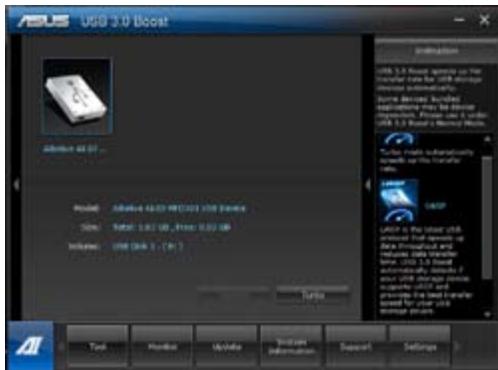

Launching and Configuring USB 3.0 Boost

ENGLISH ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) and automatically increases a USB 3.0 device’s transfer speed up to 170%.

Launching USB 3.0 Boost

To launch USB 3.0 Boost, click Tool > USB 3.0 Boost on the AI Suite II main menu bar.

Connect a USB 3.0 device to the USB 3.0 port.

USB 3.0 Boost automatically detects the property of the USB 3.0 device and switches to Turbo mode or UASP mode (if UASP is supported by the USB 3.0 device).

You can manually switch the USB 3.0 mode back to Normal mode at any time.

Chapter 6: Using the utilities

ENGLISH The Monitor menu includes the Sensor and CPU Frequency panels.

Click Monitor > Sensor on the AI Suite II main menu bar.

Launching CPU Frequency

Click Monitor > CPU Frequency on the AI Suite II main menu bar.

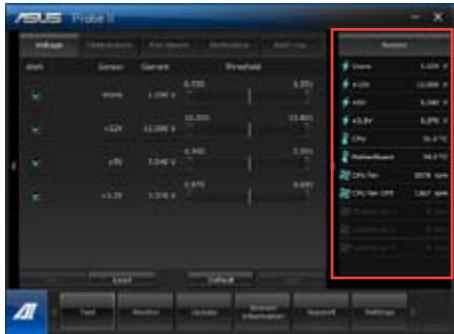

Resident in the right pane (system information area)

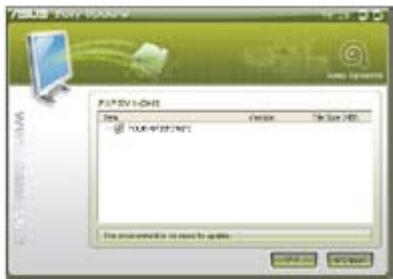

ENGLISH The Update menu allows you to update the motherboard BIOS and the BIOS boot logo with the ASUS designed update utilities.

From the ASUS Update screen, select

Update BIOS from file, then click Next.

Select the ASUS FTP site nearest you to avoid network traffic.

Tick the two items if you want to enable the BIOS downgradable and Auto-BIOS backup functions.

Select the BIOS version that you want to download, then click Next.

When no updated version is detected,a message is displayed informing you that there is no new BIOS file from the BIOS server.

Chapter 6: Using the utilities

Click Yes if you want to change the boot logo, which is the image appearing on screen during the Power‑On Self-Tests

(POST). Otherwise, click No.

Follow the onscreen instructions to complete the update process.

Updating the BIOS through a BIOS file

To update the BIOS through a BIOS file: 1.

From the ASUS Update screen, select

Update BIOS from file, then click Next.

Locate the BIOS file from the Open window, click Open, and click Next.

Click Yes if you want to change the boot logo, which is the image appearing on screen during the Power‑On Self-Tests

(POST).������������������ Otherwise, click No.

Follow the onscreen instructions to complete the update process.

Downloading the BIOS from the Internet

ENGLISH To download the BIOS from the Internet:

From the ASUS Update screen, select Download BIOS from

Internet, and then click Next.

Select the ASUS FTP site nearest you to avoid network traffic. Type or browse for the location where you want the

BIOS file to be downloaded. Click Next.

Select the BIOS version that you want to download, and click

Next. Click Finish to complete the process.

You can decide whether to change the BIOS boot logo, which is the image appearing on screen during the Power‑On

Self-Tests (POST). Click Yes if you want to change the boot logo or No to continue.

Follow the onscreen instructions to complete the update process.

Chapter 6: Using the utilities

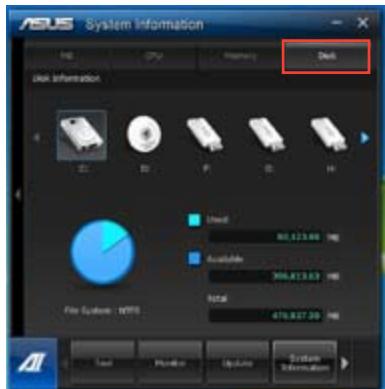

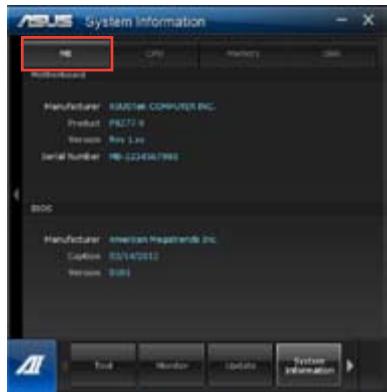

The System Information screen

Click the MB tab to see the details on the motherboard manufacturer, product name, version, and BIOS.

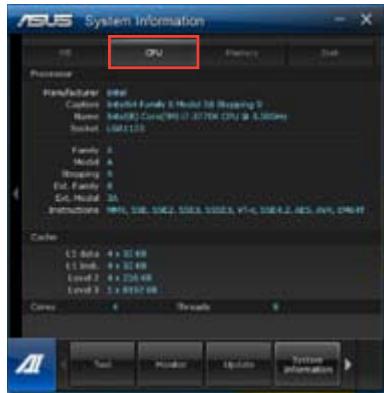

Click the CPU tab to see the details on the processor and the Cache.

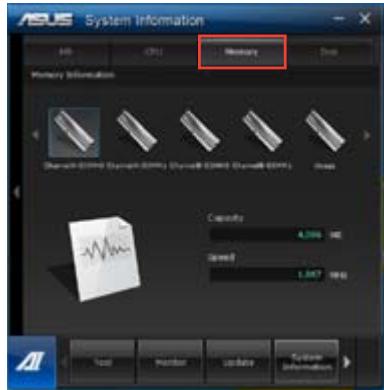

Click the Memory tab and then select the memory slot to see the details on the memory module installed on the corresponding slot.

ENGLISH The System Information screen displays the information about the motherboard, CPU, and memory slots.

Click the Disk tab and then select each disk to see the details on it.

ENGLISH The Support screen

The Support screen displays the information about the ASUS website, technical support website, download support website, or contact information.

The Settings screen allows you to customize the main menu bar settings and the interface’s skin.

Application allows you to select the application that you want to enable.

Bar allows you to modify the bar setting,

Skin allows you to customize the interface’s contrast, brightness, saturation, hue, and gamma.

Chapter 6: Using the utilities

ENGLISH ASUS AI Manager is a utility which gives you quick and easy access to frequently-used applications.

Launching AI Manager

To launch the AI Manager from the Windows® desktop, click Start > All Programs > ASUS >

AI Manager > AI Manager 1.xx.xx. The AI Manager quick bar appears on the desktop.

After launching the application, the AI Manager icon appears in the Windows® taskbar.

Right-click this icon to switch between the quick bar and the main window, and to launch the AI Manager either from the quick bar or taskbar.

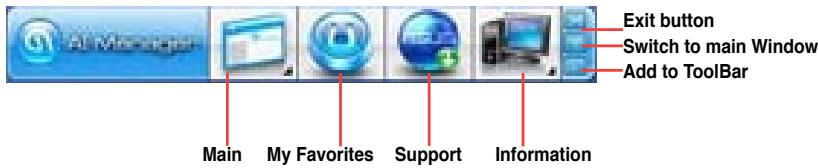

AI Manager quick bar

ENGLISH The AI Manager quick bar saves the desktop space and allows you to launch the ASUS utilities or display system information easily. Click any of the Main, My Favorites, Support or

Information tab to display the menu’s contents. Exit button Switch to main Window Add to ToolBar

Click the Maximize/restore button to switch between full window and quick bar. Click the

Minimize button to keep the AI Manager on the taskbar. Click the Close button to quit the AI Manager.

The Main menu contains three utilities: AI Disk, AI Security, and AI Booting. Click the arrow on the Main menu icon to browse through the utilities in the main menu.

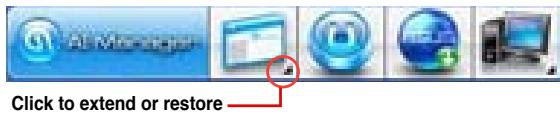

Click to extend or restore

AI Disk allows you to easily clear temporary IE files, IE cookies, IE URLs, IE history, or the Recycle Bin. Click the AI Disk icon on the quick bar to display the full AI Disk window and select the items you want to clear. Click Apply when done.

Chapter 6: Using the utilities

ENGLISH AI Security enables you to set a password to secure your devices, such as USB flash disks and CD/DVD disks, from unauthorized access.

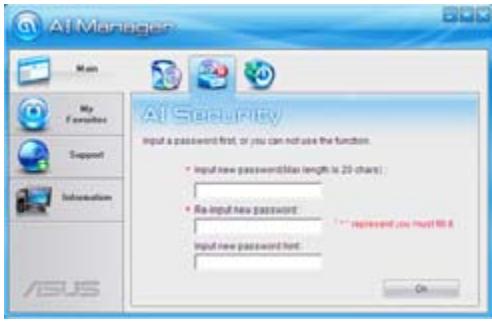

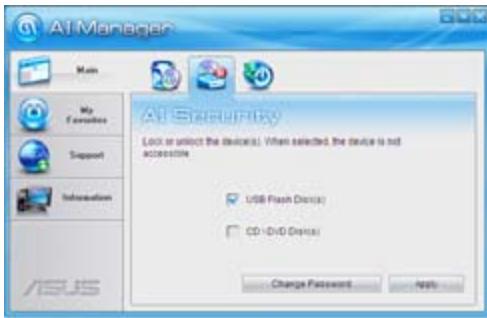

To lock a device: 1.

When using AI Security for the first time, you are asked to set a password. Key in a password with at most 20 alphanumeric characters.

Confirm the password.

Key in the password hint (recommended).

Select the device you want to lock, then click Apply.

Key in the password you have set previously, then click Ok.

To unlock the device:

Deselect the locked device, then click Apply.

Key in the password you have set previously, then click Ok.

To change the password:

• Click Change Password, then follow the onscreen instructions to change password.

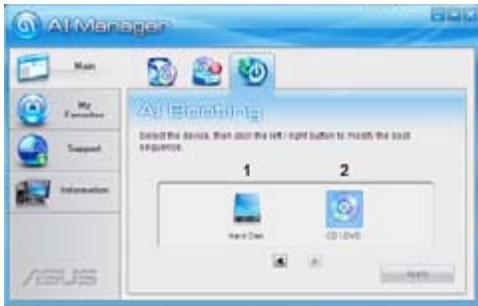

AI Booting allows you to specify the boot device priority sequence.

Select a device, then click the left/right button to specify the boot sequence.

When done, press Apply.

My Favorites allows you to add applications that you frequently use, saving you from searching for the applications throughout your computer.

To add an application:

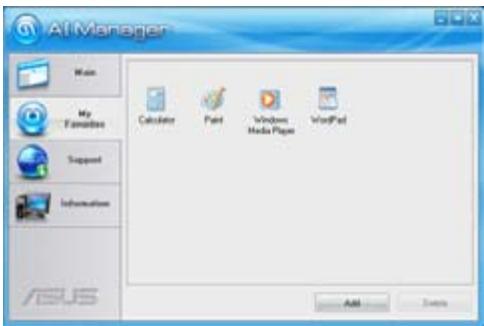

Click Add, then locate the application you want to add to My Favorites.

Click Open on the file location window. The application is added to My Favorites list.

Right click on the application icon to launch, delete, or rename the selected application. You can also double click to launch the selected application.

Chapter 6: Using the utilities

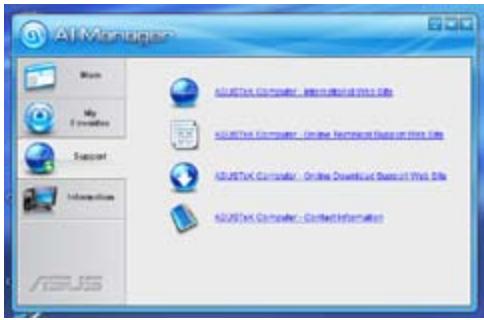

ENGLISH Click any links on the Support window to go to the ASUS website, technical support website, download support website, or contact information.

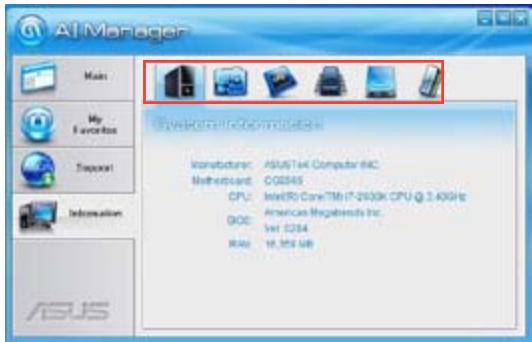

Click the tab on the Information window to see the detailed information about your system, motherboard, CPU, BIOS, installed device(s), and memory.

ENGLISH ASUS webstorage is designed to help you retrieve your data to your notebooks, smartphones or tablets wherever there is internet connection.

This utility is pre-installed on some models. For models without an operating system, follow the steps below to install this utility.

Installing webstorage

To install webstorage:

Place the support DVD in the optical drive. Double-click the setup.exe file from the ASUS WebStorage folder in the Software folder in the support DVD.

Launching Webstorage

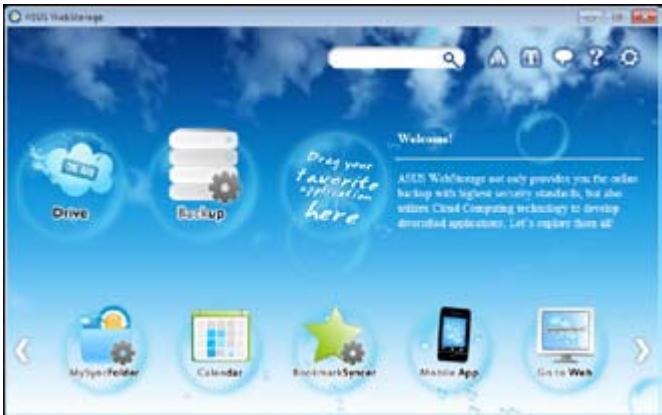

To launch the WebStorage from the Windows® desktop, click Start > All Programs > ASUS >

Webstorage. The webstorage quick bar appears in the Windows® taskbar. Right-click this icon to switch between the quick bar and the main window.

Allows your to retrieve all your backups, synced files, share groups and password protected data from here. Right-click the mouse to preview files before downloading or generating a sharing URL.

To backup your most important data with simple steps: preset a backup shcedule with your preferences in cloud storage; or select “Auto Backup” for complete data backup.

Chapter 6: Using the utilities

ENGLISH To store the updated files to MySyncFolder for easy access and share of all types of files without the limitation of location or device.

ASUS WebStorage automatically syncs the most updated calendar events to all personal computers so that you know the exact events no matter which PC is in use.

The convenient BookmarkSyncer keeps our browser preference and bookmark to the cloud automatically synchronized in multiple computer.

ASUS WebStorage mobile applications sync your files between multiple devices. It also supports transcoding technology that allows preview and files streaming on your mobile phone.

Experience the value-added cloud service through ASUS WebStorage, without the risk of losing data.

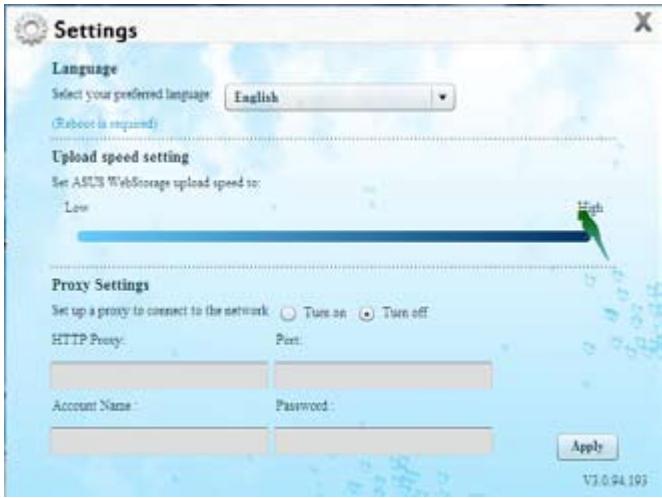

Click the Settings icon

Follow the onscreen instructions to complete the configuration.

, the settings interface appears.

ENGLISH ASUS Easy Update is a software tool that automatically detects the latest drivers and applications for your system.

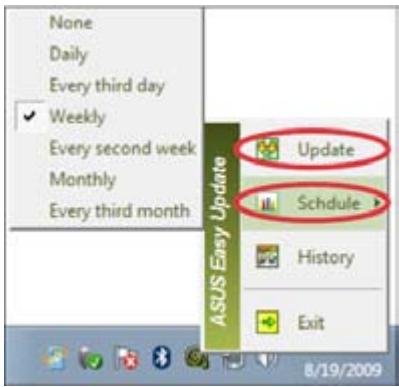

From the Windows ® notification area, right-click the ASUS Easy Update icon.

Select Schedule to set how often you want to update your system.

Select Update to activate the update.

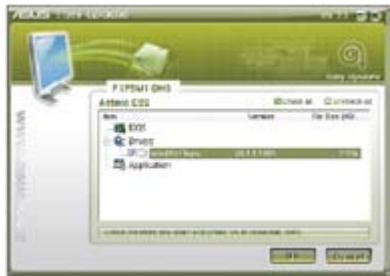

Click OK to display the items you can download.

Check the item(s) you want to download, and then click OK.

Chapter 6: Using the utilities

ASUS Instant On gives you with a quick access to the Hybrid Sleep mode.

The Instant On utility is pre-installed on your computer and automatically launches after starting up your computer.

When starting up your computer, you can see the utility icon taskbar.

Press <Alt + F1> and then click OK on the confirmation message. Your system will enter the Hybrid Sleep mode.

The default hotkey is <Alt + F1>. To change it, see the section below.

Setting up ASUS Instant On

Tick to not show this message next time.

Right-click the ASUS Instant On icon from Windows taskbar. The main settings screen appears.

You can choose to enable/disable ASUS Instant On hotkey, and show/hide ASUS Instant On icon from Windows taskbar.

Click Redefine button from the main settings screen. The hotkey settings screen appears.

Key in the combination keys you want to use for ASUS Instant On hotkey.

Click OK to save your changes, and

Cancel to discard the changes you made.

ENGLISH Nero 9 allows you to create, copy, burn, edit, share, and update different kinds of data.

Insert the Nero 9 DVD into your optical drive.

If Autorun is enabled, the main menu appears automatically.

If Autorun is disabled, double-click the SeupX.exe file from the main directory of your Nero 9 DVD.

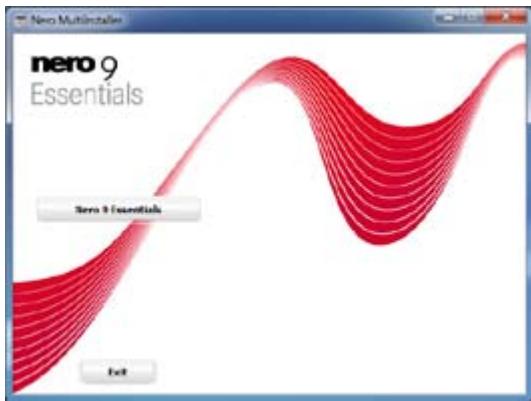

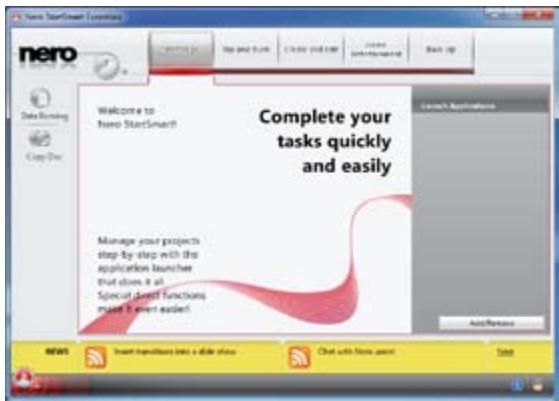

From the main menu, click Nero 9 Essentials.

Chapter 6: Using the utilities

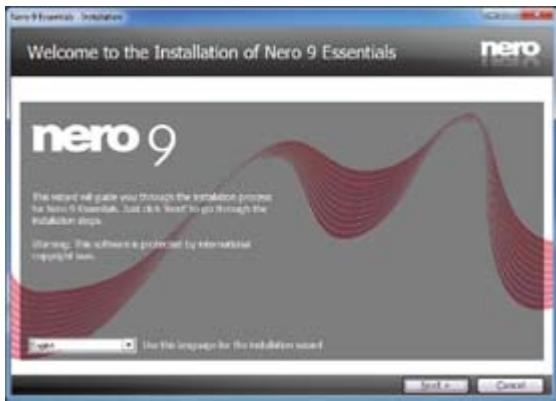

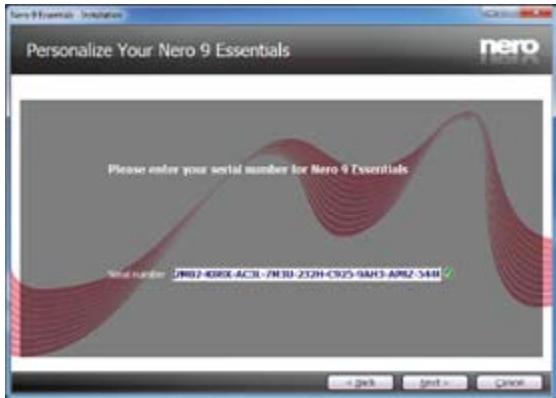

Select the language you want to use for Installation Wizard. Click Next.

Click Next to continue.

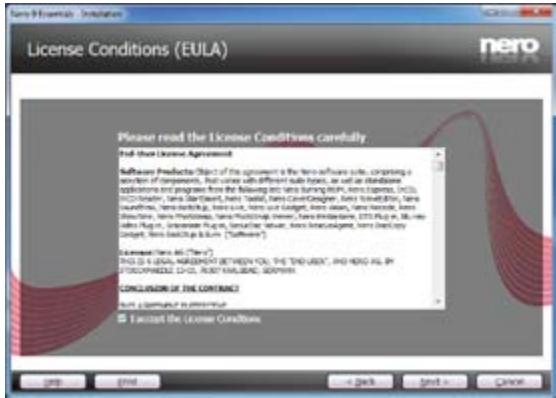

Tick I accept the License Conditions. When done, click Next.

Select Typical then click Next.

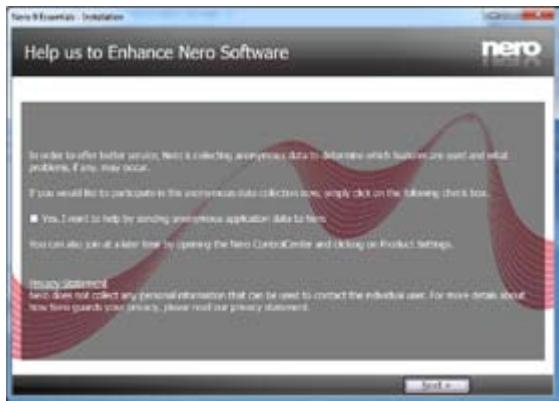

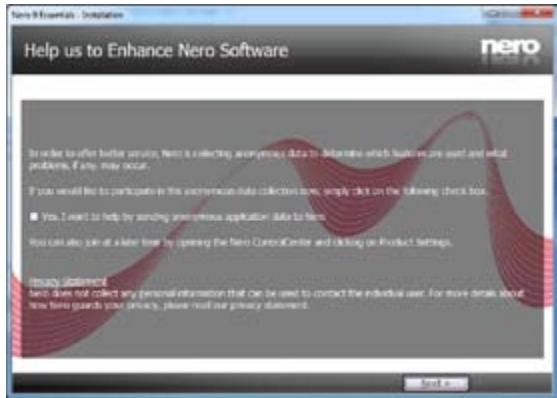

Tick Yes, I want to help by sending anonymous application data to Nero then click

Chapter 6: Using the utilities

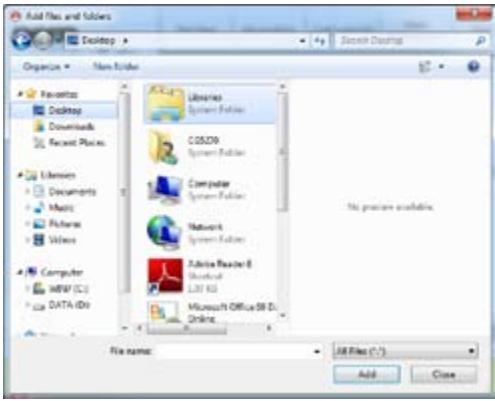

Select the files that you want to burn. When done, click Add.

ENGLISH To burn files:

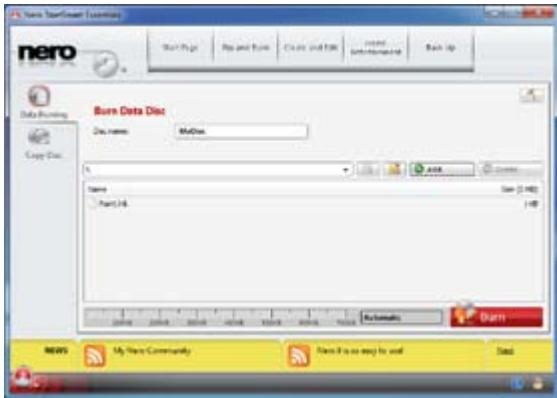

After selecting files that you want to burn, click Burn to burn the files to a disc.

ENGLISH For more details about using Nero 9, refer to the Nero website at www.nero.com

Chapter 6: Using the utilities

Recovering your system

ENGLISH Using the Recovery Partition

The Recovery Partition quickly restores your Desktop PC’s software to its original working state. Before using the Recovery Partition, copy your data files (such as Outlook PST files) to USB storage devices or to a network drive and make note of any customized configuration settings (such as network settings).

About the system recovery partition

The system recovery partition is a reserved space on your hard disk drive used to restore the operating system, drivers, and utilities installed on your Desktop PC at the factory.

DO NOT delete the partition named RECOVERY. The Recovery Partition is created at the factory and cannot be restored if deleted. Take your Desktop PC to an authorized ASUS service center if you have problems with the recovery process.

Using the system recovery partition:

Press <F9> during bootup.

Select one of the following recovery options.

This feature allows you to restore the system to the factory default settings.

System Image Backup:

This feature allows you to burn the system image backup in DVD discs, which you can use later to restore the system to its default settings.

This feature allows you to make a backup copy of the support DVD.

Follow the onscreen instructions to complete the recovery process.

Visit the ASUS website at www.asus.com for updated drivers and utilities.

ENGLISH Using the Recovery DVD (on selected models)

Remove the external hard disk drive before performing system recovery on your Desktop PC. According to Microsoft, you may lose important data because of setting up Windows on the wrong disk drive or formatting the incorrect drive partition.

Insert the Recovery DVD into the optical drive. Your Desktop PC needs to be powered

Restart the Desktop PC and press <F8> on bootup and select the optical drive (may be labeled as “CD/DVD”) and press <Enter> to boot from the Recovery DVD.

Select OK to start to restore the image.

Select OK to confirm the system recovery.

Restoring will overwrite your hard drive. Ensure to back up all your important data before the system recovery.

Follow the onscreen instructions to complete the recovery process.

DO NOT remove the Recovery disc, unless instructed to do so, during the recovery process or else your partitions will be unusable. Visit the ASUS website at www.asus.com for updated drivers and utilities.

Chapter 6: Using the utilities

ENGLISH Introduction to Intel® 2012 Desktop responsiveness technologies

This document is an overview of the installation and configuration procedures of the Intel® 2012 Desktop responsiveness technologies. Intel® 2012 Desktop responsiveness technologies feature: •

Intel® Smart Response Technology

Intel® Rapid Start Technology

Intel® Smart Connect Technology

System Requirements for Intel® 2012 Desktop responsiveness technologies

In order for the system to run smoothly with the Intel® 2012 Desktop responsiveness features, you must meet the following requirements:

Intel® 3rd/2nd generation Core Processor family

Windows® 7 operating systems

One dedicated SSD (Solid State Disk) to support Intel® Smart Response and

Intel ® Rapid Start Technology is necessary. Refer to the SSD Capacity Requirements table for the information of SSD size, partition capacity, and system memory requirements.

At least one HDD (Hard Disk Drive) for the system OS drive.

To enable Intel® Rapid Start Technology, DRAM size smaller than 8GB is required.

Enable the acceleration of Intel® Smart Response Technology before creating the partition for the Intel® Rapid Start Technology.

SSD Capacity Requirements

8GB Intel® Smart Response

20GB Intel® Smart Response and

Separate 20GB and 2GB partition

Separate 20GB and 4GB partition (SSD size

Separate 20GB and 8GB partition (SSD size

Intel® Smart Response,

Intel® Rapid Start, and Intel® Smart Connect

Separate 20GB and 2GB partition

Separate 20GB and 4GB partition (SSD size

Separate 20GB and 8GB partition (SSD size

Intel® storage combinations

System DRAM SSD Partition Capacity

The SSD used for Intel® Rapid Start and Intel® Smart Response is should not be used for creating RAID.

Due to OS behavior, Intel® Rapid Start Technology works inefficiently with over 4G system memory under a Windows® 7 32-bit operating system.

Only Intel® internal SATA ports (gray and blue) support Intel® 2012 Desktop responsiveness technologies.

The performance of Intel® Smart Response Technology and Intel® Rapid Storage

Technology vary based on the installed SSD.

Chapter 6: Using the utilities

Intel® Smart Response Technology

ENGLISH Intel® Smart Response Technology boosts overall system performance. It uses an installed fast SSD (min. 20GB available) as a cache for frequently accessed operations, speeding up hard drive/main memory interaction. Key benefits are expedited hard drive speeds, reduced load and wait times, and maximized storage utilization. Power consumption also goes down by reducing unnecessary hard drive spin.

Before applying Intel® Smart Response Technology, setting the SATA Mode BIOS item to [RAID mode] in BIOS setup is necessary.

Installing Intel® Smart Response Technology

Place the support DVD into the optical drive. The Drivers installation tab appears if your computer has enabled the Autorun feature.

Click the Drivers tab, then click Intel® Rapid Storage Technology Driver software.

Follow the onscreen instructions to complete the installation.

Using the Intel® Smart Response Technology

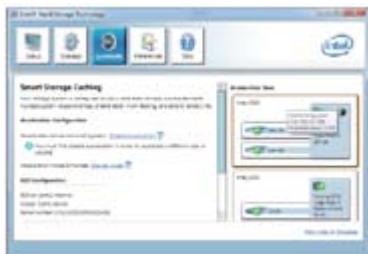

Click Accelerate to launch Smart

Response Technology settings.

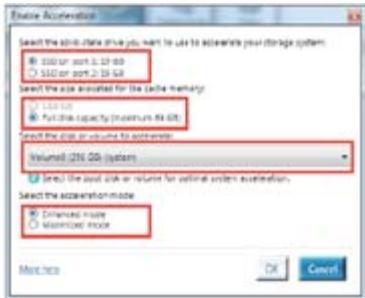

a. Select the SSD you want to use to accelerate your storage system. b. Select the size allocated for SSD caching. c. Select which HDD will be used for caching. d. Enhanced mode: WRITE THROUGH, write to SSD and HDD at the same time.

Maximized mode: WRITE BACK, write to SSD and write back to HDD at a later time.

ENGLISH Select Disable Acceleration to disable this function, and select Change Mode to switch acceleration mode to Enhanced/

• To enable Intel® Smart Response Technology, you need at least one SSD (> 20GB) and an HDD. Only one SSD can be assigned for caching.

• If you want to restore the OS, go to BIOS Option ROM > Acceleration Options and remove the Disks/Volume Acceleration to disable Intel® Smart Response Technology. • The maximum caching size on the SSD is 64GB. If the caching size set exceeds this limit, the excess storage capacity can still be identified by the system for normal storage.

Intel® Rapid Start Technology

Intel® Rapid Start Technology allows you to quickly resume your computer from sleep mode.

Saving your computer’s system memory to the configured SSD provides a faster wake-up response time, but keeps the energy at a low profile. • Before applying Intel® Rapid Start Technology, go to Advanced Mode > Advanced > PCH Configuration in BIOS item, and enable Intel® Rapid Start Technology. • Ensure to follow the procedure for Creating a partition precisely to enable the Intel Rapid Start function. An error message appears if you install the Intel® Rapid Start Utility before creating a partition.

Creating a partition

Backup your data before using the Microsoft partition tool. Incorrect partitioning will result in data loss.

Adjusting the DRAM to a high frequency will result in unstable system performance.

Go to Start, right-click Computer > Manage > Disk Management.

Select the SSD that you want to create the partition.

Chapter 6: Using the utilities

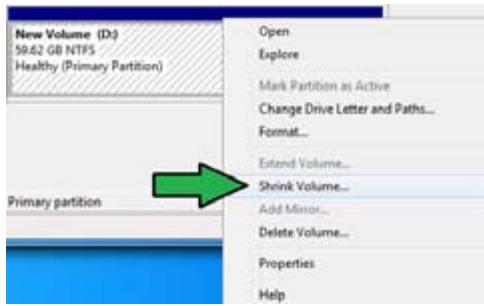

Right click the New Volume that you want to shrink from, and select Shrink Volume.

If your SSD is not initialized and unformatted:

a. Right click the disk that you want to create the partition in, and select Initialize. b. Right click the unallocated volume, select New Simple Volume, and follow the remaining steps.

If your SSD is smaller than 64GB, and is set to Full disk capacity caching option for Intel®

Smart Response, you will not see any volume in the Disk Management tool. Set your cache memory value of 18.6GB in Intel® Smart Response to allow enough capacity for the Intel® Rapid Start partition.

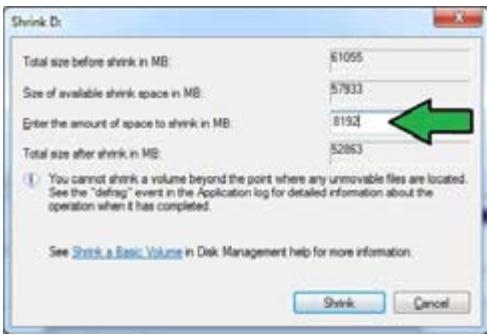

Key in the required partition size. The value must be equal to the system DRAM memory (1GB = 1024MB).

Go to Start > Control Panel

> System and Security > System, and check the DRAM size information. The unallocated volume is allocated to the selected disk.

To launch the disk partitioning tool, click Start > Programs > Accessories >

Command Prompt tool. Type diskpart and press Enter.

In the diskpart prompt, type list disk, and press

Enter. Select the disk with the unallocated volume by typing select disk x (x = disk number), and press Enter . •

The value “x” refers to a disk number where you created the unallocated partition.

Refer to step 5 for details about the unallocated disk space in the SSD.

Type create partition primary, and press Enter.

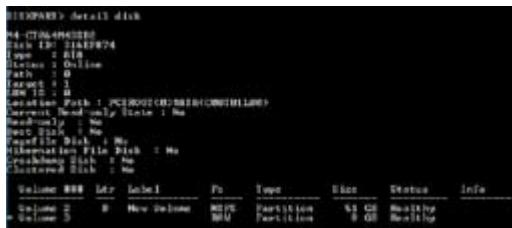

After creating a primary partition, type detail disk, and press Enter to view the details of the partitioned disk.

Select the RAW volume which has the same size as the shrinked volume, type select volume x

(x = number), and press Enter to store the Intel® Rapid Start partition. •

The value “x” refers to a disk number where you want to create the store partition.

Chapter 6: Using the utilities

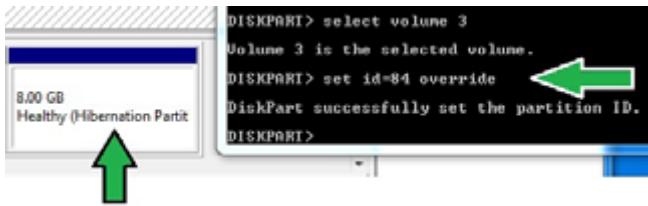

Type set id=84 override, press Enter, and wait for the “shrinking process” until the Disk Management utility identifies a new partition called Hibernation Partition.

The Hibernation Partition does not appear when you choose “GPT (GUID Partition Table store type”. Ensure that the “Unallocated” label disappears from the volume, and a new partition is identified.

Reboot the system after creating the partition.

The partitioning process for the Intel® Rapid Start Technology is incomplete if the computer is not rebooted. This may result in failure of the Intel® Rapid Start Technology to function.

Enabling and disabling the Intel® Rapid Start Technology under the OS Install the Intel® Rapid Start Technology from your support DVD in order to launch the

Intel® Rapid Start Manager.

After creating the partition, launch the Intel® Rapid Start

Manager to enable or disable the Intel® Rapid Start Technology. 1.

Click the Show hidden icons arrow from the right side of the task bar, and click the Intel® Rapid Start

Technology Manager icon.

Tick On in the Status field to enable the feature, and click Save.

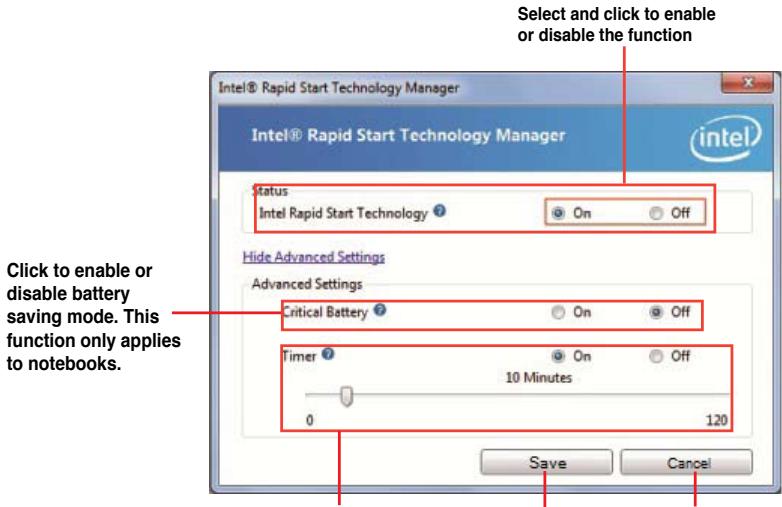

ENGLISH Select and click to enable or disable the function

Click to enable or disable battery saving mode. This function only applies to notebooks.

Click to enable or disable the timer. When enabled, move the scroll bar to the desired time. When the system is idle for more than the time period you set, the system automatically goes into the Intel® Rapid Start mode.

Default time is 10 minutes.

Click to save the Click to cancel the settings made. settings made.

Recovering the partition

This procedure allows you to delete the Intel® Rapid Start Technology from your system, and recover the partition you made for the Intel Rapid® Start Technology installation. 1.

Run the Command Prompt tool.

Type diskpart and press Enter.

At the diskpart prompt, type list disk after DISKPART, and press Enter.

Select the disk (SSD) where the Intel® Rapid Start

Technology is installed for volume recovery, type select disk x (x = number), and press Enter. The value “x” refers to a disk number where you want to delete the store partition.

Chapter 6: Using the utilities

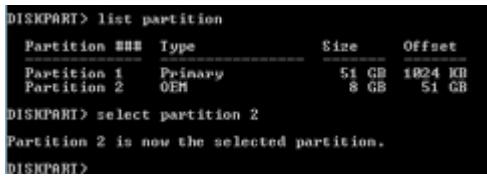

Type list partition, press

Enter, and select the partition where the Intel® Rapid Start Technology is installed by typing select partition x (x = number), and press Enter.

The value “x” refers to a disk number where you want to delete the store partition.

Type delete partition override, and press Enter. The diskpart utility deletes the selected partition

In the desktop, click Start, right-click Computer, and click Manage.

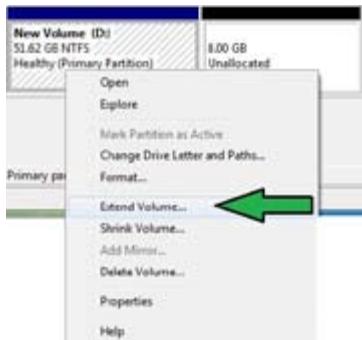

In the Computer Management window, click Disk Management, right click the shrinked new volume, and select

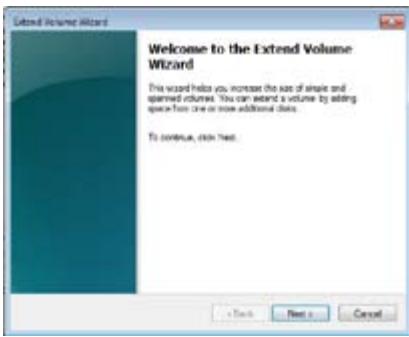

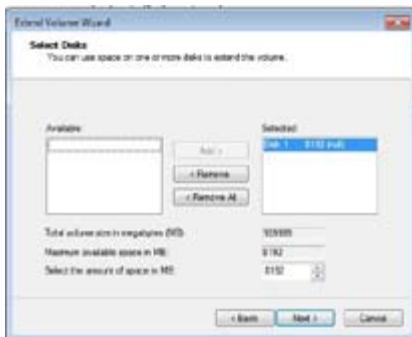

As the Extend Volume Wizard appears,click Next.

Click Next after selecting the default disk.

Extend volume setup is complete. Click Finish to recover the Intel® Rapid Start

Technology partition.

Reboot the system after deleting the partition.

Go to Start > Control Panel > Programs > Programs and Features > to remove the

Intel® Rapid Start Manager for the complete deletion of Intel® Rapid Start Technology.

Intel® Smart Connect Technology

The Intel® Smart Connect Technology is a feature that provides the latest content updates and energy efficiency to your computer’s platform.

Once installed and activated, the Intel® Smart Connect Technology periodically wakes up the system from sleep mode, performs user state gathering, and initiates re-entry to sleep mode to wake-up after a set time interval. • Intel® Smart Connect Technology supports Windows® Live Mail, Microsoft Outlook, and Seesmic applications. • It is necessary to enable the items of the PCH Configuration in the BIOS before applying the Intel® Smart Connect Technology. Go to Advanced Mode > Advanced > PCH Configuration, and enable the Intel® Smart Connect Technology.

Installing the Intel® Smart Connect Technology

Insert the support DVD into the optical drive.

Go to Utilities, and click Intel® Smart Connect Technology.

As the setup wizard appears, click Next to begin the setup.

Tick I accept the terms in the License Agreement, and click Next.

Chapter 6: Using the utilities

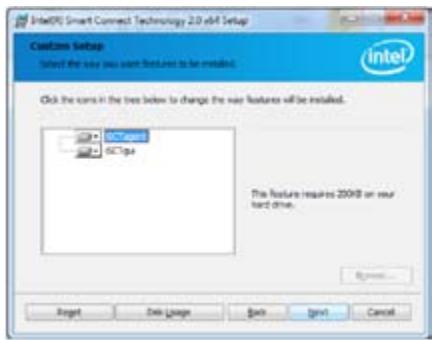

Select all and click Next for

Custom Setup. Click Install to proceed the installation.

Click Yes to restart your system, and for the newly installed Intel® Smart Connect

Technology to take effect.

Using the Intel® Smart Connect Technology

Before the system goes to sleep mode, ensure to keep your applications on the desktop, and enter the applications, passwords.

Ensure that the internet is in connection when enabling the Intel® Smart

Click Start > All Programs > Intel > Intel® Smart Connect Technology.

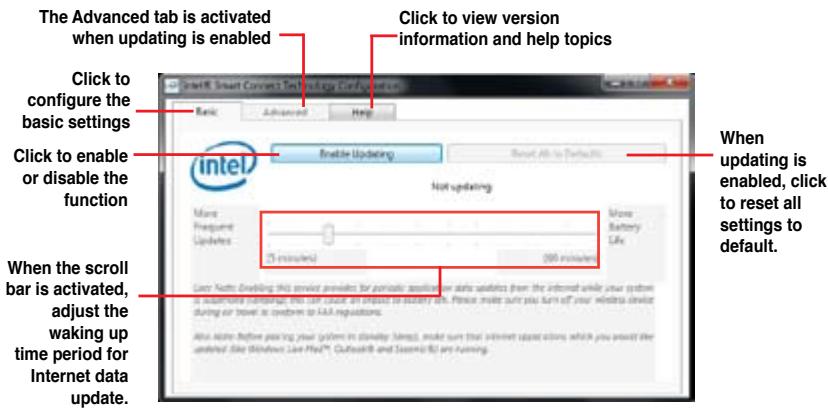

In the Basic tab, click Enable Updating. When enabled, the Advanced tab is available for advanced function settings.

The Advanced tab is activated when updating is enabled

Click to configure the basic settings

Click to enable or disable the function When the scroll bar is activated, adjust the waking up time period for Internet data update.

Click to view version information and help topics

When updating is enabled, click to reset all settings to default.

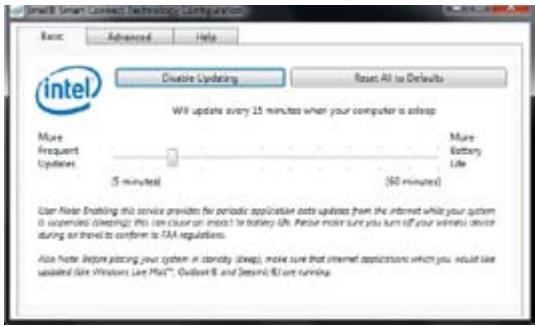

To disable the updating function, click

Disable Updating. Clicking this button automatically disables the configuration in the Advanced tab. To reset to defaults, click Reset All to Defaults.

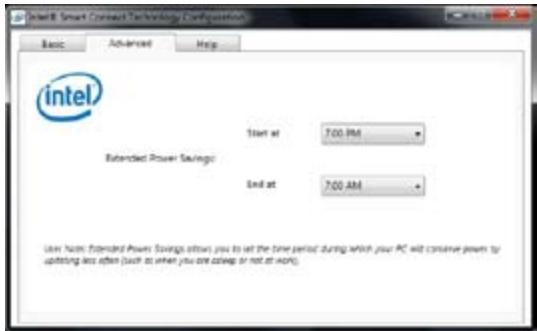

In the Advanced tab, set up the schedule during low power usage time period for power saving. This setting only applies to the assigned time period.

In the Help tab, click

About to view the version. Click Topics to learn more about the Intel® Smart Connect Technology and its configuration.

Chapter 6: Using the utilities

ENGLISH Troubleshooting

This chapter presents some problems you might encounter and the possible solutions.

My computer cannot be powered on and the power LED on the front panel does not light up

Check if your computer is properly connected.

Check if the wall outlet is functioning.

Check if the Power Supply Unit is switched on. Refer to the section Turning your computer ON/OFF in Chapter 1.

Do the following to close the programs that are not responding:

1. Simultaneously press <Alt> + <Ctrl> + <Delete> keys on the keyboard, then click Start Task Manager.

Click the Applications tab.

Select the program that is not responding, then click End Task.

If the keyboard is not responding. Press and hold the Power button on the top of your chassis until the computer shuts down. Then press the Power button to turn it on.

I cannot connect to a wireless nestwork using an ASUS WLAN Card

(on selected models only)? •

Ensure that you enter the correct network security key for the wireless network you want to connect to.

Connect the external antennas (optional) to the antenna connectors on the

ASUS WLAN Card and place the antennas on the top of your computer chassis for the best wireless performance.

The arrow keys on the number key pad are not working.

Check if the Number Lock LED is off. When the Number Lock LED is on, the keys on the number key pad are used to input numbers only. Press the

Number Lock key to turn the LED off if you want to use the arrow keys on the number key pad.

No display on the monitor.

Check if the monitor is powered on.

Ensure that your monitor is properly connected to the video output port on your computer.

If your computer comes with a discrete graphics card, ensure that you connect your monitor to a video output port on the discrete graphics card.

Check if any of the pins on the monitor video connector is bent. If you discover bent pins, replace the monitor video connector cable.

Check if your monitor is plugged to a power source properly.

Refer to the documentation that came with your monitor for more troubleshooting information.

When using multiple monitors, only one monitor has display.

Ensure that the both monitors are powered on.

During POST, only the monitor connected to the VGA port has display. The dual display function works only under Windows.

When a graphics card is installed on your computer, ensure that you connect the monitors to the output port on the graphics card.

Check if the multiple displays settings are correct. Refer to section

Connecting multiple external displays in Chapter 3 for details.

My computer cannot detect my USB storage device.

The first time you connect your USB storage device to your computer,

Windows automatically installs a driver for it. Wait for a while and go to My Computer to check if the USB storage device is detected.

Connect your USB storage device to another computer to test if the USB storage device is broken or malfunctions.

I want to restore or undo changes to my computer’s system settings without affecting my personal files or data.

The Windows® System Restore feature allows you to restore or undo changes to your computer’s system settings without affecting your personal data such as documents or photos. For more details, refer to the section Restoring your system in Chapter 2.

Chapter 7: Troubleshooting

The picture on the HDTV is distorted.

It is caused by the different resolutions of your monitor and your HDTV. Adjust the screen resolution to fit your HDTV. To change the screen resolution:

Do any of the following to open the Screen Resolution setting screen:

• Click > Control Panel > Appearance and Personalization > Display > Change display settings. • Right click anywhere on your Windows desktop. When the pop-up menu appears, click Personalize > Display > Change display settings.

Adjust the resolution. Refer to the documentation came with your HDTV for the resolution.

Click Apply or OK. Then click Keep Changes on the confirmation message.

My speakers produce no sound.

Ensure that you connect your speakers to the Line out port (lime) on the front panel or the rear panel.

Check if your speak is connected to a electrical source and turned on.

Adjust your speakers’ volume.

Ensure that your computer’s system sounds are not Muted.

If it is muted, the volume icon is displayed as

. To enable the system sounds, click from the Windows notification area, then click .

If it is not muted, click

and drag the slider to adjust the volume.

Connect your speakers to another computer to test if the speakers arer working properly.

The DVD drive cannot read a disc.

Check if the disc is placed with the label side facing up.

Check if the disc is centered in the tray, especially for discs with a nonstandard size or shape.

Check if the disc is scratched or damaged.

The DVD drive eject button is not responding.

(The power indicator is off)

Incorrect power voltage

• If your computer has a power voltage switch, set it to your area’s power requirements.

• Adjust the voltage settings. Ensure that the power cord is unplugged from the power outlet.

Your computer is not turned on.

Press the power key on the front panel to ensure that your computer is turned on.

Your computer’s power cord is not properly connected.

• Ensure that the power cord is properly connected.

• Use other compatible power cord.

PSU (Power supply unit) problems

Please call our Call Center for repair.

The signal cable is not connected to the correct VGA port on your computer.

• Connect the signal cable to the correct display port (onboard VGA or discrete VGA port).

• If you are using a discrete VGA card, connect the signal cable to the discrete VGA port.

Signal cable problems

Try connecting to another monitor.

No display output after turning the computer on

Chapter 7: Troubleshooting

Cannot access the Internet

Ensure the LAN LED is on. If not, try another LAN cable. If it still does not work, contact the ASUS service center.

The LAN cable is not connected.

Your computer is not properly connected to a router or hub.

ENGLISH LAN Connect the LAN cable to your computer.

Ensure that your computer is properly connected to a router or hub.

Contact your Internet Service Provider

(ISP) for the correct LAN settings.

Problems caused by the anti-virus software

Close the anti-virus software.

Reinstall the LAN driver

Speaker or headphone is connected to the wrong port.

• Refer to your computer’s user manual for the correct port.

• Disconnect and reconnect the speaker to your computer.

Speaker or headphone does not work.

Try using another speaker or headphone.

The front and back audio ports do not work.

Try both the front and back audio ports. If one port failed, check if the port is set to multi-channel.

Reinstall the audio driver

System speed is too slow

The system often hangs or freezes.

Too many programs are running.

Close some of the programs.

Computer virus attack

• Use an anti-virus software to scan for viruses and repair your computer.

• Reinstall the operating system.

Hard disk drive failure

• Send the damaged hard disk drive to ASUS Service Center for servicing.

• Replace with a new hard disk drive.

• Replace with compatible memory modules.

• Remove the extra memory modules that you have installed, then try again.

There is not enough air ventilation for your computer.

Move your computer to an area with better air flow.

Incompatible softwares are installed.

Reinstall the OS and reinstall compatible softwares.

Chapter 7: Troubleshooting

Too noisy right after turning on the computer.

Computer is too noisy when in use.

Your computer is booting up.

It is normal. The fan runs on its full speed when the computer is powering on. The fan slows down after entering the OS.

The BIOS settings have been changed.

Restore the BIOS to its default settings.

Update the BIOS to the latest version. Visit the ASUS Support site at http://support.asus.com to download the latest BIOS versions.

The CPU fan has been replaced.

Ensure that you are using a compatible or ASUS-recommended

There is not enough air ventilation for the computer.

The system temperature is too high.

ENGLISH CPU Ensure that your computer is working in an area with good air flow.

• Update the BIOS. • If you know how to reinstall the motherboard, try to clean the inner space of the chassis.

If the problem still persists, refer to your Desktop PC’s warranty card and contact the ASUS Service Center. Visit the ASUS Support site at http://support.asus.com for the service center information.

Support fax Online support

800 Corporate Way, Fremont, CA 94539, USA

+1-510-739-3777 +1-510-608-4555 usa.asus.com +1-812-282-2787 +1-812-284-0883 support.asus.com

ASUS COMPUTER GmbH (Germany and Austria)

Address Fax Web site Online contact

Telephone (Component)

Telephone (System/Notebook/Eee/LCD) Support Fax Online support

* EUR 0.14/minute from a German fixed landline; EUR 0.42/minute from a mobile phone.

ASUSTeK Computer Inc.

Authorised representative in

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

ASUS Recycling/Rücknahmeservices

ASUS ROG TYTAN CG8480

– Desktop-Gaming-PC Tastatur x1

ACT/LINK SPEED LED LED Wiedergabe in Media Player stoppen.

ASUS RF U79 Wireless-Tastatur

CPU Frequency (CPU-Frequenz)

DEUTSCH AI Manager starten

DEUTSCH Intel® Smart Response Technology

Intel® Rapid Start Technology

Intel® Smart Connect Technology

Intel® Smart Response

20GB Intel® Smart Response Technology

DEUTSCH Intel® Rapid Start Technology

Intel® Smart Connect Technology

Intel® Smart Connect Technology installieren

800 Corporate Way, Fremont, CA 94539, USA

+1-510-739-3777 +1-510-608-4555 usa.asus.com +1-812-282-2787 +1-812-284-0883 support.asus.com

ASUSTeK Computer Inc.

LED ACT/ LED LIEN VITESSE Lancer Windows® Explorer

Lancer Windows® Update

Chapter 6: Using the utilities

Chapter 6: Using the utilities

Lancer et configurer Ai Charger+

Chapter 6: Using the utilities

Chapter 6: Using the utilities

Chapter 6: Using the utilities

Chapter 6: Using the utilities

FRANÇAIS Lancer AI Manager

Chapter 6: Using the utilities

FRANÇAIS Chapter 6: Using the utilities

FRANÇAIS Chapter 6: Using the utilities

FRANÇAIS ASUS Easy Update

FRANÇAIS Chapter 6: Using the utilities

Chapter 6: Using the utilities

Chapter 6: Using the utilities

Chapter 6: Using the utilities

Chapter 6: Using the utilities

FRANÇAIS Intel Smart Response

Intel® Smart Response,

Intel® Rapid Start,. et. Intel® Smart Connect

Chapter 6: Using the utilities

Chapter 6: Using the utilities

FRANÇAIS Chapter 6: Using the utilities

FRANÇAIS Chapter 6: Using the utilities

FRANÇAIS Chapter 6: Using the utilities

FRANÇAIS Chapter 7: Troubleshooting

Chapter 7: Troubleshooting

Chapter 7: Troubleshooting

800 Corporate Way, Fremont, CA 94539, USA

+1-510-739-3777 +1-510-608-4555 usa.asus.com +1-812-282-2787 +1-812-284-0883 support.asus.com 10, Allée de Bienvenue, 93160 Noisy Le Grand, France +33 (0) 1 49 32 96 50 www.france.asus.com +33 (0) 8 21 23 27 87 +33 (0) 1 49 32 96 99 support.asus.com

ASUSTeK Computer Inc.

ASUS ROG TYTAN CG8480

Gaming Desktop PC Tastiera x1

LED ATT/ LED CONN. VELOC.

Cliccare Set up backup. Premere Next

> All Programs > Accessories > System Tools > System Restore.

Windows® 7 Action Center

> Getting Started > Add new

Al termine, cliccare Create password.

Tastiera wireless ASUS RF U79

ITALIANO Al termine, premere Apply.

ITALIANO Dal menu principale, cliccare Nero 9 Essentials.

Selezionare Yes, I want to help by sending anonymous application data to Nero e cliccare Next.

Intel® Smart Response Technology

Intel® Rapid Start Technology

Intel® Smart Connect Technology

ITALIANO Intel® Smart Response

20GB Intel Smart Response e

Intel® Smart Response,

Intel® Rapid Start, e Intel® Smart Connect

Intel® Smart Response Technology

ITALIANO Intel® Rapid Start Technology

Select and click to enable or disable the function

Type delete partition override, and press Enter. The diskpart utility deletes the selected partition

Sul desktop, cliccare Start > Computer >

Selezionare Start > Control Panel > Programs > Programs and Features per rimuovere

Intel Rapid Start Manager.

Intel® Smart Connect Technology

Selezionare I accept the terms in the License Agreement, quindi premere Next.

Selezionare Start > All Programs > Intel > Intel® Smart Connect Technology.

ASUSTeK Computer Inc.

ESPAÑOL Para instalar webstorage:

ESPAÑOL Intel® Smart Response Technology

Intel® Rapid Start Technology

Intel® Smart Connect Technology

Intel Smart Response

20GB Intel® Smart Response,

Intel® Rapid Start, e Intel® Smart Connect

Intel® Smart Response Technology

ESPAÑOL Instalar Intel® Smart Response Technology

Intel® Rapid Start Technology

Intel® Smart Connect Technology

Instalar Intel® Smart Connect Technology

Utilizar Intel® Smart Connect Technology

15 Li-Te Road, Peitou, Taipei, Taiwan 11259

800 Corporate Way, Fremont, CA 94539, USA

+1-510-739-3777 +1-510-608-4555 usa.asus.com

+1-812-284-0883 support.asus.com

Harkort Str. 21-23, D-40880 Ratingen, Germany

ASUSTeK Computer Inc.

ASUS ROG TYTAN CG8480

toetsenbordpakket x1

Uw computer AAN/UIT-schakelen

NEDERLANDS Selecteer All Programs (Alle programma's) > Windows Update.

De antivirus-software activeren

Activeer de applicatie Trend Micro Internet Security.

> Help and Support (Help en

4. Scroll Lock-LED Paneel CPU-frequentie

NEDERLANDS ASUS AI Manager

NEDERLANDS ASUS Easy Update

in de taakbalk van Windows.

SSD Capacity Requirements

NEDERLANDS Capaciteitsvereisten SSDpartitie

8GB Intel® Smart Response

20GB Select Disable Acceleration to disable this function, and select Change Mode to switch acceleration mode to Enhanced/

Intel® Rapid Start Technology

800 Corporate Way, Fremont, CA 94539, USA

+1-812-282-3777 +1-510-608-4555 usa.asus.com

+1-812-284-0883 support.asus.com

ASUS COMPUTER GmbH (Germany and Austria)

Adres Fax Web site Online contact

+49-2102-9599-11* support.asus.com

PORTUGUÊS Intel® Smart Response

20GB Intel® Smart Response,

Intel® Rapid Start, e Intel® Smart Connect

Digite create partition primary e prima Enter.

800 Corporate Way, Fremont, CA

+1-812-284-0883 support.asus.com

+49-2102-9599-11 support.asus.com

ASUSTeK Computer Inc.

Intel® Smart Response Technology

Intel® Rapid Start Technology

Intel® Smart Connect Technology

Intel® Smart Response

20GB Intel® Smart Response Technology

Intel® Smart Connect Technology

ASUSTeK Computer Inc.
