USER MANUAL 16241 Fantec

1.1 Preface....3
1.2 Packing List....4
1.3 Cautions....5
1.4 Connection ....6
1.5 Power On / Off 13
1.6 Menu Language....13
1.7 HDD Format 13

2. About the Player 15

2.1 Remote Control....15

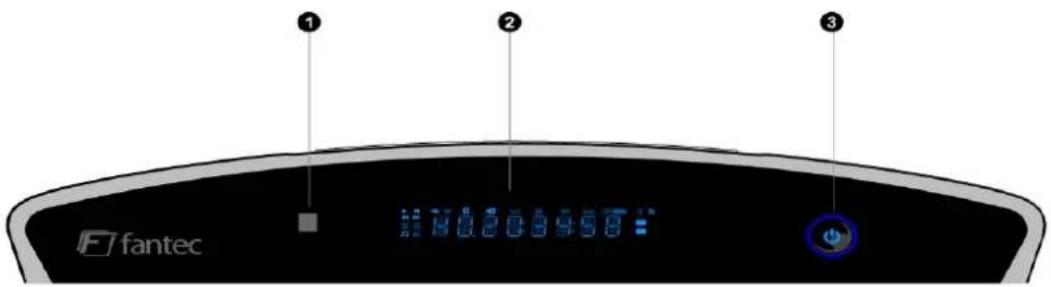

2.2 Front Panel....18
2.3 Rear Panel 18
2.4 Side Panel....18

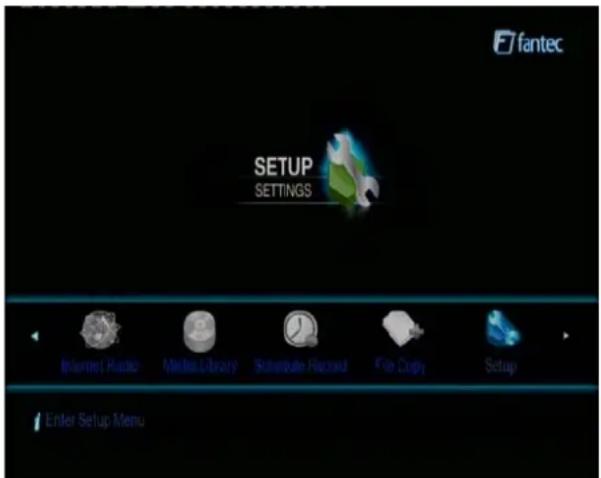

3. Setup Menu 19

3.1 Changing TV Settings....19

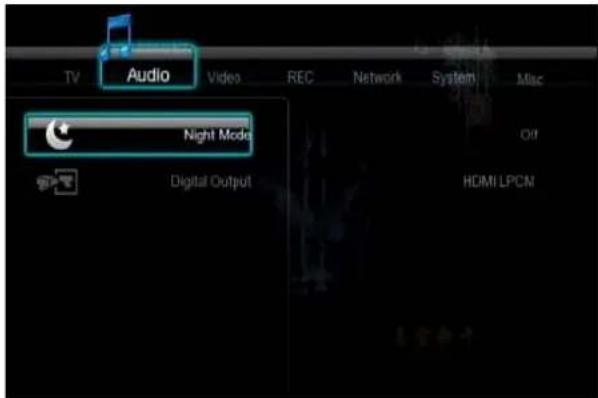

3.2 Changing Audio Settings 21
3.3 Changing Video Settings 22
3.4 Changing Record Settings 23
3.5 Changing Network Settings....24
3.6 Changing System Settings....27
3.7 Miscellaneous....30

4. DTV Menu.... 31

5. AV IN Menu.... 34

6. Timer Record Menu 35

7. Browser Menu.... 38

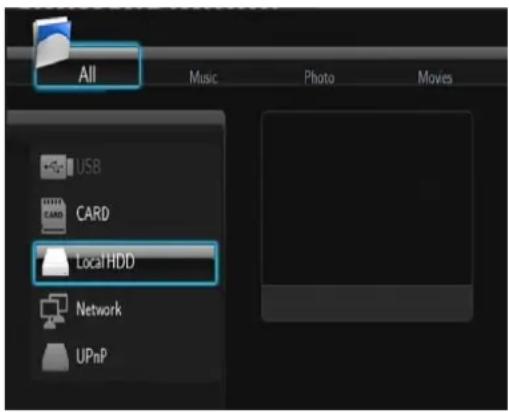

7.1 Browsing All....38

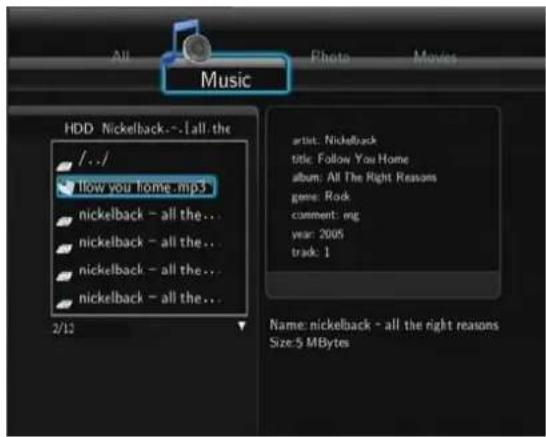

7.2 Browsing Music....39
7.3 Browsing Photos....39
7.4 Browsing Movies....40
7.5 Audio and Video Streaming via Network 41

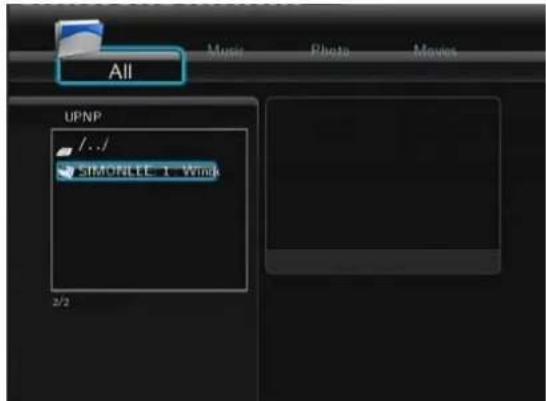

7.6 A/V Streaming via UPnP-server....43
7.7 Renaming / Deleting Files 45

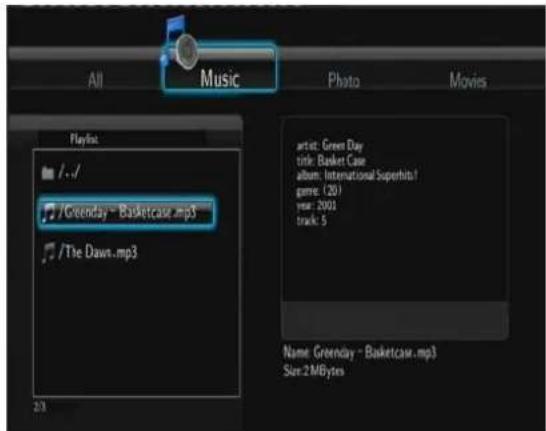

7.8 Managing the Playlist 45

8. File Copy Menu 47

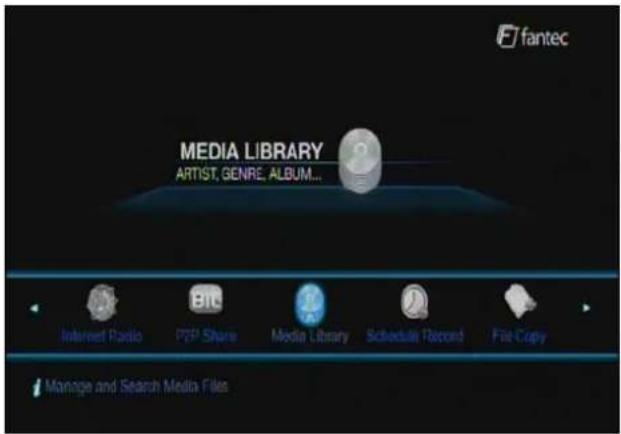

9. Media Library 48

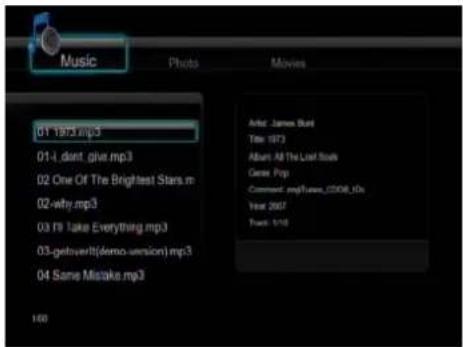

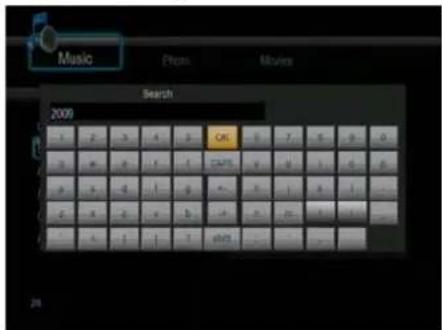

9.1 Music library 48
9.2 Photo Library 51

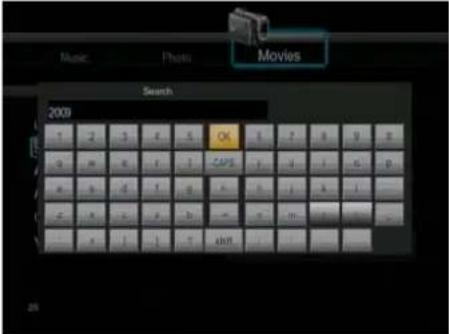

9.3 Movie Library 53

10. Internet Radio 56

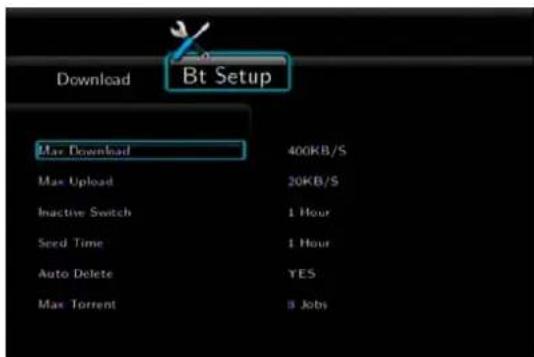

11. Net Download 57

12. NAS Function (samba) 59

13. IMS (Internet Multimedia Service) Menu 59

14. Upgrading the Firmware 60

15. Appendixes 60

15.1 Specifications....60
15.2 Frequently Asked Questions 62
15.3 Copyrights and Trademarks ....65
15.4 Warranty....65
12.5 GPL Statement....66

1. Introduction

1.1 Preface

Thank you very much for purchasing the R2750. We hope you will enjoy using it as a great home entertainment partner. This player has the following functionality.

A/V Output

• HDMI V1.3 for high-definition video and digital audio
- Composite & component video and stereo audio for analog audio-visual connection
- S/PDIF coaxial & optical interface for high-fidelity digital audio
- Adjustable video output resolution (NTSC, PAL, 480p, 576p, 720p, 1080i, 1080p)

Multimedia Playback

• Supports major audio, video and image file formats (1080p HD video decoding)
• Movie format: AVI/MKV/XVID/DIVX/TS/M2TS/MPG/MP4/M4V/MOV/VOB/ISO/IFO/DAT/WMV/ASF/RM/RMVB/FLV/DVD MENU Playback/H.264
  • Music format: MP3/OGG/WMA/WAV/AAC/FLAC/Dolby Digital/DTS/DTS downmix
  • Photo format: HD JPEG/BMP/GIF/TIF/PNG
  • Photo slide show with background music

DTV HD

• supports Digital Video Broadcasting Terrestrial (DVB-T) TV reception
- supports double-tuner, allow to watch other programs while recording

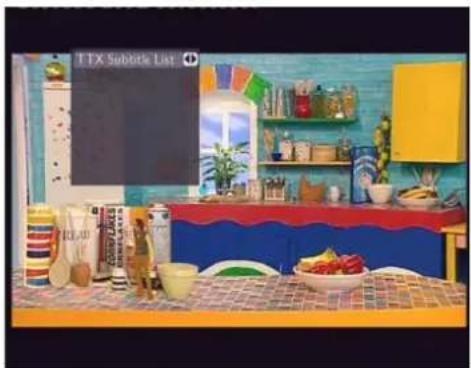

- supports Electronic Program Guide (EPG), Teletext and subtitle
- supports loop out the DVB-T signal received from Aerial.

Video Recording

• supports one button recording and scheduled recording, can easily record programs from DVB-T TV, DVD player, DV, etc., and save as MPEG-2 (.mpg, or .ts) format;
  • supports time shifting function

Network Feature

• A/V streaming/transmission via Ethernet (10M/100M) & Wi-Fi (802.11b/g/n, optional)
- File sharing via Samba server
• A/V streaming via UPnP Media Server

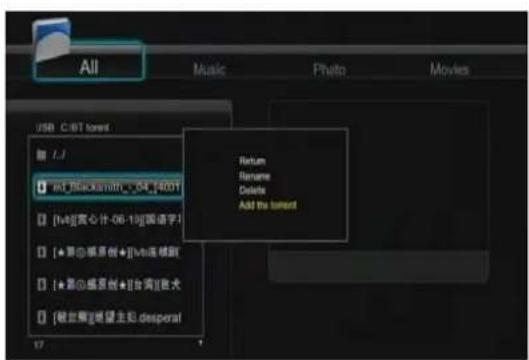

- BitTorrent download
- Digital Radio ((Please visit www.shoutcast.com for available stations)

File Copy

• Supports copying & moving files among Card, USB, HDD, and Network

USB 2.0 Support & Card Reader

• 1x USB DEVICE port (for computer connection)
• 2x USB HOST port (for USB storage devices)
  • 1x SD / SDHC / MMC / MS / MS pro Card Reader

Note: All the information contained in this manual was correct at the time of publication.

However, as our engineers are always updating and improving the product, your device's software may have a slightly different appearance or modified functionality than presented in this manual.

1.2 Packing List

Part	Quantity
Player	1
A/V cable 1
USB cable 1
Remote Control 1
Remote Control Battery 2
AC/DC adaptor 1
AC/DC adaptor Power Cord 1
User Manual (printed) 1
Driver CD (with User Manual) 1
Warranty card 1

Note:

The actual contents in the package might be different from the packing list in this manual.

1.3 Cautions

The FANTEC R2750 design and manufacture has your safety in mind. In order to safely and effectively use this player, please read the following before usage.

1.3.1 Usage Cautions

User should not modify this player. If commercial hard disk is being used, the environmental temperature should be within +5^ +35^ .

1.3.2 Power

The player's power voltage: DC 12V.

When using this player, please connect the supplied AC adapter or AC adapter cable to the player's power jack. When placing the adapter cable, make sure it can not get damaged or be subject to pressure. To reduce the risk of electric shock, unplug the adapter first before cleaning it. Never connect the adapter to the player in a humid or dusty area. Do not replace the adapter or cable's wire or connector.

1.3.3 Radio Interference

• If not properly shielded, almost all electronic devices will get radio interference. Under some conditions, your player might get interference.
• The design of this player has followed the FCC/CE standard, and has followed the following rules:

(1) This player may not cause harmful interference;

(2) This player could accept some interference received including interference that may cause undesired operation.

1.3.4 Repair

If the player has a problem, you should take it to an appointed repair center and let the specialists do the repair, never repair the player yourself, you might damage the player or endanger yourself or your data.

1.3.5 Disposing of the Player

When you dispose of the player, be sure to dispose it appropriately. Some countries may regulate disposal of electrical device, please consult with your local authority.

1.3.6 Hard Disk Cautions

The player uses an internal hard disk for data storage, in normal case, format or repair is not required.

You should carefully read the < Frequently Asked Questions > chapter, and check our website for latest information before formatting the hard disk.

• Physical impact may create bad sector in the hard disk, you can use CHKDSK to fix the problem.
• All data stored in the player may be lost due to physical impact, electrical shock, power lost, HDD format etc. Please backup your data.
• It is suggested to do defragment after a long period of usage.
• Regularly backup the data in the hard disk so that it can be recovered in the event of data corruption or loss. Our company takes no responsibility for loss of data stored on the hard disk.

1.3.7 Others

When using this player, please do not let the player come into contact with water or other liquid, if water is accidentally spilled on the player, please use a dry cloth to absorb the spillage.

Electronic products are vulnerable, when using please avoid shaking or hitting the player, and do not press the buttons too hard.

Do not let the player come into contact with water or other liquid.
Do not disassemble the player, repair the player or change the design of the player, any damage done will not be included in the repair policy.
Do not press the buttons of the player too hard.
Avoid hitting the player with hard object, avoid shaking the player, and stay away from magnetic fields.
During electrostatic discharge and the strong electromagnetic field, the product will malfunction, then unplug the power cable and the product will return to normal performance next time it is powered on.

1.4 Connection

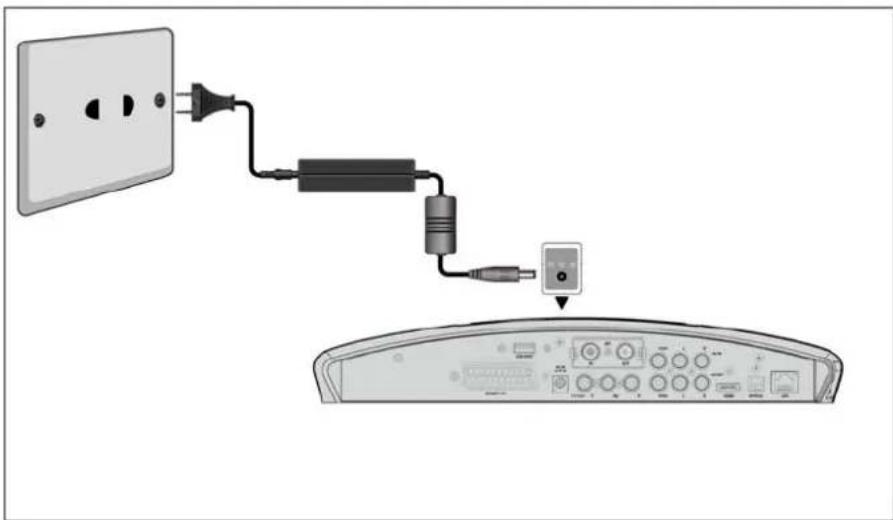

1.4.1 Connecting the Power Supply

(1) Follow the picture and connect the AC adaptor to the player's DC IN jack;
(2) Follow the picture and plug in the AC adaptor to the power outlet.

Diagram showing connection between a wall-mounted power outlet, resistor, and audio equipment via cable (no text or symbols)

1.4.2 Connecting to a PC

(1) Make sure the player is powered on;
(2) Plug in the squarish connector of the USB cable to this player's USB DEVICE port;
(3) Plug in the rectangular connector of the USB cable to computer.

Diagram showing connection between a computer and an USB device, with labeled ports and connection points

In this way, you can manage content on the built-in HDD of the player on your local PC.

1.4.3 Connecting a USB Device

(1) Make sure the player is powered on;
(2) Plug in the USB stick or USB HDD etc. to the USB HOST port of this player.

In this way, you can browse contents on the USB device.

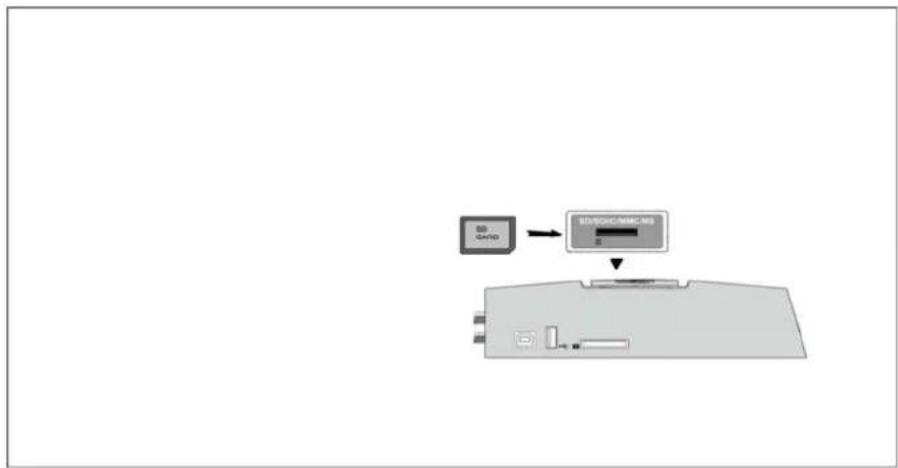

1.4.4 Connecting a Memory Card

Memory card can be used by inserting to the card slot

(1) Follow the picture to insert the memory card to the card slot properly;
(2) Insert the card by following the arrow pointer in the picture.

In this way, you can browse contents on the memory card.

1.4.5 Connecting to a TV

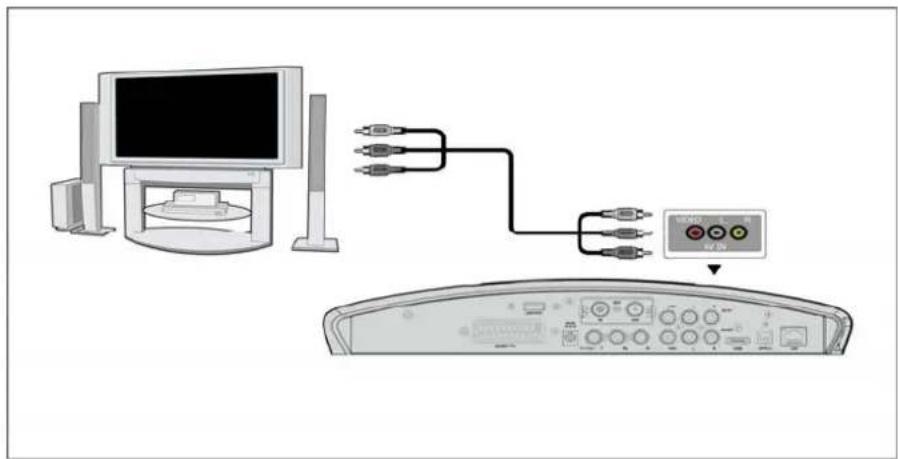

1.4.5.1 A/V IN

(1) Follow the picture and plug in the 3 color connector to the player's A/V IN jack;
(2) Follow the picture and plug in the 3 color connector to the A/V OUT jack of the TV/IPTV Set-Top Box (STB).

Diagram showing a computer setup connected to an audio device via cable (no text or labels present)

In this way, you can record TV programs from the TV/IPTV Set-Top Box.

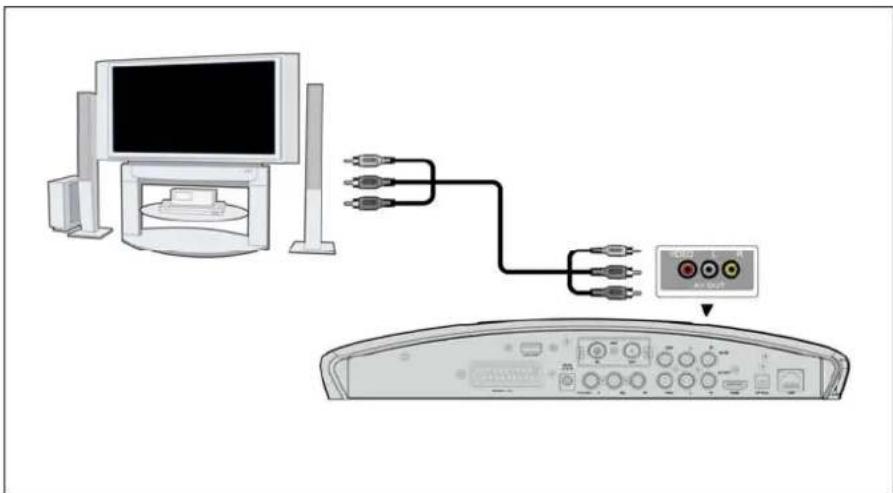

1.4.5.2 A/V OUT

(1) Follow the picture and plug in the 3 color connector to the player's A/V OUT jack;
(2) Follow the picture and plug in the 3 color connector to the TV's A/V IN jack.

Diagram showing connections between a computer monitor, audio equipment, and a control panel (no text or symbols present)

In this way, you can enjoy the content in the player on TV or other display devices.

1.4.5.3 Y/Pb/Pr Component OUT

(1) Follow the picture and plug in the 3 color connector to the player's Y/Pb/Pr jack;
(2) Follow the picture and plug in the 3 color connector to the TV's Y/Pb/Pr jack.

Audio Connection while using Y/Pb/Pr Video out:

First method: use the audio output from the A/V OUT jack;

Second method: use the audio output from the S/PDIF Coaxial or Optical jack.

Diagram showing connection between a computer monitor and a YW-002 device with labeled ports and connectors

In this way, you can also enjoy videos, music, and photos in the player on TV.

1.4.5.4 HDMI OUT

(1) Follow the picture and plug one connector on your HDMI cable to the player's HDMI jack;
(2) Follow the picture and plug the other connector on your HDMI cable to the TV's HDMI jack.

Note: The HDMI cable is an optional accessory sold separately.

Diagram showing connection between a computer monitor and a desktop monitor via USB cable (no text or symbols present)

In this way, you can have the highest quality video and audio via a single cable.

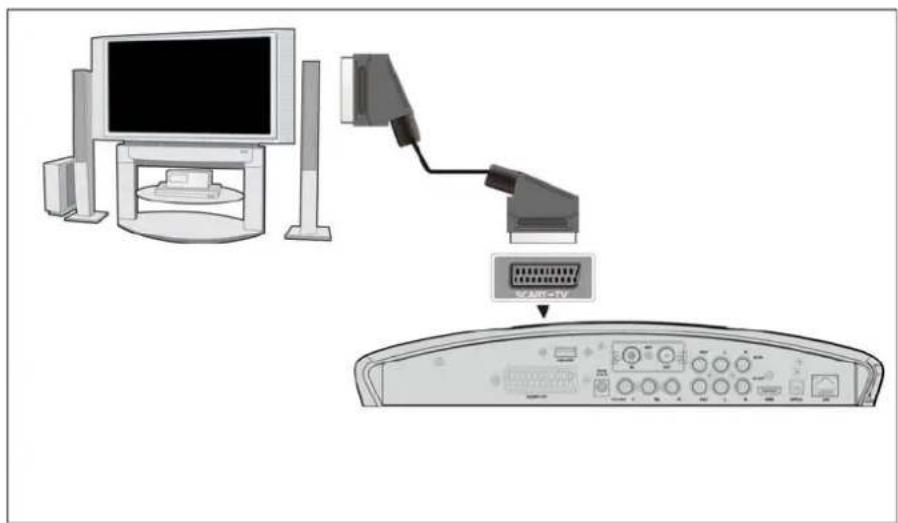

1.4.5.5 SCART OUT

(1) Follow the picture and plug one connector on the SCART cable to the player's SCART socket;
(2) Follow the picture and plug the other connector on the SCART cable to the TV's SCART socket.

Diagram showing a computer monitor connected to an RJ-194 network interface (no text or symbols present)

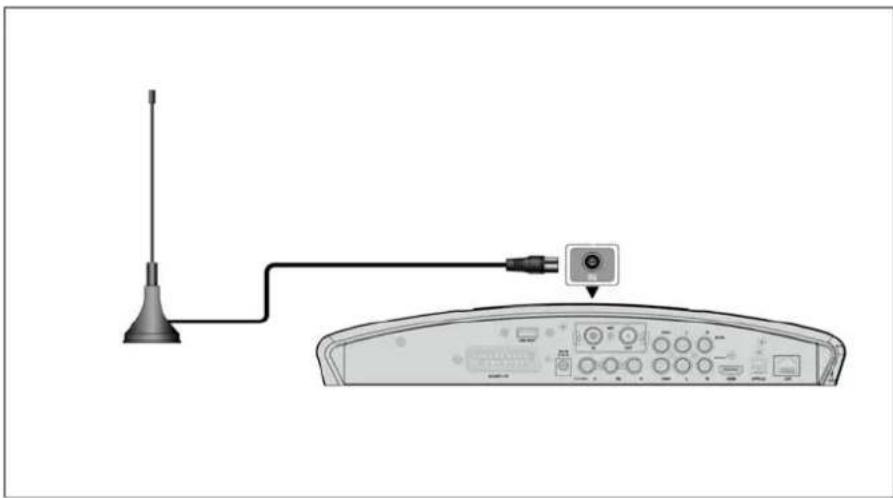

1.4.5.6 ANT. / RF IN

Follow the picture and plug a TV Aerial to the ANT. / RF IN socket;

Diagram of a wireless device showing antenna, cable, and ports (no text or symbols)

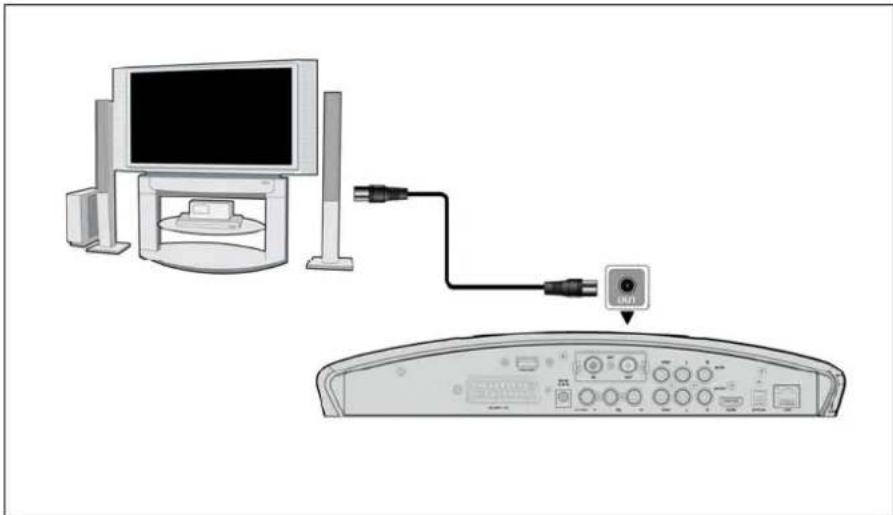

1.4.5.7 ANT. / RF OUT

(1) Make sure the player is connecting to power supply;
(2) Make sure a TV Aerial is connecting to the ANT. / RF IN socket;
(3) Follow the picture and plug a TV cable to the ANT. / RF OUT socket then plug the cable to a TV or other TV receiver.

Diagram showing connection between a computer monitor and an external audio device (no text or symbols present)

The player can loop out the DVB-T signal to other TV receiver device. In this way, you can watch the TV programs with another TV receiver while recording.

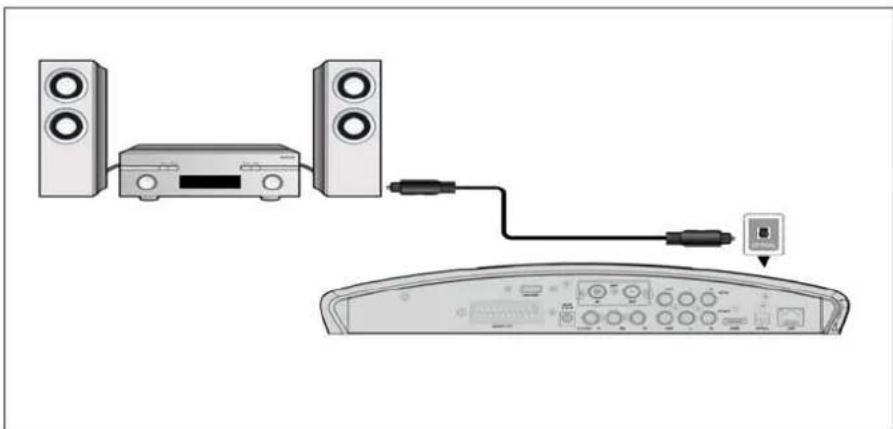

1.4.6 Connecting to an Digital Amplifier

(1) Follow the picture and plug in the Toslink connector on your optical fiber cable to the player's S/PDIF Optical jack.
(2) Follow the picture and plug in the other connector on your optical fiber to the digital audio device (digital amplifier or decoder).

Note: Optical fiber cable is not supp

Diagram showing audio equipment connections with speakers, audio block, and audio jack (no text or labels)

In this way, you can enjoy powerful Dolby Digital, DTS, or MPEG sound. (Please refer to '3.2 Changing Audio Settings' for configuration)

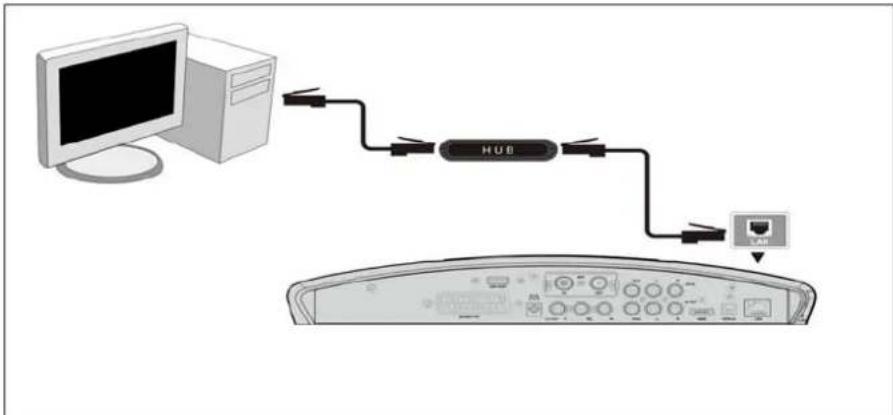

1.4.7 Connecting to a LAN

To connect to a LAN (Local Area Network) you require a cat5, cat5e or cat6 network cable (not supplied).

(1) Connect one of the crystal plugs on the cable to the player's RJ45 LAN socket;
(2) Connect the other crystal plug on the cable to a RJ45 LAN port on your router, switch, or hub devices.

1.4.8 Connecting to a WLAN

(1) Make sure the player is powered on;
(2) Plug the Wireless LAN USB Adapter (i.e. FANTEC Wi-Fi USB Dongle) to the USB HOST port of the player.

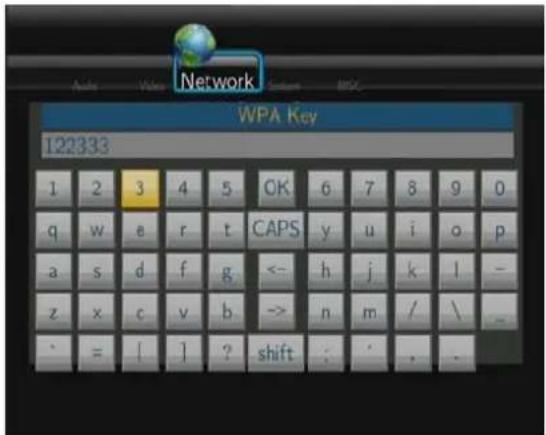

(3) Please refer to '3.5 Changing Network Settings' for more details about wireless setup

Note: The FANTEC Wi-Fi Dongle is an optional accessory sold separately. In order to avoid incompatibilities with Wi-Fi adapters, it's recommended to use "FANTEC WF-300MWLAN Dongle". The accurate function of non-FANTEC devices cannot be guaranteed.

1.5 Power On / Off

Power On

After connecting the DC IN jack and press the power button on the front panel, the player will soon enter the home screen, and the power indicator will turn blue.

Power Off

Press the power button on the front panel, the player will soon enter standby mode, and the power indicator will turn red. Then unplug the power cord to cut off the power supply.

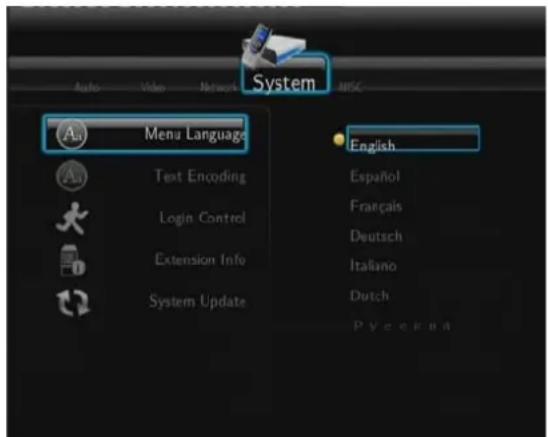

1.6 Menu Language

The system language of this player can be set to English or other languages. Change the language you wish in the setup menu, the selected language will take effect immediately.

System Menu Language English Text Encoding Español Login Control Français Deutsch Extension Info Italiano System Update Dutch Pyceirua

1.7 HDD Format

For users who wish to install a new SATA HDD into the player, please refer to the following procedures to format the hard disk on the player before usage.

- Step 1: Select OK on the Warning page, press ENTER to confirm.

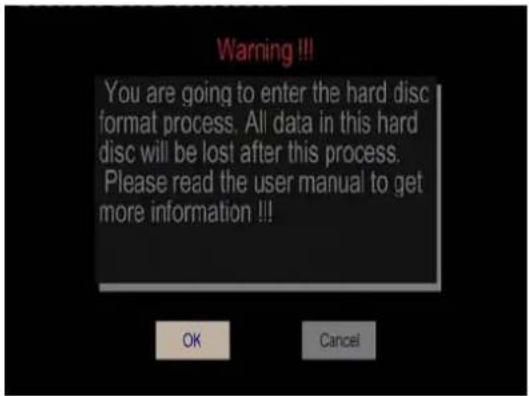

Warning !!! You are going to enter the hard disc format process. All data in this hard disc will be lost after this process. Please read the user manual to get more information !!! OK Cancel

Note: This page can be also started via Setup->System->HDD Format menu too..

- Step 2: Press the up / down button to adjust the capacity of time shift buffer. Press the left / right button to select Next, and the enter button to confirm.

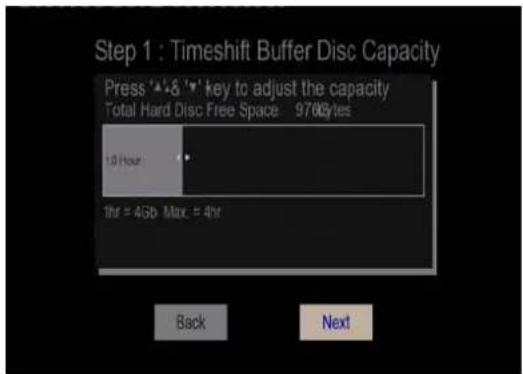

Step 1 : Timeshift Buffer Disc Capacity Press '▲&▼' key to adjust the capacity Total Hard Disc Free Space: 970Bytes 1.0 Hour Thr = 4Gb Max. = 4hr Back Next

- Step 3: Select Format, press ENTER, and then hard disk format will start.

Last Step : Hard Disc Format Press 'Format' to start Back Format

The formatting procedure will be finished within a few minutes. And then you can use the hard disk properly on the player.

Note: HDD format will remove all data stored on the hard disk drive. Please take care and backup your data in advance!

2. About the Player

2.1 Remote Control

All procedures in this manual can be carried out by using the remote control.

See the following diagram for details of each button and its function:

1. LED 2. STANDBY
3. MUTE 4. SYSTEM
5. BROWSER 6. Numeric buttons
7. REPEAT 8. VOL-/VOL+
9. FR 10. FF
11. PLAY / PAUSE 12. HOME
13,14,17,31 Navigational buttons
15. ENTER 16. MENU
18. TIME SHIFT 19. SLOW
20. ZOOM 21. AUDIO
22. Red 23. EPG(Green)
24. TTX(Yellow) 25. Blue
26. ANGLE	27. SUBTITLE
28. GOTO	29. A-B
30. SETUP	32. RETURN
33. NEXT	34. STOP
35. PREV	36. INFO
37. MUSIC	38. COPY
39. REC

	Button	Function
1	LED	Turn blue while pressing a button.
2	STANDBY	Press to enter standby mode or wake up.
3	MUTE	Press to mute audio output, and press again to resume.
4	TV SYSTEM	Press to switch between NTSC, PAL, 480P, 576P, 720P, 1080I,and 1080P.
5	BROWSER	Press to enter the browser menu.
6	Numeric buttons	Press to enter numeric input when changing settings.
7	REPEAT	Press to set music repeat option: One, All, Shuffle and Off.
8	VOL-/VOL+	Press to decrease/increase the volume.
9	FR	Press to fast rewind the current playback. Press repeatedly to select speeds.
10	FF	Press to fast forward the current playback. Press repeatedly to select speeds.
11	PLAY/PAUSE	Press to begin/pause the playback.
12	HOME	Press to enter the home screen.
13,14,17,31	Navigational buttons	Press the arrow buttons to select menu options, and the ENTER button to confirm.
15	ENTER	Press to select options in menus.
16	MENU	Press to activate tools menus:1) rename and delete files in browser menu2) add shortcuts for network access in My_Shortcuts in NET of the browser menu3) add favorite stations in internet radio menu4) add/delete scheduled recording in EPG menu
18	TIME SHIFT	Press to activate the time shift function. Time shift function allows you to pause live TV and resume the program from the point you left it. While paused, the program is recorded to the internal HDD as long as the space is available. Time shift mode remains active until you press the stop button.
19	SLOW	Press to play back in slow motion. Press the PLAY button to resume regular playback.
20	ZOOM	Press to zoom the image (photo or video).
21	AUDIO	Press to select an audio track.
22	Red	Press to select files from local HDD that should be added to the playlist.
23	EPG(Green)	1) Press to enter the Electronic Program Guide which displays an on-screen list of programs for the coming week when watching Digital Terrestrial TV (DVB-T).2) Press to add the selected files to the playlist.
24	TTX(Yellow)	Press to open Teletext OSD if it is available in the broadcastedstream of Digital Terrestrial TV.
25	Blue	Press to activate sort function in channel set in TV setup menu.
26	ANGLE	Press to change the view angle during DVD (with multi-angle) playback.
27	SUBTITLE	Press to set subtitle options.
28	GOTO	Press to jump to a specific point on a title. Specify the point using Title, Chapter and Time.
29	A-B	Press to set the beginning and end points of a section to repeat.
30	SETUP	Press to enter the setup menu.
32	RETURN	Press to return to the previous screen while navigating menus.
33	NEXT	Press to view the next file / page down.
34	STOP	Press to stop playback.
35	PREV	Press to view the previous file / page up.
36	INFO	Press to hide or display the information bar during playback.
37	MUSIC	Press to start playing music in the music playlist.
38	COPY	Press to enter the file copy menu.
39	REC	Press to begin recording.Press repeatedly to set one touch recording (OTR) length (30 MIN. / 60 MIN. / 90 MIN. / 120 MIN. / 180 MIN. / 240 MIN. / Off).

2.2 Front Panel

1 2 3 fantec

1. Infrared receiver window 2. VFD screen
2. Power button & indicator

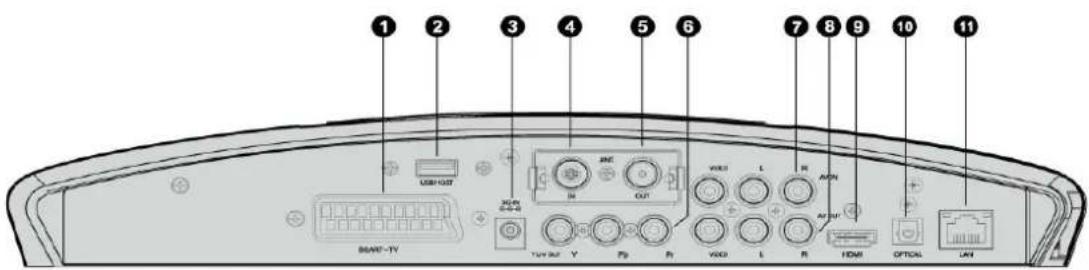

2.3 Rear Panel

1 2 3 4 5 6 7 8 9 10 11 USB+USB 3UIN 6-4-2 VREF IN OUT VDD L IN APLN AC+MP HDMI OFFICEAL LAN START-TV TUV INC V Fp Ry VDD L R HDMI L

1. SCART - TV socket 2. USB HOST port (A-Type)
2. DC IN jack 4. ANT. / RF IN socket
3. ANT. / RF OUT socket 6. Y/Pb/Pr OUT jack
4. A/V IN jack 8. A/V OUT jack
5. HDMI jack 10. S/PDIF OPTICAL jack
6. RJ45 LAN socket

2.4 Side Panel

Diagram of a device rear panel with labeled components including ports, buttons, and indicators

1. USB DEVICE port (B-Type) 2. USB HOST port (A-Type)
2. Memory Card slot

3. Setup Menu

The Setup menu allows you to personalize and configure the preferences for your player.

To select a Setup option:

- Select the Setup icon on the home screen, or press the SETUP button on the remote control.

fantec SETUP SETTINGS Internal Radio Media Library Simulate Record File Copy Setup Enter Setup Menu

- Use the LEFT/RIGHT navigational buttons to select an option, and then press ENTER.

There are seven Setup options, including TV, Audio, Video, REC, Network, System, and MISC. Use the UP/DOWN navigational buttons to select a menu. Press ENTER to confirm. Press RETURN to cancel and display the previous menu screen.

3.1 Changing TV Settings

Press the left / right button on the remote control to select the TV tab from the menu bar.

TV Region

- Select to set the region for Digital Terrestrial TV

Channel Scan

- Select to scan for available Digital Terrestrial TV channels

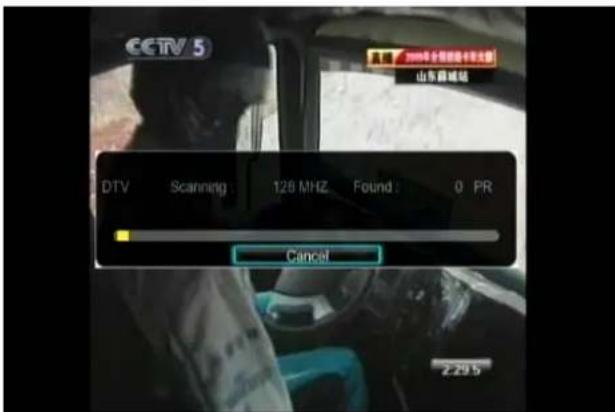

AUTO SCAN

In AUTO SCAN mode, the system will automatically scan for available DVB-T TV channels.

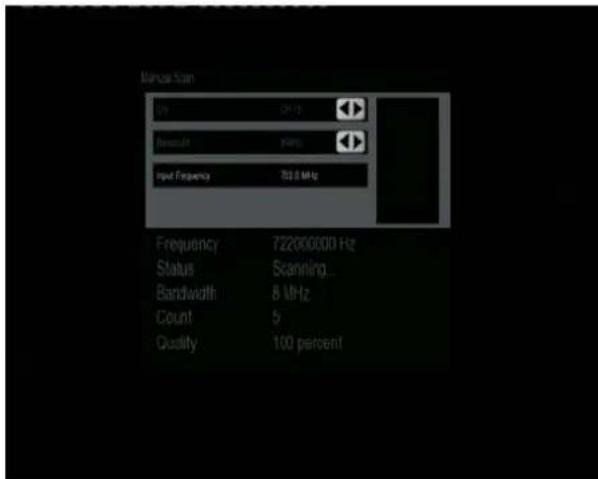

MANUAL SCAN

Manual Scan Size 20.13 Reversal 100% Input Frequency 722.5 MHz Frequency 72200000 Hz Status Scanning... Bandwidth 8 MHz Count 5 Quality 100 percent

In MANUAL SCAN mode, you can select the CH name, Bandwidth, and Input Frequency. Use the navigational and numerical buttons on the remote control to select or input. Press the enter button to confirm.

Channel Set

- Select to edit channel information.

移动电视 17:27:01 PR Name Channel Edit 1 SZTVM01 None SZTVM1 2 SZTVM02 Delete 3 SZTVM03 4 SZTVM04 Swap With 5 Cata 是你儿子么 Sort

In this menu, you can edit the Name, and sequence for the DVB-T TV channels. Use the navigational buttons to select and modify the settings, and press the enter button to confirm. You can also press the "blue" button to select Sort.

3.2 Changing Audio Settings

Use this menu to configure audio settings.

Audio TV Video REC Network System Mac Night Mode Digital Output Off HDMI LPCN

Night Mode

- Choose between Off / On / Comfort. If the option is turned on, the audio output volume will be decreased to make you more comfortable.

Digital Output

- Choose between HDMI LPCM / HDMI RAW / SPDIF LPCM / SPDIF RAW. In raw mode, Dolby Digital, DTS, or MPEG sound can be bypassed to the HDMI TV or Digital amplifier.

3.3 Changing Video Settings

Use this menu to configure video settings.

Video Aspect Ratio Brightness Contrast TV System 1080P 24HZ REC Network System Misc 16:10 35 27 1080P 50HZ On

Aspect Ratio

• Pan Scan 4:3: Display a wide picture on the entire screen and cuts off the redundant portions. Select when a standard 4:3 TV is connected.
• Letter Box 4:3: Display a wide picture with two black borders on the top and bottom of 4:3 screen. Select when a standard 4:3 TV is connected.
• 16:9: Compress the image to convert the whole image. Select when a 16:9 TV is connected.

Zoom Out

- Turned on, the player will auto zoom out the video resolution to fix the TV screen.

Brightness

- Adjust the level of brightness.

Contrast

- Adjust the level of contrast.

Hue

- Adjust the level of hue.

Saturation

- Adjust the level of saturation.

Video SYSTEM

- Select to adjust video output resolution: NTSC / PAL / 480P / 576P / 720P 50HZ / 720P 60HZ / 1080I 50HZ / 1080I 60HZ / 1080P 50HZ / 1080P 60HZ.

1080P 24FPS

- Choose this option to enable or disable 1080P 24HZ support. A TV set with 1080P 24HZ (24P) mode is needed.

Screen Size

- Choose this option to change the display size.

Seamless Playback

- Uninterrupted playback of video and audio files (the naming of the files should be alike "abc01.AVI" and "abc02.AVI", etc)

3.4 Changing Record Settings

Quality

- Select to set the default recording quality setting.

TV Audio Video REC Network System mac Quality HQ SP LP EP SLP Permanent Timeshift REC Device

Press the up / down button to select the quality setting you require. The highest quality setting is HQ which requires the most storage space. The other settings reduce recording quality sequentially but also require less storage space.

Permanent Timeshift

- Select to set Time Shift mode.

Press the up / down button to select from On and Off. Press the enter button to confirm. If On, the time shift will start automatically while in Video In mode.

REC Device

- Select to set device to restore the recorded files.

Press the up / down button to select from HDD and USB. Press the enter button to confirm.

3.5 Changing Network Settings

Use this menu to configure Ethernet and WLAN (Wireless Local Area Network) settings.

TV Audio Video REC Network System Misc Wired Lan Setup On: DHCP Not ready! Wireless Setup Off: DHCP Not ready!

Wired LAN Setup

- DHCP IP (AUTO)

Select to obtain IP address automatically.

- FIX IP (MANUAL)

Select to manually input the IP Address, Subnet Mask, Default Gateway, and DNS Server IP Address.

Wireless Setup

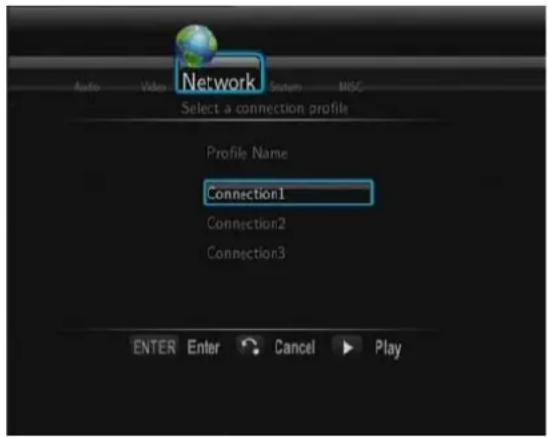

- Selecting a connection profile

Network Select a connection profile Profile Name Connection1 Connection2 Connection3 ENTER Enter Cancel Play

This player can store up to three wireless network connections. Press ENTER to go to next step, press RETURN to cancel, and press PLAY to connect.

- Get Connection Mode

Network Get Connection Mode Connection Mode Infrastructure (AP) Peer to Peer (Ad Hoc) ENTER Enter Cancel

Choose between Infrastructure (AP), Peer to Peer (Ad Hoc) and WPS (AP). Press ENTER to go to next step, and press RETURN to cancel.

- Infrastructure (AP)

Infrastructure mode is used to connect computers with wireless network adapters, also known as wireless clients, to an existing wired network with the help from wireless router or access point.

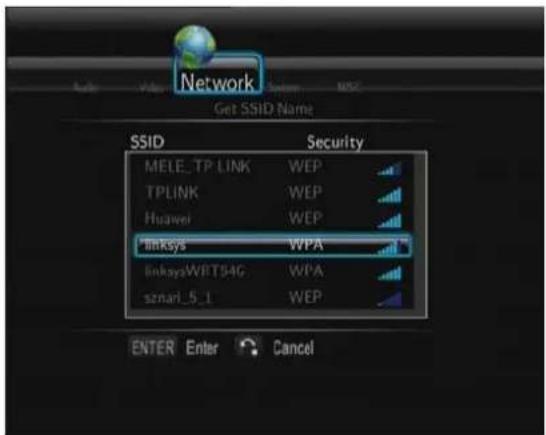

Get SSID Name

Network Get SSID Name SSID Security MELE_TP LINK WEP TPLINK WEP Huawei WEP Linksys WPA LinksysWRT54G WPA sznari_5_1 WEP ENTER Enter Cancel

Press ENTER to go to next step, press RETURN to cancel, and press SELECT to refresh the SSID list.

Note: In the Security list, WEP (Wired Equivalent Privacy) and WPA (Wi-Fi Protected Access) means the network is encrypted, i.e. an encryption key is needed to access the network. NONE means it is an open system network.

Input WEP / WPA Key

Network WPA Key 122333 1 2 3 4 5 OK 6 7 8 9 0 q w e r t CAPS y u i o p a s d f g <- h j k l - z x c v b -> n m / \ _ ' = | ] ? shift : ' . .

Encryption keys can be inputted via the virtual keyboard. Press the navigational buttons to select, ENTER to input, CAPS to switch between uppercase and lowercase, <- to delete a character, -> to insert a space, shift to make more symbols available, and OK to confirm.

Test connection

TV Audio Video REC Network System Mac Test Connection Testing... OK Enter Cancel

The testing process will take for a while, please be patient to wait. If the test is ok, the network information (Profile Name, IP address, Subnet Mask, Gateway, etc.) will be displayed on the screen.

- Peer to Peer (Ad Hoc)

Peer to Peer mode, which is also called Ad Hoc mode or computer-to-computer mode, is used to connect wireless clients directly together, without the need for a wireless router or access point.

Ad-Hoc Setup

Network Ad-Hoc Setup Ad-Hoc Setup Wireless SSID WTE FUE04C000002 Wireless Security Open System Shared key (WEP) Host IP 192 108 59 254 ENTER Enter Cancel Play

Press ENTER to go to next step, press RETURN to cancel, and press PLAY to connect.

Host Name

- Choose the network name of the player.

BitTorrent and SAMBA

- Turn on/off BitTorrent and Samba

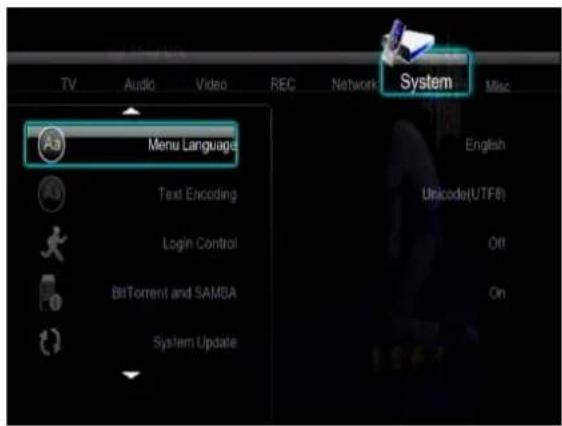

3.6 Changing System Settings

Use this menu to configure system settings.

TV Audio Video REC Network System Aa Menu Language English Text Encoding Unicode(UTF6) Login Control Off BitTorrent and SAMBA On System Update

Menu Language

- Select to choose the OSD (On-Screen Display) language. (English, Espanol, French, German, Italiano, Dutch, Russky, Polski, Cesky, Slovensky, Romania, Portugees, Hebrew, Magyar, Slovenscina)

Text Encoding

- Select to set the text encoding option (subtitle display).

System Update

• Select Extension Package Upgrade to update extension files for BT download and SAMBA services.
• Select system upgrade to update the firmware via a USB stick.

1) Copy 'install.img' to the root directory of a USB stick, and connect it to the USB HOST port of the player.

2) Press ENTER to confirm.

Time

- Select to set the system time.

TV Audio Video REC Network System Text Encoding Login Control BitTorrent and SAMBA System Update Time Manual Autoz (via DTV)

Press the up / down button to select from Manual and Auto (via TV). Press the enter button to confirm.

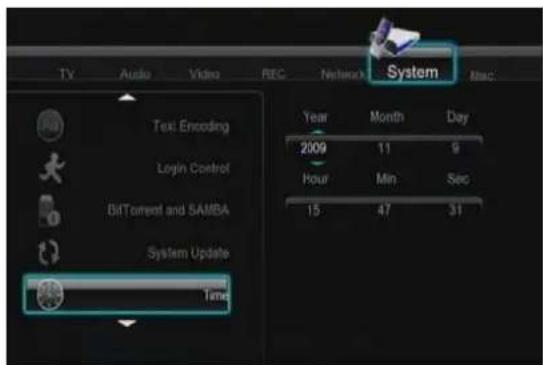

Manual

TV Audio Video REC Network Mac System Text Encoding Login Control BitTorrent and SAMBA System Update Time Year Month Day 2009 11 9 Hour Min Sec 15 47 31

Press the left / right button to select each field and the up / down button to adjust each setting. Numeric buttons are available here. Press the enter button to confirm.

Parental Control

- Select to set the TV parental control options.

A password will be needed for the modification. The default one is '0000'. Press the numerical buttons to input, and the enter button to confirm.

Lock system

Press the up / down button to turn on or off the parental system. Press the enter button to confirm.

Region

Press the up / down button to select the region. Press the enter button to confirm.

Password

Press the numerical buttons to input and change the password. Press the enter button to confirm.

Block unrated TV

Press the up / down button to turn on or off. Press the enter button to confirm.

TV Rating

Press the navigational buttons to select. Press the enter button to confirm, and the back button to exit.

HDD Format

- Select to format the built-in HDD.

Note: Please take care that all data on the hard disk will be removed after formatting.

System Info

- Select to view system information (firmware version, HDD info, Mac address, etc.)

Restore Default

- Select to restore factory defaults.

3.7 Miscellaneous

Use this menu to adjust miscellaneous settings.

TV Audio Video REC Network System Misc Resume Play Side Show Timing Transition Effect Kan Blume Seamless Playback On 5 seconds Off On On

Resume Play

- Select to turn on / off resume playback (auto-bookmarking) feature for movies.

Slide Show Timing

- Select to set the interval time for photo slide show.

Transition Effect

- Select to set the transition effect for photo slide show.

Ken Burns

- Slow zooming function during Photo playback.

Background Music

- Select to set the background music options while view pictures: Off / Folder / Playlist.

Screen Saver

- Select to turn on / off screen saver.

Movie Preview

- Select to turn on / off movie preview in the browser menu.

Subtitle on-off

- Turn on/off subtitle

4. DTV Menu

In this menu, you can watch and record Digital Terrestrial TV programs, or have the time shift function. To enter the DVB-T TV mode, select the DTV icon on the main menu.

The following are some functional buttons on the remote control available when watching Digital TV programs.

Name	Function
enter	Press to view the program list menu.
up / down	Press to switch channels. (Channels cannot be switched in the recording mode.)
numeric buttons	Press to input channel numbers. Press the enter button to confirm.
REC	Press to start recording the current TV program.

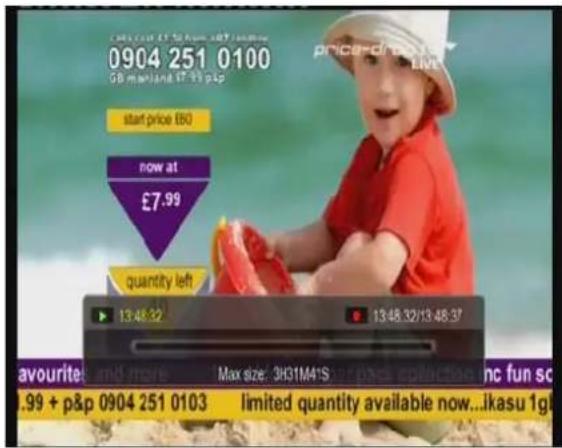

time shift	Press to activate the time shift function.

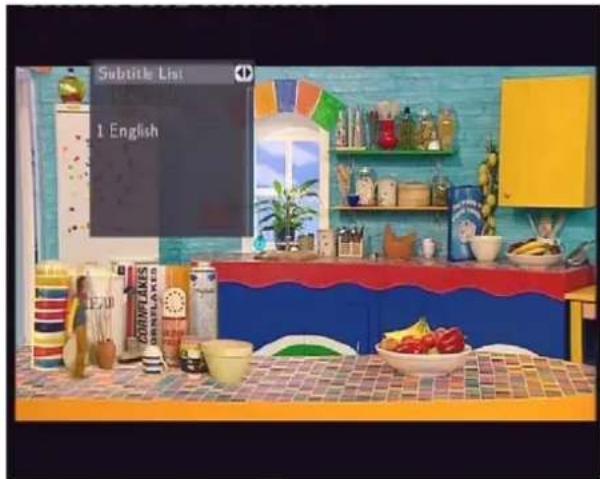

subtitle	Press to activate the subtitle list menu if available.
EPG	Press to activate the EPG menu if available.
TTX	Press to activate the Teletext menu if available.
Zoom	Press to zoom out the image.

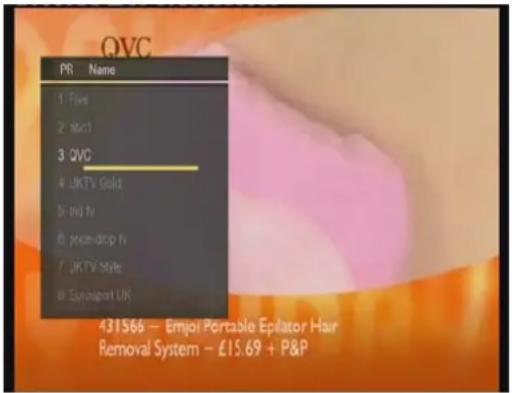

Program List Menu

Press the enter button when watching DVB-T TV programs, and the program list menu where you can see the program number and name will be displayed.

QVC PR Name 1 Five 2 abc1 3 QVC 4 UKTV Gold 5 Ind tv 6 prem-drop tv 7 UKTV Style 8 Exportsuit UK 431566 - Emjoi Portable Epilator Hair Removal System - £15.69 + P&P

All the TV and Radio programs will be listed on this list. Press the up / down button to select channels, and press the enter button to confirm. Press the prev / next button to page up /down.

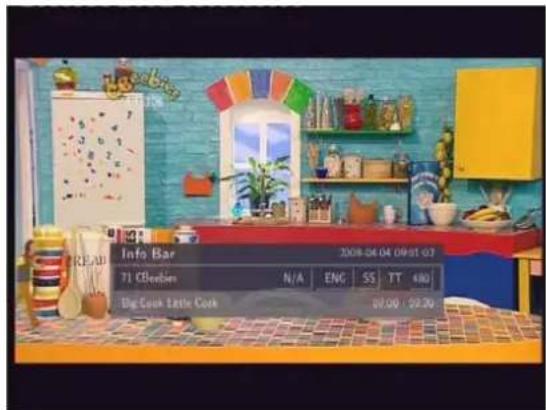

Info Bar

While switching channels by the up / down button, an info bar will be displayed to show the channel information.

Real Info Bar 2018-04-04 09:01 07 71 Cberries N/A ENG SS TT 480 Dig Cook Little Cook 09:00 09:30

There're 4 strings displayed on the bar. Taking the info bar in the above photo for example:

N/A – Stands for TV rating;

ENG – Stands for the voice language;

SS – Stands for subtitle;

TT – Stands for Teletext;

480 - Stands for resolution (SD - Standard Definition, HD - High Definition).

When the string looks concave, the option will be available.

Electronic Programming Guide

Press the EPG button when watching DVB-T TV programs, the Electronic Programming Guide will be displayed.

Add a new schedule I today 1Sat 2Sun 3Mon 4Tue 5Wed 6thu 13:00-14:00 Quality Products at Low Prices 14:00-14:30 Essential Electricals 14:30-15:00 Quality Products at Low Prices 15:00-16:00 Quality Products at Low Prices 16:00-17:00 Quality Products at Low Prices 17:00-17:10 Pick of the Day at 5.00pm Essential Electricals N/A Join us for the pick of price-crop tv's quality kitchen appliances, vacuum cleaners, fans, home telephones and many other essential electricals. Channel Date Program 2007.08.31 Tel 13.21

Press the prev / next button to change channels. Press the left / right button to change date. Press the up / down button to change program. Press the red button to add / delete scheduled recording.

Teletext Menu

If the broadcasted stream supports Teletext, press the TTX button to enter the Teletext menu.

Interior scene of a colorful kitchen with a table, food items, and a TV screen (no readable text or symbols)

P100.2 100 TELEVIDEO CJ 21 feb 11:57:57 TELEVIDEO Rai + CREBIAL: fino a 5008 euro in contenti p.35& 101 ULTIM'ORA 103 PRIMA 200 SPORT 300 BUNSA-FISCO 400 ISTITUZIONI 220 SOCIETA' 480 CONSUMI 500 TV-MOGATINE 590 LOTTO-LUTTERIE 600 METEO-VIAGGI 770 SOTTOTITOLI 800 OGGI-FLASH 779 INDICE A-2 261 Calcio 229 Brevi Calcio 230+250 Calcio Club 240 Altri Sport 289 Sport Tv-Radio 270 Schedine 299 Brevissime 720 Ippica www.televideo.rai.it Abbonamenti tv a pagina 390

Press the navigational and numeric buttons to view the content in the Teletext menu.

Subtitle List Menu

Press the subtitle button when watching DVB-T TV programs, the Subtitle List menu will be displayed.

Subtitle List 1 English

Press the up / down button to select the subtitle, and press the enter button to confirm.

DTV Program Recording

Press REC button to start the recording, recording files are automatically stored in a folder named REC by default.

904 251 0100 price-drop tv LIVE start price £60 now at £7.99 quantity left 45 sery favourites and more 12 cd kids bumper pack collection inc + p&p 0904 251 0103 limited quantity available now_ikasu 1gb m

PR Name 1 Pue 2 select QVC 4 UKTV/Gypt 5 bad tv 6 price-drop tv 7 UKTV style 8 Exerysight UP QVC Associated ordering on QCut 0800 52 42 32 Epiphany Platinum Clad Diamonique

This product allows you to watch other programs while recording is running. When recording is running, press the ENTER button, you can get the program list, then use UP/DOWN button to select the channel.

Time Shifting

Time shift function allows you to stop live TV and resume the program from the point you left it. While paused, the program is recorded to the internal HDD as long as the space is available. Press the TIME SHIFT button to active time shift function. Press PLAY button to resume the program. Time shift mode remains active until you press the STOP button.

0904 251 0100 GB mainland £7.99 p&p start price EBO now at £7.99 quantity left 13:48:32 13:48:32/13:48:37 pricard/bosch LIVE avourite and more Max size: 3H31M4'S pcnc fun sc .99 + p&p 0904 251 0103 limited quantity available now...ikasu 1g

5. AV IN Menu

In this menu, you can watch and record audio-visual signal from the A/V IN jack on the rear panel of the unit, or have the time shift function.

Select the A/V In icon on the main interface to enter this menu.

The following are some functional buttons on the remote control available in AV IN menu.

Name	Function
record	Press to start recording the current TV program.
time shift	Press to activate the time shift function.
zoom	Press to zoom out the image.

6. Timer Record Menu

The Timer Record menu allows you to create, edit and delete recording schedules and view all schedule status and history. Select the TIMER REC icon on the main menu to enter this menu.

Create a New Schedule

Press the left / right button on the remote control to select the Edit tab from the menu bar. Select Add a New Schedule and press the enter button. The schedule setting screen appears.

Edit Delete Status History No. Source Start time Length Status Add a new schedule 1 Dtv4 10/23 17:39 00:01 Ready 2 Dtv1 10/23 18:50 00:30 Ready 2009/10/23 Fri 17:36

2009/10/23 Fri 17:35 HDD Free Space: Total remaining: 0MB HQ: 0 mins. SP: 0 mins. LP: 0 mins. EP: 0 mins. SLP: 0 mins.

Use the left / right button on the remote control to move between fields and press the up / down button to adjust each setting.

Source	Select the video source or TV channels for the recording.
Start Time	Enter the date and time of the recording.
Length	Enter the length of the recording
Repeat	Select how often you want the schedule to record. Choose from Once, Everyday, Mon-Fri, Mon-Sat or for an individual day of the week.
Quality	Select the recording quality. Choose from HQ, SLP, EP, LP and SP.The higher the quality, the more space required on the hard drive. See HDD Free Space on the left of the screen for details of how long you can record for using each setting.
Preview	This small preview window will show the current program of the selected channel.

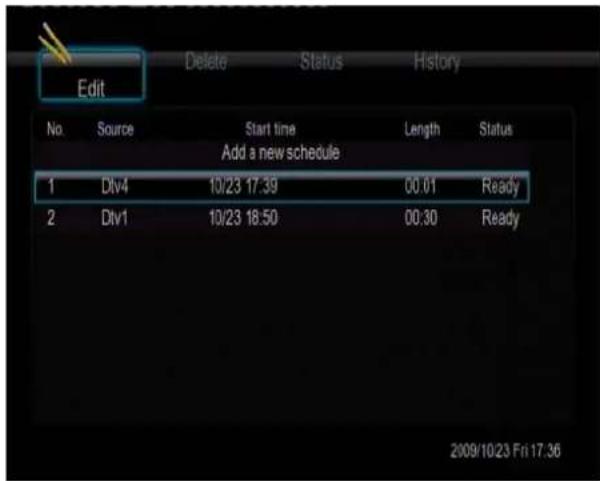

Edit Schedule

Press the left / right button on the remote control to select the Edit tab from the menu bar.

Edit Delete Status History No. Source Start time Length Status Add a new schedule 1 Dtv4 10/23 17:39 00:01 Ready 2 Dtv1 10/23 18:50 00:30 Ready 2009/10/23 Fri 17:36

Select the schedule you want to edit from the list and press the enter button. The schedule setting screen appears. Modify the schedule as described in 'Create a New Schedule'.

Delete Schedule

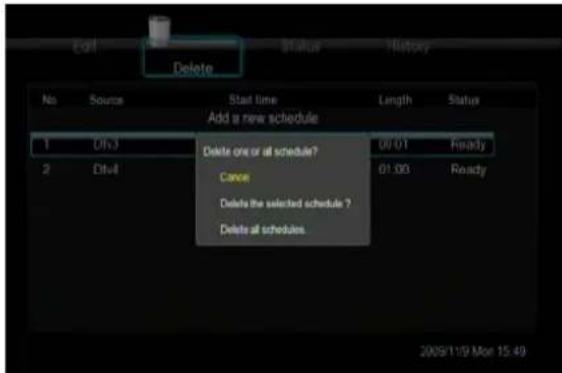

Press the left / right button on the remote control to select the Delete tab from the menu bar. Select the schedule you want to delete and press the enter button. A confirmation message appears.

Delete No Source Start time Length Status Add a new schedule 1 Dfrj Delete one or all schedule? 00:01 Ready 2 DvlI Cancel 01:00 Ready Delete the selected schedule ? Delete all schedulers 2009/11/9 Mon 15:49

Select CANCEL, Delete the selected schedule, or Delete all schedules. Press the enter button to confirm.

View Schedule Status

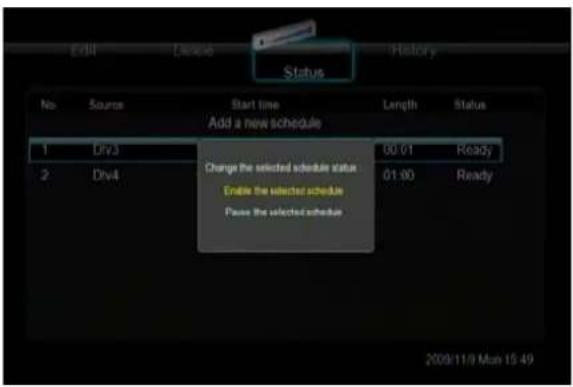

Press the left / right button on the remote control to select the Status tab from the menu bar. The schedule list is displayed. Select a schedule and press the enter button.

Status No Source Start time Length Status Add a new schedule 1 Div3 60.01 Ready Change the selected schedule status 2 Div4 01:00 Ready Enable the selected schedule Pass the selected schedule 2009/11/9 Mon 15:49

Select Enable the selected schedule or Pause the selected schedule. Press the enter button to confirm.

Viewing Recording History

Press the left / right button on the remote control to select the History tab from the menu bar.

Here you can view a complete history of all recordings that were set.

Result OK Dtv1 11/04 20:36 00:01 HDD OK Video1 11/04 22:10 01:00 HDD FAIL Video1 11/04 23:30 02:00 HDD OK Dtv1 11/05 02:00 05:00 HDD

7. Browser Menu

The browser menu allows you to browse and play media files stored on Removable Devices (USB, Card), HDD, Network, UPnP-server, and Playlist. To enter the menu, select the Browser icon on the home screen, or press the BROWSER button on the remote control.

All Music Photo Movies USB CARD LocalHDD Network UPnP

The following buttons can be used while navigating the browser menu.

Button	Function
UP / DOWN	Move cursor up / down to select devices, folders, or files.
LEFT / RIGHT	Select filter options: All, Music, Photos, and Movies.
PREV / NEXT	Go to previous / next page.
ENTER	Enter or confirm the selected item.
RED	Select files under Browser -> HDD menu.
GREEN	Add the selected files to the playlist.
RETURN	Return to the previous menu.

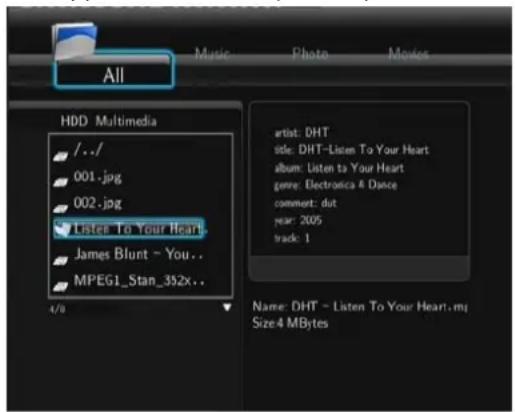

7.1 Browsing All

In this mode, all folders and supported contents (music, photos, and movies) will be displayed.

All HDD Multimedia /../ 001.jpg 002.jpg Lists To Your Heart. James Blunt - You.. MPEG1_Stan_352x.. 4/9 music Photo Movies artist: DHT title: DHT-Listen To Your Heart album: Listen to Your Heart genre: Electronics & Dance comment: dut year: 2005 track: 1 Name: DHT - Listen To Your Heart, mJ Size: 4 MBytes

Note:

• Please refer to chapter '7.1 Specifications' for more about the supported content formats.
• Muisc tracks might not be able to play continuously under All filter, please switch to the Music filter instead.

7.2 Browsing Music

In this mode, all folders and supported audio files in current directory will be displayed.

Music HDD: Nickelback.~[all the /../ How you home .mps nickelback - all the... nickelback - all the... nickelback - all the... nickelback - all the... nickelback - all the... 2/12 artist: Nickelback title: Follow You Home album: All The Right Reasons gene: Rock comment: img year: 2005 track: 1 Name: nickelback - all the right reasons Size: 5 MBytes

The following buttons can be used to control music playback.

Button	Function
PLAY/PAUSE	Begin/pause playback.
FR / FF	Fast rewind or fast forward. Press repeatedly to select the speed.
REPEAT	Set repeat options: One, All, (and Shuffle) and off.
INFO	Hide or display the information bar during playback.
STOP	Stop playback.

7.3 Browsing Photos

In this mode, all folders and supported image files in current directory will be displayed.

All Music Movie Photo HDD Photos /../ 001.jpg 002.jpg 003.jpg 004.jpg 005.jpg 4/10 Name: 003.jpg Size: 880 K Bytes

The following buttons can be used to control photo playback.

Button	Function
PLAY	Begin playback.
PREV / NEXT	View the previous or next photo.
LEFT / RIGHT	Rotate photo.
REPEAT	Set repeat options: One, All, (and Shuffle).
ZOOM	Zoom the image.
INFO	Hide or display the information bar during playback.
STOP	Stop playback.

You can view photos in slide show mode with background music. At first please start music playback and then go to your preferred picture folder. When it is enabled, the slide show starts automatically once you press PLAY button. (Please refer to Slide Show Timing, Transition Effect, and Background Music in chapter '3.7 Miscellaneous' for more details)

7.4 Browsing Movies

In this mode, all folders and supported video files in current directory will be displayed.

All Music Photo Movies HDD HD /MPG/[1080P]Kc /../ 09-07.LA.VS.NO. [CHD]01-13-08.... [CHD]01-14-08.L.. [CHD]01-17-08.P.. [CHD]01-23-08.L.. 2/16 00:00:17/00:02:25 Name: [CHD]01-09-07.LA.VS.NO.K Size:273 MBytes

The following buttons can be used to control video playback.

Button	Function
PLAY/PAUSE	Begin/pause playback.
SLOW	Play video in slow motion. Press repeatedly to select the speed.
FR / FF	Fast rewind or fast forward. Press repeatedly to select the speed.
PREV / NEXT	View the previous or next movie.
REPEAT	Set repeat options: One, All, Off.
ZOOM	Zoom the image.
INFO	Hide or display the information bar during playback.
GOTO	Display playback search menu.
A-B	Set the beginning and end points of a section to repeat.
ANGLE	Change the view angle during DVD (with multi-angle) playback.
MENU	Return to the root menu during DVD playback.
AUDIO	Select an audio track while watching DivX video or DVD with multiple audio tracks.
SUBTITLE	Set subtitle options. You can change text encoding and the size/color/offset of the subtitle here.
STOP	Stop playback.

7.5 Audio and Video Streaming via Network

You can stream the media files shared on the home network (Ethernet or WLAN). Please refer to '3.4 Changing Network Settings' for details about network settings.

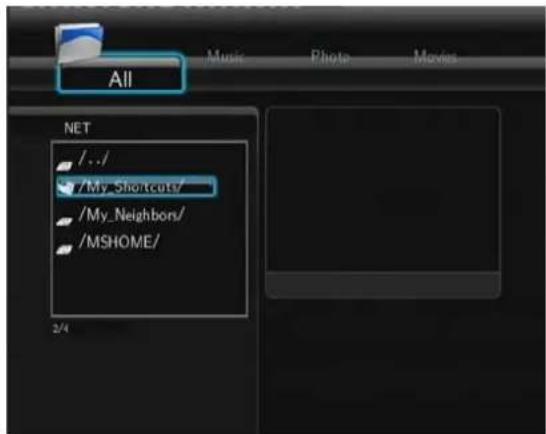

There are two ways to locate media files shared on your local network in the Network menu. One is to browse through workgroup; the other way is to browse through 'My_Shortcuts'.

All NET /../ /My_Shootcuts/ /My_Neighbors/ /MSHOME/ 2/4 Music Photo Movies

7.5.1 Browsing though Workgroup

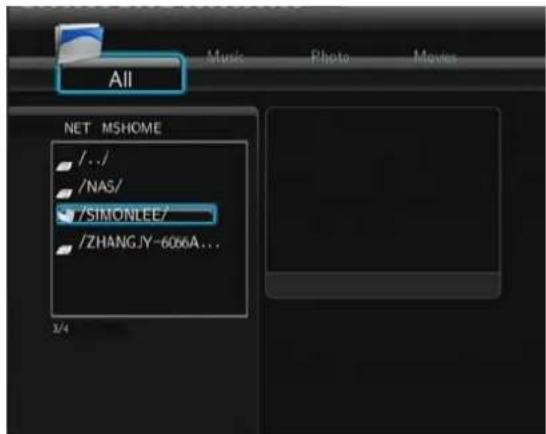

You can choose the workgroup which your PC belongs to from the workgroup list, find your PC name, and press the ENTER button to confirm. Then you can select and play the shared media files that you want to browse.

All NET MSHOME /../ /NAS/ /SIMONLEE/ /ZHANGJY-6056A...

Note:

• While browsing high definition video files (resolution up to 720p / 1080i / 1080p) via Ethernet or WLAN, the video might be buffering. It is normal due to the limit of network speed or signal strength.
• Due to different network conditions, sometimes the workgroup might not be accessed or shown in the list. And then you need to use 'My_Shortcuts' to browse shared files.

7.5.2 Browsing though 'My\_Shortcuts'

You can also set 'Specific File Server IP' and access it from 'My_Shortcuts' in the menu.

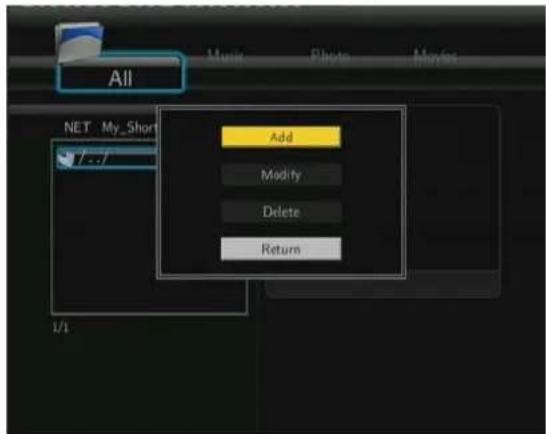

- Press the MENU button and a popup menu appears.

All Music Photo Movies NET My_Short Add Modify Delete Return

- Select Add to open a popup menu where you can input Label, Net User ID, Net Password, Domain, Host Name, and Specific File Server IP. Select OK to confirm, Cancel to cancel, and Simple / Detail to switch between simple and advanced options.

Label Net User ID Simon.Lee Net Password Domain Host Name Specific File Server IP 192 168 1 3 OK CANCEL Simple = [ ] ? shift ; .

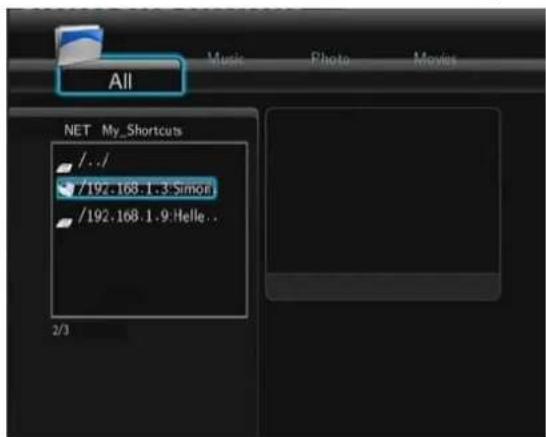

- Select the shortcut you added and press the ENTER button to confirm. Then you can select and play the shared media files on the destination computer.

All NET My_Shortcuts /../ /192.168.1.3 Simoni /192.168.1.9 Helle.. 2/3

7.6 A/V Streaming via UPnP-server

A built-in UPnP (Universal Plug and Play) client has been integrated on the system, which enables the player to auto-detect UPnP Media Servers on the network to browse and stream media files from them.

7.6.1 Installing UPnP Media Server on your PC

There're a lot of free and commercial UPnP Media Server software, such as Windows Media Connect, Windows Media Player 11, XBMC Media Center (Linux/Mac/Windows), MediaTek (Linux), etc. Please install one of them on you computer. In the following chapters, we will take Windows Media Player 11 on Microsoft Windows XP SP2 for an example.

7.6.2 Sharing Media on your PC

The Media Sharing feature of Windows Media Player 11 lets you enjoy the contents of your Windows Media Player library from anywhere in your home.

- Open Windows Media Player 11, click Library -> Add Library -> Advanced Options to add or remove media files from the library.

Windows Media Player Now Playing Library Fip Burst Topic Media Guide Music • Libraries • Recently Added Projects Create Playlist 00-vanone.com... 00-ventlife.doc... 00-talor_the_t... 00-new_found_ 00-vnf_lavigne. Library: Recently Added Artist Album Songs Greene Year Rating ABC Names Add to Library Select folders that you want to monitor for media files. The Player library on his computer is updated automatically to reflect changes. Select the folders to monitor My personal folders My folders and those of others that I can access Managed Folders Type D:\Program Files\VitMak\Incoming\Name Lonely CDM 1957.0 F:\My Music Automatically added C:\Documents and Settings\All User\Documents\Fly Music Automatically added C:\Documents and Settings\All User\Documents\Fly Videos Automatically added P:\Users\Pcpimer Learn more about monitoring folders Add Remove Add files previously deleted from library Add volume Involving values for all files (slow) Skip files smaller than... Audio files: 100 KB Video files: 500 KB << Advanced Options OK Cancel ABC Names Add Admins 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB 4TB

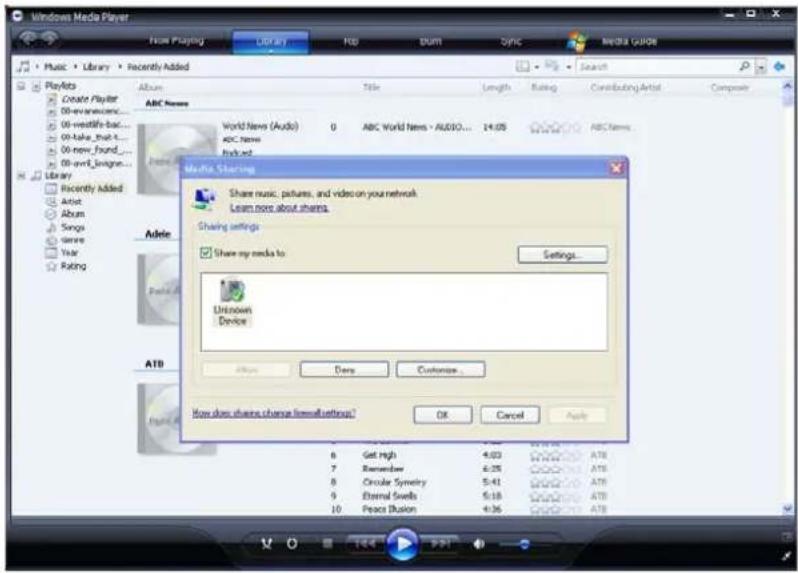

- Click Library -> Media Sharing, then you can allow or deny devices to access the media library. Click Allow to authorize your player.

Windows Media Player From Playing Library PCD BOM SYNC MEDIA GROUP Music • Library • Recently Added PlayInfo Create Playlist 00-vetances... 00-wealthy-back... 00-take_thuckt... 00-new_found... 00-world_ligne... Library Recently Added Artist Album Songs Serves Year Rating ABC News World News (Audio) 0 ABC World News - AUDIO... 14:05 ABC News Share music, pictures, and videos on your network. Learn more about sharing. Sharing settings Share my media to: Settings... Unknown Device Show... Desc... Customize... How does share change from all settings? OK Cancel Apply 6 Get High 4:03 AT8 7 Remember 6:25 AT8 8 Circular Symmetry 5:41 AT8 9 Eternal Swells 5:18 AT8 10 Peace Shock 4:36 AT8

7.6.3 Streaming Media on your Player

• Connect your player to the home network (LAN or WLAN).
• Visit Browser -> UPnP menu on the player, select the UPnP-server, and press ENTER.

All UPNP /../ #000152 - Your

- Then you can browse the media library shared by Windows Media Player 11.

All UPNF SIMONLEE: 1 : Windc /../ /Music/ /Pictures/ /Playlists/ /Video/

Note:

• Make sure your player and your computer are on the same local area network and subnet.
- Firewalls may prevent your player to communicating with your computer. Please open the ports manually and add your player to the 'trusted' list, or disable the firewall temporarily.

7.7 Renaming / Deleting Files

When navigating in the browser menu, you can press the MENU button to activate a popup menu where you can rename and delete files or folders.

All HDD Multimed /../ D01.jpg 002.jpg DHT - Listc James Blunt MPEG1_Stan_352x.. 2/8 Return Rename Delete Name: 001.jpg Size: 707 KBytes

Press the UP / DOWN buttons to select from Return, Rename, and Delete. And press ENTER to confirm.

7.8 Managing the Playlist

This player supports the playlist function, which allows you to add your favorite contents on local HDD to the playlists (All, Music, Photos, and Movies), and enjoy them at any time.

7.8.1 Adding files to the playlist

Select the favorite file you wish to add, press the RED button, and the file will be ticked. Press the GREEN button to confirm, and then an on-screen message 'Add selects to list' will be shown. Multiple selections are allowed. See photo below.

Music All Local HDD /init.d/ /mms radio/ /small/ /test media/ /Greenday - Basketcase.mp3 /The Dawn.mp3 9/10 Photo Movies artist: Green Day title: Basket Case album: International Superhits! game: (20) year: 2001 track: $ Name: Greenday - Basketcase.mp3 Size: 2 MBytes

Add selects to list. All MUSIC HOTO MOVES Local HDD /init.d/ /mms radio/ /small/ /test media/ /Greenday - Basketcase.mp3 /The Dawn.mp3 artist: Green Day title: Basket Case album: International Superhits! goose: 120 year: 2001 track: $ Name: Greenday - Basketcase.mp3 Size: 1 MBytes

7.8.2 Browsing the playlist

Press the UP / DOWN buttons to select Play List in the browser menu. Press the LEFT / RIGHT buttons to select between All, Music, Photos, and Movies. And press the ENTER button to confirm. Then you will enter the playlist.

All Music Photo Movies Playlist: /..√ /Greenday - Basketcase.mp3 /The Dawn.mp3 208 artist: Green Day title: Basket Case album: International Superbits1 game: (20) year: 2001 track: 5 Name: Greenday - Basketcase.mp3 Size: 2MBytes

8. File Copy Menu

Select the File Copy icon from the home screen to enter the File Copy menu or press the Copy button on the remote control, which allows you to copy files and folders between removable USB devices, Local HDD, and Network.

File Copy Source Destination USB CARD Local HDD Network Trash can Print SELECT to select cancel file. STOP to cancel all file and RIGHT to next step

The following buttons can be used under the file copy menu.

Button	Function
UP / DOWN	Move cursor up / down to select devices, folders
RIGHT	Go to the next step.
MENU	Select (or cancel) folders or files (The selected items will be ticked).
STOP	Cancel all selections.
ENTER	Confirm the selected options.

Please refer to the following operations to copy / move folders / files between devices.

• Step 1: Select the source device and destination device.
• Step 2: Select the source files you want to copy.
• Step 3: Select the destination folder to store the above files.
• Step 4: Select Copy or Move to proceed.

9. Media Library

Ffantec MEDIA LIBRARY ARTIST, GENRE, ALBUM... Interest Radio P2P Share Media Library Schedule Record File Copy Manage and Search Media Files

This is a powerful search engine. The media library menu allows you to search and browse multimedia files stored on the internal HDD. To enter this menu, select the Media Library icon on the home screen.

9.1 Music library

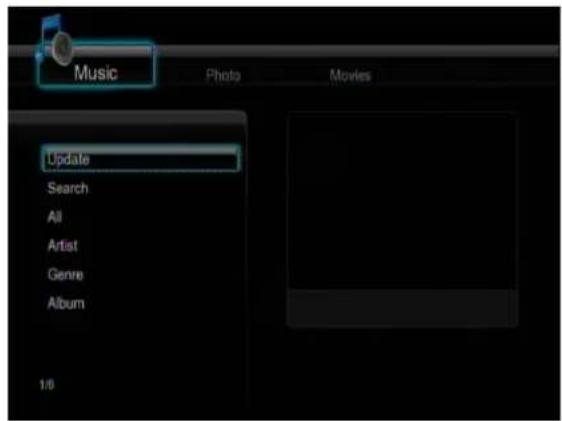

Use the left / right button on the remote control to select the Music tab.

Music Update Search All Artist Genre Album 1/6 Photo Movies

Press the up / down button to select from Update, Search, All, Artist, Genre, and Album. And press the enter button to confirm.

Update	Select to update and synchronize all the music stored on the internal HDD to the library.
Search	Select to search for music files by their names.Use thenavigationalbuttons to select, and press theenterbutton to confirm. Select OK and press theenterbutton, and then the files you desired will be displayed on the screen.
All	Select to list all the music files in the library.
Artist	Select to list all the music files by artist.Press theup/downbutton to select the artist, and press theenterbutton to confirm.
Genre	Select to list all the music files by genre.Press the up / down button to select the genre, and press the enter button to confirm.
Album	Select to list all the music files by album.Press the up / down button to select the album, and press the enter button to confirm.
Quick-Search	You can also press the right button to turn on a Quick-Search bar while browsing music files in the library.Press the up / down button to select characters on the Quick-Search bar, and press the enter button to confirm. And then music files with name starting with the specific characters will be displayed onto the top. Press the left button to delete characters, and press the return button to close the Quick-Search bar.

9.2 Photo Library

Use the left / right button on the remote control to select the Photos tab.

Music Photo Movies Update Search All Date 1/4

Press the up / down button to select from Update, Search, All, and Date. And press the enter button to confirm.

Update	Select to update and synchronize all the photos stored on the internal HDD to the library.
Search	Select to search for photos by their names.Use thenavigationalbuttons to select, and press theenterbutton to confirm. Select OK and press theenterbutton, and then the files you desired will be displayed on the screen.
All	Select to list all the photos in the library.
Date	Select to list all the photos by date.Press the up / down button to select the date, and press the enter button to confirm.
Quick-Search	You can also press the right button to turn on a Quick-Search bar while previewing photos in the library.Press the up / down button to select characters on the Quick-Search bar, and press the enter button to confirm. The photo files with the specific characters will be displayed. Press the left button to delete characters, and press the return button to close the Quick-Search bar. Finally press the enter button to start playback.

9.3 Movie Library

Use the left / right button on the remote control to select the Movies tab.

Music Photo Movies Update Search All Actor Genre Year 16

Press the up / down button to select from Update, Search, All, Actor, Genre, and Year. And press the enter button to confirm.

Update	Select to update and synchronize all the movies stored on the internal HDD to the library.
Search	Select to search for movies by their names.
	Use thenavigationalbuttons to select, and press theenterbutton to confirm. Select OK and press theenterbutton, and then the files you desired will be displayed on the screen.
All	Select to list all the movies in the library.
Actor	Select to search for movies by actor.Press the up / down button to select the actor, and press the enter button to confirm.
Genre	Select to search for movies by genre.Press the up / down button to select the genre, and press the enter button to confirm.
Year	Select to search for movies by year.
	Press the up / down button to select the year, and press the enter button to confirm.
Quick-Search	You can also press the right button to turn on a Quick-Search bar while previewing movies in the library.
	Press the up / down button to select characters on the Quick-Search bar, and press the enter button to confirm. The movie files with the specific characters will be displayed. Press the left button to delete characters, and press the return button to close the Quick-Search bar. Finally press the enter button to start playback

NOTE:

In order to use the search function more efficiently, you are encouraged to use the following rules to name the movies stored on the internal HDD.

Syntax: [Name][Actor][Genre][Year].extension

Examples: [Enchanted.CD1][Amy Adams][Love][2007].avi, [The.Dark.Knight.CD1][Christian Bale][Action][2008].avi, etc.

10. Internet Radio

This player integrates the SHOUTcast free Internet radio function. Select the Internet Radio icon on the main interface to enter this menu.

Station Genre Favorite

Note:

• Make sure the player is connected properly to a LAN or WLAN with Internet access, please refer to '3.4 Changing Network Settings' for more details;
• When you enter the Digital Radio menu at the first time, it will take several seconds to download data from the Internet, please be patient to wait.

The following buttons can be used under this menu.

Button	Function
UP / DOWN	Move cursor up / down to select station, channel, and genre.
PREV / NEXT	Page up / down.
ENTER	Confirm and enter the selected menu.
MENU	Add / delete a station to / from Favorite while it is highlighted.
PLAY	Begin playback after a channel has been selected.
STOP	Stop playback.
RETURN	Return to the previous menu.

Station

- All downloaded stations will be listed under this menu.

Genre

- You can search for stations by genre (pop, rock, jazz, etc.) under this menu.

Favorite

- Your favorite stations can be kept under this menu.

Search

- You can search for radio stations. (Please visit www.shoutcast.com for available stations)

11. Downloads

Select the P2P Share icon on the main menu. You can see the status of torrents download progress and configure the BT download settings in this menu. Press LEFT/RIGHT button to enter into download menu and BT setup menu.

fantec DOWNLOADS BIT TORRENT Torrent CLIENTC MS Internet Radio BIC Media Library Subprime Resources P2P Share

Add a torrent

Locate your torrent file in Browser menu, then press MENU button to add the torrent to start downloading.

All Music Photo Movies USB C: /43 /8-22-23百中/ /00000000000/ /audior/ /Avril.Lavigne - [8-Sides/ B1 farant/ 1453

All Music Photo Movies USB C:\B\T forest int Black至今_04_14001 [+v]宽心计-06-19[圆语字] [★第①感原创★][v]连续剧 [★第②感原创★][台湾]巨大 [被丝解]希望主贴desperat Return Rename Delete Add the forest

Download Menu

After add the BT torrent files, the download progress can be displayed in this menu.

Download BIT Setup 导入列表 [★单心播放机●TVV连接器]芯片[13-12] [idj, The_Spend_Blockwidth, SA_1401A8] [★单心播放机●[台声]数字文件][国语中字]D Download rate: 5Gbps Upload rate: 0KB Size: 2413MB Percent: 0% Priority 1 State Leach

The following buttons can be used under this menu.

Button	Function
UP / DOWN	Move cursor up / down.
MENU	press to adjust the priority of the download task
PAUSE	Press to pause the download.
PLAY	Press to start download.
STOP	Press to stop the download.
RETURN	Return to the previous menu.

BT setup Menu

Download Bt Setup Max Download 400KB/S Max Upload 20KB/S Inactive Switch 1 Hour Seed Time 1 Hour Auto Delete YES Max Torrent 8 Jobs

In the BT Setup menu, you can configure the following settings. Use UP/DOWN and ENTER to change the settings.

• Set the maximum download rate.
• Set the maximum upload rate.
• Set the idle hours to start the next download automatically.
• Set the seeding hours.
• Set to delete the finished torrent files automatically or not.
• Set the maximum number of simultaneous download tasks.

12. NAS Function (samba)

This player can be used as a NAS (Network-Attached Storage) device. It can be attached to the home network via either Ethernet or WLAN. This feature allows homes to store and retrieve large amounts of data more affordably than ever before.

When the network connection is done correctly and ready for use, please turn on NAS function in the setup menu in advance (refer to 3.6 Changing System Settings for more details), and then type: \IP Address in the Run window (click Run in the start menu) or the address bar of Internet Explorer on your PC (For example, if the IP address of the player is 192.168.0.9, please type: \192.168.0.9), and click OK or press the Enter button on the keyboard.

Run Type the name of a program, folder, document, or Internet resource, and Windows will open it for you. Open: \\192.168.0.9 OK Cancel Browse...

Under windows vista and windows 7, pls type: \192.168.0.9 on search bar, then press the Enter button on the keyboard.

See more results \192.168.0.9 Shut down

Then you can view, and edit the files stored on the hard disk installed on the player. In this way, you can also playback and copy files via network between your PC and the player.

Note:

1. Please turn on the BitTorrent and SAMBA in the setup menu before using this function.

13. IMS (Internet Multimedia Service) Menu

This feature is additional function. All contents and services under this feature are provided by third-party service providers, our company does not offer any contents and services of this feature and it not responsible for any contents and services provided under this feature. Our company is not responsible for any operational stability of the contents and services, for example, if you cannot access certain web site for video streaming or news broadcast, or the content of a web site has been changed etc, are all responsible and control by the third-party service providers. If you find that these features cannot operate properly, please contact our customer service or visit our company website to obtain the relevant information.

14. Upgrading the Firmware

The firmware is the operating system (OS) installed on the device. Firmware upgrades can bring new features, improvements and bug fixes.

(1) Copy 'install.img' or extension files to the root directory of a USB stick, and connect it to the USB HOST port of the player.
(2) Press and hold the power / standby button on the front panel, and do not loosen.
(3) Plug the power cable into the DC IN jack, wait for about 5 seconds or more, and then loosen your finger on the power / standby button;

Firmware installation will start. There is another way for upgrading. Please refer to System Update and Extension Info in chapter '3.6 Changing System Settings' for more details.

15. Appendixes

15.1 Specifications

I/O INTERFACES SUPPORTED:

• 3.5" SATA HDD
• USB 2.0 HOST port x 2 (compatible to USB 1.1)
  ● Memory Card slot (supports SD/MMC/MS/MS Pro)
• USB 2.0 DEVICE port (connecting to PC)
  ● Composite (CVBS) A/V IN jack
  ● Composite (CVBS) A/V OUT jack
  ● Component Y/Pb/Pr jack
• EURO Scart
• ANT.RF IN/OUT socket
• HDMI V1.3 interface
  ● S/PDIF optical jack
• DC-IN 12V

FILE SYSTEM SURPORTED:

- MP2/3, OGG Vorbis, WMA (DRM, and Advanced Profile not supported), PCM, LPCM, MS-ADPCM, LC-AAC, HE-AAC, COOK, RA-Lossless

SUBTITLE FORMATS SURPORTED:

● SRT, SMI, SSA, ASS, IDX/SUB, SUB

NETWORK FEATURE

● 10/100Mbps Auto-Negotiation Ethernet
● 802.11b/g/n WLAN, up to 300Mbps (supported by optional WLAN USB Adapter)

VIDEO RECORDING

● DTV recording format: TS
● AV IN recording format: MPG(MPEG2,MP2)

Note: The specifications and design of this product are subject to change without notice.

15.2 Frequently Asked Questions

Question 1. When I try to disconnect the USB device, I keep on getting “The device ‘Generic volume’ cannot be stopped right now. Try stopping the device again later.” message, what should I do?

Answer:

Close any program that might be accessing data on the player, including Windows® Explorer. If it does not work, close all programs and wait for another 20 seconds, then try the green arrow icon again. If it still does not work, you should shut down the player and disconnect the USB cable.

Question 2. I find new file names and folder names that I never created before or they have strange gibberish names.

Answer:

Most likely, the player's file allocation table (FAT) has been corrupted. This might be due to the player shutting down (due to low battery power) while reading or writing to your computer by the USB connection. Windows and Macintosh often write extra files to the hard disk such as finder.def or System volume info. These are normal and will not do any harm to the player.

Question 3. I used my player to transfer files back and forth between different computers. Will defragmenting the player hard disk do any harm to it?

Answer:

Defragmenting the player hard disk may be useful after having transferred many files to and from the player. It is never harmful to use the defragment on the player. Make sure no other programs are running while using the Windows® defragment utility. Make sure you have connected the player with the external power adapter during this procedure.

Question 4. My files have disappeared from the player.

Answer:

Make sure that you browse your files via the correct browser mode which means correct filtered views such as Photos, Music, or Movies.

Question 5. During power on, why does the TV will have a short flashing, blue screen or screensaver?

Answer:

This is normal, when the system initializes, it will setup the corresponding parameters so it can output the correct video signal to the TV, during the initializing time, the TV will receive incorrect signals or the signals will not be stable and will cause the TV screen to flash, some TV's will treat this as no signal, and will display a blue screen or screensaver.

Question 6. Why when I switch to Y/Pb/Pr 480p, 576p, 720p, 1080i, and 1080p, does the

TV screen display an unwatchable picture?

Answer:

Please check if your TV supports Y/Pb/Pr 480p, 576p, 720p, 1080i, and 1080p output, if your TV does not support, please use the A/V signal display instead, press the TV SYSYEM button on the remote control, then switch the TV's video input to NTSC or PAL.

Question 7. Why is there no sound on movie or music playback when using Y/Pb/Pr component output?

Answer:

Y/Pb/Pr output is a video output only, and does not include sound signals. When using Y/Pb/Pr output, please plug the A/V OUT or the S/PDIF jack to output sound.

Question 8. I cannot get SSID name, the screen always displays: 'Can't get any SSID!!'

Answer:

When the WLAN USB Adapter is connected to the player, it needs some time to get initialized. Please wait for about 1\~2 minutes and try refreshing the SSID list again.

Question 9. I cannot see files shared on my computer via Browser->Network menu.

Answer:

Please check following items:

1) Connect the player to network and obtain an IP address first;
2) Please enable NetBIOS of TCP/IP on computer;
3) Please check your PC's firewall settings;
4) Please enable your PC's 'Guest' account;
5) Please share the folders which you wish to browse on your PC, and make sure that 'Everyone' or 'Guest' has the right to access.

Question 10. I configured everything correctly, but still cannot get the wireless network or UPnP function to work.

Answer:

Are you using a firewall such as Norton Internet Security, McAfee Personal Firewall, Zone Alarm, etc. or even the built-in firewall of Windows XP? (Don't forget that Service Pack 2 for Windows XP automatically upgrades your firewall and turn it on by default)

If you have a firewall, it may need to be configured or have exceptions created to allow you to see and communicate with the player on the network. To test if your firewall is preventing network communication (including PING and access shared folders), try disabling it to see if you can connect. If you can connect with the firewall disabled, you may need to add the player to the 'Trusted' list or configure the firewall for local intranet access. Worst-case, disable your firewall long enough to use the player, then enable it again when done.

Question 11. I am using the 802.11n Wi-Fi dongle with an 802.11n wireless router, why the speed is still 802.11g 54Mbps rather than 300Mbps?

Answer:

The IEEE 802.11n Draft standard prohibits using high throughput with WEP or TKIP as the unicast cipher. If you use these encryption methods (e.g. WEP, WPA-TKIP), your data rate will drop to 54 Mbps. You may contact the Access Point or router manufacturer to download the latest firmware, or try other encryption methods (WPA2-AES or WPA2-TKIP), or choose to configure an unsecured profile, but this option is not recommended.

Question 12. Where can I find .torrent files for BitTorrent download?

Answer:

A lot of torrent sites can be found on the Internet, such as The Pirate Bay, Isohunt.com, TorrentPortal.com, Mininova.org, etc. Please take care of the contents you're downloading and their usage, which might cause copyright infringements and violate the local laws.

Question 13. Why do some supported photo formats, cannot be shown in the photo function?

Answer:

In the JPEG format there are different modes. The player doesn't support all the modes. So you have to change your photo format first as follow:

(1) Use Photoshop to open the photo;

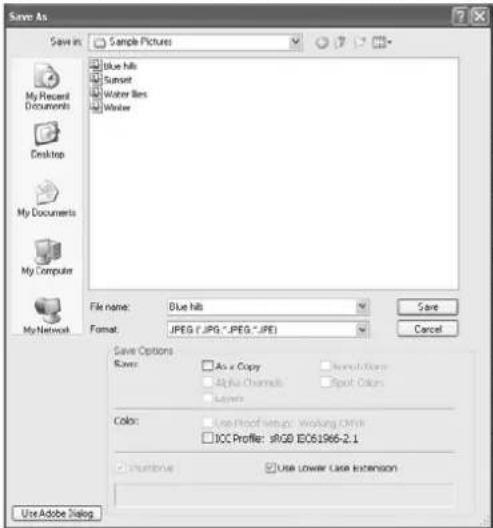

(2) Choose "File" then "save as" from the menu, as the picture on the left hand side shows, select the picture format as JPEG, input the file name and click the "save" icon;
(3) After click on the "save" icon, a new window will appear as the picture on the right hand side shows, select "Baseline (standard)" or "Baseline optimized";

Save As Sample Pictures Blue Hills Sunset Water Bits Water File name: Blue Hills Format: JPEG (*.JPEG (*.JPEG) Save Cancel Save Options Name: □ As a Copy □ Alpha Channels □ Yellow Colors □ Layer Color: □ Use Roof setup: Working Only □ ICC Profile: shGB IEC61966-2.1 □ Intersection □ Use Lower Case Extension Use Adobe Dialog

JPTG Options Matte: None Image Options Quality: 10 Maximum small Re Large Re Format Options Baseline ("Standard") Baseline Optimized Progressive Scale: 3 Size =59.0K / 10 Str 56.6Kbps OK Cancel Preview

(4) Click the "OK" icon.

Question14. Why couldn't the player find the hard disc?

Answer:

Make sure the firmware is installed correctly, and no system partitions on the HDD were deleted. If hard disc failure occurs, please backup your data and reinstall the firmware.

Question15. Some functions like recording, time shift etc. do not work. What should I do?

Answer:

If you find some functions do not work properly on the player, please change system settings to the default (Refer to 3.6 for changing system settings).

15.3 Copyrights and Trademarks

Copyrights

All rights reserved. No part of this manual may be reproduced, or transmitted in any form or by any means, whether by electronically or mechanically, without the express written permission from the copyright holder.

Copyrighted materials, such as software, music files, or movies, are protected by local law, and may not be illegally copied or used without permission from the copyright owner.

Trademarks

Microsoft and Windows are registered trademarks of Microsoft Corporation.

All other trademarks are property of their respective holders.

2.0+Digital Out

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

DIGITAL

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

15.4 Warranty

What your warranty does not cover:

-Acts of nature, such as fire, static discharge.

-Damage from unauthorized repair, alteration or accident.
-Damage from misuse or neglect.
-A unit that has been modified or incorporated into other products or is used for institutional or other commercial purposes.
-Loss of customer's software, firmware, information, or memory data.
-Improper handling or installation.

12.5 GPL Statement

This product contains free software which is licensed under the GNU General Public License. After you purchase this product, you may procure, modify or distribute the source code of the GPL/LGPL software that is used in this product.

To obtain a copy of our open source software, please contact our support center and we will provide you with a CD-ROM of the source code that is used, charging only the actual expense involved. However, please be noted that we can not provide guarantee with the source code, and there is also no technical support for the source code from us.

TECHNICAL INFORMATION

License information for the software used in the unit.

This product contains Free Software which is licensed under the GNU General Public License. After you purchase this product, you may procure, modify or distribute the source code of the GPL/LGPL software that is used in this product.

If you contact our Support Center, we will provide you with a CD-ROM of the source code that is used, charging only the actual expensed involved. However, please be noted that we can not provide guarantee with the source code, and there is also no technical support for the source code from us.

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc.

51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow. TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say,

a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole,

and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However,

parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

1. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

2. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

3. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those

countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

1. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
