USER MANUAL P8P67 WS REVOLUTION, P8P67 DELUXE ASUS

Offer to Provide Source Code of Certain Software

This product may contain copyrighted software that is licensed under the General Public License ("GPL") and under the Lesser General Public License Version ("LGPL"). The GPL and LGPL licensed code in this product is distributed without any warranty. Copies of these licenses are included in this product.

You may obtain the complete corresponding source code (as defined in the GPL) for the GPL Software, and/or the complete corresponding source code of the LGPL Software (with the complete machine-readable "work that uses the Library") for a period of three years after our last shipment of the product including the GPL Software and/or LGPL Software, which will be no earlier than December 1, 2011, either

(1) for free by downloading it from http://support.asus.com/download; or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location where you want to have it shipped to, by sending a request to:

ASUSTeK Computer Inc.

Legal Compliance Dept.

15 Li Te Rd.,

Beitou, Taipei 112

Taiwan

In your request please provide the name, model number and version, as stated in the About Box of the product for which you wish to obtain the corresponding source code and your contact details so that we can coordinate the terms and cost of shipment with you.

The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as the corresponding binary/object code.

This offer is valid to anyone in receipt of this information.

ASUSTeK is eager to duly provide complete source code as required under various Free Open Source Software licenses. If however you encounter any problems in obtaining the full corresponding source code we would be much obliged if you give us a notification to the email address [e-mail], stating the product and describing the problem (please do NOT send large attachments such as source code archives etc to this email address).

Table des matieres

Notes vi

Security (Securite) 3-5

3.4 Menu Ai Tweaker 3-8
3.5 Menu Advanced (Avancé) 3-14

3.5.1 CPU Configuration (Configuration du CPU) 3-15
3.5.2 System Agent Configuration (Agent de configuration système) 3-17
3.5.3 PCH Configuration 3-17
3.5.4 SATA Configuration (Configuration SATA) 3-17
3.5.5 USB Configuration (Configuration USB) 3-19
3.5.6 Onboard Devices Configuration (Configuration des périhériques embarqués) 3-20
3.5.7 APM (Gestion d'alimentation avancée) 3-23

3.6 Menu Monitor (Surveillance) 3-25
3.7 Menu Boot (Demarrage) 3-28
3.8 Menu Tools (Outils) 3-29

3.8.1 ASUS EZ Flash 2. 3-29
3.8.2 ASUS O.C. Profile 3-30
3.8.3 ASUS Drive Xpert 3-31

3.9 Menu Exit (Sortie) 3-32
3.10 Mettre a jour le BIOS 3-33

3.10.1 Utilitaire ASUS Update 3-34
3.10.2 Utilitaire ASUS EZ Flash 3-37
3.10.3 Utilitaire ASUS CrashFree BIOS 3 3-38
3.10.4 Utilitaire ASUS BIOS Updater 3-39

Table des matieres

Power eSATA on the Go

DTS Surround Sensation UltraPC

2.2.3 Central Processing Unit (CPU)

Configurations mémoire

Code	Description
00	Not used
01	Power on. Reset type detection (soft/hard).
02	AP initialization before microcode loading
03	System Agent initialization before microcode loading
04	PCH initialization before microcode loading
05	OEM initialization before microcode loading
06	Microcode loading
07	AP initialization after microcode loading
08	System Agent initialization after microcode loading
09	PCH initialization after microcode loading
0A	OEM initialization after microcode loading
0B	Cache initialization
OC-0D	Reserved for future AMI SEC error codes
OE	Microcode not found
OF	Microcode not loaded
10	PEI Core is started
11-14	Pre-memory CPU initialization is started
15-18	Pre-memory System Agent initialization is started
19-1C	Pre-memory PCH initialization is started
1D-2A	OEM pre-memory initialization codes
2B-2F	Memory initialization
30	Reserved for ASL (see ASL Status Codes section below)

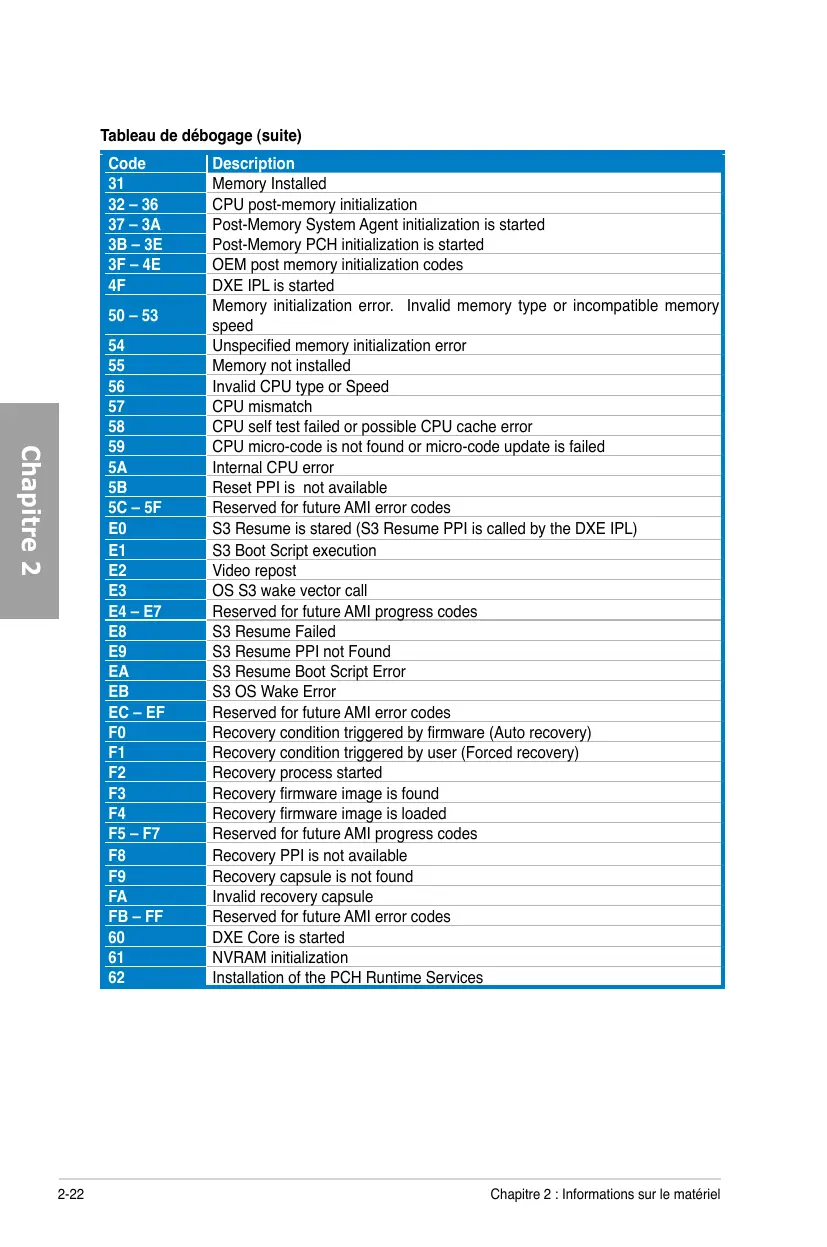

Code	Description
31	Memory Installed
32 – 36	CPU post-memory initialization
37 – 3A	Post-Memory System Agent initialization is started
3B – 3E	Post-Memory PCH initialization is started
3F – 4E	OEM post memory initialization codes
4F	DXE IPL is started
50 – 53	Memory initialization error. Invalid memory type or incompatible memory speed
54	Unspecified memory initialization error
55	Memory not installed
56	Invalid CPU type or Speed
57	CPU mismatch
58	CPU self test failed or possible CPU cache error
59	CPU micro-code is not found or micro-code update is failed
5A	Internal CPU error
5B	Reset PPI is not available
5C – 5F	Reserved for future AMI error codes
E0	S3 Resume is stared (S3 Resume PPI is called by the DXE IPL)
E1	S3 Boot Script execution
E2	Video repost
E3	OS S3 wake vector call
E4 – E7	Reserved for future AMI progress codes
E8	S3 Resume Failed
E9	S3 Resume PPI not Found
EA	S3 Resume Boot Script Error
EB	S3 OS Wake Error
EC – EF	Reserved for future AMI error codes
F0	Recovery condition triggered by firmware (Auto recovery)
F1	Recovery condition triggered by user (Forced recovery)
F2	Recovery process started
F3	Recovery firmware image is found
F4	Recovery firmware image is loaded
F5 – F7	Reserved for future AMI progress codes
F8	Recovery PPI is not available
F9	Recovery capsule is not found
FA	Invalid recovery capsule
FB – FF	Reserved for future AMI error codes
60	DXE Core is started
61	NVRAM initialization
62	Installation of the PCH Runtime Services

Code	Description
63 - 67	CPU DXE initialization is started
68	PCI host bridge initialization
69	System Agent DXE initialization is started
6A	System Agent DXE SMM initialization is started
6B - 6F	System Agent DXE initialization (System Agent module specific)
70	PCH DXE initialization is started
71	PCH DXE SMM initialization is started
72	PCH devices initialization
73 - 77	PCH DXE Initialization (PCH module specific)
78	ACPI module initialization
79	CSM initialization
7A - 7F	Reserved for future AMI DXE codes
80 - 8F	OEM DXE initialization codes
90	Boot Device Selection (BDS) phase is started
91	Driver connecting is started
92	PCI Bus initialization is started
93	PCI Bus Hot Plug Controller Initialization
94	PCI Bus Enumeration
95	PCI Bus Request Resources
96	PCI Bus Assign Resources
97	Console Output devices connect
98	Console input devices connect
99	Super IO Initialization
9A	USB initialization is started
9B	USB Reset
9C	USB Detect
9D	USB Enable
9E - 9F	Reserved for future AMI codes
A0	IDE initialization is started
A1	IDE Reset
A2	IDE Detect
A3	IDE Enable
A4	SCSI initialization is started
A5	SCSI Reset
A6	SCSI Detect
A7	SCSI Enable
A8	Setup Verifying Password
A9	Start of Setup
AA	Reserved for ASL (see ASL Status Codes section below)
AB	Setup Input Wait

Code	Description
AC	Reserved for ASL (see ASL Status Codes section below)
AD	Ready To Boot event
AE	Legacy Boot event
AF	Exit Boot Services event
B0	Runtime Set Virtual Address MAP Begin
B1	Runtime Set Virtual Address MAP End
B2	Legacy Option ROM Initialization
B3	System Reset
B4	USB hot plug
B5	PCI bus hot plug
B6	Clean-up of NVRAM
B7	Configuration Reset (reset of NVRAM settings)
B8- BF	Reserved for future AMI codes
C0- CF	OEM BDS initialization codes
D0	CPU initialization error
D1	System Agent initialization error
D2	PCH initialization error
D3	Some of the Architectural Protocols are not available
D4	PCI resource allocation error. Out of Resources
D5	No Space for Legacy Option ROM
D6	No Console Output Devices are found
D7	No Console Input Devices are found
D8	Invalid password
D9	Error loading Boot Option (LoadImage returned error)
DA	Boot Option is failed (StartImage returned error)
DB	Flash update is failed
DC	Reset protocol is not available

Points de reférence ACPI/ASL

Code	Description
0x01	System is entering S1 sleep state
0x02	System is entering S2 sleep state
0x03	System is entering S3 sleep state
0x04	System is entering S4 sleep state
0x05	System is entering S5 sleep state
0x10	System is waking up from the S1 sleep state
0x20	System is waking up from the S2 sleep state
0x30	System is waking up from the S3 sleep state
0x40	System is waking up from the S4 sleep state
0xA	System has transitioned into ACPI mode. Interrupt controller is in PIC mode.
0xAA	System has transitioned into ACPI mode. Interrupt controller is in ASIC mode.

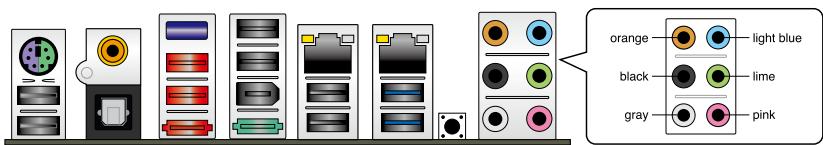

Port	Casque 2 canaux	4 canaux	6 canaux	8 canaux
Bleu clair	Line In	Line In	Line In	Line In
Vert	Line Out	Front Speaker Out	Front Speaker Out	Front Speaker Out
Rose	Mic In	Mic In	Mic In	Mic In
Orange	-	-	Center/Subwoofer	Center/Subwoofer
Noir	-	Rear Speaker Out	Rear Speaker Out	Rear Speaker Out
Gris	-	-	-	Side Speaker Out

2.3.11 Connexions audio

Connexions audio

eXtreme Memory Profile [High Performance]

[By All Cores (Can Adjust in OS)]

[By Per Core (Cannot Adjust in OS)]

Long Duration Maintained [Auto]

Short Duration Power Limit [Auto]

Additional Turbo Voltage [Auto]

Primary Plane Current Limit [Auto]

VRM Fixed Frequency Mode [xxx]

VCCSA Voltage (Voltage VCCSA) [Auto]

Hyper-threading [Enabled]

[Enabled] Enables the C1E support function. This item should be enabled in order to enable the Enhanced Halt State.

[Disabled] Disables this function.

CPU C3 Report (Report d'etat C3 du CPU) [Disabled]

SATA Mode (Mode SATA) [AHCI Mode]

Legacy USB Support (Support USB hérié) [Enabled]

CPU Fan Speed Low Limit

Chassis Fan Max. Duty Cycle (

Anti Surge Support (Support Anti Surge) [Enabled]

Discard Changes & Exit

Launch EFI Shell from filesystem device (Lancer l'application EFI Shell)

WARNING: ALL DATA ON SELECTED SYSTEMS WILL BE LONT. Are you sure you want to create this volume? (Y/N):

Options de configuration : [None] [1G] [10G]

Demarrer ATI Catalyst Control Center

Pour démarrer ATI Catalyst Control Center

Responsible Party Name: Asus Computer International

Address: 800 Corporate Way, Fremont, CA 94539.

Phone/Fax No: [phone]/[phone]

hereby declares that the product

Product Name : Mother board

Model Number : P8P67 DELUXE

Conforms to the following specifications:

Product Name : Mother board

Model Number : P8P67 DELUXE

Conforms to the following specifications:

FCC Part 15, Subpart B, Unintentional Radiators
FCC Part 15, Subpart C, Intentional Radiators
FCC Part 15, Subpart E, Intentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Representative Person's Name: Steve Chang / President

Oct. 18, 2010

Signature :

(EC conformity marking)

Position: CEO
Name: Jerry Shen

Year to begin affixing CE marking:2010

Declaration Date: Oct.18, 2010
