330ECO - Scale American Weigh Scales - Free user manual and instructions

Product Type	Digital Pocket Scale
Brand	American Weigh Scales
Model	330ECO
Capacity	330 g / 11.6 oz
Readability	0.01 g / 0.001 oz
Units	g, oz, ozt, dwt, ct
Display	LCD with backlight
Power Source	2 x AAA batteries (included)
Auto-Off	Yes, after 2 minutes of inactivity
Tare Function	Yes
Calibration	External calibration with 200 g weight
Platform Material	Stainless steel
Dimensions	4.5 x 3.0 x 0.8 inches
Weight (scale)	2.5 oz (approx.)
Included Accessories	User manual, batteries, calibration weight (optional)
Cleaning	Wipe with a damp cloth, do not immerse
Storage	Keep in a cool, dry place
Repairs	Contact manufacturer or authorized service center

Frequently Asked Questions - 330ECO American Weigh Scales

What batteries does the American Weigh Scales 330ECO use?

The 330ECO uses two AAA batteries. They are included with the scale.

How do I calibrate my 330ECO scale?

Press and hold the TARE button until 'CAL' appears. Place a 200 g calibration weight on the platform. The scale will calibrate automatically.

What is the maximum weight capacity?

The maximum capacity is 330 grams (11.6 ounces).

Can I measure in different units?

Yes, you can switch between g, oz, ozt, dwt, and ct by pressing the MODE button.

Why does my scale turn off automatically?

The scale has an auto-off feature that turns it off after 2 minutes of inactivity to save battery life.

How accurate is the 330ECO scale?

The scale has a readability of 0.01 grams, making it suitable for precise weighing.

Can I use the scale without the backlight?

The backlight is automatic and turns on when the scale is activated. It cannot be turned off manually.

What should I do if the scale displays an error message?

If 'Err' appears, try recalibrating or replacing the batteries. If the problem persists, contact support.

Is the scale suitable for weighing liquids?

Yes, use the tare function to zero out a container, then add the liquid.

How do I clean the scale?

Wipe the stainless steel platform with a damp cloth. Do not immerse the scale in water.

USER MANUAL 330ECO American Weigh Scales

Wooden digital kitchen scale with digital display showing 1:10, no text or symbols on the device itself

330ECO (330lb x 0.2lb)

Thank you for purchasing the American Weigh 330ECO bathroom scale. Please read all operating instructions carefully before use. Scales are precision measuring devices and should always be handled with proper care. To ensure years of reliable service, keep these simple tips in mind:

Weighing Tips

• Do not weigh on carpet. Hard floors provide the best weighing surface. Slanted or uneven surfaces should also be avoided.
• For best results, weigh yourself after waking up in the morning. This will give you a more accurate picture of your weight trend. Your weight can fluctuate by several pounds throughout the day.
• For repeatable results, stand as still as possible when weighing, with your weight centered on the platform.
• Keep the area under and around the scale clear. Inaccuracy can arise from items lodged under the platform.

Care Tips

• Clean the scale with a slightly damp cloth. Do not use harsh solvents.
  • To avoid leakage, remove the batteries when storing the scale for extended periods of time.
• Avoid dropping your scale. The warranty does not cover damage due to rough treatment.
• Check the batteries first if you are having any trouble with your scale. This simple step can remedy most scale issues.
• Store your scale in a clean, dry location. Dust, dirt, and moisture can accumulate on the weighing sensors and electronics causing inaccuracy of malfunction.

I. Part List

1. Scale
2. CR2032 Batteries (x2)

II. Key Description

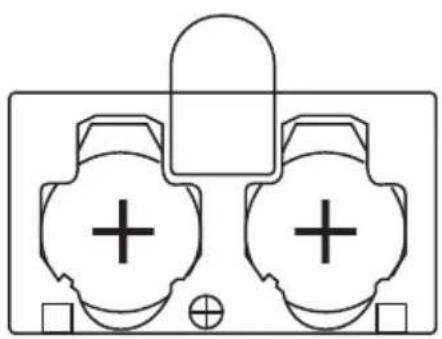

III. Battery Installation

1. Before using the scale for the first time, check the battery compartment and remove any plastic insulation strips or packaging that may be in place to prevent battery drainage during shipping/storage.
2. If you are replacing the batteries, make sure the positive and negative contacts are properly aligned.

Pure electrical connector diagram without any text, numbers, or symbols

Install Both Batteries Positive Side Facing Out

IV. Scale Operation

1. Place the scale on a flat, level surface. Do not weigh on carpet as it may affect the accuracy.
2. Step onto the platform. Once the weight has stabilized, it will be locked on the display for a few seconds.
3. The scale will turn off automatically after 10 seconds of non-use.

NOTES: Do not leave items on the scale when not in use. This scale has an Auto-On feature that allows you to step on the scale immediately without having to tap the scale first to zero it. When moving the scale from one place to another, allow the scale to turn on then off once before weighing. This will allow the zero-point to be re-established. Otherwise, the weight result may be inaccurate (because it includes the weight of the platform).

V. Changing the Unit of Measure

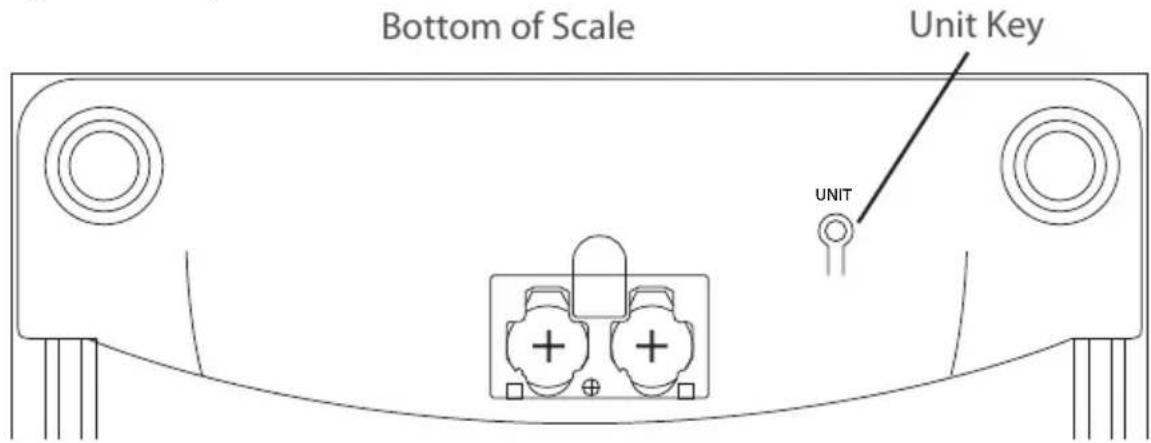

1. Press the UNIT key on the bottom of the scale to change the scale's displayed unit of measure.
2. If the scale is turned off then back on, it will default to the last unit used.

• 330ECO Units: kg (Kilogram) lb (Pound) st:lb (UK Stone:Pound)

VI. Specifications

	330ECO
Max. Capacity	b / 150kg / 23st:8lb
Readability	0.1kg / 1lb
Power	032 (included)
Dimensions	< 11.8 x 1.3”
Display Dimensions	7 x 3.2”
Warranty	r Limited Warranty

American Weigh Scales, Inc.

Norcross, GA 30092, U.S.A

Made in China to our exact specifications and quality control.
