USER MANUAL H-CDM8034 HYUNDAI

Two glossy spheres with reflections on a white background (no text or symbols)

CD/MP3 RECEIVER

CD/MP3-РЕСИВЕР

Table of contents

Dear customer!

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents 2

Before you start 3

Utilization of the product 3

Important safeguards 3

Installation/Connection 4

Installation 4

General notes 4

Din Front/Rear-Mount 4

1. DIN front-mount (Method A) 4

Dismantling the unit 4

Trim frame installation 5

1. DIN rear-mount (Method B) 5

Detachable control panel 5

Anti-theft system 5

Connection 6

Connection diagram 6

ISO Connection table 6

Operation 7

Control elements 7

Front panel 7

Inner panel 7

Remote controller 8

Changing the battery 8

Use of Remote Control 8

LCD layout 9

General operations 10

Reset the unit 10

Power on/off 10

Volume control 10

Setting the sound parameters 10

Setting other features 10

Sound mute 10

Mode select 10

Display 10

AUX in jack 10

Radio operations 11

Band select 11

Auto/Manual tuning 11

Programming tuner stations 11

Automatic store/preset scan 11

Mono/Stereo control 11

Local/distant reception mode 11

RDS function 11

AF (Alternative Frequencies) function ... 11

TA (Traffic Alarm) function 11

PTY (Program Type) 12

REG control 12

Other parameter setting 12

Disc/USB/SD operations 12

USB/SD notes 12

Inserting an SD card/USB device 12

Insert/Eject disc 12

Play/pause 13

Fast forward/rewind 13

Scanning tracks 13

Repeat 13

Random playback 13

Previous/next track 13

MP3 track search 13

General information 14

Handling compact discs 14

Cleaning discs 14

Cleaning the unit body 14

Accessories 14

Troubleshooting guide 15

Specification 16

Utilization of the product

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important safeguards

• Read carefully through the manual to familiarize yourself with this unit.
• Keep this manual handy as a reference for operating procedures and precautions. Do not allow persons who have not read through this manual to use this unit.

- "CLASS 1 LASER PRODUCT"

This product contains a laser diode of higher class than 1. Laser beams from the optical pickup are dangerous to the eyes. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

- Do not allow this unit to come into contact with liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids or dust. Protect this unit from moisture.

- Make sure that foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.

- The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature.

• Using the unit with the temperature that goes beyond the operation temperature greatly

decreases the operation resource of the screen and other components of the unit and can result in an outage.

• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please ensure it before installation.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Let a qualified technician check the system.
  • Always keep the volume low enough so that you can hear sounds from outside the vehicle.
• Should this product fail to operate properly, contact your dealer or nearest service center.

Installation

General notes

• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.
• Before finally installing the unit, connect the wiring and make sure that the unit works properly.
• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
• Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
• If installation angle exceeds 30^ from horizontal, the unit may not perform properly.
• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

Din Front/Rear-Mount

This unit can be properly installed either from 'Front' (conventional DIN Front-mount) or 'Rear' (DIN Rear-mount installation, utilizing threaded screw Holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

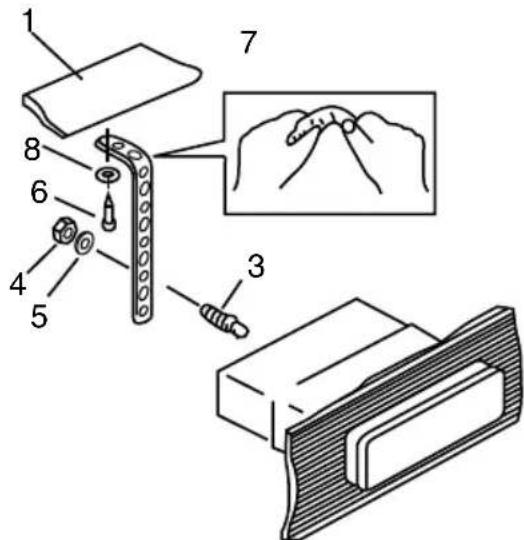

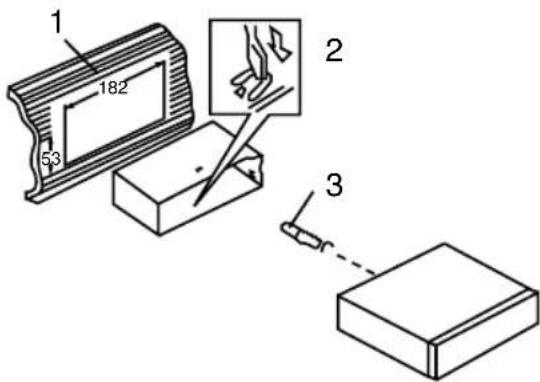

1. DIN front-mount (Method A)

1. Car dashboard
2. Sleeve
3. Screw
4. Nut (5 mm)
5. Spring washer
6. Screw (5 x 25 mm)
7. Metal strap
8. Flat washer

1 182 53 2 3

1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation.
2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as shown in the picture. You can bend the strap to the needed angle with your hands.
4. Make the necessary wire connections. Ensure the connections are correct.
5. Install the unit into the sleeve until the side locks are fixed.

Technical diagram showing labeled parts of a mechanical assembly with numbered annotations and magnified detail view

Dismantling the unit
a - Trim frame

b – Frame uninstall direction

c – Release key insertion

Technical diagram illustrating a mechanical assembly process with labeled parts and directional arrows

1. Switch off the unit and detach the front panel.

2. Insert your fingers into the groove in the front side of the trim frame (apply some effort to detach the frame). Pull the frame to detach it.

3. Insert the supplied release keys into the both sides of the unit body to click, as shown in the picture. To extract the unit from the dashboard, pull the release keys or the unit body to pull it out. Before detaching the unit, ensure it is not fixed with the metal strap.

Trim frame installation

To install the trim frame, press it to the unit body and push it to fix it in place. This should be done before installing the front panel; otherwise you are not able to install the trim frame. When the trim frame being installed, the side with the groove should face down and fixed first.

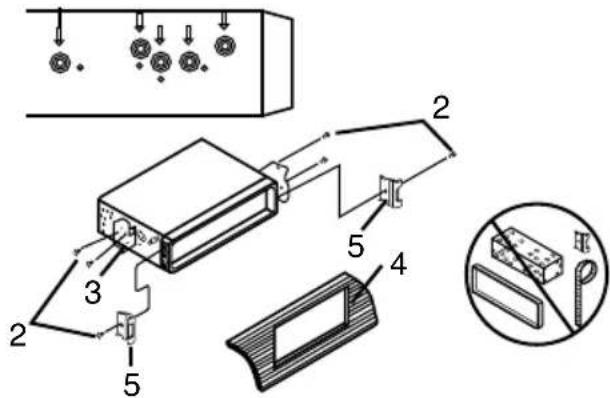

2. DIN rear-mount (Method B)

For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets.

1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.

2. Screw.

3. Factory radio mounting brackets.

4. Vehicle dashboard.

5. Lock (remove this part).

The outer trim frame and mounting sleeve are not used for method of installation.

Technical diagram of a device with numbered components and exploded view, including labeled parts and a magnified inset showing a component.

Detachable control panel

Insert the left locker of the body into the fixing hole on the left side of the panel, then insert the right locker into the right hole of the panel. Press on the upper part of the panel until a click.

To detach the front panel, press OPEN button. Push the panel to the right to detach the left locker. Then detach the right locker.

The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks. The rear connector that connects the main unit and the control panel is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

Anti-theft system

The front panel of this unit can be stored in the included protective case when not in used and carried away when you leave the vehicle to deter theft.

Switch off the power of the unit. Detach the front panel, then put it to the protective case and take it with you.

Connection

Connection diagram

Fuse Line-out left (White) Line-out right (Red) ISO connector Antenna jack B 1 3 5 7 2 4 6 8 1 3 5 7 2 4 6 8 A Connector A 1. - 2. - 3. - 4. Memory +12V 5. Auto antenna output 6. - 7. +12V (to ignition key) Connector A 1. - 2. - 3. - 4. From 5. From 6. From 7. - Conne 1. Rea 2. Rea 3. From 4. From 5. From 6. From 7. - Conne

Connector A

4. Memory +12V
5. Auto antenna output
7. +12V (to ignition key)
8. Ground

Connector B

1. Rear right speaker (+)
2. Rear right speaker (-)
3. Front right speaker (+)
4. Front right speaker (-)
5. Front left speaker (+)
6. Front left speaker (-)
7. Rear left speaker (+)
8. Rear left speaker (-)

ISO Connection table

Location	Function
	Connector A Connector B
1 - Rear right (+) - Blue
2 - Rear right (-) - Blue/White
3 - Front right (+) - Grey
4 Battery +12V/Yellow Front right (-) - Grey/White
5 Power antenna/Orange Front left (+) - Green
6 - Front left (-) - Green/White
7 Ignition/Red Rear left (+) - Brown
8 Ground/Black Rear left (-) - Brown/White

Power antenna wire is intended for power supply of the antenna and for remote control of an additional amplifier.

Control elements

Front panel

1. MODE button
2. PWR button
3. VOL knob
4. DIS button
5. PTY button
6. Display
7. IR sensor
8. OPEN button
9. MUTE button
10. TA button

11. AF button

12. 1/PAUSE button

13. 2/RPT button
14. 3/INT button
15. 4/RDM button
16. 5/-10 button
17. 6/+10 button
18. AS/PS button
19. BAND button
20. ◀ button
21. ▶▶ button
22. AUX in jack
23. USB port

1 2 3 4 5 6 7 8 H-CDM8034 HYUNDAI 4 x 50W MODE PTT MP3 PWM MUTE TA PAUSE INT REM -10 +12 A3/PS BAND 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

Inner panel

1 2 3 4 5 0 ← RESET

1. SD/MMC memory card slot
2. EJECT button
3. Panel status indicator
4. RESET button (hole)
5. Disc slot

Pressing RESET hole will erase the setting and stored stations.

Panel status indicator lights up when you slide the panel down, flashes when you remove the panel.

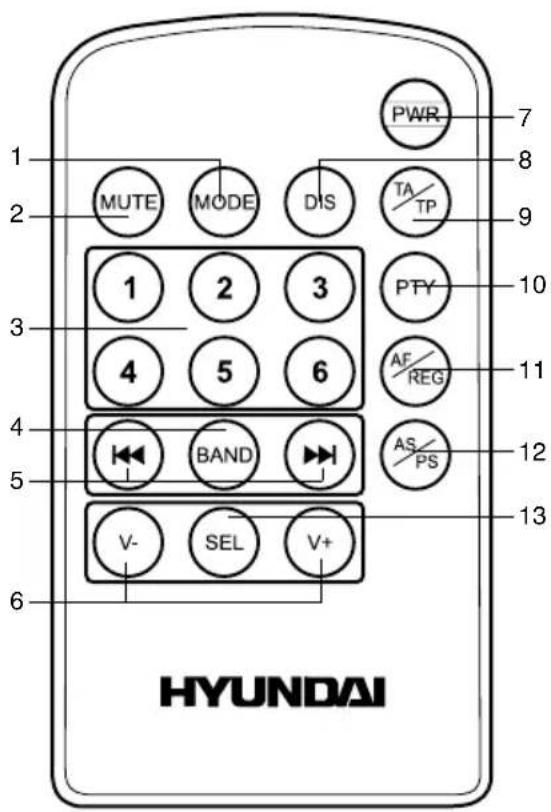

Remote controller

1 2 3 4 5 6 MUTE MODE DIS TA TP PWR 7 8 9 10 PTY AF REG 11 AS PS 12 13 V- SEL V+ HYUNDAI

1. MODE button
2. MUTE button
3. Number buttons
4. BAND button
5. Buttons
6. V-/V+ buttons
7. PWR button
8. DIS button
9. TA/TP button
10. PTY button
11. AF/REG button
12. AS/PS button
13. SEL button

Changing the battery

Press the catch and at the same time pull out the battery tray. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control.

Use of Remote Controller

• Use the remote control within 7 meters from the IR sensor of the unit, and keep it within +/-30° angle.
  • Always keep the battery out of the reach of children. Children may swallow it.
• If the remote control will not be in use for a month, it is recommended that you remove the battery.
• Do not disassemble or heat the battery.
• Do not dispose of battery into any fire source.

LCD layout

21 3 4 5 6 7 8 9 10 11 DISC TA PTY AF EON TP FLAT CLAS ROCK POP EQ uua s2 # # wma mp3 oGG sub W 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

1. Equalizer graphic indicator
2. Intro playback indicator
3. Repeat playback indicator
4. Random playback indicator
5. Digit display
6. Stereo signal reception indicator
7. Loudness indicator
8. Local reception indicator
9. Not active for this model
10. Not active for this model
11. Mute indicator
12. Disc playback indicator
13. USB connection indicator

14. TA function indicator

15. Memory card connection indicator

16. PTY function indicator
17. Not active for this model
18. AF function indicator
19. EON function indicator
20. Not active for this model
21. TP function indicator
22. WMA playback indicator
23. FLAT equalizer mode indicator
24. CLAS equalizer mode indicator
25. MP3 playback indicator
26. ROCK equalizer mode indicator
27. POP equalizer mode indicator
28. Not active for this model

General operations

Reset the unit

Operating the unit for the first time or after replacing the car battery, you must reset the unit.

Press OPEN button on the panel to open the panel and press RESET button to restore the unit to its original factory settings.

Power on/off

Press any button (except OPEN) to turn on the unit. Press and hold PWR button to switch the unit off.

After the unit is off, the volume level and radio current settings will be memorized, and when you turn the unit on it will resume the stored status you previously set.

Volume control

Rotate VOL knob on the panel or press V+/V-buttons on the RC to adjust the volume level.

Setting the sound parameters

Press repeatedly VOL knob on the panel or SEL button on the RC to select an audio setting: VOL (volume) => BAS (bass) => TRE (treble) => BAL (balance) => FAD (fader). Rotate VOL knob on the panel or press V+/- buttons on the RC to adjust each setting.

- If the unit is turned off, all the settings of each mode will be saved.

• If cutting off battery power or resetting the unit, all the settings will return to factory default settings.
• When DSP is set to any mode, Balance and Treble are not adjustable.
• If you don't adjust the setting within several seconds after selecting the desired setting, the unit will automatically return to the current mode being displayed.

Setting other features

Press and hold VOL knob on the panel or SEL button on the RC, and then shortly press this knob/button repeatedly to select a setting. Rotate VOL knob on the panel or press V+/-buttons on the RC to adjust each setting.

INVOL: Set default volume level when the unit is turned on.

CLOCK: you can set the clock. Rotate VOL knob clockwise to set minutes; rotate VOL knob counterclockwise to set hours.

24 HOUR: choose 24 hour clock display mode or 12 hour clock display mode.

LOUD ON/OFF: Enable LOUD ON (Default is LOUD OFF).

BEEP ON/OFF: if BEEP on, pressing any key will make a beep sound.

DSP: Choose intended sound effect in the sequence: POP => ROCK => CLASS => FLAT => NONE.

Sound mute

Press MUTE button to turn the sound off. Press it again or rotate VOL knob on the panel or press V+/- buttons on the RC to resume sound.

Mode select

Press MODE button repeatedly to select: TUNER => CD => SD => USB => AUX.

CD, SD and USB modes are only available if corresponding media device is in the unit.

Display

Press DIS button repeatedly to see current tuning information and time. Sequence of the menu: Clock => PTY => PS => Radio frequency.

AUX in jack

AUX-in jack is intended for connecting an external audio or video equipment to amplify the sound. If connection is made correctly, the audio signal from the external source will be translated through the acoustics of the head unit. This enables to adjust the volume and quality of the sounding. For example, you can connect an MP3-player to listen to tracks using the car acoustic system.

Radio operations

Band select

Press repeatedly BAND button to select needed radio band in RADIO mode: FM1, FM2, FM3 (OIRT), AM1 (MW1), AM2 (MW2). In each set of the bands you can store up to 6 preset stations, making total 30 preset memory stations.

Auto/Manual tuning

Auto tuning: Press button on the panel or on the RC. The radio will seek to the nearest up or down strong and clear frequency station. Repeat this action to seek for other desired stations. While seeking, to stop auto tuning press or button.

Manual tuning: Press and hold ◀◀/▶▶ buttons on the panel or on the RC until MANUAL is displayed. Then press repeatedly ◀◀/▶▶ buttons to change the frequency step by step.

Programming tuner stations

There are 6 numbered preset buttons, under which you can store and recall stations for each band. Select the needed station, then press and hold a number button. The station will be saved in the memory under the corresponding number. To recall a stored station, press the corresponding number button.

Automatic store/preset scan

Automatic store: press and hold AS/PS button on the panel or on the RC. The radio will automatically store the 6 strongest available stations to the 6 preset memories of the 3 FM bands or the 2 AM bands (depending on which one is current). To stop auto store, press this button again.

Preset scan: Press AS/PS button on the panel or on the RC, the receiver will scan the saved stations in the current band.

Mono/Stereo control

Press and hold SEL button on the RC or VOL knob on the panel; then press it repeatedly until the display shows MONO OFF (MONO ON). Turn VOL knob or press V+/- buttons on the RC to switch between ON (mono reception) or OFF (stereo reception).

Improvement of reception of distant stations can be done by selecting mono mode, which may cut down some reception noise.

Local/Distant reception modes

Press and hold SEL button on the RC or VOL knob on the panel; then press it repeatedly until the display shows LOC OFF (LOC ON). Turn VOL knob or press V+/- buttons on the RC to switch between ON (local station reception) or OFF (distant and local station reception).

RDS function

RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available either.

AF (Alternative Frequencies) function

Press AF button on the panel or AF/REG button on the RC to turn the AF function on or off.

When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station with the same PI (Program Identification) as the current station but with stronger signal strength, so that you do not have to retune the stations when driving between different transmitter coverage areas. When AF symbol is on, it means RDS information is received; when AF symbol is flashing, it means RDS information is not yet received.

TA (Traffic Alarm) function

Press TA button on the panel or TA/TP button on the RC to turn TA function on or off.

- When TA function is activated, it will search the station with TA information automatically. If there is no TA information, it will search the station with TP information automatically, if there is no TP information either, it will return to the previous station after searching.

- When receiving the station with TP

information but without TA information, TP icon is on and TA icon keeps blinking; when receiving the station with TP and TA information, both TP and TA icons are on.

- When playing in other mode and TA information is received, it will change to the radio mode automatically. After playing over, it will return to the previous mode. Press TA or TA/TP button once to ignore the received TA information, press the button twice to turn off the function.

PTY (Program Type)

This radio will allow you to select the type of program required, and will search for a station broadcasting that type of program.

Press PTY to turn on PTY function. Press and hold this button to open the program type list. Rotate VOL knob on the panel or press V+/- buttons on the RC to select a program type. After selecting the type, press PTY button to start search.

During one loop, if desired PTY is not found, the unit will show NOT FND. Press PTY button again to stop the search and switch the PTY function off.

Press and hold AF button on the panel or AF/REG button on the RC to select REG on or off. Default setting is off for REG.

When REG is enabled (on), the receiver accepts regional variants of the tuned station with REG icon turned on.

When REG is disabled (off), the receiver ignores regional variants.

Other parameter setting

- Press and hold SEL button on the RC or VOL knob on the panel; then press it repeatedly until the display shows TA VOL. Rotate VOL knob or press V+/- buttons on the RC to set the default volume level for TA broadcasting.

- Press and hold SEL button on the RC or VOL knob on the panel; then press it repeatedly until the display shows EON ON (OFF). Rotate VOL knob or press V+/- buttons on the RC to

switch EON on or off.

This unit is equipped with the latest technology of EON (Enhanced Other Networks) control, so that when you are listening to Radio or CD, if there is any travel announcement from a nearby local station, the radio will already know the frequency of that radio station. Then it will receive the station, turn up the volume, or interrupt the playback of the music for the duration of the announcement. At the end of the announcement the radio will return to its previous state ready for the next announcement.

Disc/USB/SD operations

USB/SD notes

USB format supports 2.0. Capacity: up to 8 GB.

For correct and satisfactory operation, licensed SD memory cards of famous brands should be used with this unit. Avoid using memory cards of unknown brands. Capacity: up to 8 Gb.

Inserting SD card/USB device

Insert an MMC card or a USB device into MMC slot (on the inner panel) or USB socket (behind the rubber cover). Then the playing mode will be changed into SD or USB mode automatically. The first card/USB device track playback will start.

When MMC card and USB device are both inserted into their compartment or socket, the playing mode will be changed into the mode of the later one.

Insert/eject discs

- Open the front panel and insert a disc into the disc slot with label side up. Close the front panel. The disc will be automatically loaded into the unit, even when it is in radio mode. For MP3 discs, the first file in the root folder will be played. If an MP3 file has ID3 Tag information in the supported ID3 format, such information will be displayed on the LCD while playback.

- Open the front panel and press EJECT button to eject the disc from the slot. If the disc is not removed from the slot within several seconds, it will be automatically loaded into the slot again. When the disc is ejected and removed, the unit will automatically switch to radio mode.

Play/pause

To ensure good system performance, wait until the unit finishes reading the disc information before proceeding. Press 1/PAUSE button to pause the disc playback. Press this button again to resume playback.

Fast Forward/rewind

Press and hold ▶ button on the panel or on the RC to fast forward. Press and hold ◀◀ button on the panel or on the RC to fast reverse. Release the button when the desired location is found.

Scanning tracks

Press 3/INT button to play the first 10 seconds of each track. Press this button again to cancel intro playback playback.

Repeat

Press 2/RPT button to repeat the same track continuously. Press this button again to stop repeating.

Random playback

Press 4/RDM button to play all the tracks in random order. Press the button again to stop random play.

Previous/next track

Press 1/2 buttons on the panel or on the RC to go to the previous or next track. Press 5/-10 and 6/+10 buttons to advance to 10 tracks down or up.

MP3 track search

The search modes only works with MP3 discs, USB and memory cards with MP3 files.

Cancel random, repeat and intro features before searching.

- File Number Search

Press AS/PS button once to enter file number search; 000 is displayed meaning the unit is ready to accept file number for search. Rotate VOL knob or press V+/- buttons on the RC to input the third digit (from 1 to 9) of file you want to listen to. Press VOL knob on the panel or SEL button on the RC to go to next digit selection. After completing input, press BAND button to play the selected track.

- File Name Search

Press AS/PS button twice; A** is displayed with the first character blinking. Rotate VOL knob or press V+/- buttons on the RC to input the first alphabet (from A to Z) or digit (from 0 to 9) of file name you want to listen to. Press SEL button on the RC or VOL knob on the panel to go to next digit. After completing input, press BAND button to play.

If there is no file found, the unit will show NO MATCH and return to initial input ready mode automatically.

- Folder Search

Press AS/PS button 3 times, the first folder name will be displayed. Rotate VOL knob or press V+/- buttons on the RC to choose the needed folder. Press BAND button to play the first track in the selected folder.

If the device contains no folders, ROOT will be displayed.

Handling compact discs

• Do not insert anything other than a CD into the CD loading slot.
• Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player.
• Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface.
  • Store discs in their cases when not in use.
• Do not expose discs to direct sunlight,
  high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature (such as leaving the discs in your car during summertime) can wrap a disc.
• Do not attach labels, write on or apply chemicals to the surface of the discs.
• Do not touch the recorded surface of the discs.
• Use 12-cm CDs. Use only conventional, fully circular discs. Do not use shaped discs.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Cleaning the unit body

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Accessories

1. Receiver 1 pc
2. Front panel 1 pc
3. Protective case 1 pc
4. ISO cable set 1 pc
5. Remote controller 1 pc
6. Mounting parts: Nut 5 mm.... 1 pc

Spring washer 1 pc

Plain washer 1 pc

Rear bolt 1 pc

Screw 4 pcs

Metal strap.... 1 pc

Release key 2 pcs

Mounting sleeve 1 pc

Trim frame 1 pc

1. Instruction manual 1 pc
2. Warranty card 1 pc
3. Consumer information 1 pc

Troubleshooting

Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer.

Symptom Cause Solution
No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.
No sound Volume is in minimum. Adjust volume to a desired level.
Bad sound quality The installation angle is more than 30 degrees.		Adjust the installation angle to less than 30 degrees.
Disc cannot be loaded or ejected	The unit already contains a disc.	Remove the disc in the player then put a new one.
	Moisture condensation. Leave the unit idle for an hour, then retry.
Disc cannot be read	The disc is inserted upside down.	Insert the compact disc with the label side facing upward.
	Compact disc is extremely dirty or defective.	Clean the disc or try to play a new one.
	Temperature inside the car is too high.	Cool off until the ambient temperature returns to normal.
Buttons do not work	The built-in microcomputer is not operating properly.	Reset the unit with the help of RESET button.
	Front panel is not properly fix into its place.	Install the front panel properly.
The radio does not work	The antenna cable is not connected.	Insert the antenna cable properly.
The radio station automatic tuning does not work	The signals are too weak. Select stations manually.

Specifications

General

Power supply 12 V DC

Current consumption/Fuse 10 A

Maximum power output 4 x 50 W

Dimensions (L x W x H) 178 x 50 x 150 mm

Temperature range -20 ^ C - +60 ^ C

FM stereo radio

Frequency range 65.0 - 74.0/87.5 - 108.0 MHz

Presettable stations 18

Usable sensitivity 9 dBuV

MW Section

Frequency range 522 kHz-1620 kHz

Presetable stations 12

Usable sensitivity 30 dBuV

Disc player

System Compact disc audio system

Storage support CD/CD-R/CD-RW/USB/SD

Format support CDDA/MP3

Frequency characteristics 20 Hz - 20 kHz

ESP 40 sec. for CD/120 sec. for MP3

Mounting angle 0 - +/-30

Line out

Output: 2 channel RCA line-out (2V)

Specifications are subject to change without notice. Dimensions are approximate.

Technical diagram showing labeled parts of a mechanical assembly with numbered annotations

Снятие устройства

Technical diagram of an electronic component with numbered parts and a magnified inset showing internal components.
