Product Type	Quadcopter Drone
Brand	Carson
Model	Air Track
Dimensions (LxWxH)	30 x 30 x 10 cm
Weight	200 g
Battery Type	LiPo 3.7V 500 mAh
Charging Time	Approx. 60 minutes
Flight Time	Approx. 10 minutes
Remote Control Frequency	2.4 GHz
Control Range	Up to 50 meters
Camera Resolution	HD 720p (optional)
Motor Type	Brushed coreless motors
Propeller Size	3 inches
Material	ABS plastic, metal frame
Color	Black/White
Key Functions	Altitude hold, headless mode, one-key return, 360° flip, speed adjustment
Safety Features	Low battery alarm, propeller guards, auto shut-off
Maintenance & Cleaning	Wipe with a dry cloth; avoid water; store in a cool, dry place
Spare Parts Availability	Replacement propellers, batteries, and motors available online
General Information	Suitable for indoor and outdoor use; beginner-friendly

Frequently Asked Questions - Air Track Carson

How long does it take to fully charge the battery?

The included LiPo battery takes approximately 60 minutes to charge fully. Use only the supplied USB charger.

What is the maximum flight time?

The Carson Air Track offers a flight time of about 10 minutes under normal conditions. Factors like wind and aggressive flying may reduce this.

Can I fly this drone indoors?

Yes, the drone is suitable for indoor flight due to its compact size and propeller guards. Ensure adequate space and avoid obstacles.

How do I pair the remote control with the drone?

Turn on the drone, then switch on the remote. The drone will automatically bind within a few seconds. If not, move the throttle stick up and down.

What should I do if the drone doesn't respond to controls?

First, check that both the drone and remote have sufficient battery. Then re-pair the devices. If the issue persists, refer to the manual for calibration.

Is it possible to replace the propellers?

Yes, spare propellers are available. Use a small screwdriver to remove the broken propeller and attach a new one, ensuring correct rotation direction (marked A/B).

Does this drone have a camera?

The Carson Air Track may come with an optional HD 720p camera. Check your package; if included, you can record video and take photos via the remote.

What is the effective control range?

The 2.4 GHz remote control provides a stable connection up to 50 meters in open area. Obstacles and interference can reduce range.

How do I perform a flip stunt?

Ensure the drone is at least 2 meters high, then press the flip button on the remote and push the right stick in the desired direction.

Why does the battery indicator flash red?

A flashing red LED indicates low battery. Land the drone immediately to prevent damage and recharge the battery.

USER MANUAL Air Track Carson

[Revision 3.0 June 2022]

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases, or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol, or medication.
• This equipment is not intended for use by persons with reduced physical, sensory, or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start, or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors, and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage, or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases, or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids, or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Wherever possible, use a residual current device (RCD).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories, or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service-related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Safety Recommendations

IMPORTANT: THIS PRODUCT IS NOT A TOY. IT IS A PROFESSIONAL TRAINING EQUIPMENT FOR GYMNASTICS, CHEERLEADING, TUMBLING, SCHOOL SPORTS, SHOW GROUPS, MARTIAL ARTS, PARKOUR, FREE RUNNING, AND TRICKING.

Personal

• Consult an instructor prior to use.
• This equipment is not suitable for children under 5 years.
• Do not allow more than one person at a time to use the air track mat.
• Do not wear shoes while on an air track mat, as they may damage the surface.
• Do not jump or land closer than 8 inches to a valve.
• Use equipment only under the supervision of trained and qualified instructors.
• Follow a progressive learning pattern. Assure basic skills are achieved before attempting more advanced skills.

Positioning and Set-Up

• Do not bring any sharp items on or close to the air track mat.
• Never place an air track mat near overhead obstructions, such as low ceilings, trees, or power lines, nor place the equipment on a slope.
• The area on which the air track mat is placed must be clean, dry, flat and free of obstacles and walls.
• Do not drag or throw the equipment.
• Lift by the handles and avoid scraping.

Pressure

• Do not use a compressor. Use only inflation equipment supplied by the manufacturer.
• Check the air pressure of the air track mat before each training session.
• Assure that the air track mat has sufficient air pressure to avoid bottoming out. Recommended air pressure levels can be found in this user manual.
• Use equipment only when all hard exposed surfaces are protected with proper mats.

Outdoor

• When setting up the air track mat outdoors, use a groundsheet to avoid damaging the equipment.
• Do not expose air track mat to heat, including heat from prolonged exposure to the sun.
• Never leave an air track mat outside unattended and keep the air pressure under the maximum values found in this guide.
• Do not use the air track mat in the rain or snow. A wet or damp surface will be slippery, which can cause injuries. While inflating the equipment, electrocution may occur.
• The air track mat is not an on-water flotation device. It is strongly recommended to only use the equipment as intended.

Warnings

• Be aware that air track mat is not designed as landing mats.
• The air track mat may move during use which could result in serious injury. Always ensure you are training in a safe surface and environment.
• Serious injury (including permanent paralysis or death) could result from any activity involving motion, rotation, or height.
• All users of this equipment assume this risk of serious injury.
  • Air track mat cannot and do not eliminate hazards.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases, or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	Exhausted VolumesCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases, or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing, and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp, or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines.Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator.Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.

Table of Contents

Safety....2

Safety Symbols 4

Set-Up....7

Operation 8

General....8

Using the Electric Pump 8

Packing and Storage 9

Maintenance 11

Troubleshooting....11

Frequently Asked Questions....12

Specifications.... 12

Set-Up

Please make sure you have read the safety rules before proceeding to set-up. Pump and adaptor only included in some models. Refer to the product listing.

STEP 1

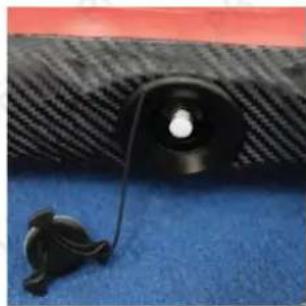

Attach the grey nozzle adapter to the electric blower/foot pump hose.

Close-up of a black textured object with a lit circular opening and a small black object attached to a blue surface (no text or symbols visible)

STEP 2

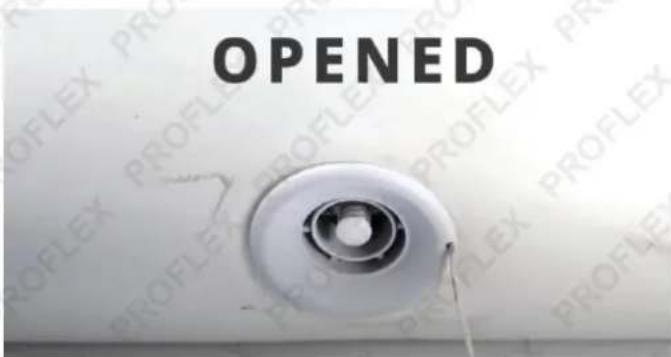

Twist valve cover and make sure the pin is in the OUT position. If not, push pin in to click it out.

Close-up of a yellow and black spatula on a stovetop with 'OUT' label (no other text or symbols)

STEP 3

Insert black end to the OUT hole of the electric blower/foot pump.

Close-up of a yellow plastic hose inserted into a car tire, with a red vehicle in the background (no visible text or symbols)

STEP 4

Insert grey nozzle adapter to inflate until the air track mat is fully inflated.

Close-up of a yellow and red hose connecting a car tire to a blue vehicle wheel (no visible text or symbols)

STEP 5

Remove the hose from the valve. Make sure the pin is in the OUT position.

Close-up of a hand pressing down on a black textured surface with blue fabric (no visible text or symbols)

STEP 6

Twist valve cover to close. Have fun!

INFLATED CORRECTLY

Close-up of human legs and hands on a red and black foam base (no text or symbols visible)

INFLATED INCORRECTLY

Person's legs and feet wearing black shoes and a red strap, resting on an open notebook (no visible text or symbols)

Operation

General

The thickness of an air track mat influences how the product can be used. When products are 100mm (4 inches) thick, the pressure in the product needs to be high enough to prevent you from hitting the floor. The recommended pressure levels for each body weight can be found in the table below, but in the end, it's up to the users' preferences and personal training choices. User assumes all risk in ensuring proper pressure for their mat.

Body weight	100mm (4 inches)	200mm (8 inches)	300mm (13 inches)
18 – 40kg (40 to 90 lbs.)	70 - 80 mbar	70 - 80 mbar	30 - 40 mbar
40 – 56kg (90 to 125 lbs.)	70 - 100 mbar	40 - 60 mbar	40 - 60 mbar
56 – 90kg (125 to 200 lbs.)	100 - 140 mbar	60 - 70 mbar	60 - 70 mbar
90+kg (200+ lbs.)	Not recommended	Not recommended	Not recommended

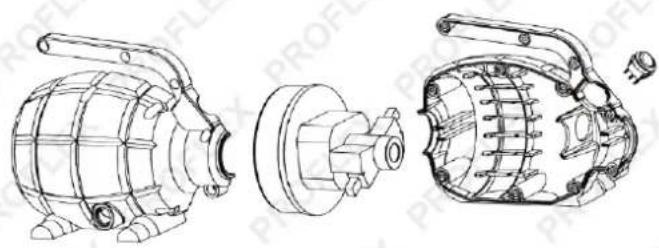

Using the Electric Pump

Technical line drawings of three different engine components (no text or symbols present)

NOTE: Bonus pump only included in some models. Refer to the product listing.

Packing and Storage

When you've sweated it out on the floor, it's time to pack up the air track mat and store it. Before packing up, make sure the mat is dry and clean. There are a few things to know about rolling up an air track mat:

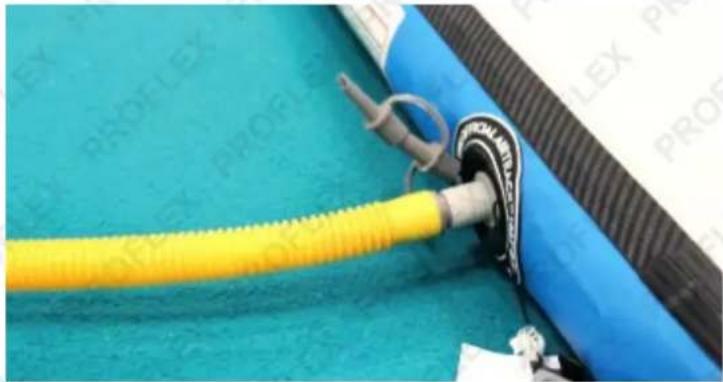

1. You can speed up the deflation by sucking out the remaining air with the blower. Simply attach the blower's tube to the suction side of the blower and connect it to the air track mat.

Close-up of a yellow and blue swimming pool anchor with attached metal clip, set against a teal background (no text or symbols visible)

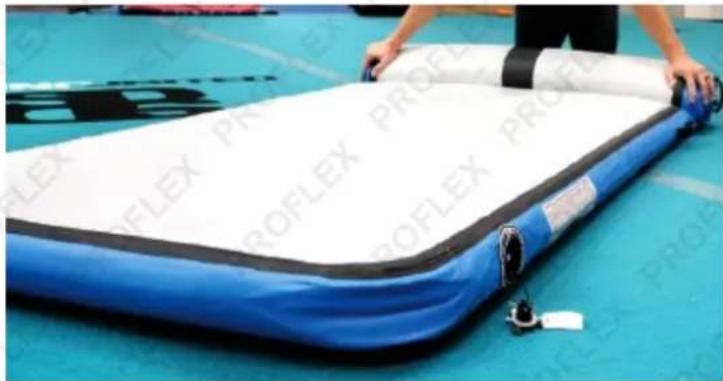

1. The air track mat must fit the bag, so keep the bag close while determining the width of the folds. Save some extra space on the sides as the roll might turn out wider than planned.

Close-up of hands adjusting a black fabric garment on a blue surface (no text or symbols visible)

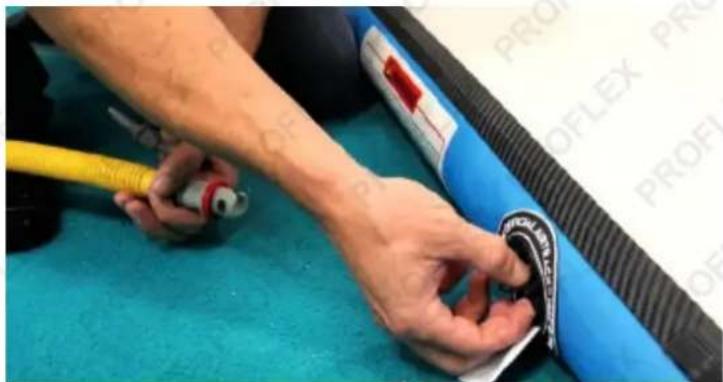

1. Open all valves to start the deflation. Start folding or rolling up the air track mat to speed up the deflation. The blower can be used to deflate the object more rapidly. Simply attach the blower's tube to the deflation side of the blower.

Close-up of hands adjusting a blue and black object with a yellow tool, no visible text or symbols

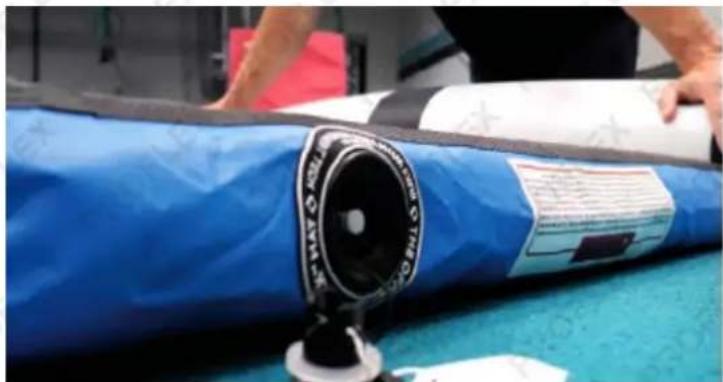

1. When most of the air is out, fold the air track mat so the width matches the transport bag.

Person holding a blue and white inflatable raft on a teal mat, no visible text or symbols

1. Roll up the air track mat towards the valves so they remain unblocked for as long as possible. The tighter you roll up the object, the easier it will be to transport it.

Blue and white striped tent with a label, being handled by hands (no visible text or symbols)

1. IMPORTANT! After rolling up the air track mat, make sure to close all valves! This prevents the caps from damaging the valves' screw thread.

Person adjusting a blue and white striped blanket on a teal surface (no text or symbols visible)

Maintenance

• Never pack, store, or transport the air track mat when it is moist or dirty.
• The air track mat can be cleaned with water and soft soap or 70% isopropyl alcohol. Do not use industrial cleaning products.
• Do not use the air track mat when it's damaged, leaking or when parts are worn or missing. Doing so may lead to serious injury.

Troubleshooting

Air track mat is leaking.

• Make sure all valves are closed properly.
- Grey valves: The pin inside the grey valve is often left open (pin in) when the cap is closed, which means the valve will still be leaking air. Always make sure the grey valve is closed (pin out) before closing the valve.
- Before closing the black valves, check if the rubber inlay is still in its correct position. The picture below show the rubber inlay in its correct (left) and incorrect (right) position.

If it's still leaking, please contact the manufacturer.

Frequently Asked Questions

How long does it take to inflate an inflatable air track mat?

Large objects: The majority of the air track mat can be inflated within 4 minutes thanks to high-performance blowers. An 8-inch-thick air track mat takes approximately 2 12 min. to inflate using a single electric blower.

Small / home use objects: Using a foot pump, the air track mat can be inflated within minutes. However, you won't beat the high-speed inflation of electric blowers!

Is there a chance of damaging the air track mat by over pressurizing it?

No, the extreme pressure needed to actually damage an air track mat cannot be reached with the blower supplied. Do not use any blowers or compressors not supplied by the manufacturer or one of its distributors to inflate the equipment.

24 hours after inflation the air track mat is soft. Is this normal?

Air track mats are not designed to maintain their pressure overnight. Differences in temperatures and weather influence the pressure inside the air track mat. Make sure to set the pressure to your preferences before each training. If you have any doubts or questions, contact the manufacturer.

What is the average lifespan or the air track mat?

This will depend on how the product is used and in what frequency. An average lifespan of more than 7 years is not uncommon in air track mats.

My air track mat is leaking. What do I do?

First of all, check if all valves are properly closed. If a valve is leaking, please contact the manufacturer. A puncture in the surface or damage to a seam could cause your air track mat to leak. For more serios damage-related inquiries, reach out to the manufacturer as well.

Specifications

Max Pressure 15PSI

Pump Power 600W

Pump Pressure 1.5 – 1.8PSI

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging, and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear, or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear, or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business, or employee, or financially affect the user, business, or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement, or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

topia.com.au
