Popular SK271-10 - Range hood Cylinda - Free user manual and instructions

Brand	Cylinda
Model	Popular SK271-10
Product Type	Range Hood
Lighting	LED (6.5 W)
Filter Type	Aluminium grease filter
Easy Clean System	Yes
Damper Function	Automatic closing after max 60 minutes
Forced Ventilation	Yes, adjustable via reducing washer
Power Supply	230 V~, earthed
Minimum Distance to Hob (Electric)	42 cm
Minimum Distance to Hob (Gas)	65 cm
Safety Features	Overheat protection, child safety
Cleaning Frequency (Filter)	Every 2 months
Filter Cleaning Method	Dishwasher safe or hand wash with mild detergent
Cleaning Frequency (Interior)	At least twice a year
Control Type	Knob
Max Damper Operation Time	60 minutes
Noise Level (LpA)	From 25 to 45 dB(A) depending on speed
Environmental Compliance	RoHS compliant
Warranty	Refer to AP-PLiA provisions

Frequently Asked Questions - Popular SK271-10 Cylinda

How often should I clean the grease filter?

Clean the grease filter at least every two months under normal usage. Clean more frequently if the hood is used intensively.

Can I wash the filter in a dishwasher?

Yes, the aluminium grease filter can be washed in a dishwasher. Alternatively, soak it in warm water with washing-up liquid.

What is the correct installation height?

The minimum distance between the hob and the hood is 42 cm for electric hobs and 65 cm for gas hobs. Adjust if the hob manufacturer recommends a higher height.

How does the damper work?

Open the damper while cooking. It closes automatically after a maximum of 60 minutes, or when the knob is turned to 0. It is recommended to open the damper shortly before and after cooking.

Can I use the hood with a gas hob?

Yes, but ensure the minimum distance is 65 cm and that the room has adequate ventilation. Do not flambé food under the hood.

What should I do if the hood stops working?

Check that the fuse is intact and that the power cable is not damaged. Disconnect and reconnect the power. If the problem persists, contact Cylinda Service at 0771-25 25 00 or visit www.cylinda.se/service.

How do I adjust the forced ventilation?

Basic ventilation is set by moving the sliding damper. For forced flow, open the damper and pull out the reducing washer. Cut out rings from the washer to adjust the flow. This should be done by a qualified professional.

Is the hood suitable for use with other appliances?

If used simultaneously with appliances that burn gas, wood, oil, etc., ensure the room has an adequate supply of air. Do not direct exhaust air into flues used for combustion fumes.

How do I clean the interior of the hood?

Clean the interior and the damper at least twice a year. Use a damp cloth with washing-up liquid, and clean the damper in both open and closed positions. Handle the damper carefully.

What do the sound pressure level numbers mean?

The A-weighted sound pressure level (LpA) is measured at 10 m² Sabin. Values range from 25 to 45 dB(A) depending on the ventilation speed setting. The lower the number, the quieter the operation.

USER MANUAL Popular SK271-10 Cylinda

Simple line drawing of a kitchen appliance with oven, refrigerator, and washing machine (no text or symbols)

SPISKÅPA POPULAR

COOKER HOOD POPULAR

SK251-10, SK261-10, SK271-10

SK252-10, SK262-10, SK272-10

Cylinda

år efter år

BRUKSANVISNING

Safety Instructions ......6

Instructions for use...... 8

Servicing and warranty......9

Electrical installation 10

Installation.... 11

Adjusting air flow 13

Simple line drawing of a circular object with an oval shape inside, no text or symbols present.

B
Fig.1

A. Spjällfunktion

B. Belysning

Simple line drawing of a blank whiteboard with a small square and a black arrow symbol on the side (no text or labels)

Fig.2

www.cylinda.se/service

Please read this installation and user guide carefully before installing and using the product, paying special attention to the safety instructions.

Keep the instructions for reference or for the next owner.

Disconnect the product from the power supply prior to cleaning or maintenance.

§ The diversion of exhaust air must be carried out in accordance with instructions issued by the appropriate authority.
§ Exhaust air must not be directed into flues that are used for fumes from items such as gas, wood or oil-burning stoves or fireplaces.

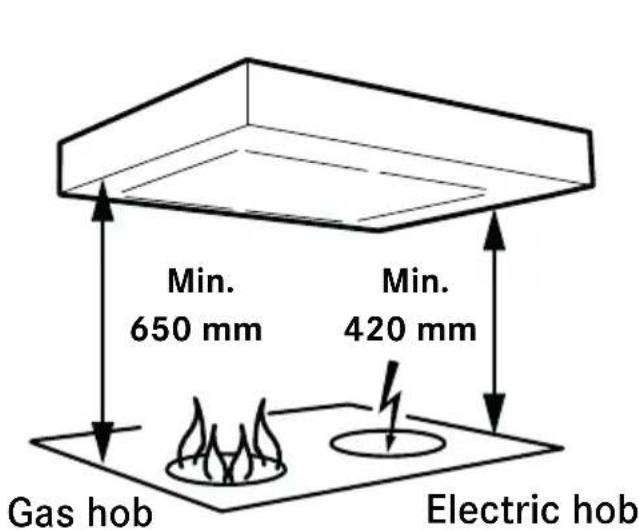

§ The distance between the stove and the product must be at least 42 cm. For gas hob, the distance should be increased to 65 cm. Adjust accordingly if the stove manufacturer recommends a higher mounting height.
§ For safety reasons, the installation and replacement of cables or other types of connectors should only be carried out by a qualified professional.

§ You must not flambé food underneath the product.
§ If the product is to be used at the same time as products that use energy sources other than electricity, i.e., gas hobs, gas, wood or oil-burning stoves or fireplaces, etc, the room must have an adequate supply of air.
§ The product may be used by children from 8 years of age and persons with mental, sensory or physical impairment, or a lack of experience and knowledge, provided they are given information about how the product is to be used.
§ Children should not be allowed to play with the product. Children must not undertake cleaning or maintenance of the product unsupervised.
§ Accessible parts of the product may become hot when food is being prepared.
§ A fire is more likely to spread if the product is not cleaned as frequently as indicated.

Attention!

The developer or proprietor is responsible for ensuring installation is carried out correctly and complies with the applicable building regulations.

GENERAL INFORMATION

The product features LED lighting (6.5 W), aluminium filters and the Easy Clean system.

FUNCTIONS

A

Simple circular diagram with a horizontal bar and a small starburst symbol at the top-left corner (no text or labels)

B
Fig. 1

A. Damper
B. Lighting

Open the damper while cooking. The damper is closed automatically after max. 60 minutes or when the knob is turned to 0.

It is a good idea to have the damper open short while before and after cooking to prevent cooking smells spreading into the room.

CARE AND MAINTENANCE

Cleaning the filter

The cooker hood should be cleaned with a damp cloth and washing-up liquid. With normal usage, the filters must be cleaned at least every other month. Clean more often after intensive use.

Simple line drawing of a blank whiteboard with a small arrow and a small square symbol on the top (no text or symbols)

Fig. 2

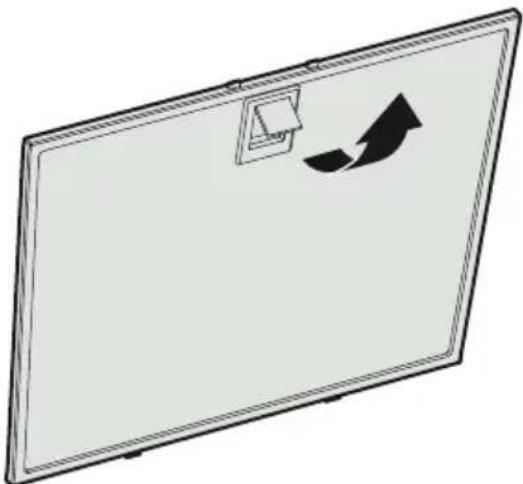

Remove the grease filter by opening the snap retainer, Fig. 2.

Handle the filter carefully, taking care not to bend it.

Soak the filter in a solution of warm water and washing-up liquid. The filter can also be washed in a dishwasher.

Refit the grease filter after cleaning, making sure it snaps firmly into place.

Cleaning other parts

The inside of the cooker hood and the damper must be cleaned at least twice a year. The damper must be thoroughly cleaned in both its open and closed position using a damp cloth and washing-up liquid. Handle the damper carefully.

TROUBLESHOOTING

Check that the fuse is intact. Go through all the functions to check what is not working. Start by disconnecting the product from the power supply and switching it on again. Check that the connector is not bent or twisted at the connection point.

SERVICING

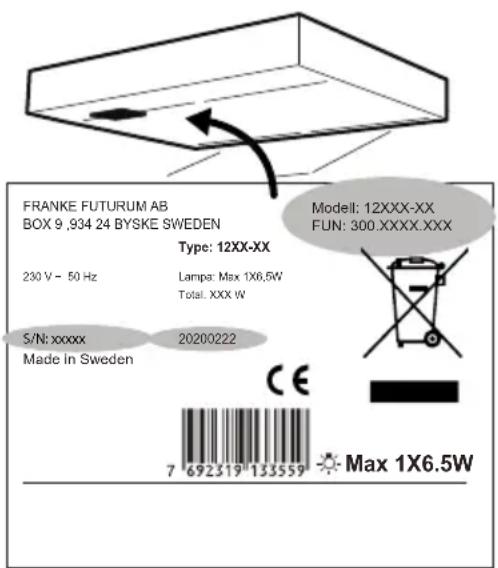

Fig. 3

Before contacting servicing, check the product label and note down the FUN number, S/N number and manufacturing date of the product.

The product label is located on the left side, underneath the filter/bottom plate.

Contakt Cylinda Service

tel. [phone] or visit:

www.cylinda.se/service

They can help you fix the problem or refer you to the nearest service agent for fast and effective service.

The product is covered by the relevant AP-PLiA provisions.

ENVIRONMENTAL INFORMATION

The main raw materials used in the product are:

• Metals: stainless sheet metal, galvanised sheet metal, zinc, aluminium
• Plastics: polypropylene, polyamide, polycarbonate, polybutylene terephthalate (PBT)
• Glass

All components comply with the RoHS Directive.

PACKAGING AND PRODUCT RECYCLING

The packaging should be deposited at your nearest recycling point.

The symbol means that the product must not be treated as household waste. It should instead be taken to a collection point for the recycling of electrical and electronic components. By ensuring that the product is dealt with in the correct manner, you are helping to prevent the adverse environmental and health effects that could arise if the product was disposed of as regular waste. For further information on recycling, contact your local authority or waste disposal service, or the store where you purchased your product.

ELEKTRISK INSTALLATION

SÄHKÖASENNUS

ELEKTRISK INSTALLASJON ELECTRICAL INSTALLATION

Electrical connection for 230 V\~ earthed.

The product is supplied with a cable and earthed plug for connection to an earthed socket. The socket should be accessible after installation is complete. The junction box or wall socket must be accessible after installation is complete. If the connector is damaged, it must be replaced with an equivalent special cable from the manufacturer or their service agent.

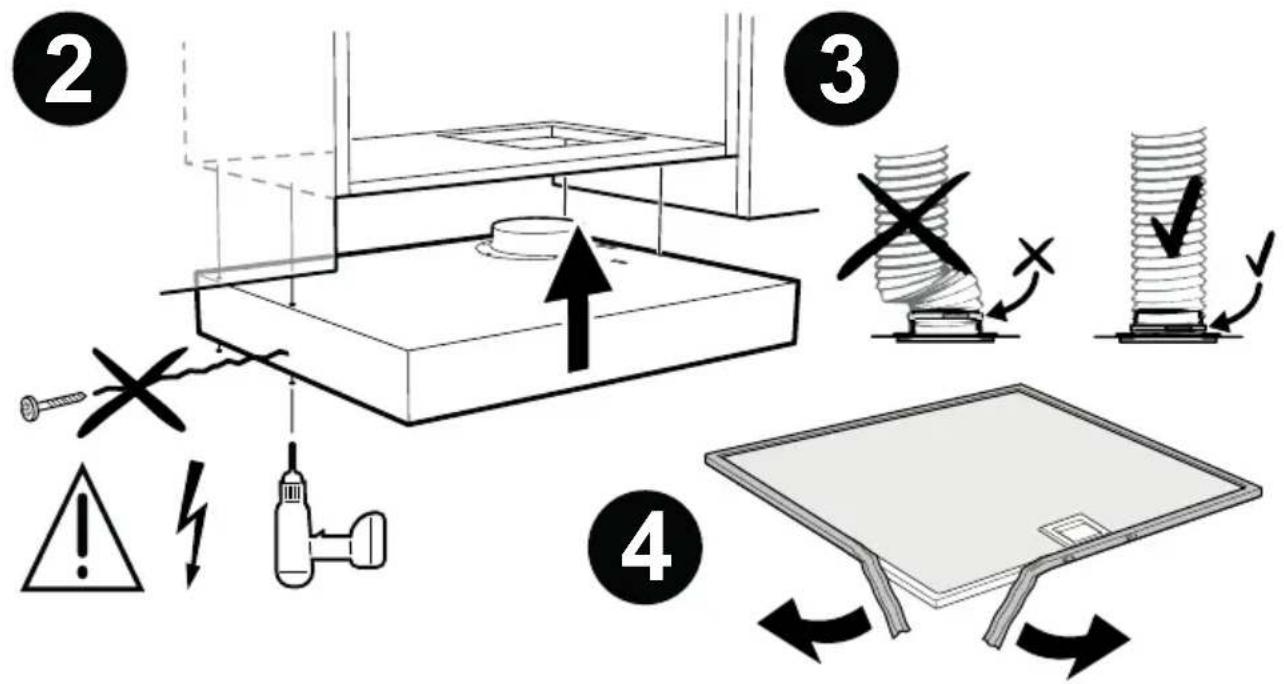

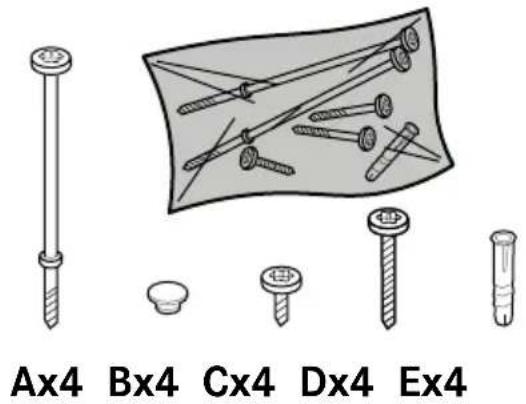

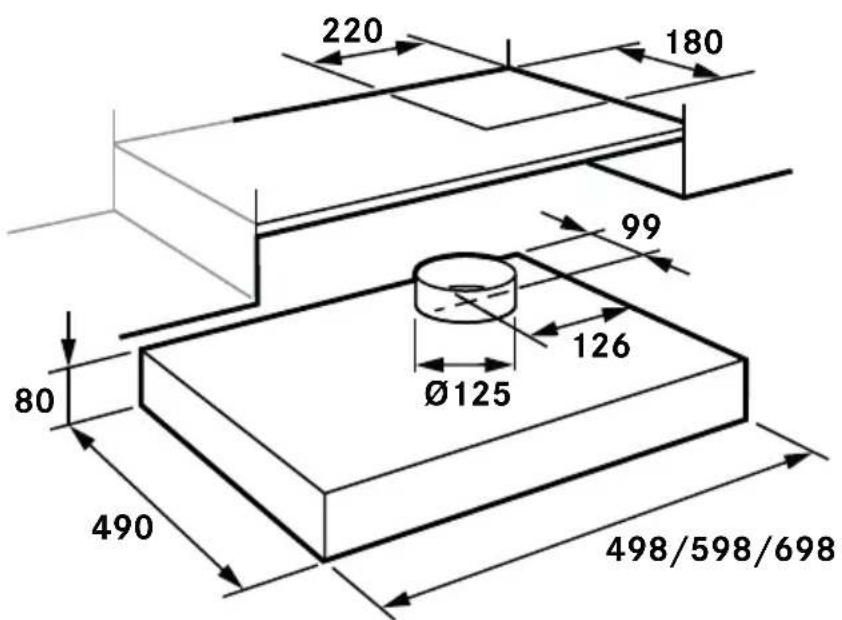

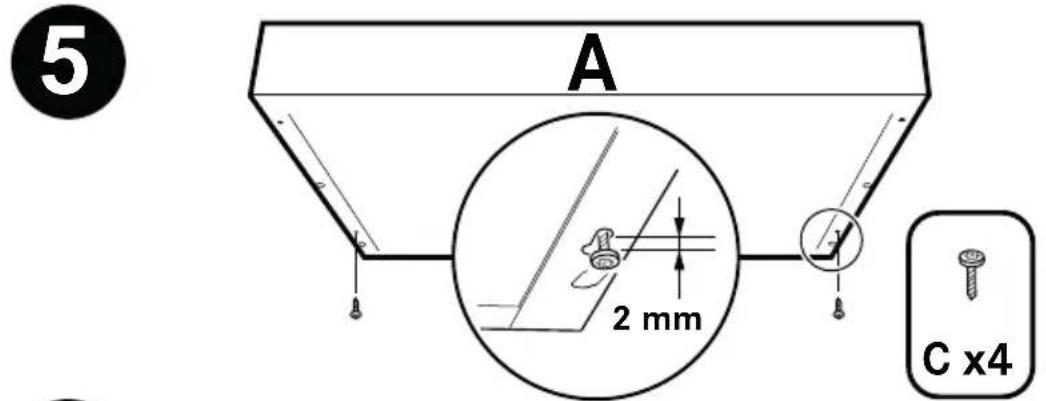

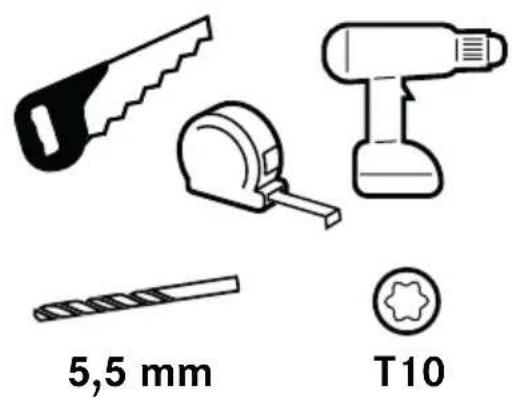

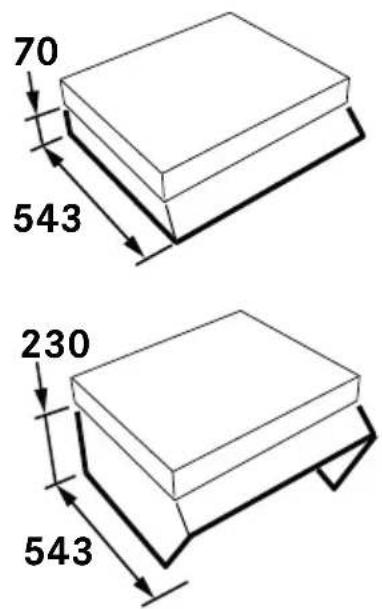

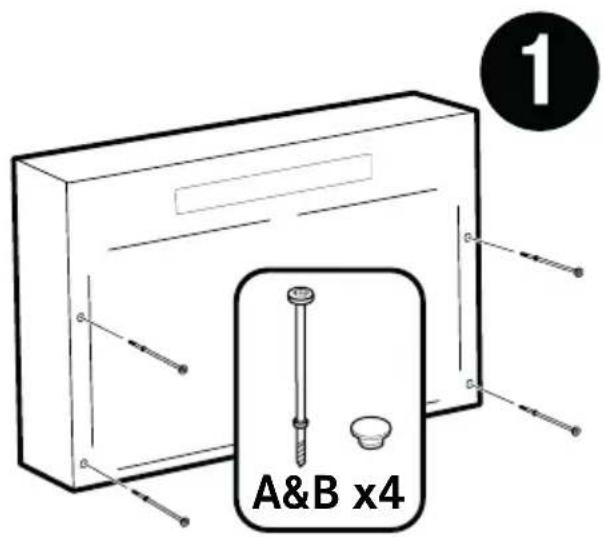

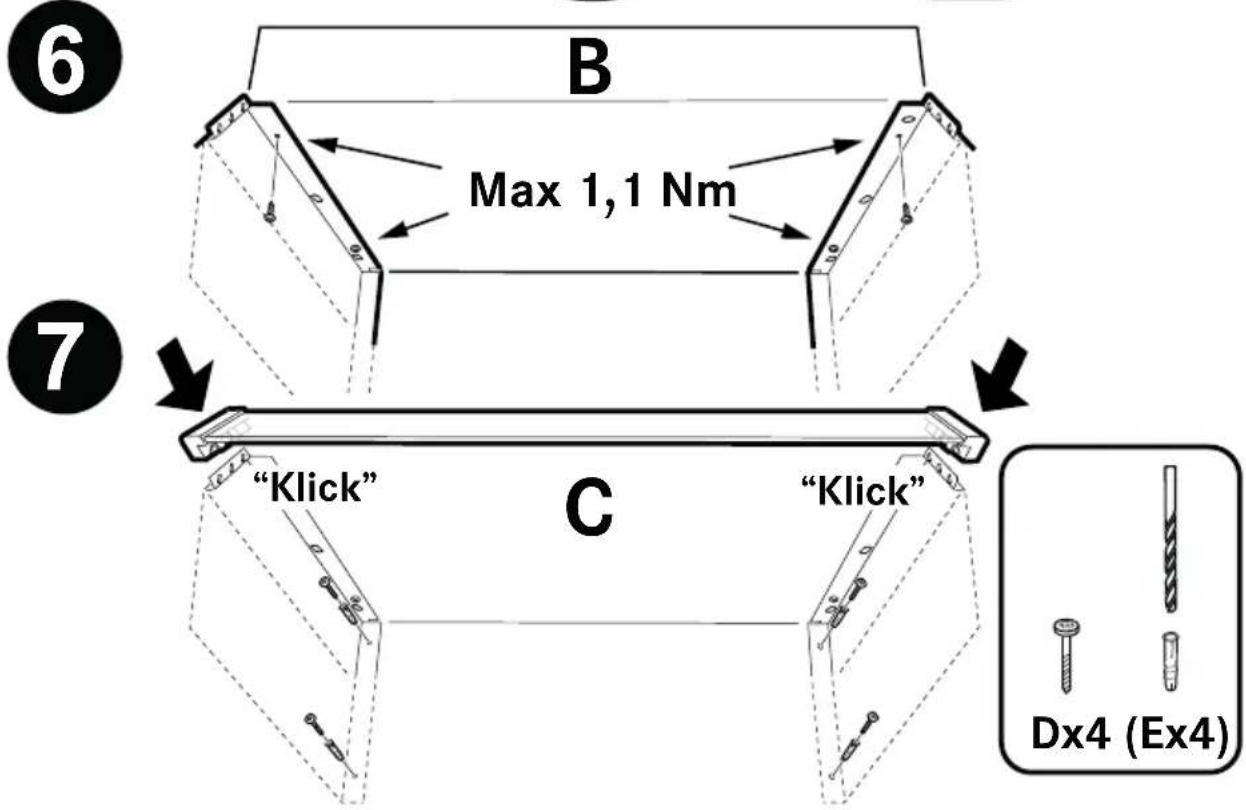

INSTALLATION INSTALLASJON

ASENNUS INSTALLATION

JUSTERING AF LUFTMÆNGDE

TILPASNING AV LUFTSTR∅MMEN

ILMAVIRTAUKSEN SÄÄTÖ

ADJUSTING AIR FLOW

EN Note! Damper adjustment or speed changes must be carried out by a qualified professional.

Adjusting damper: Basic ventilation is set by moving the sliding damper. The damper becomes accessible for adjustment by removing the grease filter.

SV Grundflöde

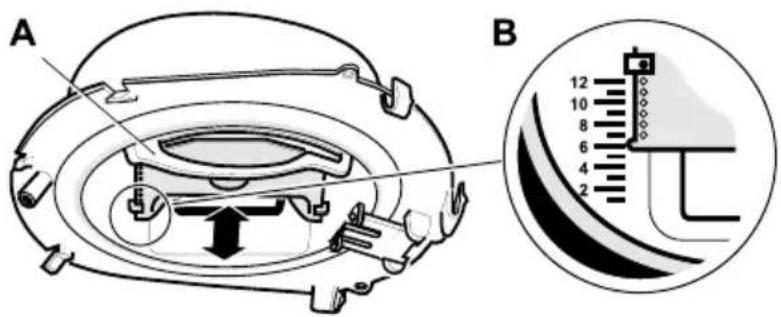

Basic ventilation is set by moving the sliding damper A to the desired position according to marking B (see diagram).

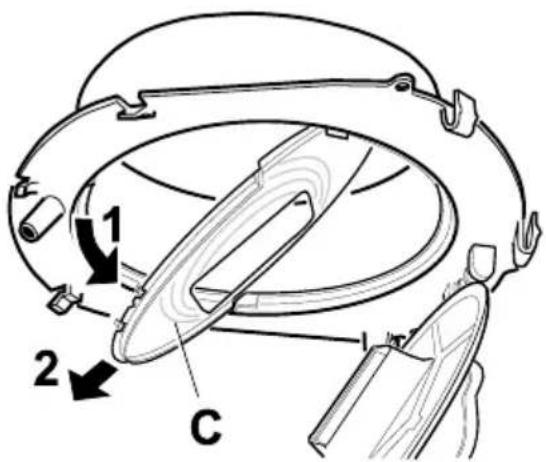

EN Forced flow Open the damper and pull out the reducing washer C.

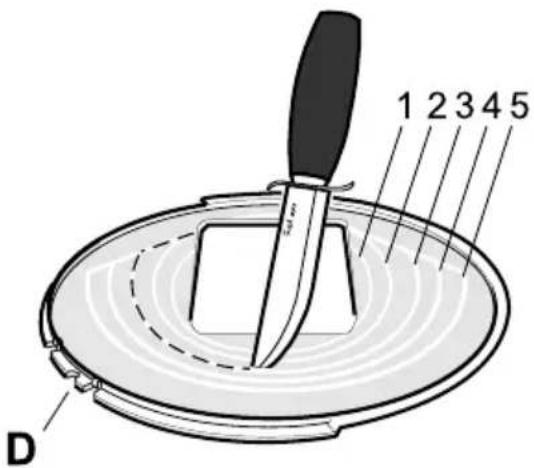

EN Adjust forced ventilation by cutting out a suitable number of rings from the reducing washer. (See diagram.) Make sure that the guide groove D is correctly positioned when refitting the washer.

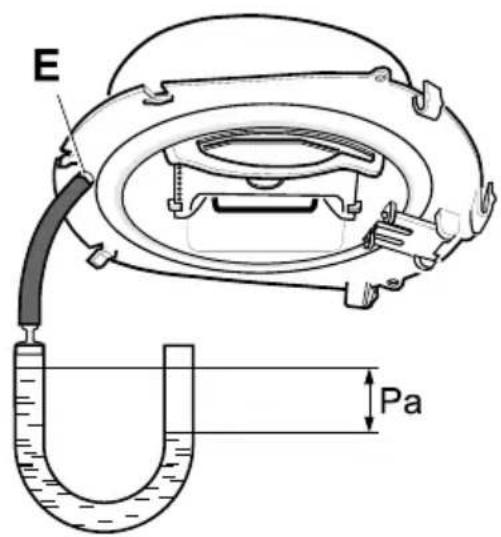

EN Measuring pressure drop The pressure drop is measured by fi tting the hose on the measuring port E at the front edge of the coupling.

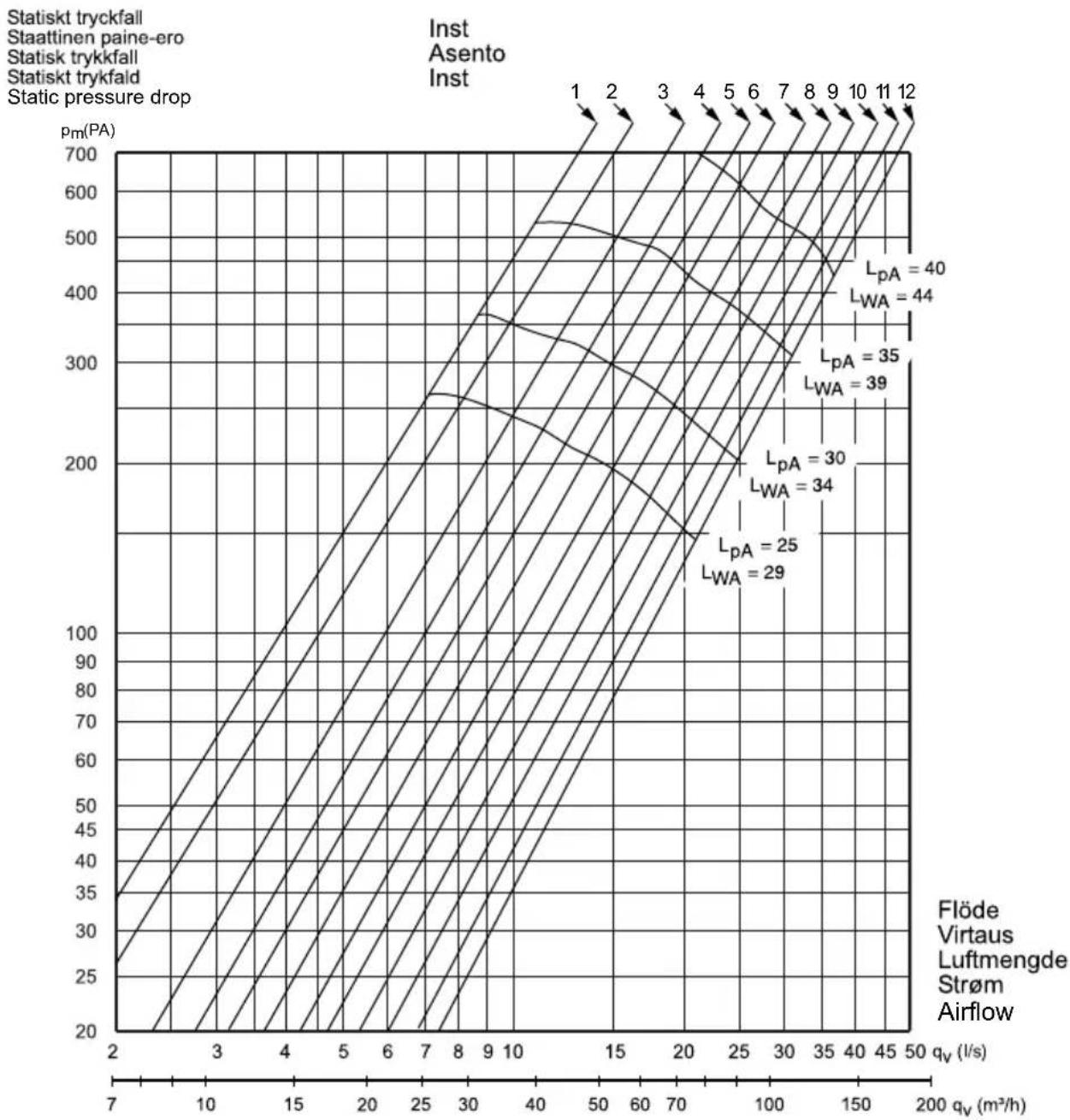

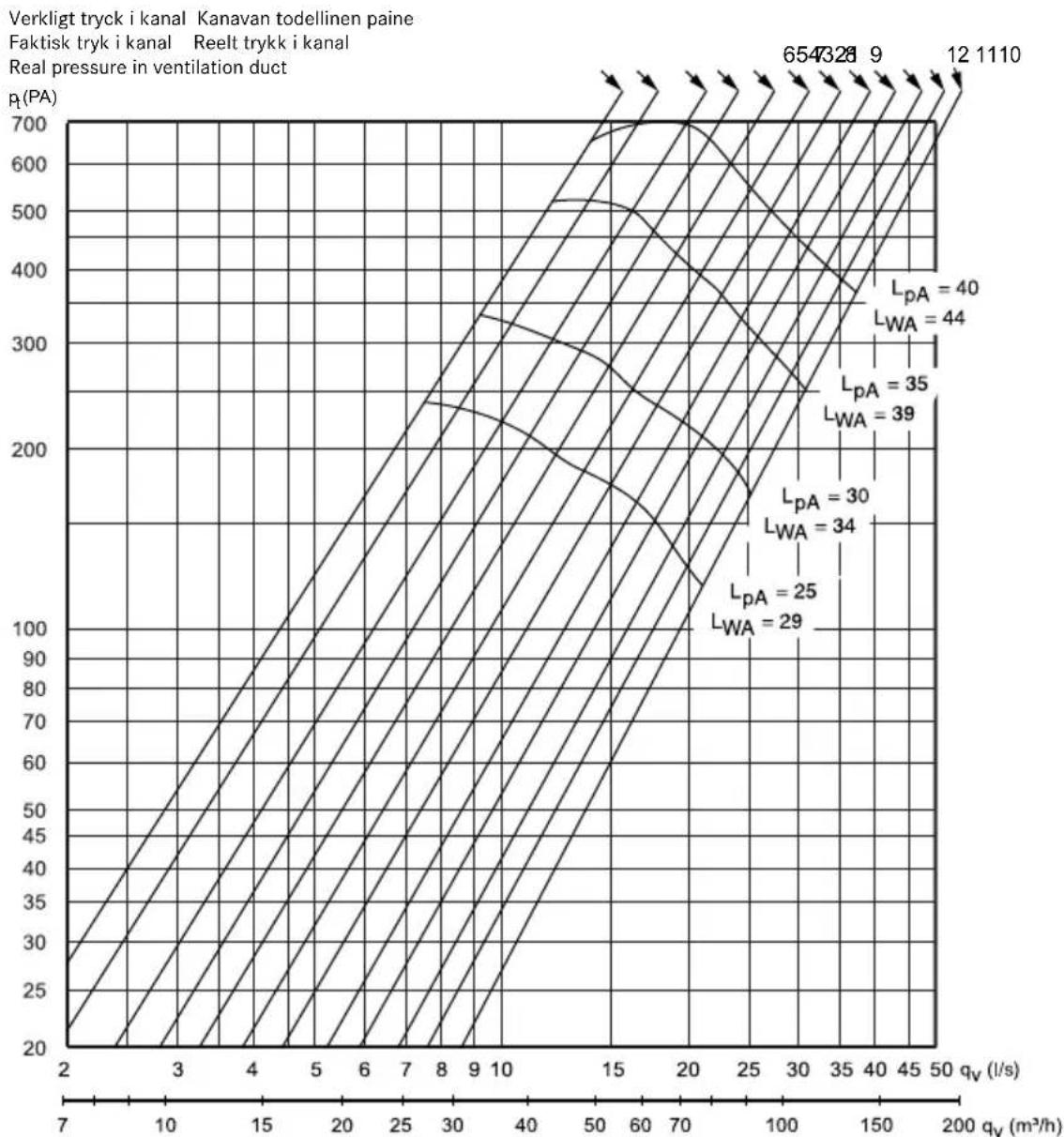

GRUNDFLÖDE PERUSTUULETUS BASIC VENTILATION GRUNDVENTILATION GRUNNVENTILASJON

Injusteringsdiagram Säätökaavio Adjusting diagram Indreguleringsdiagram Innreguleringsdiagram

L_pA = Den A-vägda ljudtrycksnivån vid 10 m^2 Sabin L WA = Den A-vägda ljudeffektnivån relativt 1 pW
Äänenpainetaso 10 m² Sabin Aänen suhteellinen tehotaso 1pW
Den A-vegde lydtrykknivå ved 10 m² Sabin Den A-vegde lydeffektnivå relativt 1 pW
Den A-vegtor lydtryksniveau ved 10 m² Sabin Den A-vegtor lydeffektniveau relativt 1 pW
The A-measured sound pressure level at 10 m² Sabin The A-measured sound pressure level relatively 1pW

K-faktor/ K-kerroin/ K-factor Q = k * P	K1	K2	K3	K4	K5	K6	K7	K8	K9	K10	K11	K12
	0,46	0,54	0,65	0,77	0,86	0,96	1,10	1,21	1,34	1,46	1,62	1,77

Fig. 1

Fig.2

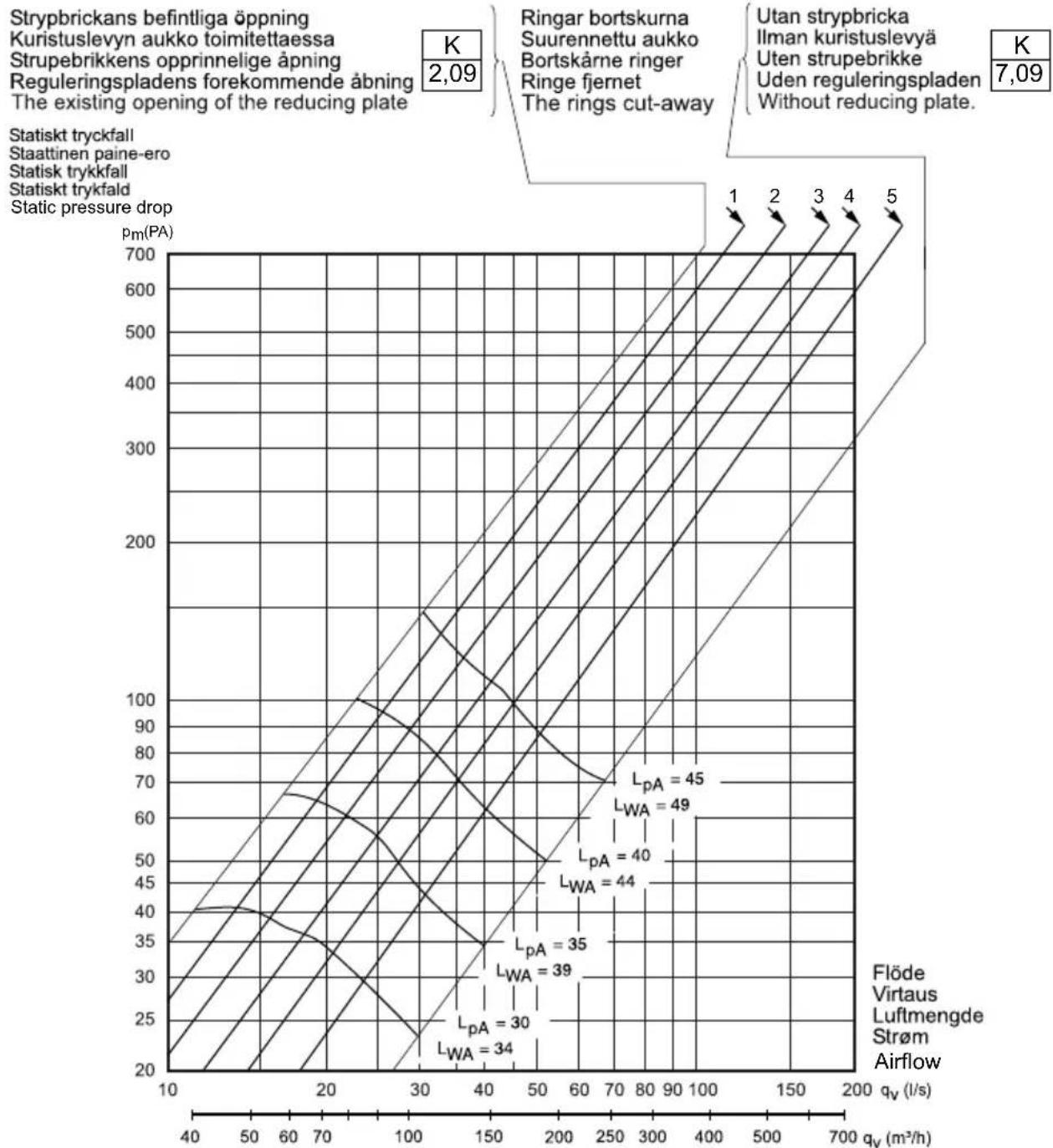

FORCERINGSFLÖDE TEHOSTETTU TUULETUS FORCED VENTILATION FORCERET VENTILATION FORSERT VENTILASJON

Injusteringsdiagram Säätökaavio Adjusting diagram Indreguleringsdiagram Innreguleringsdiagram

LpA = Den A-vägda ljudtrycksnivån vid 10 m² Sabin Äänenpainetaso 10 m² Sabin Den A-vegde lydtrykknivå ved 10 m² Sabin Den A-vegtor lydtryksniveau ved 10 m² Sabin The A-measured sound pressure level at 10 m² Sabin
L WA = Den A-vägda ljudeffektnivån relativt 1 pW Äänen suhteellinen tehotaso 1pW Den A-vegde lydeffektnivå relativt 1 pW Den A-vegtor lydeffektniveau relativt 1 pW The A-measured sound pressure level relatively 1pW

K-faktor/K-kerroin/K-factor Q = k × P	K1 K2 K3 K4 K5
	2,37	2,82	3,35	3,96	4,76

Fig.3

FORCERINGSFLÖDE TEHOSTETTU TUULETUS FORCED VENTILATION FORCERET VENTILATION FORCERET VENTILASJON

Fig.4

Service

Vi har service i hela Sverige/ Nationwide service in Sweden

Besök www.cylinda.se / Visit www.cylinda.se

Ring 0771-25 25 00 (endast lokaltaxa) / Call 0771-25 25 00

Uppge / Declare

Maskintyp / Model code

Serienummer / Serial number

Inköpsdatum / Purchase date

Problembeskrivning / Problem description
