USER MANUAL H1 Thin Allview

User's Manual for Allview Dual SIM H1 THIN

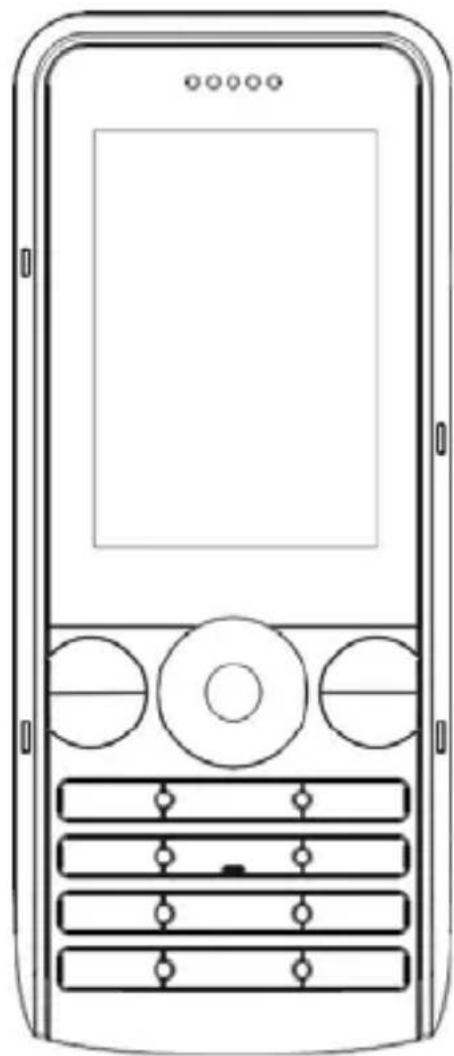

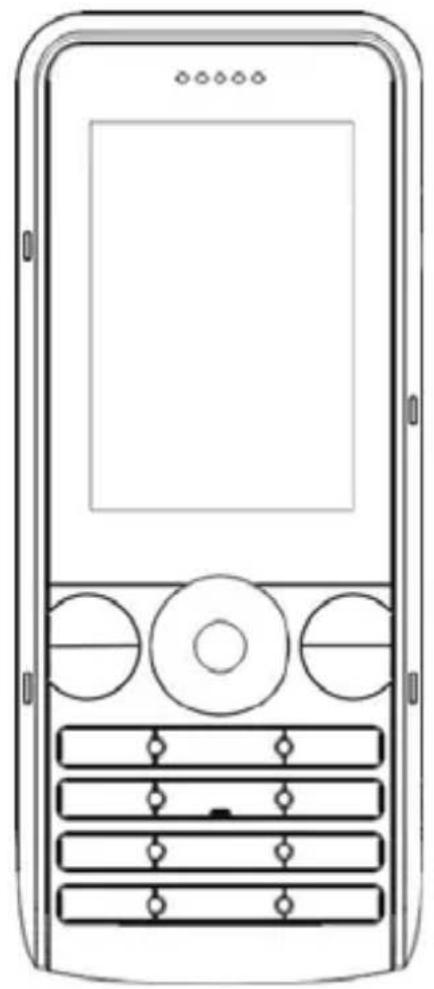

Line drawing of a mobile phone front panel with buttons and display screen (no text or symbols)

Congratulations on your purchase of Allview H1 Thin mobile phone.

Please read this User Guide before you use your mobile phone.

Notice: If there is any difference (such as features etc.) between the User Guide and the mobile phone, please refer to the mobile phone. Improvements and changes to this User Guide maybe made by our company at any time and without notice. Such changes will, however, be incorporated into new editions of this User Guide. We have checked the User Guide very carefully, however there may still be some mistake.

English

Table of Content

1. FOR YOUR SAFETY......5
2. PRODUCTS INSIDE PACKAGE .... 5
3. SPECIFICATIONS......6
4. APPEARANCE SKETCH ....7
5. DESCRIPTION OF KEYS ....8
6. ICON INDICATORS......9
7. GET STARTED ....10

7.1 INSERT / REMOVE THE BATTERY.... 10
7.2 INSERT / REMOVE SIM CARD.... 10
7.3 INSERT / REMOVE T-FLASH CARD....11
7.4CHARGE THE BATTERY....11

1. PHONE CALL....12

8.1MAKE A CALL 12
8.2 ANSWER A CALL 12
8.3 DURING A CALL 12

1. CONNECTIVITY...... 12

2. MAIN MENU.... 13

10.1PHONEBOOK 13
10.2MESSAGES.... 13

1.SMS....13
2.MMS 15
3.Chat 16
4. Voice mail server....16
5.Broadcast message 16

10.3C ALL CENTER 16

1.Call history....16
2.Call settings....17

English

10.4 SETTINGS 18

1.Dual SIM switch 18
2.Dual SIM Settings....18
3.Phone Setting 18
4.User profiles....19
5.Network settings....19
6.Security setup....19
7. Connectivity....20
8.Restore factory settings....21

10.5 MULTIMEDIA 21

1. Camera 21
   2.Image viewer....21
   3.Video recorder....21
   4.Video player 22
   5.Audio player 22
   6.Sound recorder 22
   7.FM radio....23

10.6SERVICE 23

1.STK 23
2.Internet service....23
3.Buidu Search....24

10.7ORGANIZER 24

1.Calendar 24
2.Alarm....24
3.Task 24
4.Calculator 25
5.Word Clock 25
6.Games....25

10.8 FILE MANAGER 25

10.9FUN AND GAMES.... 26

Java....26
Java....26

Allview Store....26

Bolt....26

Snaptu....26

11. INPUT METHOD....26

12. FAQ....27

English

1. For your safety

■ SWITCH ON SAFETY

Do not switch your product on when mobile phone use is prohibited or when it may cause interference or danger.

■ DRIVE SAFETY

Obey all local law. Unless there is an emergency, otherwise do not use the device when you are driving a vehicle without safety wireless equipment.

■ SWITCH OFF IN HOSPITALS

Follow any restrictions. Switch your product off when near the medical equipments. Otherwise it may affect the normal operation of medical instruments.

■ SWITCH OFF IN AIRCRAFT

Follow any restrictions. Switch your device off when you are in aircraft. The use of mobile phone in an aircraft may be dangerous to the operation of the aircraft.

■ SWITCH OFF WHEN REFUELING

Do NOT use the device near fuel or chemicals

■ SWITCH OFF NEAR BLASTING

Do NOT use your product when blasting is in progress.

■ WATER-RESISTANCE

Your product is NOT water-resistant; keep it dry at any time, especially when it is charging.

INTERFERENCE

All wireless devices may be susceptible to interference, which could affect performance.

■ BATTERIES AND CHARGERS

Use only approved batteries and chargers. The use of any other types may invalidate any approval or warranty, and maybe dangerous.

2. Products inside package

Unpack the phone gift box and confirm that the following products are perfect. If

English

any item is missed, please contact with the local distributor.

▶ GSM mobile phone
Travel charger
Li-ion Battery
Earphone
USB cable
User manual

3. Specifications

Dimension: 112.2 mm [Height] * 47.0 mm [Width] * 10.8 mm [Thickness]

Weight: 74g (Include battery)

GSM900 / DCS1800MHz

2." TFT screen

Dual SIM, dual standby

Bluetooth

FM Radio

3.5 mm audio jack

Camera 3.2 MP

Audio and Video player

Built-in speaker

SMS/MMS

GPRS / WAP

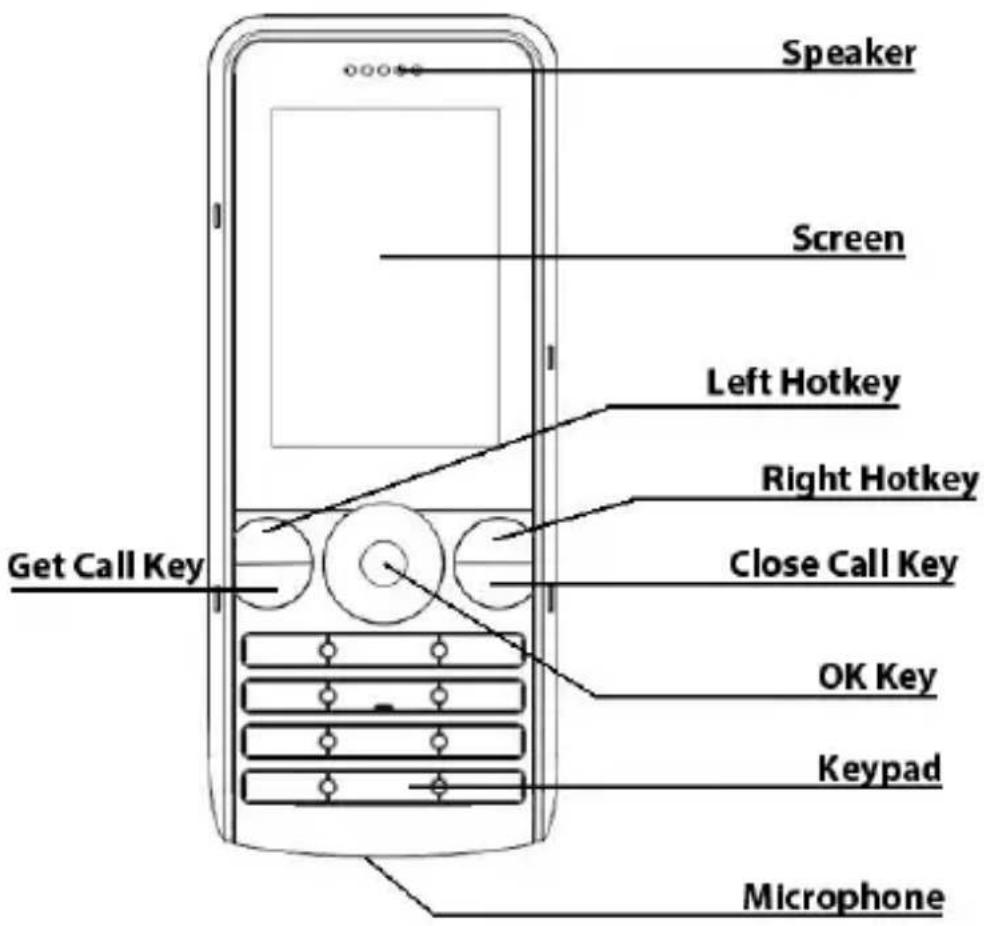

4. Appearance Sketch

5. Description of Keys

Short press: Press the key briefly

Long press: Press the key for more the 2 seconds

Key	Type	Function description (in standby mode)
LSK	Short press Enter	Shortcuts
RSK	Short press Enter	phonebook

English

	Short press Show call log of SIM card 1
	Short press Show call log of SIM card 2
	Long press Enter camera application
	Short press End a call
	Long press Power off
OK	Short press Enter main menu
0..9,*,#	Short press Input number in dialing screen
0	Long press Turn on torch
1	Long press Make a call to the voice mail number when it is valid
2..9	Long press Make a call to the associated speed-dial number when they are set.
# Long press Switch on/off silence mode.
*	Long press Character “*”, “+”, “P”, “W” appear alternately in dialing screen.

Locking the keypad: press + * Unlocking the keypad: press + *

6. Icon indicators

Icons	description
	The signal strength of network attached to SIM Card 1
	The signal strength of network attached to SIM Card 2
	The electric quantity indicator
	You have one or more unread messages received by SIM Card 1
	You have one or more unread messages received by SIM Card 2
[6DSX]	You have one or more unread MMS received by SIM Card 1
	You have one or more unread MMS received by SIM Card 2

English

	You have one or more missed phone calls in SIM Card 1
	You have one or more missed phone calls in SIM Card 2
	General mode of profiles is active now
	Meeting mode of profiles is active now
	Outdoor mode of profiles is active now
	Indoor mode of profiles is active now
	Headset mode of profiles is active now
	Bluetooth mode of profiles is active now
	Calls to SIM Card 1 are forwarded to another number according to the scheduled “call divert” conditions
	Calls to SIM Card 2 are forwarded to another number according to the scheduled “call divert” conditions
	One or more alarms are active
	Keypad lock

7. Get Started

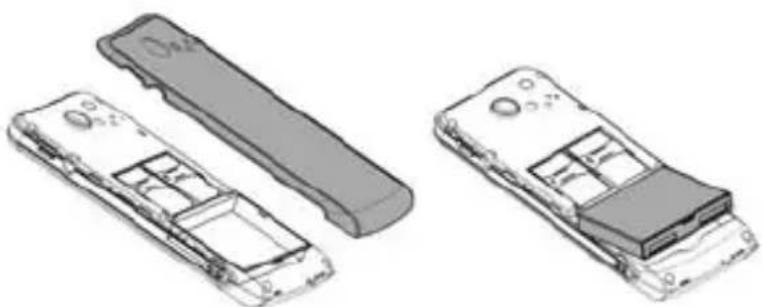

7.1 Insert / Remove the battery

Technical line drawings of two mobile phone modules with visible internal compartments and buttons (no text or symbols)

■ Take off the rear cover of the mobile phone.
■ Align the contacts of battery with the corresponding connectors on the battery compartment.
■ Then gently press the battery downward using the finger, and then press the other end to install the battery.
■ Lift the battery up from the bottom end of the battery and take the battery out.

English

☒ WARNING: Always switch your product off and disconnect the charger before removing the battery.

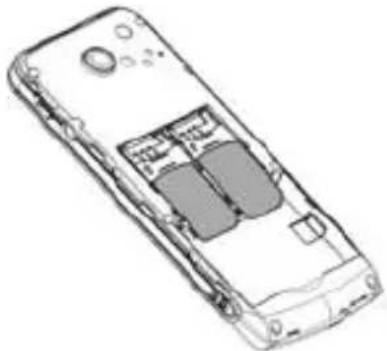

7.2Insert / Remove SIM card

The device is dual SIM cards dual standby phone. It can support 2 SIM cards. Card inserted in card slot 1 is SIM 1; Card inserted in card slot 2 is SIM 2. Before changing the SIM card, please make sure your product is switched off.

Line drawing of a mobile phone casing showing internal compartments and ports (no text or symbols)

■ Make sure that the contact area on the card is facing the connectors on your product and that the beveled corner is correct with the indicator, then insert the SIM card.
■ When taking out SIM card, directly pull it outward and then can take out SIM card.

7.3 Insert / Remove T-flash card

Line drawing of a smartphone showing internal components (no text or symbols)

■ Make the end of T card with metal surface face inside and downward and aim at the T card slot of the phone, then insert SIM card to the card slot of the phone.
■ When taking out T card, directly pull it outward and then can take out the card.

7.4Charge

the

battery

The phone will release the warning tone indicating the insufficient electric quantity with the indication of the empty battery icon when the electric quantity is lower. Under this case, the phone may not be used in partial functions.

English

The phone will power off automatically when the electric quantity is too low.

Please charge the battery.

Line drawing of a handheld electronic device with a button and connector (no text or symbols)

■ Please make sure the battery is inserted correctly.
■ Connect the power cord to the device and then connect a compatible charger to a wall outlet or connect with the computer via USB data cable. (There are two charging interfaces, one is Nokia compatible charging interface and the other is normal USB charging interface.)
■ The battery icon on the screen will flash when the phone is being charged. After completion of charging, the full battery icon will display on the screen. The charging animation will be displayed on the screen when the phone is being charged under the power-off state. After completion of charging, the charging animation stops.

(If not using your mobile phone for a long time, it will take a few minutes to show the charging animation.)

WARNING: Taking off the battery during charging is forbidden. Please make sure to use the designated charger.

8. Phone Call

The device is a dual SIM cards dual standby single pass phone. Dual SIM cards means it supports two SIM cards, dual standby means all the SIM cards work in standby mode, single pass means only one SIM card can answer or make a call, the other is sleeping at the same time until the call ends.

8.1 Make a call

To Make a call, input the phone numbers (sometimes including the area code when you call a foreign area number), and press or key. If "Dual SIM open" mode in settings is active and these 2 SIM cards are all available, you need chose which one is the initiator: SIM1 or SIM2.
■ Also, you can make a call through phonebook list or call history directly.

8.2Answer a call

■ To answer a call, press or key when the call is incoming.

English

■ To reject the call, press key.
- Or you can press to enter options to select the operation you want to do.
If you set "any key answer" in profile, press any key (except or key) to answer this call.

8.3 During a call

There are some options available when you press during a call. The side keys can increase (press side key UP) or decrease (press side key DOWN) the volume. Press to enter/exit hand free mode. In options menu, you can choose.

• Hold / Retrieve single call – to keep / retrieve current call.
  ■ End single call – to end current call.
  ■ New call – to make a new call via input numbers.
  ■ Phonebook – you can enter the phonebook and conduct the relevant operations.
  ■ Message center – to enter message center to conduct the relevant operations. During a call, you can't send and receive MMS.
  ■ Sound recorder – to start phone call recording. The file is stored in Audio folder in memory card.
  ■ Mute – to make the other side can not hear what you say.
  ■ DTMF – to enable/disable DTMF.

9. Connectivity

This mobile phone offers options to connect to another device or computer. Wireless solution includes Bluetooth. It also supports a wired solution with a USB (Universal Serial BUS) cable connection.

■ USB cable connection

Using a USB data cable, you can connect the mobile phone to a compatible computer. If the phone is powered off, you will see the driver in your computer. If the phone is powered on, you can select the feature you want to use: storage or web cam.

Bluetooth

See chapter 10.8.1 Bluetooth

10. Main menu

10.1Phonebook

■ Add new contact

English

Add a new record to phonebook list, including name, number, etc. you can select the position to store: phone, SIM1 or SIM2. The content of every record in SIM card is composed of name and ONE number.

■ Send message

Send text/multimedia message directly from phonebook. Select the desired contact and press Options > Send message, edit the content and press OK key to send.

■ Copy contacts

Copy items from SIM Card 1 to phone or from phone to SIM Card 1 or from SIM Card 2 to phone or from phone to SIM Card 2 or from SIM Card 1 to SIM Card 2 or from SIM Card 2 to SIM Card 1.

■ Delete all contacts

Delete all the records in SIM Card 1 or SIM Card 2 or phone, you need to input password 1122.

■ Settings

To set the feature of phonebook, you can view the memory status, extra number, preferred storage position to save number, set the speed dial number list, etc.

10.2Messages

1. SMS

■ Before you use SMS

You must have a service center number. The number is supplied by your service provider and is usually saved on the SIM card, or you must enter the number yourself.

To enter a service center number

1. From standby mode, select Menu > messages > Message settings > Text message > SIM 1/SIM 2 message settings > profile settings > profile (1...4) > Edit.

2. If there no number shown, chose the item to EDIT, especially the SC address, enter the service number, when finished, press to save.

You are notified when you receive a message. Messages are automatically saved in the phone memory or SIM card according to your setting.

■ To save messages on phone/SIM

From standby mode, select Menu > Messages > Message settings > Text message > SIM 1/SIM 2 message setting > preferred storage.

■ To write and send a SMS

1. From standby select Menu > Messages > write message.
2. write the message and press , options are as below:
   Use templates – to insert a template to message content.

English

Insert card – to insert a name and number from phonebook list to message content,
Insert Call History – to insert a call history to message content.
Insert message – to insert an existing message to message content.
Insert bookmark— to insert a bookmark in wap to message content.
Format text – to set the content format.
Input method – to change the input method you want to use.

Inbox

List all received SMS (including read and unread).

Inbox: received messages via SIM card 1/2.

When a message is focused, press , you can see the details of this message. Press , options as below:

View – to open and view the message content.
Reply – to send a message to the sender.
- Call sender – to call back to the sender.
Forward – to transfer this message to some other.
Delete – to delete this message directly.
➢ Delete all – to delete all the messages in this Inbox (SIM, Phone or both).
Save to phone book – to save the number to phonebook.
Move to Archive – to move and save the message to Archive box.
Filter by – to set certain rules to avoid some types of text message.

■

■ Outbox

List all unsent SMS contains SIM1 and SIM2 cards.

Options are same as Inbox, please see Inbox

■ Templates

To view the list of templates, Press , options as below:

• Edit – to edit this template
  Erase – to set this template empty
  Write message – to use this template to write a new message.

■ SMS settings

Profile setting – to edit the profile name, SMS service center number, SMS validity period, SMS type.
Common settings – to enable / disable the delivery report and reply path
➢ Memory status – to show the status of storage (SIM card and phone)
➢ Preferred storage – to set where the message store firstly.

English

SMS Firewall

To prevent some messages from special number

SMS Firewall –press to turn it on or off, this feature works only when the status is on.
Number setting – to set the special number according to input number or insert from phonebook list.

2. MMS

MMS means Multimedia Message Service. The content can be text, pictures, ring tone, melody and animation.

■ Write Message

To write the MMS, you can set the number or email for To, Cc, Bcc and edit the message content.

When editing the content, you can press to enter the option list, where you can choose:

• Send to – to finish editing the content
  Input method – to select the input method you want to use
• Add picture – to add a picture to the message content
• Add sound – to add a audio resource to the message content
• Add video – to add a video resource to the message content
• Add subject – to add some files to the message content
• Add slide before – to insert a new slide before this slide
• Add slide after – to insert a new slide after this slide
  Delete slide – to delete current slide
  Next / Previous slide – to change to next / previous slide
  Add bookmark text – to insert a bookmark in WAP to message content.
• preview – to preview the content
  ▶ Slide timing—to Set the delay time of the slide

■ Inbox / Outbox / Drafts

To list all received / sent / stored MMS

When one message is focused, press you can choose the options.

■ Templates

To choose the template defined by user himself or system.

■ MMS settings

To set the MMS parameters such as compose parameters (Parameter when writing message), send parameters (parameters when sending message), retrieve parameter (parameters when retrieving message), filter parameter, server profile (choose the operator's supporting network or MMS's profile), also you can see the memory status.

English

3. Chat

You can chat with others through SMS. Input your nickname and your friend's phone number, and then start to chat. Please act it follows menu hints.

4. Voice mail server

This function needs support from the OPERATOR, Please consult with them about the details and voice mail number.

You need to input your name and voice mail number. You can connect to the voice mail server to listen to the voice mail.

5. Broadcast message

You can choose to receive or reject broadcast message; read the broadcast messages; select the language; Edit the channels.

10.3Call center

1. Call history

■ SIM Card 1 / SIM Card 2 call history

Press , you can choose

SIM 1 / SIM 2 missed calls
SIM 1 / SIM 2 dialed calls
SIM 1 / SIM 2 received calls

In every call list, highlight the record and press to view the details (including date, time, name, number and times), Press to enter the option menu, where you can choose:

Delete – to delete current record;

Save to phonebook – to save current record's number to phonebook

Call – to make a call to current record

Edit – to edit the number and save it to the phone book

Send SMS – to write a new SMS and send to current record

Send MMS – to write a new MMS and send to current record

Add to black list – to add current record to blacklist

➢ Delete SIM Card 1 / SIM Card 2 call log

To delete missed calls, dialed calls, received calls or delete all.

SIM Card 1 / SIM Card 2 call time

To see the duration of last call, total send call time, total received call time, or to reset all time to zero.

SIM Card 1/ SIM Card 2 call cost

To see the cost of last call, total cost, to reset all cost to zero, to set

English

the max cost, or to set the price per unit (Needs PIN 2 code). The function need network operator's support.

■ SIM 1/ SIM 2 text message counter

To see the count of sent and received SMS, select to set the count to zero.

■ SIM 1/ SIM 2 GPRS counter

To see the flow rate of last sent, last received, total sent, total received, or to reset every value to zero.

2. Call settings

■ Speed dial

Speed dial allows you to make a call by pressing and holding <2\~9> key in the standby mode.

• Enable Speed dial – to active or inactive speed dial
  Set number –To assign a number key a phone number, press then to select a number from phonebook.

■ SIM 1 / SIM 2 call settings

• Caller ID – Set by network, hide ID or Send ID,
• Call Waiting – Activate, deactivate or query status. If activate this function, there will be prompt sound in the handset when third party call comes when you are making a call.
• Call divert – When this function is activated, you can transfer the incoming call to voice inbox or other phone number according to the scheduled “call divert” conditions: “Divert all voice calls”; “Divert if unreachable”; “Divert if no answer”; “Divert if busy”; “Divert all data calls”. This function needs support of network operator.
• Call barring – set the condition for barring, and the password. This function needs support of network operator.
  Line switch –There are two lines can be selected: line 1 and line 2. But the function is just for the SIM card with two numbers. If your SIM card is not the type like that, please just select line 1, because if you choose line 2, dialing will be barred.

■ Black list

To disable a call from number stored in black list when the status is on. You can input black list number directly or select from phone book.

■ Auto redial

To enable / disable auto redial function.

IP dial

To dial a number and add the IP serial number.

■ Background sound

To add an additional sound to make a different surroundings.

English

■ Call Time display

To show / hide the duration of current call when you are making a call.

■ Call time reminder

To set the reminder as none, single or periodic, when select periodic, you should enter the period (from 30 to 60 seconds)

■ Auto quick end

To set the status and the limited call time (from 1 to 9999 seconds)

10.4 Settings

1. Dual SIM switch

Set the SIM card standby mode each time powering on the phone.

2. Dual SIM Settings

To set the work status of this two SIM cards: Dual SIM open, Only SIM Card 1 open, Only SIM Card 2 open or Flight mode (no SIM Card open).

NOTES: an existed SIM card may NOT be open, but the content in this SIM can also be viewed, such as phonebook, message, etc.

3. Phone Setting

■ Time and date

You can set the home city, current time and date, and the format to show

■ Schedule Power on/off

To set scheduled power on /power off time as you like.

Language

To change the system language as you like.

■ Preferred input method

To set the default input method when you write messages, or edit character strings, sometimes you also can changed the method during editing via 'input method' or press <#>.

■ Display

Wallpaper – set the wallpaper image
Screen saver – set the screen saver status, images / animation and waiting time.
Power On/Power off display – set the image / animation when system turn on / turn off
Show date and time – show / hide date and time in standby mode
Show owner number – show / hide the number of SIM Card 1 / SIM Card 2.
Screen switch effect – set the display when switch the menus.

English

- Idle quick menu – set the quick icons display in idle screen.

■ Auto update of date and time

To update date and time with the network automatically, this is the network dependent service.

■ Misc. settings

To set the brightness level and duration of back light

4. User profiles

There are 6 profiles for you to select one as current profile:

General
Meeting
Outdoor
Indoor
Headset
Bluetooth
Save power

In every profile item, press to enter "Activate" and "Customize".

In "Customize", you can choose

➢ Tone setup – to customize the tone of SIM Card 1 / SIM Card 2 incoming call, Power on / Power Off, SIM Card 1 / SIM Card 2 message, keypad tone, there is a list for you to choose.
Volume – to set the volume for ring tone and keypad tone.
Alert type – to select one type from ring, vibrate only, vibrate and ring or vibrate then ring.
Ring type – to set the type from Single (only once), repeat to Ascending.
Extra tone – to enable warning, error, camp on, and connect tone. If one of them is marked, the associated information will cause a sound.
Answer mode – If “any key” is marked, when this function is activated, you can answer a call by press any key except or Ⓤ key.

As a hide profile, the device will enter / exit SILENCE when you long press <#> in standby mode, which without vibration and without any sound or melody.

5. Network settings

To set network selection mode and Preferred network for SIM Card 1 / SIM Card 2.

6. Security setup

To manage your mobile phone security and to make it safe.

■ SIM Card 1 / SIM Card 2 security setup

English

SIM Card 1 / SIM Card 2 Lock

If “SIM card lock” is activated, each time when you power on your phone, you will have to input PIN code. If you input mistaken PIN code three times continuously, SIM card will be locked. You will have to get PUK1 code to unlock it. Please contact network operator to get PUK1 code when necessary.

The default PIN code is 1234.

Change password

Change and reset the PIN codes.

■ Phone lock

To change the phone lock status, if the status is on, the phone password is needed when power on.

NOTES: the default phone password is 1122; please change it as soon as possible after you get your mobile phone.

■ Auto keypad lock

To enable (also need set the waiting time) or disable the automatic keypad lock in standby mode.

NOTES: If the keypad is locked, please do the action according to the pop up hint on the screen to unlock the keypad, or the keypad does NOT work.

■ Change password

To change the password of your mobile phone.

7. Connectivity

Bluetooth

To set parameters for the Bluetooth connectivity. When enter this application, you can choose

Power – to power on or power off the Bluetooth in your mobile phone.
Inquiry audio device – to search the Bluetooth devices around your mobile phone.
My device – to list records of all Bluetooth devices you found or search new one. Highlight one device and press , you can connect with the device, rename the device, delete the device, delete all devices and show the service list.
Active device – show the current connected device and the service; press to disconnect with the device.
Settings – to set the Bluetooth parameters, including visibility, changing device name, whether need authentication and changing audio path and FTP setting.
About – to view the information of your Bluetooth.

English

NOTES: for safety, when pairing with other Bluetooth device, the password may need input, please input the same password as the device you want to connect.

■ Data account

To list all the data account supported, you should select one of them and edit them according to the real parameter.

The account parameters sometimes may change by the OPERATOR, so if there is some error, please connect with your OPERATOR and change it.

8. Restore factory settings

To restore the original device settings. To do this, you need your phone password. After resetting, the device will power off.

10.5 Multimedia

1. Camera

To preview and capture the images. In preview state, press to enter the Options menu, you can choose:

• Photos – to view the images already exist in photo album and specific operation you could refer to chapter 10.5.2 image viewer..
  Image settings – to set the image size and the quality of image you want to capture.
• White balance – to select one balance mode to use, the default mode is auto
  ➢ Scene mode – to set the mode normal or night in order to capture image in day and night.
  Effect setting – to set the image color effect according to your interest.
  Storage – to set the location to save the captured videos.
  Restore default – to restore the original parameter settings

2. Image viewer

To view the image exists in photo album. Press , you can choose:

▶ View – to view current image
Browse style – to change the display style of image list
Forward – to set current image as wallpaper, screen saver, power on / power off display, image for somebody or caller group in phonebook, or

English

to transfer current image via MMS, or Bluetooth.

Rename – to rename the file name of current image
➢ Delete – to delete current image
- Delete all files – to delete all files in current folder
Sort by – to sort all the image files according to name, type, time, size when you view image list.

3. Video recorder

When enter this function, you can view video effect through screen, press to enter recording state, press to stop recording and save the shot video or exit without saving. Press to enter setting menu, you can choose:

• Camcorder settings – to set the parameters of white balance, EV, Night mode and banding.
  Video settings – to set the quality level of video
• White balance – to select one balance mode to use, the default mode is auto
  Effect settings – to set the effect according to your interesting
  Storage – to set the location to save the captured videos.
  Restore default – to restore the original parameter settings

4. Video player

To view the video files stored in T card, focused on one file, press , you can choose:

Play – to play current video file
Use as – to set the video as screen saver, power on/off display, caller video and so on.
- Send – to transfer current file via MMS or Bluetooth to some others.
Rename – to change name of current video file
Delete – to delete current video file
- Delete all files – to delete all video files in current folder
Sort by – to sort the files in view list according to name, type, time, or size.
Storage – to set the location to save the captured videos.

5. Audio player

To play the audio files stored in T card.

On the MP3 player interface, the arrow keys control playing: UP means play or pause, LEFT means choosing previous song or rewind, RIGHT means choosing next song or fast forward, DOWN means stop.

English

Press on the MP3 player interface, you can see the audio files list. Select one and press , you can choose:

▶ Play – to play current audio file
Details – to view information of current audio file
- Add to rings – to add current audio file to ring list.
➢ Refresh list – to refresh the list in order to synchronize files in current storage.
Settings – to set the parameters for audio player, including list auto generate, repeat type, shuffle, background play, Bluetooth, headset, sound effect, lyrics display status.

6. Sound recorder

To list all the record files, if the folder is empty, press to select "Record" to start a new record, to select "settings" to set the recorder parameters, including file format and audio quality.

When start a new record, the animation and time will start, the process is working, you can press to pause or continue, press to stop and save the record with the filename you input.

When a record file is focused, press , you can choose

Record – to start a new record
Play – to Play current record file
Append – to append new record to current record file
Rename – to rename current record file
Delete – to delete current record file
Delete all files – to delete all record file in current folder
Settings – to set file format and audio quality
Forward – to add current file to ring list or to transfer current file via MMS or Bluetooth to some others.

7. FM radio

Warning: If you want to use FM radio, please insert headset first.

In FM screen, the arrow key control playing: RIGHT means next channel / frequency, LEFT means previous channel / frequency, UP means start / stop auto search, DOWN means Power on / Power off FM radio.

Press , you can choose

Channel list – to view the channel list already exist, you can play, delete or edit the channels.
➢ Manual input – to set current frequency as you input
Auto search – to search channel automatically and save the available channels.

English

Settings – to set the status of background play and whether use loud speaker.

10.6Service

1. STK

To show all the service inside in your SIM card, the name and service should be different according to your SIM card and OPERATOR

2. Internet service

This service is support by OPERATOR, if you do NOT know whether your SIM card supports, please connect with the OPERATOR for more information.

Enter this service menu, you can choose

• Homepage – to enter the homepage via WAP web.
  Bookmarks – to list all the book marks, you can edit them or enter the bookmark directly; add new bookmarks.
  Recent pages – to view recent viewed websites and enter them directly.
  Input address – to input the address and enter directly
  Service inbox – to list all the push messages sent by service provider.
  Settings – to set the WAP parameters, including SIM Cards selection, Profile you want to use, browser settings, service message settings, and to clear cache and cookies.

3. Buidu Search

A search bar for internet surf.

10.7 Organizer

1. Calendar

Show the calendar according to the date of mobile phone. Press , you can choose

View – to view current day's tasks list. You can also add a new task.
View all – to view all current day's tasks list. You can also add a new task.
- Add event – to add a new task.
Delete event – to delete the selected task.

English

Jump to date – to jump to the date you input.
Jump to today – to jump to today's screen.
- Go to weekly view – to switch the calendar view mode.

2. Alarm

There are 5 alarms can be used. For every alarm, press you can set: Status (on or off), Time, Repeat status (when it is “Days”, can also set the weekday), Audio (ring tone), Snooze duration (the default duration is 4 minutes) and alert type.

3. Task

To add a schedule to a special day. If there is no task, you can press to add a task and fill the content according requirements. Highlight one task and press , you can choose

View – to view the detail of current task
- Add – to add a new task
- Edit – to edit current task content
➢ Delete – to delete current task
Delete all – to delete all tasks
- Send vCalendar – to send current task as vCalendar via SMS,MMS,Bluetooth or save to file

4. Calculator

To enter calculator, the functions of key pad are as below:

Keys	Press	type	Function
UP	Short	press	+ M+
UP	Long	press
Down	Short	press	-
DOWN	Long	press	M-
RIGHT	Short	press	÷
RIGHT	Long	press	MR
LEFT	Short press	×
LEFT	Long press	MC
0..9	Short press	0..9
#	Short press	Point
OK	Short press	Get the result

English

5. Word Clock

You can view the time of different location. If you travel to a country or city with different time zone, you can move the time zone graph to the country or city in world map by pressing Left or Right key, and you can find the local time then.

6. Games

There are several built-in games.

10.8File manager

To view the files and folders in memory card.

For every folder, the options for them are:

• Open – to open current folder
  New folder – to create a new folder in the selected folder
  Rename – to rename current folder
  ➢ Delete – Delete the current folder
  Sort by – to sort the folders by name, type, time or size.

Default folders description

Received – to store the files received through Bluetooth.
E-book – to store the files that can read by E-book application directly.
My music -- to store the audio files played by audio player directly.
➢ Photos – to store the images captured by camera or viewed by image viewer.
Video – to store the video file played by video player or record by video recorder.
Audio – to store the voice memo recorded by sound recorder.

10.9Fun and Games

Java

You can install the third-part application into your phone use Java resource file, also the phone is built-in several Java applications.

10.10 Allview Store

You can connect to our applicationmarket and download free games and applications for your Allview mobile phone from there.

10.11 Bolt

It is an internet browser that you can use to navigate on the internet.

English

10.12 Snaptu

Using Snaptu you do not only access the socialize web sites like Facebook, Twitter or Google Talk, but also you can access weather forecast, images on Flicker, notices on Google Calendar, Picasa and even games like Sodoku, Trivia and a lot of news.

11.Input method

There are several input methods supported by your mobile phone, the number of them may change according to the number of languages.

■ Smart ABC/abc

Press number keys <2-9> to input word. Each letter is input by pressing a key once. The English input method will forecast your inputting word. For example, you press <2, 3, 6> key the screen will show "ADO" with special background color, you can press arrow key UP or DOWN to change the string, and press to select the one you want to input

■ Multitap ABC/abc

When you press number keys <2-9>, the screen will show the character according to the keypad print, for example, you press <3>, the screen will show "D" with special background color, you can continue press <3> to change the character to "D", then to "E", then to "F".

Numeric

Press the [09] number keys, corresponding number will appear on the screen.

NOTES: in edit screen, you can change the input method via press <#> key, press <*> key to enter symbol selection screen and press<0> to input a space.

12. FAQ

These lists just for reference, if your problems can NOT be resolved according them, please contact with the local distributor.

Question Reason and Solution
Can NOT power on	Must long press the key at least 3 seconds.Check the battery is installed correctly.Whether the battery runs out, charge it and wait a few minutes
Can NOT connect the network	The strength of signal is weak, please move to other place where the signal is stronger.Maybe you are out of the service area of your network operator.Check whether your SIM card is valid.
There are some popup messages	Check whether the SIM Card is inserted correctly.The mobile phone is locked, you must input the password.The PIN code is needed if your SIM card is locked by you or some others.The PUK code is needed when you input wrong PIN code 3 times continuously, input the correct PUK code or contact with your network operator.
The voice quality is NOT good during call	Check whether the volume is suitable.Check the signal strength in signal indicator. If the level is low, you should move to another place where the level is high.The time is the call rush hour, the network can not carry so many calls.
The standby time of battery becomes short	The low signal strength will shorten your battery standby time.The battery runs out its life, please change the battery.

English

SIM card error	☑ SIM card connect point is dirty, please clean it with soft and dry cloth or something.☑ SIM card is NOT inserted correctly.☑ SIM card is broken, please contact with your network operator.
Can NOT make a call	☑ Make sure you press 1 or 2 after dialing numbers.☑ Make sure you have enough money associated with your SIM card.☑ Make sure your SIM card is valid.☑ Check whether the dialing out function is barred in call settings.☑ Check whether the FDN is set in call settings.
Can NOT be called by others	☑ Make sure your mobile phone is ON, and the network is connected.☑ Make sure there is enough money associated with your SIM card.☑ Make sure your SIM card is valid.☑ Check whether the incoming call is barred in Call Settings.☑ Check whether the caller number is in black list.
Can NOT charge the battery	☑ Check the connector connects well.☑ Check the temperature is suitable.☑ Battery or charger is damaged, please change a new one.
Some functions do NOT work	☑ Check the operation is correct☑ Make sure the operation is support by your network operator or your SIM card.☑ Make sure the condition needed by this function is meted.

English

DECLARATION OF CONFORMITY

Nr. .....

We, SC VISUAL FAN SRL, importer located in Brasov, 16 Liliacului STR., registered at the Commerce Chamber Brasov no. J08/818/2002, CUI 14724950, assures, guarantee and declare on our own responsibility, in accordance with art.5 from HG nr. 1.022/2002 regarding the statute of the products and services that can jeopardize life, health, work security and environmental protection, that:

The product H1 Thin – mobile phone ALLVIEW brand- and the accessories that came with the product: 220V charger, headphones and battery don’t jeopardize life, health, work security and environmental protection and they are according to:

- The Stipulations of HG nr.982/2007 witch transpose the essential requirements specified in Direction 2004/108/CE, regarding electromagnetically compatibility;

- The Direction regarding the low voltage equipment users assurance 73/32/CEE, modified by Direction 93/68/CEE (HG 457/2003) and tests EN 55013:2001+A1:2003+A2:2006, EN 55020:2007, EN 610000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005;

- The Direction regarding the radio and telecommunication equipments R&TTE 1999/5/CE (HG 88/303).

The Product described upstairs in this Declaration and all the accessories are according to the next standards:

• Health EN 50360, EN 50361;
• Safety EN 6095-1;
• EMC EN 301 489-1-7/17;
• Radio spectrum EN 301511 EN 300328;

After the performed tests emerge that the samples comply with the upstairs specification, as the test results show. Documentation is stored on VISUAL FAN LTD - Brasov, 61 Brazilor STR.

Also available on web:"http://allview.ro"

CE 1313

SAR value: 0.82 W/kg

Brasov

20.08.2010

Director

COTUNA GHEORGHE

Romana

Manual de utilizare Telefon Mobil Dual SIM Allview H1 Thin

Line drawing of a mobile phone front panel with buttons and display screen (no text or symbols)

Romana

Technical line drawings of a mobile phone casing showing internal compartments and casing structure (no text or symbols)

Line drawing of a mobile phone casing showing internal compartments and ports (no text or symbols)

Line drawing of a smartphone showing internal components (no text or symbols)

Line drawing of a handheld electronic device with a scroll wheel and connector (no text or symbols)

apeluri in mod direct.

Preluarea unui apel
