ORH-17553-W - Refrigerator Orima - Free user manual and instructions

Product Type	Freestanding Refrigerator
Brand	Orima
Model	ORH-17553-W
Energy Class	A+
Total Net Capacity	175 L
Refrigerator Net Capacity	130 L
Freezer Net Capacity	45 L
Dimensions (H x W x D)	1450 x 550 x 600 mm
Weight	45 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	0.65 kWh/24h
Noise Level	40 dB
Climate Class	N/ST
Defrost Type	Manual (refrigerator), Manual (freezer)
Interior Shelves	3 tempered glass shelves
Door Bins	2
Vegetable Drawer	Yes, 1 crisper
Adjustable Thermostat	Yes
Reversible Door	Yes
Interior Light	Yes, LED
Freezer Compartment	With ice tray
Cooling System	Static
Refrigerant	R600a
Maintenance & Cleaning	Clean interior with warm water and mild detergent; clean door seals regularly
Safety Features	Do not use extension cords; keep ventilation grilles clear; avoid storing explosive substances
Spare Parts Availability	Available from Orima authorized service centers or online
Warranty	2 years

Frequently Asked Questions - ORH-17553-W Orima

How much clearance is needed around the refrigerator for proper ventilation?

Leave at least 10 cm (4 inches) on the sides and back, and 30 cm (12 inches) above the appliance to ensure adequate airflow.

What is the recommended temperature setting for the refrigerator and freezer?

Set the refrigerator between 3°C and 5°C (37-41°F) and the freezer between -18°C and -15°C (0-5°F) for optimal food preservation.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the user manual to change the door hinges from right to left or vice versa.

How do I clean the interior of the refrigerator?

Unplug the appliance and remove all food. Use a solution of warm water and mild detergent to wipe the interior surfaces. Dry thoroughly before plugging back in.

What should I do if the refrigerator stops cooling?

Check if the power cord is plugged in and the circuit breaker is on. Ensure the thermostat is set correctly. If the problem persists, contact Orima service for assistance.

Why is there water pooling inside the refrigerator?

This may be due to a clogged defrost drain. Clean the drain hole at the back of the refrigerator using a pipe cleaner or warm water to clear any blockage.

How often should I defrost the freezer?

Defrost the freezer when the ice thickness exceeds 5 mm (0.2 inches). Manual defrosting is required; remove food and use the provided scraper to remove ice buildup.

What causes unusual noise from the refrigerator?

Normal sounds include gurgling from refrigerant flow and clicking from the compressor. If loud or persistent, ensure the appliance is level and not touching walls or cabinets.

How can I reduce energy consumption?

Keep the appliance away from heat sources, ensure door seals are clean and tight, set temperatures as recommended, and avoid frequent door openings.

The interior light is not working; how do I replace it?

The interior light is LED and must be replaced by a qualified technician. Contact Orima customer service for assistance.

USER MANUAL ORH-17553-W Orima

MANUAL DE INSTRUÇÕES

INSTRUCTION MANUAL

LIVRE D'INSTRUCTIONS

facebook.com/orima.pt

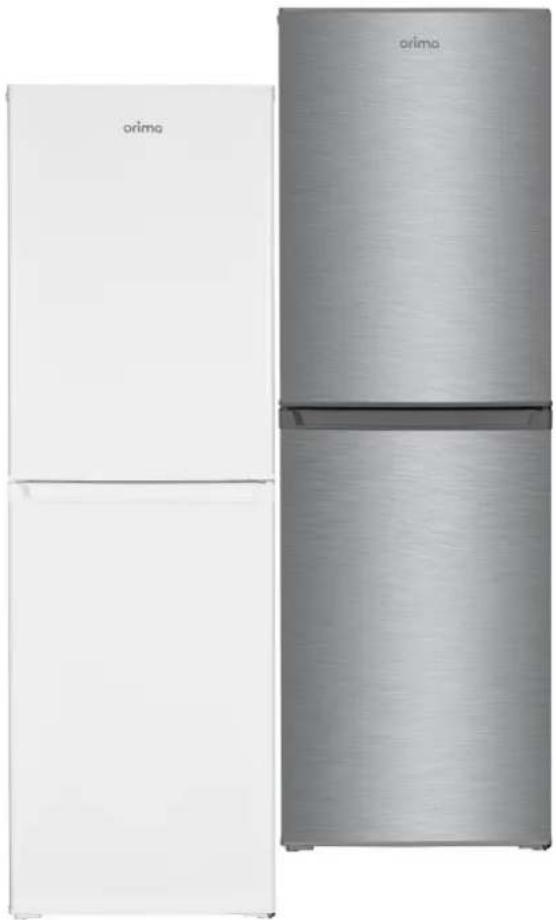

Exterior view of a modern refrigerator with two white doors and three silver-framed units (no visible text or symbols)

MMA

MÁRSO MIRANDA DE ALMEIDA

COMBINADO

Simple line drawing of a rectangular frame with corner markers and a small circular symbol at the bottom (no text or labels)

Simple line drawing of a door with a hanging tool and a circular icon showing a control panel (no text or symbols)

Pure mechanical diagram showing two vertical supports with curved arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical structure with a magnified inset showing a detail (no text or symbols)

Simple line drawing of a vehicle suspension system with a magnified inset showing the wheel assembly (no text or symbols)

Pure technical line drawing of a mechanical clamp or bracket assembly without any text, numbers, or symbols

Simple line drawing of a mechanical component with a screwdriver inserted (no text or symbols)

Simple line drawing of a rectangular frame with mounting holes and two small arrows pointing to the top (no text or symbols)

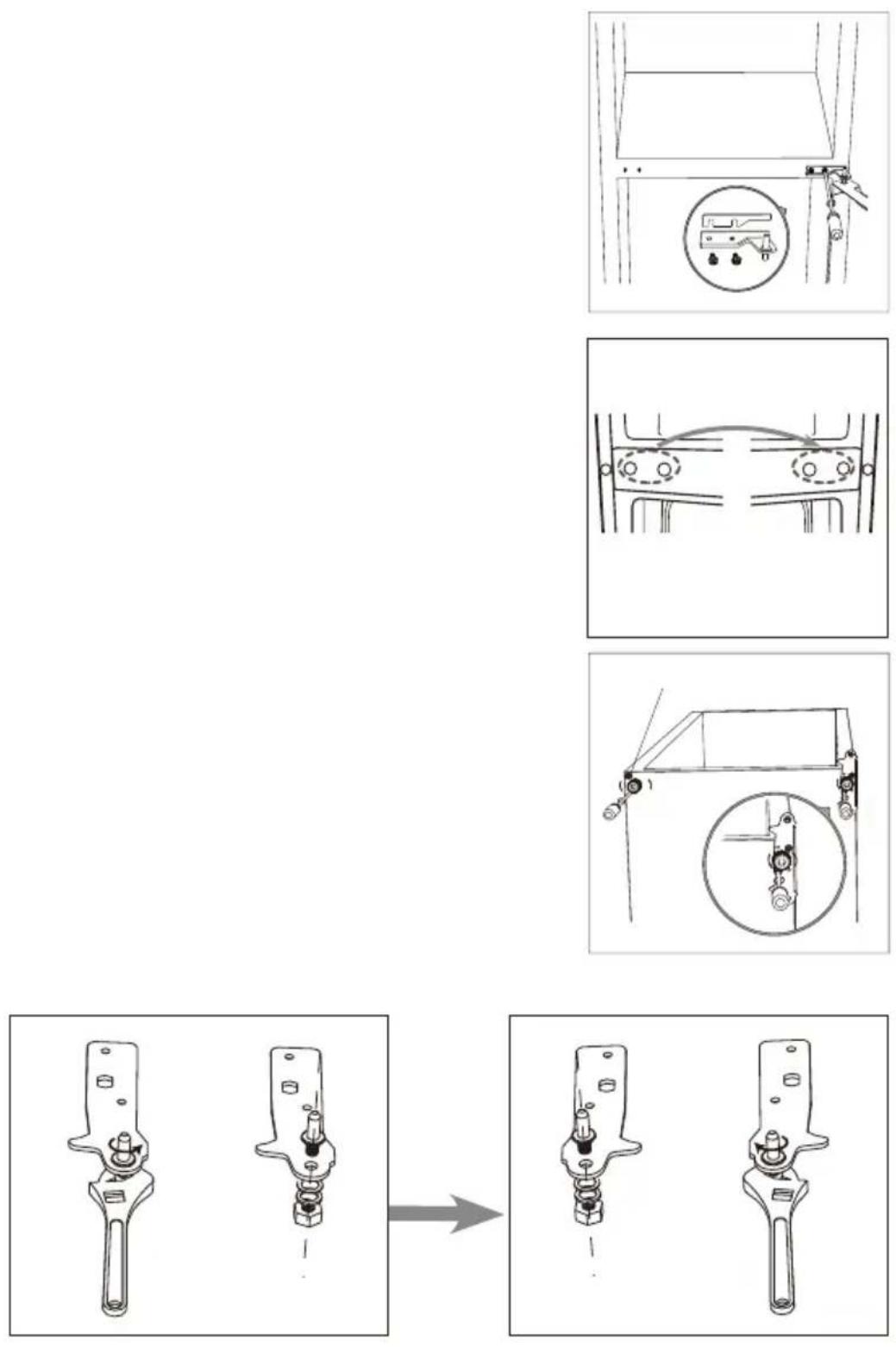

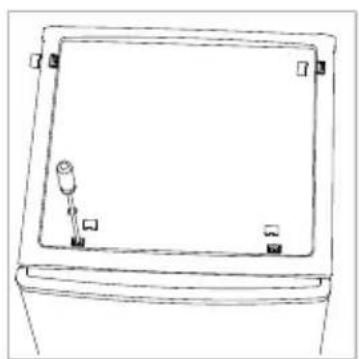

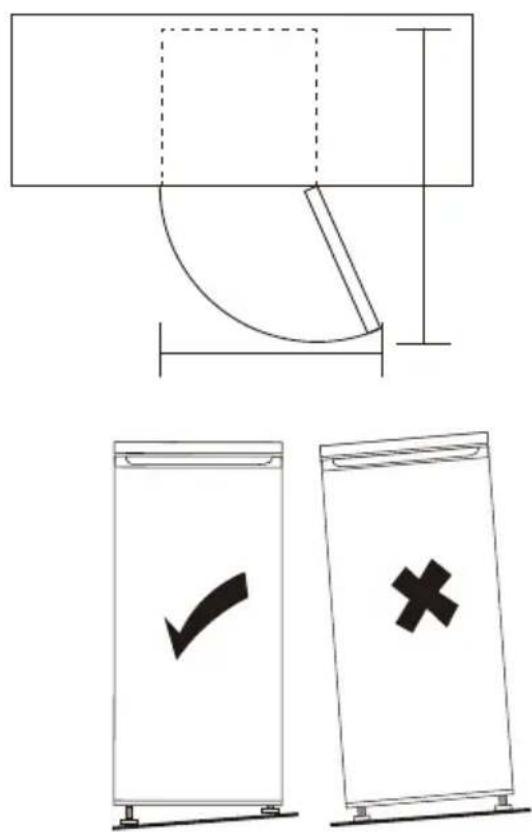

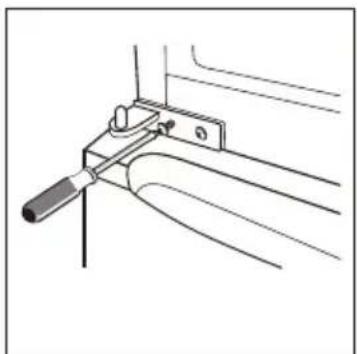

Posicionamento

Circular diagram with numbered segments and a central symbol (no text or labels)

During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

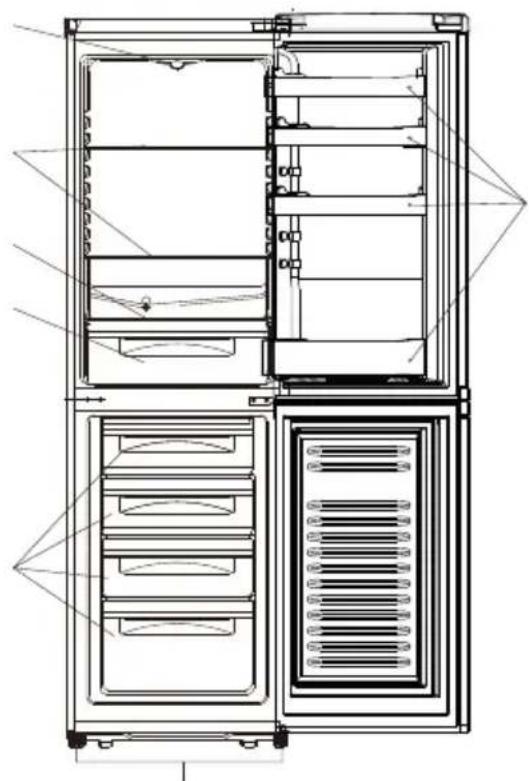

Technical line drawing of an open refrigerator with internal compartments and ventilation grilles (no text or labels)

Simple line drawing of a rectangular frame with a small protrusion and corner markers (no text or symbols)

Simple line drawing of a hand holding a small object with a tool, no text or symbols present

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Technical line drawing of a mechanical assembly with a circular inset showing a pulley mechanism (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Simple line drawing of a screwdriver inserted into a mechanical component (no text or symbols)

Simple line drawing of a rectangular frame with two side supports and three downward arrows indicating force or movement (no text or symbols)

Two vertical gray gradient bars with no text or symbols

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams, juices, drinks, condiments.·Do not store perishable foods.
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf – Fresh box	Raw meat, poultry, fish (for short-term storage)
Fridge shelf – middle	Dairy products, eggs
Fridge shelf – top	Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	·Foods for long-term storage.·Bottom drawer/shelf for raw meat, poultry, fish.·Middle drawer/shelf for frozen vegetables, chips.·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

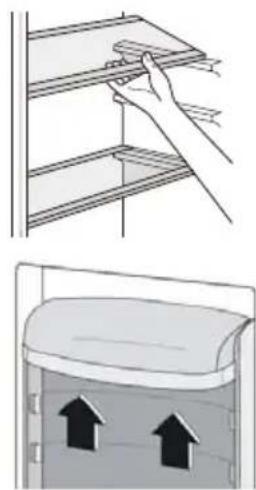

Illustration showing a hand placing a shelf item into a rack, and a close-up of a container with upward arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical or fluid system with rotating components and directional arrows (no text or symbols)

Simple line drawing of a container with a handle and lid, no text or symbols present

This list provides all Eco-design requirements (following the (EU)2019/2019 Eco-design and (EU)2019/2016 Energy labelling), if the requirement is applicable to your product.

The refrigerang appliance is not intended to be used as a built-in appliance, unless speci cally shown as such into its instruc on manual.

The drawers, baskets and shelves should be kept in their current posi on unless otherwise speci ed in this document.

Doors and lids of the refrigera on appliance should be removed before disposal in the land II, to avoid children or animals going trapped inside.

Recommended se ng:

Refrigerator compartment: +4°C

Freezer compartment: -18^ C

FAST FREEZE

The use of this func on is recommended when placing a very high quantity of food to be frozen in the freezer compartment. 24 hours before freezing fresh food, press the Fast Freeze bu on to acquire the Fast Freeze func on.

When ac vated, the Fast Freeze indicator turns on. A er 24 hours place the food to be frozen in the freezing zone of freezer compartment. The func on is automa cally disabled a er 72 hours, or can be manually disabled by pressing Fast Freeze bu on.

FAST COOL

Using Fast Cool func on it is possible to increase the cooling capacity in the refrigerator compartment. The use of this func on is recommended when placing a very high quantity of food in the refrigerator compartment. Press the Fast Cool bu on to acquire Fast Cool func on. When acquired, the Fast Cool indicator turns on. The function is automatically disabled at 6 hours, or can be manually disabled by pressing Fast Cool bu on again.

How to store foodstu s:

To avoid food waste, please refer to the recommended setting and storage mes:

Fridge compartment: Di erent food, especially vegetable and fruit, have di erent storage temperature. The storage me is 1 to 3 days (temp set ng: middle)

Freezer compartment: 1 week (temp se ng: Min) and 1 month (temp se ng: Max)

To op mize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.

The quantity of fresh food that can be frozen in a specific time period is indicated on the range plate. Load limits are determined by baskets, aps, drawers, shelves etc. Make sure that these components can close easily a eroding.

To avoid food waste, please refer to the recommended setting and storage mes found in the user manual.

The model informa on can be retrieved using the QR-Code reported in the energy label.

The label also includes the model iden er that can be used to consult the portal of the registry at

h ps://eprel.ec.europa.eu

This product contains a light source of energy e ciency class G (if present).

Technical Information

Model
Total Gross Volume, L	248
Net Volume of the Refrigerator, L 138
Freezer Net Volume, L 110
The current consumption depends on how the appliance is used and its location
Energy efficiency class	E
Energy consumption: kWh/year 217
Climate Class	N,ST
Dimensions (H x W x D), mm 1732x550x580
Noise Level, db(A) re 1pw	40
Eletrical Information Check Rating Label
Note: The manufacturer reserves the right to make future changes in specifications and technical parameters.
