Product type	Upright Freezer
Model	SZUF-211-WE3
Brand	Smith&Brown
Energy efficiency class	E (EU 2017/1369)
Annual energy consumption	221 kWh/year
Total net volume	211 liters
Freezing capacity	10 kg/24h
Storage time during power failure	15 hours
Climate class	SN-ST (10°C to 38°C)
Noise level	41 dB(A)
Dimensions (H x W x D)	160.0 x 60.0 x 65.0 cm
Weight	58 kg
Power supply	220-240 V ~ 50 Hz, 0.8 A
Refrigerant	R600a (60 g)
Number of shelves/drawers	4 shelves, 3 drawers
Temperature control	Mechanical thermostat
Defrost system	Manual defrost
Interior light	Yes, LED
Door type	Solid door with handle
Door hinge	Right, reversible
Maintenance	Clean interior with mild detergent; defrost when ice thickness exceeds 5 mm; clean condenser coils annually
Safety	Child lock, automatic door alarm, high temperature alarm
Spare parts availability	7 years after last unit production (by EU regulation)
Reparability index	7.2 / 10 (estimation based on typical design)

Frequently Asked Questions - SZUF-211-WE3 Smith&Brown

What is the ideal temperature setting for the freezer?

The recommended temperature for a freezer is -18°C (0°F). This ensures food safety and preserves quality.

How often should I defrost the freezer?

You should defrost the freezer when the ice build-up reaches about 5 mm thickness. Typically, this is needed every 6-12 months depending on usage.

Can I change the door opening direction?

Yes, the door hinge is reversible. Refer to the user manual for step-by-step instructions on how to change the door swing.

What does the alarm sound mean?

The alarm indicates either the door has been left open or the internal temperature has risen too high. Check the door and ensure the freezer is not overloaded.

How do I clean the condenser coils?

Use a vacuum cleaner with a brush attachment to gently remove dust from the coils located at the back or bottom of the freezer. Do this at least once a year.

Is it normal for the freezer to make noise?

Some noise is normal, such as a humming from the compressor or clicking from the thermostat. However, loud or unusual sounds may indicate a problem.

What is the storage time during a power failure?

The freezer can maintain a safe temperature for approximately 15 hours if kept closed. Avoid opening the door unnecessarily.

How much freezing capacity does the freezer have?

The maximum freezing capacity is 10 kg of fresh food per 24 hours. Do not exceed this to maintain performance.

Can I use an extension cord with this freezer?

It is not recommended. Plug the freezer directly into a grounded wall outlet to avoid voltage drop and safety hazards.

What spare parts are available for this model?

Common spare parts include shelves, door gaskets, thermostat, and LED light. They are typically available for 7 years after production.

USER MANUAL SZUF-211-WE3 Smith&Brown

Diagram of a tool interacting with a mechanical component, showing a handle and a downward arrow (no text or symbols)

unscrew

Diagram of a tool being adjusted with a screwdriver, showing no text or symbols

Pure geometric diagram showing a curved dashed line and two marked points (no text or symbols)

Note: remove this screw if it presents.

Unscrew Screw

Technical line drawing of a mechanical assembly with a circular inset showing internal components (no text or symbols)

Abstract diagram of a document with arrows indicating rotation or movement (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

Line drawing of a door handle with two arrows pointing to the top panel (no text or symbols)

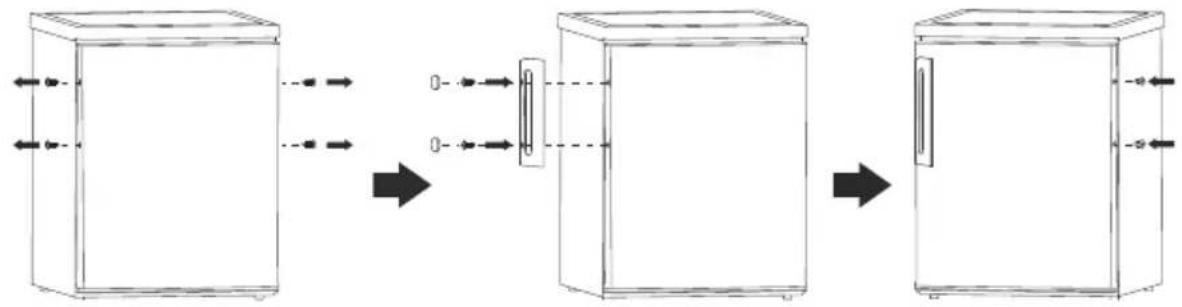

Diagram showing a device being processed from a left panel to a right panel, with arrows indicating direction of movement.

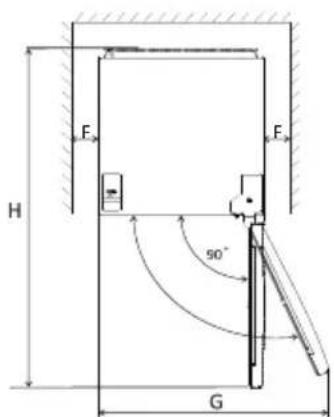

H F E 90° I G

A	544
B	571
C	1426
D	min=50
E	min=50
F	min=50
G	948
H	1115
I	135°

Diagram showing two labeled signs: a checkmark and a cross, both pointing downward.

Strefa klimatyczna

NORMAL MIN MAX

Użytkowanie

Simple line drawing of a tool with a handle and arrow indicating direction (no text or symbols)

Line drawing of a mechanical assembly with a tool inserted, no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with a handle and pivot point (no text or symbols)

Pure geometric diagram showing a curved dashed line intersecting a solid rectangular shape (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a detail (no text or symbols)

Simple line drawing of a folded document or scroll with arrows indicating rotation (no text or symbols)

Two labeled diagrams showing a checkmark and an 'X' symbol inside vertical bars, likely indicating cancellation or rejection.

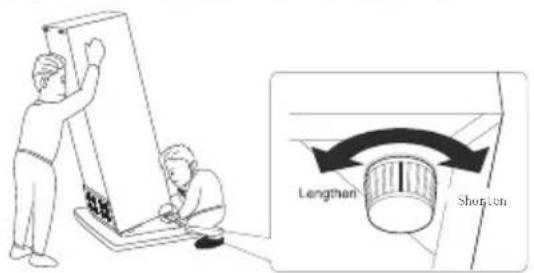

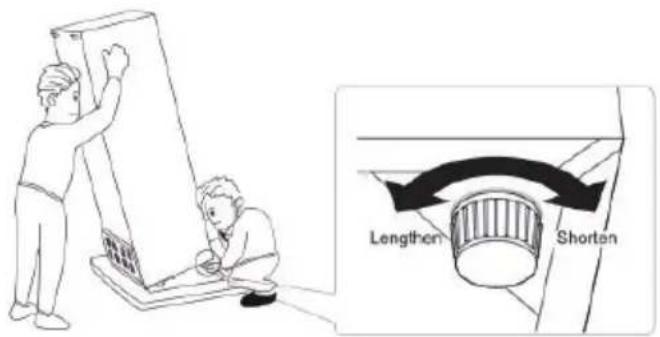

Lengthen Shorten

Встановлення

Розміщення приладу

NORMAL MIN MAX

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children aged from 3 to 8 years are allowed to load and unload this appliance.

• Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

- Keep all packaging well away from children. There is risk of suffocation.

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children from suffering electric shock or closing themselves in it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming dangerous for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

⚠ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

⚠ WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

⚠ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING!

Do not locate multiple portable portable power supplies at thence.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

- avoid open flames and sources of ignition

- thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
  • This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

⚠ WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)

• Power cord must not be lengthened.

- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.

- Make sure that mains plug of the appliance is accessible.

- Do not pull the mains cable.

- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

- You must not operate the appliance without the lamp.

- This appliance is heavy. Care should be taken when moving it.

- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

- Do not put hot objects on the plastic parts in the appliance.

- Do not place food products directly against the rear wall.

• Frozen food must not be re-frozen once it has been thawed out. ^1)
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturer's storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^1)
• Ice lollies can cause frost burns if consumed straight from the appliance. ^1)
  • To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.

• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.
  If the drain is blocked, water will be collected in the bottom of the appliance. ^2)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;

• Make sure food don't touch the back of the compartment(s);

• If electricity goes off, don't open the door(s);

• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• It's recommended not to remove all accessories, such as drawers, shelves balconies, for lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliance marked by the symbol ⚙ are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

Cabinet Tray Drawer Adjustable Feet Thermostat Knob

Reverse Door

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.

• It's better that 2 people handle the unit during assembly.
  • This refrigerating appliance is not intended to be used as a built-in appliance.

• Remove the top right hinge cover.

Diagram of a mechanical tool with a lever and a cylindrical component, showing an arrow indicating direction (no text or symbols present)

1. Undo the screws. Then remove the hinge bracket.

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

1. Remove the top left screw cover.

Mechanical diagram showing a screwdriver inserted into a bracket with a downward arrow indicating force (no text or symbols present)

1. Move the core cover from left side to right side. And then lift the upper door and place it on a padded surface to prevent it from scratching.

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

1. Unscrew bottom hinge. Then remove the adjustable feet from both side.

Line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

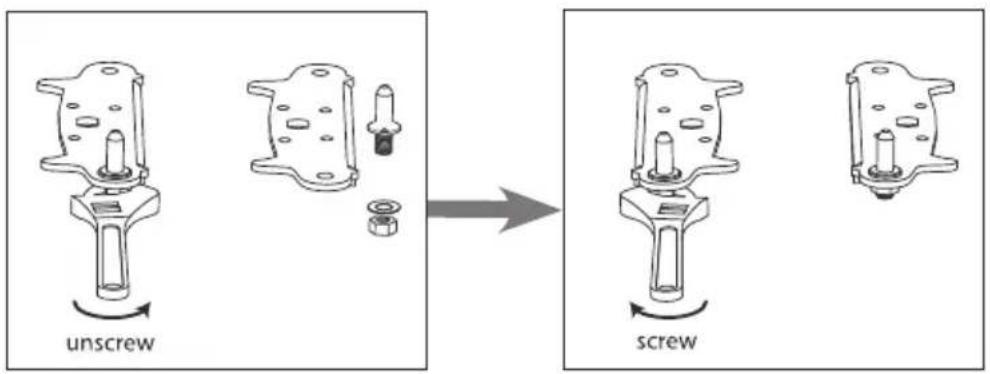

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

unscrew screw

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

1. Place the upper door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

2. Insert the hinge bracket and screw it to the top of the unit.

3. Use a spanner to tighten it if necessary.

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

Reverse Door

1. Put the hinge cover and the screw cover back.

2. With the doors closed, check that the doors are aligned horizontally and vertically and that the seal is closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

3. Detach the Fridge and the Freezer door gaskets and then attach them after rotating.

Simple line drawing of a flat panel with two downward arrows indicating measurement or alignment (no text or symbols)

Installation

Install door handle

Space Requirement

• Keep enough space of door open.
  • It is advisable to keep at least 50mm gap at two sides.

E C D B A F

F H G 50° F

A	055
B	058
C	1420
D	min=6
E	min=50
F	min=50
G	960
H	1130
I	135°

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Lengthen Shorten

Diagram showing two labeled rectangular objects with checkmark and cross symbols, likely indicating approval or cancellation.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

For refrigerating appliances with climate class:

—extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C (SN);

—temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C (N);

—subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C (ST);

—tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C (T);

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet. This refrigerating appliance is not intended to be used as a built-in appliance.

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

This refrigerating appliance is not intended to be used as a built-in appliance;

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Temperature Setting

• Plug on your appliance. The internal temperature is controlled by a thermostat. There are 3 settings MIN, NORMAL and MAX. MIN is warmest setting and MAX is coldest setting.
• The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

NORMAL MIN MAX

Food Storage Advice

Line drawing of a double-door refrigerator with multiple compartments and ventilation slots (no text or symbols)

- Freezer Compar

• Place ice cream, frozen fruit, frozen baked food in top tray. This is the where the temperature is warmest.
• Place frozen vegetables, chips in two middle drawers.
• Place raw meat, poultry, fish in bottom drawers.

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment.
  • The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
  • The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Ice-cube

This appliance may be equipped with one or more trays for the production of ice-cubes.

Helpful hints and tips

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
  • the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.
• Freeze meat, poultry and fish raw or pre-pared into portions suitable for at home and defrost them later in the fridge. Make sure that meat, for example, is not immersed in its own thawing liquid.
• Freeze fresh and prepared food dry and unseasoned. Unsalted foods are more du-rable.
• Allow prepared food to cool before freezing. This not only saves power, but also prevents excessive frost formation in the freezer.

Storing frozen food

When first starting-up or after a period out of use before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

CAUTION

The appliance may not operate properly if the ambient temperature exceeds or falls below the specified temperature range for a prolonged period. The temperature may increase in the fridge and freezer compartments which may cause the foods stored within to spoil more quickly.

Always ensure the prescribed ambient temperature is maintained. This refrigerator is designed for use at ambient temperatures of +16 °C to +38 °C.

Temperature setting recommendation

Temperature Setting Recommendation
Environment Temperature	Freezer compartment	Fridge compartment
Warm		/
Normal		/
Cold		/

• Information above give users recommendation of temperature setting.

Impact on Food Storage

• Under Recommended setting, the best storage time of freezer is no more than 1 - 3 months.
• The best storage time may reduce under other settings.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
- be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;
- not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
- Do not exceed the storage period indicated by the food manufacture.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  • After everything is dry place appliance back into service.

Defrosting of the freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed. Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as fellows:

• pull out the plug from the socket;
- remove all stored food, wrap it in several layers of newspaper and put it in a cool place;
- keep the door open, and placing a basin underneath of the appliance to collect the defrost water;
- when defrosting is completed, dry the interior thoroughly
- replace the plug in the power socket to run the appliance again.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes too much	Temperature is set too cold or the appliance runs at MAX setting.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build-up of frost on the door seal.	Door seal is not air-tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.
