BBO3660 - Corkscrew Becken - Free user manual and instructions

Product Type	Electric Wine Opener / Corkscrew
Model	BBO3660
Brand	Becken
Power Source	4 x AA Alkaline Batteries (not included)
Battery Type	AA
Operation	Two-button switch: lower to remove cork, upper to release cork
Included Accessories	Foil cutter
Housing Material	Plastic
Compatible Corks	Natural corks; may have issues with synthetic/plastic or undersized corks
Safety Features	Automatic stop when cork is removed; no user-serviceable parts
Cleaning	Wipe exterior with dry soft cloth
Usage Environment	Indoor use only, keep away from humidity
Warranty	2 years for manufacturing defects
Environmental Protection	Recyclable packaging and product; follow local recycling regulations
Repair Policy	No user-serviceable parts; contact customer support for service

Frequently Asked Questions - BBO3660 Becken

How do I insert batteries into the Becken BBO3660?

Open the battery compartment on the back of the unit and insert 4 AA alkaline batteries, ensuring correct polarity as indicated. Close the compartment securely before use.

How do I use the wine opener?

First, remove the foil from the bottle top using the included foil cutter. Place the opener upright on the bottle and press the lower part of the switch. The corkscrew will rotate clockwise to enter and remove the cork. Once the mechanism stops, lift the opener and press the upper part of the switch to release the cork counter-clockwise.

What should I do if the cork is stuck or the opener doesn't work?

Ensure batteries are fresh and inserted correctly. If the opener stops mid-operation or fails to remove the cork, do not force it. Try pressing the upper switch to release any cork stuck in the mechanism. If the problem persists, contact customer support. For synthetic or undersized corks, manual removal may be required.

Can I use this wine opener on synthetic corks?

The manual notes that the automatic opener may experience problems with a small percentage of plastic/synthetic corks and undersized corks. In such cases, manual removal is recommended.

How do I clean the Becken BBO3660?

Clean only the exterior with a dry soft cloth. Never submerge the unit in water or use liquid cleaners, as this may damage the electronics.

What safety precautions should I take?

Always keep the opener away from children. Do not operate near water or with wet hands. Do not attempt to open the unit or force the mechanism. Use only as intended for household wine bottles. If the switch malfunctions or the unit is damaged, discontinue use.

What is the warranty period?

Becken provides a 2-year warranty against manufacturing defects from the date of purchase. Any unauthorized repair or modification voids the warranty. Contact the store or customer support for assistance.

Where can I get service or support?

For malfunctions, do not open the unit. Contact the Customer Support Service at any Worten, Modelo, or Continente store, or reach out to Worten Equipamentos para o Lar. The manual also lists support at www.suporteworten.pt.

Can the Becken BBO3660 be used for sparkling wine?

The manual does not specifically mention sparkling wine. As a precaution, avoid using it on sparkling wine bottles due to high internal pressure. Use a manual opener designed for that purpose.

How do I dispose of the appliance?

Follow local regulations for recycling electronic devices. The unit contains recyclable materials. Remove batteries before disposal and recycle them separately. Do not dispose of with household waste.

USER MANUAL BBO3660 Becken

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

EN

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 5
1.4. Cleaning 6
1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 8

2.1. Product Description 8
2.2. Product Usage 9

3. POST-SALE SERVICE 12

4. ENVIRONMENTAL PROTECTION 13

Wine Opener | Sacacorchos | Saca-Rolhas

3

BECKEN

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN

Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

[you can trust]

4

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Not applicable.

1.2. Power Cord and Other Cables

Not applicable.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

Wine Opener | Sacacorchos | Saca-Rolhas

BECKEN

1.4. Cleaning

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• When using this electrical appliance, safety precautions should be taken to reduce the risk of fire, electric shock and personal injury.
• When using this wine opener keep your work surface clean and free from potential hazards.

[you can trust]

EN

- Never use the wine opener in damp areas or near water, sinks or taps.

- Never submerge the wine opener.

- For indoor use only. Do not expose the wine opener unit to rain or other extreme conditions.

- Never force the wine opener onto a bottle or attempt to speed up the mechanism. The wine opener will work best when it is operated at its intended speed.

- Do not touch or adjust the wine opener's mechanism or the wine opener corkscrew. Only hold the wine opener by the plastic housing.

- Do not attempt to open bottles if the switch is not working correctly.

- Keep away from children. This is not a toy.

- Do not attempt to open the wine opener unit. It has no serviceable parts. In case of malfunction please contact our customer services department.

- Do not attempt to operate if the wine opener unit is damaged, has been dropped or malfunctions.

Wine Opener | Sacacorchos | Saca-Rolhas

BECKEN

2. OPERATING INSTRUCTIONS

2.1. Product Description

Fig. 1

Simple line drawing of a human head in profile view, no text or symbols present

Fig. 2

[you can trust]

2.2. Product Usage

First of all, insert 4 alkaline "AA" batteries in the back of the unit, and use the foil cutter to cut off the foil. (See Fig. 2)

How to operate the wine opener

The wine opener is operated by a simple switch.

The switch has two functions.

Press the lower part of the switch to remove a cork from the bottle.

Press the upper part of the switch to release a cork from the mechanism after you have removed it from the bottle. (See Fig. 3)

Fig. 3

Before using the wine opener, you must remove any foil from the top of the bottle using the foil cutter provided.

Wine Opener | Sacacorchos | Saca-Rolhas

BECKEN

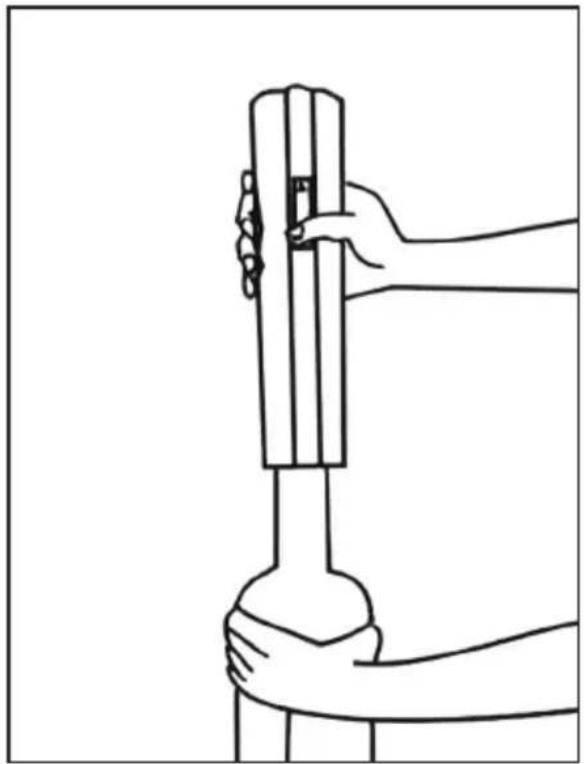

1. Place the wine opener on the top of the wine bottle. Ensure that it remains as upright as possible at all times, otherwise it will not remove the cork properly. (See Fig. 4)

Line drawing of a hand holding a cylindrical object with a small inset component, no text or symbols present

Fig. 4

1. Hold the wine opener firmly and press the lower part of the switch. The wine opener corkscrew will turn in a clockwise direction and enter the cork, then gradually remove it from the bottle.

When the wine opener mechanism stops, the cork has been fully removed from the bottle.

[you can trust]

1. Lift the wine opener away from the bottle. To remove the cork, simply press the upper part of the switch. The corkscrew will turn in an anti-clockwise direction and release the cork. (See Fig. 5)

Line drawing of a hand holding a cylindrical object above a wine bottle (no text or symbols)

Fig. 5

ATTENTION!: It has been noted that the automatic wine opener may experience problems with a small percentage of plastic/synthetic corks and undersized corks. In this case the cork should be removed manually.

Wine Opener | Sacacorchos | Saca-Rolhas

BECKEN

3. POST-SALE SERVICE

BECKEN has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

[you can trust]

4. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or numbers present)

Wine Opener | Sacacorchos | Saca-Rolhas

EN

13

Estimado cliente,

Simple line drawing of a human head in profile view, no text or symbols present

Fig. 2

[you can trust]

20

Line drawing of a hand holding a cylindrical object with a small inset component, no text or symbols present

Fig. 4

Line drawing of a hand holding a cylindrical object above a wine bottle, both without any text or symbols.

Fig. 5

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Wine Opener | Sacacorchos | Saca-Rolhas

ES

25

Caro(a) cliente,

Simple line drawing of a person viewed through an oval frame (no text or symbols)

Fig. 2

[you can trust]

32

Line drawing of a hand holding a cylindrical object with a small inset component, no text or symbols present

Fig. 4

Line drawing of a hand holding a cylindrical object above a wine bottle, both without any text or symbols.

Fig. 5

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Wine Opener | Sacacorchos | Saca-Rolhas

PT

37

BECKEN

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
