Product Type	Kitchen Scale
Brand	Electric Co
Model	FS1011-01A
Dimensions (approx.)	20 x 15 x 2 cm
Weight (approx.)	300 g
Power Source	1 x CR2032 battery (included)
Maximum Capacity	5 kg
Graduation / Precision	1 g
Measurement Units	g, kg, lb, oz
Tare Function	Yes
Auto-Off	Yes (after 2 minutes of inactivity)
Overload Indication	Yes
Low Battery Indication	Yes
Platform Material	Tempered glass
Display	LCD digital display
Cleaning and Care	Wipe with a soft damp cloth. Do not immerse in water.
Safety Precautions	Use on a flat, stable surface. Avoid impact. Remove battery if not used for long periods.
Spare Parts	Not available separately. Contact support for replacement.
Additional Features	Stainless steel platform; easy-to-clean surface; compact design for storage.

Frequently Asked Questions - FS1011-01A Electric Co

How do I calibrate my FS1011-01A scale?

The scale is factory-calibrated and does not require user calibration. For accuracy, ensure it is placed on a flat, stable surface.

What type of battery does the scale use and how do I replace it?

It uses one CR2032 3V coin battery. Open the battery compartment on the back, remove the old battery, and insert the new one with the correct polarity.

What is the maximum weight the scale can measure?

The maximum capacity is 5 kg (11 lb). Exceeding this may damage the scale.

Can I weigh liquids directly on the platform?

It is not recommended to pour liquids directly onto the scale. Use a container with the tare function to weigh liquids safely.

How do I switch between measurement units?

Press the UNIT button on the scale to cycle through g, kg, lb, and oz. The selected unit appears on the display.

How do I use the tare function?

Place an empty container on the platform, then press the TARE button to reset the display to zero. Add ingredients; the display shows the net weight.

Why does the scale turn off automatically?

The auto-off feature saves battery. The scale shuts down after about 2 minutes of inactivity. Press ON to restart.

What does 'Err' or 'O-Ld' mean on the display?

'Err' indicates an overload (weight exceeds 5 kg). 'O-Ld' may appear for overload. Remove weight immediately to prevent damage.

How do I clean the scale properly?

Wipe the surface and display with a soft, damp cloth. Do not use abrasive cleaners or submerge the scale in water.

Is the scale covered by a warranty? How do I get support?

Yes, it comes with a 1-year limited warranty. Contact Electric Co customer service via the website or phone for issues.

USER MANUAL FS1011-01A Electric Co

Electric Co

BALANÇA DIGITAL DE COZINHA DIGITAL KITCHEN SCALE

FS1011-01A

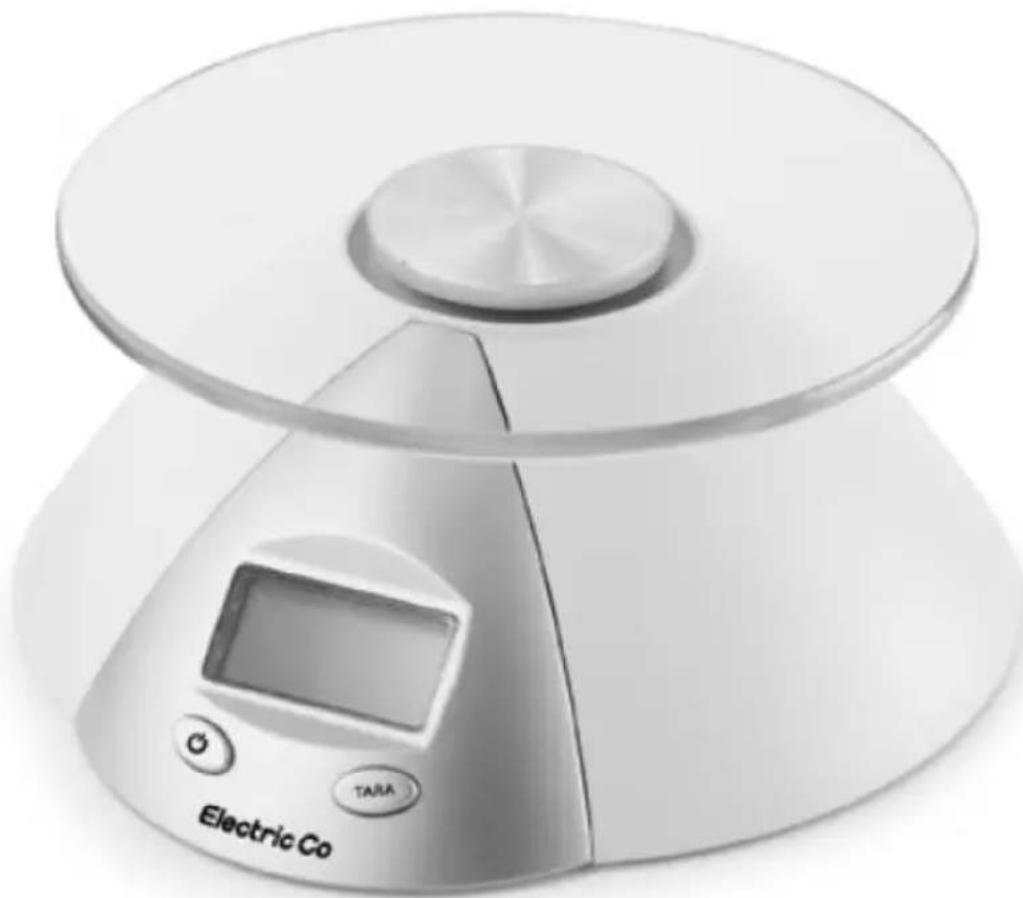

Exterior view of a modern digital kitchen scale with a digital display and control buttons (no text or symbols on the device itself)

INTRODUÇÃO

Funcionamento

GARANTIA E ASSISTÊNCIA

Thank you for your preference, this Electric Co appliance will certainly make your daily routine easier. Carefully read this instruction manual before using the appliance to get the best results from it and keep this instruction manual for future reference.

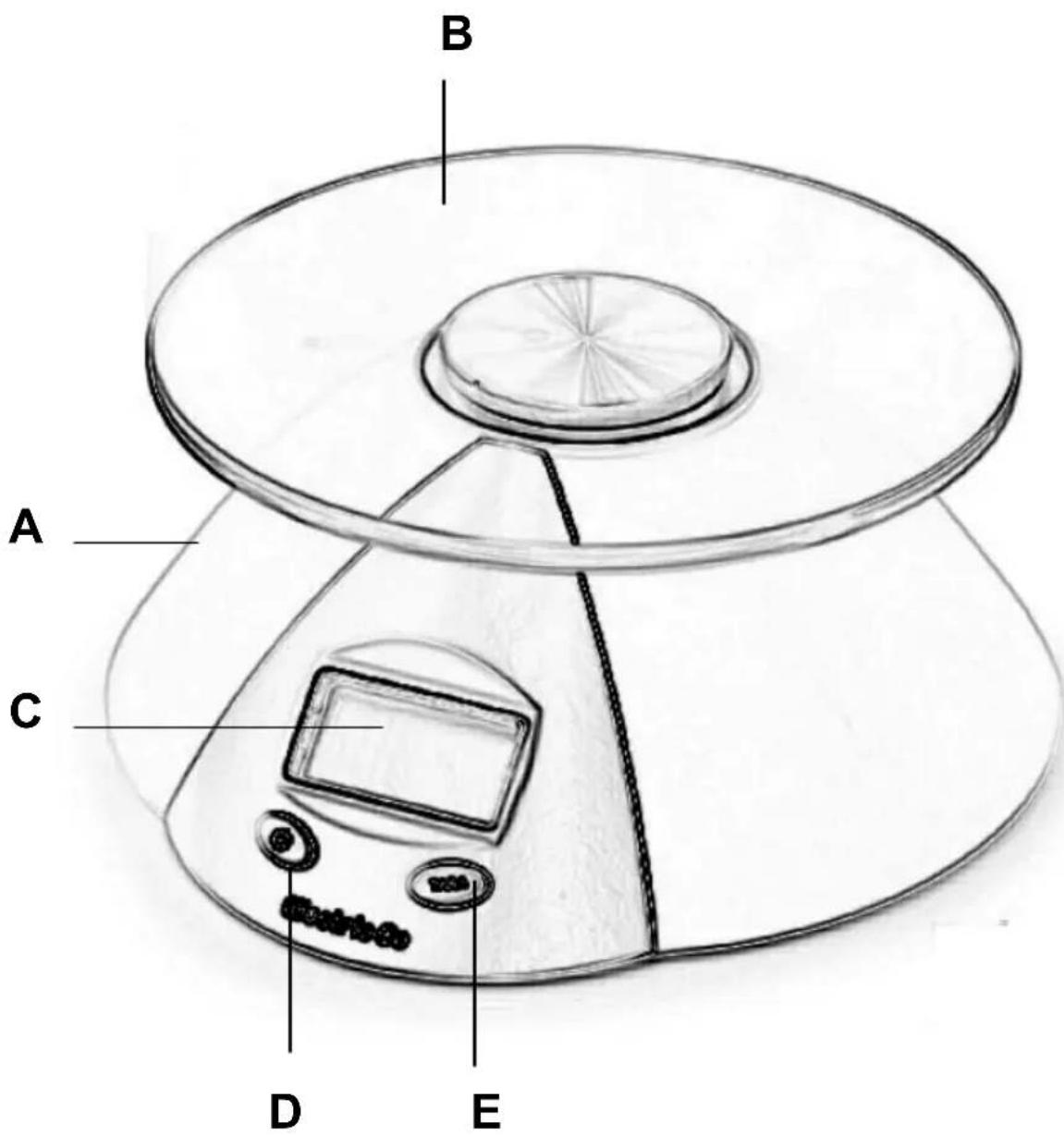

GENERAL DESCRIPTION

A. Body
B. Removable glass platform
C. LCD Display
D. On/Off button
E. Tare function button

TECHNICAL SPECIFICATIONS

Maximum weighing capacity: 5 kg

Working temperature: between 10 and 35°C

Graduation: 1 g

Batteries: 4 x AAA

SAFETY INSTRUCTIONS

THIS APPLIANCE IS EXCLUSIVELY FOR DOMESTIC USE!

To reduce the risk of personal injury or property damage, when using electrical appliances, basic safety precautions should always be followed, including the following:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children are not aware of potential hazards when using electrical appliances. They should be supervised to ensure that they do not play with the appliance. This appliance is not a toy and must be kept away from children.
• After unpacking the appliance, check that it is undamaged and that no parts are missing. If you have any doubts, consult the Customer Support Line. All packaging ex. plastic bags, polystyrene foam, etc., should be kept away from reach of children, as it could be dangerous and cause suffocation. Only use accessories recommended by the manufacturer and those provided with the appliance, otherwise they could constitute a risk of accident or damages on the appliance.
• The appliance does not contain any components that can be repaired by the user. Any type of repair should be performed by technicians duly qualified. Assure that only original and recommended components are used.
• This appliance is exclusively for domestic use. Any other use, namely commercial or medical, must be considered improper. The manufacturer cannot be held responsible for any injuries or damage resulting from improper use.
• To avoid appliance's damages, make sure that no fluids enter in contact with the electrical parts. Do not use the appliance on humid environments or outdoors and keep it

away from direct or indirect water sources. If any fluid accidentally spills on the appliance's electrical parts, disconnect the appliance and go to the store where it was bought or get it repaired by a qualified technician.

• Only use this appliance on stable and flat surfaces, protected from impacts.
• This is a precision electronic instrument which is highly sensitive. Keep it away from high frequency devices as they may cause interference. Should you detect any anomaly due to interference, move the appliance away from the area or switch off the appliance causing the interference.
• Whenever you change the batteries make sure your hands are dry.
• If you do not intend to use the appliance for a long period of time, remove the batteries before storing. Should you detect any leakage of liquid from the batteries they should be immediately removed to avoid damage.

WARNING!

NEVER IMMERSE THE APPLIANCE IN WATER OR OTHER LIQUID.

PREPARING FOR USE

The Digital Kitchen Scales FS1011-01A Electric Co allow you to prepare delicious food with total precision.

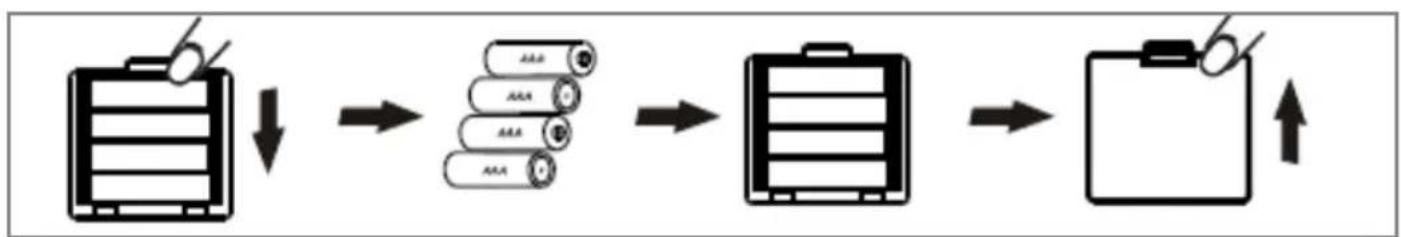

Fitting or replacement of batteries

• Open the battery compartment existing on the appliance's base.
• Insert 4 batteries type AAA observing the polarity, and close the compartment again. (see fig. 1)

Fig. 1

Operation

• Place the appliance on a flat and level surface.

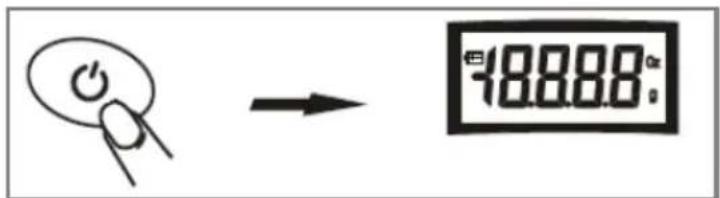

• Switch on the appliance using button (D). All of the digits light up in the display (C) for 2 seconds (see fig. 2), and then go immediately into weigh mode.

Fig. 2

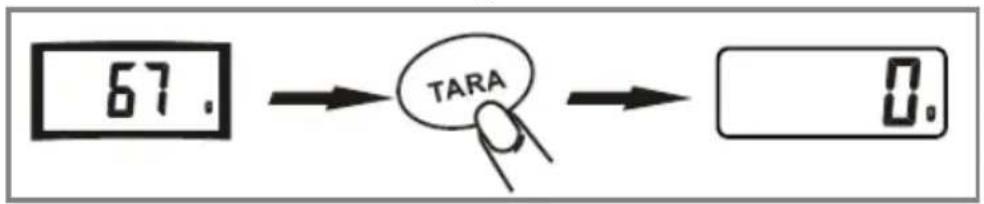

Note: if zero does not appear in the display (C), press button tara (E) for 2 seconds. (see fig. 3)

Fig. 3


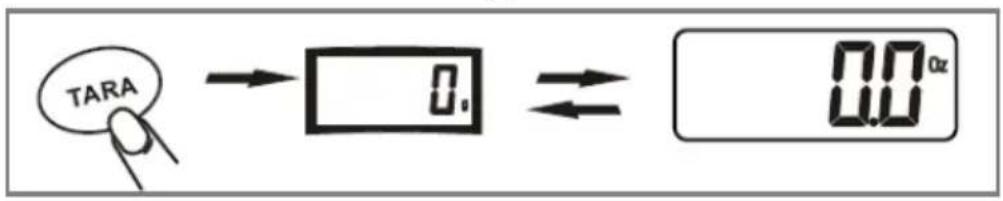

- After zero has appeared in the display (C), select the weight unit you wish to use: grams, kilograms, ounces or pounds, pressing button (D). (see fig. 4)

Fig. 4

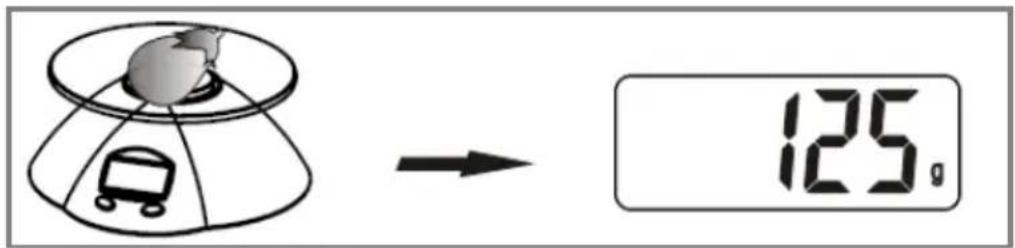

- Place the item to be weighed on the glass platform (B). The weight will be shown in the display (C). (see fig. 5)

Fig. 5

Note: food must be placed at the centre of the glass platform (B) to obtain the correct weight.

• If during normal operation the indication "Lo" appears in the display (C), or if the appliance does not come on after pressing button (D), please replace the batteries. (see fig 6). To change the batteries follow the instructions in the section on "Fitting or replacement of batteries".
• Should you exceed the appliance max weight limit (5 kg), the indication "O-Ld" will appear in the display (C). (see fig. 7)

Fig. 6 Fig. 7

- To switch the appliance off, press button (D) and wait that it shut-off automatically.

Auto switch off system

- The appliance is equipped with an automatic system which switches off the appliance after it has remained inactive for a period of 2 minutes.

Tare function

• This function allows several different ingredients to be weighed without it being necessary to remove them from the glass platform (B).
• Whenever you wish to individually weigh more than one ingredient, place the recipient on the glass platform (B), wait for the weight to appear and then press the tare function button (E). When the display (C) returns to zero, you can place the next ingredient to be weighed in the recipient. You can repeat this function as many times as necessary up to a total of 5 kg.

Storage

- Store this appliance in a dry and well ventilated place, assuring that no object is placed over the glass platform (B).

TROUBLESHOOTING

- During use, if any irregularities are detected on the appliance's operation, check the below table to understand the causes and solutions to resolve them. If not possible, please contact the Customer Support Line or go to the store where the appliance was bought.

Problem Possible Cause Solution / Hint
The appliance does not switch on and/or the display (C) shows “Lo”.	The batteries are exhausted.	Replace the exhausted batteries for new ones as described in “Place and change batteries”.
	The batteries are not correctly placed.	Place the batteries correctly as described in “Place and change batteries”.
The appliance gives wrong weights.	The surface where the appliance is being used is not flat and levelled.	Place the appliance on flat and levelled surface.
	The appliance is touching on an object and/or on the wall.	Keep the appliance away from any object and/or the wall.
	The food was not placed in the centre of the glass platform (B).	Place the food at the centre of the glass platform (B).
The display (C) shows “O-Ld”.	The maximum weight limit was exceeded.	Do not exceed the maximum weight (5 kg).

CLEANING

• Disconnect the appliance on the on/off button (D) before any cleaning operation.
• Do not use abrasive cleaning agents or scrub pads. Do not use alcohol or solvents.
• Clean the appliance's exterior with a soft, clean and dry cloth.
• Wash the removable glass platform (B) by hand in running water with a neutral detergent. Dry it with a clean and dry cloth.
• Never immerse the appliance in water or other liquid.

PROTECT THE ENVIRONMENT

Directive 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol ■ on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

Batteries:

Batteries contain substances which can pollute the environment. On order to preserve the environment, do not dispose of them with your normal household waste. Please put them in an official battery disposal bin. Remove the batteries before recycling the appliance at end of working life.

WARRANTY AND TECHNICAL SUPPORT

Electric Co. products have a 2 year guarantee.

In the event of technical malfunction, the product will only be replaced or a refund made after verification that the product is covered by the guarantee.

24 Hour Customer Support Line: 808 20 45 45

The guarantee certificate issued by Pingo Doce - Distribuição Alimentar, S.A., is valid for the product “DIGITAL KITCHEN SCALE – MODEL FS1011-01A” - referred to as “product” and it guarantees technical assistance service by the brand within 24 months since the product is delivered to the buyer.

If the technical assistance service is required during the guarantee period, the buyer must contact the seller or the nearest technical assistance service.

In order to benefit the product's guarantee, the buyer must present the following documents: Guarantee Certificate and Purchase Receipt (commercial invoice), to confirm the purchase date.

Guarantee Conditions

This guarantee applies to products which have been used according to the manufacturer's recommendations under normal conditions of domestic use and when reasonable care has been taken of the equipment. This guarantee does not cover damage as a result of malfunctions or technical defects from misuse, namely when the product has been used for other purposes or in any circumstances other than those for which it was intended, neither does the guarantee cover negligence or abuse.

Whenever the product requires technical installation, this must be performed by authorised Electric Co agents, otherwise this guarantee does not cover any unconformity that could be as a result of improper installation.

This guarantee does not cover any changes, repairs or alterations that were not prosecuted or done by an authorised Electric Co agent and does not cover cases in which the product has been accidentally damaged.

Electric Co

This guarantee certificate must be kept during the whole guarantee time.

In order to apply for the after sales service, you must keep the invoice purchase and this form duly filled.

Artigo (Product): BALANÇA DIGITAL DE COZINHA / DIGITAL KITCHEN SCALE

Loja (Store):

Morada (Address):

Data de compra (Date of purchase): ____

Modelo nr. (model nr.): FS1011-01A

Número de série (Serial number) – se aplicável (if applicable): ____
