Product type	Automatic coffee machine with grinder
Model	EQ700 iAroma TP727EF6
Brand	Siemens
Dimensions (W x H x D)	28.5 x 37.8 x 46.5 cm
Weight	10.5 kg
Power supply	220-240 V ~ 50-60 Hz
Power	1600 W
Water tank capacity	1.7 L
Bean hopper capacity	300 g
Pump pressure	15 bar
Milk system	Integrated milk frother with automatic cleaning
Available drinks	Espresso, lungo, latte macchiato, cappuccino, latte, caffè crema, ristretto, hot water
Main functions	Ceramic grinder, grind adjustment, temperature, intensity, 2-cup function, personalized memory, iAroma technology
Maintenance and cleaning	Automatic descaling and cleaning program, integrated water filter, accessible drip tray
Safety	Automatic shut-off, child safety, anti-drip system
Spare parts and repairability	Repairability index: 6.8/10 (Siemens estimate), available parts (grinder, pump, seals)

Frequently Asked Questions - EQ700 iAroma TP727EF6 SIEMENS

How to descale the Siemens EQ700 iAroma TP727EF6 machine?

Use the integrated descaling program: fill the water tank with a mixture of water and Siemens descaling solution, then start the program via the menu. Follow the on-screen instructions. Never use vinegar.

How to clean the milk system of the TP727EF6?

After each use, activate the automatic rinsing of the milk frother via the menu. For deep cleaning, disassemble the removable parts (nozzle, tube) and wash them with warm soapy water. Also use the milk system cleaning program.

What to do if the machine does not turn on?

Check that the device is properly plugged in and the power outlet works. Make sure the water tank is correctly engaged. If the problem persists, contact Siemens after-sales service.

How to adjust the grind fineness?

Open the bean hopper lid and turn the grind adjustment knob located inside. A finer setting (small number) gives a stronger coffee but may slow extraction. Adjust to your taste.

Why is the coffee too lukewarm?

Check the temperature set in the menu (usually 80-90°C). If the cups are cold, preheat them with hot water. Descaling can also improve temperature.

How to use the '2 cups' function?

Select the desired drink (e.g., espresso) and press the preparation button twice. The machine grinds and extracts two cups sequentially. Make sure you have enough beans and water.

Which water filter to use?

Use exclusively the Siemens water filter (ref. 00489193). Install it in the water tank and activate it in the menu to enjoy filtered water and prevent limescale.

How to reset to factory settings?

Go to the 'Settings' menu, then 'Reset' or 'Factory settings'. Confirm with 'OK'. All customizations will be erased.

The grinder makes an abnormal noise, what to do?

Stop the machine and remove the beans. Check for foreign objects (stones, etc.). Clean the grinder with the provided brush. If the noise persists, contact customer service.

How to customize a drink (intensity, temperature, length)?

When selecting a drink, press the 'My Coffee' or 'Customize' button to adjust the settings. Save your recipe under a name. You can recall it later.

USER MANUAL EQ700 iAroma TP727EF6 SIEMENS

EQ700 iAroma TP72...

Fully automatic espresso machine

Simple white line drawing of a stylized yin-yang symbol on dark background (no text or symbols)

4

5

6

7

8

9

Illustration of a microwave oven with a lid and lid removed, showing internal components and airflow direction (no text or symbols)

10

11

The image is too blurry to recognize any text content.

13

The image is too blurry to recognize any text content.

Two-step diagram showing a device inside a box and connected to a cable with an arrow indicating the cable attachment (no text or symbols present)

15

16

Two-step diagram showing a device with a mesh chamber and a cylindrical container, both without any text or symbols.

17

The image is too blurry to recognize any text content.

Illustration of a computer monitor mounted on a blue base with an arrow pointing to it (no text or symbols)

Illustration of a roof structure with cloud patterns and ventilation ducts (no text or symbols)

Four symbolic illustrations: a rolled-up document, a block with X marks, a rolled-up cloth, and a textured object (no text or symbols present)

Tipps

5-GHz-Band (5150–5350 MHz + 5470–5725 MHz): max. 200 mW

BE BG CZ DK DE EE IE EL ES

FR HR IT CY LI LV LT LU HU

MT NL AT PL PT RO SI SK FI

SE NO CH TR IS UK (NI)

You can find additional information and explanations online. Scan the QR code on the title page.

Table of contents

1 Safety 38

1.1 Definition of the signal words 38
1.2 General information ...... 38
1.3 Intended use 39
1.4 Restriction on user group ..... 39
1.5 Safety information 39

2 Environmental protection and saving energy 42

2.1 Disposing of packaging ..... 42
2.2 Tips for saving energy 42

3 Installation and connection ..... 42

3.1 Scope of delivery 42
3.2 Installing and connecting the appliance 42

4 Familiarising yourself with your appliance .... 43

4.1 Appliance 43
4.2 Drip tray 43
4.3 Control panel 43

5 Accessories 44

6 Before using for the first time .. 44

6.1 Preparing and cleaning the appliance 44
6.2 Checking the water hardness 45
6.3 Overview of water hardness levels 45
6.4 Water filter ^1 46
6.5 Performing initial start-up ..... 46
6.6 General information 47

7 Basic operation ...... 47

7.1 Switching the appliance on or off 47

7.2 Dispensing beverages ...... 48
7.3 Dispensing two cups at once 49
7.4 Dispense "XL beverages" ...... 49
7.5 "doubleShot" and "tripleShot" ^2 49
7.6 Slow Brew and Cold Brew ..... 50
7.7 coffee recipes 50

8 Favourites .... 50

8.1 Saving beverages from the beverage selection 50
8.2 Saving the beverage in the menu 50
8.3 Changing beverage settings ... 50
8.4 Deleting favourites 50
8.5 Sorting favourites 50

9 Grinder 50

9.1 Adjusting the grinding level .... 51

10 Childproof lock 51

10.1 Activating the child-proof lock 51
10.2 Deactivating the childproof lock 51

11 Cup warming function ..... 51

11.1 Activating and deactivating the cup heater .... 51
11.2 Use "Cup preheat function" .. 52

12 Home Connect 52

12.1 Setting up Home Connect ..... 52
12.2 Home Connect settings ..... 52
12.3 Remote diagnostics 53
12.4 Software update .... 53

en Safety

12.5 Data protection 53

13 Basic settings 54

13.1 Changing the basic set- tings 54

13.2 Overview of the basic settings 54

14 Cleaning and servicing ..... 55

14.1 Dishwasher-safe components 55

14.2 Cleaning agent 56

14.3 Cleaning the appliance ..... 56

14.4 Cleaning the drip tray and coffee dregs container ..... 57

14.5 Service programmes ..... 57

15 Troubleshooting 58

16 Transportation, storage and disposal 63

16.1 Activating "Residual water drainage" 63

16.2 Disposing of old appliance ... 63

17 Customer Service 63

17.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.) 64

18 Technical specifications ..... 64

18.1 Information regarding Free and Open Source Software .. 64

19 Declaration of Conformity ..... 65

19.1 Statement of Compliance for Great Britain 66

Safety

Observe the following safety instructions.

1.1 Definition of the signal words

This is where you can find explanations for the safety signal words used in this manual.

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

ATTENTION

This indicates that damage to the appliance or other material damage may occur as a result of non-compliance with this warning.

Note: This alerts you to important information.

1.2 General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

1.3 Intended use

Only use this appliance:

■ for preparing hot drinks.
■ To make cold-brewed drinks.
■ in closed rooms in the home and with similar applications, e.g.: in canteens in shops, offices and other work environments; in agricultural businesses; use by customers in hotels, motels and other typical home environments; in bed and breakfasts.
■ up to an altitude of max. 2000 m above sea level.

1.4 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

1.5 Safety information

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

- Keep small parts away from children.

- Do not let children play with small parts.

⚠ WARNING – Risk of electric shock!

Incorrect installation is dangerous.

- Connect and operate the appliance only in accordance with the specifications on the rating plate.

en Safety

• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.

▶ Never operate an appliance with a cracked or fractured surface.

▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.

- If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.

▶ Call customer service. → Page 63

Improper repairs are dangerous.

- Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water.

- Liquids must not be spilled on the appliance plug connection.

▶ Only use the appliance in enclosed spaces.

▶ Never expose the appliance to intense heat or humidity.

- Do not use steam- or high-pressure cleaners to clean the appliance.

⚠ WARNING – Risk of fire!

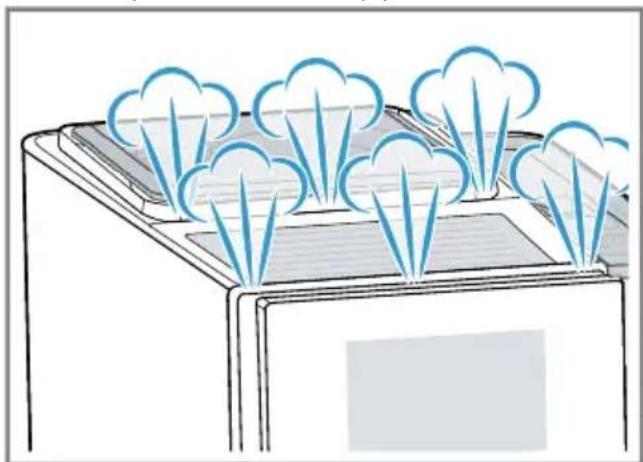

The appliance will become hot.

▶ Ventilate the appliance adequately.

▶ Never operate the appliance in a cabinet.

It is dangerous to use an extended power cord and non-approved adapters.

- Do not use extension cables or multiple socket strips.

- Only use adapters and power cords approved by the manufacturer.

- If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

⚠ WARNING – Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
- After use, allow hot appliance parts to cool down before touching.

⚠ WARNING – Risk of scalding!

Freshly prepared drinks are very hot.

• Leave drinks to cool down if necessary.
• Do not let escaping liquids or steam come into contact with your skin.

A remote start via the Home Connect app while the appliance is unattended may cause scalding to third parties.

• Do not reach under the beverage outlet when dispensing drinks.
• Keep persons, particularly children, away from the appliance.

⚠ WARNING – Risk of injury!

Improper use of the appliance may endanger the user.

- To avoid injuries, only use the appliance for its intended purpose.

Trapped fingers when closing the appliance door.

▶ Be careful of your fingers when closing the appliance door. The grinder rotates.

▶ Never reach into the grinder.

⚠ WARNING – Danger: Magnetism!

The appliance contains permanent magnets. These may affect electronic implants, e.g. heart pacemakers or insulin pumps.

▶ Persons with electronic implants must stay at least 10 cm away from the appliance and the water tank when removed.

⚠ WARNING – Risk of harm to health!

During filtering there may be a slight increase in the potassium level, which is possibly not good for dialysis patients and people with kidney disease.

- Consult a doctor before use if you have kidney disease or follow a special potassium diet.

Soiling on the appliance may be harmful to health.

- To ensure hygiene, follow the cleaning instructions for the appliance.

Water from the hot water circuit can be harmful to health.

- Only ever use the appliance with fresh, cold, non-carbonated drinking water.

2 Environmental protection and saving energy

2.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

2.2 Tips for saving energy

If you follow these instructions, your appliance will use less energy.

Set the interval for automatic switch-down to the smallest value.

√ If the appliance is not being used, it will switch itself down earlier.
→ "Basic settings", Page 54

Do not interrupt the dispensing process prematurely.

√ The amount of water or milk that is heated is used optimally.

Descale the appliance regularly.

√ Limescale deposits increase the appliance's energy consumption.

3 Installation and connection

3.1 Scope of delivery

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: Different accessories are enclosed depending on the appliance model. This accessory is shown in a frame with a dashed line.

→Fig.1

A Fully automatic coffee machine
B Milk tube
C User manual
D Insertion aid for water filter
E Milk container, glass ^1
F Insulated coffee mug ^1
G Water hardness testing strip
H Water filter ^1

3.2 Installing and connecting the appliance

ATTENTION

Risk of damage to the appliance. If the appliance is not started up correctly, it may be damaged.

▶ Use the appliance in frost-free rooms only.
If the appliance has been transported or stored below 0 °C, wait 3 hours at room temperature before starting it up.

1. Place the appliance on a level, water-resistant surface that is capable of bearing its weight.

2. Using the mains plug, connect the appliance to an earthed socket that has been correctly installed.

3. After plugging in, always wait approx. 5 seconds.

4 Familiarising yourself with your appliance

4.1 Appliance

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

→Fig. 2

1 Touch fields
2 Cup heater ^1
3 Aroma lid
4 Bean container
5 Rotary selector for grinder setting
6 Tablet compartment
7 Cover for water tank
8 Water tank
9 Touch display
10 Cup lighting ^1
11 Brewing chamber door
12 Rating plate
13 Milk system
14 Beverage outlet cover

15 Milk hose and suction pipe
16 Drip tray

4.2 Drip tray

You can find an overview of the parts of your drip tray here.

→Fig. 3

1 Coffee dregs container
2 Drip pan
3 Drip tray insert
4 Drip tray

4.3 Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

Touch display

The touch display functions both as a display and a control.

Main menu

Favourites	Select saved beverages with personal settings.→Page 50
Classic	Select standard beverages.
coffee-World	Select basic beverages which can be extended in conjunction with Home Connect.
XLbeverages	Select large-capacity beverages.
Coffeerecipes	Select recipes for beverages with coffee.
Settings	Open settings.

Beverage parameters

	Set strength.
	Set per-cup quantity.
	Set milk ratio.
	Set aroma.
	Set temperature.

Tip: You can find other beverage settings in the basic settings.

Indicator

+	Increase quantity.
-	Reduce quantity.
###	Cup heater is switched on.
	Appliance is connected to Home Connect.
	Appliance is not connected to Home Connect.
	Appliance is not connected to the server.
	Dispense two cups.
	Save as favourite
	Use "Cup preheat function"
	Call up information
	Confirm in the menu or save
	Delete

Note: When the appliance is switched on, you have additional operating options with relevant displays and messages, e.g. beverage settings.

Touch fields

Here you can find an overview of the symbols that are always visible.

➊	Switch the appliance on or off
	Return to the start menu.
	Open or close the service programmes.

5 Accessories

Use original accessories. These have been made especially for your appli-ance.

Accessories Retail

Insulated coffee jug TZ40001

Insulated coffee mug TZ40002

Milk container, glass TZ80008

Water filter TZ70003

Water filter pack of 3 TZ70033

Water filter pack of 6 TZ70063A

Cleaning tablets TZ80001ATZ80001B

Descaling tablets TZ80002ATZ80002B

Care set TZ80004ATZ80004B

6 Before using for the first time

Prepare the appliance for use.

6.1 Preparing and cleaning the appliance

Clean the appliance and individual parts. Follow the illustrated instructions at the beginning of this manual.

ATTENTION

Unsuitable beans can block the grinder.

• Only use pure, roasted bean mixes that are suitable for use in fully automatic coffee or espresso machines.
• Do not use glazed coffee beans.
• Do not use caramelised coffee beans.
• Do not use coffee beans that have been treated with additives containing sugar.
• Do not add instant coffee.

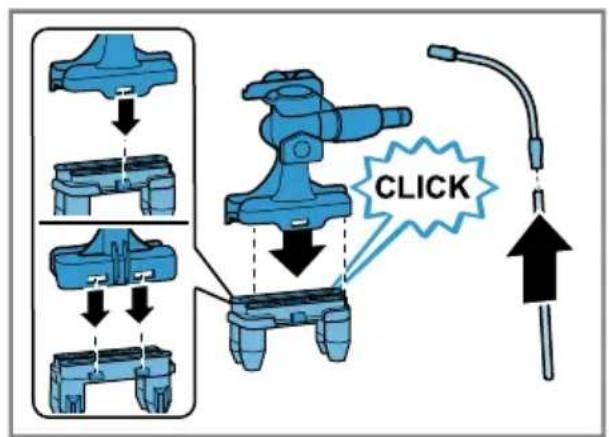

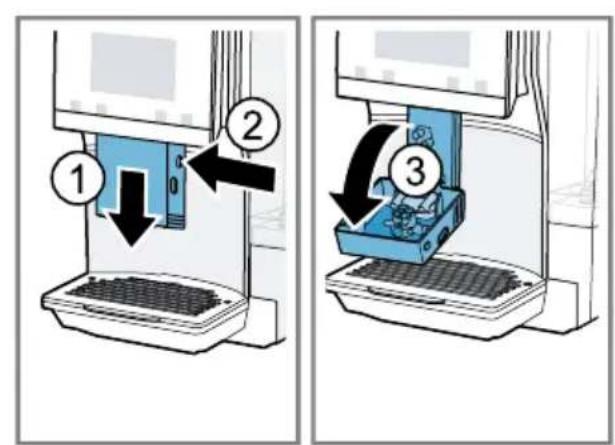

→Fig. 4 - 16

Note: Fill the water tank with fresh, cold, non-carbonated drinking water every day.

Tip: To keep the coffee beans at their best, store them in a sealed container in a cool place. You can keep the coffee beans in the bean container for several days without them losing their aroma.

6.2 Checking the water hardness

It is important to set the water hardness correctly so that your appliance indicates in good time that it needs descaling. You can use the enclosed test strip to check the water hardness or ask your local water company.

• Briefly dip the test strip in fresh tap water ① and leave to drain off.
  → "Overview of water hardness levels", Page 45
  ▶ Wait for one minute ②
• Read the water hardness value off the test strip ③
  →Fig.6

Note: Please use the test strip even if you have a water softening system installed as they generate different water hardnesses.

Tips

• You can change the settings at any time.
  → "Basic settings", Page 54
  ■ If the water hardness exceeds 21^ dH (3.8 mmol/l), you can fill the water tank with prefiltered water to reduce limescale deposits.

6.3 Overview of water hardness levels

The table shows allocation of the levels to the different degrees of water hardness.

Setting Ring setting on INTENZA filter		German degrees in °dH	Total hardness in mmol/l
1 A 1 - 7 < 1.3
2 A 8 - 14 1.3 - 2.5
3 B 15 - 21 2.5 - 3.8
4^1	C 22 - 30 > 3.8

6.4 Water filter ^1

You can use a water filter to minimise limescale deposits and reduce impurities in the water.

The limescale content of the water influences the aroma and crema of coffee. There is an aroma ring on the underside of the BRITA INTENZA water filter. Turn the aroma ring to set the optimum aroma level for your mains water.

For more detailed information on using the water filter, scan the following OR code.

Inserting the water filter

ATTENTION

Possible damage to the appliance due to limescale build-up.

• Change the water filter in good time.
  ▶ Change the water filter after 2 months at the latest.
  ▶ Observe the display messages.

• Press

• Press "INTENZA filter" and follow the instructions on the display.

Changing or removing the water filter

You can also operate your appliance without a water filter.

1. Press 4*

2. Press "INTENZA filter".

3. Press "Replace" or "Remove" and follow the instructions on the display.

$$ \begin{array}{l}\rightarrow F i g. \boxed {7}\\rightarrow F i g. \boxed {8}\end{array} $$

Notes

■ Dispose of spent water filters according to local regulations.
■ Always store replacement water filters in a cool and dry place in their original sealed packaging.

Tips

• You should also change your water filter for reasons of hygiene.
• With a water filter you need to de-scale your appliance less frequently.
  ■ If you use a water filter, your coffee will be more flavoursome.
• If your appliance has not been used for a long time, for example if you were on holiday, you should rinse the water filter before use by dispensing a cup of hot water.
• The water filter can be purchased from retailers or customer service. → "Accessories", Page 44

6.5 Performing initial start-up

After connecting the appliance to the power supply, configure the settings for first use. First use appears when switching on for the first time or after resetting to the factory settings.

1. Press Ⓐto switch the appliance on.
2. Follow the instructions on the display.
   √ The display will guide you through the programme.

Notes

■ If you want to set up Home Connect now, follow the instructions in the Home Connect app.

→ "Setting up Home Connect", Page 22

■ If "Demo mode" is selected, only the displays will work. You cannot dispense a beverage or run a programme.

6.6 General information

Please bear this information in mind so that you can get the best out of your appliance.

Notes

■ The appliance has been programmed at the factory with standard settings for optimum operation.

■ The grinder has been factory-set for optimum operation. If coffee is only dispensed drop by drop or is too thin and with too little crema, you can adjust the grinding level when the grinder is running.

→ "Adjusting the grinding level", Page 51

■ During operation water droplets may form at the ventilation slits and on the lid of the tablet compartment.

- If you do not operate the appliance for a certain period of time, it will switch off automatically. You can change the duration in the basic settings. Page 54

■ For technical reasons steam can escape from the appliance.

Illustration of a roof structure with cloud patterns and ventilation ducts (no text or symbols)

■ The first beverage will not yet have its full aroma if:

• You are using the appliance for the first time.
• You have run a service programme.
• You have not used the appliance for a long time.

Do not drink the beverage.

Tip: You will get a stable, fine-pored crema after you have started up your appliance and dispensed a few cups.

7 Basic operation

7.1 Switching the appliance on or off

▶ Press ⏻

When the appliance switches on, the display shows the logo. When the appliance is switched on or off, it will rinse automatically. When switched off, the appliance will emit steam into the drip tray for cleaning. The appliance will not rinse itself if it is still warm when switched on, or if no beverage was dispensed before it was switched off.

7.2 Dispensing beverages

Find out how to prepare a drink of your choice.

WARNING

Risk of scalding!

Freshly prepared drinks are very hot.

• Leave drinks to cool down if necessary.
• Do not let escaping liquids or steam come into contact with your skin.

Notes

• With a number of settings your coffee is prepared in several steps. Wait until the process is fully completed.
• If you are dispensing a beverage with milk, always connect a container filled with milk to the milk hose and suction pipe.
  ■ If the milk system has not been cleaned, small amounts of milk may escape when hot water is dispensed.

Dispensing a coffee drink made from fresh beans

1. Place your pre-warmed cup under the outlet system.
2. Press "Classic", "coffeeWorld" or "XL beverages".
3. Select a beverage without milk.
   √ The display will show the drink and the current settings.
4. Change the settings for the drink where necessary.
5. To change the strength, press ①.

6. To change the per-cup quantity, press +or -

7. Press "Start".

The coffee beans are freshly ground for each brewing process.

√ The coffee is brewed and then dispensed into the cup.

Note: If you want to completely stop the current dispensing process early, press "Stop".

Tips

• You can also warm the cups before dispensing using "Cup preheat function" or the cup heater ^1 .
• You can save the drink using "Favourites" or select a previously saved drink.

Dispensing a coffee beverage with milk

WARNING

Risk of burns!

The milk system can become extremely hot.

▶ Never touch the milk system when it is hot.
- Allow the hot milk system to cool down before touching it.

Requirements

■ The milk hose with the suction pipe is connected to the milk system.
■ The suction pipe is immersed in milk.

1. Place your pre-warmed cup under the outlet system.

2. Press "Classic", "coffeeWorld" or "XL beverages".

3. Select a beverage with milk.

4. Press the beverage symbol and set the beverage parameters.

▶ To change the strength, press ①.
- To change the per-cup quantity, press +or -

▶ To change the milk ratio, press A.

1. Press "Start".

√ The beverage is prepared and runs into the glass.
√ After preparing the beverage, the milk system will automatically clean itself with a short jet of steam.

Notes

■ If you want to completely stop the current dispensing process early, press "Stop".
■ If you only want to stop the current dispensing step, press "Skip".
■ If you do not change any settings for approx. 30 seconds, the appliance will exit settings mode.
■ The appliance saves the settings automatically.

Tips

• You can also warm the cups before dispensing using "Cup preheat function" or the cup heater ^1 .
• You can also use plant-based alternatives to milk, e.g. soya milk.
  ■ The quality of the milk froth depends on the type of milk or plant-based alternative used.

7.3 Dispensing two cups at once

Depending on your beverage, you can make 2 cups at the same time.

Note: If the "doubleShot" or "tripleShot" function is active, the function for dispensing two cups at once is not possible.

1. Press the symbol for your desired drink.

2. Press
   √ The display shows the setting

3. Place two cups left and right underneath the beverage outlet.

4. Press "Start".

The beverage is prepared in 2 steps. The beans are ground in 2 grinding operations.

√ The beverage is brewed and runs into the cups.

1. Wait until the process is complete.

7.4 Dispense "XL beverages"

"XL beverages" are large-capacity beverages. To place a very large vessel under the outlet, you can lift the drip plate on the "XL flap" and place your vessel in the recess of the drip tray insert underneath.

• Place the insulated coffee mug under the beverage outlet.
  →Fig. 17

7.5 "doubleShot" and "tripleShot" ^2

Your appliance grinds the coffee two or three times.

To ensure that only pleasant-tasting and easily digestible aromatic substances are released, coffee beans are freshly ground and brewed again by the appliance.

The longer coffee brews, the more bitter substances and undesirable aromas are released. These bitter substances and undesirable aromas affect the taste and digestibility of coffee.

Notes

■ If the "doubleShot" or "tripleShot" function is active, the function for dispensing two cups at once is not possible.

en Favourites

- The functions "doubleShot" and "tripleShot" depend on the beverage strength and beverage size selected.

7.6 Slow Brew and Cold Brew

Slow Brew and Cold Brew are slowly brewed beverages that your appliance dispenses in a pulsating beverage flow that is not continuous. This type of coffee preparation exists as a hot and a cold version. Dispensing of the beverage takes several minutes.

Note: Fill the water tank with fresh, cold, non-carbonated drinking water before dispensing drinks.

7.7 coffee recipes

"coffee recipes" are beverage creations for which you need additional ingredients. You will see them in the ingredients after selecting a recipe. To prepare, start the recipe and follow the step-by-step instructions on the display.

8 Favourites

Save beverages with your personal settings as a favourite.

You can mark your favourites with a colour. A favourite is a beverage with personal settings. You can change the settings at any time.

Note: To exit the settings, press ← or start dispensing the beverage.

8.1 Saving beverages from the beverage selection

1. Select a beverage from "Classic", "coffeeWorld" or "XL beverages".
2. Select the personal beverage settings.

3. Press ♥

4. Select the required colour for the beverage.

5. Press "Save".

8.2 Saving the beverage in the menu

1. Press "Favourites".
2. Press
   √ The display shows all available beverages.
3. Select the required beverage.
4. Select the personal beverage settings.
5. Press "Next".
6. Select the required colour for the beverage.
7. Press "Save".

8.3 Changing beverage settings

1. Press "Favourites".
2. Select the beverage and press briefly.
3. Change the beverage settings.
4. Press √
   √ The new settings are saved.

8.4 Deleting favourites

1. Press "Favourites".
2. Select the beverage.
3. Press the beverage for at least 3 seconds.
4. Confirm "Delete".

8.5 Sorting favourites

1. Press "Settings".
2. Press "Personalisation".
3. Press "Sort favourites".
4. Sort favourites, e.g. by use or colour.

9 Grinder

Your appliance has an adjustable grinder, which you can use to cus-

tomise the grinding level of your coffee beans.

9.1 Adjusting the grinding level

Set the desired grinding level while the coffee beans are being ground.

WARNING

Risk of injury!

The grinder rotates.

▶ Never reach into the grinder.

ATTENTION

Risk of damage to the grinder. The grinder may be damaged if the grinding level is not set properly.

▶ Only set the grinding level when the grinder is running.
- Select the grinding level using the rotary selector step by step.

Grinding level Setting

Fine grinding level for lightly roasted beans

Turn rotary selector anticlockwise

Coarse grinding level for dark-roasted beans

Turn rotary selector clockwise

The grinding level setting only takes effect after the second cup.

Tip: If the coffee is only dispensed drop by drop, set a coarser grinding level.

If the coffee is dispensed too quickly and with too little crema, set a finer grinding level.

10 Childproof lock

You can lock the appliance, to protect children against scalding and burns.

10.1 Activating the child-proof lock

Requirement: The appliance is switched on.

• Press and hold △ for at least 3 seconds.
  √ The childproof lock is activated.

10.2 Deactivating the child-proof lock

• Press and hold △ for at least 3 seconds.
  √ The childproof lock is deactivated.

11 Cup warming function

You can use the cup heater or "Cup preheat function" to warm your cups.

11.1 Activating and deactivating the cup heater

WARNING

Risk of burns!

The cup heater can become very hot.

• Never touch the cup heater when it is hot.
• Allow the hot cup heater to cool down before touching it.

Tip: Place the cups with their base on the cup heater to warm them to optimum effect.

- You can activate or deactivate the cup heater in the basic settings.

11.2 Use "Cup preheat function"

For a fast way to warm up a single cup, you can use "Cup preheat function".

1. Place the empty cup that you want to warm up under the beverage outlet.
2. Press "Cup preheat function". Dispensing will begin immediately.
   √ The amount of hot water dispensed is approximately the same as for an espresso.
3. Wait briefly.
4. Pour the water into the wash basin.

12 Home Connect

This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect app, adjust its basic settings and monitor its operating status.

The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of the Home Connect services in your country. You can find information about this at: www.home-connect.com.

To be able to use Home Connect, you must first set up the connection to the WLAN home network (Wi-Fi ^1 ) and to the Home Connect app.

The Home Connect app guides you through the entire login process. Follow the instructions, noting the information in the Home Connect app.

Notes

■ Please note the safety precautions in this instruction manual and

make sure that they are also observed when operating the appliance via the Home Connect app. → "Safety", Page 38

• Operating the appliance on the appliance itself always takes priority. During this time it is not possible to operate the appliance using the Home Connect app.
• In networked standby mode, the appliance requires a maximum of 2 W.

12.1 Setting up Home Connect

Requirement: The appliance is receiving signals from the WLAN home network (Wi-Fi) at its installation location.

1. Scan the following QR code.

You can install the Home Connect app and connect your appliance via the QR code.

1. Follow the instructions in the Home Connect app.

12.2 Home Connect settings

Adapt Home Connect to your needs. You can find the Home Connect settings in the basic settings for your appliance. Which settings the display shows will depend on whether Home Connect has been set up and whether the appliance is connected to your home network.

Overview of the Home Connect settings

You can find an overview of the Home Connect settings and network settings here.

Basic setting Selection Description
WiFi connection On	Off	Switch off the wireless module during long absences or to save energyNote: In networked standby mode your appliance requires max. 2 W.
Remote start On	Off	Switch remote start on the appliance on and offNote: If remote start has been deactivated, it is only possible to switch down the appliance via the Home Connect app, but not switch on the appliance.
Add mobile device	- Connect the appliance to theHome Connect app or additional accounts
Network information	- Display network information and appli-ance information
Delete network settings	-	Note: You cannot operate your appli-ance via the "Home Connect" app without a network connection.
Software update -		Note: This setting is only available with a software update.

12.3 Remote diagnostics

Customer Service can use Remote Diagnostics to access your appliance if you contact them, have your appliance connected to the Home Connect server and if Remote Diagnostics is available in the country in which you are using the appliance.

Tip: For further information and details about the availability of Remote Diagnostics in your country, please visit the service/support section of your local website: www.home-connect.com.

12.4 Software update

You can use this function to update the software of your appliance, e.g. for optimisation, troubleshooting or safety-relevant updating.

The Home Connect app informs you about available software updates.

The current software version can be found in the Home Connect app under the appliance information for the relevant home appliance.

12.5 Data protection

Please see the information on data protection.

The first time your appliance is registered on a home network connec-

en Basic settings

ted to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration):

■ Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
■ Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
■ The current software and hardware version of your appliance.
■ Status of any previous resetting to factory settings.

This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time.

Note: Please note that the Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be retrieved in the Home Connect app.

13 Basic settings

You can configure the basic settings for your appliance to meet your needs and call up additional functions.

13.1 Changing the basic settings

1. Press "Settings".
   √ The display shows the list of basic settings.
2. Change the required basic setting.
   √ The appliance saves the basic setting automatically.
3. To exit the basic settings, press ←.

13.2 Overview of the basic settings

You can find an overview of the basic settings here.

Basic setting Selection Use
Beverage settings Brewing temperature Setting the brewing tempera-ture
	Milk sequence Select the sequence for milk and coffee
	Americano sequence Select the sequence for hot water and coffee
	Latte macchiato pause Select the pause between milk and coffee
	Resetting beverage parameters Reset the beverage settings
Appliance settings Cup heater1	Switch the cup heater on or off
	Automatic switch-off Set the time after which the ap- pliance switches off

Basic setting Selection Use

	Display brightness Set the brightness in steps
	Tones Switch sounds on and off■ Set the volume
	Water hardness Setting the water hardness
	Language Set the language
	Factory settings Resetting the appliance to thefactory settings
Personalisation Start category Set the menu display afterswitching on, e.g. "Classic"
	Sort favourites Set the sequence of Favourites
Home Connect Information about → "Setting up Home Connect",Home Connect Page 52
Appliance information Beverage counter Display the number of beverages dispensed
	Cleaning information Time until the water filtershould next be changed or a service programme started
	Version information Display network informationand appliance information
	Licence information Display FOSS licence text
Mode Switch between standard modeand demo mode

14 Cleaning and servicing

14.1 Dishwasher-safe components

Here you can find an overview of the components you can clean in the dishwasher.

ATTENTION

Some components are sensitive to heat and may be damaged if they are cleaned in a dishwasher.

• Follow the operating instructions of the dishwasher.
  ▶ Only clean dishwasher-safe components in the dishwasher.

- Only use programmes that do not heat the components above 60 °C.

Dishwasher-safe

■ Drip tray
- Drip plate
■ Drip tray insert
■ Coffee dregs container
- Milk system
■ Milk hose and suction pipe
- Drain Pan (removable red element in brewing chamber)
■ Deflector Pomace (removable red element in brewing chamber)

Not dishwasher-safe

■ Water tank
■ Water tank lid
■ Aroma lid
■ Brewing unit
■ Beverage dispenser cover

14.2 Cleaning agent

Only use suitable cleaning agents.

ATTENTION

Unsuitable cleaning products may damage the surfaces of the appli-ance.

• Do not use harsh or abrasive detergents.
• Do not use cleaning agents containing alcohol or spirits.
• Do not use hard scouring pads or cleaning sponges.

Unsuitable cleaning and descaling agents may damage the appliance.

• Do not use pure citric acid, vinegar or any vinegar-based agents to de-scale the appliance.
• Do not use descaling agent with phosphoric acid.
• Only use cleaning tablets and de-scaling tablets that have been specially developed for the appliance.
  → "Accessories", Page 44

Four symbolic illustrations: a rolled-up document, a rectangular block with X marks, a rolled-up cloth, and a textured surface (no text or symbols)

Tips

■ Wash new sponge cloths thoroughly to remove any salt adher-

ing to them. Salt can cause rust film to develop on stainless steel surfaces.

■ Always remove any residues of limescale, coffee, milk and cleaning/descaling solutions immediately to prevent corrosion.

14.3 Cleaning the appliance

WARNING

Risk of electric shock!

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water.
- Liquids must not be spilled on the appliance plug connection.
- Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING

Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
▶ After use, allow hot appliance parts to cool down before touching.

1. Clean the housing, the high-gloss surfaces and the control panel with the enclosed microfibre cloth.
2. Clean the outlet system with a soft, damp cloth after beverages have been dispensed.
3. Rinse the water tank with fresh, clean water.
4. If the appliance has not been used for a long time, e.g. after a holiday, clean the entire appliance, including moving parts such as the brewing unit or water tank.

Note: The appliance will rinse itself automatically if you switch it on when it is cold or switch it off after it has

dispensed coffee. The system is therefore self-cleaning.

14.4 Cleaning the drip tray and coffee dregs container

Clean and empty the drip tray and coffee dregs container every day to prevent deposits. Follow the illustrated instructions at the beginning of this manual.

→Fig. 18 - 19

14.5 Service programmes

Use the service programmes if you insert or remove a water filter or in order to clean your appliance thoroughly. Your appliance will tell you when you need to perform a service programme, e.g. cleaning.

ATTENTION

Improper cleaning and descaling or a delay in doing so may damage the appliance.

- Immediately perform the descaling process in accordance with the instructions.

• Only use cleaning tablets in the tablet compartment.
• Do not put descaling tablets or other products in the tablet compartment.

Notes

■ The display indicates the progress of the descaling or cleaning process.
■ If your appliance has been locked, you can only operate it again once the descaling process has been carried out.

Tips

■ In addition to the automatic rinsing process, also remove and clean the brewing unit regularly.
- To make the descaling tablets dissolve better and faster, use lukewarm water for the service programmes.

Using the service programmes

1. Press
2. Press the symbol for the required programme.
   √ Display indicates progress of the programme.

Overview of service programmes

You can find an overview of the service programmes here.

WARNING

Risk of burns!

The milk system can become extremely hot.

▶ Never touch the milk system when it is hot.
- Allow the hot milk system to cool down before touching it.

Notes

• The start image shows the remaining number of beverages that can be dispensed until running the programme and the duration.
• If a service programme is interrupted, e.g. due to a power failure, the appliance will automatically run the service programme "Special rinsing". The appliance is then ready for use again.

	INTENZA filter Insert, replace or remove the water filter
	Milk system cleaning Rinse the milk system automatically.
	Calc'n Clean Combine cleaning and descalingRemove residues of limescale and coffee from the pipes
	Cleaning Remove residues of coffee from the pipes
	Descaling Remove residues of limescale from the pipes
	Brewing unit cleaning The display shows optimum cleaning of the brewing unit step by step.
	Beverage outlet cleaning The display shows optimum cleaning of the outlet step by step.
	Residual water drainage Drain the pipes to protect the appliance during transport or storage
TipsIf you are starting the "Descaling" or "Calc'n Clean" programme, keep a container with a capacity of min. 1 l at the ready.		If you use a water filter, this will prolong the time until you have to run a service programme.You can combine "Descaling" and "Cleaning" with the "Calc'n Clean" service programme.

Tips

■ If you use a water filter, this will prolong the time until you have to run a service programme.
- You can combine "Descaling" and "Cleaning" with the "Calc'n Clean" service programme.

15 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

Tip: Permanently connect your appliance to the Home Connect app to automatically receive software updates. This allows errors to be eliminated, performance to be improved and new functions to be made available.

WARNING

Risk of electric shock!

Improper repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting

Appliance no longer responds.	Appliance has a fault.1.Pull out the mains plug and wait 60 seconds.2.Re-insert the mains plug.
Home Connect is not working properly.	Different causes are possible.► Go to www.home-connect.com.
Appliance only dispenses water, not coffee.	Empty bean container is not detected by the appliance.► Pour in coffee beans.
	Coffee shaft on brewing unit is blocked.► Clean the brewing unit.
	Coffee beans are too oily and do not fall into the grinder.► Gently tap the bean container.► Change the coffee variety.► Do not use oily beans.► Clean the empty bean container with a damp cloth.
	Brewing unit is not inserted properly.1.Check whether the brewing unit is inserted correctly and is securely locked.2.Push the red lever up to the left.3.Insert the brewing unit cover.
Appliance is not dispensing milk froth.	Milk system is soiled.► Clean the milk system by hand or in the dishwasher.
	Milk tube not immersed in milk.► Use more milk.► Check whether the milk tube is immersed in the milk.
	Heavy build-up of limescale in the appliance.► Descale the appliance.
No milk intake by the milk system.	The milk system is assembled incorrectly.► Assemble the milk system correctly.
	Milk tube not immersed in milk.► Use more milk.

Fault Cause and troubleshooting
No milk intake by the milk system.	Check whether the milk tube is immersed in the milk.
Milk froth is too cold.	Milk is too cold.Use lukewarm milk.
Cold-brewed beverage is not cold enough.	Water in water tank is warm.Fill the water tank with fresh, cold, non-carbonated drinking water.You can add ice cubes to cool the beverage down even more.
Appliance is not dispensing hot water.	Milk system is soiled.Clean the milk system by hand or in the dishwasher.
Appliance is not dispensing drinks.	Air is in the water filter.Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.Reinsert the filter.Firmly press the water filter straight down into the tank connection.Residues of limescale remover are blocking the water tank.Remove the water tank.Clean the water tank thoroughly.Release the float and make the float movable again.
There is dripping water on the inner floor of the appliance.	Drip tray was removed too soon.Wait a few seconds after the last drink was dispensed before removing the drip tray.
Brewing unit cannot be removed.	Locking device cannot be released, brewing unit is jammed.Switch the appliance down and back on after 3 minutes.
Grinder won't start.	Appliance is too hot.Disconnect the appliance from the power supply with the mains switch.Wait 1 hour so the appliance can cool down.
Grinder is not grinding any coffee beans despite full bean container.	Coffee beans are too oily and do not fall into the grinder.Gently tap the bean container.Change the coffee variety.Do not use oily beans.Clean the empty bean container with a damp cloth.
Coffee or milk froth quality varies widely.	Build-up of limescale in the appliance.Descale the appliance.
Milk froth quality var-ies widely.	Milk froth quality depends on the type of milk or plant-based alternative used.► Optimise the result through the selection of the milk or vegetable-based drink type.
Coffee is not dis-pensed or has slowed to a trickle.Set quantity is not reached.	Grinding level is set too fine.► Set a coarser grinding level.→ "Adjusting the grinding level", Page 51
	Heavy build-up of limescale in the appliance.► Descale the appliance.
	Air is in the water filter.1. Immerse the water filter in water with the opening fa-cing upwards until no more air bubbles escape.2. Reinsert the filter.
	Appliance is soiled.► Clean the brewing unit.► Descale and clean the appliance.
Coffee has no crema. Type of coffee is not optimal.► Use a coffee variety with a higher proportion of Robusta beans.► Use beans with a darker roast.
		Coffee beans are no longer freshly roasted.► Use fresh coffee beans.
		Grinding level is not appropriate for coffee beans.► Adjust the grinding level to a finer setting.→ "Adjusting the grinding level", Page 51
Coffee is too acidic. Grinding level is set too coarse.► Adjust the grinding level to a finer setting.→ "Adjusting the grinding level", Page 51
		Type of coffee is not optimal.► Use a coffee variety with a higher proportion of Robusta beans.► Use beans with a darker roast.
Coffee is too bitter. Grinding level is set too fine.► Adjust the grinding level to a coarser setting.→ "Adjusting the grinding level", Page 51
		Type of coffee is not optimal.► Change the coffee variety.
Coffee tastes burnt. Grinding level is set too fine.► Adjust the grinding level to a coarser setting.→ "Adjusting the grinding level", Page 51
Coffee tastes burnt. Type of coffee is not optimal. ▶ Change the coffee variety.
Coffee grounds are not compact and are too wet.	The grinding level is not set optimally. ▶ Adjust the grinder to a coarser or finer setting. → "Adjusting the grinding level", Page 51
	Coffee beans are too oily. ▶ Use a different type of bean.
Display shows "Please insert brewing unit.".	Cover is wrongly inserted. 1. Check whether the brewing unit is inserted correctly and is securely locked. 2. Push the red lever up to the left. 3. Insert the brewing unit cover.
Display shows "Please fill water tank." despite the fact that the water tank is full.	Water tank is wrongly inserted. ▶ Insert the water tank correctly.
	Carbonated water is in the water tank. ▶ Fill the water tank with fresh, cold, non-carbonated mains water.
	Float is stuck in the water tank. 1. Remove the water tank. 2. Clean the water tank thoroughly. 3. Release the float and make the float movable again.
	New water filter was not rinsed as per instructions. 1. Rinse the water filter according to the instructions. 2. Place the water filter into operation.
	Air is in the water filter. 1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape. 2. Reinsert the filter.
	Water filter is old. ▶ Insert a new water filter.
	Limescale deposits in the water tank are blocking the system. 1. Clean the water tank thoroughly. 2. Start the descaling programme.
Display shows "Please clean brewing unit.".	Brewing unit is soiled. ▶ Clean the brewing unit.
	Mechanism of brewing unit is stiff. ▶ Clean the brewing unit.

Fault Cause and troubleshooting

Display shows "Over-voltage or under-voltage".	There are problems with the power supply.► Only operate the appliance at 220–240 V ~.
Display shows "Error in water system.Please restart appli-ance.".	Appliance has a fault.1. Pull out the mains plug and wait 60 seconds.2. Re-insert the mains plug.
Display very frequently shows "Please run Calc'n Clean pro-gramme!".	Decalcified water still contains small amounts of lime.1. Insert a new water filter.2. Set the corresponding water hardness.
	Incorrect or too little descaling agent used.► When descaling, only use suitable tablets.

16 Transportation, storage and disposal

16.1 Activating "Residual water drainage"

Protect your appliance from frost during transport and storage.

ATTENTION

Residues of liquid in the appliance may damage it during transport or storage.

- Empty the pipe system before transport or storage.

1. Run the "Residual water drainage" programme.

→ "Overview of service programmes", Page 57

1. Disconnect the appliance from mains power supply.

16.2 Disposing of old appli- ance

Valuable raw materials can be re-used by recycling.

1. Unplug the appliance from the mains.

2. Cut through the power cord.

3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

17 Customer Service

You can obtain function-relevant and storable genuine spare parts from our Customer Service for up to 10 years from the date on which your appliance was placed on the market.

For more information, please contact our Customer Service team.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information about the warranty period and the warranty conditions in your country is available via the QR code on the enclosed document on service contacts and warranty conditions, from our customer service or on our website.

You can find the contact details for our customer service via the QR code on the enclosed document on service contacts and warranty conditions or on our website.

You can find the information required as per Regulation (EU) 2023/826 online at siemens-home.bsh-group.com on the product and service pages for your appliance, in the area of user manuals and additional documents.

17.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.)

If you contact Customer Service, you will require the product number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.), which you can find on the appliance's rating plate.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

18 Technical specifications

Voltage 220-
	240 V ~
Frequency 50 Hz
Connection rating 1500 W
Maximum static pump pressure	19 bar
Maximum capacity of water tank (without filter)	2,4 l
Maximum capacity of bean container	320 g
Length of the power cable	100 cm
Appliance height 380 mm
Appliance width 309 mm
Appliance depth 467 mm
Weight, empty 9,6-10,5 kg
Type of grinder Ceramic

18.1 Information regarding Free and Open Source Software

This product includes software components that are licensed by the copyright holders as free software or open source software.

The applicable licence information is stored on your home appliance. You can also access the applicable licence information via your

Home Connect app: "Profile -> Legal information -> Licence Information".

You can also download the licence information on the brand product website. (Please search on the product website for your appliance

model and additional documents). Alternatively, you can request the relevant information from [e-mail] or BSH Hausgeräte GmbH, Carl-Wery-Str. 34, 81739 Munich, Germany.

The relevant source code will be made available on request. Please send your request to [e-mail] or BSH Hausger-

äte GmbH, Carl-Wery-Str.34, 81739 Munich, Germany.

Subject: „OSSREQUEST“

The cost of performing your request will be charged to you. This offer is valid for three years from the date of purchase or at least as long as we offer support and spare parts for the relevant appliance.

19 Declaration of Conformity

BSH Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality conforms to the essential requirements and other relevant provisions of Directive 2014/53/EU.

A detailed RED Declaration of Conformity can be found online at siemens-home.bsh-group.com among the additional documents on the product page for your appliance.

CE

Hereby, BSH Hausgeräte GmbH declares that the appliance with Home Connect functionality is in compliance with relevant statutory requirements. ^1

A detailed Declaration of Conformity can be found online at siemens-home.bsh-group.com/uk/ among the additional documents on the product page for your appliance. ^1

UK CA

2.4 GHz band (2400–2483.5 MHz): Max. 100 mW

5 GHz band (5150–5350 MHz + 5470–5725 MHz): max. 200 mW

BE BG CZ DK DE EE IE EL ES

FR HR IT CY LI LV LT LU HU

MT NL AT PL PT RO SI SK FI

SE NO CH TR IS UK (NI)

5 GHz WLAN (Wi-Fi): For indoor use only.

5 GHz WLAN (Wi-Fi): For indoor use only.

19.1 Statement of Compliance for Great Britain

The full Statement of Compliance according to the Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 can be found online at www.siemens-home.bsh-group.com/uk/home among the additional documents on the product page for your appliance.

Product type

This statement of compliance covers the products described in this information for use whose model identifier group is seen on the title page. The full model identifier is made up of the characters before the slash in the product number (E no.) which can be found on the rating plate. Alternatively, you can also find the model identifier in the first line of the UK Energy Label.

Name and address of manufacturer

This statement of compliance is prepared by the manufacturer.

The manufacturer, BSH Hausgeräte GmbH deems that it has complied with

■ provision 5.1-1 of ETSI EN 303 645 v2.1.1 and, where relevant, provision 5.1-2 of ETSI EN 303 645 v2.1.1;
■ provision 5.2-1 of ETSI EN 303645 v2.1.1;
■ provision 5.3-13 of ETSI EN 303645 v2.1.1.

Support period

BSH Hausgeräte GmbH will provide security updates that are necessary

to maintain the main functions free of charge until at least 28/02/2034.

Illustration of a roof structure with cloud patterns and ventilation ducts (no text or symbols)

7.5 "doubleShot" et "tripleShot" ^2

12.1 Configurer Home Connect

Four hand-drawn icons showing different food items: rolled cheese, rectangular prism, rolled bread, and baked goods with blue X marks (no text or symbols)

Conseils

Illustration of a roof structure with cloud patterns and ventilation ducts (no text or symbols)

7.5 "doubleShot" e "tripleShot" ^1

7.6 Slow Brew e Cold Brew

Four symbolic illustrations: a rolled-up shell, a rectangular block with X marks, a rolled-up flatbread, and a textured flatbread (no text or symbols)

Consigli

⚠ WAARSCHUWING – Kans op verstikking!

⚠ WAARSCHUWING – Brandgevaar!

⚠ WAARSCHUWING – Kans op verbranding!

⚠ WAARSCHUWING – Kans op letsel!

Illustration of a roof-mounted air conditioner unit with blue cloud patterns above (no text or symbols)

7 De Bediening in essen- tie

⚠ WAARSCHUWING Kans op letsel!

Via de QR-code kunt u de Ho- me Connect app installeren en uw apparaat verbinden.

Four hand-drawn icons showing different types of construction materials: a rolled sheet, a rectangular block, a rolled metal sheet, and a cross mark (no text or symbols)

Tips

5-GHz-band (5150–5350 MHz + 5470–5725 MHz): max. 200 mW

BE BG CZ DK DE EE IE el ES

FR HR IT CY LI LV LT LU HU

MT NL AT PL PT RO SI SK FI

SE NO CH TR IS UK (NI)

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

siemens-home.bsh-group.com

8001347211 (051210)

de, en, fr, it, nl
