Product Type	Wallplate 2x1 Switcher Transmitter & Receiver Kit (AV Extender)
Model	CHE-HDWP85UD
Brand	Comprehensive
Compliance	HDMI 2.0b, HDCP 2.2, DisplayPort 1.2a
Video Bandwidth	HDMI: 18 Gbps; USB-C: 5.4 Gbps
Max Video Resolution	4K2K@50/60Hz 4:4:4
HDR Support	HDR10, Dolby Vision, 3D (no CEC)
Transmission Distance (CAT5e/6)	Up to 164 ft (50 m) for 4K@24Hz; 115 ft (35 m) for 4K@60Hz
Inputs (Transmitter)	1× HDMI Type A, 1× USB-C (signal + charging)
Output (Transmitter)	1× CAT6 RJ45
Input (Receiver)	1× CAT RJ45
Output (Receiver)	1× HDMI Type A
USB-C Charging Output	Up to 60W (requires PD adapter)
Input Switching Mode	Automatic or manual (SOURCE button)
Power Supply	Receiver: DC 12V/1A adapter; Transmitter: POC from receiver
Power Consumption	Transmitter: 3W max; Receiver: 3.72W max
ESD Protection	Human body model: ±8kV air, ±4kV contact
Operating Temperature	32 - 104°F (0 - 40°C)
Storage Temperature	-4 - 140°F (-20 - 60°C)
Relative Humidity	20 - 90% RH (no condensation)
Dimensions (Transmitter Wall Plate)	33.3mm (W) × 65.7mm (D) × 68.7mm (H)
Dimensions (Transmitter Faceplate)	69.9mm (W) × 3mm (D) × 114.3mm (H)
Dimensions (Receiver)	88mm (W) × 61mm (D) × 18mm (H)
Weight	Transmitter: 195g; Receiver: 155g
Housing Material	Metal enclosure, white/black color
Mounting	US one-gang Decora-style wallplate
Surge Protection	Recommended
Package Contents	Transmitter & Receiver set, 12V DC adapter, User Manual

Frequently Asked Questions - CHE-HDWP85UD Comprehensive

What is the maximum video resolution supported by the CHE-HDWP85UD?

The CHE-HDWP85UD supports video resolutions up to 4K2K@50/60Hz 4:4:4.

How far can I extend the AV signal?

You can extend the signal up to 164 feet (50 meters) for 4K@24Hz and up to 115 feet (35 meters) for 4K@60Hz over a single CAT5e or CAT6 cable.

Does the unit support HDR?

Yes, it supports HDR10 and Dolby Vision, as well as 3D. Note that CEC control is not supported.

How is the transmitter powered?

The transmitter is powered via Power over Cat (POC) from the receiver. The receiver requires a 12V/1A DC power adapter.

Can I charge a USB-C device through the transmitter?

Yes, the transmitter has a dedicated USB-C charging port that can provide up to 60W if a PD adapter is connected to the CHARGE port.

How do I switch between HDMI and USB-C inputs?

You can switch manually by pressing the SOURCE button on the transmitter. In automatic mode, the last connected or currently active source is selected, with HDMI having priority.

What are the audio formats supported?

The unit supports LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD.

What type of cable is required for connection?

A single CAT5e or CAT6 cable is used to connect the transmitter's CAT6 OUT to the receiver's CAT IN port.

Is the unit compatible with HDCP 2.2?

Yes, the CHE-HDWP85UD is HDCP 2.2 compliant.

What is the warranty and where can I find support?

Comprehensive provides support. You can contact them at [e-mail] or call 800-526-0242. Visit www.ComprehensiveCo.com for more information.

USER MANUAL CHE-HDWP85UD Comprehensive

Front view of a white electronic device with two connected ports and a black base (no visible text or symbols)

User Manual

VER 1.1

Thank you for purchasing this product

For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.

Table of Contents

1. Introduction......1
2. Features....1
3. Package Contents....1
4. Specifications....2
5. Product Dimensions .... 3
6. Operation Controls and Functions......4

6.1 Transmitter Panel....4

6.2 Receiver Panel....5

1. Application Example......6

1. Introduction

The CHE-HDWP85UD is a wallplate 2x1 switcher transmitter & receiver kit with HDMI and USB-C inputs. It features a US one-gang enclosure for Decora-style wallplate with a white wallplate and faceplate. The CHE-HDWP85UD supports video resolutions up to 4K2K@50/60Hz 4:4:4. The CHE-HDWP85UD also is able to extend AV signal to transmission distances up to 164ft / 50m over cat5e or cat6. The transmitter is remotely powered by the receiver via POC.

2. Features

☆ Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a
☆ HDMI input supports 18Gbps video bandwidth; USB-C input supports 5.4Gbps video bandwidth
☆ Video resolution up to 4K2K@50/60Hz 4:4:4
☆ Video transmission distance up to 164ft / 50m for 4K@60 444 via a single CAT5e/6 cable
☆ Supports 3D, HDR10 and Dolby Vision (does not support CEC control)
☆ HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
☆ Supports HDMI and USB-C input
☆ Dedicated USB-C charging port to power your connected USB-C devices (requires a PD adapter up to 60W)
☆ US one-gang enclosure for Decora-style wall plate openings
☆ Input signal selection supports automatic mode and manual mode
☆ Supports POC function (only from Receiver to Transmitter)

3. Package Contents

1× CHE-HDWP85UD (Transmitter & Receiver kit)
1× 12V DC power adapter
1× User Manual

1. Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
DP Compliance	Display Port 1.2a
Video Bandwidth	USB-C: 5.4 Gbps
	HDMI: 18 Gbps
Video Resolution	480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
Color Space	RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth	8/10/12-bit (1080P@60Hz)8-bit (4K@60Hz)
HDR	Support
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Transmission Distance	Max distance (4K@24): 164ft / 50m over CAT5e/6Max distance (4K@60): 115ft / 35m over CAT5e/6
ESD Protection	Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Transmitter	Inputs: 1 x HDMI Type A [19-pin female]1 x USB-COutputs: 1 x CAT6 OUT [RJ45, 8-pin female]1x USB-C (only for charging)Control: 1x FW [Micro USB, Update port]
Receiver	Input: 1x CAT IN [RJ45, 8-pin female]Output: 1x HDMI OUT [Type A, 19-pin female]Controls: 1x IR IN [3.5mm Stereo Mini-jack]1x SERVICE [Micro USB, Update port]
Mechanical
Housing	Metal Enclosure
Color	White / Black
Dimensions	Wall plate:33.3mm [W] x 65.7mm [D] x 68.7mm [H]Faceplate:69.9mm [W] x 3mm [D] x 114.3mm [H]Receiver:88mm (W) x 61mm (D) x 18mm (H)
Weight	Wall plate: 195g, Receiver: 155g
Power Supply	POC (only from Receiver to Transmitter)
Power Consumption	Wall plate: 3W (Max), Receiver: 3.72W (Max)
Operating Temperature	32 - 104°F / 0 - 40°C
Storage Temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)

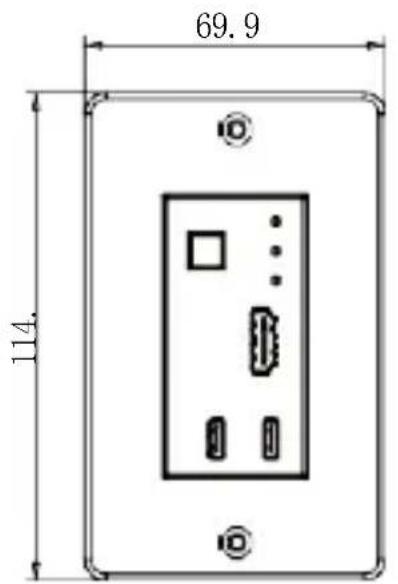

5. Product Dimensions

Front

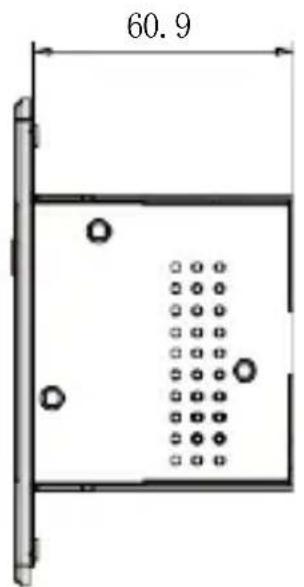

Side

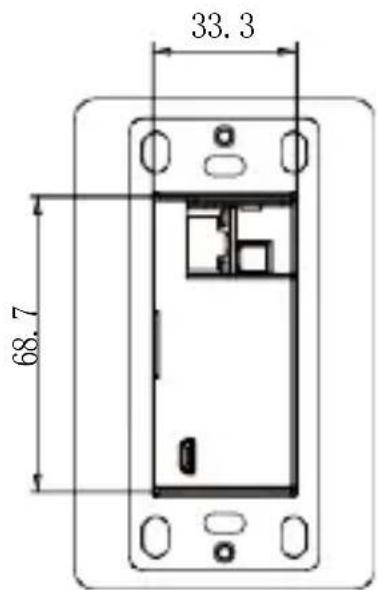

Back
Unit: mm

6. Operation Controls and Functions

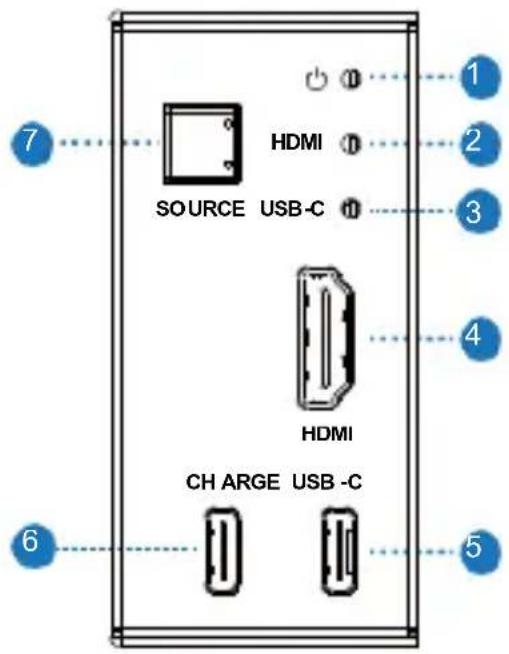

6.1 Transmitter Panel

No.	Name	Function Description
1	Power LED	The power LED indicator will illuminate in green when the product is powered on, and red when the product is on standby.
2	HDMI LED	When the HDMI input port is active and the HDMI signal is detected, the green LED will be on.
3	USB-C LED	When the USB-C input port is active and USB-C signal is detected, the green LED will be on.
4	HDMI port	HDMI input port, connect to HDMI source device.
5	USB-C port	(1) USB-C signal input port.(2) Charging port for devices with USB-C port.
6	CHARGE port	Connect this port to power supply, then the USB-C port will power the connected device.
7	SOURCE button	Used to switch HDMI / USB-C input signal.

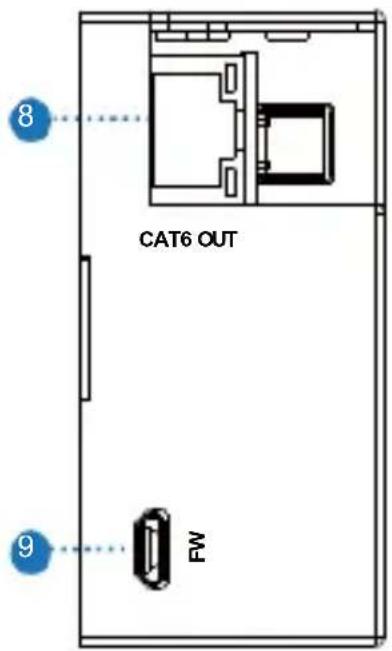

8	CAT6 OUT	Connect to the CAT IN port of Receiver with a CAT5e/6 cable.
9	FW port	Firmware update port.

6.2 Receiver Panel

No.	Name	Function Description

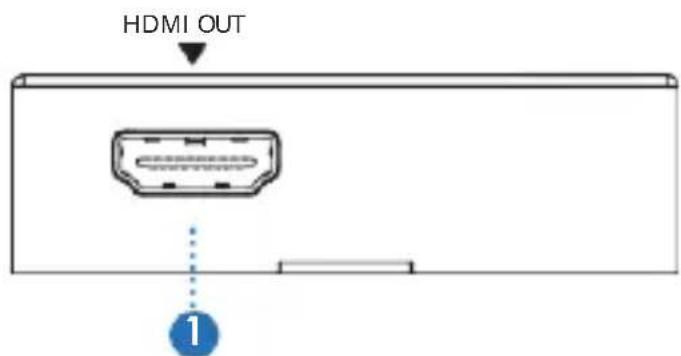

1	HDMI OUT	HDMI output port, connect to HDMI display device such as TV or Projector with an HDMI cable.
2	CAT IN	Connect to the CAT6 OUT port on the transmitter with a CAT cable.
3	Power Indicator Lamp (Green)	When the receiver is powered on, the power indicator lamp will be on.
4	Data signal Indicator Lamp (Orange)	When there is signal transmission between the transmitter and the receiver, the lamp will be on.
5	SERVICE port	Used for firmware update.
6	IR IN	IR signal input port. Connect to the IR Receiver cable.
7	DC 12V	Plug DC 12V/1A power supply into the unit and connect the adapter to an AC outlet.(Note: The CAT receiver provides power for the transmitter via a CAT cable.)

Note:

This transmitter supports automatic/manual mode for source signal input. In manual switching mode, press the SOURCE button to select HDMI/USB-C input source.

In automatic switching mode, the last connected or the currently connected source signal will be selected automatically; When both HDMI and USB-C ports are connected to active signal, HDMI signal input is preferred.

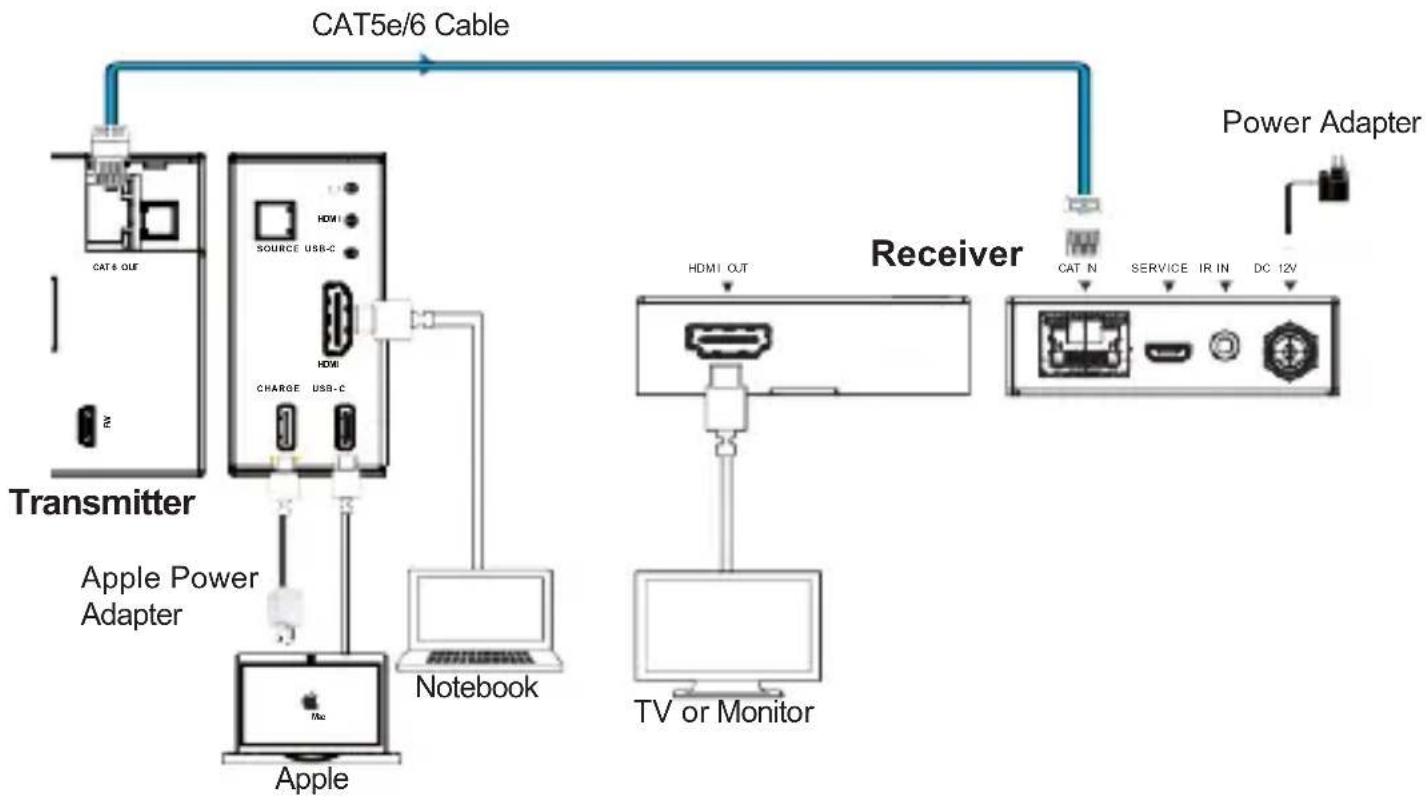

7. Application Example

