B127U-002-PDPD2 - AV Extender Tripp Lite - Free user manual and instructions

Product Type	2-Port DisplayPort over Cat6 Pigtail Splitter and Receivers Kit
Brand	Tripp Lite
Model	B127U-002-PDPD2
Video Resolution	4K x 2K (3840 x 2160) @ 60 Hz
Maximum Extension Distance	230 ft. (70 m) per Cat6 cable (24 AWG solid wire)
Number of Displays Supported	2 (expandable with additional receivers)
Connector Type (Source)	DisplayPort (built-in 1 ft. pigtail)
Connector Type (Display)	DisplayPort (built-in 1 ft. pigtail on receivers)
Cable Type Required	Cat6 24 AWG solid wire (recommended)
Power Source	USB-A (built-in 1 ft. cable) or Micro-USB (5V/1A)
HDCP Support	HDCP 2.2 and 1.4
HDR Support	Yes, High Dynamic Range (HDR)
Audio Support	Passthrough up to 7.1-channel surround sound
Multi-Resolution Technology	Allows different displays to operate at 1080p, 4K/30 Hz, or 4K/60 Hz independently
Daisy-chain Capability	Up to 4 receivers per splitter port (total 8 receivers, 920 ft. max per daisy-chain) with B127U-110-PD or B127U-110-PH
Warranty	1-year limited warranty
Care and Cleaning	Wipe with a dry, soft cloth; avoid liquids and abrasives
Safety Note	Not recommended for life support applications
Spare Parts and Repairability	Contact Tripp Lite for RMA service; no user-serviceable parts

Frequently Asked Questions - B127U-002-PDPD2 Tripp Lite

What is the maximum resolution supported by the B127U-002-PDPD2?

The kit supports 4K x 2K (3840 x 2160) @ 60 Hz resolution via DisplayPort 1.2.

How far can I extend the DisplayPort signal with this splitter kit?

Using 24 AWG solid wire Cat6 cable, you can extend up to 230 ft. (70 m) per cable run to each display.

Can I connect displays with different resolutions?

Yes, the kit features Multi-Resolution technology, allowing each receiver to output 1080p, 4K/30 Hz, or 4K/60 Hz independently without affecting other displays.

How is the transmitter powered?

The transmitter can be powered via the built-in 1 ft. USB-A cable (connected to a USB port or adapter) or via the Micro-USB port using a 5V/1A adapter.

Does this kit support daisy-chaining?

Yes, each of the two splitter ports can daisy-chain up to four additional B127U-110-PD or B127U-110-PH receivers (sold separately), for a total of eight receivers and up to 920 ft. (280 m) per daisy-chain.

Can I mix DisplayPort and HDMI receivers?

Yes, the B127U series allows mixing of DisplayPort (B127U-110-PD) and HDMI (B127U-110-PH) receivers in the same installation.

What type of Cat6 cable is recommended?

For maximum distance and performance, use 24 AWG solid wire Cat6 cable. Stranded or higher gauge cable may reduce achievable distance.

Does the kit support HDR and HDCP?

Yes, it is compatible with HDCP 2.2 and 1.4 and supports High Dynamic Range (HDR).

What is the warranty period for this product?

Tripp Lite offers a 1-year limited warranty against defects in materials and workmanship. Register at tripplite.com/warranty.

What should I do if the video does not display?

Ensure all units are powered on via USB (LEDs should be lit), the Cat6 cable is securely connected, and the source is outputting a supported resolution. Also verify that the displays are set to the correct input.

USER MANUAL B127U-002-PDPD2 Tripp Lite

DisplayPort Over Cat6 Pigtail Extender Kits and Receiver with Repeater, 4K/60 Hz

Extender Kit: B127U-111-PDPD

2-Port Splitter Kit: B127U-002-PDPD2

Receiver with Repeater: B127U-110-PD

Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!

tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2023 Tripp Lite. All rights reserved.

Product Features

B127U-111-PDPD

• DisplayPort over Cat6 Pigtail Transmitter and Receiver with Repeater Kit
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz DisplayPort 1.2 A/V signal up to 230 ft. (70 m) from the source over 24 AWG Cat6 cabling
• Transmitter and receiver units can be powered by the built-in 1 ft. USB-A cables for connecting to the USB port on a display or to a USB power adapter, or by the Micro-USB ports on each unit
• 1 ft. DisplayPort connectors on transmitter and receiver units connect to the source and display
  • View the transmitted video content on a local display via the 4K/60 Hz HDMI port on the transmitter unit
• Daisychainable up to 4 layers, with each additional B127U-110-PD receiver unit (sold separately) providing an additional 230 ft., up to a total of 920 ft. (280 m)
  • Supports passthrough audio formats up to 7.1-channel surround sound
  • Real-time video compression and decompression technology
• Compatible with HDCP 2.2 and 1.4 and High Dynamic Range (HDR)

Product Features

B127U-002-PDPD2

• 2-Port DisplayPort over Cat6 Pigtail Splitter and Receivers Kit
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz DisplayPort A/V signal to two displays up to 230 ft. (70 m) from the source over 24 AWG Cat6 cabling
• Transmitter and receiver units are powered by built-in 1 ft. USB-A cables for connecting to the USB port on a display or to a USB power adapter, or via the Micro USB ports on each unit
• Multi-Resolution technology allows the receivers to connect to any 1080p, 4K/30 Hz or 4K/60 Hz display without affecting the resolution of the other displays connected to the splitter
• 1 ft. DisplayPort connectors on transmitter and receiver units connect to the source and display
  • Supports passthrough audio formats up to 7.1-channel surround sound
  • Real-time video compression and decompression technology
• Compatible with HDCP 2.2 and 1.4 and High Dynamic Range (HDR)
• Compatible with DisplayPort (B127U-110-PD) and HDMI (B127U-110-PH) receivers to create flexible daisychain installations with multiple video outputs. Each port on the splitter can extend up to four connected receivers, for a total of eight receivers and 920 ft. (280 m) per daisychain (sold separately).

Product Features

B127U-110-PD

• DisplayPort over Cat6 Pigtail Receiver with Repeater
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz A/V signal up to 230 ft. (70 m) from the source when connected to a B127U-Series transmitter or splitter unit over 24 AWG Cat6 cabling
• Powered by built-in 1 ft. USB-A cable for connecting to the USB port on a display or to a USB power adapter, or via the unit's Micro-USB port
• 1 ft. DisplayPort pigtail connector is used to connect to the display
  • Supports passthrough audio formats up to 7.1-channel surround sound
  • Real-time video compression and decompression technology
• Compatible with HDCP 2.2 and 1.4 and High Dynamic Range (HDR)
• Compatible with any B127U-Series transmitter or splitter to create flexible DisplayPort and HDMI video installations
• Daisychainable up to 4 layers, with each additional B127U-110-PD or B127U-110-PH receiver unit (sold separately) providing an additional 230 ft., up to a total of 920 ft. (280 m)

Optional Accessories

• N202-Series Cat6 24 AWG Solid Wire Patch Cables
• U280-W01-QC3-1 USB-A Wall Adapter, 18 Watts
• B127U-110-PH HDMI over Cat6 Receiver with Repeater

Installation

Standard Extender Kit Installation

Notes:

• Test to ensure the entire installation works properly before pulling cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid wire Cat6 cable. Using stranded wire Cat6 cable or cable with a gauge (AWG) size higher than 24 AWG will result in shorter extension distance. Higher-gauge cabling, such as 26 AWG, has a more limited transmission capability than lower-gauge cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid wire cabling.
• The installation diagram shows a B127U-111-PDPD extender kit.
• The diagram shows additional B127U-110-PD receiver units (sold separately, see tripplite.com) in a daisy-chain installation.
• The B127U-Series of transmitter/receiver units can be mixed and matched as desired with either HDMI or DisplayPort video outputs within one installation. The B127U-Series HDMI transmitter products can be used with the B127U-110-PD DisplayPort receiver (and vice-versa) with the B127U-Series DisplayPort transmitter and B127U-110-PH HDMI receiver. Up to four receivers can be daisychained at once.

Installation

1. Make sure all equipment in the installation – such as TVs, Blu-ray players and the transmitter – is powered off.
2. Connect the pigtail DisplayPort connector on the transmitter unit to the DisplayPort input on the source.

Optional: Using an HDMI 2.0 cable (such as Tripp Lite's P569-XXX-CERT or P568-XXX-2A Series cables), connect a display to the LOCAL port on the transmitter unit.

1. Using 24 AWG solid wire Cat6 cable, connect the RJ45 port on the local transmitter unit to the RJ45 input port on the remote receiver unit.

2. Connect the pigtail DisplayPort connector on the remote receiver unit to the DisplayPort port on the display.

3. Connect the pigtail USB-A connector on the local transmitter unit to a USB 3.0 port or a USB power adapter (5V/1A) and into a wall power outlet. The LED next to the RJ45 port will illuminate solid green to indicate the unit is receiving power.

Installation

1. Connect the pigtail USB-A connector on the remote receiver unit to a USB power adapter (5V/1A) or a USB 3.0 port on the display. The LEDs next to the RJ45 connectors will illuminate orange to indicate the ports are receiving power.
   Optional: The transmitter and receiver units can be charged via the Micro-USB ports on each unit by connecting a Micro-USB to USB-A cable between each unit and a USB power adapter.
2. Turn on the power to your connected TVs/monitors.
3. Turn on the power to the DisplayPort source. The LEDs on both the transmitter and receiver units should begin to flash to indicate video is being transmitted and the video should now display on the connected monitor(s).

Note: If a daisy-chain installation is desired, repeat steps 4-7 with up to 3 additional B127U-110-PD or B127U-110-PH units (sold separately).

Installation

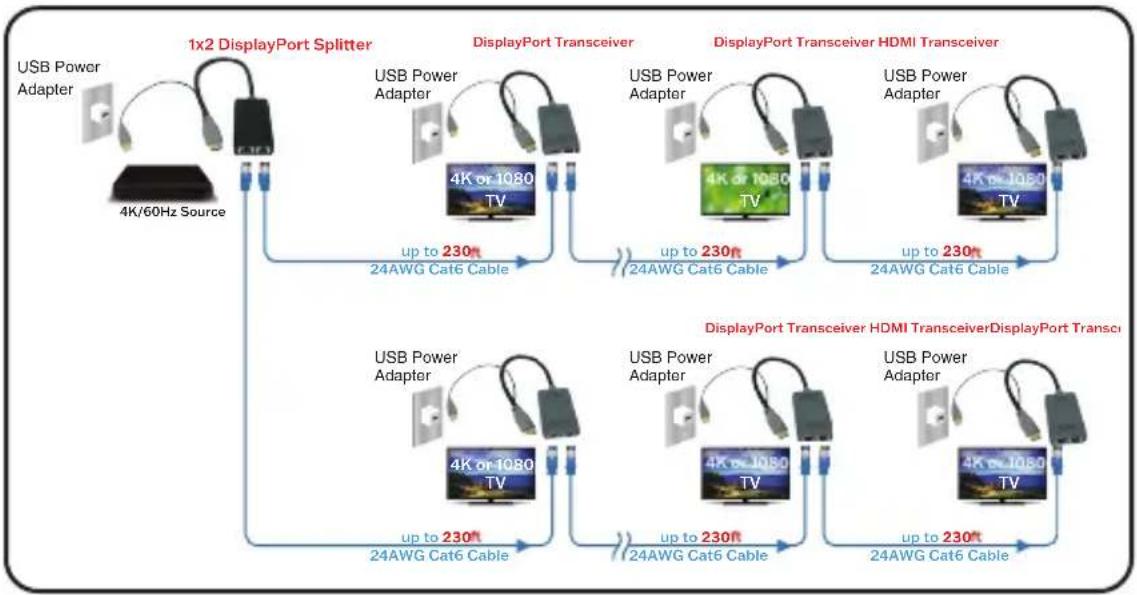

Standard Splitter Kit Installation

Notes:

• Test to ensure the entire installation works properly before pulling cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid wire Cat6 cable. Using stranded wire Cat6 cable or cable with a gauge (AWG) size higher than 24 AWG will result in shorter extension distance. Higher-gauge cabling, such as 26 AWG, has a more limited transmission capability than lower-gauge cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid wire cabling.
• The installation diagram shows a B127U-002-PDPD2 splitter kit.
• The diagram shows additional B127U-110-PD and B127U-110-PH receiver units (sold separately, see tripplite.com) in a daisy chain installation.
• The B127U-Series of transmitter/receiver units can be mixed and matched as desired with either HDMI or DisplayPort video outputs within one installation. The B127U-Series HDMI transmitter products can be used with the B127U-110-PD DisplayPort receiver (and vice-versa) with the B127U-Series DisplayPort transmitter and B127U-110-PH HDMI receiver. Up to four receivers can be daisychained at once.

Installation

1. Make sure all equipment in the installation – such as TVs, Blu-ray players and the transmitter – is powered off.
2. Connect the pigtail DisplayPort connector on the transmitter unit to the DisplayPort input on the source.
3. Using Cat6 cable, connect the RJ45 ports on the local transmitter unit to the RJ45 input ports of each remote receiver unit.
4. Connect the pigtail DisplayPort connector on the remote receiver units to the DisplayPort input ports of each display.
5. Connect the pigtail USB-A connector on the local transmitter unit to a USB power adapter and into a wall power outlet. The LED next to the RJ45 port should illuminate to indicate the unit is receiving power.

Installation

1. Connect the pigtail USB-A connector on the remote receiver units to USB power adapters or a USB port on the displays. The LEDs next to the RJ45 ports should illuminate to indicate the units are receiving power.
   Optional: The transmitter and receiver units can be charged via the Micro-USB ports on each unit by connecting a Micro-USB to USB-A cable between each unit and a USB power adapter.
2. Turn on the power to your connected TVs/monitors.
3. Turn on the power to the DisplayPort source. The LEDs on the transmitter and receiver units should begin to flash to indicate video is being transmitted and the video should now display on the connected monitor(s).

Warranty and Product Registration

1-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase.

TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Warranty and Product Registration

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

WARNING

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
