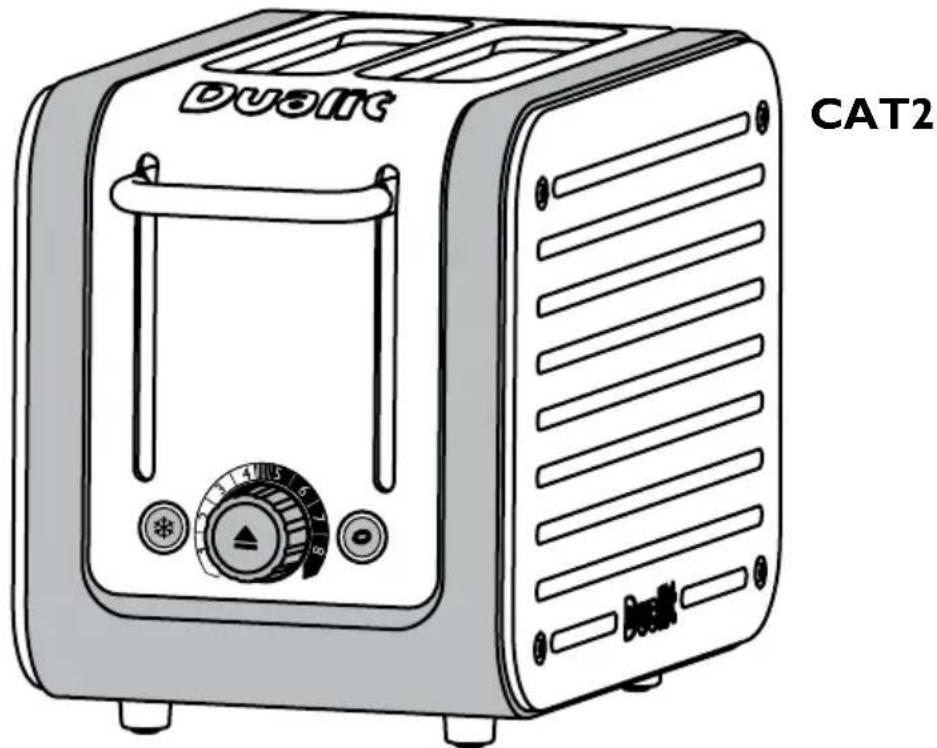

Line drawing of a Dualitc 20-inch toaster with control knobs and a dial, labeled CAT2 (no text on device itself)

CAT4

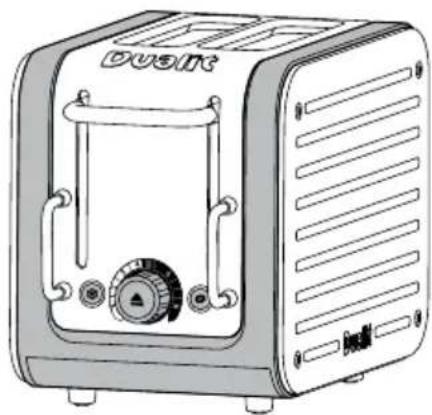

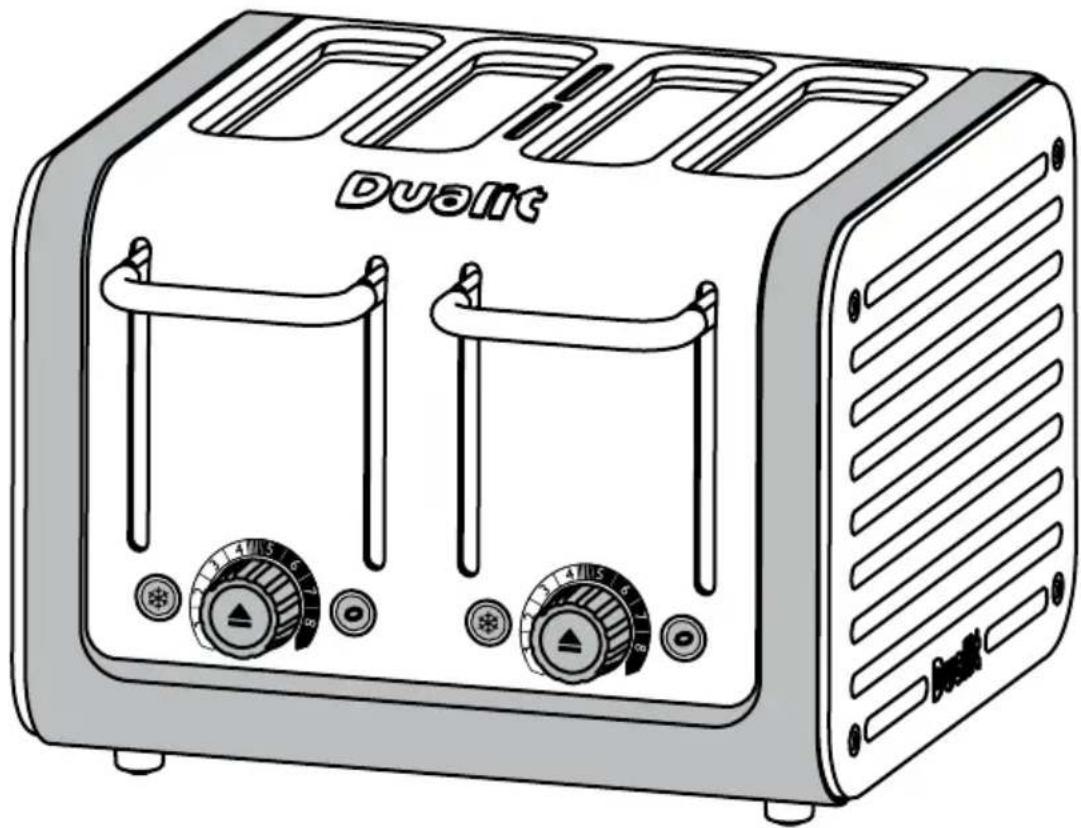

Line drawing of a Dualit 3rd-to-4-inch tower with two side grilles and control knobs (no text or symbols on the device itself)

YOUR ARCHITECT TOASTER

The perfect slice of toast is an essential part of breakfast and the Architect toaster is designed to deliver every time. With extra wide slots for the chunkiest of bread, defrost option and patented Peek and Pop® function, you will be serving superior toast, bagels and buns to change the way you breakfast.

Each Architect toaster features interchangeable panels with a wide variety of colours available, allowing you to update the colour of your toaster if you move house, update your kitchen, or simply to suit your mood.

DON'T FORGET TO REGISTER YOUR TOASTER WWW.DUALIT.COM/REGISTER OR BY POST Register my appliance

CONTENTS

Safety precautions 04

Know your Toaster 06

Setting up 08

Toasting tips 09

Toasting bread 10

Bagel & bun toasting 11

Toasting frozen bread 12

4 slot toasting 13

Stop toasting 14

Sandwich cage 14

Cleaning & care 15

Troubleshooting 16

Guarantee 17

Unpack the box with care, keeping all the packaging materials until you are satisfied everything is present and in working order. Once satisfied remove any tags from the toaster body and recycle the packaging appropriately. Do not remove tags from the cord where appropriate. You may wish to keep the box to store your toaster.

All illustrations are for representation only; your model may vary from illustrations shown.

Patent application: GB1315591.6 P11363GB, GB1315591.6 Patent No. GB2453812, AU2098202636, US2009223382, GB2516476, AU2614101058 Reg No. 2600265 Trade Mark: WL00001115293

IMPORTANT SAFETY PRECAUTIONS

READ ALL INSTRUCTIONS

BEFORE USING THE TOASTER KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

• THIS IS AN ATTENDED

APPLIANCE. Do not leave unattended during use, unplug after each use (risk of fire if an unattended appliance is left operating).

• This appliance must not be used by children younger than 8 years old and persons with very extensive and complex disabilities. Children aged 8–14 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge shall not use this appliance, unless they are supervised and have been given instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years old.
• This appliance is intended for indoor household use only. If the appliance is used improperly or for professional or semi-professional purposes or if it is not used according to these instructions the Guarantee becomes invalid and Dualit refuses any liability for damage caused.

Electrical safety

• Before plugging in, check that the voltage on the rating label is the same as the mains supply.
  • We recommend that the toaster is plugged into a socket that has no other appliance connected to it. Failure to do this may cause an overload, trip a circuit breaker or blow a fuse.

Preferably the socket outlet should be protected by a Residual Current device (RCD).

• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Should any of the lights remain illuminated after using the appliance, unplug the toaster immediately and call service centre.
• The toaster is not intended to be operated by means of an external timer or separate remote-control system.
  • To protect against electric shock, do not immerse any part of this product in water or other liquid.
• NOTE: Any plug cut from power supply cord should be disposed of immediately. Inserting any cut off plug into a 13A socket-outlet is hazardous.
• Do not operate any appliance with a damaged lead or plug, or after the appliance malfunctions or has been damaged, cracked or dropped in any manner.
• If the power cord is damaged it must, for safety reasons, be replaced by Dualit or an authorised Dualit repairer.
• Never use the plug without the fuse cover fitted. Ensure replacement fuse is the same current value as original.
• Replacement fuses should be ASTA approved to BS 1362.
• WARNING: This appliance must be earthed.

General safety

• Bread may burn. Therefore toasters must not be used near or below curtains and other combustible materials.
• When in use a fire may occur if the toaster is covered or touching flammable material.

• Do not place on or near a hot gas or electric burner, or in a heated oven.

• Do not attempt to dislodge bread when the toaster is plugged in.

• Crumb tray must be in place during toasting.
• Crumb tray should be regularly cleaned. A build up of crumbs can burn or cause a fire.
• Do not allow cable to touch hot surfaces, or to hang over edge of a table or counter top.
• Keep the appliance and its cord out of reach of children.
• Do not use appliance for any purpose other than the intended use.
• Do not store or use toaster in an appliance garage or under cupboards.
• Do not put a pan ontop of the toaster or warming rack.
• Do not use if dropped, cracked or damaged.
• Accessible surfaces of the toaster may get hot during use. Therefore use handles or knobs.
• Do not use scouring pad or abrasive cleaner on the toaster body.
  • The use of accessory attachments not recommended by Dualit may result in fire, electric shock or injury to persons.
• Never use the toaster without the interchangeable panels correctly assembled. Architect toasters only.

SAVE THESE INSTRUCTIONS

In the interest of improving products, Dualit Ltd. reserves the right to change the product specification without prior notice.

All illustrations are for representation only, your model may vary from illustrations shown.

INSTRUCTIONS ON ENVIRONMENT PROTECTION

Do not dispose this product in the usual household garbage at the end of its life cycle. Please hand it over to a collection point for the recycling of electrical and electronic appliances.

The symbol on the product, the instruction of use or the packaging will inform you about the methods of disposal. The materials are recyclable as mentioned on its marking. By recycling, material recycling or other forms of re-utilization of old appliances you are making an important contribution to protect our environment. Please enquire at the community administration for the authorised disposal location.

IMPORTANT: BEFORE FIRST USE

• Read this instruction manual before you start using the toaster. It gives you important safety information and will ensure you get the most out of your Dualit toaster.
• Keep this manual and your proof of purchase in a safe place.
• Before you use your toaster for the first time, wash all parts according to the cleaning instructions.
• Position the toaster according to the safety precautions.
• Make sure the toasting lever is in the raised position when you put the plug into the wall socket.
• The toasting lever will only engage when the toaster is plugged in with the power on.
• The cancel button will illuminate to show that the toaster is heating.
• When you turn the toaster on for the first time, a "new" smell/or smoke may be given off, this will dissipate after a few uses. Clean all parts in contact with food before using for the first time.

KNOW YOUR TOASTER

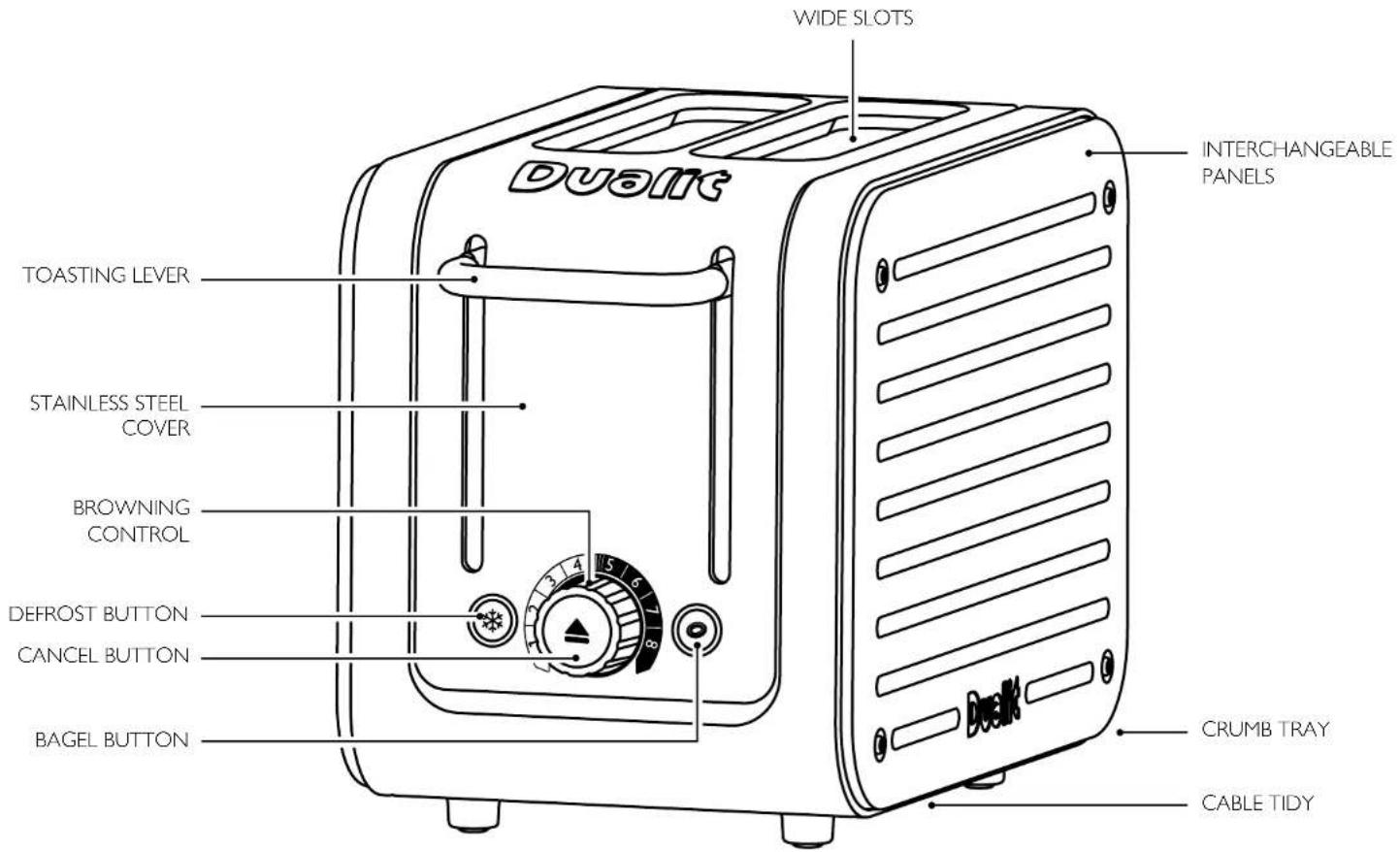

DUALITC WIDE SLOTS INTERCHANGEABLE PANELS TOASTING LEVER STAINLESS STEEL COVER BROWNING CONTROL DEFROST BUTTON CANCEL BUTTON BAGEL BUTTON CRUMB TRAY CABLE TIDY

SETTING UP

Read and follow these instructions before using your toaster.

I REMOVE BEFORE FIRST USE Dustt

Ensure your toaster is unplugged and cool. REMOVE CARDBOARD INSERTS FROM THE SLOTS BEFORE FIRST USE. A fire may occur if incorrectly positioned.

2 ×

DO NOT STORE OR USE YOUR TOASTER IN AN APPLIANCE GARAGE OR UNDER CUPBOARDS. A fire may occur if incorrectly positioned.

Diagram showing a toaster with a cloth cover and a stop sign, indicating a stop or absence of a device.

DO NOT STORE OR USE YOUR TOASTER CLOSE TO CURTAINS OR FLAMMABLE MATERIAL. A fire may occur if incorrectly positioned.

4 200 200

Place the toaster on an open level surface. Ensure the toaster is positioned at least 200mm CLEAR FROM ANY OVERHANGING CUPBOARDS OR WALLS.

5 200 200 200 Credit

Ensure the toaster is positioned at least 200mm CLEAR FROM ANY OVERHANGING CUPBOARDS OR WALLS.

6 THE CRUMB TRAY Duallit

CRUMB TRAY MUST BE IN PLACE DURING TOASTING.

7 UNPLUG DoutIt

UNPLUG WHEN NOT IN USE.

Register my appliance WWW.DUALIT.COM/REGISTER

DON'T FORGET TO REGISTER YOUR TOASTER AT WWW.DUALIT.COM/REGISTER OR BY POST

TOASTING TIPS

Here are a few tips to help get the best out of your toaster.

• Different breads will toast at different rates, wholemeal bread takes longer than white bread, fresh bread will take longer than day old bread. Remember to adjust your browning control to allow for your particular type of bread.
  • After the first round of toast, the elements and toaster body will be heated up, subsequent rounds will take less time to toast.
• At any time during the toasting cycle you can lift the toasting lever and check the progress of the toasting.
• Use the bagel setting to toast burger buns, bagels, muffins or tea cakes, this setting toasts one side whilst gently warming the other.
• The thickest slice of bread that will fit in your toaster is 36mm thick. Forcing bread which is too thick or too long into the slots will be difficult to eject once toasted.
• You may find it easier to use a 'sandwich cage' to toast smaller items. Inserting and removing items will be easier (sold separately).
• When hand cutting a fresh loaf, cut the slices as evenly as possible. Uneven slices will toast unevenly.
• Keep elements free from breadcrumbs and broken pieces of bread. If left these may bum out the elements. With the loaster unplugged use a soft brush to clean inside your toaster, do not use a knife!
• To reheat recently made toast set the browning control to 1.
• Cancel toasting manually at any time by pressing the cancel button on the browning control knob.

TOASTING BREAD

THIS IS AN ATTENDED APPLIANCE. Do not leave unattended during use, unplug after each use (risk of fire if an unattended appliance is left operating).

I PLUG IN Benedit

The toaster will only engage when the power is switched on. Plug the toaster into the wall power socket and turn power on at socket.

2 SET

To toast, set the desired browning level by means of the browning control (I is the lightest and 8 is the darkest setting).

3 INSERT Doutlet

Place the bread into the slots and press the toasting lever down until it engages. The browning control will be illuminated blue for the duration of the toasting.

4 PEEK & POP duakt peek & &pop

At any time during the toasting cycle you can lift the toasting lever and check the progress of the bread. If you remove the toast before the cycle is complete, press the cancel button and unplug.

5 HIGH LIFT DUALIT

When toasted the toast will pop up automatically. If the slices are difficult to remove safely, lift the toasting lever up manually for extra high lift.

6 STOP TOASTING

To immediately stop toasting press the cancel button. After cancelling if neon light remains illuminated after use immediately unplug the toaster & call service centre.

Perfectly toast bagels or other bread products such as buns, English muffins or teacakes. This feature gently warms the outside of the item and toasts the inside to perfection. To cancel toasting see page 13.

I SET 0 0 0 4 5 6 7 1 2 3 4 5 6 7 8

Select the desired browning level. (1 is the lightest and 8 is the darkest setting).

2 INSERT ON Dusikt

Slice bagel into two equal halves before toasting. Insert bagel so both 'cut' sides are facing inwards to the centre element.

3 ENGAGE

Press the toasting lever down until it engages. The browning control will be illuminated blue.

4 BAGEL BUTTON

As soon as the bagel is lowered, immediately press the bagel button. The button will be illuminated blue and only the centre element will heat up.

TOASTING FROZEN BREAD

When 'defrost' is activated, the toaster automatically adjusts the settings to defrost and then toast frozen bread.

To cancel toasting see page 13.

I INSERT Dusift

To toast frozen bread, place the bread into the slots.

2 ENGAGE Dualit

Press the toasting lever down until it engages.

3 DEFROST BUTTON

Immediately press the defrost button. The button will be illuminated blue. To toast frozen bagels or buns, engage the toasting lever then press both defrost and bagel buttons.

4 SLOT TOASTING

To cancel toasting see page 13.

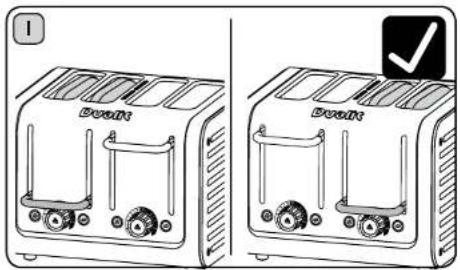

1 DKN DKN

If you want to toast 2 pieces of bread only LOAD AND ENGAGE one side of the toaster.

2 Doott Doott Doott

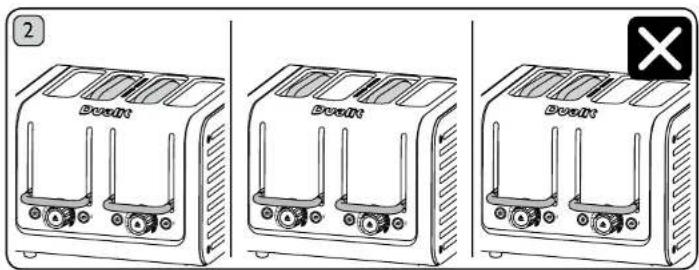

DO NOT LOAD AND ENGAGE BOTH SIDES OF THE TOASTER TO TOAST 2 PIECES OF BREAD.

STOP TOASTING

The toasting cycle will automatically stop and the toast will pop up, but if required you can cancel at any time.

STOP BUTTON

Press the cancel button located on the end of the browning control.

2 POP UP Dusit

The toaster will immediately stop and the items being toasted will pop up. The neon will go out. After cancelling if neon light remains illuminated after use immediately unplug the toaster & call service centre.

3 UNPLUG Boult

THIS IS AN ATTENDED APPLIANCE. Do not leave unattended during use, unplug after each use (risk of fire if an unattended appliance is left operating).

SANDWICH CAGE OPTIONAL EXTRA

Line drawing of a vehicle front view with vertical bars and a seat (no text or symbols)

The sandwich cage provides you with the option of making toasted sandwiches in your Architect toaster. It is also useful for toasting smaller items like buns, bagels and teacakes. Each pack includes a free cookbook with a range of ideas for deep filled toasted sandwiches that make good use of the extra-wide slots of your Architect toaster.

AVAILABLE AT: WWW.DUALIT.COM/ARCHITECT

CLEANING & CARE

UNPLUG Exhibit

Switch toaster off, remove the plug from the wall socket and let the toaster cool down before you start cleaning it.

2 WIPE

Wipe the outside of the toaster with a moist cloth and dry it with another cloth. Do not use a scouring pad or abrasive cleaner.

3 CAUTION Debit

Use a soft brush to clean inside your toaster. Do not insert any metallic or sharp utensils in to the toaster.

4 LIGHTLY TAP Duselt

When the toaster has cooled completely, tap the sides of the toaster lightly to dislodge any crumbs caught in the toasting chamber.

5 CRUMB TRAY Duallit

Crumbs will accumulate in the crumb tray and could catch fire if the tray is not emptied frequently. Pull out the crumb tray and wipe clean using a damp cloth.

6 CORD TIDY

Store the cleaned toaster unplugged with the cord wrapped round the cord tidy on the base of the toaster.

TROUBLESHOOTING

POSSIBLE CAUSE(S) SOLUTION(S)
MY TOASTER IS NOT WORKING:

1. The toaster may not be properly connected to the power supply.	1. Check the plug is in the socket and the switch in turned on.
2. If your lever is not staying down. 2. Check if the 'neon' is glowing blue.If yes, unplug the toaster and call service centreIf no, your plug fuse may have blown.

I GET UNEVEN TOASTING:

1. Different bread types and sizes have been used at the same time.	1. Ensure size and type of bread being toasted is the same.
2. End elements take a little longer to warm up than centre elements.	2. Once toaster is at optimum operating temperature this will no longer occur.

MY TOAST DOESN'T POP UP WHEN THE TOASTER HAS FINISHED:

1. There may be a fault with the toaster. 1.	if the power neon remains illuminated,immediately unplug the toaster and call servicecentre.
2. Your bread may be too thick 2.1 Slices th	thicker than 36mm will get stuck.
	2.2 Hand cut slice must be cut evenly.
	2.3 Using a ‘sandwich cage’ can make toastingthicker items easier.

ONE SIDE OF MY BREAD IS NOT TOASTING

I. If set to Bagel setting only one side will toast.	I. Press the bagel button to cancel the setting. Remember to insert bread from the very left hand slot.
SMOKE COMING OUT OF THE SLOTS
I. If this is the first time using your toaster, this is normal, your elements are being conditioned.	I. This will dissipate after a few uses.
2. The crumb tray might be full. A build up of crumbs can burn or cause a fire.	2. Empty the crumb tray.
3. Some crumbs or pieces of bread may be stuck in the toaster.	3. Unplug, remove the crumb tray then turn the toaster upside down over a sink or bin and gently shake the crumbs out.

GUARANTEE

This appliance is of excellent quality and construction. However, if any defects in materials or workmanship do appear during the relevant guarantee period, we will, at our discretion, either repair or replace the defective parts, free of charge, subject to the terms and conditions of our Guarantee shown below.

This Guarantee covers both parts and labour. Carriage is not included.

Your Guarantee period is as follows:

• 1 year

This Guarantee provides benefits which are additional to, and do not affect, your statutory rights. This Guarantee does not cover the cost of returning the product to the dealer from whom it was purchased or to ourselves. This Guarantee applies only to products sold and located in mainland Great Britain. It does not cover liability in respect of or replacement of plugs, cables or fuses and also does not cover defects due to:

• Failure to use or maintain product in accordance with Dualit's instructions.
• The product being connected to an unsuitable electricity supply.
• Accidental damage to or abuse or misuse of the product.
• product modification, except by Dualit or approved agent.
• Dismantling of or interference with the product.
• Theft or attempted theft of the product. Before returning any product under this Guarantee, please check that:
• You have followed the product instructions correctly.
• Your mains electricity supply is functional.
  • The defect is not due to a blown fuse.

If you wish to claim under this guarantee you should:

• Send the product, postage or carriage paid, to the dealer from whom it was purchased or to Dualit direct.
• Ensure that the product is clean and packed carefully (preferably in its original carton).
• Enclose details of your name, address and telephone number and when and where the product was purchased, together with proof of purchase (e.g. a till receipt).
• Give exact details of the nature of the defect.

This Guarantee does not cover any other claims whatsoever, including, without limitation, any liability for incidental, indirect or consequential damage, nor does it cover any claims for conversion or modification or for the costs of repair carried out by any third party without the prior consent of Dualit. If replacement parts are fitted to the product this will not extend the period of the Guarantee.

For further advice contact the Dualit customer helpline on [phone] (09:00 to 17:00 Monday to Friday).

Alternatively, email Dualit at [e-mail] or visit www.dualit.com

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in to an official collection point for recycling. By doing this you help preserve the environment.

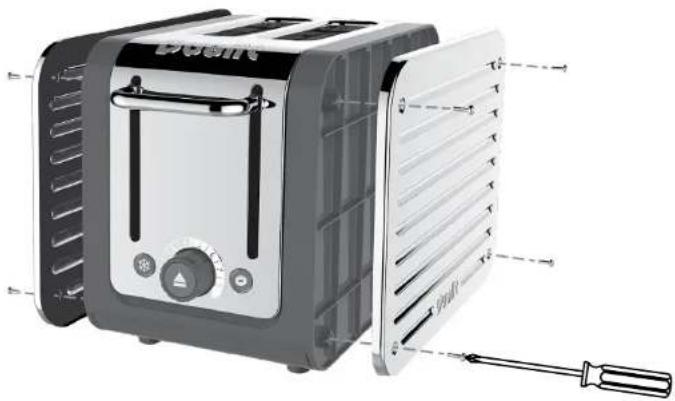

INTERCHANGEABLE PANELS

Change your panels at: WWW.DUALIT.COM/ARCHITECT

Illustration of a Dwell 200 electric toaster with visible cooling fins and control panel (no text or symbols)

Add a splash of colour with our range of innovative, interchangeable panels for your toaster. Select and swap shades according to your mood or for house moves, renovations, or even just your latest colour craving. Each pack includes two toaster panels. Panels are also available for the Architect Kettle.

Line drawing of a double-tan 19-inch toaster with control knobs and ventilation slots (no text or symbols)

REGISTER YOUR PRODUCT

1. Fast and efficient customer service and access to manuals and product information should you require assistance with your purchase.

2. Access to a library of mouth-watering recipes and regular articles on Dualit products, events, competitions and much more.

3. Be the first to receive the latest news about exciting new Dualit products.

DON'T FORGETTO REGISTERYOUR PRODUCT	WWW.DUALIT.COM/REGISTER		Register√my appliance
	OR BY POST

DON'T FORGET TO REGISTER YOUR TOASTER WWW.DUALIT.COM/REGISTER OR BY POST Register my appliance

Dualit®

Illustration of a portable toaster with control panel and side-mounted buttons (no text or symbols)

CE

Architect toasters comply with Australian Deviation AS/NZS 60335.2.9 2009 (AI) requirement.

Row of black circular icons representing major social media platforms including Facebook, Twitter, Pinterest, Google+, and YouTube.

Dualit Limited County Oak Way Crawley West Sussex RH11 7ST t: [phone] f: [phone] e: [e-mail] www.dualit.com
