SRH240M+ - Headphones SHURE - Free user manual and instructions

Brand	Shure
Model	SRH240M+
Type	Closed-back, circumaural dynamic headphones
Driver Type	40 mm neodymium dynamic driver
Frequency Response	20 Hz – 20,000 Hz
Sensitivity	107 dB/mW @ 1 kHz
Impedance	38 Ω @ 1 kHz
Maximum Input Power	500 mW
Net Weight	181 g (6.4 oz)
Packaged Weight	612 g (21.6 oz)

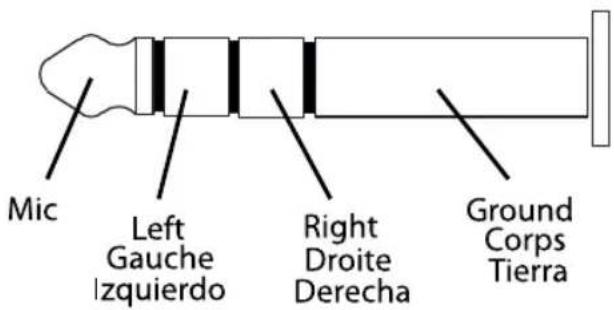

Connector	Gold-plated 3.5 mm stereo plug
Cable Length	1.4 m (4.58 ft)
Noise Isolation	Superior isolation in noisy environments
Comfort Features	Adjustable headband, earcup articulation, replaceable earcup pads
Remote Function	Compatible with iPod, iPhone, iPad; controls: play/pause, volume, track skip, call
Cleaning	Use a soft, damp cloth; do not use solvents
Safety Warning	Avoid excessive volume to prevent hearing damage; do not modify or disassemble
Included Accessories	Carrying bag (HPACP1), 1 pair of replacement earcup pads (HPAEC240)
Warranty	2-year limited warranty

Frequently Asked Questions - SRH240M+ SHURE

What devices are compatible with the Shure SRH240M+ headphones?

The SRH240M+ headphones are compatible with most consumer and professional audio devices, including iPod, iPhone, and iPad for remote control functions. They work with any device that has a standard 3.5 mm headphone jack.

Can I replace the earcup pads on the SRH240M+?

Yes, the earcup pads are replaceable. Shure offers the HPAEC240 replacement earcup pads to extend the product's lifespan.

What is the impedance of the SRH240M+ headphones?

The impedance is 38 Ω @ 1 kHz, which allows them to be driven easily by portable devices like smartphones and laptops.

How do I clean the SRH240M+ headphones?

Clean the headphones with a soft, damp cloth. Do not use cleansers containing solvents, and avoid getting liquid into the driver openings.

What is the frequency response of the SRH240M+?

The frequency response is 20 Hz – 20,000 Hz, providing deep bass and clear mids and highs.

Does the SRH240M+ have a built-in microphone?

The remote on the cable includes a center button for call functions (send/end call), indicating it has a microphone for phone calls.

What is the warranty period for the SRH240M+?

Shure provides a 2-year limited warranty from the date of purchase for the original consumer, covering defects in materials and workmanship.

Are the SRH240M+ headphones suitable for monitoring in noisy environments?

Yes, they have a closed-back, circumaural design that provides superior isolation, making them ideal for monitoring in noisy environments.

How much do the SRH240M+ headphones weigh?

The net weight is 181 g (6.4 oz), which is lightweight for extended comfort during long listening sessions.

Can I use the SRH240M+ with high-end audio equipment?

Yes, with a maximum input power of 500 mW and sensitivity of 107 dB/mW, they are suitable for both consumer and professional audio equipment.

USER MANUAL SRH240M+ SHURE

Black and white photo of a SHURE SRH2AO headphones with attached audio/video cables (no text or symbols on the devices themselves)

English

WARNING!

LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE.

Over exposure to excessive sound levels can damage your ears resulting in permanent noise-induced hearing loss (NIHL). Please use the following guidelines established by the Occupational Safety Health Administration (OSHA) on maximum time exposure to sound pressure levels before hearing damage occurs.

90 dB SPL

at 8 hours

110 dB SPL

at 12 hour

95 dB SPL

at 4 hours

115 dB SPL

at 15 minutes

100 dB SPL

at 2 hours

105 dB SPL

at 1 hour

120 dB SPL

Avoid or damage may occur

SAFETY PRECAUTIONS

The possible results of incorrect use are marked by one of the two symbols - "WARNING" AND "CAUTION" - depending on the imminence of the danger and the severity of the damage.

WARNING: Ignoring these warnings may cause severe injury or death as a result of incorrect operation.

CAUTION: Ignoring these cautions may cause moderate injury or property damage as a result of incorrect operation.

WARNING

• If water or other foreign objects enter the inside of the device, fire or electric shock may result.
- Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.

CAUTION

• Never disassemble or modify the device, as failures may result.
• Do not subject to extreme force and do not pull on the cable or failures may result.
• Keep the product dry and avoid exposure to extreme temperatures and humidity.

WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

SRH240 Pro Quality Headphones

SRH240 Pro Quality Headphones

Building on 85 years of pro audio experience, the SRH240M+ Headphones from Shure provide excellent sound reproduction and comfort. With 40 mm neodymium dynamic drivers optimized for general listening and monitoring, the SRH240M+ Headphones reproduce deep bass with clear mids and highs. Impedance, power handling and sensitivity are all calibrated for connection to most consumer and professional devices.

• 40mm neodymium driver optimized for general listening and monitoring
- Closed-back, circumaural design for superior isolation in noisy environments
• Impedance and power handling optimized for performance with most pro and consumer audio devices
- Adjustable headband with earcup articulation for extended comfort over longer periods of time
• Replaceable earcup pads ensure long product life

Care and Maintenance

To clean the headphones, use a soft, damp cloth.

CAUTION: Do not use cleansers that contain solvents. Keep liquid and foreign objects out of the driver openings.

Use the remote to control your compatible media players.

Play music Click the center button once

Pause music Click the center button once.

Change volume Click the volume up (+) or volume down (-) button to increase or decrease the volume.

Go to next track Double-click the center button.

Go to previous track Triple-click the center button.

Restart current track Triple-click after 6 seconds.

Fast-forward Double-click and hold the center button.

Send/End Call Click the center button once.

For more information about compatible models go to: www.shure.com

Specifications

Transducer Type Dynamic, Neodymium magnet
Frequency Response 20	to 20,000 Hz
Sensitivity(@1 kHz)	107 dB/mW
Impedance(@1 kHz)	38 Ω
Maximum Input Power 500 mW
Weight Net: 181 g (6.4 oz.)Packaged: 612 g (21.6 oz.)
Connector Gold-plated 3	5 mm (1/8") stereo
Cable 1.4 m (4.58 ft.)

Replacement Parts

Simple line drawing of a beaker with a handle and a dotted line inside (no text or symbols)

HPACP1

Carrying Bag

Two identical oval shapes with a black inner circle, no text or symbols present

HPAEC240

1 Pair of Replacement Earcup Pads

Certification

Eligible to bear CE Marking. Conforms to European EMC Directive 2004/108/EC. Meets Harmonized Standards EN55103-1:1996 and EN55103-2:1996, for residential (E1) and light industrial (E2) environments.

The Declaration of Conformity can be obtained from:

Authorized European representative: Shure Europe GmbH Headquarters Europe, Middle East & Africa Department: EMEA Approval Wannenacker Str. 28 D-74078 Heilbronn, Germany Phone: [phone] Fax: [phone] Email: [e-mail]

"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

LIMITED WARRANTY

Shure Incorporated ("Shure") hereby warrants to the original consumer purchaser only that this product will be free in normal use of any defects in materials and workmanship for a period of two (2) years from the consumer's original date of purchase directly from Shure or from a Shure-authorized reseller. At its sole option, Shure will repair or replace the defective product and promptly return it to you. In order for this warranty to be valid, the consumer must, at the time the product is returned, provide proof of purchase in the form of the original purchase receipt directly from Shure or from a Shure-authorized reseller. If Shure elects to replace the defective product, then Shure reserves the right to replace the defective product with another product of the same model or a model of at least comparable quality and features in Shure's sole determination.

If you believe this product is defective within the warranty period, carefully repack the unit, insure it and return it with proof of purchase, postage prepaid, to Shure Incorporated, Attention: Service Department, at the address below.

Outside of the United States, return the product to your dealer or Authorized Service Center. Addresses are listed on www.shure.com or can be obtained by contacting Shure at the address listed below.

This warranty is not transferable. This warranty does not apply in cases of abuse or misuse of the product, use contrary to Shure's instruction, ordinary wear and tear, an act of God, negligent use, purchase from a party other than Shure or a Shure-authorized reseller, unauthorized repair, or modification of the product. ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED TO THE EXTENT PERMITTED UNDER APPLICABLE LAWS AND, TO THE EXTENT NOT PERMITTED, ARE HEREBY LIMITED TO THE DURATION AND TERMS OF THIS WARRANTY. SHURE ALSO HEREBY DISCLAIMS ALL LIABILITY FOR INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. This warranty does not restrict the rights of the consumer mandated under applicable laws.

THIS WARRANTY SUPERSEDES ALL OTHER WARRANTIES THAT ARE ASSOCIATED OR INCLUDED WITH THIS PRODUCT.

SHURE®

United States, Canada, Latin

America, Caribbean:

Shure Incorporated

5800 West Touhy Avenue

Niles, IL 60714-4608 USA

Phone: [phone]

Fax: [phone] (USA)

Fax: [phone]

Email: [e-mail]

www.shure.com

©2010 Shure Incorporated

Europe, Middle East, Africa:

Shure Europe GmbH

Wannenäckestr. 28,

74078 Heilbronn, Germany

Phone: [phone]

Fax: [phone]

22/F, 625 King's Road

North Point, Island East Hong Kong

Phone: [phone]

Fax: [phone]
