USER MANUAL VT-5177 V-TAC

INSTALLATION INSTRUCTION

V-TAC SMART DOOR SENSOR

TECHNICAL DATA

MODEL	VT-5177
BATTERY TYPE	AAA, 1.5V(2Pcs)
WIRELESS TYPE	2.4G
STANDBY CURRENT	40uA
PROTOCOL	IEEE 802.11b/g/n
OPERATION TEMPERATURE	-10C to +50C
WORKING HUMIDITY	≤85%RH
DIMENSION	50x72.5x16.5mm
BODY TYPE	ABS

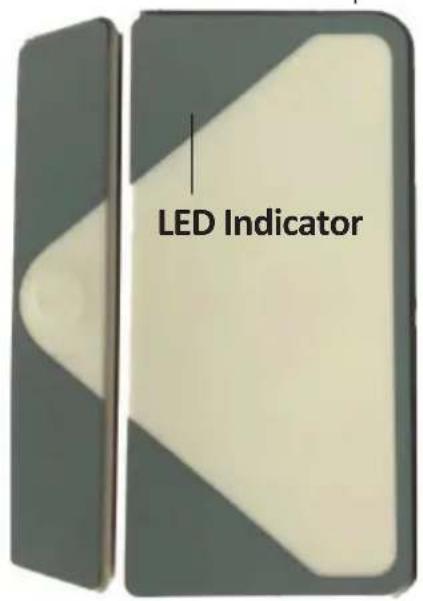

LED INDICATOR	BLUE
RESERVED LAMP FOR EXTERNAL EXPANSION: MICRO

Reset Button

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC SMART Door/Window Sensor. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any other query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. This product is warranted for manufacturing defects only.

IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [e-mail] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B

SAFETY WARNING

1) Device is to be used in well ventilated areas and normal installation.
2) Do not exert external force or throw on the device.
3) Devices should be stored in cool/dry place. Always make sure the environment is clean before installing the device.
4) Do not discard the devices with regular trash. Devices are made with electronic components and should be properly disposed at designated locations with unified treatment like traditional electronic equipment.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

Note:

1. This device requires Wi-Fi Frequency 2.4Ghz
2. Indoor use only
3. Operating frequency (maximum transmitted power) 2400MHz -2483.5MHz (20dBm)

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the manual in multiple languages.

INSTALLATION

Step 1: Disconnect the power supply and install the device.

Step 2: Turn the power ON to test the device.

Step 3: Enable WI-FI and bluetooth on your phone device.

Step 4: Scan the given QR code, or download "V-TAC Smart Light" from the App Store (iOS) or the Google Play Store (Android).

For ANDROID

For IOS

Step 5: Open the V-TAC Smart Light app and tap on register for creating a new account.

V-TAC Smart Light

Step 6:
A) Mobile Number: Select the country, then enter your mobile number. Once done, tap 'Next'.
B) E-Mail: Enter your email id and tap on 'Next'.

< Back

Register

United Kingdom

+44>

Mobile Number/E-mail

Next

Login

Register

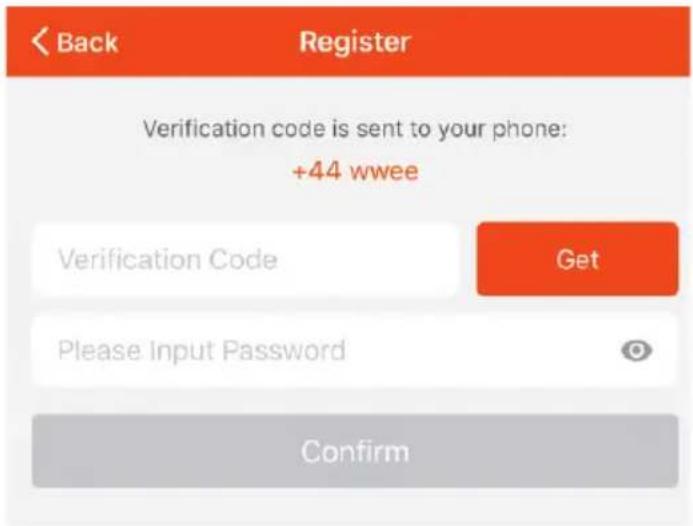

Step 7: Enter the verification code which will be sent to your mobile number/email id, then assign a new password to your account and tap on "Confirm".

Step 8: Tap on 'Add Device' or the + sign. Make sure the device is switched on.

G ∨

+

Welcome Home

Set your home location for more information >

All Devices

Living Room

Bedroom

...

Add Device

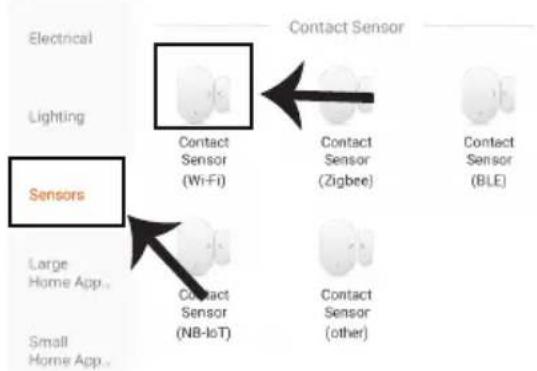

Step 9: Choose 'Sensors' to start pairing the device to the app.

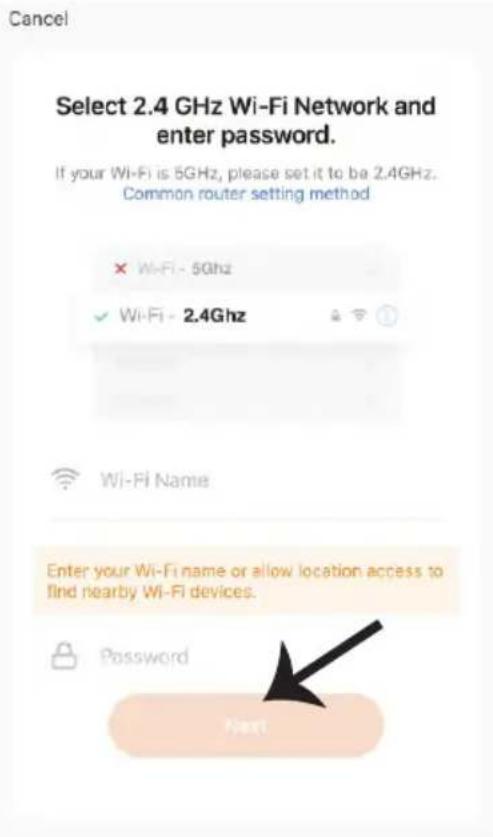

Step 10:

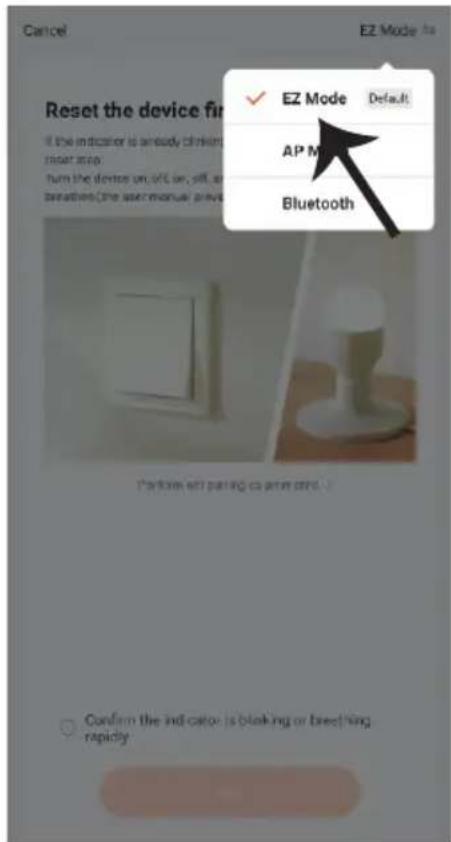

V-TAC Smart Light Bulb offers two types of pairing modes:

1) EZ Mode - Light flashes rapidly
2) AP mode - Slow Flash or long brightness

How to enable/reset the smart bulb into pairing mode -

Step 1: Switch ON the bulb, if the light is flashing rapidly the device is in EZ mode. Please proceed to pairing the smart device with the App. If not please follow Step 2.

Step 2: Switch the bulb OFF-ON repeatedly 3 times with short intervals of less than 2 seconds. Light flashes rapidly indicating the device has entered pairing mode. Please proceed to pairing the smart device with the App.

Note: Each time you switch the device OFF-ON repeatedly 3 times with short intervals of less than 2 seconds the pairing mode of the device alternatively switches between EZ mode and AP mode.

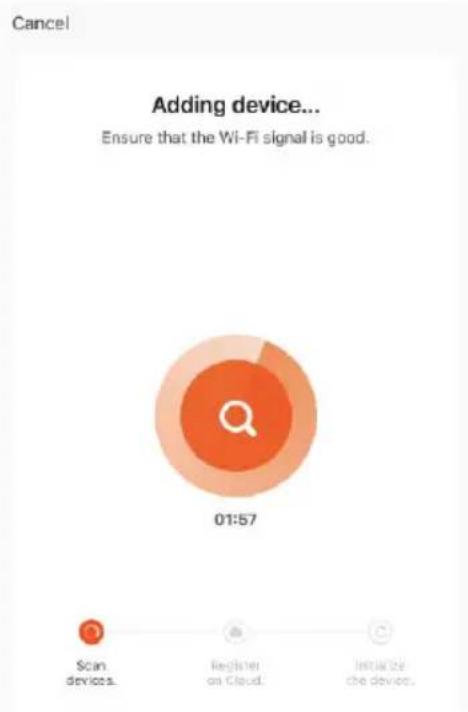

Step 11: Once you have successfully completed step 10, you will be redirected to below page, where the App searches, registers and initializes the device (ref image below).

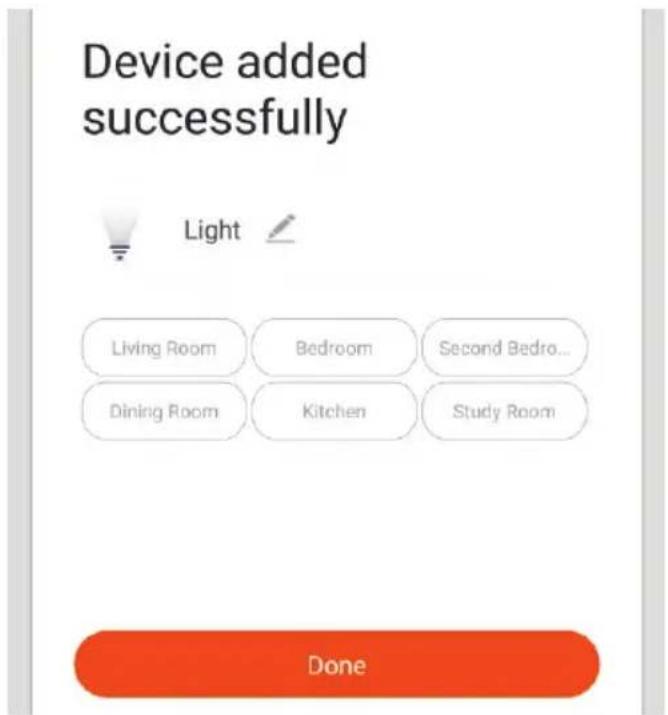

Step 12: Once your device is successfully added, rename the device to your preference.

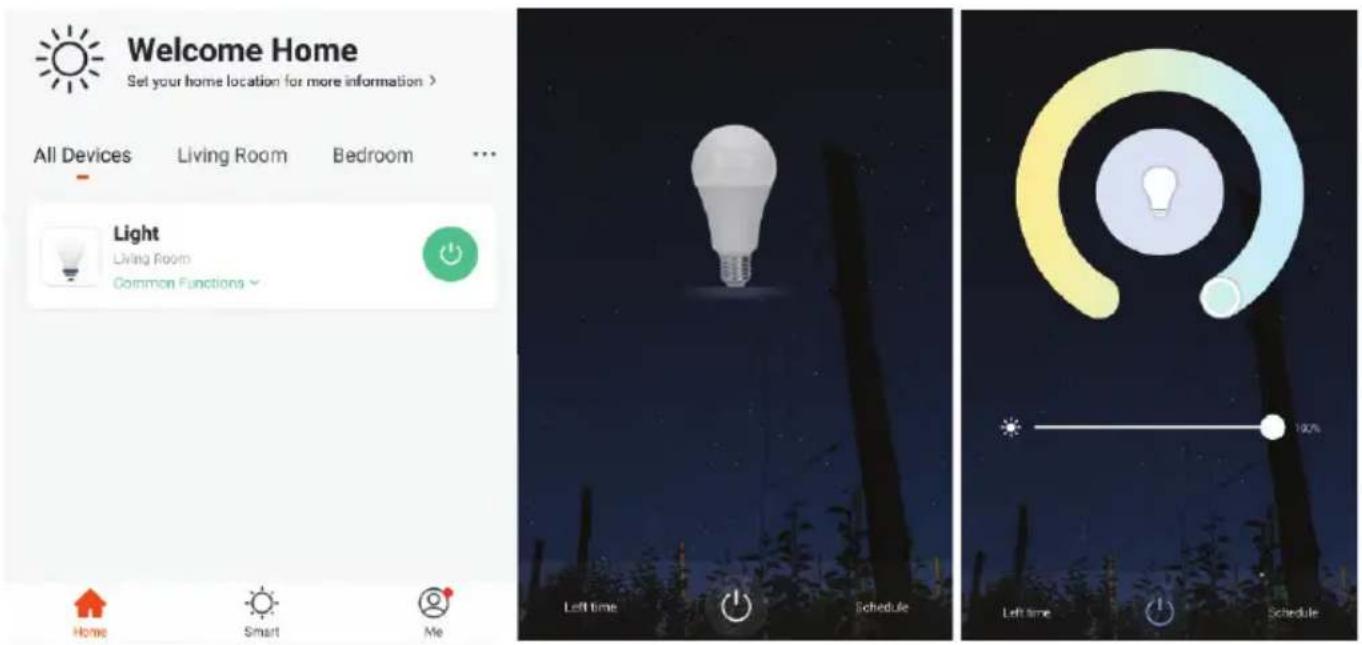

Step 13: After successfully pairing the device with the app, you can start controlling multiple features of the device through your mobile—on/off switch, changing the colour temperature, timing & schedules, dimming options, and more.

ALEXA SETTINGS

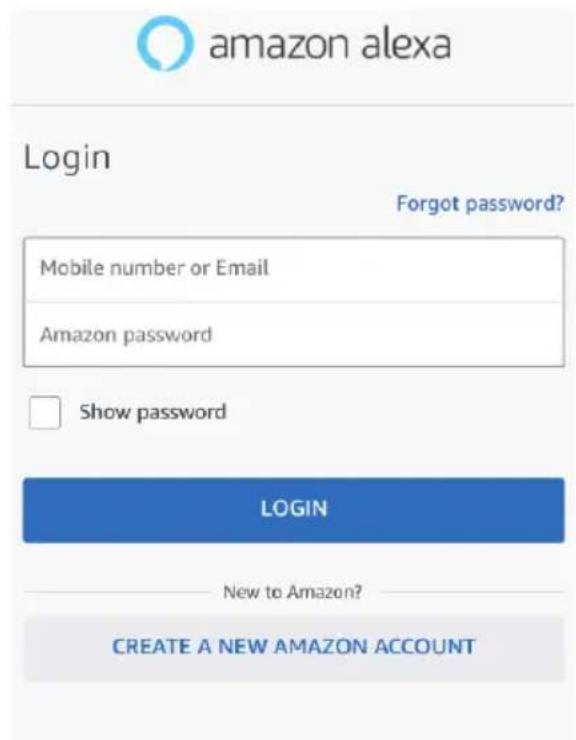

Step 1: Install the Amazon Alexa app via the App Store(iOS) or the Play Store (Android) and register. If you already have an existing account with Amazon Alexa, please proceed to logging in.

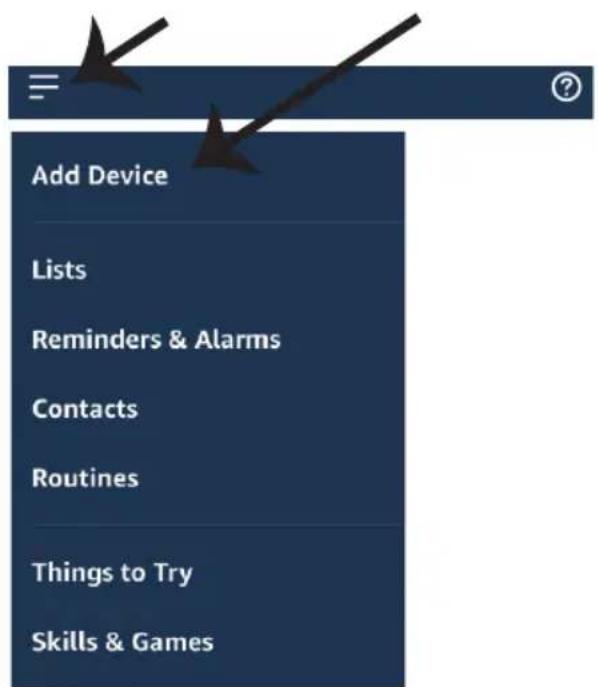

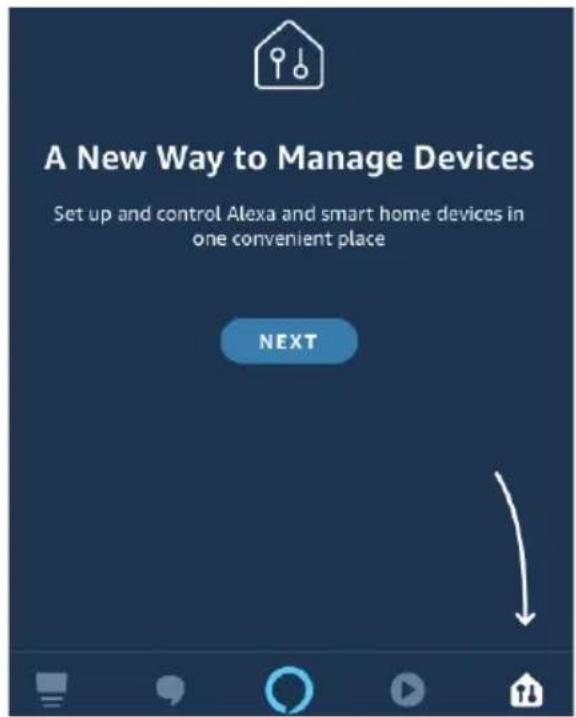

Step 2: Once you are on the Amazon Alexa home page, tap on the lower right icon — where the arrow is pointed— to add a new device and skill.

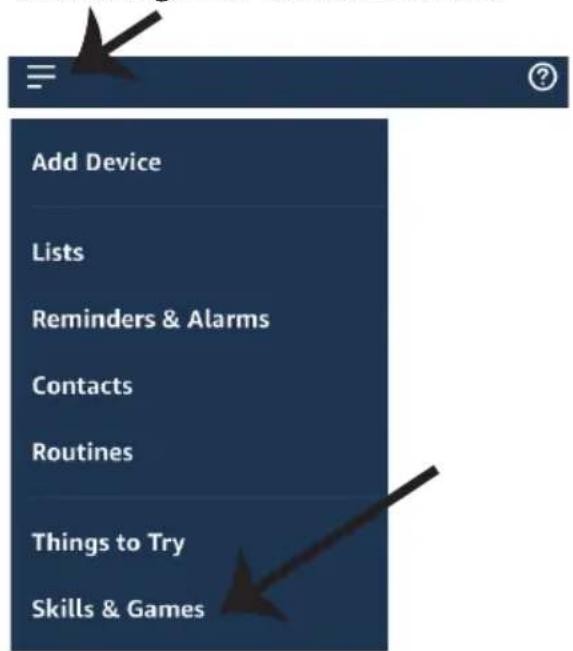

Step 3: Tap on settings and tap on

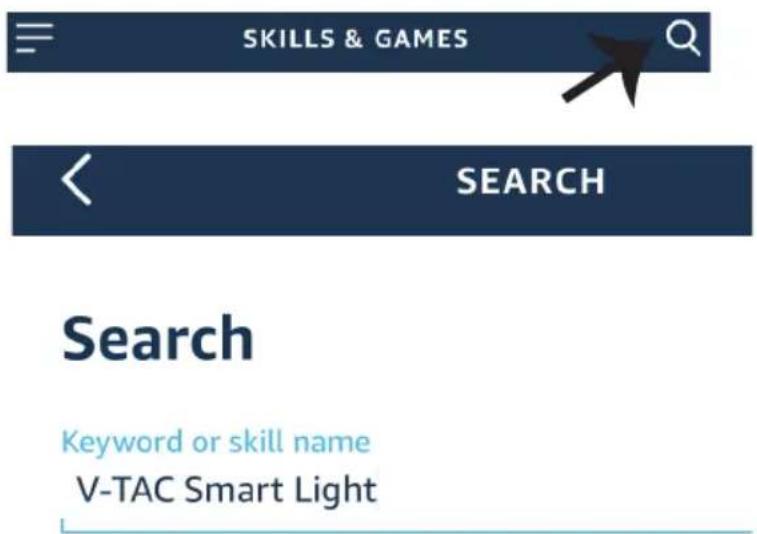

Step 4: Search for 'V-TAC Smart Light' on the "Skills & Games" page as shown below.

"skills and games" as shown below.

Step 5: Enable the Skill.

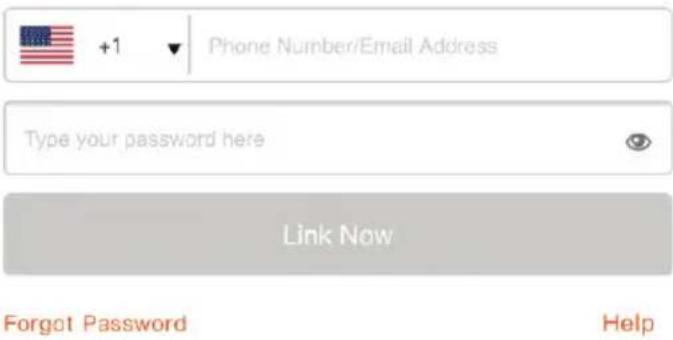

Step 6: Enter your V-TAC Smart Light login ID and password and tap on "Link Now"

ENABLE

Account linking in progress

+1

Phone Number/Email Address

Type your password here

Link Now

Forgot Password

Help

Step 7: Once you tap on Link Now, you will be redirected to a new page requesting for authorization(Ref Image below). Tap on "Authorize"

Step 8: You will receive confirmation of the account being linked successfully (Ref Image below)

Alexa by Amazon will be able to:

Receive your public profile Control your devices over internet

Done

skills-store.amazon.in

amazon alexa

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart home devices you can control with Alexa.

Step 9: Discover your smart device on Alexa. Once you have enabled the skill A) You can use voice command "Alexa discover devices" to the Alexa device which you have.

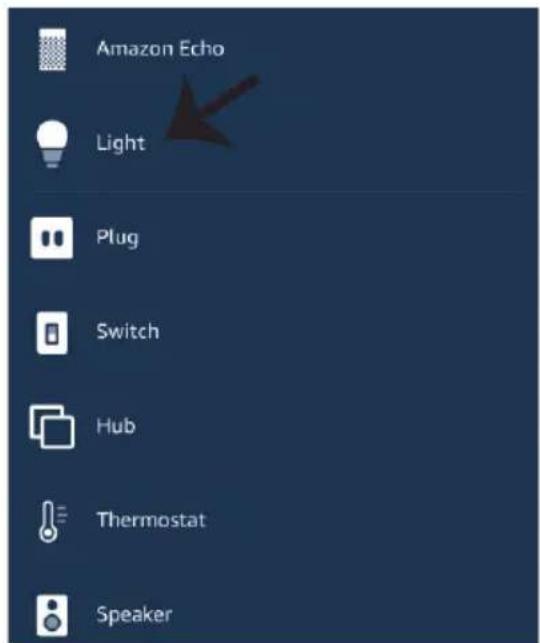

B) To add device manually on home page tap on and tap on Add device, select the device which you are adding and tap on discover device.

Note: Discovering the device must be done every time the device's name is changed on the app.

ALEXA Commands

Now, you can control your smart device using voice commands on Alexa.

Below are a few commands you can use:

➢! Alexa, turn on/off bedroom light.
➢! Alexa, set bedroom light to 50 percent.
➢! Alexa, set bedroom light to green.
➢! Alexa, set bedroom light to warm white.

THINGS TO REMEMBER BEFORE STARTING INSTALLATION:

1. V-TAC Smart Light App & Amazon Alexa App
2. Make sure you have Amazon Alexa Device(including Echo, Echo Tap, or Echo Dot)
3. Smart Device - Device
4. Stable Wifi network

GOOGLE HOME SETTINGS

Step 1:

a&b) Install the Google Home app via the App Store (iOS) or the Play Store (Android) and register. If you already have an existing account with Google Home, please proceed to logging in.
c) Create a New Home/Choose from the existing home if any.
d) Power ON the Google Home device and connect it to the App.(Then Proceed to step 2)

a. Welcome home

Your content and devices all in one place

Abstract geometric shapes including a triangle, square, circle, and rectangle (no text or symbols)

GET STARTED >

b. Choose account

This account will be used to personalize your experience

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Step 2: Once you are on the Google home page, tap on the Add "+" icon- to add a new device and skill. And then tap on Set up device as shown in below image.
a.

Play

Office

Broadcast

Add

Settings

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Step 3: Make sure the Smart Bulb is paired with V-TAC Smart Light app before starting step 3. Tap on the arrow section as highlighted in the below image.

Set up

Set up new devices or add existing devices and services to your home

Step 4: Type "V-TAC Smart Light" on the search bar and tap on the icon of "V-TAC Smart Light"

V-TAC Smart Light

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs.

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

Step 5: Sign In with your V-TAC Smart Light Login credentials to Link the Smart Light device

Step 6: Tap on Authorize in order to proceed to linking the device.

Google will be able to:

Receive your public profile Control your devices over internet

Step 7

a. Account will now be linked, please stay on the page you will be redirected in few seconds to select the device to add to your home.

b. Select the device and tap on Next as show in image b.

b. ✗ Choose device

Step 8: Select the Home where you would like to add the Smart Light under. (Or) you can create a New home in order to add the Smart Light to it.

Step 9: You have successfully added Smart Light device to your Google home App.

Choose a home

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Master bedroom

1 device

home light

Off

On

Local devices

1 device

Office Speaker

Step 10:

a. You can turn the Device On/OFF by taping on On/Off options as shown below. (OR) You can tap on the Smart Light.
b. You will be redirected to page(as shown in image b) where you can control the lights "Power and Dimming functionality".

a.
Smart-Home

Off

On

Add

Settings

Master bedroom
1 device

home light

Local devices
1 device

Office Speaker

b.

home light
Master bedroom

Circular diagram with a power button and a small battery icon, no text or symbols present.

81%
Brightness

Google Commands:

Now, you can control your smart device using voice commands on Google Home. Below are a few commands you can use:

➢! Ok, Google, turn on/off bedroom light
➢! Ok, Google, set bedroom light to 50 percent.
➢! Ok, Google, set bedroom light to green.
➢! Ok, Google, set bedroom light to warm white.

THINGS TO REMEMBER BEFORE STARTING INSTALLATION:

1. V-TAC Smart Light App & Google Home App
2. Make sure you have Google Home Device
3. Smart Device - Device
4. Stable Wifi network
