Guide to Using this Manual 2

Safety Precautions and Working

Techniques 3

Using the Unit 9

Approved MultiEngines 10

Mounting the MultiTool 10

Mounting the Deflector 12

Starting / Stopping the Engine 13

Replacing Spring Tines 14

Storing the Machine 14

Maintenance and Care 14

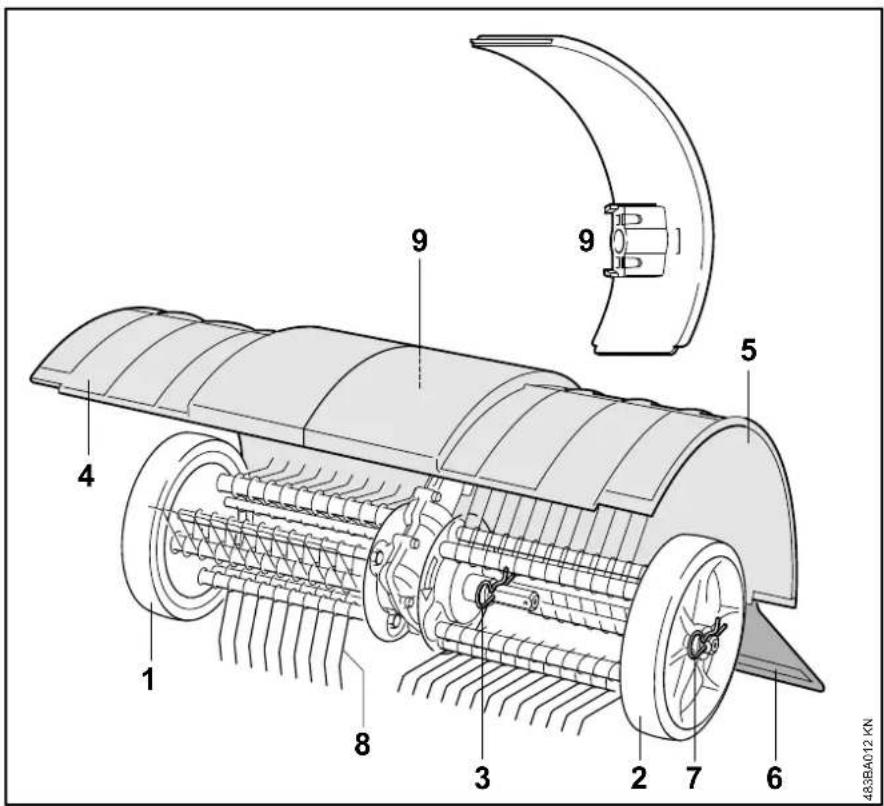

Main Parts 15

Specifications 16

Maintenance and Repairs 16

Disposal 17

Trademarks 17

STIHL

MF-MM

Allow only persons who fully understand the manuals of the MultiEngine and Dethatcher MultiTool to operate this power tool combination.

To receive maximum performance and satisfaction from your STIHL MultiTool, it is important that you read, understand and follow the safety precautions and the operating and maintenance instructions in chapter "Safety Precautions and Working Techniques" before using your MultiTool. For further information you can go to www.stihlusa.com.

Contact your STIHL dealer or the STIHL distributor for your area if you do not understand any of the instructions in the two manuals.

WARNING

Because a MultiEngine equipped with a Dethatcher MultiTool is a power tool with a relatively fast turning attachment, some special safety precautions must be observed to reduce the risk of personal injury. Careless or improper use may cause serious or even fatal injury.

This instruction manual is protected by copyright. All rights reserved, especially the rights to reproduce, translate and process with electronic systems.

MultiSystem

Diagram illustrating the assembly of a hairdryer with labeled parts and two open books below, including explosion effects and mechanical components.

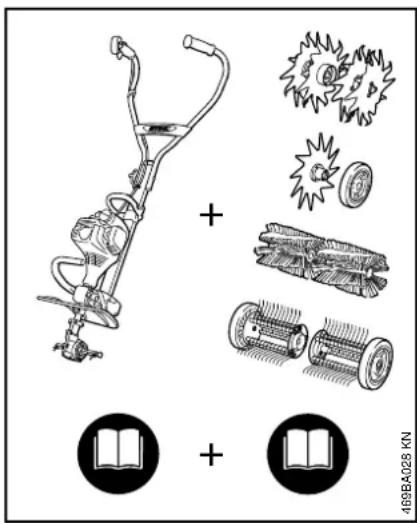

In the STIHL MultiSystem, various MultiEngines and MultiTools are combined to form a machine. In this Instruction Manual, the functional unit of MultiEngine and MultiTool is referred to as a machine.

Accordingly, the instruction manuals for the MultiEngine and the MultiTool constitute the entire Instruction Manual for the machine.

Always read both manuals carefully before using your machine for the first time and keep them safe for future reference.

Guide to Using this Manual

Pictograms

All the pictograms attached to or embossed on the machine are shown and explained in this manual.

Symbols in Text

Many operating and safety instructions are supported by illustrations.

The individual steps or procedures described in the manual may be marked in different ways:

●A bullet marks a step or procedure.

A description of a step or procedure that refers directly to an illustration may contain item numbers that appear in the illustration. Example:

●Loosen the screw (1).

●Lever (2) ...

In addition to the operating instructions, this manual may contain paragraphs that require your special attention. Such paragraphs are marked with the following symbols and signal words:

DANGER

Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

WARNING

Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

NOTICE

Indicates a risk of property damage, including damage to the machine or its individual components.

Engineering Improvements

STIHL's philosophy is to continually improve all of its products. As a result, engineering changes and improvements are made from time to time. Therefore, some changes, modifications and improvements may not be covered in this manual. If the operating characteristics or the appearance of your machine differs from those described in this manual, please contact your STIHL dealer or the STIHL distributor for your area for assistance.

Safety Precautions and Working Techniques

Because a MultiEngine equipped with a dethatcher MultiTool is a powerful tool, special safety precautions must be observed to reduce the risk of personal injury.

It is important that you read, fully understand and observe the following safety precautions and warnings. Read the instruction manuals and the safety precautions of your MultiEngine and MultiTool periodically. Careless or improper use may cause serious or fatal injury.

Have your STIHL dealer show you how to operate your power tool. Observe all applicable local safety regulations, standards and ordinances.

WARNING

Do not lend or rent your power tool without the instruction manuals of your MultiEngine and MultiTool. Be sure that anyone using it understands the information contained in these manuals.

WARNING

The use of this machine may be hazardous. If the rotating tool comes in contact with your body, it will injure you. Solid foreign objects such as rocks or bits of metal can damage the tool.

STIHL does not recommend the use of a dethatcher in stony areas.

Use your MultiEngine equipped with the dethatcher MultiTool only for removing dead grass, moss and other accumulated material from the top of the soil.

WARNING

Do not use it for other purposes, since misuse may result in personal injury or property damage, including damage to the machine.

WARNING

Minors should never be allowed to use this power tool. Bystanders, especially children, and animals should not be allowed in the area where it is in use.

WARNING

To reduce the risk of injury to bystanders and damage to property, never let your power tool run unattended. When it is not in use (e.g. during a work break), shut it off and make sure that unauthorized persons do not use it.

Most of these safety precautions and warnings apply to the use of all STIHL power tools. Different models may have different parts and controls. See the appropriate section of your MultiEngine and MultiTool instruction manuals for a description of the controls and the function of the parts of your model.

Safe use of a power tool involves

1. the operator
2. the power tool
3. the use of the power tool.

THE OPERATOR

Physical Condition

You must be in good physical condition and mental health and not under the influence of any substance (drugs, alcohol, etc.) which might impair vision, dexterity or judgment. Do not operate this machine when you are fatigued.

WARNING

Be alert – if you get tired, take a break. Tiredness may result in loss of control. Working with any power tool can be strenuous. If you have any condition that might be aggravated by strenuous work, check with your doctor before operating this machine.

Proper Clothing

WARNING

To reduce the risk of injury, the operator should wear proper protective apparel.

The suitable deflector for your power tool will not protect the operator from all foreign objects (stones, glass, wire, etc.) thrown back by the rotating attachment. Thrown objects may also ricochet and strike the operator.

English

WARNING

To reduce the risk of injury to your eyes never operate your power tool unless wearing goggles or properly fitted protective glasses with adequate top and side protection complying with ANSI Z87 "+" (or your applicable national standard).

Power tool noise may damage your hearing. Wear sound barriers (ear plugs or ear mufflers) to protect your hearing. Continual and regular users should have their hearing checked regularly.

Be particularly alert and cautious when wearing hearing protection because your ability to hear warnings (shouts, alarms, etc.) is restricted.

Always wear heavy duty work gloves (e.g. made of leather or other wear resistant material) when handling the power tool and the attachment. Heavy-duty, nonslip gloves improve your grip and help to protect your hands.

Clothing must be sturdy and snug-fitting, but allow complete freedom of movement. Wear long pants made of heavy material to help protect your legs. Do not wear shorts, sandals or go barefoot.

Avoid loose-fitting jackets, scarfs, neckties, jewelry, flared or cuffed pants, unconfined long hair or anything that could become caught on branches, brush or the moving parts of the unit. Secure hair so it is above shoulder level.

Good footing is very important. Wear sturdy boots with nonslip soles.

For further instructions on proper clothing see the safety precautions in the instruction manual of the MultiEngine you are using.

THE POWER TOOL (MULTIENGINE EQUIPPED WITH DETHATCHER MULTITOOL)

For illustrations and definitions of the power tool parts see the chapter on "Main Parts."

WARNING

Never modify this power tool in any way. Only attachments supplied by STIHL and expressly approved by STIHL for use with the specific STIHL power tool models are authorized. Although certain

unauthorized attachments are useable with STIHL power tools, their use may, in fact, be extremely dangerous.

If this tool is subjected to unusually high loads for which it was not designed (e.g. heavy impact or a fall), always check that it is in good condition before continuing work. Check in particular that the fuel system is tight (no leaks) and that the controls and safety devices are working properly. Do not continue operating this machine if it is damaged. In case of doubt, have it checked by your STIHL servicing dealer.

THE USE OF THE POWER TOOL (MULTIENGINE EQUIPPED WITH DETHATCHER MULTITOOL)

Transporting the Power Tool

WARNING

To reduce the risk of injury from loss of control and MultiTool contact, never carry or transport your power tool with the MultiTool moving.

WARNING

Always switch off the engine and make sure the MultiTool has stopped before putting a power tool down.

Technical line drawing of a mechanical device with a hand operating it, no visible text or symbols

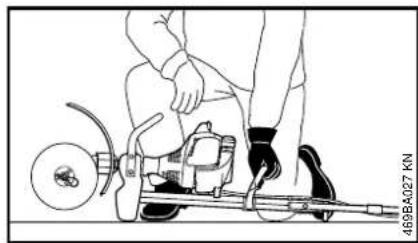

Grip the power tool by the carrying handle with the attachment facing forward.

WARNING

When transporting it in a vehicle, properly secure it to prevent turnover, fuel spillage and damage to the unit.

Before Starting

WARNING

Always check your power tool for proper condition and operation before starting. Never attempt to modify the controls or safety devices.

WARNING

Never operate your power tool if it is damaged, improperly adjusted or maintained, or not completely or securely assembled.

Unfold the bike handle into the working position and secure it with the knob (see chapter "Adjusting the bicycle handle" of your MultiEngine instruction manual.)

Keep the handles clean and dry at all times; it is particularly important to keep them free of moisture, pitch, oil, fuel mix,

grease or resin in order for you to maintain a firm grip and properly control your power tool.

WARNING

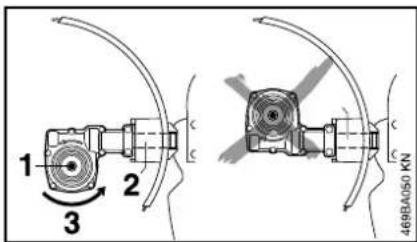

To reduce the risk of injury from the MultiTool rotating in the wrong direction, check that the position of the gearbox is correct and change it if necessary.

Safety warning illustration showing mechanical components and accident symbols with arrows and labels

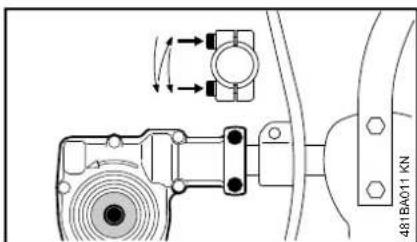

On metal tools (top illustration), position the gearbox so that the shaft is below the drive tube.

Use for:

– BF-MM cultivator blades with pointed tines
- BK-MM cultivator blades with curved tines
- FC-MM edger
- RL-MM aerator
- MF-MM dethatcher

WARNING

The MultiTool must be properly tightened and in safe operating condition. Inspect for loose parts (hitch pins, screws, etc.) and for cracked, bent, warped or damaged blades. Replace damaged blades before using the power tool.

WARNING

Do not attach any MultiTool to a unit without proper installation of all required parts. Failure to use the proper parts may cause the attachment to fly off and seriously injure the operator or bystanders.

English

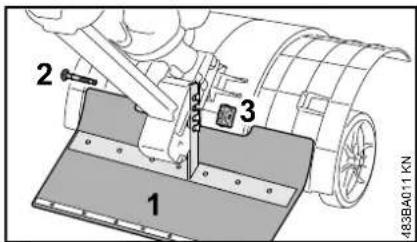

Check the Deflector

Technical line drawing of two mechanical clamping devices with no visible text or symbols

WARNING

To reduce the risk of injury from thrown objects and contact with the attachment, never operate your power tool without a properly mounted deflector.

Operate the MF-MM dethatcher MultiTool only with the deflector shown above in combination with properly mounted deflector extensions and mud flap (see chapter "Mounting the MultiTool".)

Starting

WARNING

Start the engine at least 10 feet (3 m) from the fueling spot, outdoors only.

For specific starting instructions, see the appropriate section of your MultiEngine and MultiTool manuals.

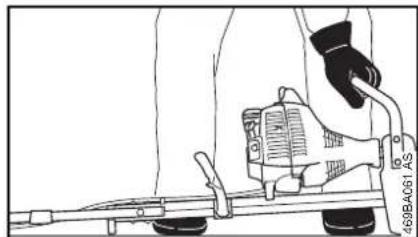

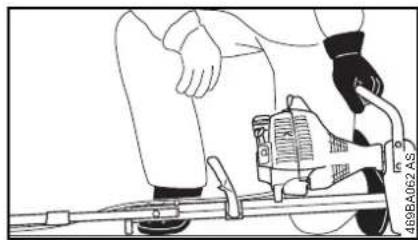

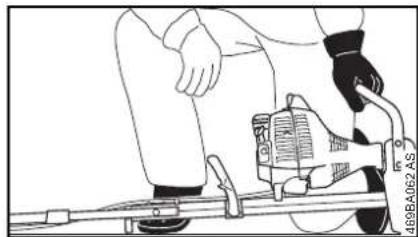

Place the power tool on firm ground or other solid surface in an open area. Maintain good balance and secure footing.

Line drawing of a person using a mechanical device with a circular component and a tool, no text or symbols present.

WARNING

Always stand to one side of the unit to avoid the risk of injury from contact with the rotating MultiTool.

WARNING

To reduce the risk of injury from loss of control, be absolutely sure that the MultiTool is clear of you and all other obstructions and objects, including the ground, because when the engine starts at starting-throttle, engine speed will be fast enough for the clutch to engage and move the MultiTool.

Once the engine has started, immediately blip the throttle trigger, which should release the starting throttle and allow the engine to slow down to idle.

WARNING

Your power tool is a one-person machine. Do not allow other persons in the general work area, even when starting.

See also the safety precautions on Starting in the instruction manual of the MultiEngine.

During Operation

Holding and Controlling the Power Tool

Line drawing of a human leg with attached bandages and a medical device (no text or symbols)

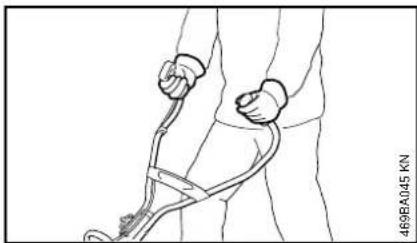

Always hold the unit firmly with both hands on the handles while you are working. Wrap your fingers and thumbs around the handles, keeping the handles cradled between your thumb and forefinger. Keep your hands in this position to have your power tool under control at all times.

WARNING

Never attempt to operate your power tool with one hand. Loss of control of the power tool may result in serious or fatal injury. To reduce the risk of injury, keep hands and feet away from the MultiTool. Never touch a moving MultiTool with your hand or any other part of your body.

WARNING

Do not overreach. Keep proper footing and balance at all times. Special care must be taken in slippery conditions (wet ground, snow) and in difficult, overgrown terrain. Watch for hidden obstacles such as tree stumps, roots and ditches to avoid stumbling. For better footing, clear away scrub and cuttings. Be extremely cautious when working on slopes or uneven ground.

Operate the power tool only at a normal walking pace.

WARNING

To avoid the risk of injury from contact with the rotating attachment, be extremely cautious when pulling the power tool toward you.

Be extremely cautious when changing direction with the power tool – especially on slopes.

WARNING

To avoid the risk of injury from loss of control, never work on steep slopes.

Working Conditions

Start and operate your power tool only outdoors in a well-ventilated area. Operate it under good visibility and daylight conditions only. Work carefully.

WARNING

If the soil being worked on or the surrounding ground is coated with a chemical substance (such as an active

pesticide or herbicide), read and follow the instructions and warnings that accompany the substance at issue.

WARNING

Inhalation of certain dusts, especially organic dusts such as mold or pollen, can cause susceptible persons to have an allergic or asthmatic reaction. Substantial or repeated inhalation of dust and other airborne contaminants, in particular those with a smaller particle size, may cause respiratory or other illnesses. Control dust at the source where possible. Use good work practices, such as operating the unit so that the wind or operating process directs any dust raised by the power tool away from the operator. Follow the recommendations of EPA / OSHA / NIOSH and occupational and trade associations with respect to dust ("particulate matter"). When the inhalation of dust cannot be substantially controlled, i.e., kept at or near the ambient (background) level, the operator and any bystanders should wear a respirator approved by NIOSH / MSHA for the type of dust encountered.

DANGER

Your power tool is not insulated against electric shock. To reduce the risk of electrocution, ensure that there are no power cables near the surface or in the working area that could come into contact with the MultiTool. Damaging such cables with the tool can cause electric shocks with serious or fatal consequences.

Information on the routing of cables can be obtained from public utilities and such service providers as "Miss Utility" or "One Call."

WARNING

Use the power tool at ground level only. The risk of injury is increased if you use MultiTools above ground level because they are more exposed and the power tool is more difficult to control.

Operating Instructions

WARNING

Do not operate your power tool using the starting throttle lock, as you do not have control of the engine speed.

In the event of an emergency, switch off the engine immediately – move the slide control / stop switch to 0 or STOP.

English

WARNING

The MultiTool continues to rotate for a short period after the throttle trigger is released (flywheel effect).

If the MultiTool or deflector becomes clogged or stuck, always switch off the engine and make sure the attachment has stopped before cleaning. Grass, moss, weeds, etc. should be cleaned off the attachment as necessary.

5m (16ft)

To reduce the risk of eye and other injury ensure that bystanders are at least 16 feet (5 m) away. Bystanders should be encouraged to wear eye protection. To reduce the risk of damage to property, also maintain this distance from such objects as vehicles or windows.

Stop the engine immediately if you are approached.

WARNING

Before you start work, examine the area for stones, glass, pieces of metal, rubbish or other solid objects. Such objects may also damage the MultiTool. Do not use the dethatcher MultiTool on gravel surfaces.

WARNING

Never divert discharge of material toward bystanders nor allow anyone near the area of operation. Use care in directing discharge to avoid damage to surfaces, automobiles, and the like.

WARNING

During work, check the tightness and the condition of the MutiTool at regular intervals with the engine and attachment stopped. If the behavior of the attachment changes during use, stop the engine immediately and check the attachment for cracks, wear and damage. Replace bent, worn or damaged attachments immediately. Such attachments may shatter at high speed and cause serious or fatal injury.

WARNING

The gearbox becomes hot during operation. To reduce the risk of burn injury, do not touch the gear housing when it is hot.

MAINTENANCE, REPAIR AND STORING

WARNING

Always stop the engine and make sure that the attachment is stopped before doing any maintenance or repair work or cleaning the power tool. Do not attempt any maintenance or repair work not described in your MultiEngine and MultiTool instruction manuals. Have such work performed at your STIHL servicing dealer only.

WARNING

Use only identical STIHL replacement parts for maintenance and repair. Use of non-STIHL parts may cause serious or fatal injury.

WARNING

Never repair damaged attachments by welding, straightening or modifying the shape. This may cause parts of the attachment to come off and result in serious or fatal injuries.

Tighten all nuts, bolts and screws, except the carburetor adjustment screws, after each use.

Do not clean your machine with a pressure washer. The solid jet of water may damage parts of the machine.

Store the power tool in a dry and high or locked location out of reach of children.

Using the Unit

Line drawing of a person using a tiller machine in a field (no text or symbols)

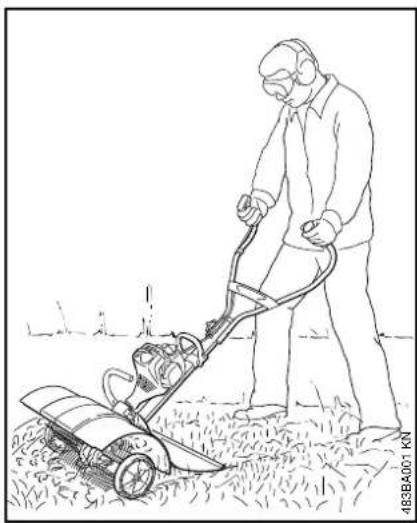

The MF-MM dethatcher MultiTool is designed to remove old, dried cuttings, moss, grass or root residue from lawns.

Preparations

If the lawn is very dry, spray it with water before you start work: this softens the soil a little and reduces the amount of dust created.

If the grass is longer than about 2 in (5 cm), mow it before using the dethatcher.

WARNING

Clear away all obstacles and solid objects from the work area.

●Plan the route to be taken.

Top-down schematic of a vehicle suspension system with a directional arrow indicating motion (no text or symbols)

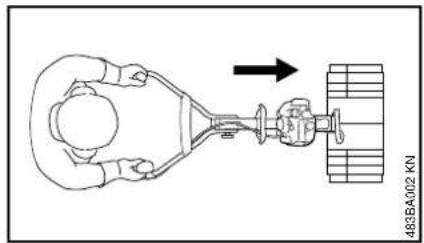

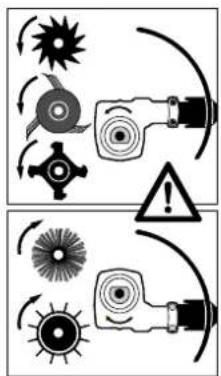

Operate the MultiEngine with MF-MM dethatcher in the forward direction only.
The attachments may only be rotate in one direction. Arrows on the flanges show the correct direction of rotation – see chapter on "Mounting the MultiTool".

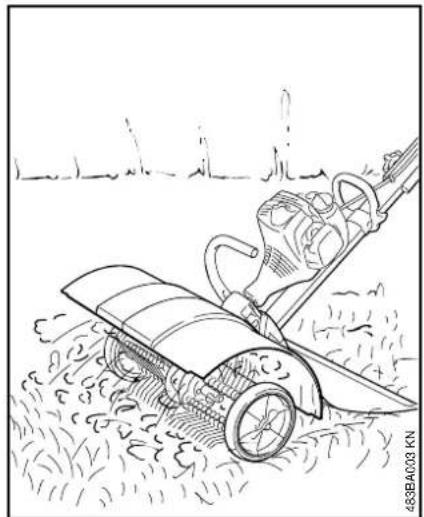

Line drawing of a plow or cutter in operation on a field, with no visible text or symbols

WARNING

Never work without the deflector, both deflector extensions and the mud flap.

These devices divert loosened and cut material away from the machine and the operator.

Operation

●Secure the handlebar in the normal operating position.
●Starting the Engine
●Work with the engine running at full throttle.
●Walk at a pace that achieves the required result without lugging down the engine.
●Operate at no more than a normal walking pace.

Cleaning the Dethatcher

Parts of plants, such as grass or roots, may become tightly wound around the tool mounting and the attachment itself. Clean the attachment as follows:

• Shut off the engine.
• Wear work gloves.

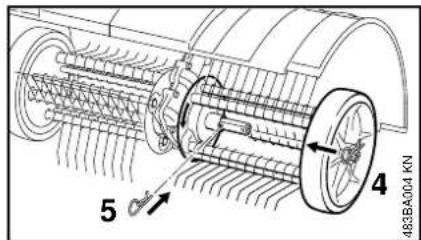

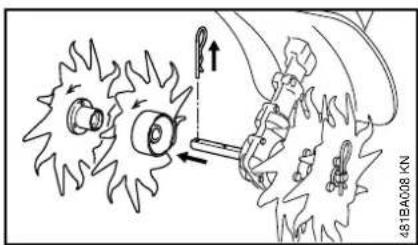

• Remove the inner hitch pins from the shaft.
  – Pull the dethatcher off the shaft.
• Remove the outer hitch pin (wheel) from the shaft.
• Pull off the wheel.
• Remove pieces of roots, plants and soil.

Refer to "Mounting the MultiTool" for mounting instructions.

Approved MultiEngines Mounting the MultiTool

Only use MultiEngines supplied by STIHL or expressly approved by STIHL for use with the MultiTool.

This MultiTool may only be used in combination with the STIHL MM 56 MultiEngine.

Removing Existing MultiTools

WARNING

Wear gloves to reduce the risk of injury from contact with sharp MultiTools and/or hot surface of gearbox.

481BA008 KN

- Remove the hitch pins and pull the MultiTools (if fitted) off the axle – see also "Mounting the MultiTool" in the instruction manual of the other MultiTool.

●Clean the gearbox if necessary.

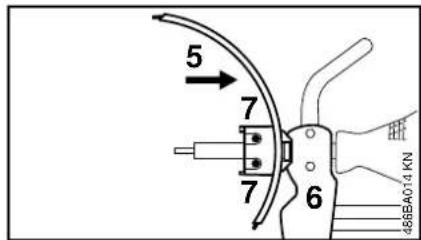

Checking Deflector

Technical line drawing of two mechanical clamping devices with no visible text or symbols

WARNING

To reduce the risk of injury from thrown objects, operate the MF-MM dethatcher only with the deflector shown and with properly mounted deflector extensions.

Changing the Deflector

Removing the Gearbox

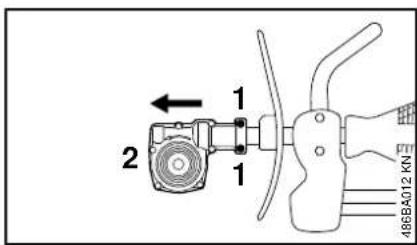

1 2 1 4868A012 KN

●Loosen the clamp screws (1) and pull the gearbox (2) off the drive tube.

Removing the Deflector

3 4 486BA013 KN

●Loosen the screw (3) and pull the deflector (4) off the drive tube.

Fitting New Deflector

5 7 7 6 488A014 KN

●Line up the deflector (5) on the flange (6) and push it onto the drive tube as far as stop.

●Tighten down the clamp screws (7) firmly.

Mounting the Gearbox

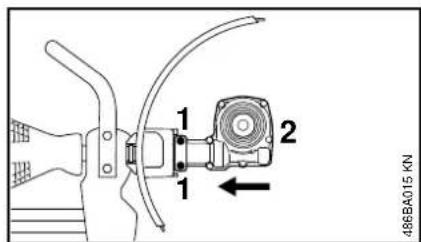

1 2 1 486BA015 KN

●Push the gearbox (2) onto the drive tube as far as stop while turning it back and forth.

●Line up the gearbox.

- Go to "Checking Position of Gearbox".

Checking Position of Gearbox

WARNING

To reduce risk of injury from the MultiTool rotating in the wrong direction, check that position of gearbox is correct and adjust if necessary.

1 2 3 469BA050 KN

The axle (1) must be below the shaft (2). Direction of rotation (3) of MultiTool.

Adjusting Position of Gearbox

Technical line drawing of a mechanical assembly with no visible text or symbols

●Loosen clamp screws on gearbox.

●Turn the gearbox through 180°.

●Line up the gearbox in the correct position.

●Tighten down the two clamp screws on the gearbox in the following sequence:

English

• Tighten the first screw moderately.
• Tighten the second screw moderately.
• Tighten down first screw firmly.
• Tighten down second screw firmly.

NOTICE

It must not be possible to rotate the gearbox on the drive tube.

Mounting the Dethatcher

NOTICE

Left-hand and right-hand dethatchers are different.

The direction of rotation is marked with arrows on the gearbox and flange. Make sure both arrows point in the same direction.

The spring tines may be damaged or break if the direction of rotation is wrong.

483BA004 KN 4 5

• Rotate the left-hand dethatcher (4) on the shaft until it can be pushed into position – check the direction of rotation again (arrows).
  ●Insert hitch pin (5) in hole in shaft and snap it into position.
  ●Mount the right-hand dethatcher in the same way.

WARNING

Always mount both dethatchers.

Mounting the Deflector

Mounting and Removing the Deflector Extensions

Mounting

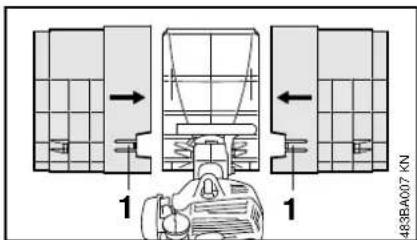

483BA007 KN 1 1

- Slide both deflector extensions onto the right and left sides of the deflector, push them fully home at the top and bottom and engage the tab (1).

Removing

●Use the combination wrench to disengage the tabs (1) and then pull off the extensions.

WARNING

The deflector extensions divert removed material and debris away from the machine and the operator. Never work without a properly mounted deflector extensions.

Installing and Removing the Mud Flap

1 2 3 483B4011 KN

●Secure the mud flap (1) with screw (2) and rotary knob (3) to the right-hand side of the flange.
- Adjust the mud flap to the required length so that it overlaps the deflector.
●Tighten down the rotary knob firmly.

WARNING

The mud flap diverts removed material and debris away from the machine and the operator. Never work without a properly mounted mud flap.

Starting / Stopping the Engine

Starting the Engine

Always follow the starting procedure described in the MultiEngine instruction manual.

Line drawing of a hand holding a tool with a device, no text or symbols present

Line drawing of a person using a power tool on a rail track (no text or symbols)

• Secure the handlebar in the normal operating position.

• Retract the wheels, if fitted – see chapter on "Wheels" in MultiEngine instruction manual.
  ●Retract the spur, if fitted.

• Check that the MultiTool is not touching the ground or any other obstacles. The unit must rest on the engine flange and the support on the frame.
  ●Make sure you have good balance and secure footing – as shown in the illustration.

WARNING

To reduce the risk of injury from contact with the rotating attachment, always stand to the side of the power tool, never in front of the attachment.

- With your left hand on the loop handle, press the unit firmly against the ground – do not touch the throttle trigger or lockout lever.

NOTICE

Do not stand or kneel on the handlebar or frame.

WARNING

The attachment may begin to move as soon as the engine starts. For this reason, blip the throttle after starting – the engine returns to idling speed.

Now follow the starting procedure described in the MultiEngine instruction manual.

Stopping the Engine

●See MultiEngine instruction manual.

Replacing Spring Tines

Replace individual spring tines if they are severely damaged or broken.

- Remove the dethatcher – see "Mounting the MultiTool".

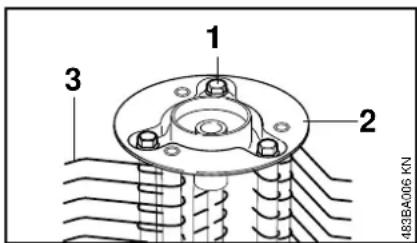

1 2 3 483BA006 KN

●Loosen the screws (1) on the dethatcher.
- Remove the flange (2).
Spring tines and washers are fitted alternately on the tubes.
●Pull off the spring tines (3) and washers.
●Replace damaged spring tines.
●Fit spring tines and washers on the tubes until they are full.
●Fit the flange (2).
●Tighten down the screws (1) firmly.
- Mount the dethatcher – see "Mounting the MultiTool".

Storing the Machine Maintenance and Care

For periods of 3 months or longer

• Remove, clean and inspect the dethatcher with deflector extensions and mud flap.
• Store the machine in a dry, high or locked location – out of the reach of children and other unauthorized persons.

The following intervals apply to normal operating conditions only. If your daily working time is longer or operating conditions are difficult (very dusty work area, etc.), shorten the specified intervals accordingly.

All accessible screws and nuts

●Retighten if necessary
Sweeping attachments and deflectors
●Visual inspection, check tightness before starting work and after every refueling stop
-Replace if damaged

Safety labels

●Replace illegible safety labels

Main Parts

Technical diagram of a mechanical device with numbered components, likely a cleaning or assembly assembly.

1 Right-hand Wheel
2 Left-hand Wheel
3 Inner Hitch Pin
4 Deflector Extension, Right
5 Deflector Extension, Left
6 Skirt
7 Outer Hitch Pin
8 Spring Tines
9 Deflector

English

Definitions

1 Right-hand Wheel

Keeps the spring tines of the dethatcher at a constant height above the ground.

2 Left-hand Wheel

Keeps the spring tines of the dethatcher at a constant height above the ground.

3 Inner Hitch Pin

Secures the attachment to the shaft and simplifies installation and removal of the attachment.

4 Deflector Extension, Right

Helps divert removed material and debris away from the machine and operator.

5 Deflector Extension, Left

Helps divert removed material and debris away from the machine and operator.

6 S k i r t

Diverts removed material and debris away from the machine and operator.

7 Outer Hitch Pin

Secures the wheel to the attachment and simplifies installation and removal of the wheel.

8 Spring Tines

Elements of attachment for removing moss, dead grass and root residue from lawns.

9 Deflector

Large deflector for attaching deflector extensions.

Specifications

Attachment

Dethatcher, left, right

Working width: 19.7 in (500 mm)

Weight

Dethatcher with

deflector extensions

and mud flap: 18.9 lbs (8.6 kg)

Maintenance and Repairs

Users of this unit should carry out only the maintenance operations described in this manual. STIHL recommends that other repair work be performed only by authorized STIHL servicing dealers using genuine STIHL replacement parts.

Genuine STIHL parts can be identified by the STIHL part number, the

STIHL ^ logo and, in some cases, by the STIHL parts symbol G_ . The symbol may appear alone on small parts.

For repairs of any component of this unit's air emissions control system, please refer to the air emissions systems warranty in this manual.

Disposal

Observe all country-specific waste disposal rules and regulations.

000BA073 KN

STIHL products must not be thrown in the garbage can. Take the product, accessories and packaging to an approved disposal site for environment-friendly recycling.

Contact your STIHL servicing dealer for the latest information on waste disposal.

Trademarks

STIHL Registered Trademarks

STIHL®

STIHL®

G

The color combination orange-grey (U.S. Registrations #2,821,860; #3,010,057, #3,010,058, #3,400,477; and #3,400,476)

MASTERWRENCH STIHL

SERVICE

AutoCut®

FARM BOSS®

iCademy®

MAGNUM®

MasterWrench Service®

MotoMix®

OILOMATIC®

ROCK BOSS®

STIHL Cutquik®

STIHL DUROMATIC®

STIHL Quickstop®

STIHL ROLLOMATIC®

STIHL WOOD BOSS®

TIMBERSPORTS®

WOOD BOSS®

YARD BOSS®

Some of STIHL's Common Law Trademarks

4-MIX ^TM

BioPlus ™

Easy2Start ™

EasySpool ^TM

ElastoStart ™

Ematic ^TM

FixCut ^TM

IntelliCarb ™

Master Control Lever ^TM

Micro TM

Pro Mark ^TM

Quiet Line ^TM

STIHL M-Tronic ^TM

English

STIHL OUTFITTERS ^TM

STIHL PICCO ^TM

STIHL PolyCut ^TM

STIHL PowerSweep ^TM

STIHL Precision Series ^TM

STIHL RAPID ^TM

STIHL SuperCut ^TM

TapAction ^TM

TrimCut ^TM

This listing of trademarks is subject to change.

Any unauthorized use of these

trademarks without the express written consent of

Waiblingen is strictly prohibited.

Contenido

Sistema MultiSystem 20

Diagram illustrating the assembly of a hairdryer with labeled parts and two open books below, including explosion effects and mechanical components.

Technical line drawing of a mechanical assembly with a hand operating a lever (no text or symbols)

Diagram illustrating safety warning symbols and icons for mechanical or electrical hazard, including suns, gears, and a light bulb.

Technical line drawing of two mechanical components with no visible text or symbols

ADVERTENCIA

Line drawing of a person using a mechanical tool on a vehicle (no text or symbols)

ADVERTENCIA

Line drawing of a person wearing a medical device with straps (no text or symbols)

5m (16ft)

Line drawing of a person using a tiller machine in a field (no text or symbols)

Technical line drawing of a vehicle suspension system with no visible text or symbols

Line drawing of a manual tiller in operation on a plow, with no visible text or symbols

ADVERTENCIA

Technical line drawing of two mechanical clamping devices with no visible text or symbols

ADVERTENCIA

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a person using a tool on a mechanical device (no text or symbols)

Line drawing of a person using a tool on a rail track, no text or symbols present

Technical diagram of a mechanical device with numbered components, likely a cleaning or assembly assembly.

MasterWrench Service®

MotoMix®

OIOMATIC®

ROCK BOSS®

STIHL Cutquik®

STIHL DUROMATIC®

STIHL Quickstop®

STIHL ROLLOMATIC®

STIHL WOOD BOSS®

TIMBERSPORTS®

WOOD BOSS®

YARD BOSS®

This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

0458-483-8621

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

0458-483-8621
