TRAVELMATE P653-M - Laptop ACER - Free user manual and instructions

Product Type	Professional laptop
Brand	Acer
Model	TravelMate P653-M
Dimensions (approx.)	338 x 245 x 31 mm
Weight (approx.)	2.2 kg
Power supply	19 V AC adapter, lithium-ion battery
Processor	Intel Core i3 / i5 / i7 (depending on configuration)
RAM Memory	4 to 8 GB DDR3
Storage	320 to 500 GB hard drive
Display	15.6 inches, variable resolution
Built-in webcam	Yes, with LED indicator
Fingerprint reader	Yes, for Acer ProShield
Network connectivity	Gigabit Ethernet, Wi-Fi, Bluetooth (depending on configuration)
Expansion ports	USB 2.0/3.0, eSATA, HDMI, VGA, ExpressCard/34, SmartCard
Optical drive	Yes, DVD/CD
Keyboard	Touchpad with buttons, special Fn keys
Maintenance and cleaning	Clean with a soft, lint-free cloth, avoid liquids
Security	Kensington lock slot, fingerprint reader
Spare parts and repairability	Battery, hard drive, memory accessible; AC adapter available
Operating temperature	5°C to 35°C
Operating humidity	20% to 80% (without condensation)

Frequently Asked Questions - TRAVELMATE P653-M ACER

How do I register my Acer TravelMate P653-M product?

To register your product, go to www.acer.com, select your country, click on REGISTER YOUR PRODUCT, and follow the instructions. You can also register during installation via the Registration icon on the desktop.

Where can I find accessories for my TravelMate P653-M?

Acer accessories are available on the online store store.acer.com. Please note that this store is not yet available in all countries. Check back regularly to see when it becomes accessible.

How do I access the complete user manual?

From Windows, type "usage" in the Start menu, then click on Acer User Manual. You will find detailed information on recovery, troubleshooting, and warranty.

What should I do if my screen remains black?

Press any key on the keyboard: the Black Screen function (Fn+F6) turns off the backlight to save power. If that doesn't work, check the power supply and the brightness (Fn+F9/F10).

How do I enable or disable the touchpad?

Use the key combination Fn + F7. The corresponding icon (a touchpad with a line through it) appears on the screen to confirm the change.

Can I use an eSATA device?

Yes, the USB/eSATA port (number 4, left view) supports eSATA devices. Note that if you connect an eSATA device, you will then have three USB ports available.

How do I eject a disc from the optical drive without turning on the computer?

Insert a straightened paperclip into the emergency eject hole located next to the eject button (right view). This works even when the computer is off.

What does the orange or blue battery indicator mean?

The indicator is orange when the battery is charging. It turns blue when the battery is fully charged and the computer is plugged into AC power.

How do I physically lock my computer?

Use the Kensington lock slot located on the right side. Wrap the cable around a fixed object, insert the lock into the slot, and turn the key.

Can I replace the battery or hard drive myself?

Yes, the battery is accessible via a release latch underneath. The hard drive is secured with screws in its bay. For the RAM, open the memory compartment. Refer to the manual for detailed procedures.

USER MANUAL TRAVELMATE P653-M ACER

Product registration

When using your product for the first time, it is recommended that you immediately register it. This will give you access to some useful benefits, such as:

• Faster service from our trained representatives.
  Membership in the Acer community: receive promotions and participate in customer surveys.
  The latest news from Acer.

Hurry and register, as other advantages await you!

How to register

To register your Acer product, please visit www.acer.com. Select your country, click PRODUCT REGISTRATION and follow the simple instructions.

You will also be asked to register your product during the setup process, or you can double-click the Registration icon on the desktop.

After we receive your product registration, you will be sent a confirmation email with important data that you should keep in a safe place.

Obtaining Acer accessories

We are happy to inform you that Acer's warranty extension program and Notebook accessories are available online. Come and visit our online shop and find what you need at store.acer.com.

The Acer store is being progressively rolled out, and, unfortunately may not be available in some regions. Please check back regularly to see when it will be available in your country.

Model Number :

Serial Number:

Purchase Date:

Place of Purchase:

Acer recommends...

Productivity Software

Work Great with Microsoft® Office 2010 - Express your ideas, solve problems and simplify everyday projects with Office 2010.

Photo editing - Easily edit and print your photos with Windows Live Photo Gallery. Then share them on Facebook, YouTube or Windows Live.

Search & Decide with Bing - Find and organize the answers you need using Bing ^TM ,so you can make faster,more informed decisions.

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides: First off, the Setup Poster helps you get started with setting up your computer.

The Quick Guide introduces you to the basic features and functions of your new computer.

For more on how your computer can help you to be more productive, please refer to the TravelMate User's Manual. The TravelMate User's Manual contains useful information applying to your new computer. It covers basic topics such as using the keyboard and audio, etc.

This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook.

Follow these steps to access it:

1 Type "User" from Start.
2 Click on Acer User's Manual.

Your Acer notebook tour

After setting up your computer as illustrated in the setup poster, let us show you around your new Acer notebook.

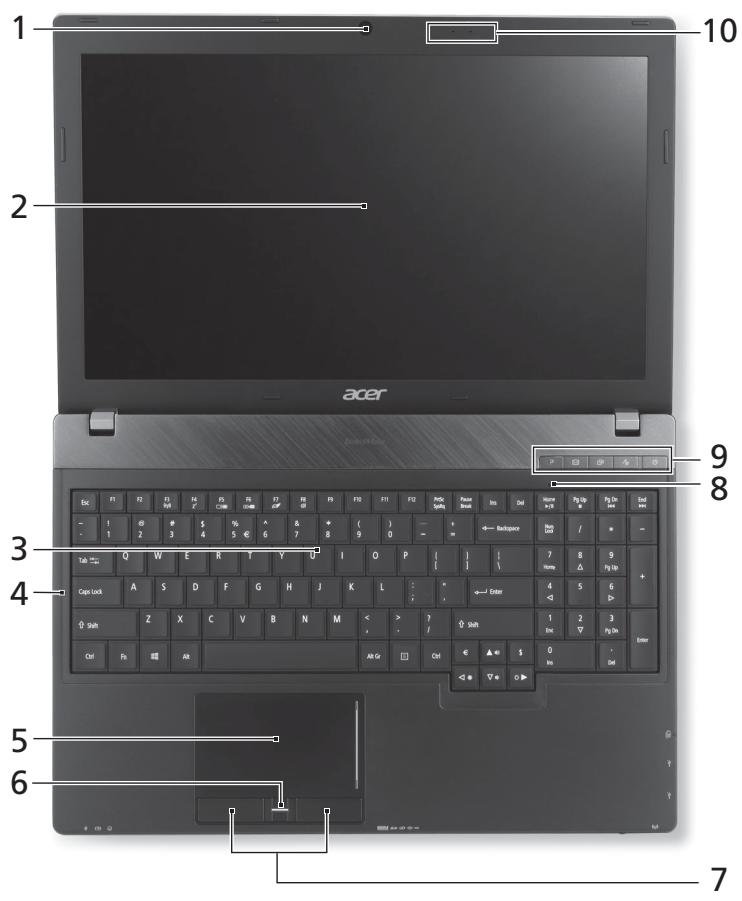

Top view

#	Icon	Item	Description
1		Integrated webcam	Web camera for video communication. A light next to the webcam indicates that the webcam is active.
2		Screen	Also called Liquid-Crystal Display (LCD), displays computer output (configuration may vary by model).
3		Keyboard	For entering data into your computer.
4	A	Caps Lock	Lights up when Caps Lock is activated.
5		Touchpad	Touch-sensitive pointing device which functions like a computer mouse.
6		Fingerprint reader	Fingerprint reader for Acer ProShield Security Suite.
7		Click buttons (left and right)	The left and right buttons function like the left and right mouse buttons.
8	1	Num Lock	Lights up when Num Lock is activated.
9	P	P key	Programmable key (configuration may vary by model).
	Q	Acer email key	Opens your default email application.
	R	Backup key	Launches Acer Backup Management for three-step data backup.
	O	Microphone mute	Mutes the microphone.
	U	Power button / indicator	Turns the computer on and off. Indicates the computer's power status.
10		Microphones	Two internal microphones for stereo sound recording.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the key before pressing the other key in the hotkey combination.

Hotkey	Icon	Function	Description
+Fn> + <F3>	( )	Communicatio n	Enables/disables the computer's communication devices.
+Fn> + <F4>	Z	Sleep	Puts the computer in Sleep mode.
+Fn> + <F5>	☐	Display toggle	Switches display output between the display screen, external monitor (if connected) and both.
+Fn> + <F6>	☐	Screen blank	Turns the display screen backlight off to save power. Press any key to return.
+Fn> + <F7>	☐	Touchpad toggle	Turns the internal touchpad on and off.
+Fn> + <F8>	☐	Speaker toggle	Turns the speakers on and off.
+Fn> + <☐>		Brightness up	Increases the screen brightness.
+Fn> + <☐>		Brightness down	Decreases the screen brightness.
+Fn> + <☐>		Volume up	Increases the sound volume.
+Fn> + <☐>		Volume down	Decreases the sound volume.
+Fn> + <Home>	/II	Play/Pause	Play or pause a selected media file.
+Fn> + <Pg Up>		Stop	Stop playing the selected media file.
+Fn> + <Pg Dn>	|	Previous	Return to the previous media file.
+Fn> + <End>	▶	Next	Jump to the next media file.

Closed front view

#	Icon	Item	Description
1		Power indicator	Indicates the computer's power status.
		Battery indicator	Indicates the computer's battery status. 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows blue when in AC mode.
		HDD indicator	Indicates when the hard disk drive is active.
2		Microphone jack	Accepts inputs from external microphones.
		Headphones/speaker jack	Connects to audio devices (e.g., speakers, headphones).
3	MULTIMEDICARD PRO	Multi-in-1 card reader	Accepts Secure Digital (SD), MultiMediaCard (MMC), Memory Stick PRO (MS PRO), xD-Picture Card (xD). Note: Push to remove/install the card. Only one card can operate at any time.
4		Communication switch / indicator	Enables/disables the computer's communication devices / indicates the computer's wireless connectivity device status.

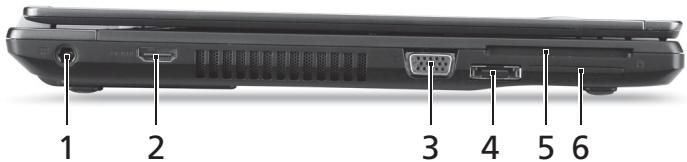

Left view

#	Icon	Item	Description
1		DC-in jack	Connects to an AC adapter.
3		External display(VGA) port	Connects to a display device (e.g.,external monitor, LCD projector).
2	HDMI	HDMI port	Supports high-definition digital video connections.
4	/e SATA	USB / eSATA port	Connects to USB or eSATA devices (only for certain models).Note: If you plug in an eSATA device you will have three USB ports available.
5		SmartCard slot	Accepts a SmartCard.
6		ExpressCard/34 slot	Accepts one ExpressCard/34 module.Note: Push to remove/insert the module.

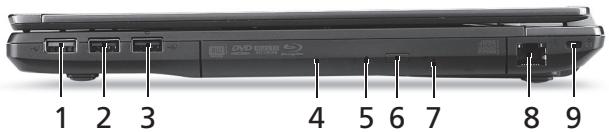

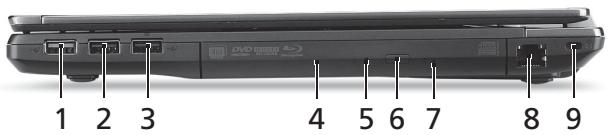

Right view

#	Icon	Item	Description
1	+	USB port
2	+	USB port	Connects to USB devices. If a port is black, it is USB 2.0 compatible; if it is blue it is also USB 3.0 compatible.
3	USB	USB port with power-off charging
4		Optical drive	Internal optical drive; accepts CDs or DVDs.
5		Optical disk access indicator	Lights up when the optical drive is active.
6		Optical drive eject button	Ejects the optical disk from the drive.
7		Emergency eject hole	Ejects the optical drive tray when the computer is turned off. Note: Insert a paper clip to the emergency eject hole to eject the optical drive tray when the computer is off.
8	+	Ethernet (RJ-45) port	Connects to an Ethernet 10/100/1000-based network.
9	K	Kensington lock slot	Connects to a Kensington-compatible computer security lock. Note: Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

Information on USB 3.0

Compatible with USB 3.0 and earlier USB devices.
- For optimal performance, use USB 3.0-certified devices.
- Defined by the USB 3.0 (SuperSpeed USB) specification.

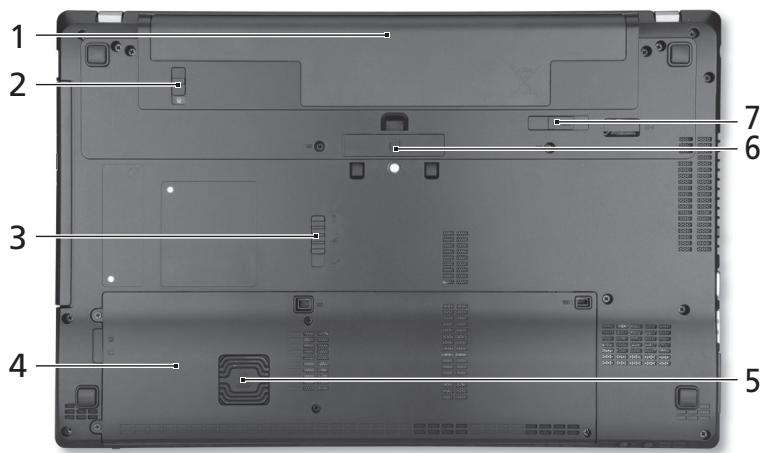

Base view

#	Icon	Item	Description
1		Battery bay	Houses the computer's battery pack.
2		Battery lock	Locks the battery in position.
3		Acer MediaBay release latch	Releases the Acer MediaBay module.
4		Hard disk bay	Houses the computer's hard disk (secured with screws).
		Memory compartment	Houses the computer's main memory.
5		Acer DASP (Disk Anti-Shock Protection)	Protects the hard disk from shocks and bumps.
6		Acer ProDock connector	Connects to the optional Acer ProDock.
7		Battery release latch	Releases the battery for removal.

Environment

Temperature:

• Operating: 5^ C to 35^ C
  Non-operating: -20 °C to 65 °C

• Humidity (non-condensing):

Operating: 20% to 80%
Non-operating: 20% to 80%

Notebook TravelMate

Guide rapide

Acer notebook is bundled with the approved telecom modules for your networking. Those modules' model number and specific homologation number refers to below:

[Modem]

Modelo: RD02-D330	CNC 54-4512
Modelo: Delphi D40 (AM5)	CNC 54-5681

[Bluetooth]

Modelo: BCM92046	CNC 16-6735
Modelo: BCM92070MD_REF	CNC 16-7165
Modelo: T77H056	CNC 16-7788
Modelo: AR5BBU12	CNC 16-7946

[Bluetooth+802.11bgn]

Modelo: BCM943225HMB

CNC C-7497

[802.11AGN]

Modelo: 512AN_MMW	CNC C-6399
Modelo: 533AN_MMW	CNC C-6385
Modelo: 512AN_HMW	CNC C-7612
Modelo: 533AN_HMW	CNC C-7618
Modelo: 622ANHMW	CNC C-7682
Modelo: 633ANHMW	CNC C-7681

[802.11BGN]

Modelo: AR5B95	CNC C-7152
Modelo: AR5B93	CNC C-7151
Modelo: 112BNHMW	CNC C-7470
Modelo: 112BNMMW	CNC C-7471
Modelo: RTL8192SE	CNC C-7495
Modelo: BCM943225HM	CNC C-7395
Modelo: AR5B97	CNC C-7781
Modelo: BCM94313HMG2L	CNC C-7881

[802.11BG]

Modelo: BCM94312HMG

CNC 16-6180

[3G]

Modelo: UNDP-1	CNC 17-6334
Modelo: Gobi2000	CNC 17-7291

[Brasil] Noticia adicional de regulamento Anatel

Acer notebook is bundled with the approved telecom modules for your networking. Those modules' model number and specific homologation number refers to below:

[Modem]

Modelo: RD02-D330	COFETEL: TTDCORD06-536
Modelo: Delphi_D40 (AM5)	COFETEL: TTDAGDE07-056

[Bluetooth]

Modelo: BCM92046	COFETEL: RCPFOBC08-0472
Modelo: BCM92070MD_REF	COFETEL: RCPBRBC09-0213
Modelo: T77H056	COFETEL: RCPATT709-1049
Modelo: AR5BBU12	COFETEL: RCPATAR10-0064

[Bluetooth+802.11BGN]

Modelo: BCM943225HMB

COFETEL: RCPBRBC09-0574

[802.11AGN]

Modelo: 512AN_HMW	COFETEL:RCPIN5108-0260
Modelo: 512AN_MMW	COFETEL:RCPIN5108-0260-A3
Modelo: 533AN_HMW	COFETEL:RCPIN5108-0260-A2
Modelo: 533AN_MMW	COFETEL:RCPIN5108-0260-A1
Modelo: 622ANHMW	COFETEL:RCPIN6209-1009
Modelo: 633ANHMW	COFETEL:RCPIN6309-1010

[802.11BGN]

Modelo: AR5B95	COFETEL:RCPATAR09-0168
Modelo: AR5B93	COFETEL: RCPATAR09-0167
Modelo: 112BNHMW	COFETEL: RCPIN1109-0613-A1
Modelo: 112BNMMW	COFETEL: RCPIN1109-0613
Modelo: RTL8192SE	COFETEL: RCPRERT09-0751
Modelo: BCM943225HM	COFETEL: RCPBRBC09-0464
Modelo: AR5B97	COFETEL: RCPATAR09-1103
Modelo: BCM94313HMG2L	COFETEL: RCPBRBC09-1196

[802.11BG]

Modelo: BCM94312HMG

COFETEL: RCPBRBC08-0015

[3G]

Modelo: UNDP-1	COFETEL:RTIQUUN08-0253
Modelo: Gobi2000	COFETEL:RTIQUGO09-0555
Modelo: EM770W	COFETEL:RTIHUEM10-0096

[WiMax]

Modelo: 622ANXHMW

COFETEL: RCPIN6210-0219

Portátil TravelMate

Guia=rápido

Registo do produto

Mby pa3pa6oTaJn pyd pykoBODCTB, KOToPbIe NOMOryT Bam B nCnoJIb3OBaHm HOyT6yka Acer:

3TOT Pnakat no HactpoKe NOMOXET BbINONHHTb IepBOHaJIbHyO HAcTpOky KOMNbIOTepa.

KpaTkoe pyKOBOdCTBO 3HaKOMNT Bac C OCHOBbIMX XapaKTepnCTNkamN MyHKUaMn BaUero HOBOr KOMNbHOTepa.

YTO6bI y3HaTb 60JIbWe O TOM, KAK C NOMOUIbIO KOMNbHTepa NOBbICNTb npOyKTINBHOCTb CBOe pa60Tb, CM. PyKOBODCTBO noJIb3OBaTeJRA.

PykoBODCTBO noIb3ObaTeJIa COePKeNT nIOIe3HyU INHΦOpMauIIO O BaIeM HOBOM KOMNbItepe. B HEM ONICbIAOTcOCHOBHbIe TeMbI, TaKHe KaK pa6ToA C KnabNAtypoi, 3ByKOM I T.D.

3TO pyKOBODCTBO COePjNT NOIpo6HbIe CBeJeHnO O CnCTEmhblx ФyHKUJX, BOCCTaHOBLeHn DAHbIX, BO3MOJHXOT paCUnpeHn I YcTpaHeHn HncnpaBHOCTe. KpOME TOrO, OHO COePjNT rapaHTnHyIO INΦopMaIIO, a TAKKe ObIe NpeDncaHn I npaBnla 6e3OnacHOCTn Ipn pa6Ote C BaIIM HOY6yKom.

YTo6bI OTKpbIbEero,BblONHnTe CneDyUouee:

1 Ha 3kpaHe Iyck BVeDInTe "IoiJIb3OBAteIb".
2 Haxmnte PykoBOCTBO nonb30BaTeJrAcer.

3HaKOMCTBO C HOyT6yKom Acer

Tenepb, KOrda BbI BbINOJIHJIN HAcTpOriKn, KaK NOKa3aHO Ha nJaKaTe INo HacTpOriKe, daBaIte No6JIuXe N03HaKOMIMCc C BaUIM HOBbIM HOYt6yKOM Acer.

BnD cBepxu

Prenosnik TravelMate

Hitri vodič

Registraracija izdelka

Computer portabil TravelMate

Ghid rapid

Juhised selle avamiseks:

TravelMate piezimjdators

Atrais ceIvedis

Produkta registrăcija

#	Simge	Öğe	Açıklama
1		DC-in seks	AC adaptöré®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®
2	HDMI	HDMI portu	Yüksek®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®, ®
3		Harici gürünüz (VGA) portu	Bir gürünüz®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,⁄ˌe SATA
4		USB/eSATA portu	USB veya eSATA®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,%, USB portu kullanabilirsiniz.
5		SmartCard yuvasi	SmartCard'ı kabul eder.
6		ExpressCard/34 yuvasi	Bir ExpressCard/34 modülünüz kabul eder. Not: Kartı Çıkartmak/takmak ilin itin.

Sag görünüm

#	Simge	Öğe	Açıklama
1	+	USB portu	USB aygünlarina®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®
2	+	USB portu	E®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®, ®
3	USB	Kapalyken Şarj Özellikli USB®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,”—
4		Optik sürucü	Dahili optik sürucü; CD'leri veya DVD'leri kabul eder.
5		Optik sürucü erişim gõstergesi	Optik sürucü etkinken yanar.
6		Optik sürucü çi Karma tusu	Optik diski sürucüden Çikarı.
7		Acil durum Çi Karma yuvası	Bilgisayar kapanda"—optik sürucü tepisini Çikarı. Not: Bilgisayar kapatild)— Optik sürucü tepisini Çiarmak,—in acil durum Çiarma yuvası bir--,—it—it—at)—sokun.
8	+	Ethernet (RJ-45) portu	Ethernet 10/100/1000—temelli—a"—baglar.
9	K	Kensington kilit yuvası	Kensington-uyumlu bilgisayar"—gügenlik kildine"—baglar. Not: Bilgisayar"—gügenlik kilidi"—kablosunu, masa,—ya da kilitli bir"—çekmecenin"—tutaca"—gibi hareket"—etmeyen"—bir"—nesen—in"—etafina"—dolay—in. Kilidi"—centi"—sokun—"se"—ve"—kilidi"—kapamak"—in"—anahtari"—cevir—in.—Anahtars—is modeller de mevcuttur.
