Product Type	Wine cellar
Brand	AEG
Model	SWD81800G0
Overall Dimensions (HxWxD)	1780 x 560 x 550 mm
Weight	Approx. 65 kg
Power Supply	220-240 V, 50 Hz
Climate Class	SN, N, ST, T
Refrigerant	R600a (isobutane)
Top Compartment Temperature Range	+6 to +11 °C
Bottom Compartment Temperature Range	+12 to +18 °C
Humidifier	Lava stone humidifier tray
Air Circulation	Auto-fan with AIR-LIGHT system
Display	Digital with temperature and function indicators
Child Lock	Yes, button lock function
Minute Minder	Yes, adjustable 1-90 minutes
Door Open Alarm	Acoustic alarm after few minutes
Lighting	Interior lamp with 10-minute auto-on when door closed
Shelves	Removable, max load 30 kg per shelf
Bottle Capacity	Not specified (approx. 40-50 bottles)
Cleaning	Lukewarm water with neutral soap; condenser brush clean
Defrost	Automatic defrost with drain hole
Safety Features	Child safety, earthing, anti-UV glass, flammable refrigerant precautions
Spare Parts & Repairability	Authorized service, genuine parts only

Frequently Asked Questions - SWD81800G0 AEG

How do I set the temperature in the wine cellar compartments?

Use the temperature colder/warmer buttons on the control panel. The top compartment can be set between +6 and +11 °C, the bottom between +12 and +18 °C. The set temperature is reached within 24 hours.

What is the Child Lock function and how do I activate it?

The Child Lock prevents unintentional button presses. Press the Mode button until the Child Lock icon flashes, then press OK to confirm. To deactivate, repeat the process.

Why is an alarm sounding and how do I stop it?

The alarm may sound if the door is left open for a few minutes. Close the door to stop it, or press any button to silence the buzzer temporarily.

How do I clean the wine cellar?

Unplug the appliance. Clean interior and accessories with lukewarm water and neutral soap. Clean the condenser (black grill) at the back with a brush or vacuum. Do not use abrasive powders or strong detergents.

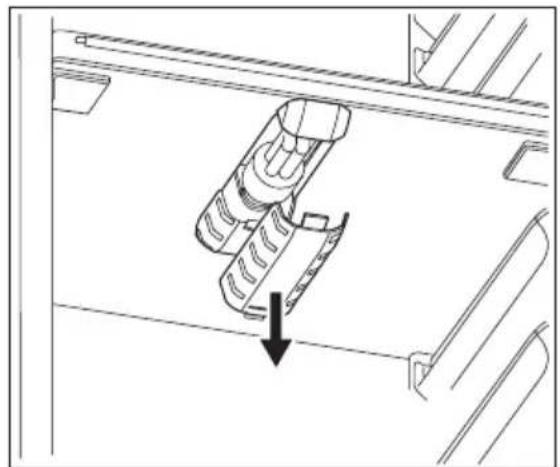

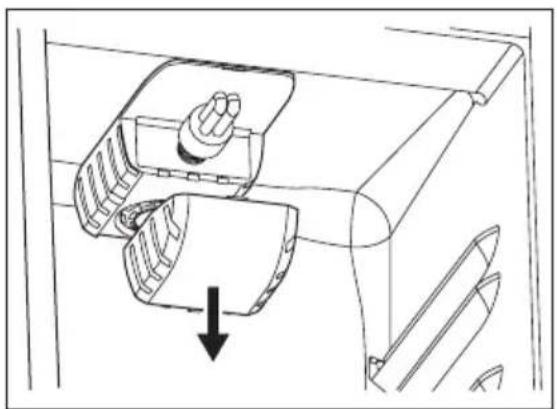

How do I replace the interior lamp?

Disconnect the mains plug. Remove the lamp cover by pressing it inwards with a screwdriver to free the hooks. Replace with a lamp of the same type (household appliance rated). Reinstall cover and reconnect power.

What should I do if water collects at the bottom of the appliance?

Check the defrost water drain hole in the middle of the refrigerator channel. Clean it with the provided tool to prevent blockage. Ensure products do not block the drain.

What is the recommended storage temperature for different wines?

Champagne/sparkling: 6-8°C; white wines: 10-12°C; rosé/light red: 12-16°C; aged red: 14-16°C. Store bottles lying down to keep corks moist.

How does the humidifier work?

Spread the lava stones on the small tray and fill with water up to half. The stones are regularly humidified. Check water level periodically and refill as needed.

Can I use the wine cellar for storing other items?

No, this appliance is intended exclusively for wine storage. Do not store flammable gases or liquids, and avoid overloading shelves beyond 30 kg.

What should I do if the appliance is not working?

Check if it is switched on, the mains plug is connected, and the socket has power. If the lamp does not work, close and open the door (standby). For persistent issues, contact an authorized service center.

USER MANUAL SWD81800G0 AEG

www.aeg-electrolux.com/shop

INHOUD

Line drawing of a stainless steel refrigerator with multiple shelves and bottles on the front door (no text or symbols)

Bovenste compartiment:

Line drawing of a stainless steel oven with multiple tiered slatted glass doors open (no text or symbols)

Line drawing of a refrigerator with shelves and a door, no text or symbols present

Technical line drawing of a rectangular metal frame structure with slatted top and side cutouts (no text or symbols)

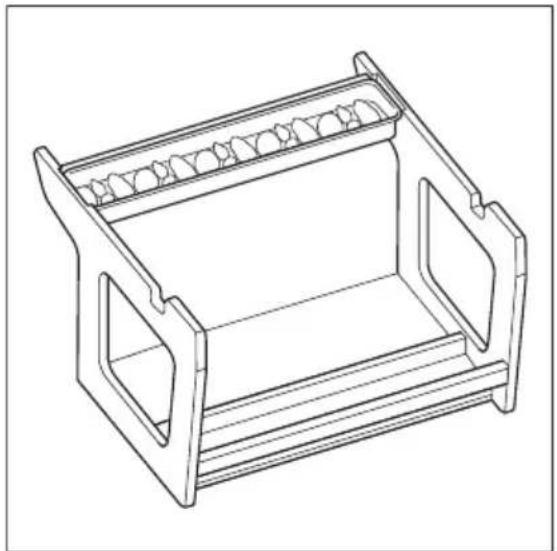

Luchtbevochtiger

Line drawing of a mechanical device with a handle and side brackets (no text or symbols)

Circulatielucht

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

REINIGING EN ONDERHOUD

LET OP!

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Technical line drawing of a mechanical component with a screwdriver inserted, showing internal structure and a black arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a hand pressing down and a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing showing a door mechanism with an arrow indicating rotation (no text or symbols)

Line drawing of a refrigerator with an arrow indicating rotation and hanging leaves (no text or symbols)

Line drawing of a refrigerator interior with two magnified views showing hand positioning and mounting bracket (no text or symbols)

Technical line drawing of a structural beam with rotational arrows indicating motion (no text or symbols)

Technical line drawing of a structural frame with two parallel plates and directional arrows indicating movement (no text or symbols)

Technical line drawing of a structural frame with an arrow indicating rotation (no text or symbols)

Technical line drawing of a structural bracket with two metal plates and an arrow indicating a force or direction (no text or symbols)

HET MILIEU

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you'll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags...

Six icon buttons representing shopping, devices, gear, and electronics (no text or symbols)

Visit the webshop at: www.aeg-electrolux.com/shop

CONTENTS

23 Safety information
25 Control panel
27 First use
28 Daily use
30 Care and Cleaning
32 What to do if...
34 Technical data
34 Installation
38 Environmental concerns

The following symbols are used in this user manual:

!

Important information concerning your personal safety and information on how to avoid damaging the appliance.

i

General information and tips

[Non-Text]

Environmental information

Subject to change without notice

SAFETY INFORMATION

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

- Keep all packaging well away from children. There is risk of suffocation.

- If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

CAUTION!

Keep ventilation openings clear of obstruction.

• This appliance is intended to be used exclusively for the storage of wine.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

- Do not damage the refrigerant circuit.

- The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

If the refrigerant circuit should become damaged:

• avoid open flames and sources of ignition
  – thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

WARNING!

Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel.

1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
6. You must not operate the appliance without the lamp cover ^5) of interior lighting.

• This appliance is heavy. Care should be taken when moving it.

- Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

- Avoid prolonged exposure of the appliance to direct sunlight.

- Bulb lamps ^6) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.

Daily use

- Do not put hot pot on the plastic parts in the appliance.

- Do not store flammable gas and liquid in the appliance, because they may explode.

- Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.

Installation

For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

5) If the lamp cover is foreseen

6) If the lamp is foreseen

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

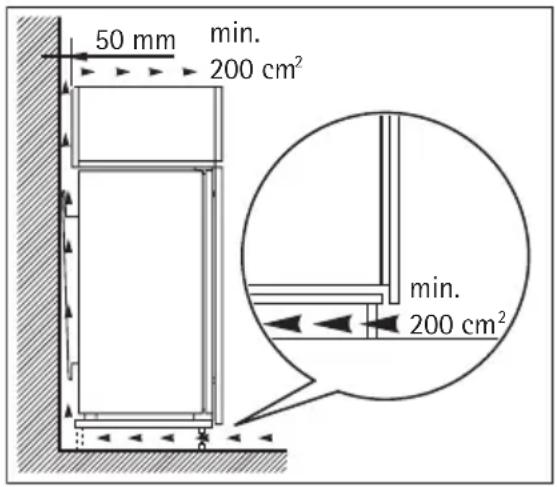

• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only. ^7)

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

CONTROL PANEL

1 Appliance ON/OFF button
2 Top Compartment Temperature colder button
3 Top Compartment Temperature warmer button
4 Mode button
5 OK button
6 Bottom Compartment Temperature colder button
7 Bottom Compartment Temperature warmer button
8 Display

It is possible to change predefined sound of buttons to a loudly one by pressing together. Mode button and Temperature colder button for some seconds. Change is reversible.

Display

1 Top Compartment indicator
2 Top Compartment temperature indicator and timer indicator
3 Bottom Compartment temperature indicator
4 Bottom Compartment indicator
5 Alarm indicator
6 Child Lock function
7 Minute Minder function

Switching on

To switch on the appliance do these steps:

1. Connect the mains plug to the power socket.
2. Press the ON/OFF button if the display is off.
3. The temperature indicators show the set default temperature.
   To select a different set temperature refer to "Temperature regulation".

Switching off

To switch off the appliance do these steps:

1. Press the ON/OFF button for 5 seconds.
2. The display switches off.
3. To disconnect the appliance from the power disconnect the mains plug from the power socket.

Temperature regulation

The set temperature of the wine cellar may be adjusted by pressing the temperature regulators.

The temperature indicators show the set temperature.

The set temperature will be reached within 24 hours.

Refer to "Daily use - Wine Arrangement".

After a power failure the set temperature remains stored.

Minute Minder function

The Minute Minder function is to be used to set an acoustic alarm at the preferred time, useful for example when a recipe requires to cool down a mixture for a certain lenght of time.

To switch on the function:

1. Press the Mode button until the corresponding icon appears.

The Minute Minder indicator flashes.

The Timer shows the set value (30 minutes) for a few seconds.

1. Press the Timer regulator button to change the Timer set value from 1 to 90 minutes.
2. Press the OK button to confirm.

The Minute Minder indicator is shown.

The Timer start to flash (min).

At the end of the countdown the Minute Minder indicator flashes and an audible alarm sounds:

1. Switch off the function.

To switch off the function:

1. Press the Mode button until the Minute Minder indicator flashes.
2. Press the OK button to confirm.
3. The Minute Minder indicator goes off.

It is possible to deactivate the function at any time.

It is possible to change the time at any time and before the end by pressing the Temperature colder button and the Temperature warmer button.

Child Lock function

To lock the buttons from unintentional operation select the Child Lock function.

To switch on the function:

1. Press the Mode button until the corresponding icon appears.
2. The Child Lock indicator flashes.
3. Press the OK button to confirm.

The Child Lock indicator is shown.

To switch off the function:

1. Press the Mode button until the Child Lock indicator flashes.
2. Press the OK button to confirm.
3. The Child Lock indicator goes off.

Door open alarm

An acoustic alarm will sound if the door is left open for a few minutes. The door open alarm conditions are indicated by:

• flashing Alarm indicator
• acoustic buzzer

When normal conditions are restored (door closed), the alarm will stop.

During the alarm, the buzzer can be switched off by pressing any button.

FIRST USE

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

DAILY USE

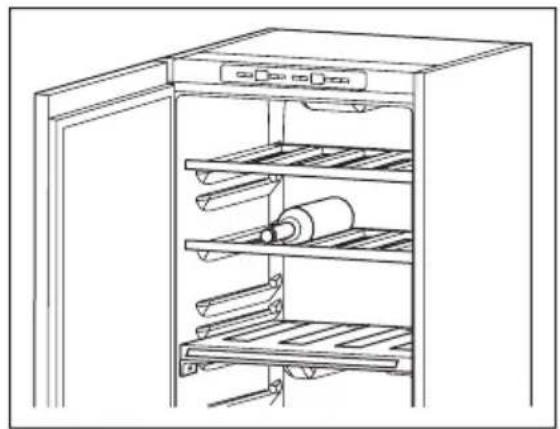

Wine arrangement

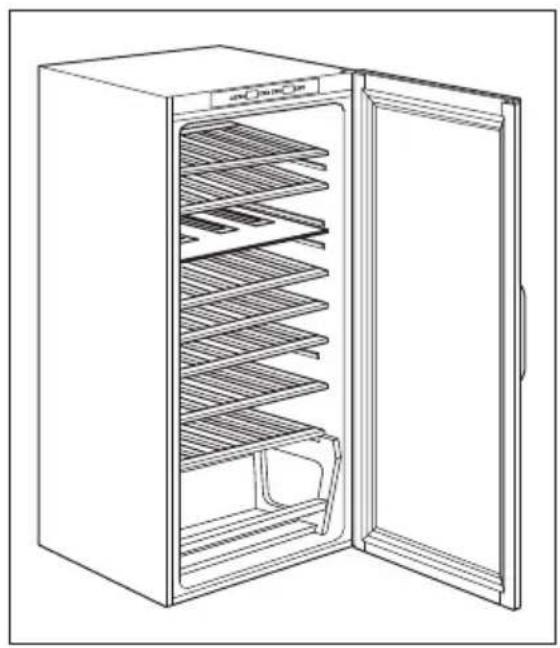

Line drawing of a stainless steel refrigerator with multiple shelves and bottles on the front door (no text or symbols)

Top Compartment:

The temperature can be adjusted between +6 and +11°C. This compartment is ideal for wines, especially new reds and whites, to be consumed immediately. Operation compartments with differentiated temperatures.

Bottom Compartment:

The temperature can be adjusted between + 12 and + 18°C. This compartment is ideal for storing and refining red or white wines for long periods.

The temperatures of this compartment are suitable for storing aged and full-bodied wines. Lay the bottles down in such a way that the corks do not dry.

Keep the wine in the dark. The oven door is in anti-UV darkened double glass to protect the wine from the light in case the refrigerator is located in a well-lit place.

Avoid switching the appliance light on too often or for too long.Wine keeps better in the dark.

Handle the bottles with care, to avoid agitating the wine.

Follow the recommendations and advice received at the time of purchase or given in the technical documentation regarding the quality, duration and optimum storage temperature of the wine.

Storage advice

The storage time for wine depends on ageing, the type of grapes, alcoholic content and level of fructose and tannin contained in it. At the time of purchase, check if the wine is already aged or if it will improve over time.

Recommended storage temperatures:

• For champagne and sparkling wines, between 6 and 8^

• For white wines, between 10 and 12^

• For rose' and light red wines, between 12 and 16^

• Aged red wines, 14 - 16°C

When placing various bottles on top of each other, make sure they do not touch the refrigerator cooling plate.

Wine Cellar shelves

The shelves can be removed for cleaning.

Line drawing of a refrigerator with open door and side shelves (no text or symbols)

Wine Cellar Bottle Holder

Remove the shelf and insert it between the two guides.

The maximum possible weight on the bottle shelves is 30 kg.

Line drawing of a refrigerator with shelves and a rolled-up rack (no text or symbols)

The bottom compartment is fitted with a basket useful for placing upright and sloping bottles.

Technical line drawing of a rectangular metal frame structure with slatted top and side cutouts (no text or symbols)

Humidifier

The right humidity is vitally important for the proper storage of wine.

Your Wine Cellar is fitted with a special humidifying device that increases the humidity

inside the appliance.

Spread out the lava stones provided along the small tray as show in the picture. Then fill the tray with water up to the half of its capacity.

In normal operation, the lava stones are regularly humidified by the water, periodically check at water present inside the tray and refill it when needed.

Note that if the humidity in the area in which your appliance is installed is particularly high, the interior of your Wine Cellar will also be relatively more humid.

This may result in bottles misting up when the door is opened or labels peeling off. In this case reduce the quantity of water in the tray accordingly.

Line drawing of a mechanical device with handle and frame (no text or symbols)

Air circulation

The refrigerator compartment has a special AIR-LIGHT fan which is automatically activated in function of the appliance thermostat setting and ambient conditions.

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

CARE AND CLEANING

CAUTION!

Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• rinse and dry thoroughly.

Do not pull, move or damage any pipes and/or cables inside the cabinet.

Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush or a vacuum cleaner. This operation will improve the performance of the appliance and save electricity consumption.

Take care of not to damage the cooling system.

Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.

After cleaning, reconnect the equipment to the mains supply.

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside.

Use the special cleaner provided, which you will find already inserted into the drain hole.

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

• disconnect the appliance from electricity supply
• remove all food
• defrost ^8) and clean the appliance and all accessories

8) If foreseen.

- leave the door/doors ajar to prevent unpleasant smells.

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

WHAT TO DO IF...

WARNING!

Before troubleshooting, disconnect the mains plug from the mains socket.

Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible cause Solution
The appliance does not operate. The lamp does not operate.	The appliance is switched off. Switch on the appliance.
The mains plug is not connected to the mains socket correctly.	Connect the mains plug to the mains socket correctly.
The appliance has no power.	There is no voltage in the mains socket.	Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
The lamp does not work.	The lamp is in stand-by. Close and open the door.
	The lamp is defective.	Refer to "Replacing the lamp".
The compressor operates continually.	The temperature is not set correctly.	Set a higher temperature.
	The door is not closed correctly.	Refer to "Closing the door".
The door has been opened too frequently.	Do not keep the door open longer than necessary.
The product temperature is too high.	Let the product temperature decrease to room temperature before storage.
The room temperature is too high.	Decrease the room temperature.
Water flows on the rear plate of the appliance.	During the automatic defrost-ing process, frost defrosts on the rear plate.	This is correct.
Water flows into the appliance.	The water outlet is clogged. Clean the water outlet.
Products prevent that water flows into the water collector.	Make sure that products do not touch the rear plate.
Problem Possible cause Solution
Water flows on the ground.	The melting water outlet does not flow in the evaporative tray above the compressor.	Attach the melting water outlet to the evaporative tray.
The temperature in the appliance is too low.	The temperature regulator is not set correctly.	Set a higher temperature.
The temperature in the appliance is too high.	The temperature regulator is not set correctly.	Set a lower temperature.
	The door is not closed correctly.	Refer to "Closing the door".
The product temperature is too high.	too high.	Let the product temperature decrease to room temperature before storage.
Many bottles are stored at the same time.	same time.	Store less bottles at the same time.
There is no cold air circulation in the appliance.	in the appliance.	Make sure that there is cold air circulation in the appliance.

Replacing the lamp Wine Cellar

1. Disconnect the mains plug from the mains socket.
2. Remove the lamp cover by pressing it inwards with a tool (e.g. screwdriver) to free the rear side hookings.

Technical line drawing of a mechanical component with a screwdriver and internal slots (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

At the same time, free the middle hook and slide off the cover in the direction of the arrows.

1. Replace the used lamp with a new lamp of the same type and specifically designed for household appliances and having the same characteristics.

2. Install the lamp cover.

3. Connect the mains plug to the mains socket.

4. Open the door. Make sure that the lamp comes on.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

If you want to maintain the light on with the door closed, it is sufficient to open and close the door and the light will remain ON automatically for 10 minutes.

Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to "Installation".

3. If necessary, replace the defective door gaskets. Contact the Service Center.

TECHNICAL DATA

Dimension of the recess
Height 1780 mm
Width 560 mm
Depth 550 mm

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

INSTALLATION

Positioning

WARNING!

If you are discarding an old appliance that has a lock or catch on the door, you must ensure that it is made unusable to prevent young children being trapped inside.

The appliance shall have the plug accessible after installation.

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.

The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

Ventilation requirements

The airflow behind the appliance must be sufficient.

Installing the appliance

CAUTION!

Make sure that the mains cable can move freely.

Do the following steps:

1. Apply the adhesive sealing strip to the appliance as shown in figure.

Diagram showing a door mechanism with an arrow indicating rotation, alongside a close-up of the handle (no text or symbols present)

1. Install the appliance in the niche.

Line drawing of a refrigerator with an arrow indicating rotation and hanging cloth (no text or symbols)

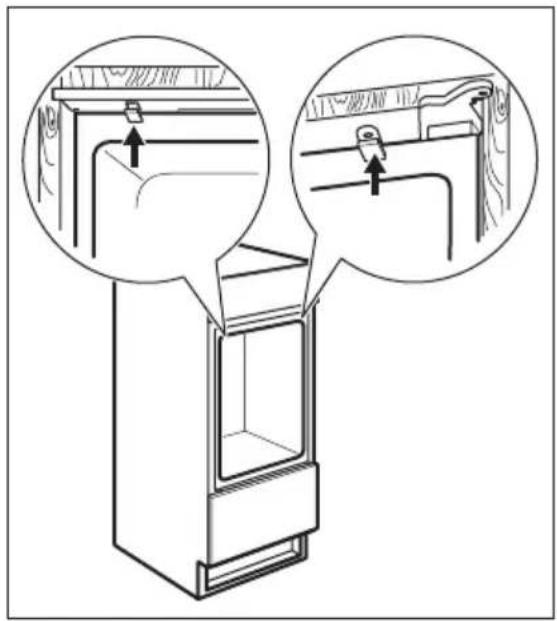

1. Attach the appliance to the niche with 4 screws.

1. Fix the covers on the screws.

Line drawing of a refrigerator interior with two magnified views showing hand positioning and mounting details (no text or symbols)

Do a final check to make sure that:

• All screws are tightened.
• The sealing strip is attached tightly to the cabinet.
  • The door opens and closes correctly.

Assembly instructions for the compensator lower part of the door

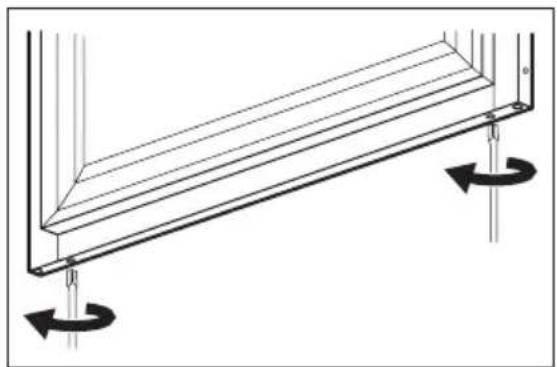

1. With the door open, loosen the two screws situated in the lower part without unscrewing them completely.

Technical line drawing of a structural beam with rotational arrows indicating motion (no text or symbols)

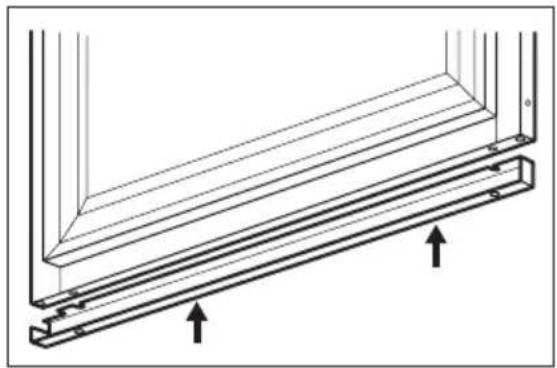

1. Position the steel compensator as indicated in the figure and insert the upper part under the head of the screws.

Technical line drawing of a structural frame with two parallel plates and directional arrows indicating movement (no text or symbols)

1. Align the compensator with the steel door panel and tighten the screws.

Technical line drawing of a structural beam with a rotation arrow indicating rotational motion (no text or symbols)

1. Insert the steel carter inside the compensator as indicated in the figure.

Technical line drawing of a structural bracket with two metal plates and an arrow indicating a force or direction (no text or symbols)

ENVIRONMENTAL CONCERNS

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Line drawing of a stainless steel refrigerator with multiple shelves and bottles on the front door (no text or symbols)

Compartimento superior:

Line drawing of a refrigerator with open door and side shelves (no text or symbols)

Line drawing of a refrigerator with shelves and a door, no text or symbols present

Technical line drawing of a rectangular metal frame structure with slatted top and side cutouts (no text or symbols)

Humidificador

Line drawing of a mechanical device with a handle and side brackets (no text or symbols)

Circulação de ar

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Períodos de inactividade

Technical line drawing of a mechanical component with a screwdriver inserted, showing internal structure and a circular base (no text or symbols)

Diagram of a mechanical device with a hand pressing down and a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

Technical line drawing showing a door mechanism with an arrow indicating rotation (no text or symbols)

Line drawing of a refrigerator with an arrow indicating rotation and force application (no text or symbols)

1. Fixe as tampas nos parafusos.

Line drawing of a refrigerator interior with two views of the door (no text or symbols)

Technical line drawing of a structural beam with rotational arrows indicating motion (no text or symbols)

Technical line drawing of a structural frame with two parallel plates and directional arrows indicating movement (no text or symbols)

Technical line drawing of a structural frame with an arrow indicating rotation (no text or symbols)

Technical line drawing of a structural bracket with two parallel plates and an arrow indicating direction (no text or symbols)

Line drawing of a stainless steel refrigerator with multiple shelves and bottles on the front door (no text or symbols)

Line drawing of a refrigerator with open door and tiered shelves (no text or symbols)

Line drawing of a refrigerator with shelves and a door, no text or symbols present

Technical line drawing of a rectangular metal frame structure with slatted edges and cutouts (no text or symbols)

Humidificador

Line drawing of a mechanical housing or enclosure with internal compartments and a top panel (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

CUIDADO Y LIMPIEZA

PRECAUCIÓN

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Technical line drawing of a mechanical component with a screwdriver inserted, showing internal structure and a circular base (no text or symbols)

Technical line drawing of a mechanical component with a hand pressing a button, showing a downward arrow (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing showing a door mechanism with an arrow indicating rotation (no text or symbols)

Line drawing of a refrigerator with an arrow indicating rotation and force application (no text or symbols)

Line drawing of a refrigerator interior with two magnified views showing hand positioning and mounting bracket (no text or symbols)

Technical line drawing of a structural beam with rotational arrows indicating motion (no text or symbols)

Technical line drawing of a structural frame with two parallel plates and directional arrows indicating movement (no text or symbols)

Technical line drawing of a structural beam with a rotation arrow indicating rotational motion (no text or symbols)

Technical line drawing of a structural bracket with two metal plates and an arrow indicating direction (no text or symbols)
