Product type	Built-in extractor hood
Brand	BOSCH
Model	DHL 555BCH/04
Width	53 cm or 73 cm
Weight	5.0 kg to 11.6 kg depending on version (extracted or recirculated air, 1 or 2 motors)
Power supply	230 V, 50 Hz, grounded plug, cord 1.20 m
Suction power levels	3 speeds + intensive position
Lighting	Halogen bulbs 12 V / 20 W max (G4) or 40 W max bulbs (E14)
Grease filter	Felt (disposable) or metal (dishwasher-safe), replacement/cleaning every 8 to 10 weeks
Activated carbon filter	Optional, replacement about once a year, available at specialty stores
Extraction mode	Extracted air to outside or recirculated air (with charcoal filter)
Extraction diameter	120 mm or 150 mm depending on version
Minimum installation distance	650 mm above electric or gas hobs
Special accessories	DHZ 2100, DHZ 7204, DHZ 7304, DHZ 7305 (check valve, reducers, etc.)
Maintenance	Clean with hot water and dish soap, do not use abrasive products
Safety	Disconnect before servicing, repairs by specialist, safety spring for the filter

Frequently Asked Questions - DHL 555BCH/04 - INSTALLATION INSTRUCTIONS BOSCH

What is the minimum distance between the hood and the cooking hobs?

The minimum distance is 650 mm above electric or gas hobs. For solid fuel hobs, a closed lid is required.

How to replace the felt grease filter?

Turn the grid handles, press the safety spring, remove the frame, replace the filter mat (every 8 to 10 weeks), then reassemble by locking the spring.

Can I wash the metal grease filter in the dishwasher?

Yes, the metal filter is dishwasher-safe. A slight color change is possible. In case of heavy soiling, soak in hot water with dish soap before brushing.

How to change the activated carbon filter?

Remove the filter cassette, then unscrew the screw in the middle of the intermediate base. Push the tabs, attach the sealing tape to the filter, insert and lock. Replace it about once a year.

What to do if the lighting no longer works?

Turn off the power, remove the filter frame, check that the bulbs are properly inserted. Replace halogen bulbs (12 V, 20 W max, socket G4) or 40 W max bulbs (E14).

How to clean the hood without damaging it?

Use hot water with dish soap or a mild glass cleaner. Never use scouring products, abrasive sponges, or alcohol on plastic parts.

What are the possible operating modes?

The hood can operate in extracted air mode (exhaust outside) or recirculated air mode (with activated carbon filter). In recirculation mode, purified air returns to the kitchen.

Can I use the hood without a grease filter?

No, never use the hood without the grease filter. This poses a fire risk and damages the appliance. The filter retains grease particles.

How to disassemble the hood if needed?

Unscrew the fixing screws, hold the hood from the bottom, then extract the mounting spring at the front and back. Pull the hood downwards to release it.

What accessories are available for this hood?

Special accessories include check valves, diameter reducers, and blow-out grilles. The references are: DHZ 2100, DHZ 7204, DHZ 7304, DHZ 7305.

USER MANUAL DHL 555BCH/04 - INSTALLATION INSTRUCTIONS BOSCH

Black-and-white photo of a hand holding a plate with various vegetables and meat, including a duck and rooster (no text or symbols visible)

DHL 53...

DHL 54...

DHL 55...

DHL 57...

DHL 75...

DHL 77...

Technical illustration of a double-lit kitchen range hood with ventilation grilles (no text or symbols)

en Operating and installation instructions

Household Appliances

Filter und Wartung

Illustration of hands installing or adjusting a device panel with arrows indicating process (no text or symbols)

Illustration of hands inserting a device into a rack with a black arrow indicating the direction (no text or symbols present)

Illustration of hands operating a device with a mesh chamber and directional arrows indicating motion (no text or symbols)

Aktivkohlefilter

Technical diagram showing a structural frame with a black X mark above and a 3D panel view below (no text or symbols)

Diagram of a mechanical assembly with layered components and a magnified inset showing a component (no text or symbols)

Diagram illustrating fluid flow around a curved pipe with directional arrows, surrounded by circular patterns (no text or symbols)

Illustration of a hand using a tool to adjust or install a device panel, showing internal components and wiring (no text or symbols present)

Illustration of hands adjusting a mechanical component with two inset views showing close-up details (no text or symbols)

Diagram illustrating a sewing machine operation with labeled parts and tool path

Technical illustration of a car interior showing structural components and hand positioning (no text or symbols)

Technical diagram of a mechanical device with internal components and a magnified inset showing a close-up view (no text or symbols)

Illustration of a hand holding a light bulb over a surface, no text or symbols present

Technical illustration of a mechanical assembly with circular components and a tool, showing cross-sectional views (no text or symbols)

Diagram showing two mechanical components with directional arrows indicating flow or movement, no text or symbols present.

Diagram showing two mechanical or fluidic channel structures with flow arrows indicating direction (no text or symbols present)

Technical illustration of a mechanical assembly with screws and a base plate (no text or symbols)

Umluftbetrieb

Diagram of a mechanical or structural component with directional arrows, adjacent to a brick wall (no text or symbols)

Technical illustration of a mechanical assembly with a hand holding a tool, showing components like screws and a magnified inset (no text or symbols)

Montagefeder

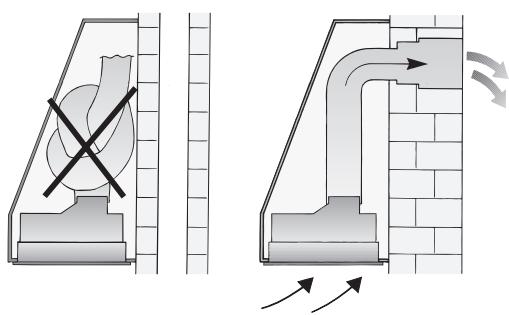

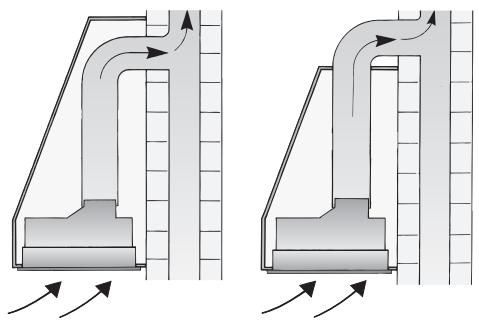

☐ The ventilator fan draws the vapours produced during cooking into the extractor hood, where they pass through the grease filter and out into the open air.
☐ The grease filter absorbs the grease contained in the vapours produced during cooking.
☐ The kitchen is kept almost totally free from grease and odours.

Circulating-air mode

☐ An activated carbon filter must be fitted for this operating mode (see Filters and maintenance).
Activated carbon filters can be purchased from specialist outlets (see Optional accessories on the last page).
☐ The ventilator fan draws the vapours produced during cooking into the extractor hood, where they pass through the grease filter and the activated carbon filter before the clean air is discharged back into the kitchen.
☐ The grease filter absorbs the grease contained in the vapours produced during cooking.
☐ The activated carbon filter absorbs any odorous substances.

Before using the first time

Important notes

This extractor hood complies with all relevant safety regulations.

Repairs should only be carried out by qualified specialists.

⚠️ If the connection cable of this appliance is damaged, it must be replaced by the manufacturer, his customer service or a similarly qualified person in order to prevent a hazardous situation.

Improperly executed repairs can give rise to significant hazards for the user.

Before using the first time

⚠ The appliance is not intended for use by young children or infirmed persons without supervision.
Young children should be supervised to ensure they do not play with the appliance.
⚠ The appliance should only be connected up to the mains and taken into use by a qualified specialist.
⚠ Dispose of packaging materials properly (see Installation instructions).
⚠️ Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.
Light bulbs must always be fitted when the extractor hood is in use.
⚠️ Never operate the extractor hood without a grease filter.
⚠️ Overheated fat or oil can easily catch fire.
If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended.
⚠ Do not flambé food directly under the extractor hood.
! Risk of grease filter catching fire due to flames.
⚠ The hotplates must always be covered with a utensil.
Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).

Gas hobs / Gas cookers

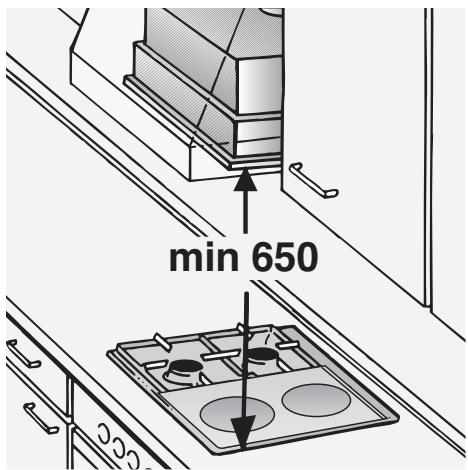

⚠ Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if the housing surfaces are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously.

How to operate the extractor hood

⚠ The most effective method of removing vapours produced during cooking is to:

☐ Switch the ventilator ON as soon as you begin cooking.
☐ Switch the ventilator OFF a few minutes after you have finished cooking.

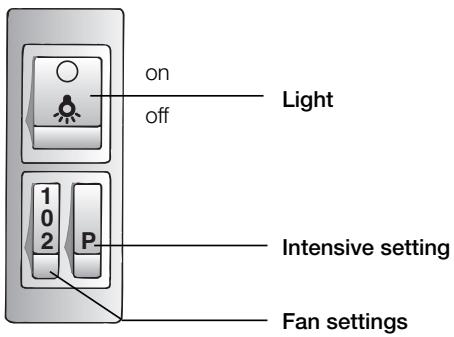

Operating controls on different models

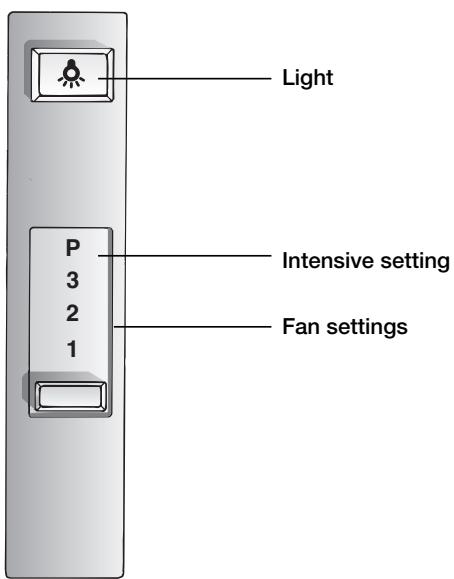

on off Light 10 2 P Intensive setting Fan settings

Light P 3 2 1 Intensive setting Fan settings

Note: The light can be switched on at any time, including when the vapour extractor tray has been pushed back into the hood.

Filters and maintenance

Various types of grease filter can be used to absorb the grease contained in the vapours produced during cooking.

Fleece grease filter

The filter mat is made from material that is itself virtually non-inflammable.

Caution:

As it becomes more and more saturated with grease however, the filter becomes increasingly inflammable. The efficiency of the extractor hood can also be adversely affected.

Important:

Renewing the fleece filter at appropriate intervals prevents the possibility of it catching fire as a result of a build-up of heat, such as occurs when deep-fat frying or roasting is taking place.

Renewing the fleece filter:

☐ Under normal operating conditions (1 to 2 hours per day), the fleece filter will require replacing after 8 to 10 weeks. Printed fleece filters must be renewed no later than when the coloured printing has started to fade.
☐ Use only original replacement filters. In so doing you will ensure that safety regulations are upheld and the extractor hood performs as effectively as possible.

Disposing of the old fleece grease filter:

⚠️ Fleece grease filters do not contain any pollutants. They can be composted and disposed of as biodegradable waste.

Metal grease filter

The filter mat is made of non-combustible metal.

Caution:

As it becomes more and more saturated with grease, the filter also becomes increasingly inflammable. The efficiency of the extractor hood can also be adversely affected.

Important:

Clean the metal grease filter at regular intervals.

Cleaning the metal filter:

Under normal operating conditions (1 to 2 hours per day), the metal grease filter will require cleaning after 8 to 10 weeks.

☐ The filter can be cleaned in a dishwasher.
This can however cause slight discoloration.

Important:

Metal filters that are heavily saturated with grease should not be cleaned at the same time as any crockery, etc.

☐ If the filter mat is going to be cleaned by hand, soak it first of all in a hot detergent solution for several hours.
Clean the filter with a brush, rinse it off thoroughly and allow it to drip dry.

☐ Use only original replacement filters.

In so doing you will be ensuring that the extractor hood performs as effectively as possible.

Removing and installing the grease filter

Extractor hoods with a filter mat:

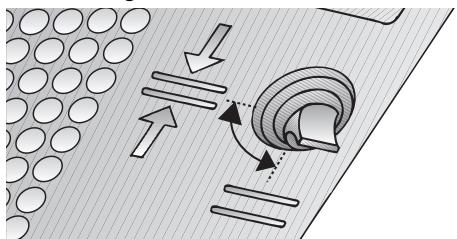

1. Rotate the handles on the left and right of the filter grille.

Diagram illustrating fluid flow around a circular object with directional arrows, no text or symbols present

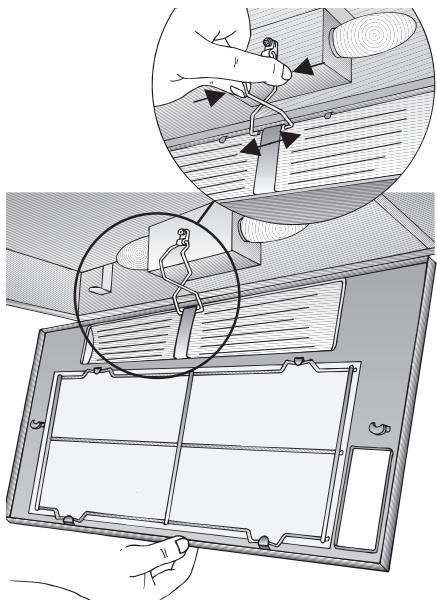

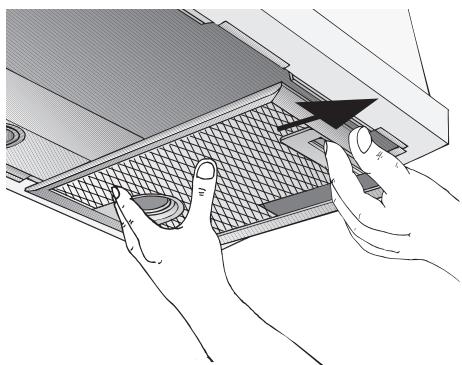

1. Press the retaining spring and remove the filter frame.

Technical illustration of a ceiling-mounted air conditioner unit with hand and magnified views showing internal components (no text or symbols)

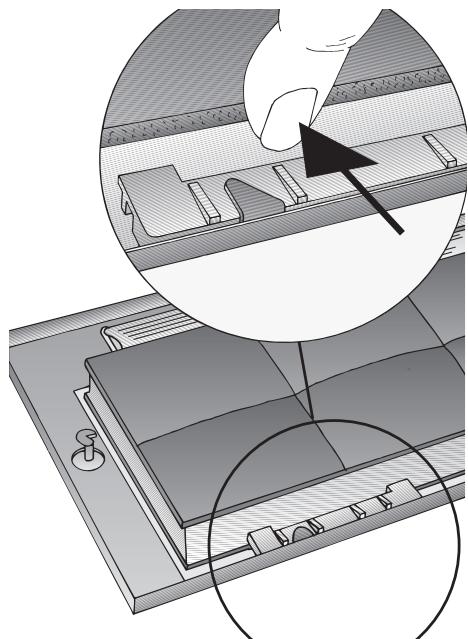

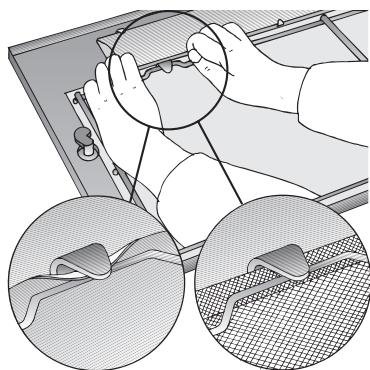

1. Remove the wire grille and replace the filter mat.

Illustration of hands using a magnified tool to inspect or repair a component, with two circular insets showing different material types (no text or symbols present)

1. Install the filter frame in reverse sequence.

⚠️ Re-attach the retaining spring.
⚠ The left and right sides of the filter frame must lock into position!

Filters and maintenance

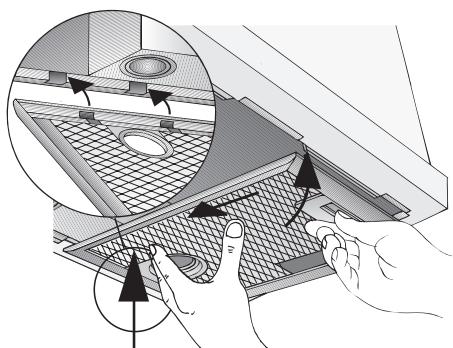

Extractor hoods with two filter cartridges:

Warning: The halogen bulbs must be switched off and cool.

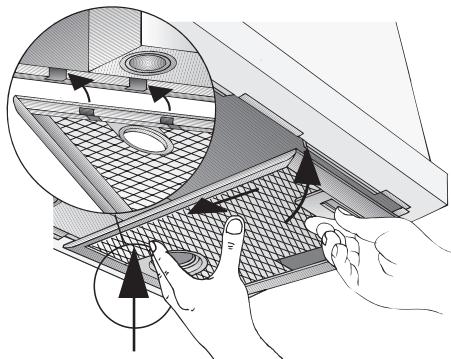

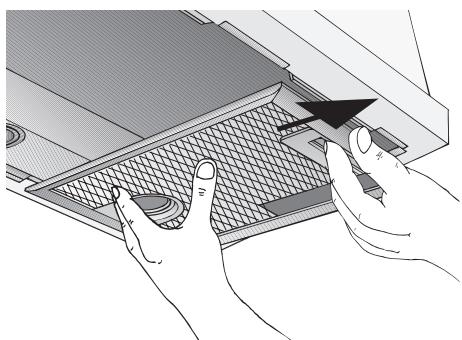

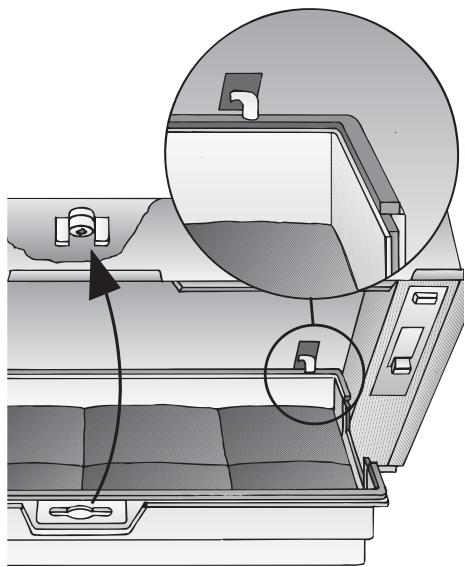

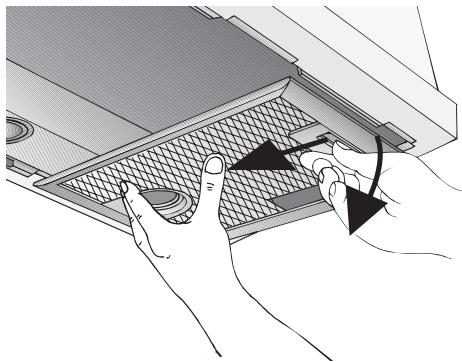

1. Depress the detent on the grease filters in the direction of the arrow and fold down the grease filter slightly. Detach the grease filter by pulling it towards yourself.

Illustration of hands installing or adjusting a mesh panel inside a computer rack (no text or symbols visible)

Illustration of hands installing a grid-patterned device into a computer (no text or symbols visible)

1. Clean the grease filters.

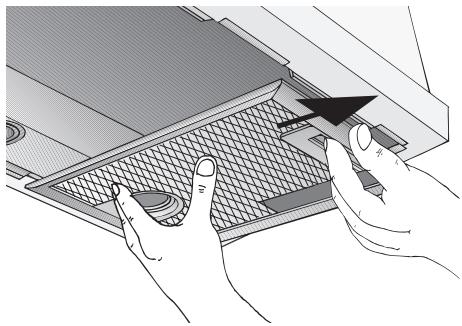

2. Re-insert the clean grease filters.

Illustration of hands operating a device with a magnified inset showing internal components (no text or symbols)

Activated carbon filter

Removing and installing the activated carbon filter

Extractor hoods with a filter mat:

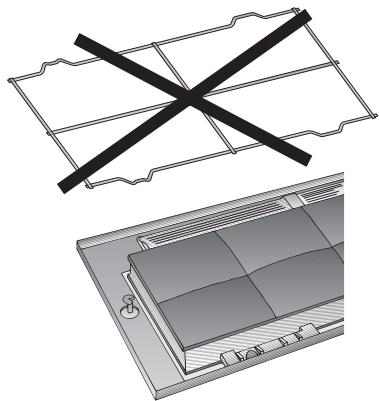

1. Remove the filter; see grease filter. ☐ The wire grille is no longer required when an activated carbon filter is installed.

Technical diagram showing a structural frame with a black X mark above and a 3D panel view below (no text or symbols)

1. Place the activated carbon filter on the filter mat and clamp it in.

Diagram of a mechanical assembly with layered components and a magnified inset showing a component (no text or symbols)

1. Install the filter frame.

□ See grease filter.

Extractor hoods with two filter cartridges:

1. Remove the filter cartridge.
   □ See grease filter.

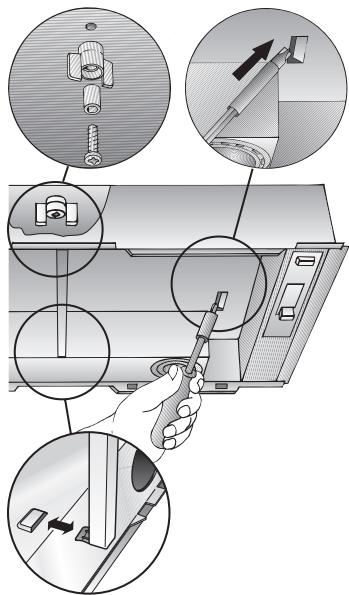

2. Insert the screw through the wing nut and the sleeve and screw in the middle screw in the false bottom (required only during the initial installation). Screw, sleeve and wing nut are enclosed with the activated carbon filter.
3. Using a screwdriver, press in the two lugs on the false bottom. If a spacer rail has been installed, it must be removed.

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating movement or assembly steps.

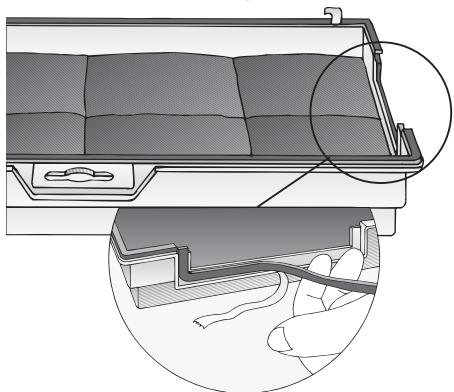

1. Tape over the activated carbon filter with the enclosed sealing strip.


Technical illustration of a car interior showing structural components and hand positioning (no text or symbols)

1. Insert the activated carbon filter at the rear, fold up and lock in the middle with the wing nut. If the spacer rail has been removed, it must be re-installed.

Technical diagram of a mechanical device with internal components and a magnified inset showing a circular detail (no text or symbols)

1. Re-insert the two filter cartridges.

Removing the activated carbon filter:

☐ The activated carbon filter is removed in reverse sequence.

Changing the activated carbon filter:

If used normally (1 to 2 hours daily), the activated carbon filter should be changed approx. once a year.

Activated carbon filters can be purchased from SPECIALIST OUTLETS (see optional accessories on the last page).

Use original filters only. This will ensure optimum performance.

Disposing of the old activated carbon filter:

Activated carbon filters do not contain any pollutants. They can be disposed of e.g. as residual waste.

Switch off the extractor hood and isolate by pulling out the mains plug or switching off the disconnector on the installation side.

☐ At the same time as you renew the grease filter (see Filters and maintenance), clean off any grease from all accessible parts of the housing. This significantly reduces the fire hazard and ensures that the extractor hood performs as effectively as possible.
☐ Clean the extractor hood with a hot detergent solution or a mild window cleaning agent.
☐ If the hood is extremely dirty (older stains), use a liquid window cleaner.
☐ Do not scratch off dried-on dirt, but wipe off with a damp cloth.
☐ Do not use scouring agents.

Warning: Clean the control buttons with a mild detergent solution and a soft, damp cloth only.

Painted, aluminium and plastic surfaces:

☐ Do not use scouring agents or abrasive sponges.
☐ Do not use dry cloths.
☐ Do not use corrosive, acidic or alkaline cleaning agents.
☐ Note: Do not use alcohol (spirit) on plastic parts, otherwise the surface may become matt in appearance.
☐ Caution! Ensure that the kitchen is adequately ventilated. Avoid naked flames.

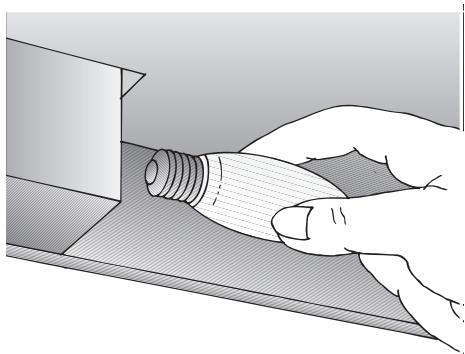

Changing the bulbs

1. Switch off the extractor hood and isolate by pulling out the mains plug or switching off the disconnector on the installation side.
2. Remove the filter frame.
   □ See grease filter.

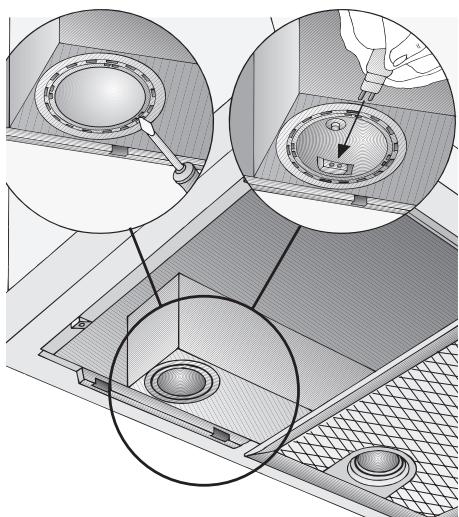

3. Replace the bulb (standard filament bulb, max 40 W, E14 bulb holder).

Illustration of a hand using a tool to apply material onto a component (no text or symbols visible)

1. Attach the filter frame.

□ See grease filter.

Cleaning and care

Halogen bulbs:

1. Switch off the extractor hood and isolate by pulling out the mains plug or switching off the disconnector on the installation side.

⚠ When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.

1. Remove the bulb ring with a screwdriver or similar tool.
2. Replace the halogen light bulb (conventional halogen bulb, 12 Volt, max. 20 Watt, G4 cap).

Caution: Refer to for plug-in lampholder.

Take hold of the bulb with a clean cloth.

Technical illustration of a mechanical assembly with circular components and a tool inserted (no text or symbols)

1. Re-insert the bulb ring.
2. Plug the appliance into the mains or switch it on at the fuse box.

Note: If the light does not function, check that the bulbs have been inserted correctly.

If you encounter a problem

If you have any questions or if a fault occurs, please call Customer Service.

(See list of Customer Service representatives).

When you call, please quote the following:

E-Nr.

FD

Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.

Important information

⚠️ Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable.
⚠️ You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

⚠ The extractor hood can be used in exhaust air or circulating air mode.
⚠️ Always mount the extractor hood over the centre of the hob.
⚠ Minimum distance between electric hob and bottom edge of extractor hood: 650 mm.
The extractor hood must not be installed over a solid fuel cooker – a potential fire hazard (e.g. flying sparks) – unless the cooker features a closed, non-removable cover and all national regulations are observed.
⚠ The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.

Additional information concerning gas cookers:

⚠ When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI).
⚠ Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer.
⚠️ Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm.
⚠️ Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 650 mm.

min 650

Exhaust-air mode

Diagram showing two mechanical components with directional arrows indicating movement or force, mounted on a brick wall (no text or symbols present)

The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located.

Local authority regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if the combustion air can be replenished by being able to flow through non-closeable openings such as in doors, windows, wall ventilation boxes, or by alternative technical measures such as reciprocally shutting the other device off, etc.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Diagram showing two mechanical or fluidic channel structures with flow arrows indicating direction (no text or symbols present)

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

All legal requirements concerning the discharge of exhaust air must be observed.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

The extractor hood should be fitted with a one-way flap for exhaust-air mode if there is not already one installed in the exhaust-air pipe or wall box. If a one-way flap is not enclosed with the appliance, purchase one from a specialist outlet (see optional accessories on the last page).

Attaching the one-way flap

☐ Insert the two lugs on the one-way flap into the holes on the air-pipe connector or air outlet and lock into position.

⚠️ Before installing the one-way flap, ensure that the lettering or stamp is on the outside.

Optimum performance of the extractor hood:

☐ Short, smooth extraction pipe.
☐ As few pipe bends as possible.
☐ Largest possible pipe diameter (preferably 150 mm ∅) and large pipe bends.

Round pipes:

We recommend for single-motor model, inner diameter of at least 120 mm for double-motor model. inner diameter of at least 150 mm

☐ Flat ducts must have an inner cross-section equivalent to round pipes which have an inner diameter of 120/150 mm.
120 mm ∅ approx. 113 cm²
150 mm ∅ approx. 177 cm²

☐ If pipe diameters differ: use sealing strip.

☐ Ensure an adequate air supply for exhaust-air mode.

Pipe connection

Extractor hoods with 120 mm ∅ air outlet:

100 mm ∅ extraction pipe

☐ Insert the reducing connector (see optional accessories on the last page) into the air-pipe connector and then attach the exhaust-air pipe.

120 mm ∅ extraction pipe

☐ Attach the exhaust-air pipe directly to the air-pipe connector.

Extractor hoods with 150 mm ∅ air outlet:

150 mm ∅ extraction pipe

☐ Screw the reducing connector (see optional accessories on the last page) onto the air outlet.
☐ Attach the extraction pipe to the reducing connector.

150 mm ∅ extraction pipe

☐ Attach the exhaust-air pipe directly to the air outlet..

⚠️ If a one-way flap has been fitted, conduct a performance test.

Extractor hoods with rectangular air outlet:

☐ Screw the enclosed air-pipe connector over the air outlet.

Technical illustration of a mechanical assembly with screws and a base, showing no text or symbols.

Recirculated air mode

Diagram of a mechanical or structural component with directional arrows, adjacent to a brick wall (no text or symbols)

☐ The air cleaned by an additional activated carbon filter is conveyed back into the room.
☐ In recirculated air mode the exhaust opening must be protected by a grille (see optional accessories on the last page) in order to prevent a mechanical or electrical hazard.

Electrical connection

The extractor hood must be connected to a correctly installed earthed socket only.

Attach the earthed socket as close to the appliance as possible and in an accessible position. If the earthed socket is no longer accessible following installation of the extractor hood, a disconnector must be provided on the installation side. Disconnectors are switches with a contact opening of more than 3 mm and all-pole disconnection. LS switches and contactors are regarded as disconnectors.

The appliance must be isolated before repairs are carried out.

Repairs may be carried out by authorised technicians only.

⚠️ If the connection cable of this appliance is damaged, it must be replaced by the manufacturer, his customer service or a similarly qualified person in order to prevent a hazardous situation.

Improper repairs may put the user at considerable risk.

Length of connection cable: 1.20 m.

Electrical specifications:

The electrical specifications can be found on the rating plate inside the appliance when the filter frame has been removed.

⚠ Do not place hand in the air outlet.

This appliance complies with the EC radio interference suppression regulations.

Installation

The extractor hood is particularly suitable for installation in a flue or chimney.

To ensure optimum extraction performance

(especially important for kitchen island solutions):

☐ Install the extractor hood as high as possible within the structure
☐ The structure must cover the entire cooking area.

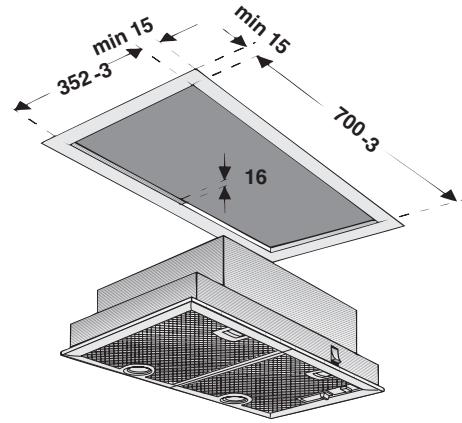

The following cutouts must be made for the installation depending on the model:

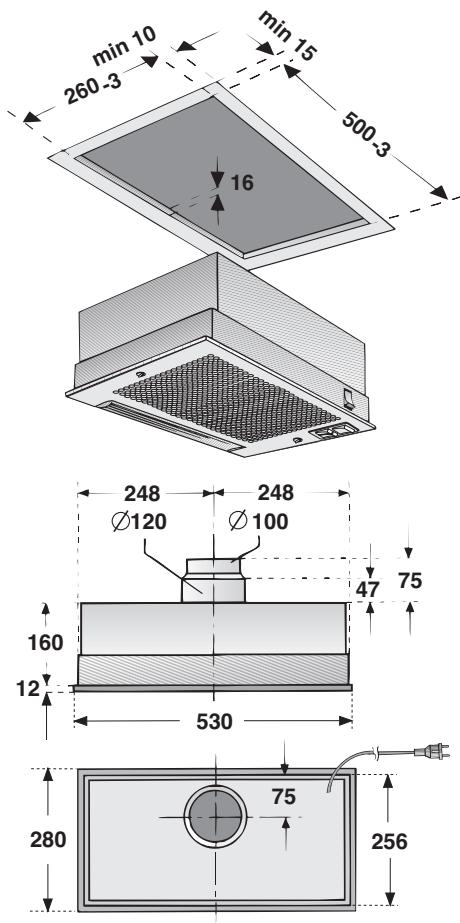

Extractor hood with rocker switch, 53 cm wide, 1-motor:

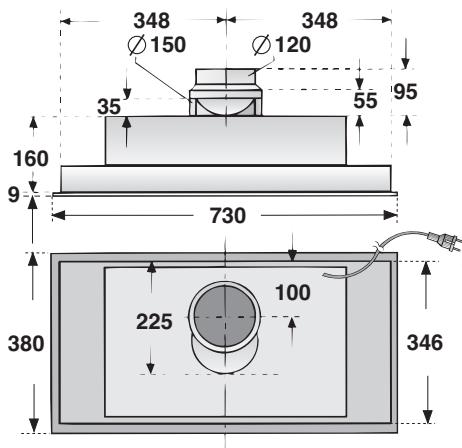

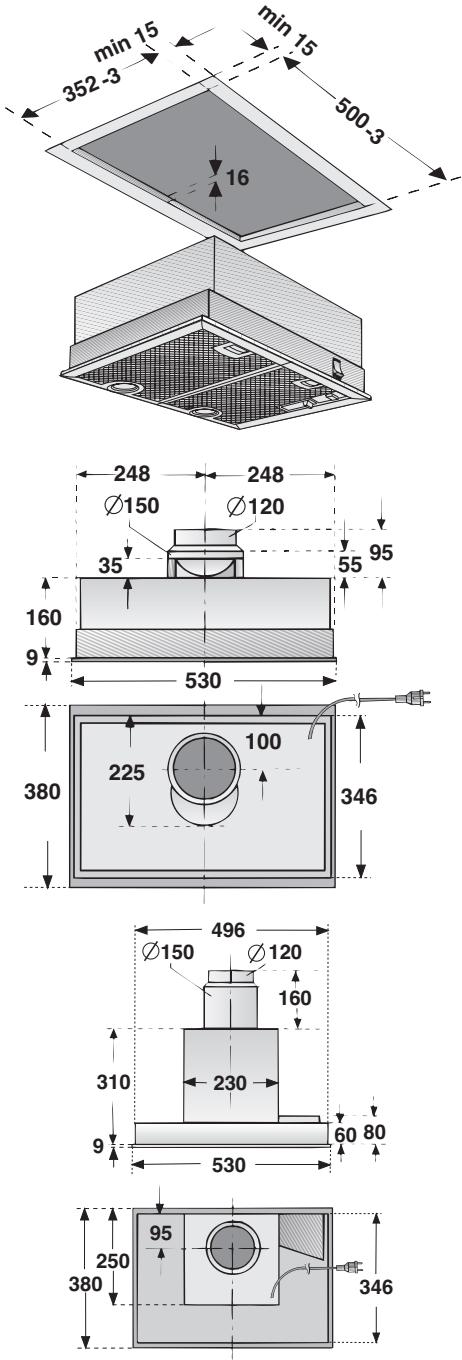

Extractor hood with slide control, 53 cm wide, 1 and 2-motor:

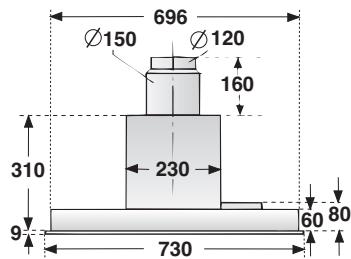

Extractor hood with slide control, 73 cm wide, 1 and 2-motor

min 15 352 -3 min 15 700 -3 16

348 Ø150 Ø120 35 55 95 160 9 730 225 100 380 346

696 Ø150 Ø120 160 310 230 9 730 60 80

95 250 380 346

Installation

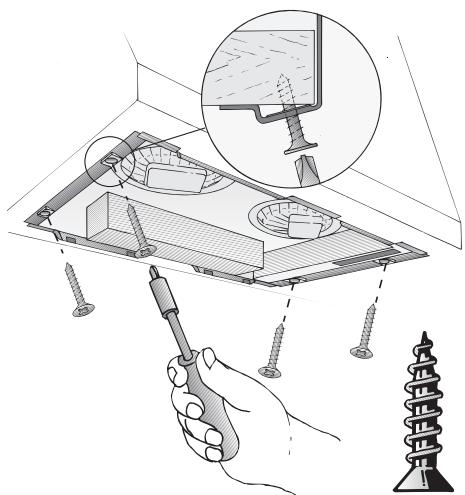

1. Remove the filter grille (see operating instructions).
2. Connect the power.
3. Press the extractor hood up into the installation opening until the installation aid locks into position at the front and rear.
4. Screw in the extractor hood.

Technical illustration of a hand using a tool to install a mechanical component with screws, alongside a close-up view of a mechanical assembly (no text or symbols present)

1. Insert and secure the filter grille (see operating instructions).

Weight in kg:

Model	Width	Exhaust air	Recirculated air
1-motor Rocker switch	53 cm	5,0	6,3
1-motor Slide control	53 cm	9,5	10,7
1-motor Slide control	73 cm	10,3	11,6
2-motor Slide control	53 cm	8,3	9,5
2-motor Slide control	73 cm	8,7	9,9

Design changes with respect to technical development shall remain withheld

Removal

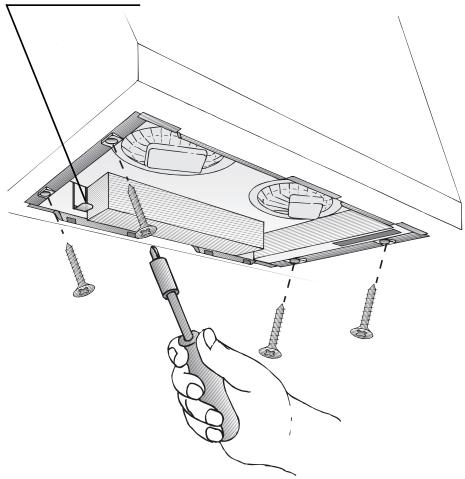

1. Loosen the screws.
2. Hold the underside of the extractor hood, Hold the underside of the extractor hood.

Installation spring

Technical illustration of a hand using a screwdriver to install a component on a ceiling fixture (no text or symbols present)

1. Lower the extractor hood and remove.

Diagram showing directional arrows and circular patterns on a grid background (no text or symbols)

Illustration of a hand holding a device with a magnified inset showing the cable being inserted into a panel (no text or symbols present)

Illustration of hands adjusting a component with magnified views showing fabric texture (no text or symbols)

Illustration of hands installing or adjusting a mesh ventilation grille into a computer (no text or symbols visible)

Illustration of hands installing a component on a device (no text or symbols visible)

Illustration of hands installing or adjusting a mechanical component with a mesh grid and circular components (no text or symbols)

Diagram showing a window frame with a black X mark above and a 3D panel with a grid on the bottom (no text or symbols)

Diagram of a mechanical assembly with layered components and a magnified inset showing a hand interacting with a component (no text or symbols present)

Diagram illustrating a sewing machine operation with labeled parts and directional arrows indicating steps

Technical illustration of a mechanical assembly with cross-sectional view and detail view (no text or symbols)

Technical diagram of a mechanical device with internal components and a magnified inset showing a close-up view (no text or symbols)

Illustration of a hand holding a light bulb over a surface, no text or symbols present

Technical illustration of a mechanical assembly with circular components and a tool, showing close-up views (no text or symbols)

Diagram showing two mechanical components with directional arrows indicating movement or force, mounted on a brick wall (no text or symbols present)

Diagram showing two mechanical or fluidic channel structures with flow arrows indicating direction (no text or symbols present)

3D diagram of a mechanical assembly with screw fasteners and a conical component (no text or symbols)

Mode Air recyclé

Diagram of a structural support system with directional arrows indicating flow or movement, adjacent to a brick wall (no text or symbols)

Technical illustration of a hand using a tool to install a mechanical component, with an inset showing a magnified view of a component (no text or symbols present)

Technical illustration of a hand using a screwdriver to install a component under a ceiling fixture (no text or symbols present)

Diagram illustrating fluid flow around a circular object with directional arrows, no text or symbols present

Illustration of a hand installing or adjusting a ceiling-mounted fixture with a close-up view of the component (no text or symbols present)

Illustration of hands adjusting a mechanical component with two circular insets showing close-up views (no text or symbols)

Illustration of hands inserting a component into a device with a mesh grille (no text or symbols)

Illustration of hands inserting a device into a rack with a tool (no text or symbols visible)

Illustration of hands operating a device with a mesh chamber and directional arrows indicating motion (no text or symbols)

Actieve-koolfilter

Technical diagram showing a structural frame with a black X-marked cross above and a 3D view of a rectangular component with internal layers (no text or symbols)

Illustration of a mechanical assembly with a magnified inset showing a hand interacting with a component (no text or symbols present)

Diagram illustrating a hand holding a screwdriver with three views of the device's internal components and adjustment arrows.

Technical illustration of a car interior showing structural components and hand positioning (no text or symbols)

Technical diagram of a mechanical assembly with highlighted components (no text or symbols)

1. Breng de twee filtercassettes weer aan.

Uitbouwen:

Illustration of a hand using a tool to apply material to a component (no text or symbols visible)

Technical illustration of a mechanical assembly with circular components and a tool inserted (no text or symbols)

Diagram showing two mechanical components with directional arrows indicating flow or movement, no text or symbols present.

Diagram showing two mechanical or fluidic channel structures with flow arrows, no text or symbols present.

Technical illustration of a mechanical assembly with screws and a conical component (no text or symbols)

Diagram of a mechanical or structural component with directional arrows, adjacent to a brick wall (no text or symbols)

Technical illustration of a hand using a tool to install a component, with an inset showing a magnified view of a mechanical component (no text or symbols present)

Diagram showing directional arrows and circular patterns on a textured surface (no text or symbols)

Illustration of a hand installing or adjusting a ceiling-mounted device with a magnified inset showing the process (no text or symbols present)

Illustration of hands adjusting a mechanical component with magnified views showing detail (no text or symbols)

Two-step diagram showing hands installing or adjusting a grid-patterned panel on a device (no text or symbols present)

Illustration of hands interacting with a mechanical component, showing internal structure and motion arrows (no text or symbols)

Technical diagram showing a structural frame with a black X-shaped symbol above and a 3D panel with internal compartments (no text or labels)

Diagram of a mechanical assembly with layered components and a magnified inset showing a hand interacting with a component (no text or symbols present)

1. Montare la cornice del filtro.

Diagram illustrating a hand holding a tool with three views of a device, showing mechanical components and application steps.

Technical illustration of a vehicle interior showing structural components and a close-up of hands holding a car (no text or symbols present)

Technical diagram of a mechanical device with internal components and highlighted parts (no text or symbols)

Illustration of a hand holding a light bulb over a surface, no text or symbols present

Technical illustration of a mechanical assembly with circular components and a tool, showing cross-sectional views (no text or symbols)

Diagram showing two mechanical components with directional arrows indicating movement or force, mounted on a brick wall (no text or symbols present)

Diagram showing two mechanical or fluidic channel structures with flow arrows indicating direction (no text or symbols present)

3D diagram of a mechanical assembly with screw and nut components (no text or labels)

Diagram of a mechanical or structural component with directional arrows, adjacent to a brick wall (no text or symbols)

Technical illustration of a hand using a tool to install a mechanical component, with an inset showing a magnified view of a component (no text or symbols present)

Technical illustration of a hand using a screwdriver to install a component under a ceiling fixture (no text or symbols present)

Diagram showing directional arrows and circular patterns on a textured surface (no text or symbols)

Illustration of a hand using a tool to install a component, showing a magnified view of the assembly (no text or symbols present)

Illustration of hands adjusting a panel with two views of a mesh material (no text or symbols)

Illustration of hands installing or adjusting a component on a device (no text or symbols visible)

Illustration of hands installing or adjusting a grid-patterned device component (no text or symbols visible)

Illustration of hands operating a device with a mesh chamber and directional arrows indicating motion (no text or symbols)

Architectural diagram showing a window frame with a black X-shaped mark and a close-up of the interior panel (no text or symbols)

Illustration of a document or office setup with a magnified inset showing a file tray and a black arrow pointing to a document (no text or symbols present)

Diagram illustrating a hand holding a screwdriver with three views of the device, showing mechanical components and tool application steps.

Technical illustration of a car interior showing structural components and hand positioning (no text or symbols)

Technical diagram of a mechanical assembly with internal components and a magnified inset showing a close-up view (no text or symbols)

Illustration of a hand holding a light bulb on a surface, no text or symbols present

Technical illustration of a mechanical assembly with circular components and a tool inserted (no text or symbols)

Diagram showing two mechanical components with directional arrows indicating movement or force, mounted on a brick wall (no text or symbols present)

Diagram showing two mechanical or fluidic channel structures with flow arrows indicating direction (no text or symbols present)

3D diagram of a mechanical assembly with screw and pin components (no text or symbols)

Diagram of a mechanical or structural component with directional arrows, adjacent to a brick wall (no text or symbols)

Technical illustration of a hand using a tool to install a mechanical component with screws, alongside a close-up view of a mechanical assembly (no text or symbols present)

Technical illustration of a hand using a screwdriver to install a component under a ceiling fixture (no text or symbols present)

Diagram showing directional arrows and circular patterns on a textured surface (no text or symbols)

Illustration of a hand holding a tool interacting with a device panel, showing mechanical components and wiring (no text or symbols present)

Illustration of hands adjusting a panel with magnified views of the cable and mesh (no text or symbols)

Two-step diagram showing hands installing or adjusting a grid-patterned panel inside a device (no text or symbols present)

1. Limpe os filtros de gorduras.
2. Volte a montar os filtros de gorduras limpos.

Illustration of hands interacting with a mechanical component, showing internal structure and motion arrows (no text or symbols)

Architectural diagram showing a window frame with a black X-shaped mark and a close-up of the interior panel (no text or symbols)

Diagram of a mechanical assembly with layered components and an inset magnified view showing a hand interacting with a component (no text or symbols present)

Diagram illustrating a hand operating a device with multiple close-up views of the component, including screw, lock, and cable.

Technical illustration of a car interior showing structural components and hand positioning (no text or symbols)

Technical diagram of a mechanical device with internal components and a magnified inset showing a close-up view (no text or symbols)

Illustration of a hand holding a light bulb over a surface, no text or symbols present

Technical illustration of a mechanical assembly with circular components and a tool inserted (no text or symbols)

Diagram showing two mechanical components with directional arrows indicating movement or force, mounted on a brick wall (no text or symbols present)

Diagram of a pipe or duct system with directional arrows indicating flow or movement (no text or symbols present)

Diagram of a pipe system with directional arrows indicating flow or movement (no text or labels)

3D diagram of a mechanical assembly with screw fasteners and a conical component (no text or symbols)

Technical illustration of a hand using a tool to install a mechanical component with screws, alongside a close-up view of a mechanical assembly (no text or symbols present)

Technical illustration of a hand using a screwdriver to install a component under a ceiling fixture (no text or symbols present)
