Brand	HiKOKI
Model	H 41SA3
Product Type	Demolition Hammer (Rotary Hammer)
Power Input	1050 W
Impact Rate (Full Load)	3000 bpm
Weight	4.8 kg (10.6 lbs)
Voltage	110–230 V ~ (multi-voltage)
Power Source	Corded electric
Applications	Concrete demolition, chiseling, grooving, bar cutting
Included Accessories	Plastic case, side handle, bull point (hexagon shank)
Handle Type	D-handle with side handle
Vibration Control	Low Vibration Handle (LVH)
Protection Class	Class II (double insulated)
Safety Features	Auto-stop carbon brushes, RCD recommended
Lubrication	Grease lubrication; replace every 6 months
Carbon Brushes	Replaceable, auto-stop type

Frequently Asked Questions - H 41SA3 HiKOKI

How do I install the side handle on the H 41SA3?

Refer to Figure 2 in the manual. Align the side handle with the mount on the cylinder case cover and tighten the handle bolt securely. Always use the side handle to maintain control.

How do I insert and remove hexagon tool bits?

To insert, pull back the slide grip (2), insert the hexagon shank into the tool shank (1) until it locks, then release the slide grip. To remove, pull back the slide grip and pull out the bit. Ensure the tool is switched off and unplugged before changing bits.

How do I switch the demolition hammer on and off and lock it on?

Press the trigger switch (5) to start; release to stop. To lock on, press the trigger and then push the on-lock switch (4). To release, press the trigger again. Always disconnect power when not in use.

What is the warming up procedure in cold conditions?

In cold regions, the grease lubrication system may require warming up. Position the bit against concrete, turn on the switch, and let it run until a hitting sound is produced. Then the unit is ready for use.

How often should the grease be replaced?

Replace the grease every 6 months of usage. Take the tool to an authorized HiKOKI service center for grease replacement to ensure proper lubrication.

How do I replace the carbon brushes?

First, disconnect the plug. Remove the tail cover (11) by loosening the set screws, then remove the brush caps (8). Replace both carbon brushes (20) with new ones of the same number. Tighten caps securely and reinstall the tail cover.

What safety precautions should be taken when operating?

Always wear eye protection, ear protectors, and a dust mask. Use the side handle, keep proper footing, and avoid contact with hidden wiring. Use an RCD (30 mA or less) for damp locations. Do not touch the bit during or after use as it becomes hot.

What accessories are included with the H 41SA3?

Included accessories: a plastic case, a side handle, and a bull point (hexagon shank). Standard accessories are subject to change without notice.

What applications is the H 41SA3 suitable for?

It is designed for demolishing concrete, chiseling off concrete, grooving, and bar cutting. Typical uses include installation of piping, wiring, sanitary facilities, machinery, and civil engineering works.

What are the power and weight specifications?

The H 41SA3 has a power input of 1050 W, an impact rate of 3000 bpm, and weighs 4.8 kg (10.6 lbs). It operates on voltages from 110 V to 230 V AC.

USER MANUAL H 41SA3 HiKOKI

Line drawing of a handheld drill press tool with a pointed tip, enclosed in a circular frame (no text or symbols)

2

3

4

5

6

7

Line drawing of a hand using a drill bit on a tool, with no text or symbols present.

8

Technical line drawing of a mechanical device with no visible text or symbols

V	(110V, 220V, 230V) ~
P	1050 W
Bpm	3000 /min
	4.8 kg

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents

b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodifi ed plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

PRECAUTION

Keep children and infi rm persons away.

When not in use, tools should be stored out of reach of children and infi rm persons.

DEMOLITION HAMMER SAFETY WARNINGS

1. Wear ear protectors

Exposure to noise can cause hearing loss.

1. Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal injury.

1. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.

Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

ADDITIONAL SAFETY WARNINGS

1. Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate.
2. Ensure that the power switch is in the OFF position. If the plug is connected to a receptacle while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.
3. When the work area is removed from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.
4. Do not touch the bit during or immediately after operation. The bit becomes very hot during operation and could cause serious burns.
5. Before starting to break, chip into a wall, floor or ceiling, thoroughly confirm that such items as electric cables or conduits are not buried inside.
6. At the start of work, confi rm screw tightening.
7. When working at a highly elevated location, pay attention to articles and persons below.
8. Wear protective shoes to protect your feet.
9. Wear a dust mask.

Do not inhale the harmful dusts generated in chiseling operation. The dust can endanger the health of yourself and bystanders.

1. Mounting the tool

☐ To prevent accidents, make sure to turn the switch off and disconnect the plug from the receptacle.
When using tools such as bull points, make sure to use the genuine parts designated by our company.
○ Clean the shank portion of the bull point. Then smear the shank portion with the grease or machine oil.
11. Be sure to grip the handle and side handle or cylinder case cover during work. Do not hold by the slide grip during work. If you pull it by mistake, the bull point could jump out.
12 RCD The use of a residual current device with a rated residual current of 30mA or less at all times is recommended.

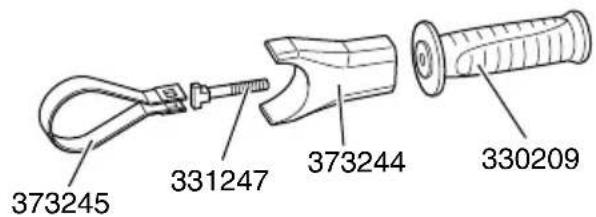

NAMES OF PARTS (Fig. 1 – Fig. 8)

1	Tool Shank
2	Slide Grip
3	Front Cover
4	On-lock Switch
5	Trigger Switch
6	Handle
7	Nameplate
8	Brush Cap (Inside the Tail Cover)
9	Set screw (Under the Plate)
10	Plate
11	Tail Cover
12	Housing
13	Side Handle
14	Cylinder Case Cover
15	Band
16	Handle Bolt
17	Mount
18	Band attachment area
19	Grease or machine oil
20	Carbon brush

SYMBOLS

WARNING

The following show symbols used for the machine. Be sure that you understand their meaning before use.

	H41SA3: Demolition Hammer
LVH	Low Vibration Handle
	To reduce the risk of injury, user must read instruction manual
cutter	Rated voltageEnsure that the power source to be utilizedconforms to the power requirementsspecified on the product nameplate.
V
P	Power Input
Bpm F	Full-load impact rate
	Weight
	Switching ON
	Switching OFF
	Disconnect mains plug from electrical outlet
	Class II tool
	Prohibited action

STANDARD ACCESSORIES

In addition to the main unit (1 unit) contains the accessories listed in the below.

○ Plastic case 1
○ Side handle 1
○ Bull point (Hexagon shank) 1

Standard accessories are subject to change without notice.

APPLICATIONS

Demolishing concrete, chiseling off concrete, grooving, bar cutting.

Application examples:

Installation of piping and wiring, sanitary facility installation, machinery installation, water supply and drainage work, interior jobs, harbor facilities and other civil engineering works.

SPECIFICATIONS

The specifications of this machine are listed in the Table on page 6.

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

MOUNTING AND OPERATION

Action Figure Page

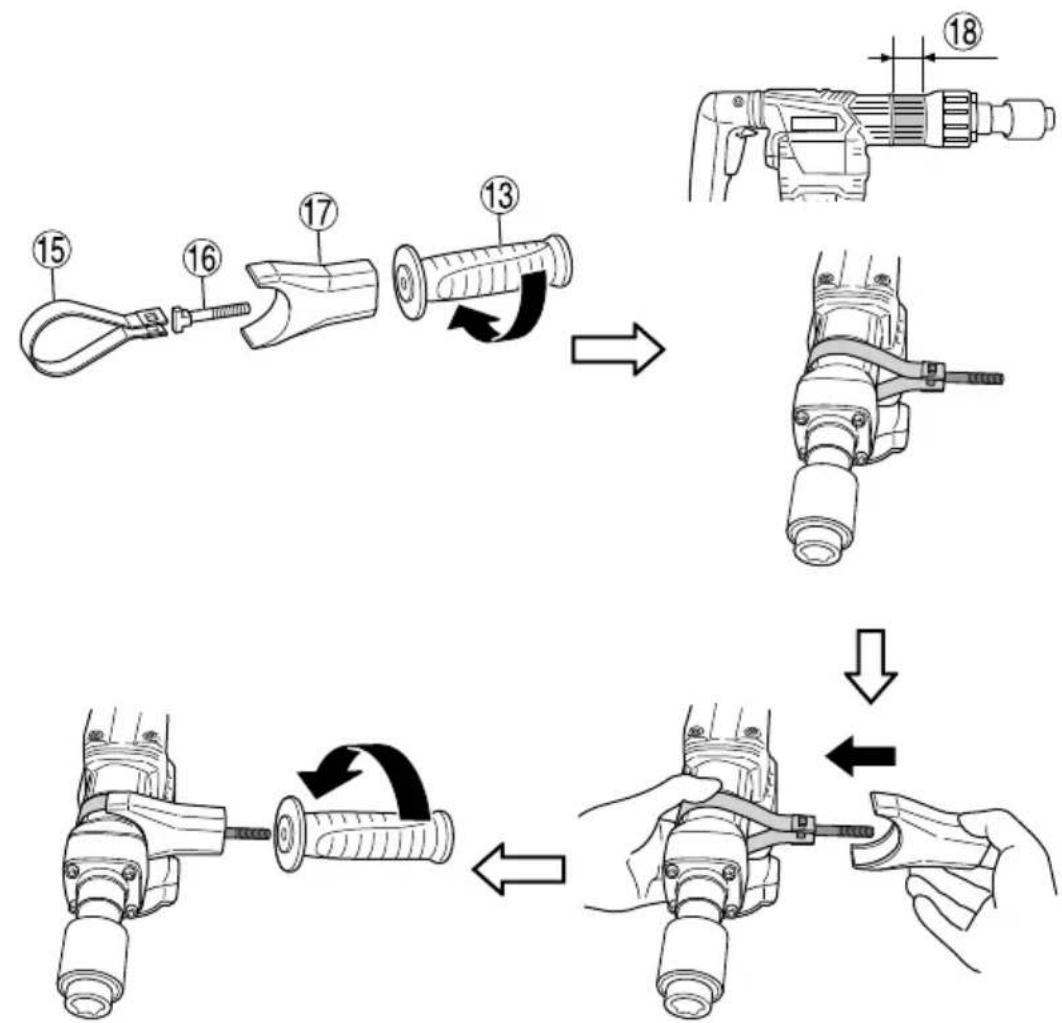

Installing the side handle 2 2
Inserting and removing hexagon tools	3	3

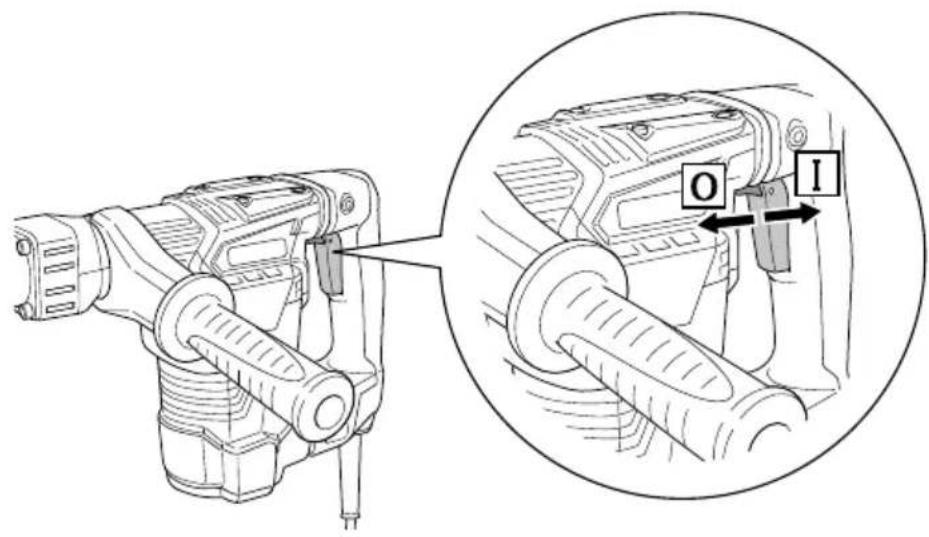

Switching on and off	4	3

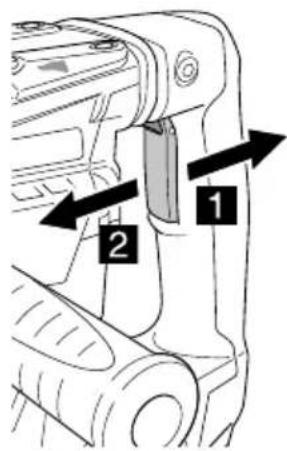

Locking-on the On / Off switch 5 3
Releasing the On / Off switch 6 3
Replacing carbon brushes	8	4

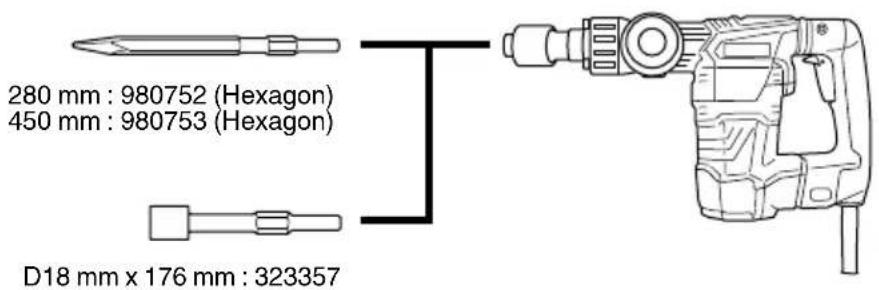

Selecting accessories*1	-	5

*1: The round type bit with a collar cannot be attached. For detailed information regarding each tool, contact a HiKOKI authorized service center.

Operate this Demolition Hammer by utilizing its own weight. The performance will not be better even if it is pressed or thrust forcibly against the work surface.

Hold this Demolition Hammer with a force just sufficient to counteract the reaction.

CAUTION

After long time of use, the front cover becomes hot. Therefore, be careful not to burn your hands.

Warming up (Fig. 7)

The grease lubrication system in this unit may require warming up in cold regions.

Position the end of the bit so makes contact with the concrete, turn on the switch and perform the warming up operation. Make sure that a hitting sound is produced and then use the unit.

GREASE REPLACEMENT

This Dempliation-Kagner is of full air-tight construction to protect against dust and to prevent lubricant leakage.

Therefore, this Demolition Hammer can be used without lubrication for long periods. Replace the grease as described below.

Grease Replacement Period

After purchase, replace grease after every 6 months of usage. Ask for grease replacement at the nearest authorized Service Center.

MAINTENANCE AND INSPECTION

CAUTION

Be sure to switch OFF and disconnect the attachment plug from the receptacle to avoid a serious accident.

1. Inspecting the tool bits

Since use of a dull tool will cause motor malfunctioning and degraded efficiency, replace the tool bit with new ones or resharpen them without delay when abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool.

Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Inspecting the carbon brushes (Fig. 8)

The Motor employs carbon brushes which are consumable parts. When they become worn to or near the “wear limit” ④, it results in motor trouble.

When an auto-stop carbon brush is equipped, the motor will stop automatically. At that time, replace both carbon brushes with new ones which have the same carbon brush Numbers shown in the Fig. 8. In addition, always keep carbon brushes clean and ensure that they slide freely within the brush holders.

5. Replacing carbon brushes (Fig. 8)

Loosen the two set screws and remove the plate and the tail cover. Remove the brush caps and carbon brushes. After replacing the carbon brushes, do not forget to tighten the brush caps securely and to install the plate and the tail cover.

6. Replacing supply cord

If the replacement of the supply cord is necessary, this has to be done by the manufacturer of this agent in order to avoid a safety hazard.

CAUTION

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.
