Storm II X450 - Smartphone E-Boda - Free user manual and instructions

Product Type	Smartphone
Brand	E-Boda
Model	Storm II X450
Operating System	Android
Display Size	4.5 inches
Display Resolution	480 x 854 pixels
Processor	Quad-core 1.2 GHz
RAM	1 GB
Internal Storage	4 GB
Expandable Storage	microSD card
Rear Camera	5 MP
Front Camera	0.3 MP
Battery Capacity	1800 mAh (built-in)
Dimensions	132 x 66 x 10 mm
Weight	140 g
SIM Card	Dual SIM (Mini-SIM)
Network	GSM / 3G
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0, GPS, microUSB 2.0
Audio Jack	3.5 mm
Sensors	Accelerometer, proximity
Battery Charger	5V/1A
Maintenance	Keep dry, avoid extreme temperatures, use authorized charger
Safety	Do not disassemble, avoid magnetic fields, comply with European directives
Spare Parts & Repairability	Battery is built-in and not user-replaceable; repair should be done by authorized service center

Frequently Asked Questions - Storm II X450 E-Boda

How do I lock and unlock the screen?

Press the power button to lock the screen (sleep mode). To unlock, press the power button again and drag the lock icon to the right.

How can I add widgets or icons to the home screen?

Enter the Launcher, then long-press an app icon until it appears on the home screen. Release to place it. To rearrange, long-press and drag to a new location. To remove, drag to the 'Remove' area.

How do I make a call?

From the home screen, open the dialer and enter the phone number, then press the call icon. You can also slide the screen to the right to quickly call a number.

Can I reject an incoming call with a message?

Yes. When receiving a call, drag the circle upward to show predefined busy messages. Tap one to send it and reject the call.

How do I add a new contact?

Open the Contacts app, tap the '+' icon, then choose to save the contact to the phone or SIM card. Fill in the details and save.

How do I set up email?

For Gmail, open the Gmail app and follow the setup wizard. For other accounts, open Email, enter your address and password, and configure the server settings manually if needed (POP3, SMTP).

How can I use GPS for navigation?

Go to Settings > Location and enable 'Use GPS satellites' and optionally 'Use wireless networks' for faster location. Ensure data connection is on for map downloads. Note that Google Maps requires internet.

How do I move apps to the SD card?

Go to Settings > Apps, select the app, and if supported, tap 'Move to SD card'. Not all apps can be moved.

What should I do if the battery is not charging?

Ensure you are using the original charger and cable. Try a different outlet. If the battery is completely drained, it may take a few minutes to start charging. If problem persists, contact service center.

Is the phone water-resistant?

No, the phone is not water-resistant. Do not immerse in water. If it gets wet, remove the battery (if possible) and take it to an authorized service center.

USER MANUAL Storm II X450 E-Boda

Lock and Unlock the Screen....2

Make it Yours ....3

Add Widgets and More Icons to Home Screen....4

Add widgets and icons to home screen....4

Rearrange or remove widgets and icons on your Home screen ....4

Enter Launcher ....5

Open and Switch Applications....5

Switch to Recently Used Application....5

Make a Call....6

Call Log 7

Reject a Call by Sending a Busy Message....8

Adding a Contact....8

Voice and Data Services 9

Send and Receive Message(s)....11

Browse the Web....13

Enjoy Music....14

Download Applications from Android Market ....15

Email Account Configuration ....16

Localisation and GPS 19

Manage Applications/ Move to SD card....20

Maintenance & Safety......21

European Directives ......23

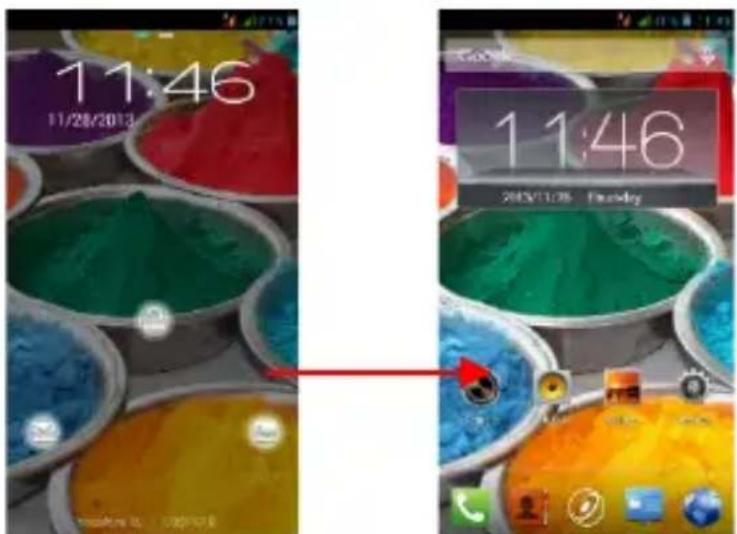

Lock and Unlock the Screen

Press power button to enter Sleep mode and meanwhile the screen will be locked; press power button again to wake up and then drag the lock to the right side to unlock.

Make it Yours

1) Home screen: It is your starting point to access all the features on your phone. It displays application icons, widgets, shortcuts, and other features.

2) Notification Bar: At the top of the screen, the Status bar displays the time, status, and notifications. If there is a new message, missed call or something in the notification bar, you can drag it down to open notification panel and click the desired one to have a view. When you finished, you can close it by dragging the panel up or pressing "Back".

3) Launcher: Touch the Launcher icon at the bottom of the screen to view all installed applications

Add Widgets and More Icons to Home Screen

Add widgets and icons to home screen

Enter Launcher and long press and hold an application till the app displays on the home screen, and then release your finger hold.

Rearrange or remove widgets and icons on your Home screen

a). Long press and hold the widget or icon you want to move. Once "Remove" appears, don't release your hold on the icon and drag the widget or icon to a new location on the screen. b). Press and hold on icon for several seconds, and drag the widgets or icon to remove!

Enter Launcher

Open and Switch Applications

The Launcher holds icons for all of the applications on your phone, including any application that you downloaded from Android Market or other sources. On the Home screen, touch the Launcher Icon to open the main menu.

Press Home icon or Back icon to close the Launcher.

Switch to Recently Used Application

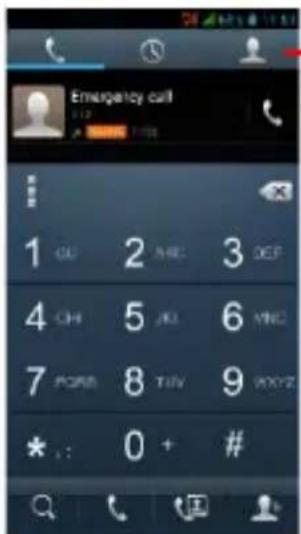

Make a Call

On the start screen choose and enter a complete phone number to make a call.

Make a call

Slide the screen to right

Slide the screen to right

Call Log

In call log options, you can Make a call, add new contact and send message etc.

Reject a Call by Sending a Busy Message

While there is an incoming call, you are inconvenient to accept the call, and then you can send a busy message for rejecting the call.

Drag the circle up to some busy messages will show on the screen, short tap any of them to send out.

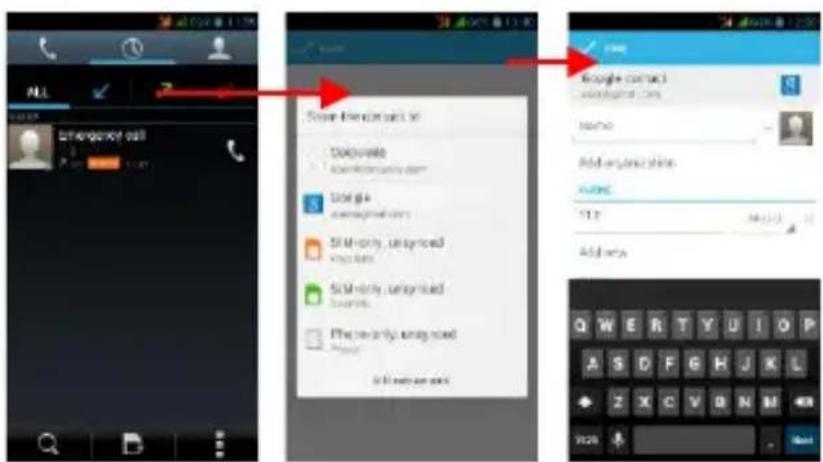

Adding a Contact

Tap and enter Contacts and then add a contact (see figure below.)

Tap " " to add a new contact to Phone or SIM card.

Voice and Data Services

SIMs:

1- It is necessary to clearly know what services you have attributed for each SIM,
2- After the SIMs have been installed and the telephone was started, it is necessary that from Settings → SIM management to assign the services correctly:

a- Voice Call can be assigned to any SIM,
b- Video Call shall be assigned only to the SIM with 3G data,
c- Messages can be assigned to any SIM.
d- Data Connexion shall be assigned only to the SIM with 3G data and usually it is configured as well as Video Call.

Note:

1- If you have an on-going call on one of the SIMs, the other will be disconnected from the network and you will not be able to receive calls on this one until you finish the initial call. If the calls you are about to receive are very important we recommend to redirect calls from one SIM to the other and to activate the Waiting Call.
2- There is the possibility that mobile phone operators to change working frequencies in this case, the table above may no longer be valid.
3- APN Settings

If data service is not activated automatically after introducing the card and starting the telephone, you should manually set the APN (Access Point Name) details. These settings can be found on the

official page of each mobile phor

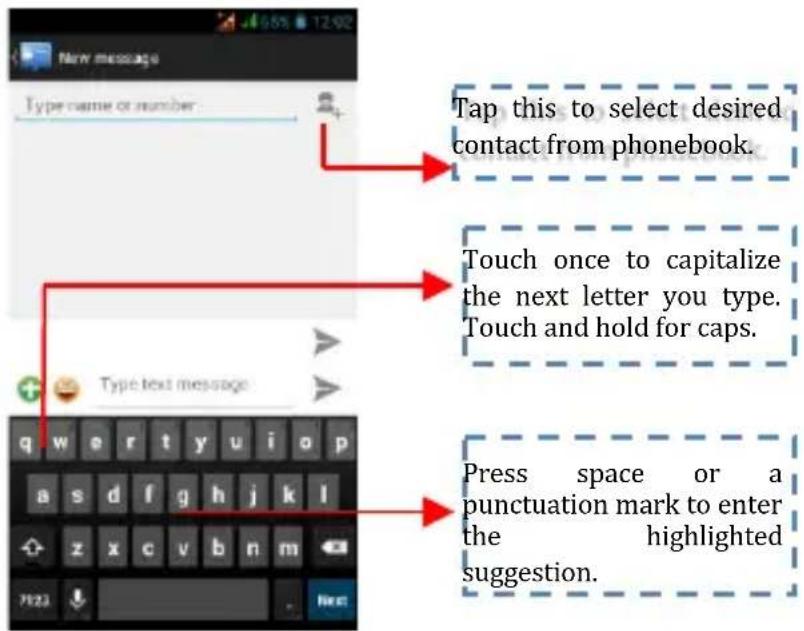

Send and Receive Message(s)

Enter Messaging and then compose a new message. You touch a text field where you want to enter text in order to open the keyboard.

a. When you are composing a new text message, you can select text for cutting or copying. The selected text is highlighted in blue.

Touch the text field or portion that contains text. (see the below figure) You can select all contexts, copy, cut and paste.

b. When a new message comes, you can read by dragging notification panel and click the message, or entering Message to read it directly.

1. Long press one of the all message threads, you can delete the message thread.

2. Touch and hold a message in a message conversation window.

1. Touch Forward in the menu that opens.

2. Add a contact.

3. Touch Send icon to send the message

Browse the Web

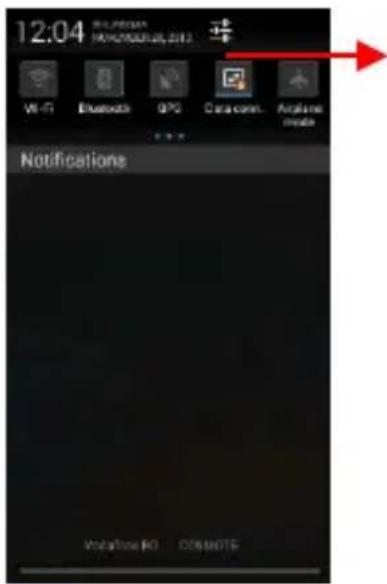

Switch on Data connection or WiFi

Touch it to switch on or off Data connection

Tips: To browse the web, you need switch on Data connection. If there is Wi-Fi around, you can switch on WiFi to use it browse the web. Some may need password.

Enjoy Music

When you copy music to your SD card, the Music player searches the card for music files and builds a catalogue of your music, based on information about each file that is stored in the file itself.

Touch a tab to view your library in one of four ways.

Touch to open the album songs or playlist.

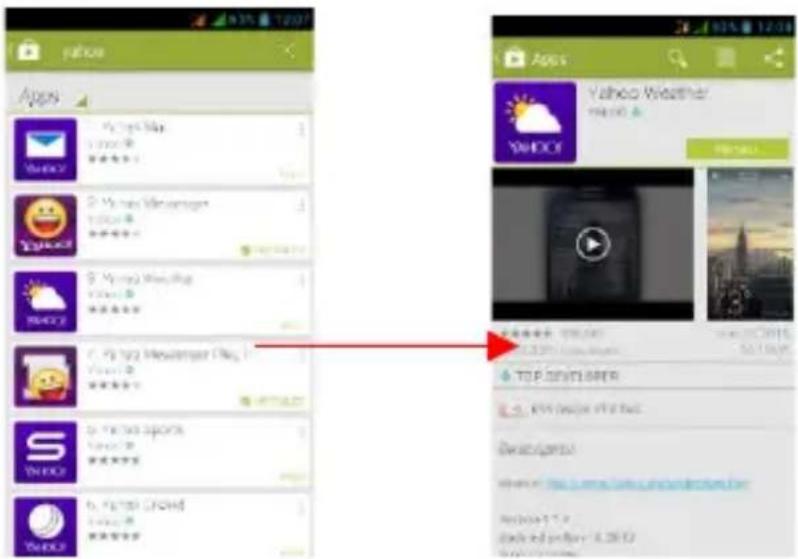

Download Applications from Android Market

a. Add a Google account

b. Enter Android Market (Play Store) and download apps.

Email Account Configuration

1- Gmail

Creating an email account

Select Gmail and follow the indicated steps. You can activate or edit extended email accounts or you can create a new email account.

Select Gmail and the Google account setting interface will appear. Then select Next/Create account/Introduce the name, surname and email address.

Google servers establish if the name can be used, and if it can be used, a new interface appears, requesting the introduction of the desired passwords. Afterwards, the strength of the password will be analysed, and the users who do not comply with requests will be asked to introduce again another password.

If the registration of a new Gmail account was made successfully, a message will be automatically created for testing.

Email account loading

Open Gmail, skip the introduction screen, and load the interface.

Introduce the name, password and then load.

Email account initialization will notify that the authentication was done successfully; all Google accounts will be synchronized.

Creating and sending emails

When you wish to create and email, select Email > Create Email. Introduce the address (recipient), subject and content. Press Menu to access Add Cc/Bcc, select Send or Cancel.

Receiving Emails

When receiving a new email you will be notified by an audio tone and an icon in the status bar. Slide the status bar downward, access the new mail, press Menu >Refresh to view all new unread mails.

Deleting Emails

When you select an email account, in order to delete it, you need to return to factory settings. When you set a second email account, press Menu to delete it.

Note: many functions depend on the Gmail account, for example: Electronic Market, Google Talk, Synchroniser, Contacts and Calendar.

2- Another email account

Setting an Email account

Introduce the correct address and password, access Settings > set the right port and POP server, then verify the server settings automatically.

Set the correct SMTP server, verify the mail server settings for sending and receiving, then introduce the name of the specified account and the name displayed for outgoing emails and then save.

Creating and sending emails

When you want to send an email, select Email>Create email. Introduce the address (recipient), subject and content of the email. Press Menu to access Add Cc/Bcc, select send, cancel or save as draft.

Localisation and GPS

• Use wireless networks: check to allow device localisation through Wi-Fi networks or mobile networks;
• Use GPS satellites: check for localisation using the built-in GPS receiver;
• EPO assistance: activate to improve the localization time;
• A-GPS: activate to improve the localization time through mobile data network communication (it can lead to additional costs for data traffic);

Note:

1- Google™ Map can be used as map but it requires permanent internet connexion,
2- The telephone recognises the most common maps that function OFF-LINE.

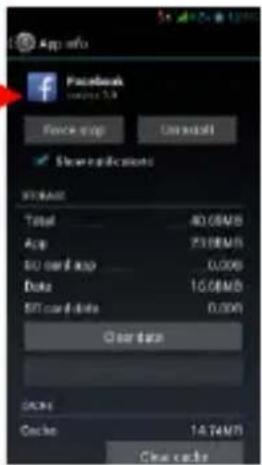

Manage Applications/ Move to SD card

Enter Setting >Apps, then manage the applications.

As you install downloaded Apps, you need switch on "Unknown sources" in Security settings.

Maintenance & Safety

Please read and observe the following information for safe and proper use of your phone and to prevent damage. Also, keep the user guide in an accessible place at all the times after reading it.

1. After sales service

Kindly refer to the Warranty Card provided in the sales package box.

2. Charger and Adapter Safety

Charger and adapter are designed for indoor use only.

3. Battery Information and Care

• Please do not disassemble the rear cover of the mobile phone, since the battery is inbuilt.
• Recharge the battery after long periods of non-use to maximize battery life.
• Battery life will vary due to usage patterns and environmental conditions.
  The self-protection function of the battery cuts the power of the phone when its operation is in an abnormal status. In this case, remove the battery from the phone, reinsert it, and turn the phone on.

4. General Notice

• Do not place items containing magnetic components such as a credit card, phone card, bank book, or subway ticket near your phone. The magnetism of the phone may damage the data stored in the magnetic strip.
• Talking on your phone for long period of time may reduce call quality due to heat generated during use.
• When the phone is not used for a long period time, store it in a safe place with the power cord unplugged.
  ○ Using the phone in proximity to receiving

equipment (i.e. TV or Radio) may cause interference to the phone.

Do not immerse your phone in water. If this happens, remove the battery and take it to an Authorized Service Centre.

- The suitable temperature for the phone and accessories is -10°C\~45°C.

- When charging, please place the phone in an environment that has a normal room temperature and good ventilation. It is recommended to charge the phone in an environment with a temperature under 40°C. Please ensure to use only the charger offered by the manufacturer. Using unauthorized charger may cause danger and violate the authorization of the phone and the guarantee article.

- Do not paint your phone.

- The data saved in your phone might be deleted due to careless use, repair of the phone, or upgrade of the software. Please backup your important phone numbers. (Ring tones, text messages, voice messages, picture, and videos could also be deleted.) The manufacturer is not liable for damage due to the loss of data.

- Do not turn your phone on or off when the phone is close to your ear.

Warning:

Company will not bear any responsibility for any incompliance with the above guidelines or improper use of the mobile phone. Our company keeps the right to make modifications to any of the content here in this user guide without public announcement in advance. The content of this manual may vary from the actual content displayed in the device. In such case, the latter shall govern.

European Directives

CE marking is a mandatory conformity mark for products placed on market in the European Economic Area. CE Marking on a product ensures that the product complies with the essential requirements of the applicable EC directives.

This product is marked with the distinctive symbol for electrical and electronic waste selective sorting. This symbol indicates that the product must be accepted by a selective waste collection system, in accordance with the EU 2002/96/EC directive, so it can be recycled or dismantled to reduce the impact on the environment.

Attention! Electronic products that are not sorted selectively may affect the environment and people's health, as they may contain dangerous substances.

ROHS (Restriction on Hazardous Substances). This directive is a regulation that was implemented on 01 July 2006 and refers to restrictions on the marketing of products and electrical and electronic equipment containing hazardous substances such as lead, hexavalent chromium, cadmium, brominated biphenyl (PBB), polybrominated diphenyl ethers (PBDE).

Cuprins

Directive Europene....23
