MC366 - Chopper VOX - Free user manual and instructions

Product Type	Mini Chopper
Brand	VOX
Model	MC366 (also MC355)
Capacity	Up to 200g (7 oz)
Operation	Pulse action via depress-and-hold button
Main Functions	Chopping, mincing, pureeing
Applicable Foods	Bread, fruits, vegetables, herbs, beef, cookies, crackers
Safety Features	Lid locking system (motor unit won't operate unless locked); blades stop before removal; pulse button must be held
Blade Material	Stainless steel (sharp)
Bowl Material	Plastic (dishwasher safe)
Motor Unit Care	Wipe with damp cloth; do not immerse in water
Dishwasher Safe Parts	Bowl and blade assembly
Continuous Run Time Limit	Maximum 1 minute continuous pulse
Housing Material	Plastic (motor unit)
Power Source	Household electrical outlet (voltage not specified; typical 120V or 220-240V)
Usage Rating	Household use only
Disposal	Environmentally friendly disposal per local regulations

Frequently Asked Questions - MC366 VOX

How do I lock the motor unit onto the bowl?

Align the locking tabs on the motor unit with the slots on the bowl, then press down until it clicks into place. The unit will not operate unless properly locked.

What is the maximum amount of food I can process at once?

Do not exceed 200 grams (7 oz) of food per batch to ensure proper chopping and avoid overloading.

Can I wash the bowl and blade in the dishwasher?

Yes, the bowl and blade assembly are dishwasher safe. However, the motor unit must only be wiped with a damp cloth and never immersed in water.

How do I achieve coarse or fine chopping?

Use short pulses for coarser texture and longer continuous pulses (up to 1 minute) for finer texture. Always allow the blade to stop completely between pulses.

What should I do if the blade does not rotate?

Ensure the motor unit is properly locked onto the bowl. The lid locking system prevents operation if not aligned. Also check that the pulse button is fully depressed.

Can I process hot liquids?

No, do not pour hot liquids into the bowl as they may be ejected due to sudden steaming. Allow food to cool before chopping.

Is it safe for children to use?

No, this appliance should not be used by children. Keep it out of reach and ensure supervision if used near children.

How do I clean the blade safely?

Always unplug the unit and wait for the blade to stop completely. Remove the blade assembly by grasping the plastic hub. Wash in warm soapy water or dishwasher, being careful of sharp edges.

What can I chop with this mini chopper?

It can chop bread, fruits, vegetables, herbs, beef (cut to 20x20mm), cookies, crackers, and more. Refer to the chopping guide in the manual for specifics.

What does the pulse button do?

The pulse button activates the blade only while held down. This allows controlled chopping and prevents continuous running. Release to stop immediately.

USER MANUAL MC366 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MC - 355

MC - 366

OPERATING INSTRUCTIONS MINI CHOPPER

MANUALE DELL'UTENTE MINI TRITATUTTO

UPUTSTVO ZA UPOTREBU MINI ČOPER

MANUAL DE USUARIO MINI CHOPPER

MANUAL DO USUÁRIO MINI PICADOR

NAVODILA ZA UPORABO MINI SEKLJALNIK

UPUTE ZA UPORABU MINI SJECKALICA

UPUTSTVO ZA UPOTREBU MINI ČOPER

MANUALI I PERDORUESIT MINI GRIRËSE

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GBR

MINI CHOPPER

INSTRUCTION MANUAL

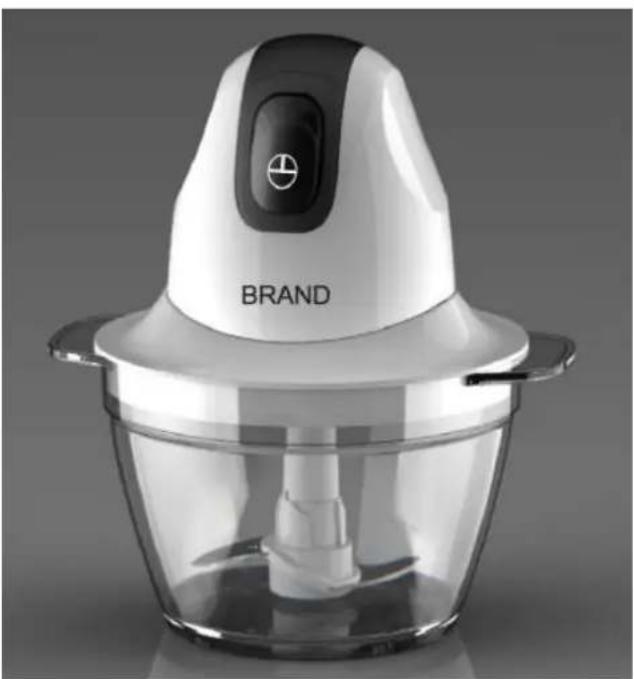

White brand blender with black handle and 'BRAND' label, no visible text or symbols on the device itself

MC - 355

MC - 366

Read this booklet thoroughly before using and save it for future reference

IMPORTANT SAFETY INSTRUCTIONS

• Read all instructions before using.
• Do not open until blades stop.
• The appliance cannot be used for other than intended use.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not let the cord hang over the edge of a table or counter or touch a hot surface.

- Do not place on or near a hot gas or electric burner or in a heated oven.

- Keep hands and utensils away from the cutting blade while chopping food to reduce the risk of severe injury to persons or damage to the food chopper. A scraper may be used but only when the food chopper is not running.

- To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs, or motor unit in water or other liquids.

- Close supervision is necessary when any appliance is used by or near children.

- The appliance is not a toy. Do not let the children play it.

- Avoid contacting moving parts.

- The use of attachments not recommended or sold by manufacturer may cause fire, electric shock or injury.

- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner, Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.

- Do not use the appliance for other than intended use.

- Be sure motor unit is locked securely in place before operating appliance.

- Do not attempt to defeat the lid interlock mechanism.

- Do not use outdoors.

· Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

- Be careful when handing the sharp cutting blades, emptying the bowl and during cleaning.

- Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

SAVE THIS INSTRUCTION. DO NOT OPEN UNTIL BLADES STOP. HOUSEHOLD USE ONLY

KNOW YOUR FOOD CHOPPER

BEFORE THE FIRST USE

Before using this appliance for the first time, wash the bowl and blade assembly in sudsy water and dry thoroughly, all of these parts are safe in dishwasher, wipe the motor unit with a damp cloth, do not immerse the motor unit in water.

HOW TO CHOP OR MINCE FOOD

1. Place the bowl on a counter or other flat surface, then slide the blade down over the shaft in the bowl. Be careful not to touch the blade as it is extremely sharp.
2. Place dry food in the bowl, the desired food refers to the chopping guide.
3. Position the motor unit onto the bowl, lining up the motor unit locking tabs to the bow locking slots till the motor unit locks.

Note: For your protection, this unit has a lid locking system, the unit will not operate unless the tabs in the motor unit and slots in the bowl align. Do not attempt to operate the unit without locking the motor unit in place.

1. Depress and hold the pulse button to process.

Note: This product has a "pulse action" feature. Avoid running the motor continuously in this mode for period over 1 minute. the longer the continuous pulse, the finer the texture. For coarsely chopped foods, use short pulses.

1. Be sure the blade stops rotating completely before removing the motor unit. Unplug the unit. Remove the motor unit and grasp the plastic blade hub and carefully pull the blade assembly out. Remove the bowl and empty the processed food. Do not use bowl for storing food.

CLEANING AND MAINTENANCE

Always disconnect the appliance from the power outlet before cleaning.

Wash the bowl, blade assembly immediately after use either with warm/sudsy water or in the dishwasher. Wipe off the motor unit with a damp cloth- do not immerse in water.

NOTE: Do not use chemical, steel, wooden or abrasive cleaners to clean the unit to prevent the gloss loss.

CHOPPING GUIDE

FOOD TYPE	PREPARATION HINTS
Bread fresh, toasted or stale	Use 1 slice at a time, torn into several pieces.
Fruits and vegetablesCannedCookedFresh	Drain up to 200g and process 15 seconds ON 1min OFF until pureed as desired.Use up to 200g plus cooking liquid as needed and process ON 15 seconds OFF 1min until pureed is desiredPulse or process up to 200g chunked fruits or vegetables ON 15 seconds OFF 1min until desired chop is reached.
Parsley and other leafy herbs	Wash and dry thoroughly then pulse or process up to 200g ON 30seconds OFF 1min until desired chop is achieved.
Beef	Pulse or process up to 200g (cut to size 20*20mm) ON 15 seconds OFF 1min until desired chop is reached
Cookies, crackers	Pulse or process up to 12 cookies or crackers ON 15 seconds OFF 1min until desired chop is reached.

ENVIRONMENT FRIENDLY DISPOSAL

Simple line drawing of a trash bin with no text or symbols

You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal center.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ITA

MINI TRITATUTTO

MANUALE DELL'UTENTE

White brand blender with black handle and 'BRAND' label, no visible text or symbols on device body

MC - 355

MC - 366

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

DEU

MINI ZERKLEINERER

BEDIENUNGSANLEITUNG

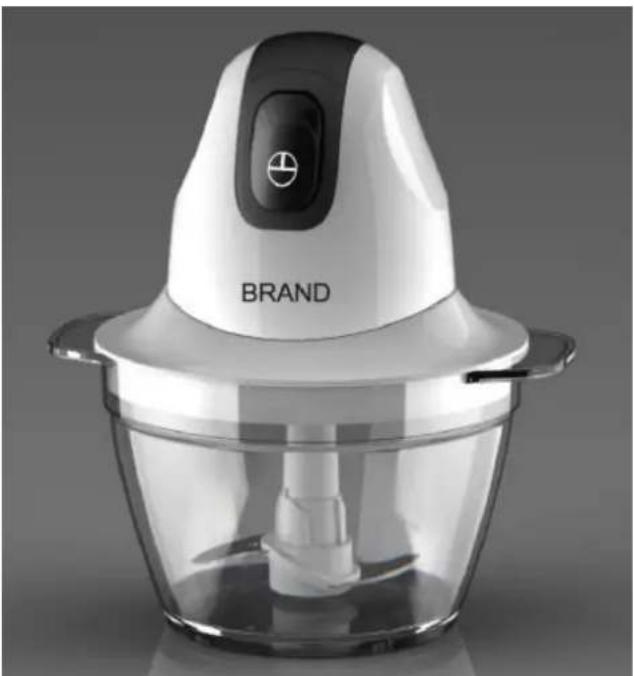

White brand blender with black handle and 'BRAND' label, no visible text or symbols on device body

MC - 355

MC - 366

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

White brand blender with black handle and 'BRAND' label, no visible text or symbols on device body

MC - 355

MC - 366

Symbol of a waste bin with no text or labels

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SRB

MINI ČOPER UPUTSTVO ZA UPOTREBU

White brand kitchen blender with a black control knob, shown in a clear glass bowl (no text or symbols on the device itself)

MC - 355

MC - 366

Pažljivo pročitajte ovo uputstvo pre upotrebe i sačuvajte ga za svaku buduću upotrebu

VAŽNA BEZBEDNOSNA UPUTSTVA

- Pročitajte uputstvo pre korišćenja aparata.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ESP

MINI CHOPPER

MANUAL DE USUARIO

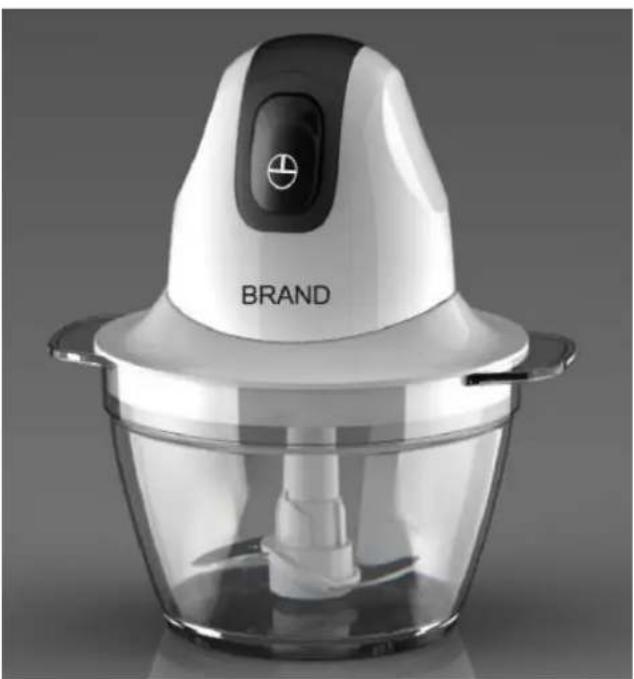

White brand blender with black handle and 'BRAND' label, no visible text or symbols on the device itself

MC - 355

MC - 366

Simple line drawing of a trash bin with no text or symbols

White brand blender with black handle and 'BRAND' label, no visible text or symbols on device body

MC - 355

MC - 366

INSTRUÇÕES DE SEGURANÇA IMPORTANTES

Exploded view diagram of a kitchen appliance showing internal components (no text or labels)

Botão pulsar

Corpo

Tampa da tigela

Tigela pequena

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GRC

ΠΟΛΥΚΟΦΤΗΣ

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ

White brand blender with black handle and 'BRAND' label, no visible text or symbols on device body

MC - 355

MC - 366

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

MINI SEKLJALNIK

NAVODILA ZA UPORABO

White brand blender with black handle and 'BRAND' logo, no visible text or symbols on device body

MC - 355

MC - 366

Exploded view diagram of a kitchen appliance showing internal components (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

HRV

MINI SJECKALICA UPUTE ZA UPORABU

White brand kitchen blender with black handle and 'BRAND' label, no visible text or symbols on device body

MC - 355

MC - 366

Pažljivo pročitajte ove upute prije uporabe i sačuvajte ih za uporabu u budućnosti

VAŽNE SIGURNOSNE UPUTE

-Pročitajte upute prije korištenja uređaja.

-Ne otvarajte uređaj dok se sječiva ne zaustave.

-Motorna jedinica se ne smije koristiti ni u jednu drugu svrhu osim propisane.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

BIH

MNE

MINI ČOPER

UPUTSTVO ZA UPOTREBU

White brand cleaning brush with a black handle and 'BRAND' label, shown in a clear glass bowl (no additional text or symbols visible)

MC - 355

MC - 366

VAŽNA BEZBEDNOSNA UPUTSTVA

-Pročitajte uputstvo prije korišćenja aparata.

-Ne otvarajte aparat dok se sječiva ne zaustave.

-Motorna jedinica se ne smijė koristiti ni u jednu drugu svrhu osim propisane.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MKD

White brand kitchen blender with black handle and 'BRAND' label, no visible text or symbols on the device itself

MC - 355

MC - 366

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ALB

MINI GRIRËSE UDHËZIMI PËR PËRDORIM

White brand blender with black handle and 'BRAND' label, no visible text or symbols on device body

MC - 355

MC - 366

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)
