Product Type	Juicer
Brand	Gorenje
Model	JC803O
Color	Silver / Black
Motor Power	800 W
Speed Settings	2 (Low / High)
Pulp Container Capacity	1.5 L
Juice Jug Capacity	1.0 L
Feeding Tube Diameter	75 mm
Material	BPA-free plastic, stainless steel micro-mesh filter
Dishwasher Safe Parts	Yes (all removable parts)
Safety Lock	Yes (arm lock)
Cord Length	1.2 m
Weight	4.5 kg
Dimensions (W x D x H)	30 x 25 x 40 cm
Voltage / Frequency	220-240 V / 50-60 Hz
Warranty	2 years
Functions	Juicing, pulp separation
Accessories Included	Cleaning brush, juice jug, pulp container
Anti-Drip Function	Yes
Overheat Protection	Yes (auto shut-off)
Pulp Ejection	Automatic into separate container

Frequently Asked Questions - JC803O GORENJE

How do I assemble the Gorenje JC803O juicer?

Place the motor base on a flat surface. Insert the pulp container into the base. Attach the filter basket onto the motor shaft. Lock the juicing arm in place until you hear a click. Finally, place the juice jug under the spout.

Can I juice leafy greens like spinach or kale?

Yes, the JC803O is suitable for leafy greens. For best results, roll the leaves into a ball and feed them slowly using the pusher. Use the low speed setting for softer greens.

How do I clean the juicer after use?

Unplug the juicer. Disassemble all removable parts. Rinse immediately under running water. Use the included brush to clean the filter mesh. All parts except the motor base are dishwasher safe. Dry thoroughly before reassembly.

Why is the juicer not working?

Ensure the juicing arm is properly locked into position. The safety lock prevents operation if not engaged. Also check that the pulp container and juice jug are correctly placed. If the motor overheated, wait 15 minutes for it to cool down and reset.

What is the maximum feeding tube size?

The feeding tube has a diameter of 75 mm. Most whole apples and carrots can be inserted without cutting. However, very hard or large fruits should be cut into pieces to avoid jamming.

Does the JC803O have an anti-drip function?

Yes, the juicer features an anti-drip spout that prevents juice from dripping onto your countertop after you remove the juice jug.

Can I use the juicer continuously for long periods?

The motor has overheat protection. It is designed for intermittent use: run for up to 2 minutes, then let it rest for 2 minutes. This prevents overheating and prolongs motor life.

What warranty does the Gorenje JC803O have?

The juicer comes with a 2-year manufacturer warranty against defects in materials and workmanship. Retain your purchase receipt for warranty claims.

Can I juice frozen fruits?

No, do not juice frozen fruits or ice cubes. They can damage the filter and motor. Allow frozen fruits to thaw before juicing.

How do I store the juicer when not in use?

Clean and dry all parts thoroughly. Store the juicer in a dry place. You can keep the assembly intact or disassemble for compact storage. Avoid direct sunlight.

USER MANUAL JC803O GORENJE

JC803G

JC803O

1. Potiskalo
2. Prostor za polnjenje
3. Pokrov
4. Filter
5. Zbiralnik za sok
6. Posoda za tropine
7. Varnostna zaklopka
8. Motorna enota
9. ON/OFF stikalo
10. Pokrov vrča za sok
11. Vrč za sok

Pomembno:

Opomba: Preden nadaljujete z iztiskanjem soka, ponovno sestavite prazno posodo za tropine.

Insert the filter into the juice container. Cover the filter with the lid and lower it into position.

Check that the filter fits tightly onto the drive shaft ('catch').

Using the appliance:

1. Pusher
2. Feed tube
3. Lid
4. Filter
5. Juice container
6. Pulp container
7. Safety valve
8. Motor unit
9. ON/OFF switch
10. Juice jug lid
11. Juice jug

Important

Before using the appliance, carefully read these instructions for use and keep them for future reference.

Danger

Align the groove in the pusher with the small protrusions on the inside of the tube, then push the pusher into the insertion opening. Make sure the coupling is secured in the correct position.

Using the appliance

The juice jug must be positioned below the spout, and the spout must be lowered.

Turn the control to setting 1 (low speed) or 2 or 3 (normal speed) to switch on the juicer.

Speed 1 is suitable for soft fruits and vegetables such as watermelons, grapes, tomatoes, cucumbers, and raspberries.

Speed 2 or 3 is suitable for all types of fruits and vegetables.

Place the pre-cut food into the insertion opening and gently press it down with the pusher towards the rotating filter.

Do not press the pusher too hard, as this may reduce the quality of the juice or even cause the filter to clog.

1. Pusher
2. Food opening
3. Lid
4. Filter
5. Juice collection container
6. Pulp container
7. Safety valve
8. Motor unit
9. ON/OFF switch
10. Juice jug lid
11. Juice jug

Important

Before using the appliance, carefully read these instructions and keep them for future reference.

Danger

Insert the pusher into the feed tube by aligning the groove on the pusher with the small protrusion inside the feed tube.

Using the appliance

Check that the juice jug is placed under the spout and that the spout is in the lowered position.

Turn the dial to position 1 (low speed) or 2 or 3 (normal speed) to switch on the appliance.

Speed 1 is particularly suitable for soft fruits and vegetables such as watermelons, grapes, tomatoes, cucumbers, and raspberries.

Speed 2 or 3 is suitable for all types of fruits and vegetables.

Place the chopped pieces into the feeding tube and gently press them down with the pusher towards the rotating filter.

Do not press the pusher too hard, as this may affect the quality of the final result. It may even cause the filter to jam.

Note: All removable parts can be washed in the dishwasher. Place removable plastic parts in the top rack of the dishwasher. Make sure they are far enough away from the heating element.

Clean the motor unit with a damp cloth. Never immerse the motor unit in water or rinse it under running water.

Environmental protection

The symbol on the product or its packaging indicates that this product must not be treated as household waste. Instead, it should be handed over to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about the treatment, recovery, and recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.

Warranty and service

For information or in case of problems, contact the Gorenje customer care center in your country (the phone number is in the international warranty leaflet). If there is no such center in your country, contact your local Gorenje dealer or the Gorenje small domestic appliances department.

Not for commercial use!

GORENJE

WISHES YOU MUCH

PLEASURE IN USING YOUR

APPLIANCE!

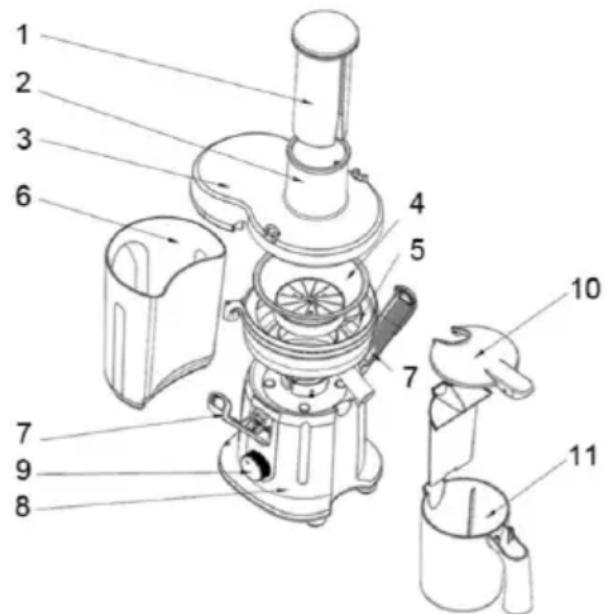

1. Pusher
2. Feeding tube
3. Lid
4. Filter
5. Juice collector
6. Pulp container
7. Safety lock
8. Motor unit
9. ON/OFF Button
10. Juice jug lid
11. Juice jug

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

Do not immerse the motor unit in water or any other liquid, nor rinse it under the tap.

Warning

• Do not allow children touch the iron or the power cord when ironing.
• Check to make sure the mains socket has the correct rating (230V/16A).
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
• Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid a hazard.

Caution: This appliance is intended for household use only.

Never use any accessories or parts from other manufacturers or that Gorenje does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.

Make sure all parts are correctly mounted before you switch on the appliance.

Only use the appliance when both clamps are locked.

Only unlock the clamps after you have switched off the appliance and the filter has stopped rotating.

Do not operate the juicer for more than 40 seconds at a time when you juice heavy loads and let it cool down sufficiently afterwards.

None of the recipes in this user manual constitute heavy loads.

Do not remove the pulp container when the appliance is operating.

Always unplug the appliance after use.

Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.

Noise level: Lc < 80 dB(A)

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Preparing for use

Wash all detachable parts (see chapter 'Cleaning').

Place the juice collector in the appliance. To place the pulp container, tilt it forwards slightly. Insert the top end of the pulp container first and then push home the bottom end. To empty the pulp container while you are juicing, switch off the appliance and carefully remove the pulp container.

Note: Reassemble the empty pulp container before you continue juicing.

Put the filter in the juice collector. Hold the lid over the filter and lower it into position.

Make sure the filter is fitted securely onto the driving shaft ('click').

Always check the filter before use. If you detect any cracks or damage, do not use the appliance.

Contact the nearest Gorenje service centre or take the appliance to your dealer.

Snap the two clamps onto the lid to lock it into place ('click').

Align the groove in the

pusher with the small protrusion on the inside of the feeding tube and slide the pusher into the feeding tube.

Make sure the clamps are locked. Put the lid on the juice jug to avoid splattering. Place the juice jug under the spout.

Using the appliance

The appliance only functions if all parts are assembled properly and the lid is properly locked in place with the clamps.

Wash the fruit and/or vegetables and cut them into pieces that fit into the feeding tube.

Make sure the juice jug is placed under the spout and the spout is in downward position. Turn the control knob to setting 1 (low speed) or 2 or 3 (normal speed) to switch on the appliance.

Speed 1 is especially suitable for soft fruits and vegetables such as watermelons, grapes, tomatoes, cucumbers and raspberries.

Speed 2 or 3 is suitable for all kinds of fruits and vegetables.

Put the pre-cut pieces in the feeding tube and gently press them down towards the rotating filter with the pusher.

Do not exert too much pressure on the pusher, as this could affect the quality of the end result. It could even cause the filter to come to a halt. Never insert your fingers or an object into the feeding tube.

After you have processed all ingredients and the juice flow has stopped, switch off the appliance and wait until the filter has stopped rotating.

Push the spout upwards to prevent juice from dripping out of the spout.

Slide the foam separator into the juice jug and place the lid on the juice jug. In this way, the foam stays behind in the jug when you pour out the juice.

Note: If you want your drink to have a foamy layer, do not use the foam separator.

Note: If you want to store the juice in the refrigerator, make sure the lid is on the juice jug.

Tips

Use fresh fruit and vegetables, as they contain more juice. Pineapples, beetroots, celery stalks, apples, cucumbers, carrots, spinach, melons, tomatoes, pomegranates, oranges and grapes are particularly suitable for processing in the juicer.

You do not have to remove thin peels or skins. Only remove thick peels, e.g. those of oranges, pineapples and uncooked beetroots. Also remove the white pith of citrus fruits because it has a bitter taste.

When you prepare apple juice, remember that the thickness of the apple juice depends on the kind of apple you use. The juicier the apple, the thinner the juice. Choose a kind of apple that produces the type of juice you prefer.

Apple juice turns brown very quickly. To slow down this process, add a few drops of lemon juice.

Fruits that contain starch, such as bananas, papayas, avocados, figs and mangoes are not suitable for processing in the juicer. Use a food processor, blender or bar blender to process these fruits.

Leaves and leaf stalks of e.g. lettuce can also be processed in the juicer.

Drink the juice immediately after you have extracted it. If it is exposed to air for some time, the juice loses its taste and nutritional value.

To extract the maximum amount of juice, always press the pusher down slowly.

The juicer is not suitable for processing very hard and/or fibrous/starchy fruits or vegetables such as sugar cane.

Cleaning

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as alcohol, petrol or acetone to clean the appliance.

The appliance is easier to clean if you do so immediately after use.

Switch off the appliance. Remove the plug from the wall socket and wait until the filter has stopped rotating.

Remove the dirty parts from the motor unit.

Disassemble the appliance in the following order:

Remove the pulp container;

- Remove the pusher;

• Open safety lock and the clamps;
• Remove the lid.
• Remove the juice collector together with the filter.
• Clean all parts except the motor unit with the cleaning brush in warm water with some washing-up liquid and rinse them under the tap.

Note: All detachable parts are dishwasher-safe. Place the detachable plastic parts on the top tray of the dishwasher. Make sure they are placed well away from the heating element.

Clean the motor unit with a damp cloth.

Never immerse the motor unit in water nor rinse it under the tap.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee and service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

We reserve the right to any modifications!

General description

Instructions for use

INSTRUCTION MANUAL

EN

General description

1. Piston
2. Dosing tube
3. Lid
4. Filter
5. Juice container
6. Pulp container
7. Safety valve
8. Drive unit
9. ON/OFF switch
10. Juice container lid
11. Juice container

Important

Use of the device

Use
